JEEP RENEGADE 2015 1.G Owners Manual

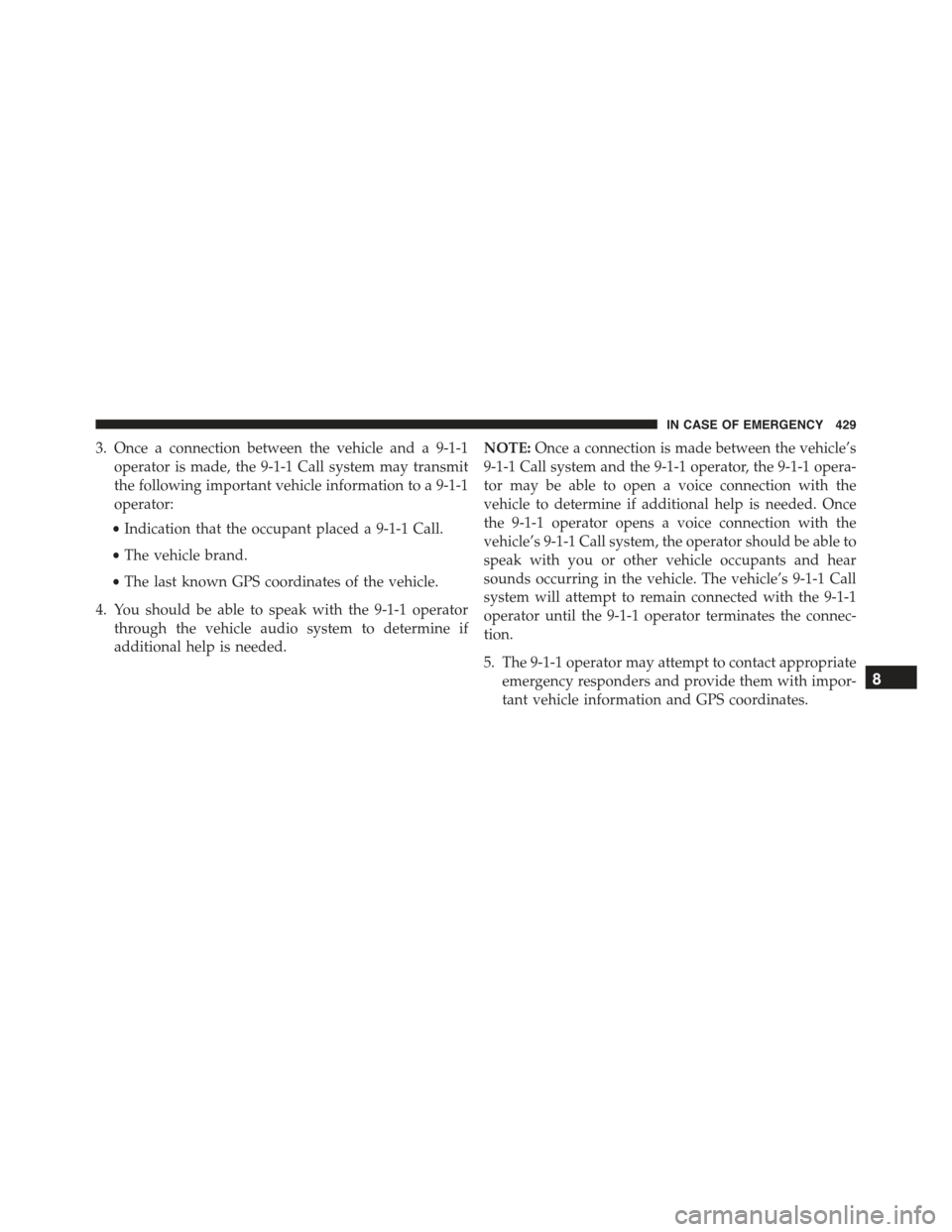

3. Once a connection between the vehicle and a 9-1-1
operator is made, the 9-1-1 Call system may transmit
the following important vehicle information to a 9-1-1
operator:
•Indication that the occupant placed a 9-1-1 Call.
•The vehicle brand.
•The last known GPS coordinates of the vehicle.
4. You should be able to speak with the 9-1-1 operator
through the vehicle audio system to determine if
additional help is needed.
NOTE:Once a connection is made between the vehicle’s
9-1-1 Call system and the 9-1-1 operator, the 9-1-1 opera-
tor may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able to
speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1 Call
system will attempt to remain connected with the 9-1-1
operator until the 9-1-1 operator terminates the connec-
tion.
5. The 9-1-1 operator may attempt to contact appropriate
emergency responders and provide them with impor-
tant vehicle information and GPS coordinates.
8
IN CASE OF EMERGENCY 429

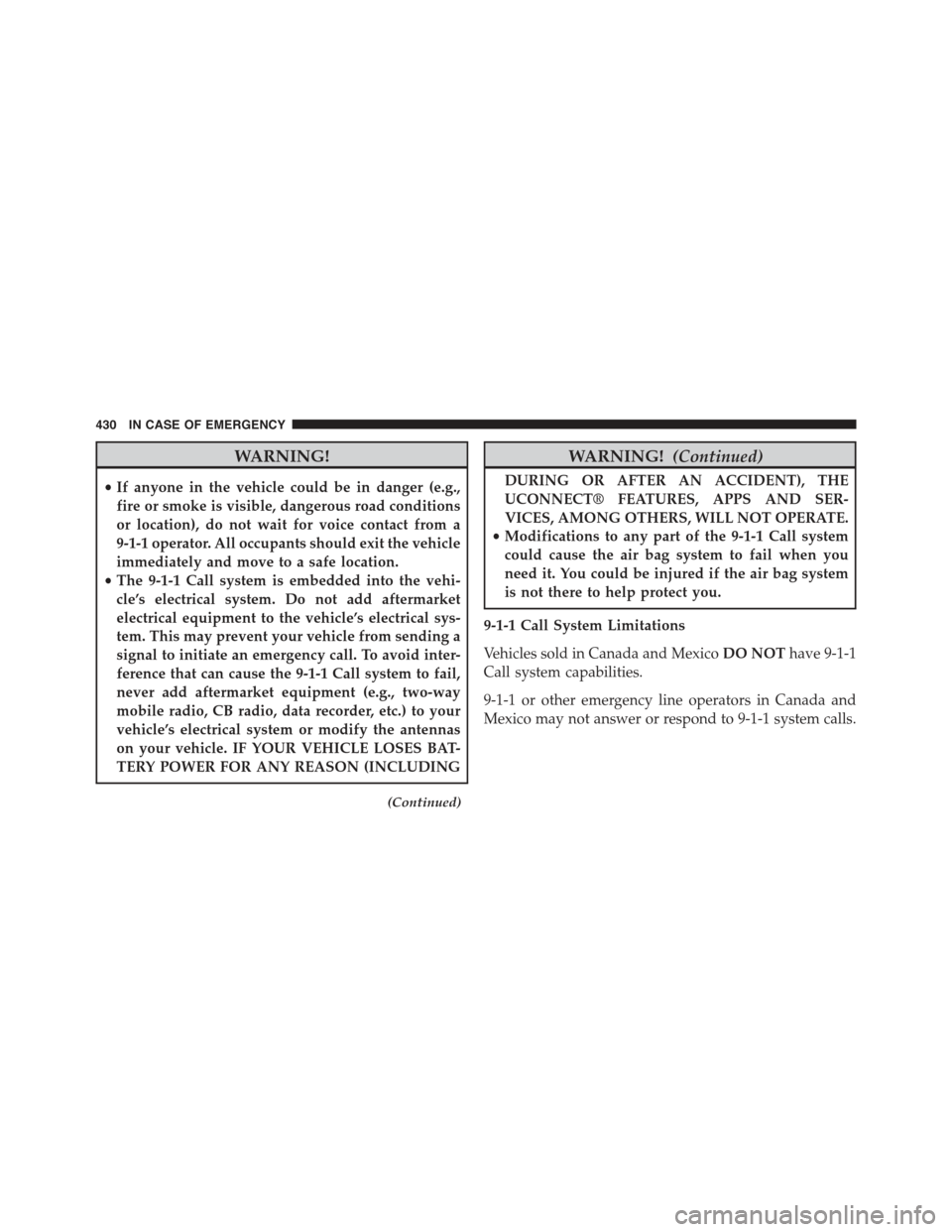

WARNING!
•If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
•The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
(Continued)
WARNING!(Continued)
DURING OR AFTER AN ACCIDENT), THE
UCONNECT® FEATURES, APPS AND SER-
VICES, AMONG OTHERS, WILL NOT OPERATE.
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
430 IN CASE OF EMERGENCY

If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:
•The overhead console lights located on the Assist and
9-1-1 buttons will continuously be illuminated red.
•The Phone Screen will display the following message
“Vehicle phone requires service. Please contact your
dealer.”
•An In-Vehicle Audio message will state “Vehicle phone
requires service. Please contact your dealer.”
WARNING!
•Ignoring the Assist and 9-1-1 buttons light could
mean you will not have 9-1-1 Call services. If the
Assist and 9-1-1 buttons light is illuminated, have
an authorized dealer service the 9-1-1 Call system
immediately.
•The Occupant Restraint Control module turns on
the air bag Warning Light on the instrument panel
if a malfunction in any part of the system is
detected. If the air bag Warning Light is illumi-
nated, have an authorized dealer service the ORC
system immediately.8
IN CASE OF EMERGENCY 431

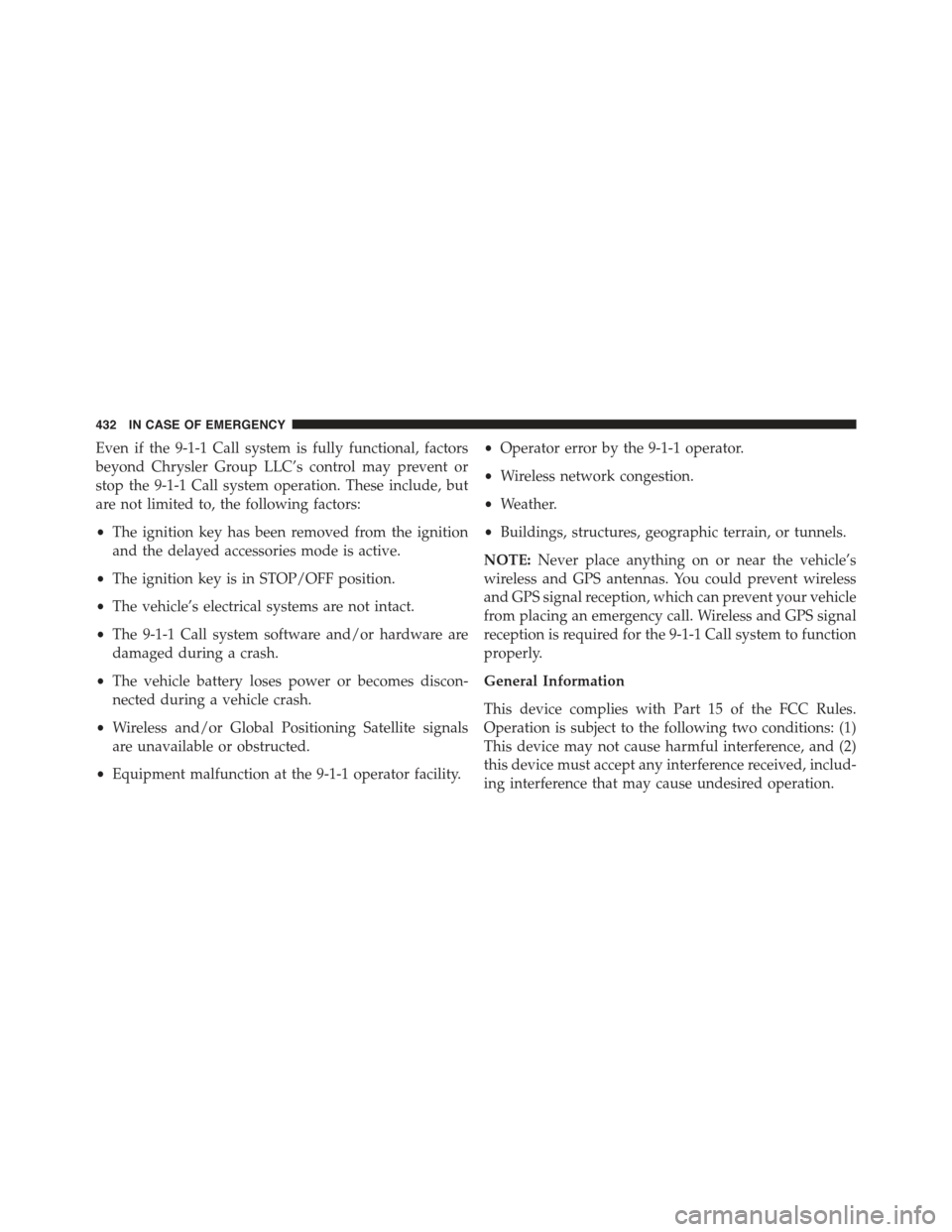

Even if the 9-1-1 Call system is fully functional, factors
beyond Chrysler Group LLC’s control may prevent or
stop the 9-1-1 Call system operation. These include, but
are not limited to, the following factors:
•The ignition key has been removed from the ignition
and the delayed accessories mode is active.
•The ignition key is in STOP/OFF position.
•The vehicle’s electrical systems are not intact.
•The 9-1-1 Call system software and/or hardware are
damaged during a crash.
•The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
•Wireless and/or Global Positioning Satellite signals
are unavailable or obstructed.
•Equipment malfunction at the 9-1-1 operator facility.
•Operator error by the 9-1-1 operator.
•Wireless network congestion.
•Weather.
•Buildings, structures, geographic terrain, or tunnels.
NOTE:Never place anything on or near the vehicle’s
wireless and GPS antennas. You could prevent wireless
and GPS signal reception, which can prevent your vehicle
from placing an emergency call. Wireless and GPS signal
reception is required for the 9-1-1 Call system to function
properly.
General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
432 IN CASE OF EMERGENCY

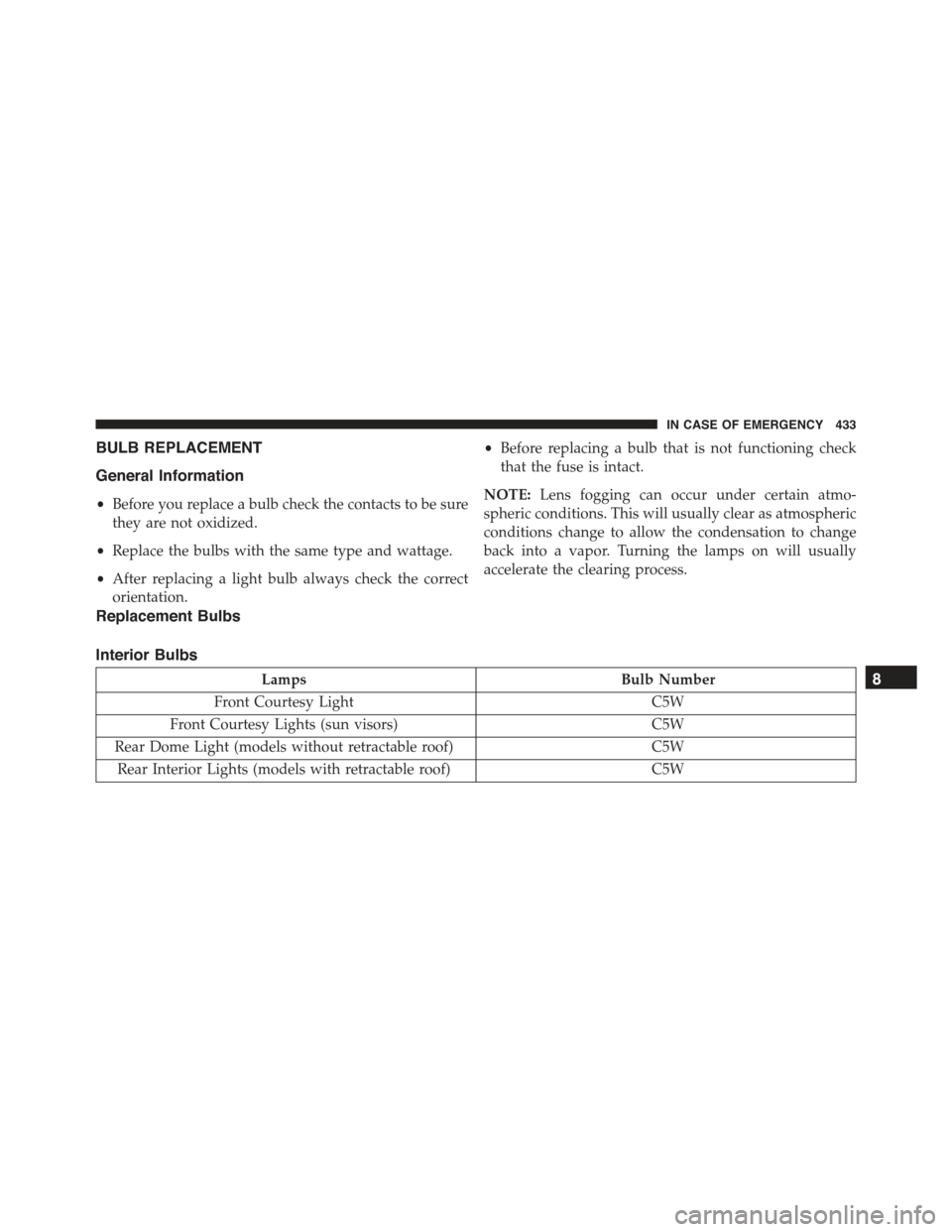

BULB REPLACEMENT
General Information
•Before you replace a bulb check the contacts to be sure
they are not oxidized.
•Replace the bulbs with the same type and wattage.
•After replacing a light bulb always check the correct
orientation.
•Before replacing a bulb that is not functioning check
that the fuse is intact.
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Replacement Bulbs
Interior Bulbs
LampsBulb Number
Front Courtesy LightC5W
Front Courtesy Lights (sun visors)C5W
Rear Dome Light (models without retractable roof)C5W
Rear Interior Lights (models with retractable roof)C5W
8
IN CASE OF EMERGENCY 433

LampsBulb Number
Interior LightsW5W
Dome Light (glove box)W5W
Exterior Bulbs
LampsBulb Number
Low Beam/High Beam HeadlampsH13
Front Position/Daytime Running Lights (DRL )P21/5W
Front Direction Indicator LampsPY21W
Front Fog LampsH11
Side Indicators (front and side view mirror)WY5W
Tail/Brake Lights/Turn IndicatorsP21W
Center High Mounted Stop Lamp (CHMSL)LED (Serviced at an Authorized Dealer)
REVERSEW16W
License Plate LampW5W
434 IN CASE OF EMERGENCY

Replacement Of An External Lamp
Headlamps
Hi/Lo Beam Light Halogen
To replace the bulbs proceed as follows:
1. Open the engine compartment and remove the head-
lamp bulb cap.
Headlamp Bulb Cap8
IN CASE OF EMERGENCY 435

2. Rotate the headlamp bulb socket counterclockwise
then pull outwards.
3. Push on the locking tab on the headlamp bulb connec-
tor and remove the bulb and socket.
Headlamp Bulb SocketHeadlamp Bulb Connector
436 IN CASE OF EMERGENCY

4. Install the new headlamp bulb making sure it is
properly locked.
5. Install the headlamp bulb and socket; turn it clockwise
making sure it is properly locked.
WARNING!
Carry out the operation of replacing lamps only with
the engine off. Also make sure that the engine is cold,
to avoid the danger of burns.
Headlamp Bulb8
IN CASE OF EMERGENCY 437

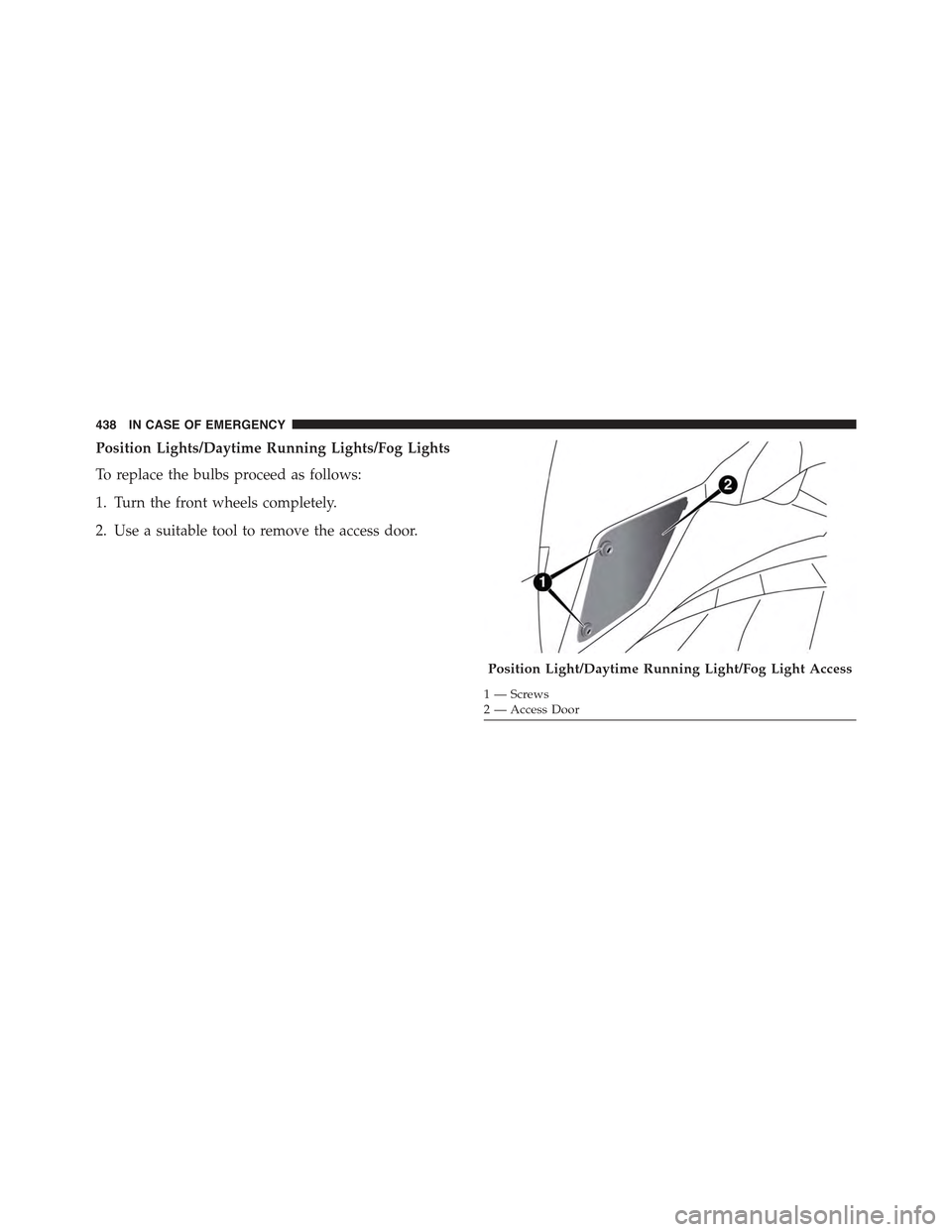

Position Lights/Daytime Running Lights/Fog Lights
To replace the bulbs proceed as follows:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.
Position Light/Daytime Running Light/Fog Light Access
1—Screws2—AccessDoor
438 IN CASE OF EMERGENCY
