JEEP RENEGADE 2018 Owner handbook (in English)

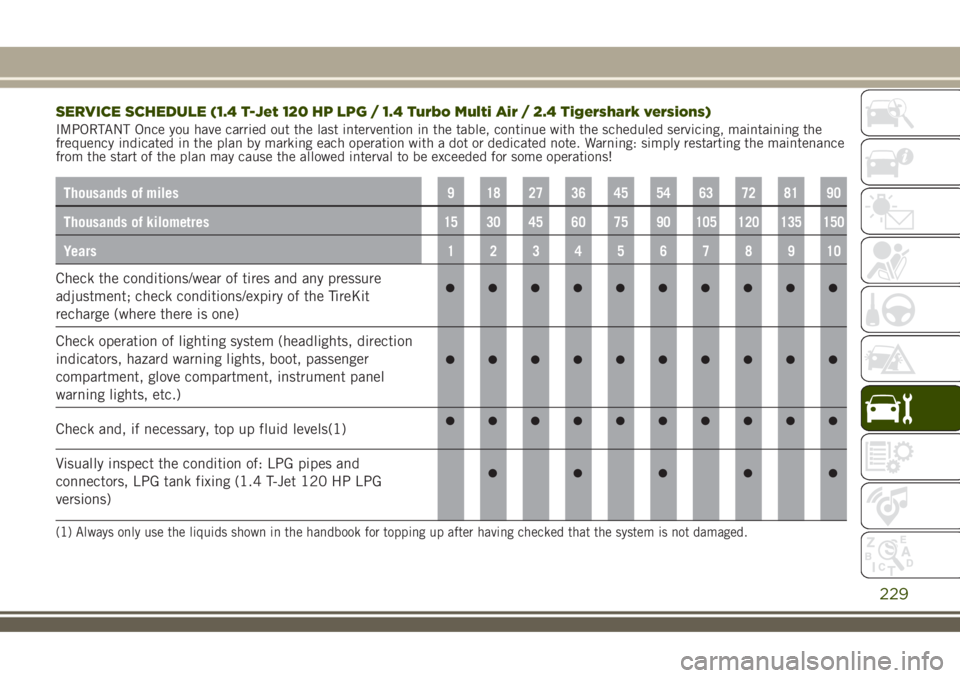

SERVICE SCHEDULE (1.4 T-Jet 120 HP LPG / 1.4 Turbo Multi Air / 2.4 Tigershark versions)
IMPORTANT Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance
from the start of the plan may cause the allowed interval to be exceeded for some operations!
Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check the conditions/wear of tires and any pressure
adjustment; check conditions/expiry of the TireKit
recharge (where there is one)
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
Check and, if necessary, top up fluid levels(1)
Visually inspect the condition of: LPG pipes and
connectors, LPG tank fixing (1.4 T-Jet 120 HP LPG
versions)
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
229

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

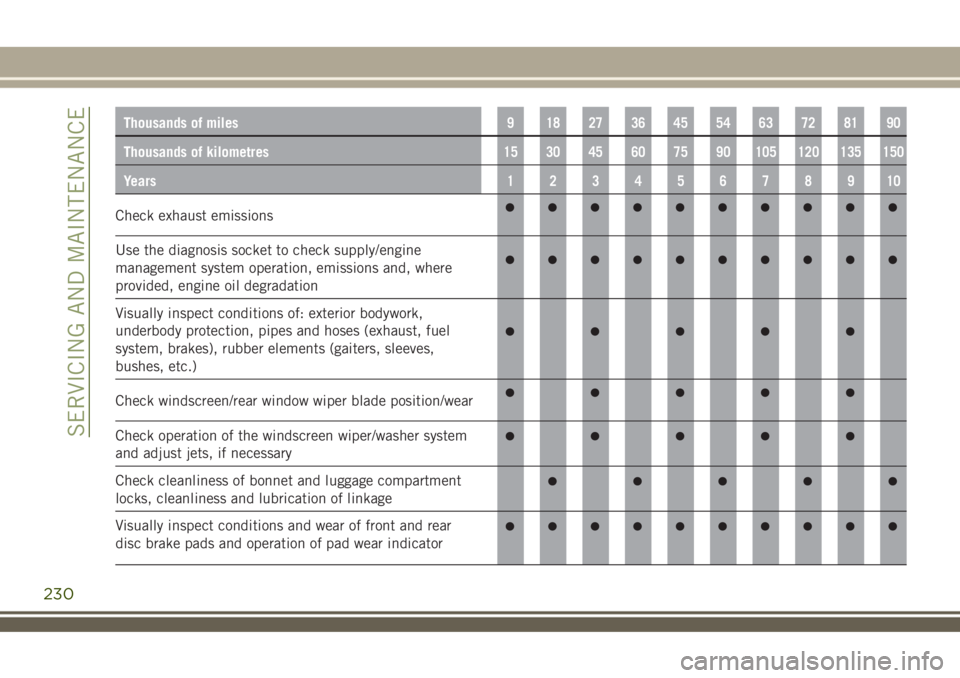

Check exhaust emissions
Use the diagnosis socket to check supply/engine
management system operation, emissions and, where
provided, engine oil degradation
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
Check windscreen/rear window wiper blade position/wear
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary
Check cleanliness of bonnet and luggage compartment
locks, cleanliness and lubrication of linkage
Visually inspect conditions and wear of front and rear
disc brake pads and operation of pad wear indicator
230
SERVICING AND MAINTENANCE

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

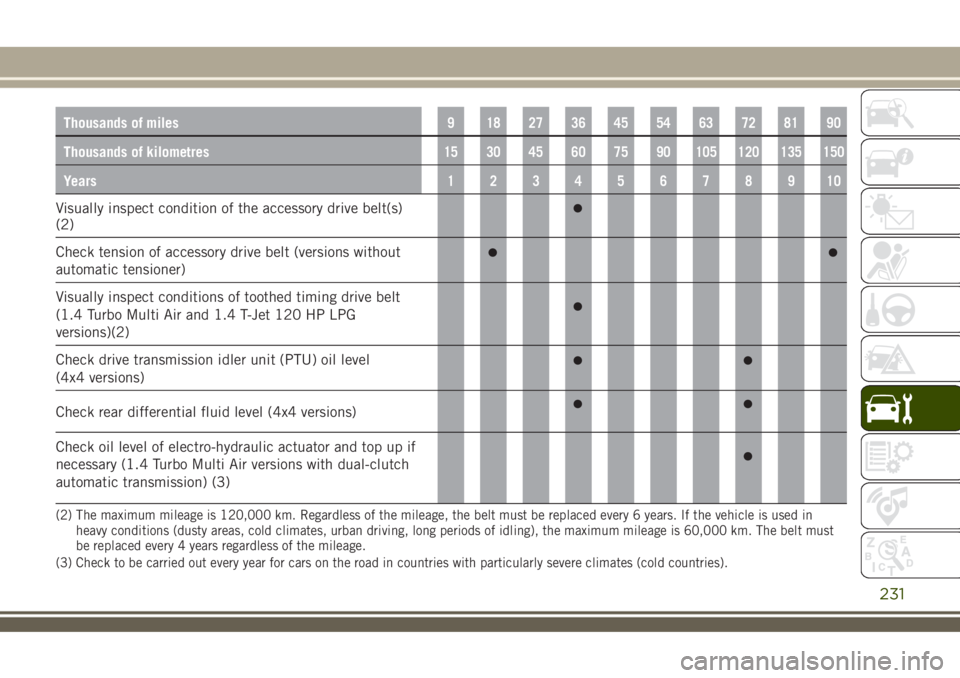

Visually inspect condition of the accessory drive belt(s)
(2)
Check tension of accessory drive belt (versions without
automatic tensioner)
Visually inspect conditions of toothed timing drive belt
(1.4 Turbo Multi Air and 1.4 T-Jet 120 HP LPG
versions)(2)
Check drive transmission idler unit (PTU) oil level
(4x4 versions)
Check rear differential fluid level (4x4 versions)
Check oil level of electro-hydraulic actuator and top up if
necessary (1.4 Turbo Multi Air versions with dual-clutch
automatic transmission) (3)
(2) The maximum mileage is 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years. If the vehicle is used in
heavy conditions (dusty areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must
be replaced every 4 years regardless of the mileage.
(3) Check to be carried out every year for cars on the road in countries with particularly severe climates (cold countries).
231

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check pressure regulator and seal of the corresponding
heating pipes (1.4 T-Jet 120 HP LPG versions)
Check correct fitting of injectors (positioning, clip
retention) (1.4 T-Jet 120 HP LPG versions)
Change engine oil and replace oil filter (1.4 T-Jet 120 HP
LPG and 1.4 Turbo Multi Air versions) (4) (O) (•)
Replace engine oil and oil filter (2.4 Tigershark versions -
where there is one) (5)
Replace spark plugs (1.4 T-Jet 120 HP LPG and
1.4 Turbo Multi Air versions) (6)
(4) If the car's annual mileage is less than 10,000 km, the engine oil and filter must be replaced every year.
(O) Recommended operations
(•) Obligatory operations
(5) The engine oil and oil filter must be replaced when the warning light on the instrument panel switches on or, in any case, every year.
(6) For 1.4 Turbo MultiAir and 1.4 T-Jet versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to:
only use spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine"
paragraph in the "Technical specifications" chapter); strictly comply with the spark plugs replacement intervals on the Service Schedule.
It is advisable to contact a Jeep Dealership for plug replacement.
232
SERVICING AND MAINTENANCE

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

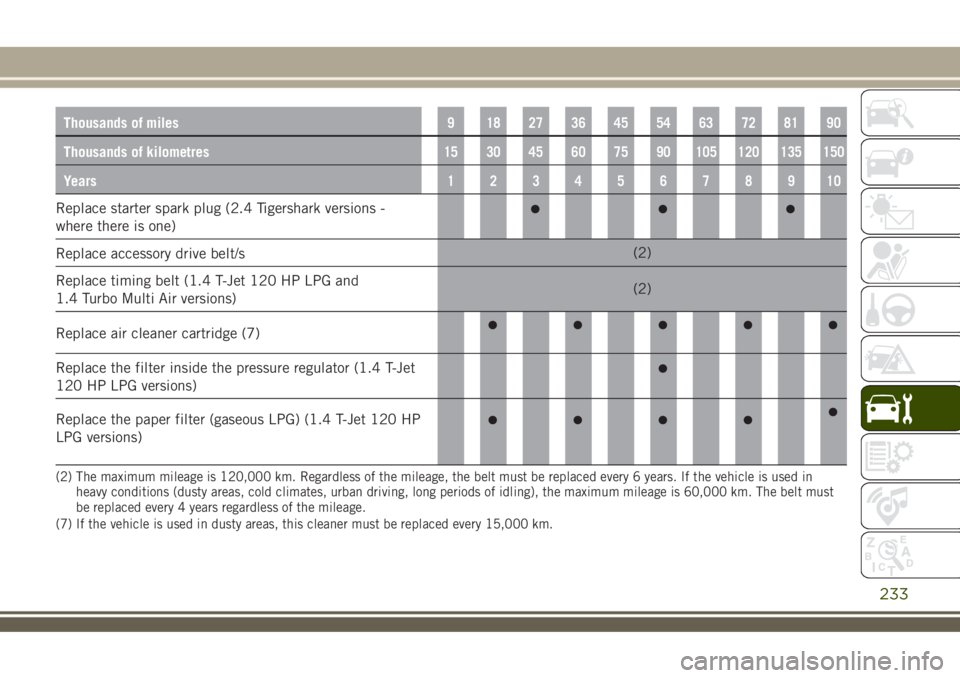

Replace starter spark plug (2.4 Tigershark versions -
where there is one)
Replace accessory drive belt/s(2)
Replace timing belt (1.4 T-Jet 120 HP LPG and
1.4 Turbo Multi Air versions)(2)
Replace air cleaner cartridge (7)
Replace the filter inside the pressure regulator (1.4 T-Jet
120 HP LPG versions)
Replace the paper filter (gaseous LPG) (1.4 T-Jet 120 HP
LPG versions)
(2) The maximum mileage is 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years. If the vehicle is used in
heavy conditions (dusty areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must
be replaced every 4 years regardless of the mileage.
(7) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
233

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

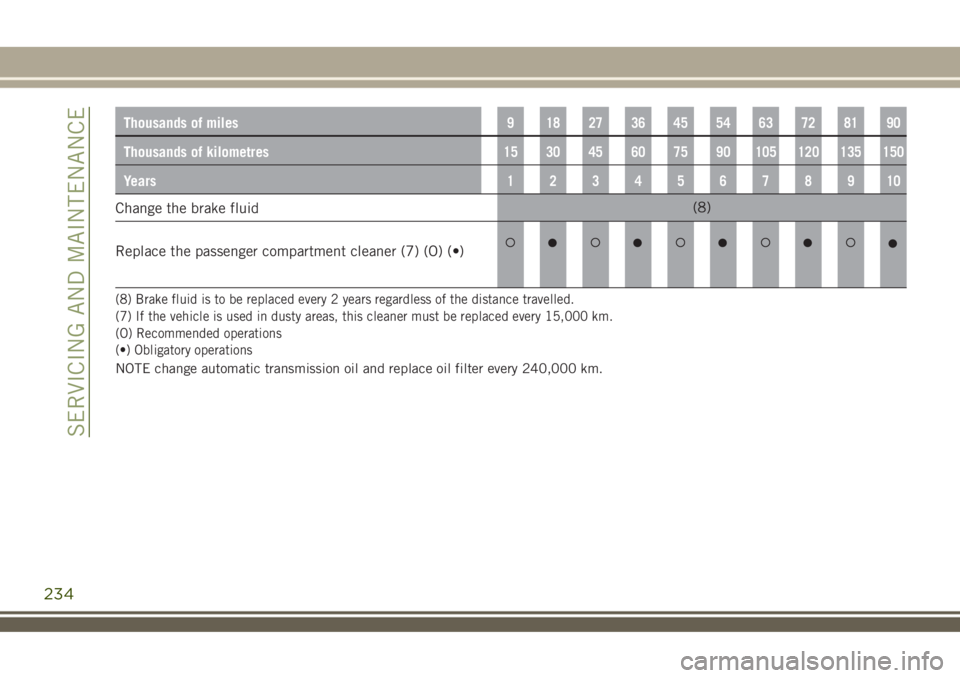

Change the brake fluid(8)
Replace the passenger compartment cleaner (7) (O) (•)
(8) Brake fluid is to be replaced every 2 years regardless of the distance travelled.
(7) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(O) Recommended operations
(•) Obligatory operations
NOTE change automatic transmission oil and replace oil filter every 240,000 km.
234
SERVICING AND MAINTENANCE

SCHEDULED SERVICING PLAN (1.6 E.Torq versions)
IMPORTANT Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance
from the start of the plan may cause the allowed interval to be exceeded for some operations!
Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910
Check the conditions/wear of tires and any pressure
adjustment; check conditions/expiry of the TireKit
recharge (where there is one)
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
Check and, if necessary, top up fluid levels(1)
Check exhaust emissions
(1)Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
235

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

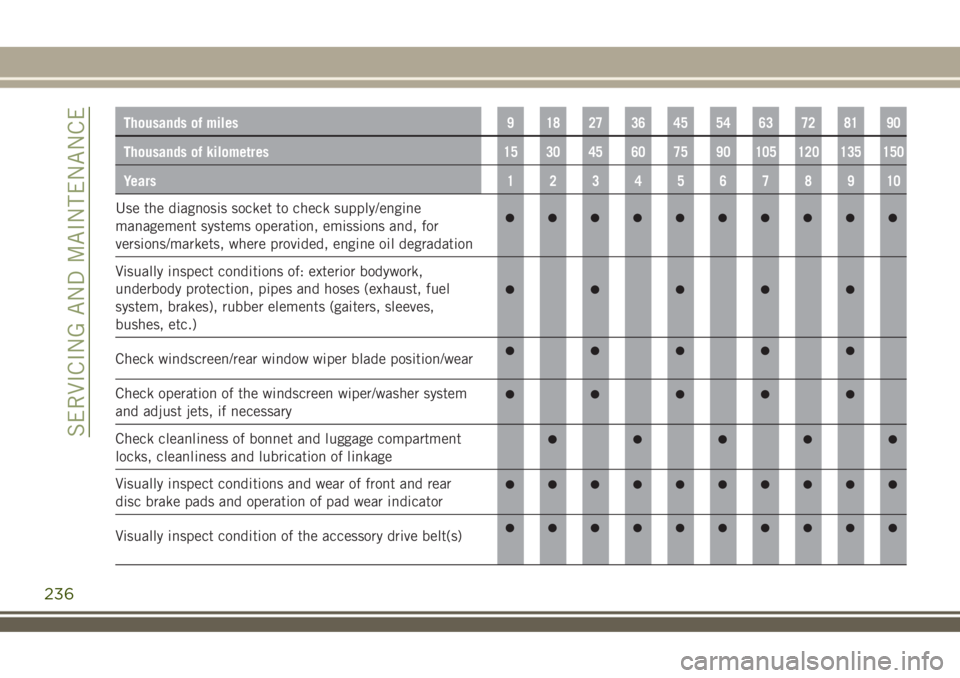

Use the diagnosis socket to check supply/engine
management systems operation, emissions and, for
versions/markets, where provided, engine oil degradation
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)
Check windscreen/rear window wiper blade position/wear
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary
Check cleanliness of bonnet and luggage compartment
locks, cleanliness and lubrication of linkage
Visually inspect conditions and wear of front and rear
disc brake pads and operation of pad wear indicator
Visually inspect condition of the accessory drive belt(s)
236
SERVICING AND MAINTENANCE

Thousands of miles9 182736455463728190
Thousands of kilometres15 30 45 60 75 90 105 120 135 150
Years12345678910

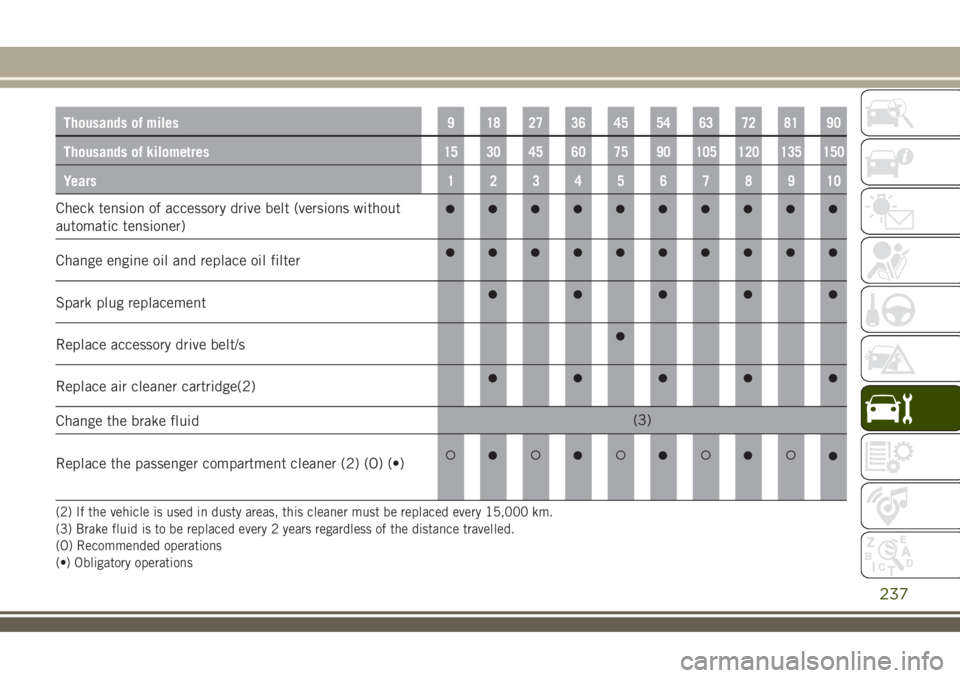

Check tension of accessory drive belt (versions without
automatic tensioner)
Change engine oil and replace oil filter
Spark plug replacement
Replace accessory drive belt/s
Replace air cleaner cartridge(2)
Change the brake fluid(3)
Replace the passenger compartment cleaner (2) (O) (•)
(2) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(3) Brake fluid is to be replaced every 2 years regardless of the distance travelled.
(O) Recommended operations
(•) Obligatory operations
237

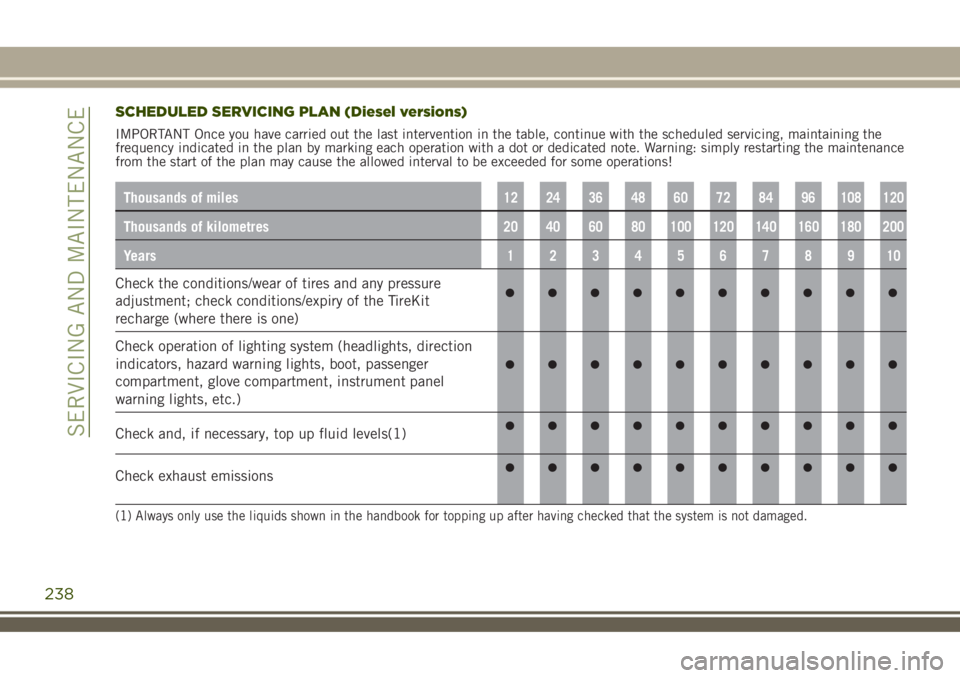

SCHEDULED SERVICING PLAN (Diesel versions)
IMPORTANT Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the
frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance
from the start of the plan may cause the allowed interval to be exceeded for some operations!
Thousands of miles12 24 36 48 60 72 84 96 108 120
Thousands of kilometres20 40 60 80 100 120 140 160 180 200
Years12345678910
Check the conditions/wear of tires and any pressure
adjustment; check conditions/expiry of the TireKit
recharge (where there is one)
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, boot, passenger
compartment, glove compartment, instrument panel
warning lights, etc.)
Check and, if necessary, top up fluid levels(1)
Check exhaust emissions
(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
238
