JEEP RENEGADE 2018 Owner handbook (in English)

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle is made
and works is contained in this chapter
and illustrated with data, tables and
graphics. For the enthusiasts and the
technician, but also just for those who
want to know every detail of their vehicle.IDENTIFICATION DATA.........260
ENGINE..................261
WHEELS..................265
DIMENSIONS...............269
WEIGHTS.................273
SUPPLIES.................279
FLUIDS AND LUBRICANTS......283
PERFORMANCE.............287
FUEL CONSUMPTION.........288
CO2 EMISSIONS.............290
PRESCRIPTIONS FOR HANDLING THE
VEHICLE AT THE END OF ITS LIFE .292
259

IDENTIFICATION DATA
VEHICLE IDENTIFICATION
NUMBER
The Vehicle Identification Number (VIN)
is stamped on a plate on the front left
corner of the dashboard cover fig. 206,
which can be seen from outside the
vehicle, through the windscreen.
This number is also stamped on the
passenger compartment floor, next to the
front right seat.
Slide flap A fig. 207, operating as shown
in the figure, to access.
VIN PLATE
The plate is located on the left side front
door pillar fig. 208 and shows the data
about:
A: correct value of smoke coefficient
(for Diesel engines);
B: name of the manufacturer, vehicle
type-approval number, vehicle
identification number, max. permitted
weights;
C: engine identification, type variant
version, spare part number, colour code,
additional information.
206J0A0030C
207J0A0028C
208J0A0446C
260
TECHNICAL DATA

ENGINE
Versions1.4 T-jet 120 HP
Petrol/LPG1.4 Turbo Multi Air
136/140/170 OHP1.6 E.Torq 2.4 Tigershark(*)
Engine code 5527770155263624
55263623(**)55263842 –
Cycle Otto Otto Otto Otto
Number and position of cylinders 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72.0 × 84.0 72.0 × 84.0 77 × 85.8 88.0 × 97.0
Total displacement (cm³) 1368 1368 1598 2360
Compression ratio 9.8 ± 0.2 10 : 1 11 : 1 10 : 1
Maximum power (EC) (kW) 88100
(*)/ 103
/ 125(**)81 129
Maximum power (EEC) (HP) 120136
(*)/ 140
/ 170(**)110 175
corresponding engine speed (rpm) 50005000
/ 5500
(**)5500 6400
(*) Where fitted
(**) 1.4 Turbo MultiAir 170 HP version
261

Versions1.4 T-jet 120 HP
Petrol/LPG1.4 Turbo Multi Air
136/140/170 OHP1.6 E.Torq 2.4 Tigershark(*)
Maximum torque (EEC) (Nm) 215230
/ 250(**)152 230
Maximum torque (EEC) (kgm) 2223.5
/ 25.5
(**)15.5 23.4
corresponding engine speed (rpm) 25001750
/ 2500
(**)4500 3900
Spark plugs NGK IKR9J8 NGK IKR9J8NGK - SINGLE IR -
ZKR7BI -
10 JAPAN C128
FuelAutomotive LPG
(Specification
EN589) (LPG fuel
supply)/Green
unleaded petrol
95 R.O.N.
(Specification
EN228) (petrol
fuel supply)Unleaded petrol
95 R.O.N.
(EN228 specifications)Unleaded petrol
95 R.O.N.
(EN228 specifications)Unleaded petrol
95 R.O.N.
(EN228 specifications)
(*) Where fitted
(**) 1.4 Turbo MultiAir 170 HP version
262
TECHNICAL DATA

Versions 1.6 16V MultiJet 95 HP 1.6 16V MultiJet 105 HP1.6 16V Multijet
115/120 HP(*)
Engine code 55260384 55260384 55260384
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 79.5 × 80.5 79.5 × 80.5 79.5 × 80.5
Total displacement (cm³) 1598 1598 1598
Compression ratio 16.5 : 1 16.5 : 1 16.5 : 1
Maximum power (EC) (kW) 70 7785
/88
Maximum power (EEC) (HP) 95 105115
/ 120
corresponding engine speed (rpm) 4000 4500 3750
Maximum torque (EEC) (Nm) 320 320 320
Maximum torque (EEC) (kgm) 32.6 32.6 32.6
corresponding engine speed (rpm) 1750 1750 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) Where fitted
263

Versions 2.0 16V Multijet 120 HP 2.0 16V Multijet 140 HP 2.0 16V Multijet 170 HP
Engine code 5526308755263087 / 55263088(*)55263088
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 83 × 90.4 83 × 90.4 83 × 90.4
Total displacement (cm³) 1956 1956 1956
Compression ratio 16.5 16.5 16.5
Maximum power (EC) (kW) 88 103 125
Maximum power (EEC) (HP) 120 140 170
corresponding engine speed (rpm) 4000
3750 / 4000
(*)3750
Maximum torque (EC) (Nm) 320 350 350
Maximum torque (EC) (kgm) 32.6 35.7 35.7
corresponding engine speed (rpm) 1250
1500 / 1750
(*)1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) Versions with automatic transmission
264
TECHNICAL DATA

WHEELS
RIMS AND TYRES
Alloy or pressed steel rims. Tubeless
radial carcass tyres.
All approved tyres are listed in the
Registration Document.
IMPORTANT If there are any
discrepancies between the “Owner
Handbook” and the “Registration
Document”, take the information from
the latter. For safe driving, the car
must be fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.SPACE SAVER SPARE WHEEL
(where provided)
Tyre: T145/90 R16 106M
Rim: 4.0 B x 16H ET22
WARNING
194)If winter tyres with a lower speed
rating than that indicated in the
Registration Document are used, do not
exceed the maximum speed corresponding
to the speed rating of the tyres used.
195)DO NOT fit wheel hub caps when
using integral hub caps fixed (with
springs) to the steel rim and after sale
tyres provided with Rim Protector. Use of
unsuitable tyres and wheel caps may
cause sudden decrease of tyre pressure.
265

RIMS AND TYRES PROVIDED
194) 195)
Versions Wheels Tyres Snow tyres
1.4 T-Jet 120 HP LPG6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
1.4 Turbo Multi Air6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
1.6 E.Torq6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
2.4 Tigershark
(*)
6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
6.5J x 17 ET40
(**)215/60 R17 96H (M+S)(**)215/60 R17 96Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
(*) Where fitted
(**) Trailhawk versions
266
TECHNICAL DATA

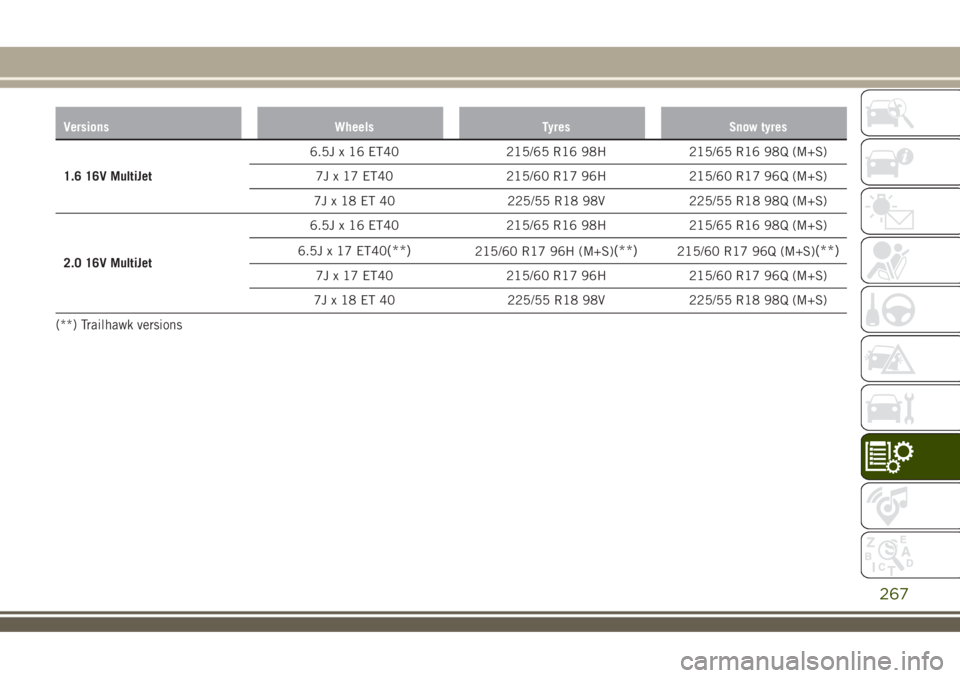

Versions Wheels Tyres Snow tyres
1.6 16V MultiJet6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
2.0 16V MultiJet6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
6.5J x 17 ET40
(**)215/60 R17 96H (M+S)(**)215/60 R17 96Q (M+S)(**)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
(**) Trailhawk versions
267

COLD TYRE INFLATION PRESSURE
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck that
the value is correct with the tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
TyresUnladen/medium load Full load
Full size spare
wheel(*)Space saver
spare wheel
Front Rear Front Rear
215/65 R16 98H 2.4 2.2 2.4 2.4
2.4 4.2 215/60 R17 96H 2.4 2.2 2.4 2.4
225/55 R18 98V 2.4 2.2 2.4 2.4
(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as
possible, with reference to the following table.
268
