JEEP RENEGADE 2018 Owner handbook (in English)

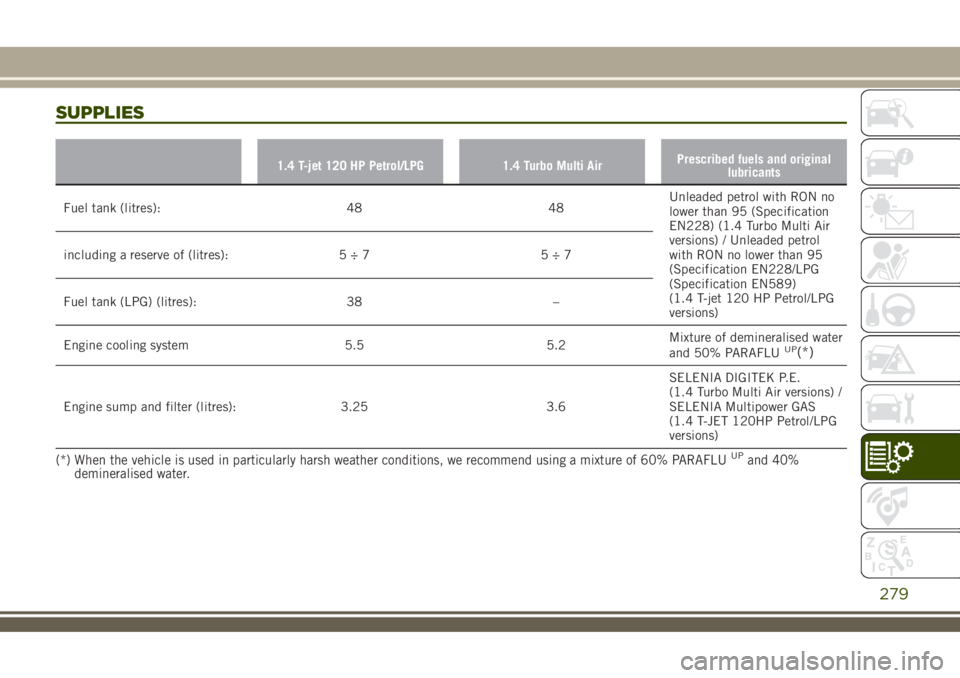

SUPPLIES
1.4 T-jet 120 HP Petrol/LPG 1.4 Turbo Multi AirPrescribed fuels and original
lubricants
Fuel tank (litres): 48 48Unleaded petrol with RON no
lower than 95 (Specification
EN228) (1.4 Turbo Multi Air
versions) / Unleaded petrol
with RON no lower than 95
(Specification EN228/LPG
(Specification EN589)
(1.4 T-jet 120 HP Petrol/LPG
versions) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Fuel tank (LPG) (litres): 38 –
Engine cooling system 5.5 5.2Mixture of demineralised water
and 50% PARAFLU
UP(*)
Engine sump and filter (litres): 3.25 3.6SELENIA DIGITEK P.E.
(1.4 Turbo Multi Air versions) /
SELENIA Multipower GAS
(1.4 T-JET 120HP Petrol/LPG
versions)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
279

1.4 T-jet 120 HP Petrol/LPG 1.4 Turbo Multi AirPrescribed fuels and original
lubricants
Gearbox/differential casing
(litres):2.0
2.0 / 2.1(**)/ 6.0(***)
TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission/dual
clutch automatic transmission)
/ TUTELA TRANSMISSION
AS8 (versions with automatic
transmission)
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5Mixture of water and liquid
PETRONAS DURANCE SC 35
(**) Automatic transmission versions with dual clutch
(***)Versions with automatic transmission
280
TECHNICAL DATA

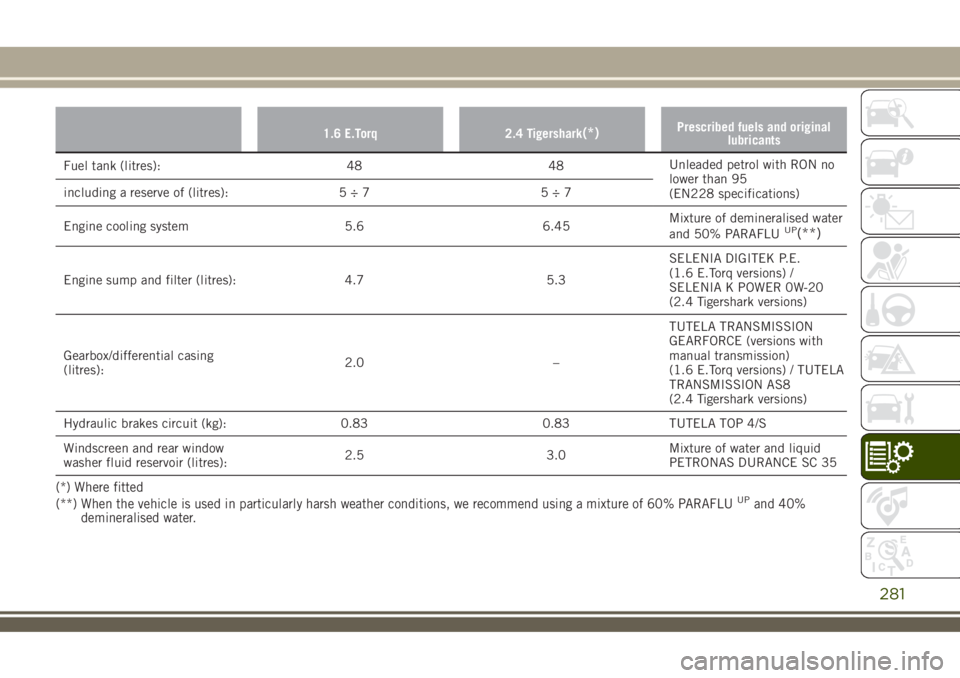

1.6 E.Torq 2.4 Tigershark(*)Prescribed fuels and original
lubricants
Fuel tank (litres): 48 48Unleaded petrol with RON no
lower than 95
(EN228 specifications) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system 5.6 6.45Mixture of demineralised water
and 50% PARAFLU
UP(**)
Engine sump and filter (litres): 4.7 5.3SELENIA DIGITEK P.E.
(1.6 E.Torq versions) /
SELENIA K POWER 0W-20
(2.4 Tigershark versions)
Gearbox/differential casing
(litres):2.0 –TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission)
(1.6 E.Torq versions) / TUTELA
TRANSMISSION AS8
(2.4 Tigershark versions)
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 3.0Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) Where fitted
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
281

1.6 16V MultiJet 2.0 16V MultiJetPrescribed fuels and original
lubricants
Fuel tank (litres): 48 48
Diesel for motor vehicles
(EN590 Specification)
including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system 6.1 6.5Mixture of demineralised water
and 50% PARAFLU
UP(*)
Engine sump and filter (litres): 4.8 4.3 SELENIA WR FORWARD
Gearbox/differential casing
(litres):1.82.0
(**)/ 6.0(***)
TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission) /
TUTELA TRANSMISSION AS8
(versions with automatic
transmission)
Idler unit (PTU) (litres): – 0.4 TUTELA TRANSMISSION B-5X
Rear differential (litres): – 0.6TUTELA TRANSMISSION
COMPAQ DRIVE
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5Mixture of water and liquid
PETRONAS DURANCE SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
(**) Versions with manual transmission
(***) Versions with automatic transmission
282
TECHNICAL DATA

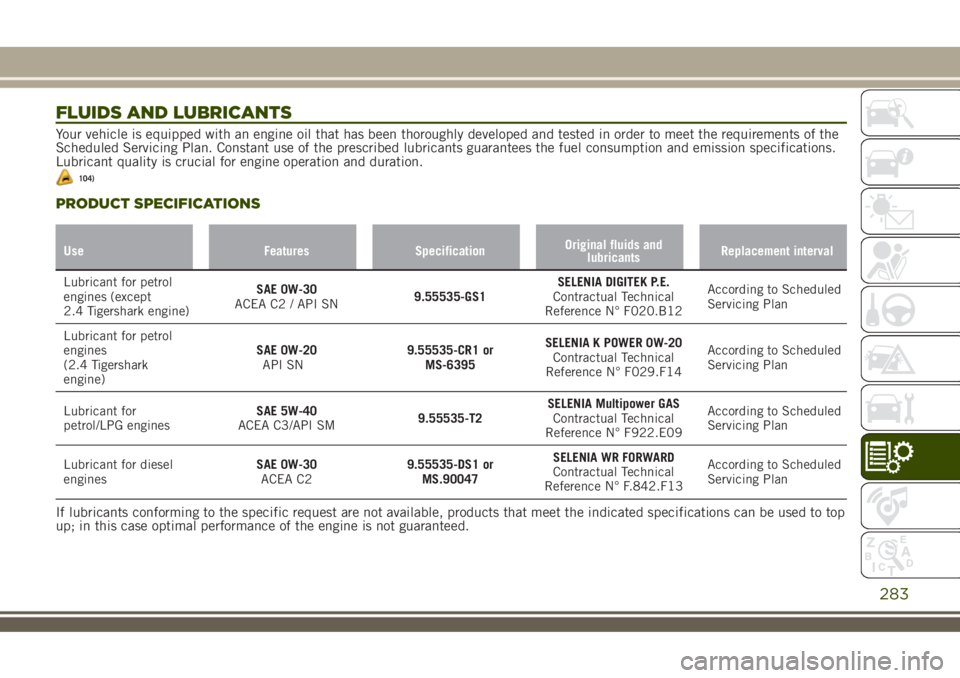

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the
Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
104)
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (except
2.4 Tigershark engine)SAE 0W-30
ACEA C2 / API SN9.55535-GS1SELENIA DIGITEK P.E.
Contractual Technical
Reference N° F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines
(2.4 Tigershark
engine)SAE 0W-20
API SN9.55535-CR1 or
MS-6395SELENIA K POWER 0W-20
Contractual Technical
Reference N° F029.F14According to Scheduled
Servicing Plan
Lubricant for
petrol/LPG enginesSAE 5W-40
ACEA C3/API SM9.55535-T2SELENIA Multipower GAS
Contractual Technical
Reference N° F922.E09According to Scheduled
Servicing Plan
Lubricant for diesel
enginesSAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR FORWARD
Contractual Technical
Reference N° F.842.F13According to Scheduled
Servicing Plan
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top
up; in this case optimal performance of the engine is not guaranteed.
283

IMPORTANT
104)The use of products with different
specifications than those indicated above
could cause damage to the engine that is
not covered by the warranty.
284
TECHNICAL DATA

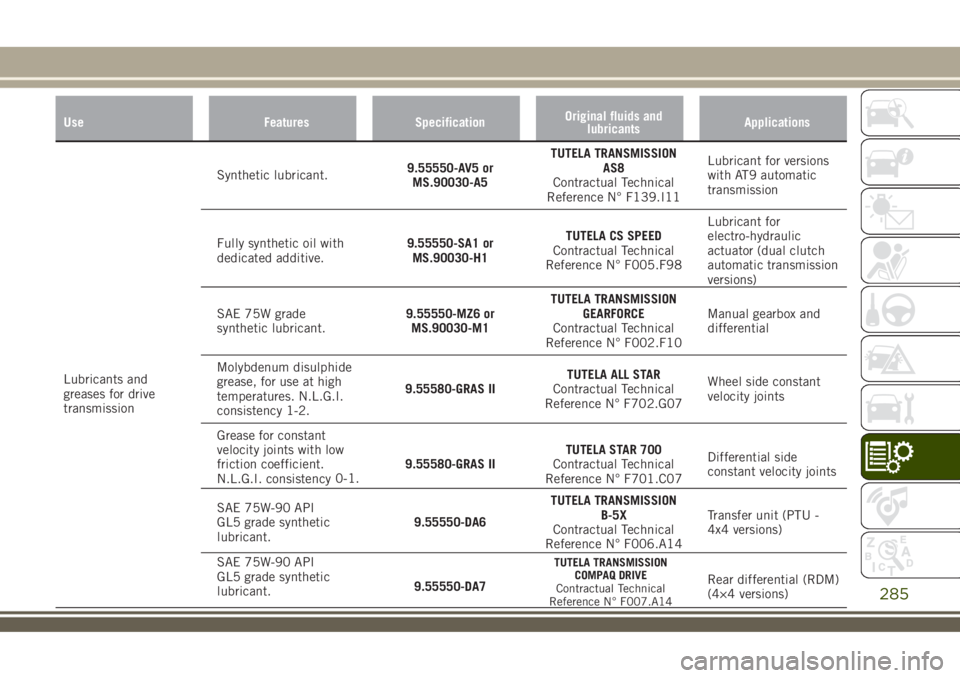

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSynthetic lubricant.9.55550-AV5 or
MS.90030-A5TUTELA TRANSMISSION
AS8
Contractual Technical
Reference N° F139.I11Lubricant for versions
with AT9 automatic
transmission
Fully synthetic oil with
dedicated additive.9.55550-SA1 or
MS.90030-H1TUTELA CS SPEED
Contractual Technical
Reference N° F005.F98Lubricant for
electro-hydraulic
actuator (dual clutch
automatic transmission
versions)
SAE 75W grade
synthetic lubricant.9.55550-MZ6 or
MS.90030-M1TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
N.L.G.I. consistency0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side
constant velocity joints
SAE 75W-90 API
GL5 grade synthetic
lubricant.9.55550-DA6TUTELA TRANSMISSION
B-5X
Contractual Technical
Reference N° F006.A14Transfer unit (PTU -
4x4 versions)
SAE 75W-90 API
GL5 grade synthetic
lubricant.9.55550-DA7
TUTELA TRANSMISSION
COMPAQ DRIVE
Contractual Technical
Reference N° F007.A14
Rear differential (RDM)
(4×4 versions)285

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Diesel fuel additiveAntifreeze additive for
diesel, with protective
action for diesel
engines.PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference N° F601.L06To be mixed with diesel
(25 cc per 10 litres)
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference
N° F101.M01Cooling circuits
proportions of use: 50%
water 50% protective
fluid
(**)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS.90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(**) For particularly harsh climate conditions, a mixture of 60% protective fluid and 40% distilled water is recommended.
286
TECHNICAL DATA

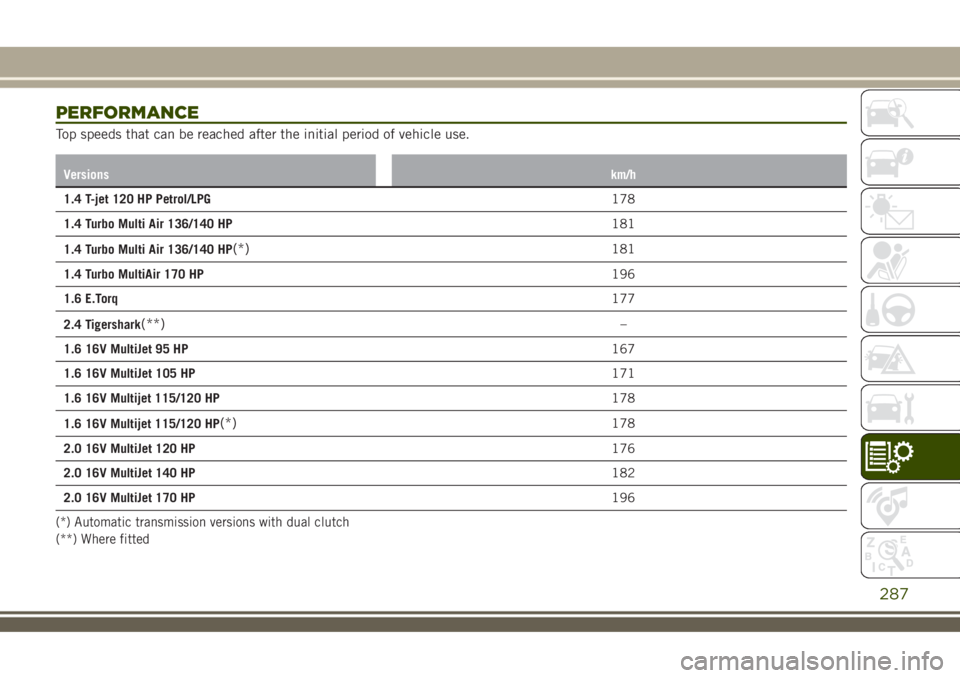

PERFORMANCE
Top speeds that can be reached after the initial period of vehicle use.
Versionskm/h
1.4 T-jet 120 HP Petrol/LPG178
1.4 Turbo Multi Air 136/140 HP181
1.4 Turbo Multi Air 136/140 HP
(*)181
1.4 Turbo MultiAir 170 HP196
1.6 E.Torq177
2.4 Tigershark
(**)–
1.6 16V MultiJet 95 HP167
1.6 16V MultiJet 105 HP171
1.6 16V Multijet 115/120 HP178
1.6 16V Multijet 115/120 HP
(*)178
2.0 16V MultiJet 120 HP176
2.0 16V MultiJet 140 HP182
2.0 16V MultiJet 170 HP196
(*) Automatic transmission versions with dual clutch
(**) Where fitted
287

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by specific
European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The
fuel consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
Versions Urban Extra-urban Combined
1.4 T-jet 120 HP Petrol/LPG9.4(****)/ 12.4(*****)5.4(****)/ 7.2(*****)6.9(****)/ 9.1(*****)
1.4 Turbo Multi Air 136/140 HP7.6 5.1 6.0
1.4 Turbo Multi Air 136/140 HP
(*)7.4 5.0 5.9
1.4 Turbo MultiAir 170 HP
(**)8.7 5.9 6.9
1.6 E.Torq8.8 5.1 6.5
1.6 E.Torq Stop/Start7.8 5.0 6.0
(****) Running on petrol
(*****) Running on LPG
(*) Automatic transmission versions with dual clutch
(**) Versions with automatic transmission
288
