JEEP WRANGLER 2010 Owners Manual

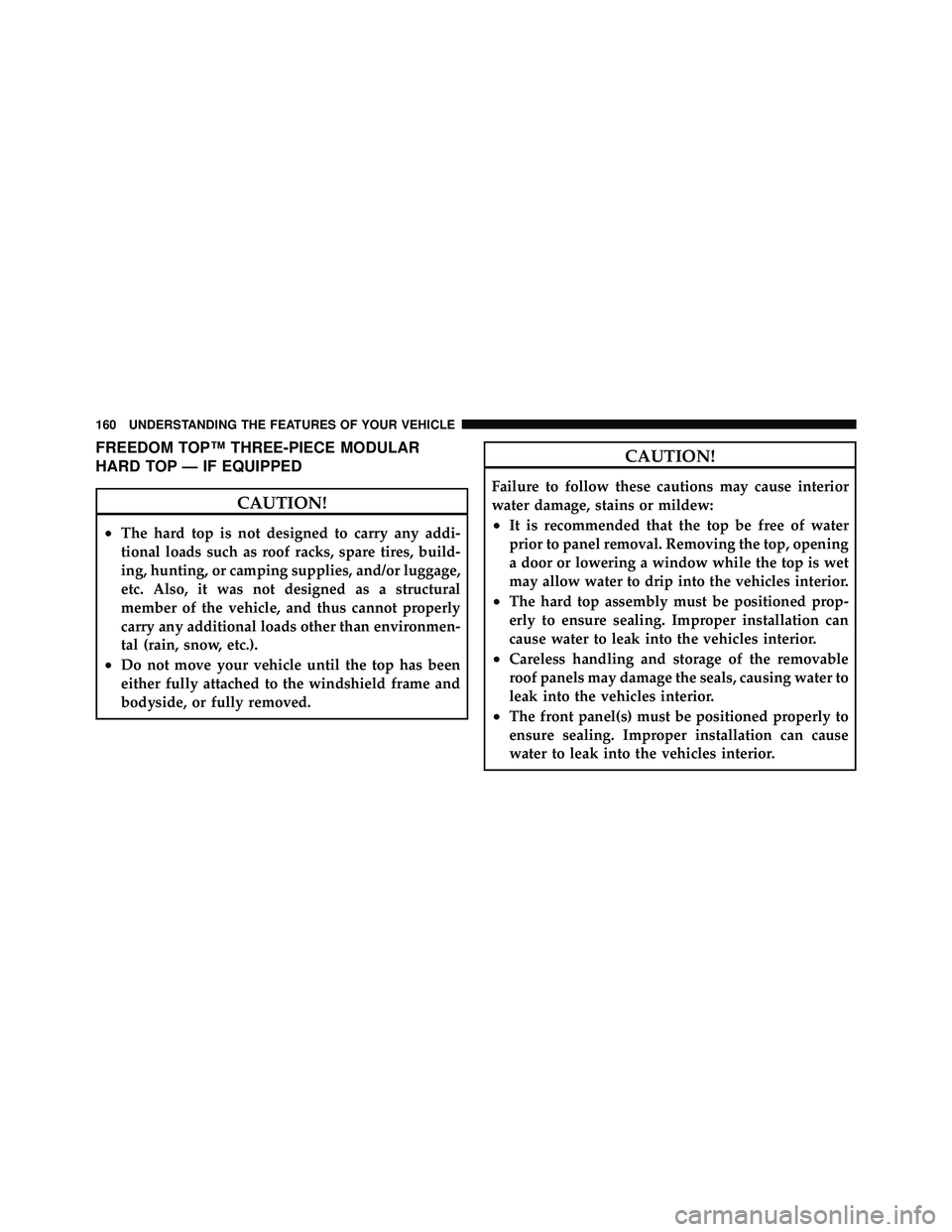

FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED

3

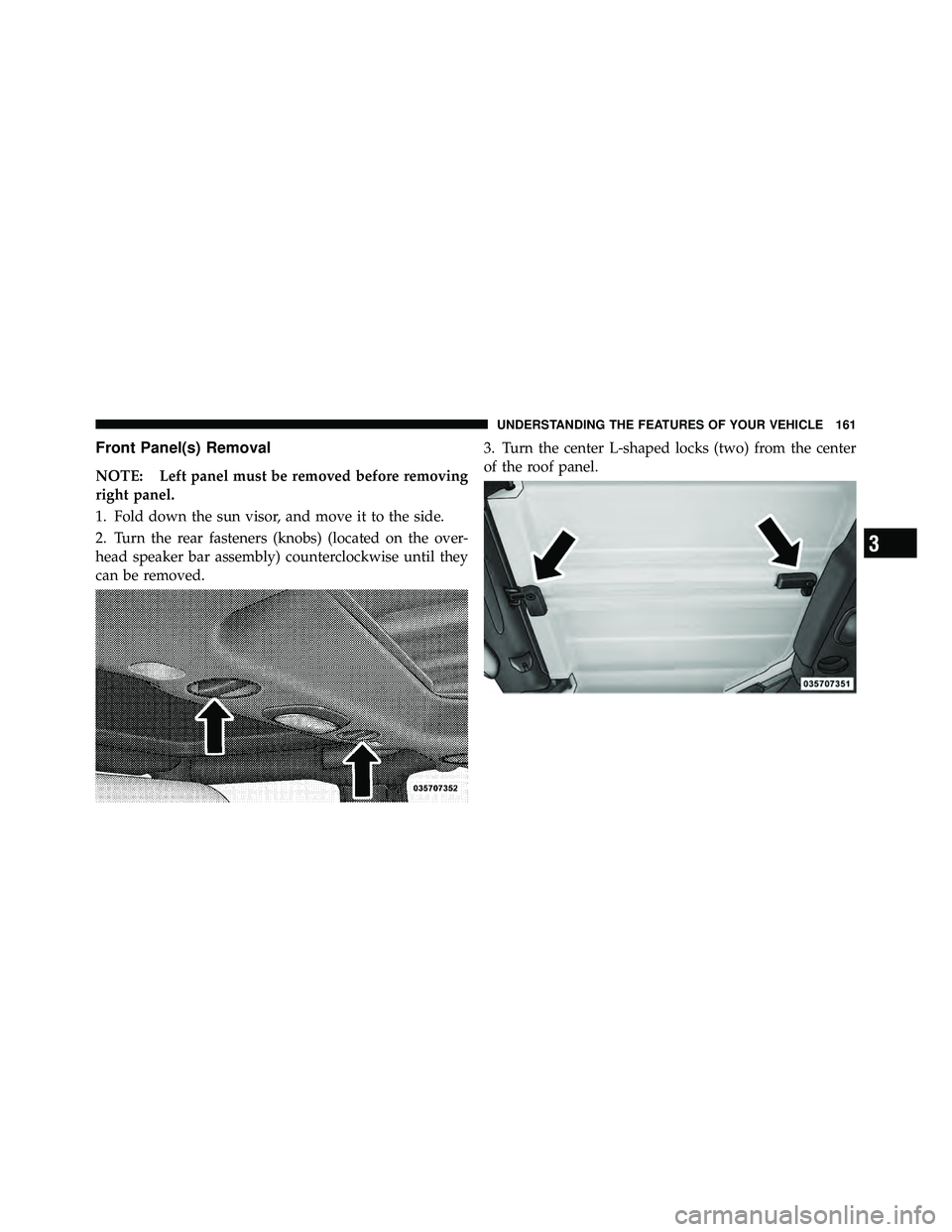

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

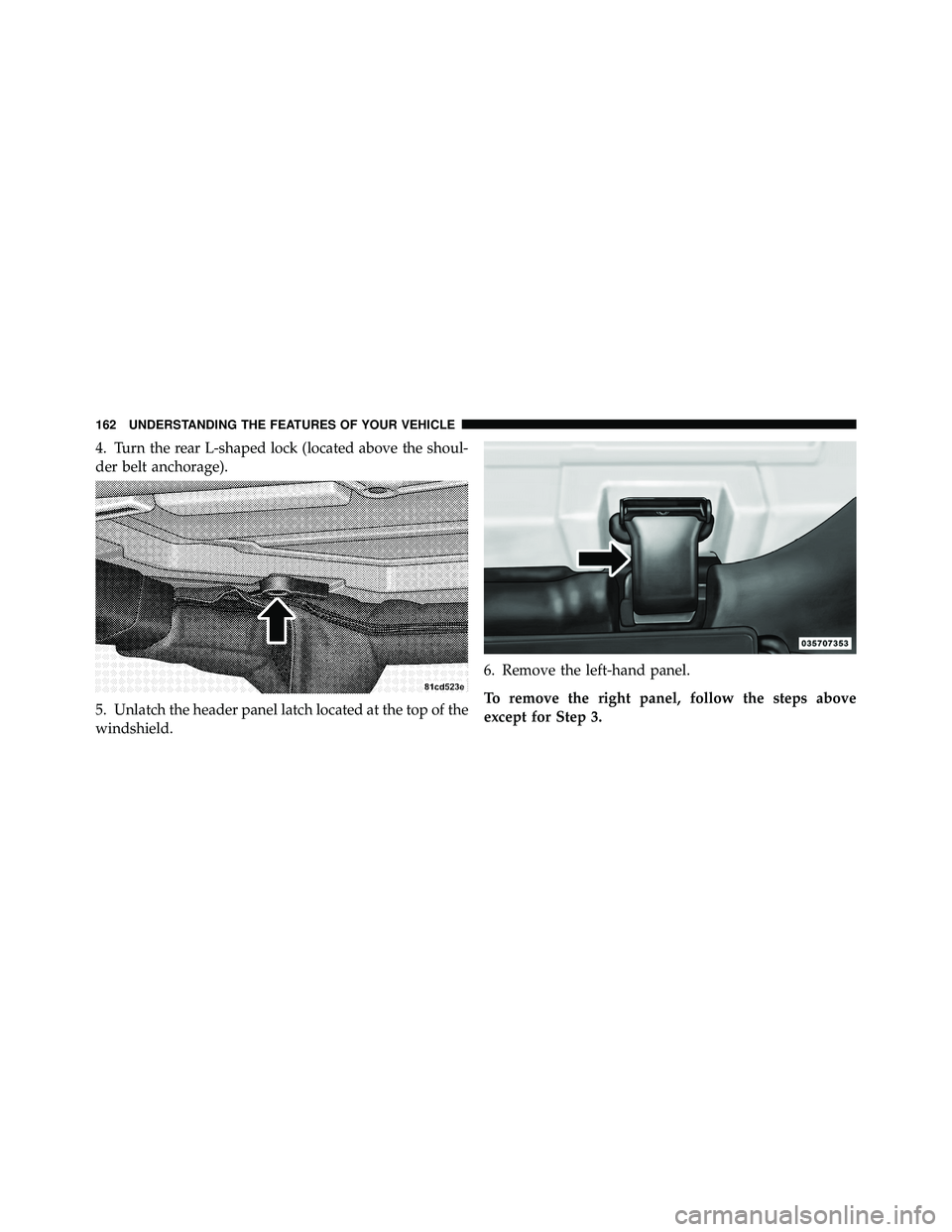

4. Turn the rear L-shaped lock (located above the shoul-
der belt anchorage).
5. Unlatch the header panel latch located at the top of the
windshield.6. Remove the left-hand panel.
To remove the right panel, follow the steps above
except for Step 3.

3

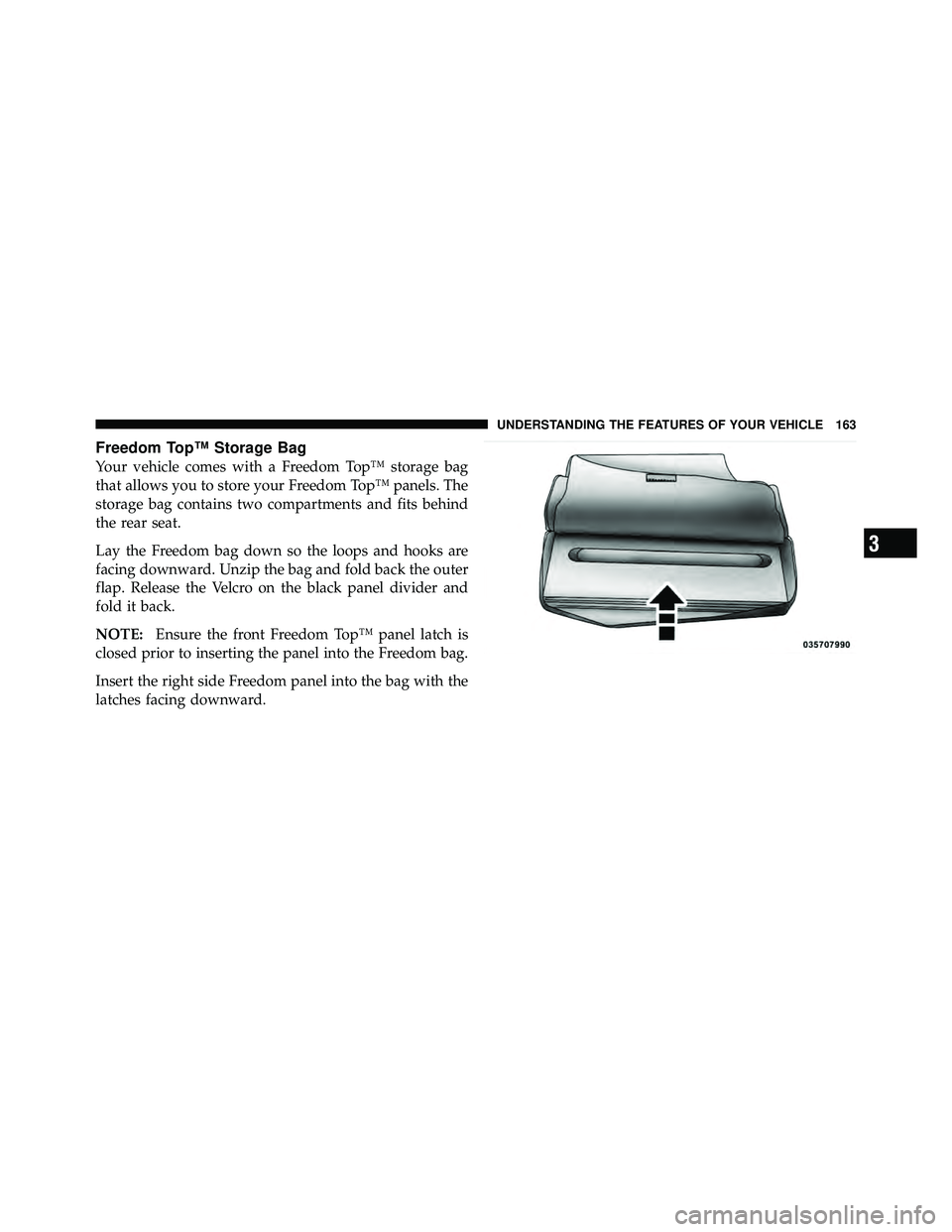

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

Unfold the black panel divider (ensure the divider is
laying flat). Secure the Velcro, located at the center of the
divider.
Insert the left-side Freedom panel into the bag with the
latches facing upward.NOTE:
Ensure the front Freedom panel latch is closed
prior to inserting the panel into the bag.

3

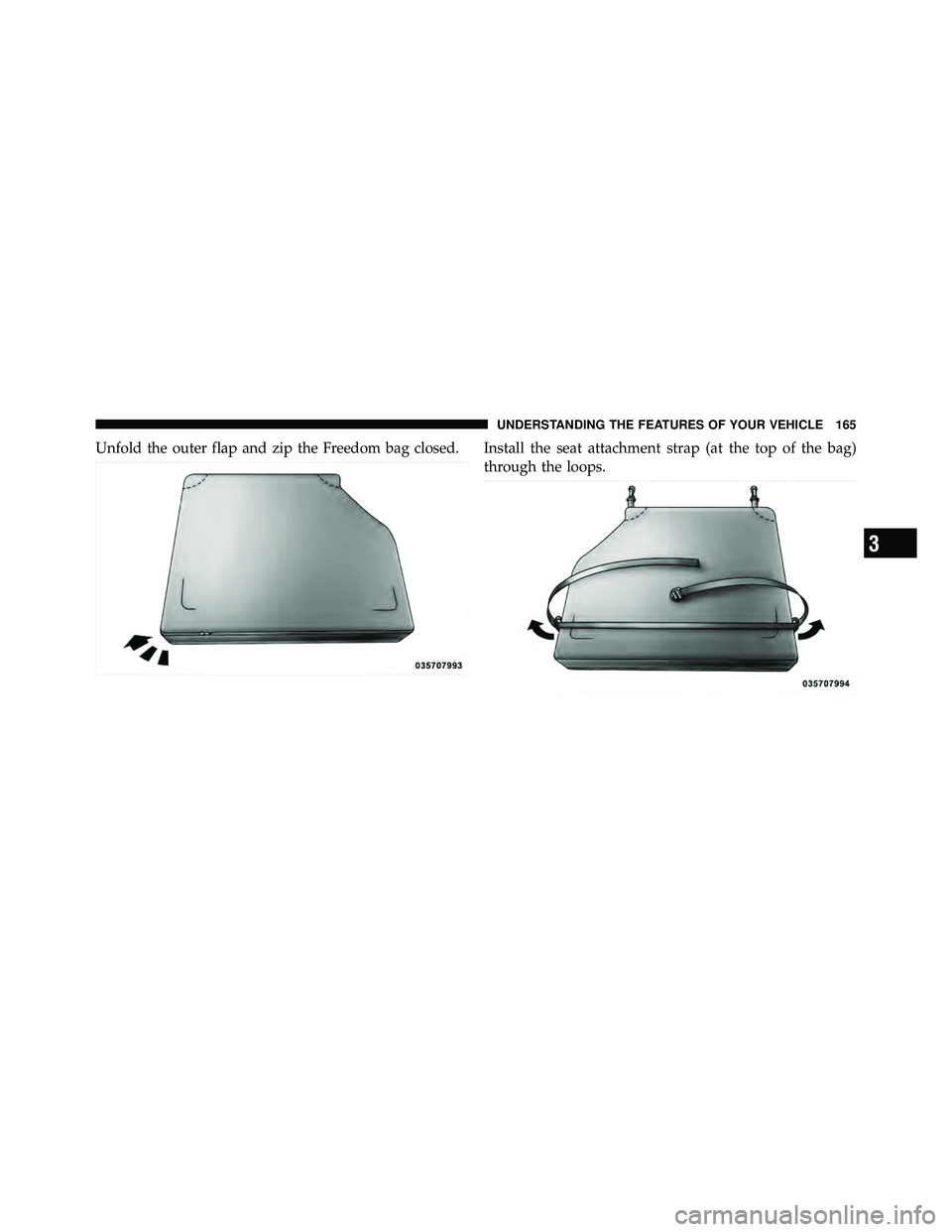

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

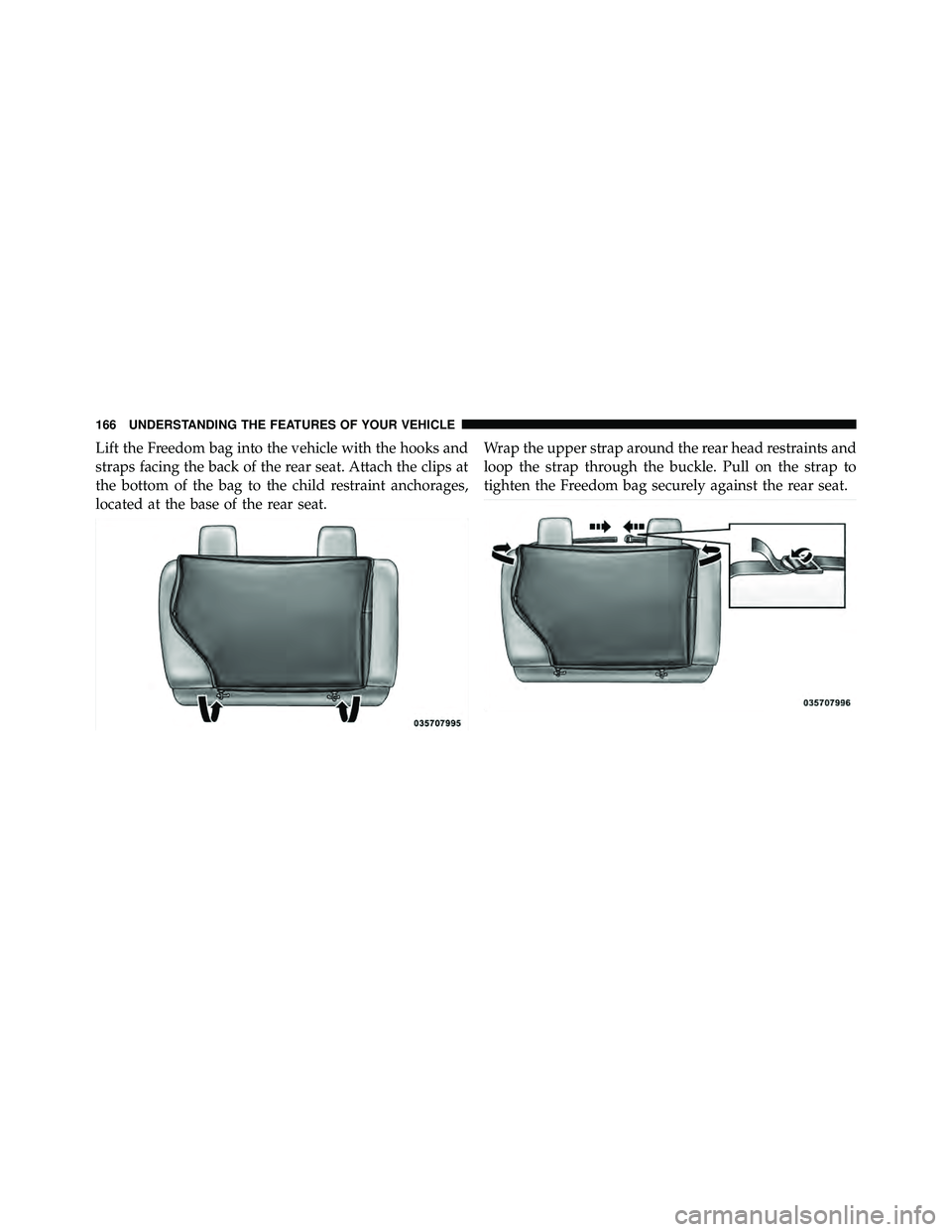

Lift the Freedom bag into the vehicle with the hooks and
straps facing the back of the rear seat. Attach the clips at
the bottom of the bag to the child restraint anchorages,
located at the base of the rear seat.Wrap the upper strap around the rear head restraints and
loop the strap through the buckle. Pull on the strap to
tighten the Freedom bag securely against the rear seat.

3

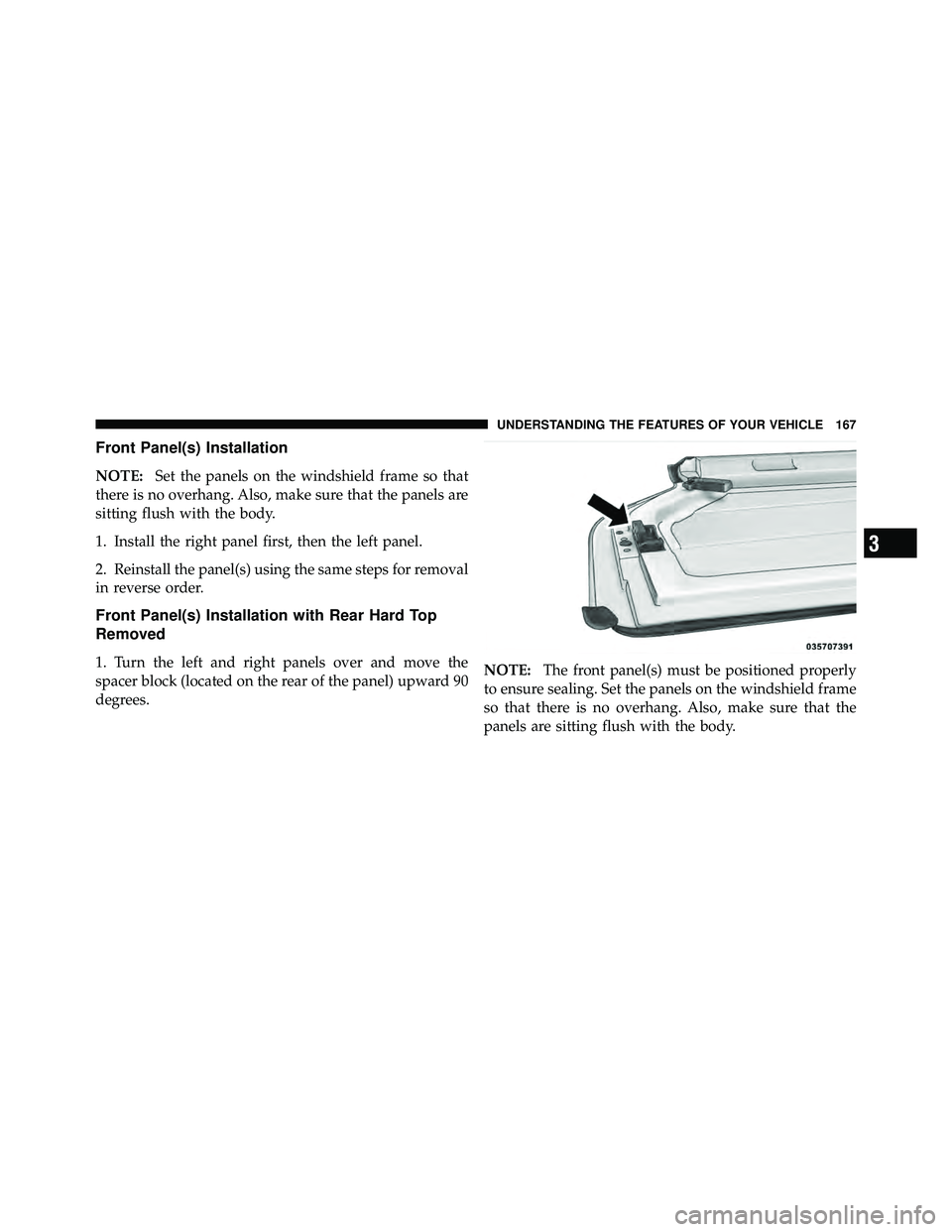

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

2. Install the right panel first, then the left panel.
3. Reinstall the panel(s) using the same steps for removal
in reverse order.
Rear Hard Top Removal
1. Remove both front panels. Refer to “Front Panel(s)
Removal” in this section.
2. Open both doors.
3. Remove the two Torxhead screws that secure the
hard top at the B-pillar (near the top of the door) using a
#40 Torx head driver (Four–Door Only).
4. Remove the six Torx head screws that secure the hard
top to the vehicle (along the interior bodyside) using a

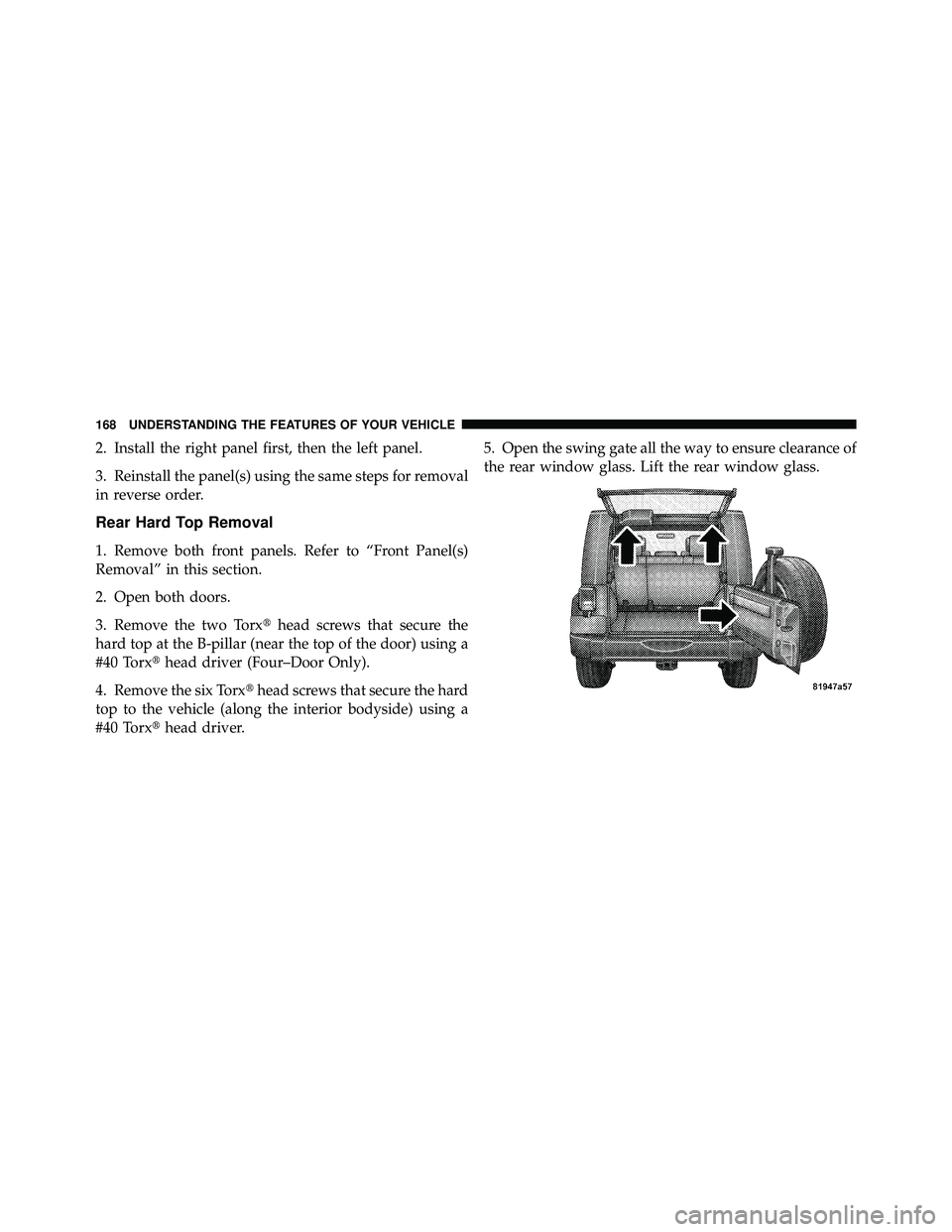

#40 Torx head driver. 5. Open the swing gate all the way to ensure clearance of
the rear window glass. Lift the rear window glass.

3

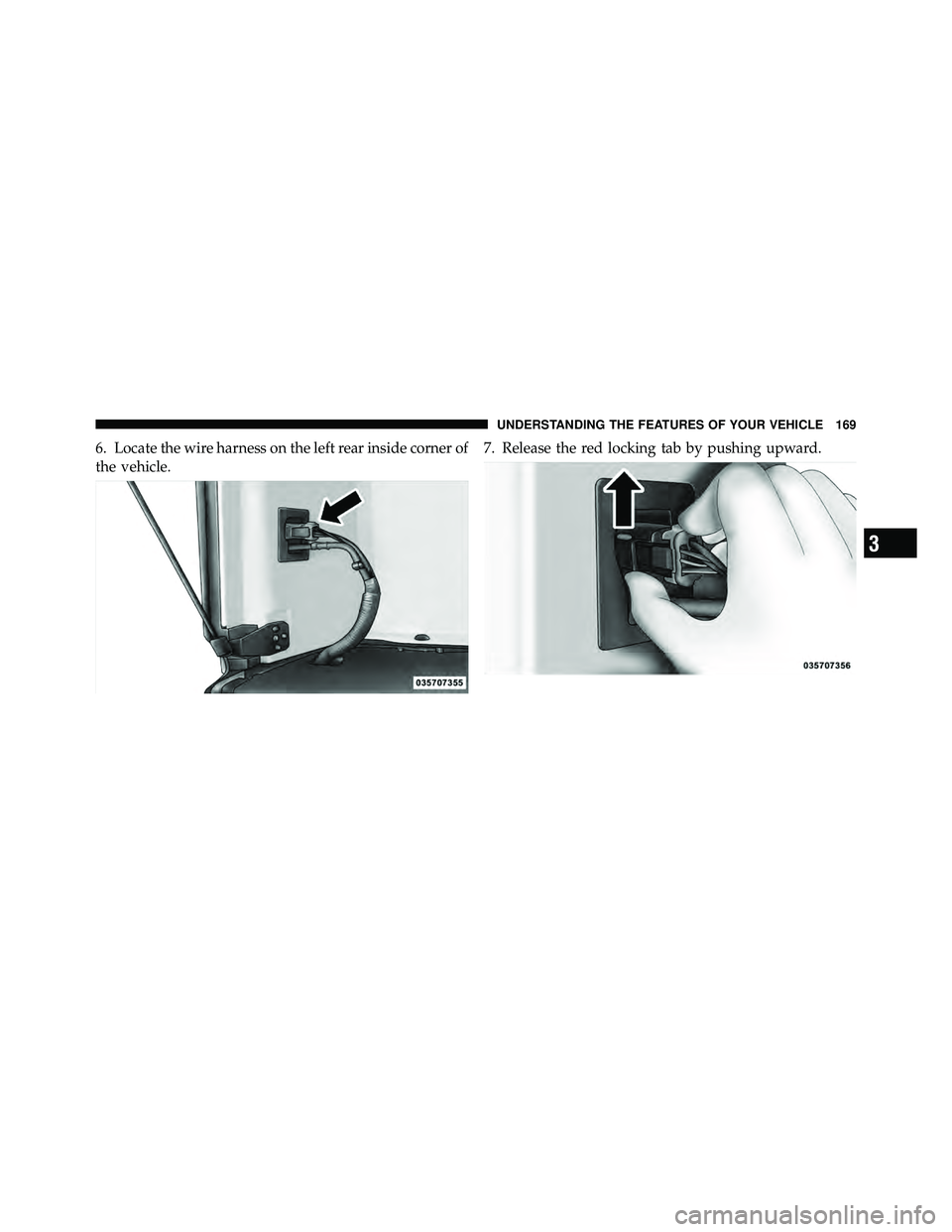

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
