5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

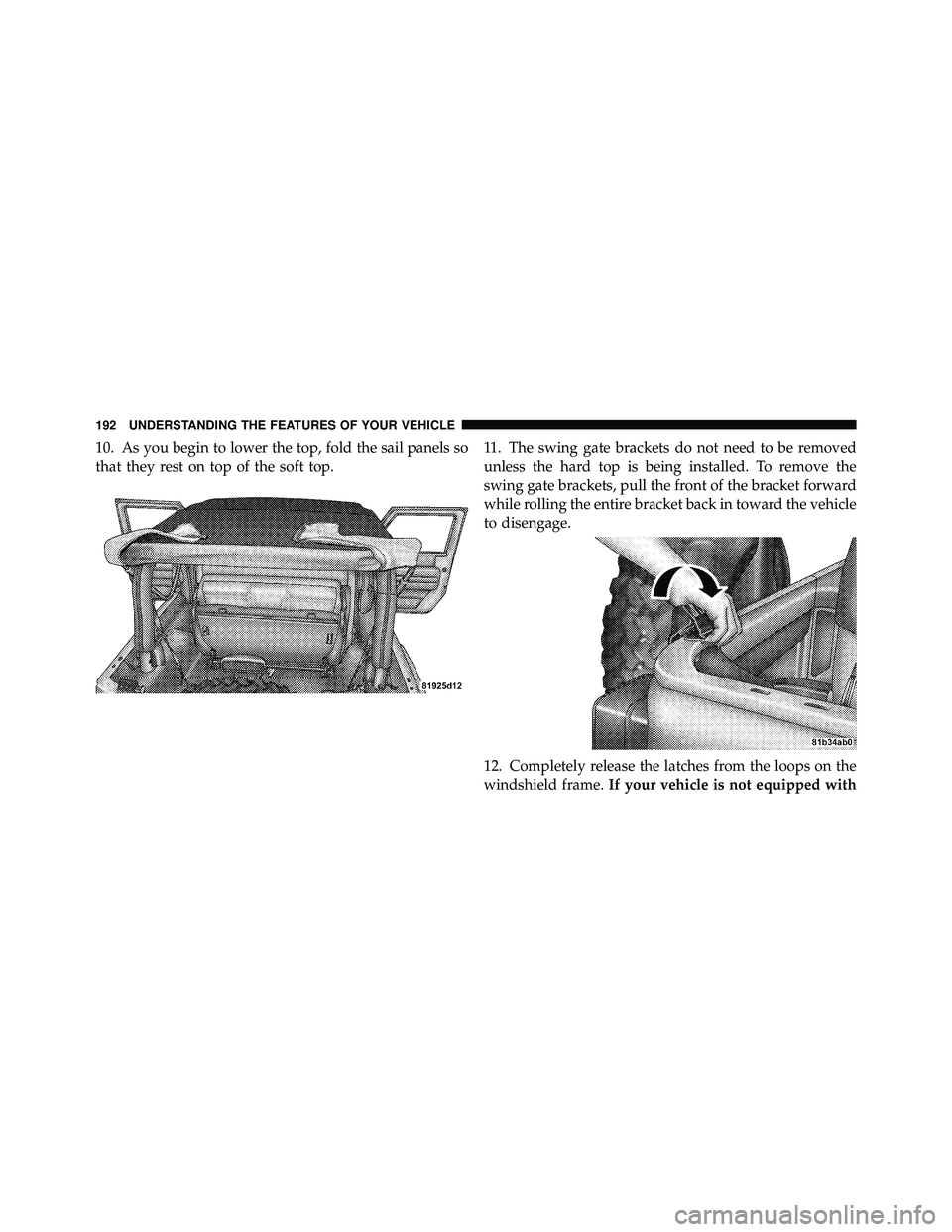

10. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.11. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.
12. Completely release the latches from the loops on the
windshield frame.

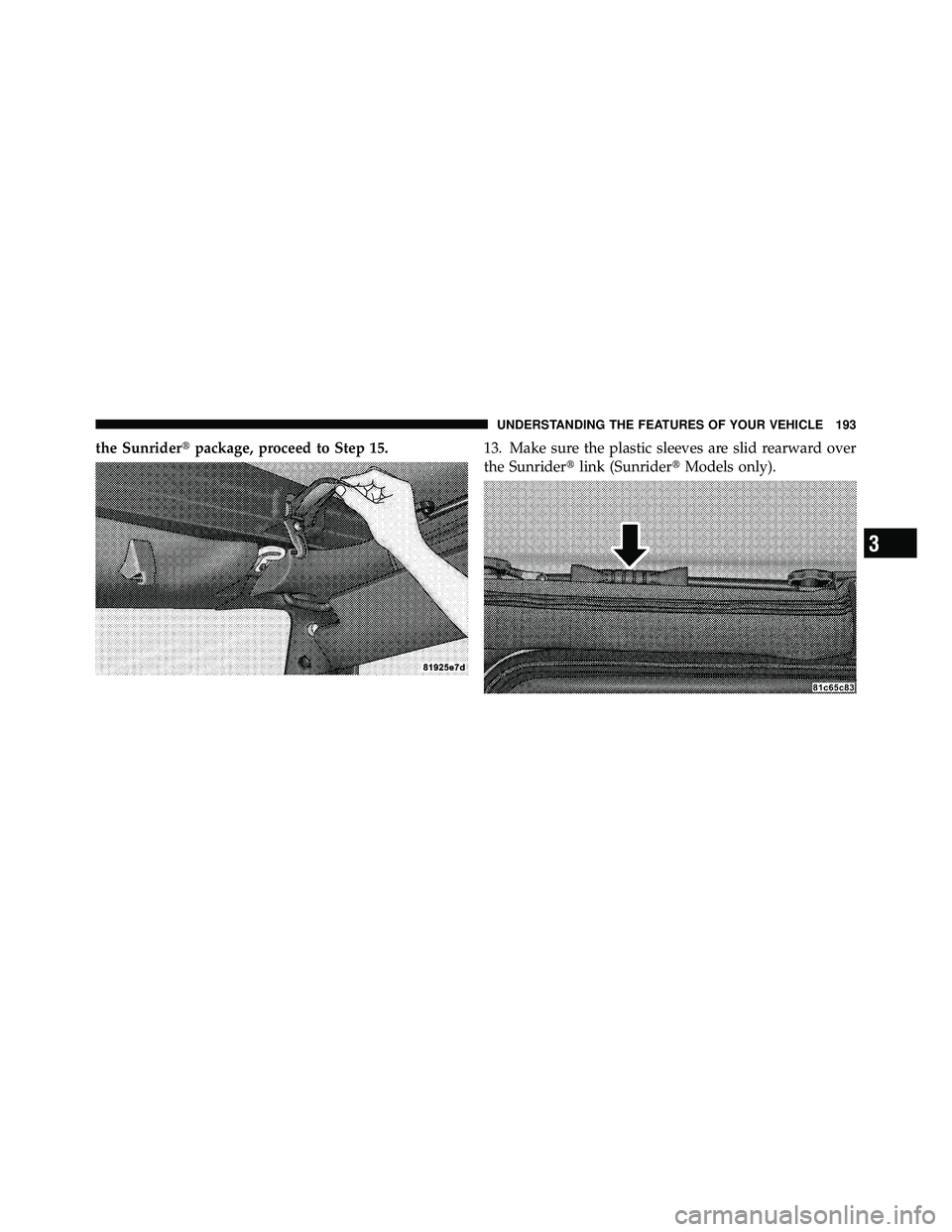

If your vehicle is not equipped with

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

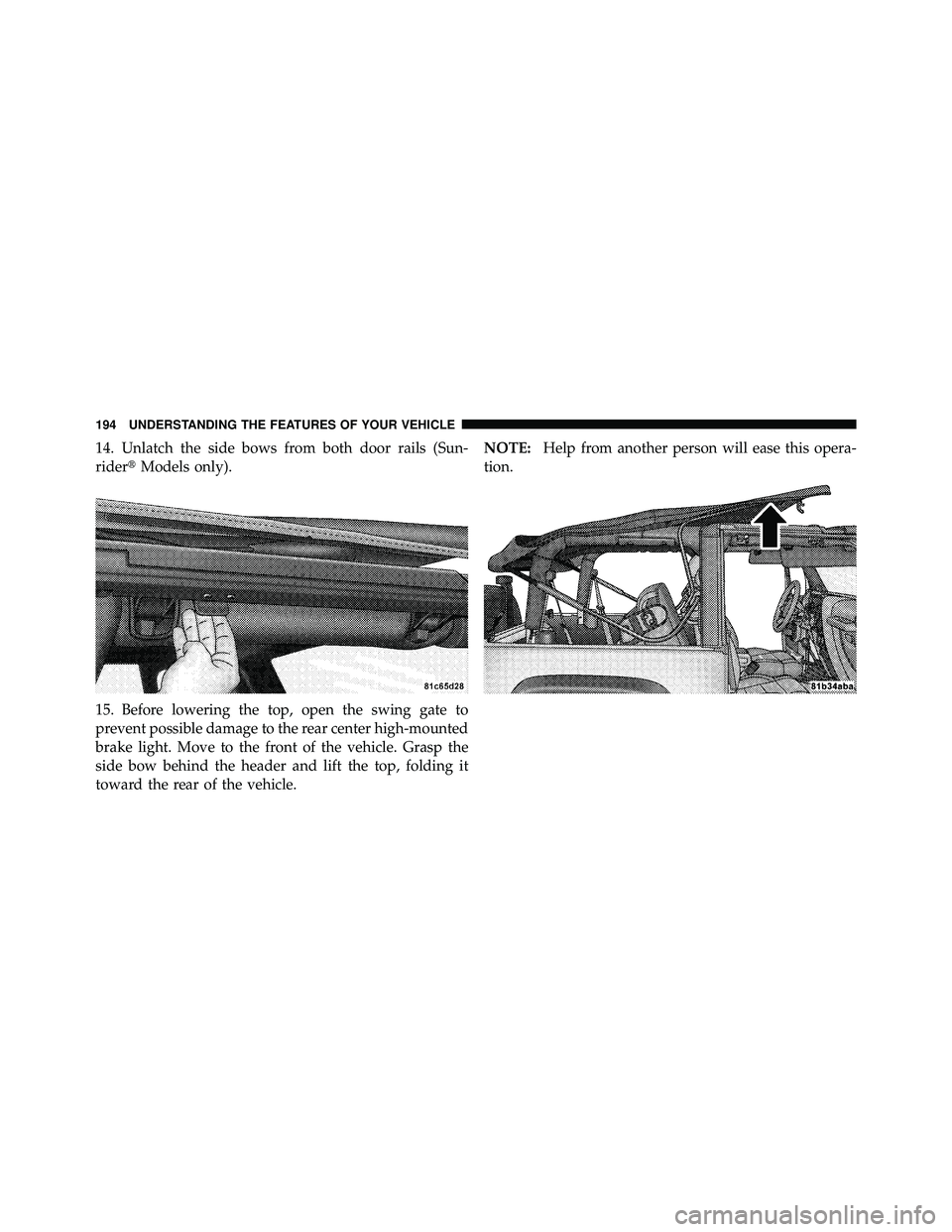

14. Unlatch the side bows from both door rails (Sun-
riderModels only).
15. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Move to the front of the vehicle. Grasp the
side bow behind the header and lift the top, folding it
toward the rear of the vehicle. NOTE:
Help from another person will ease this opera-
tion.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

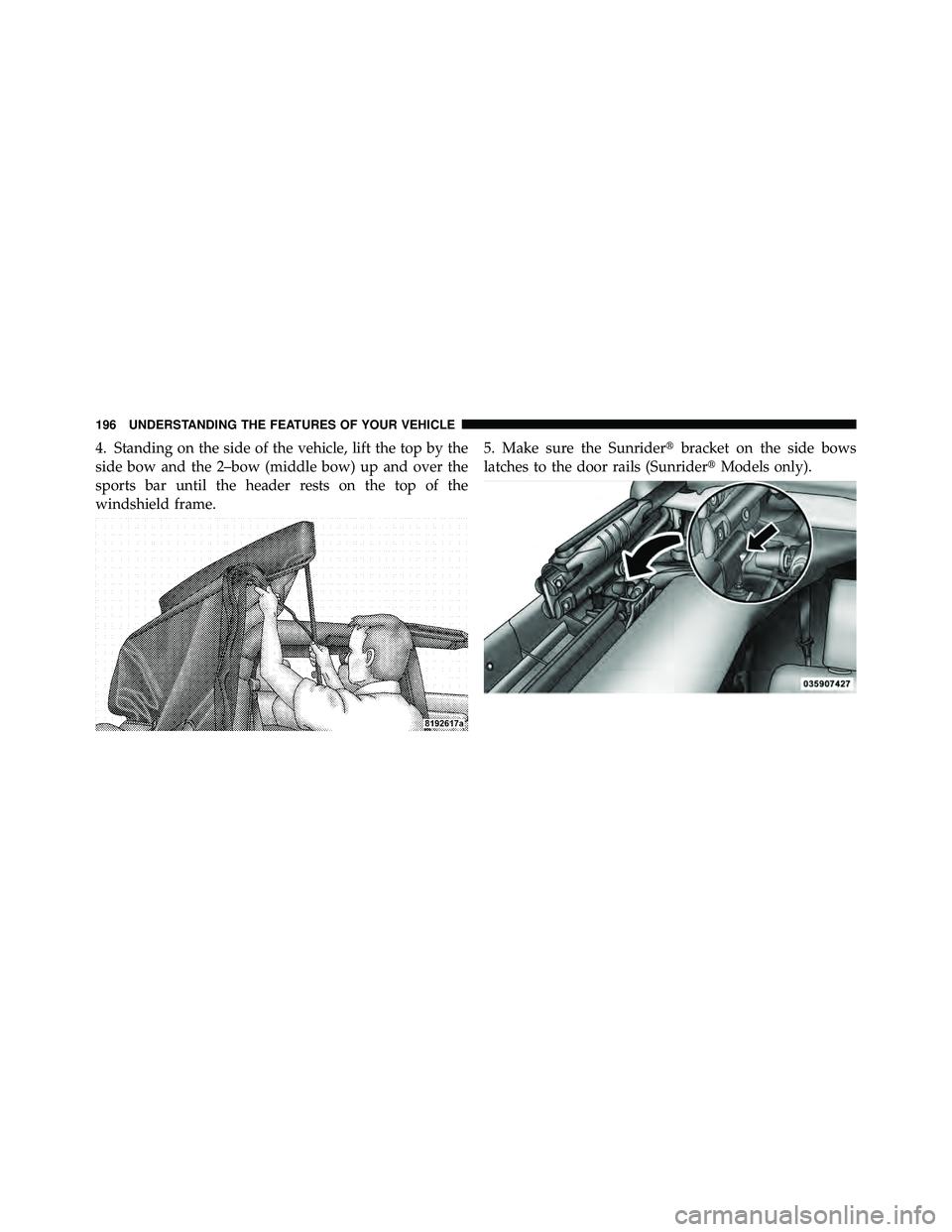

4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.5. Make sure the Sunrider
bracket on the side bows
latches to the door rails (Sunrider Models only).

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197

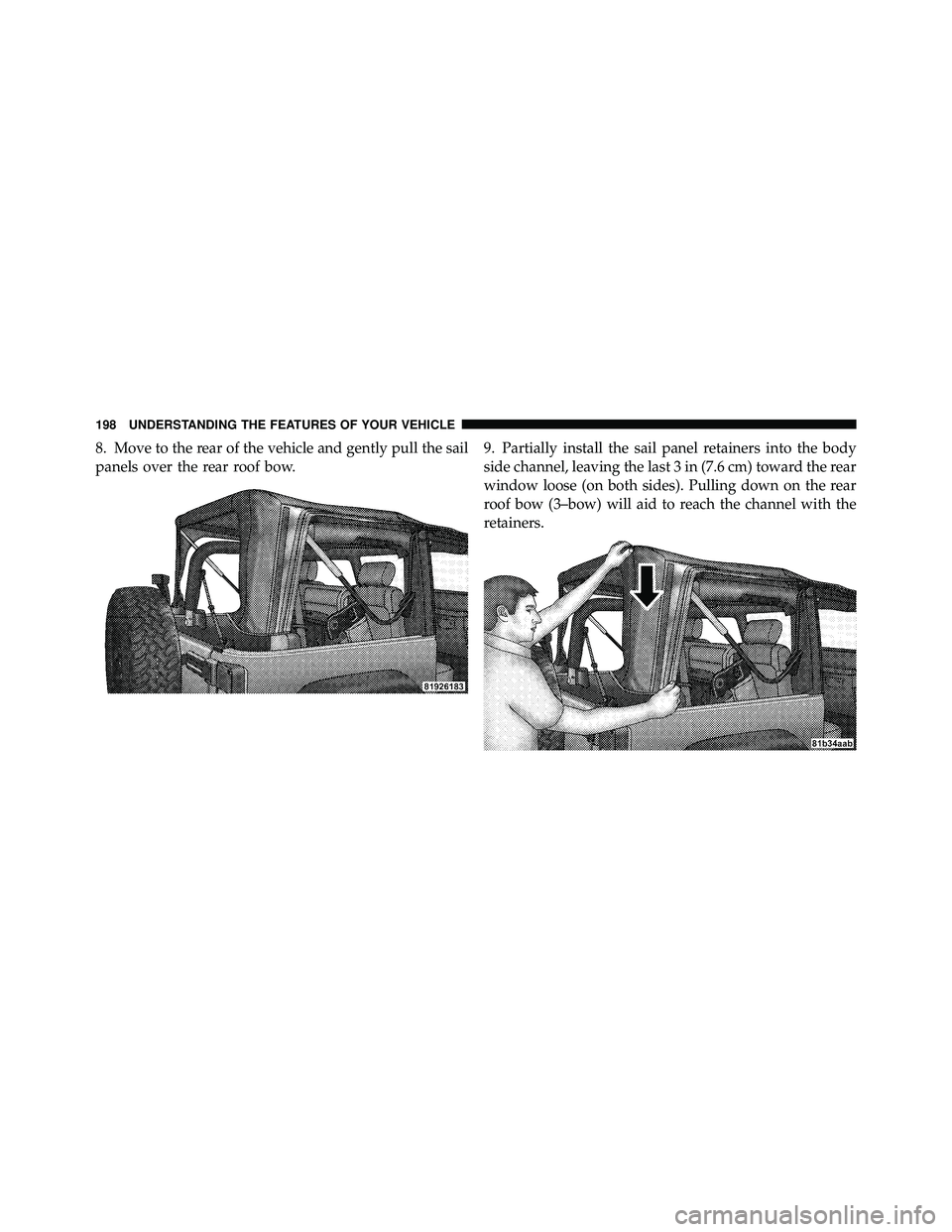

8. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.9. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (3–bow) will aid to reach the channel with the
retainers.

3
