JEEP WRANGLER 2010 Owners Manual

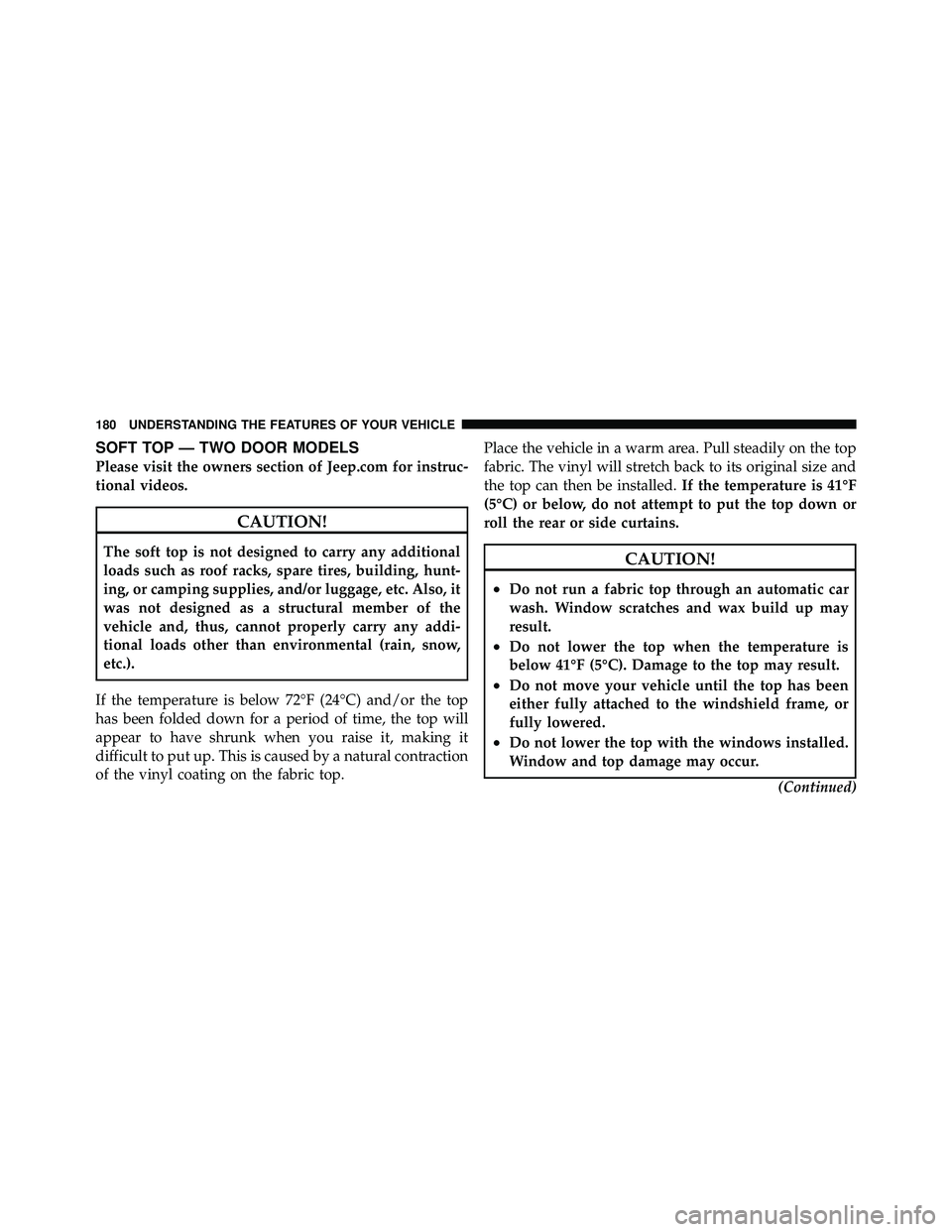

SOFT TOP — TWO DOOR MODELS
Please visit the owners section of Jeep.com for instruc-
tional videos.

CAUTION! (Continued)
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.

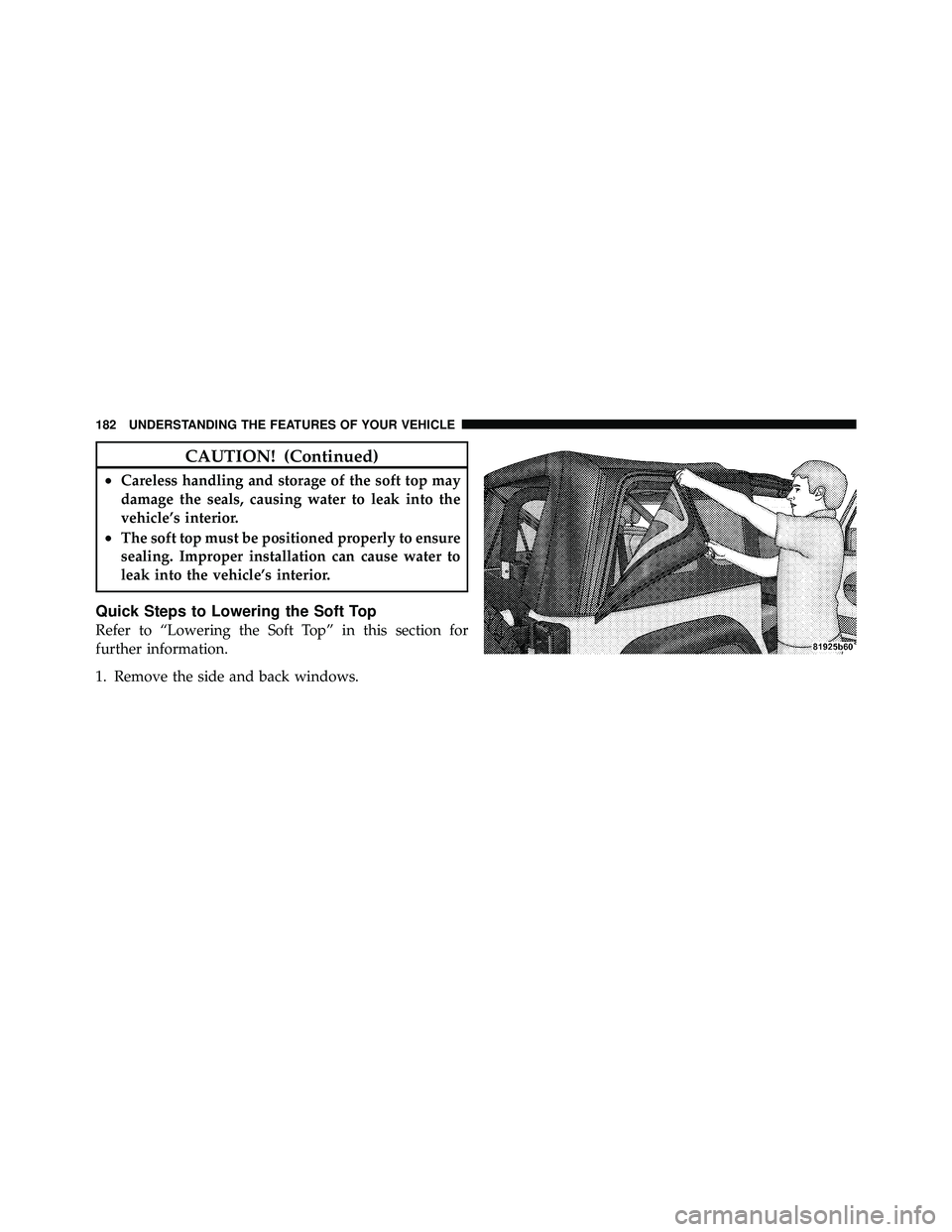

Quick Steps to Lowering the Soft Top
Refer to “Lowering the Soft Top” in this section for
further information.
1. Remove the side and back windows.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183

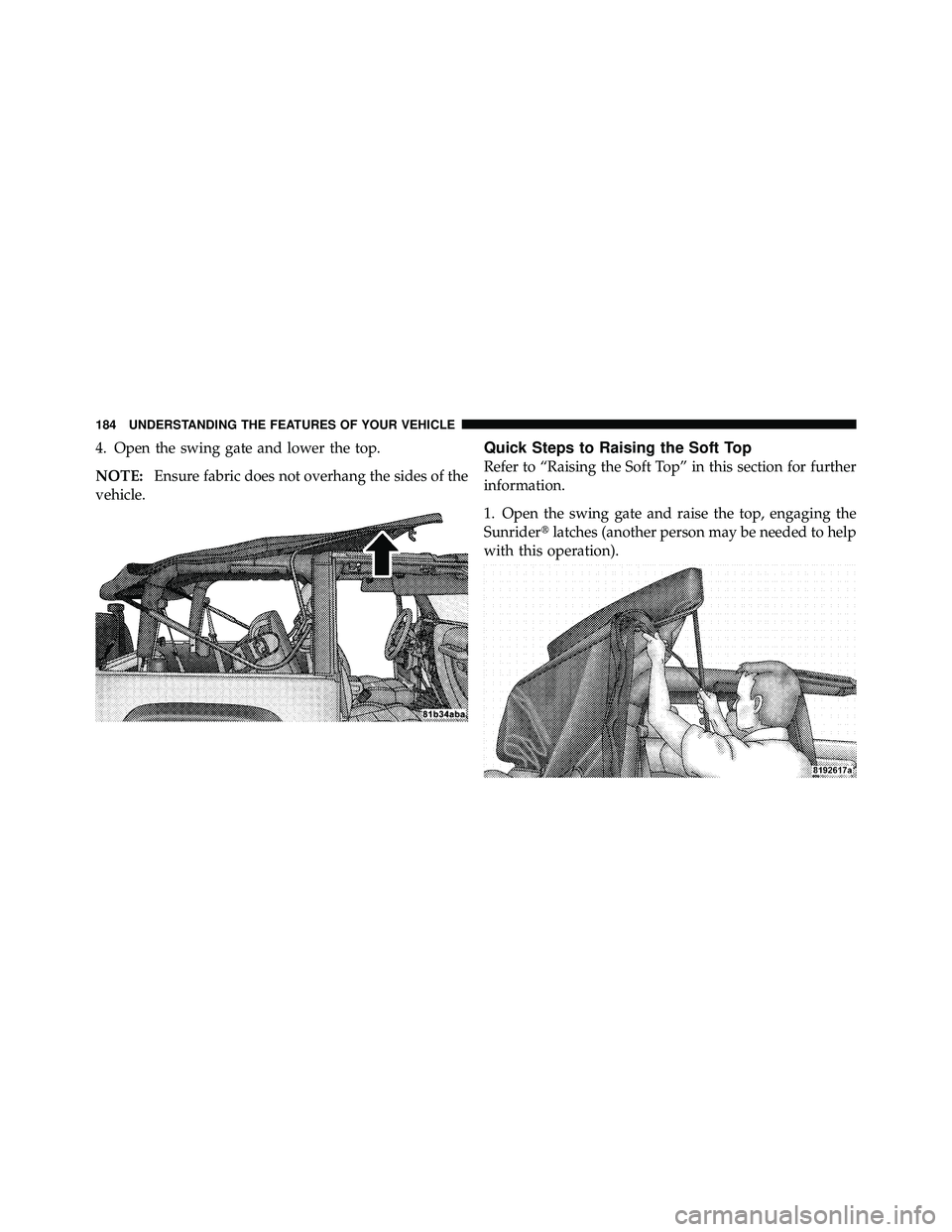

4. Open the swing gate and lower the top.
NOTE:Ensure fabric does not overhang the sides of the
vehicle.Quick Steps to Raising the Soft Top
Refer to “Raising the Soft Top” in this section for further
information.
1. Open the swing gate and raise the top, engaging the
Sunrider latches (another person may be needed to help
with this operation).

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185

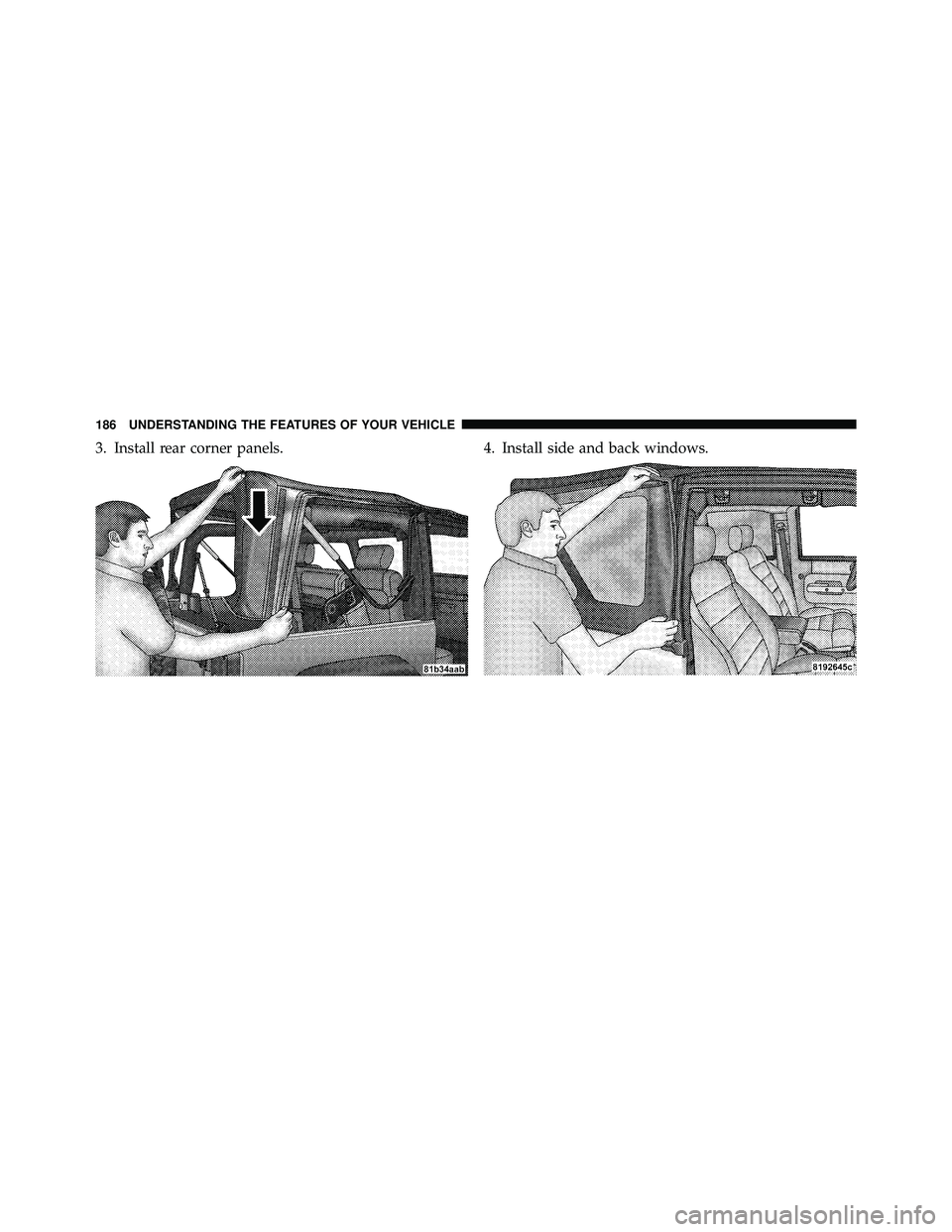

3. Install rear corner panels.4. Install side and back windows.

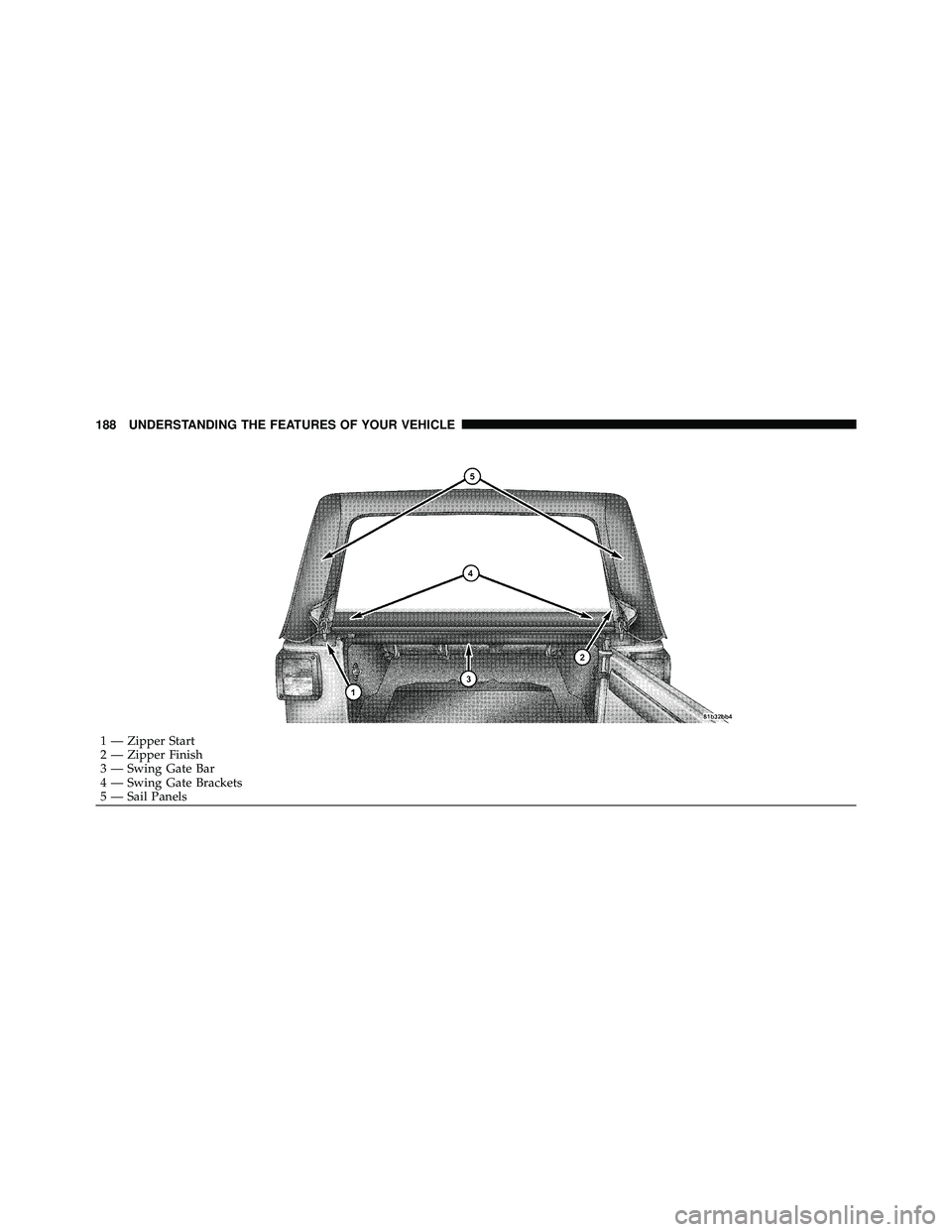

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3

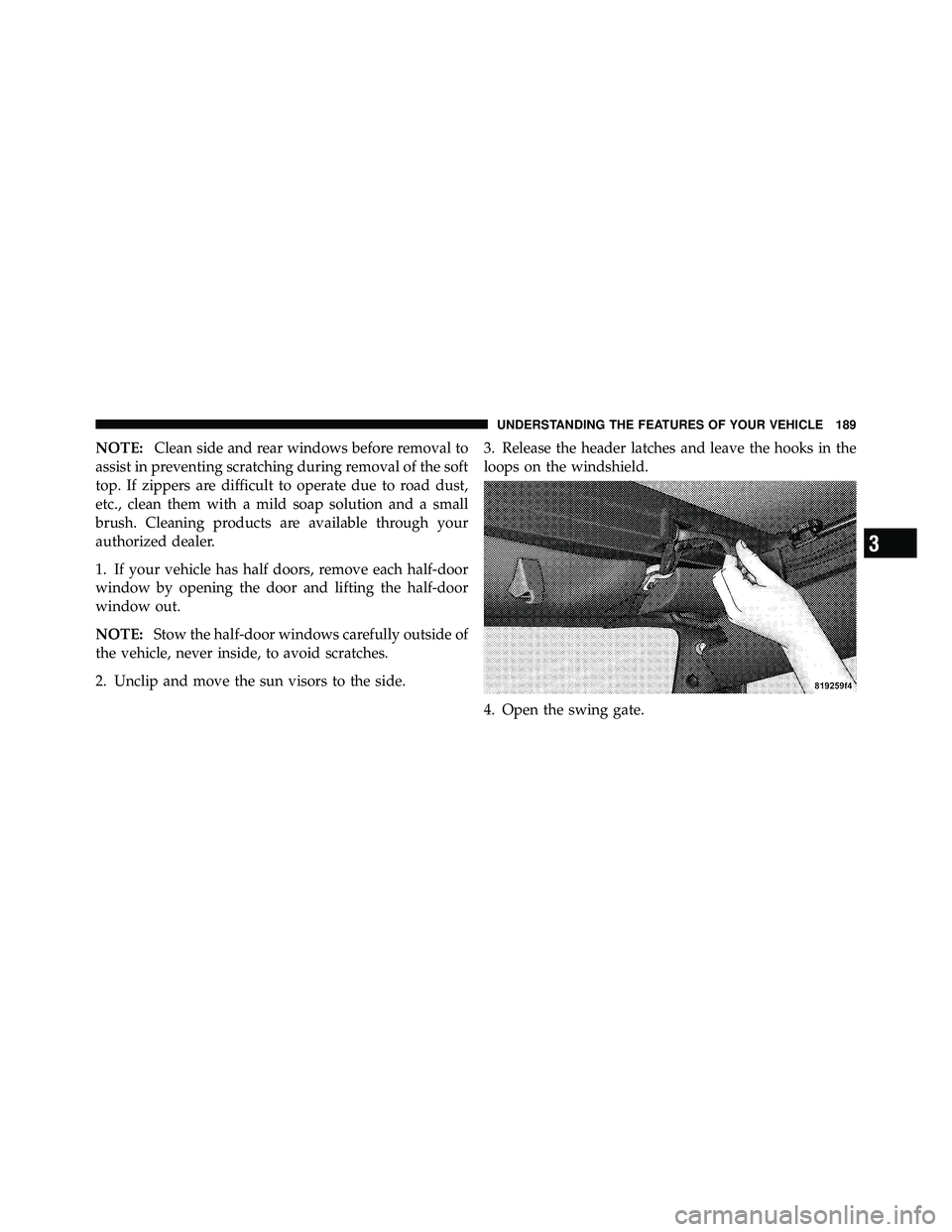

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189
