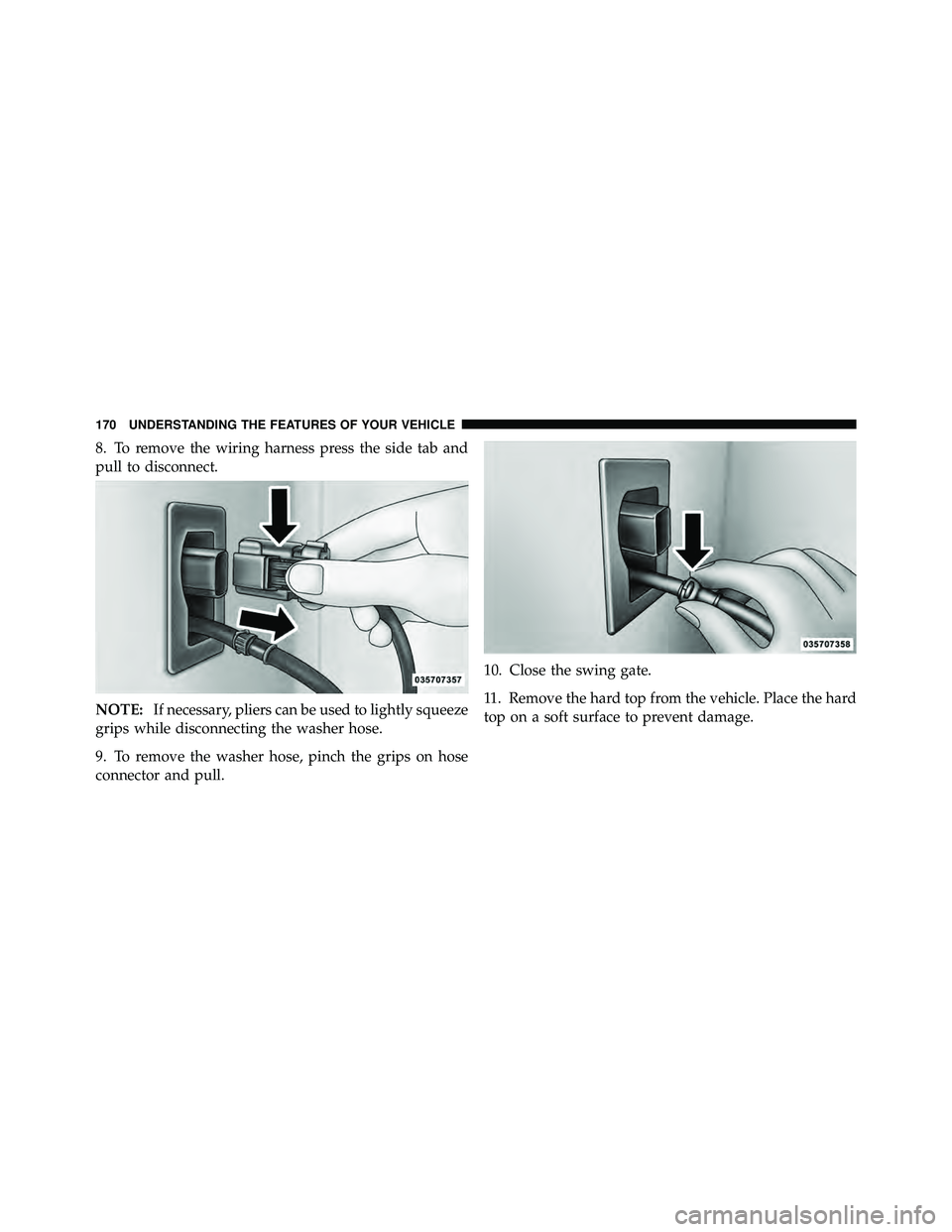

8. To remove the wiring harness press the side tab and
pull to disconnect.
NOTE:If necessary, pliers can be used to lightly squeeze
grips while disconnecting the washer hose.
9. To remove the washer hose, pinch the grips on hose
connector and pull. 10. Close the swing gate.
11. Remove the hard top from the vehicle. Place the hard
top on a soft surface to prevent damage.

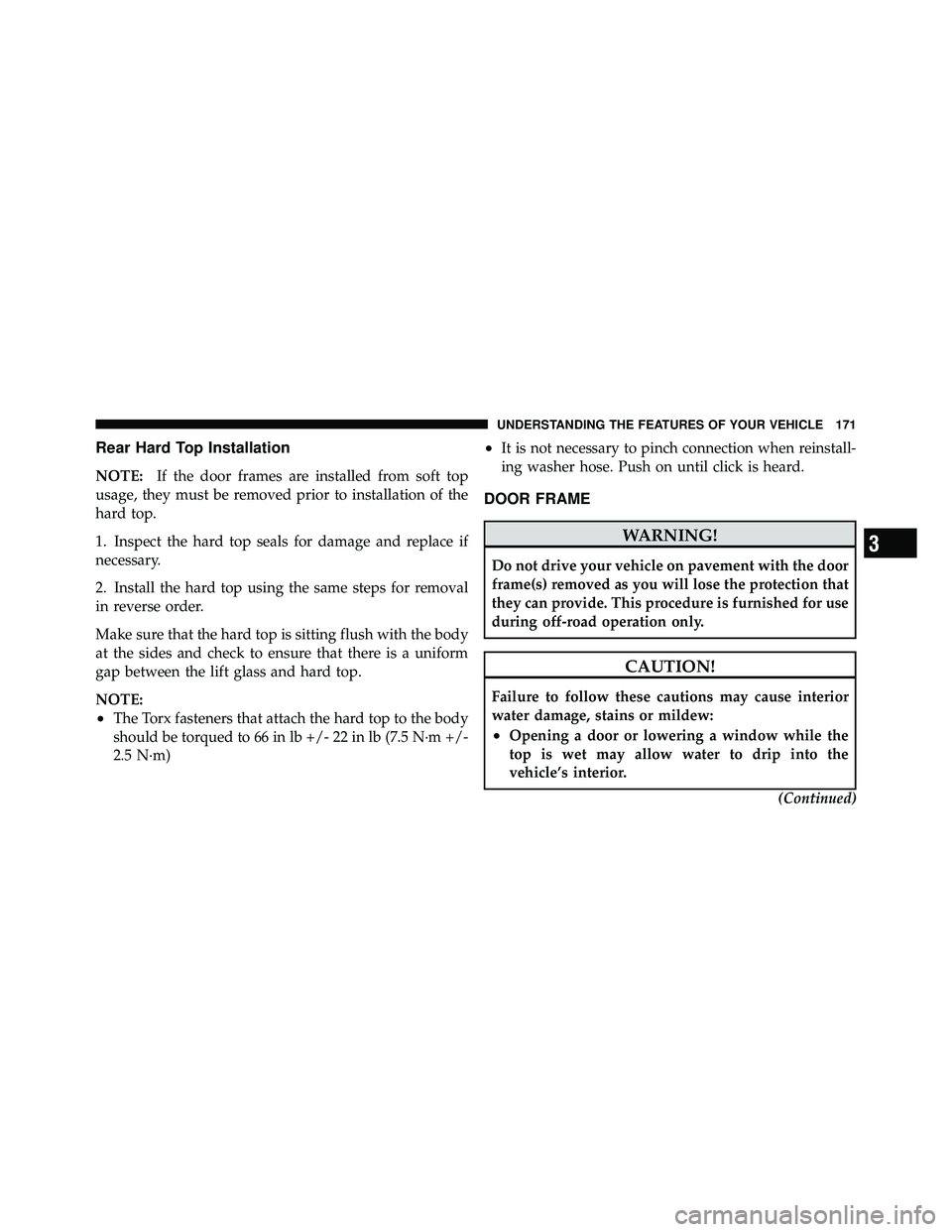

CAUTION! (Continued)
•Careless handling and storage of the removable
door frame(s) may damage the seals, causing water
to leak into the vehicle’s interior.
•The door frame(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.

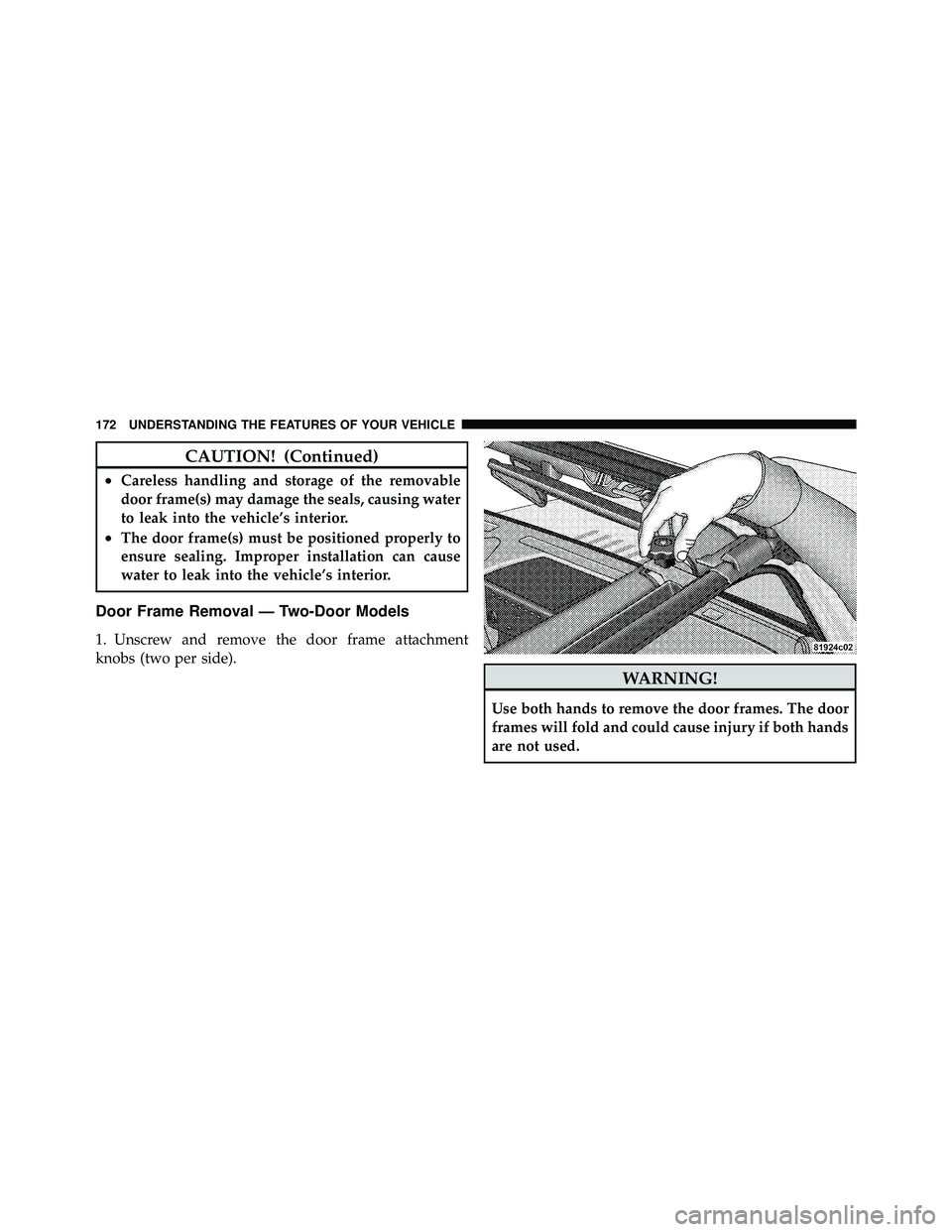

Door Frame Removal — Two-Door Models
1. Unscrew and remove the door frame attachment
knobs (two per side).

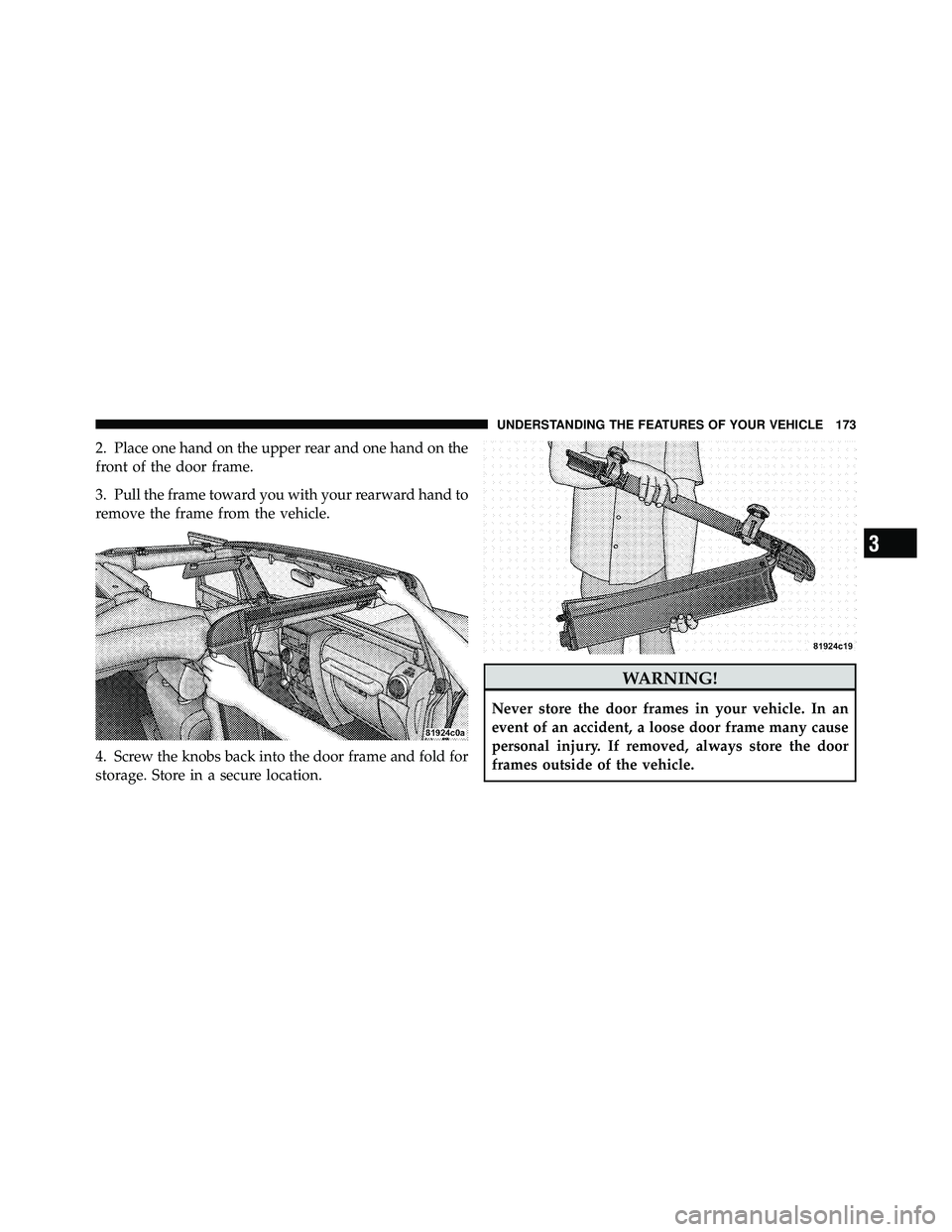

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173

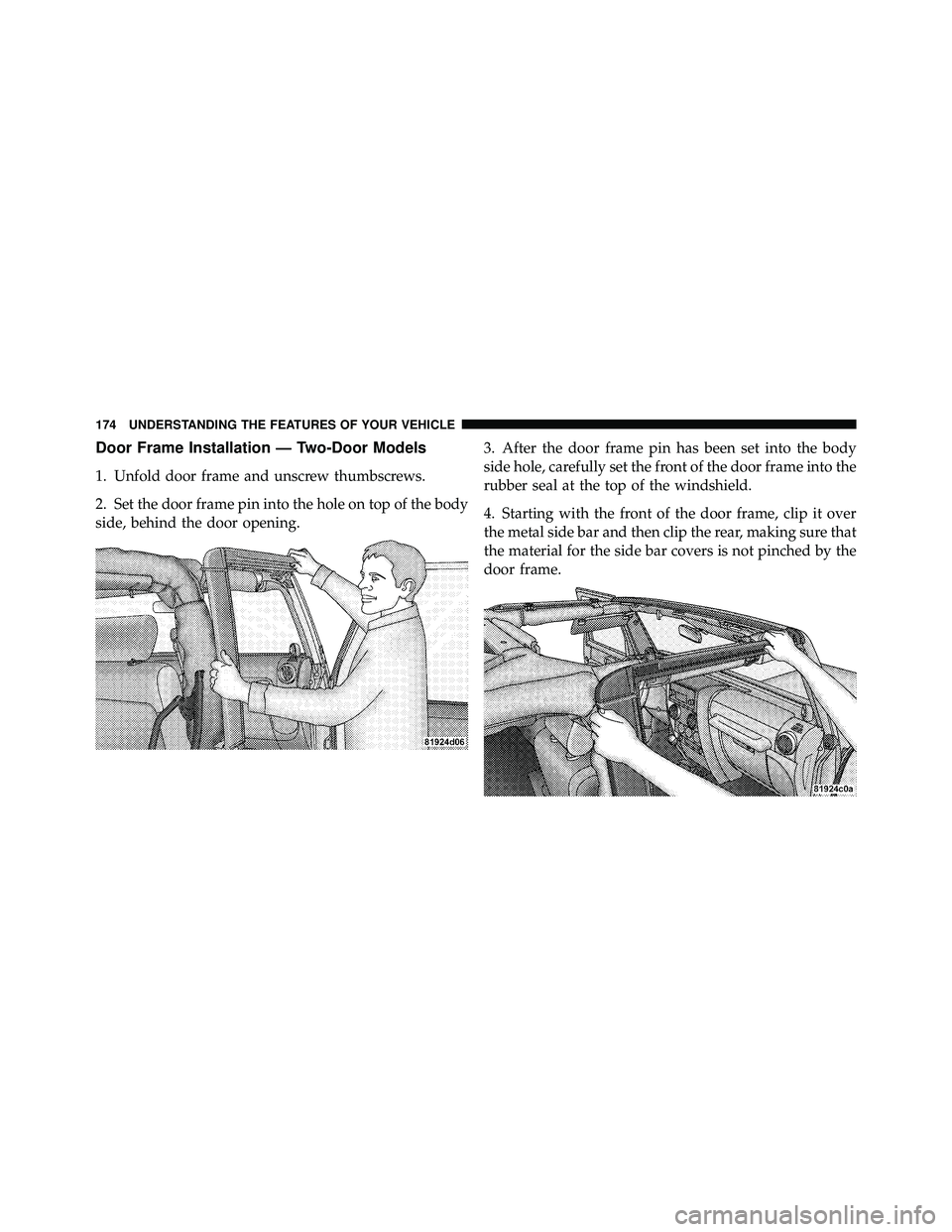

Door Frame Installation — Two-Door Models
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body
side, behind the door opening.3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into the
rubber seal at the top of the windshield.
4. Starting with the front of the door frame, clip it over
the metal side bar and then clip the rear, making sure that
the material for the side bar covers is not pinched by the
door frame.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

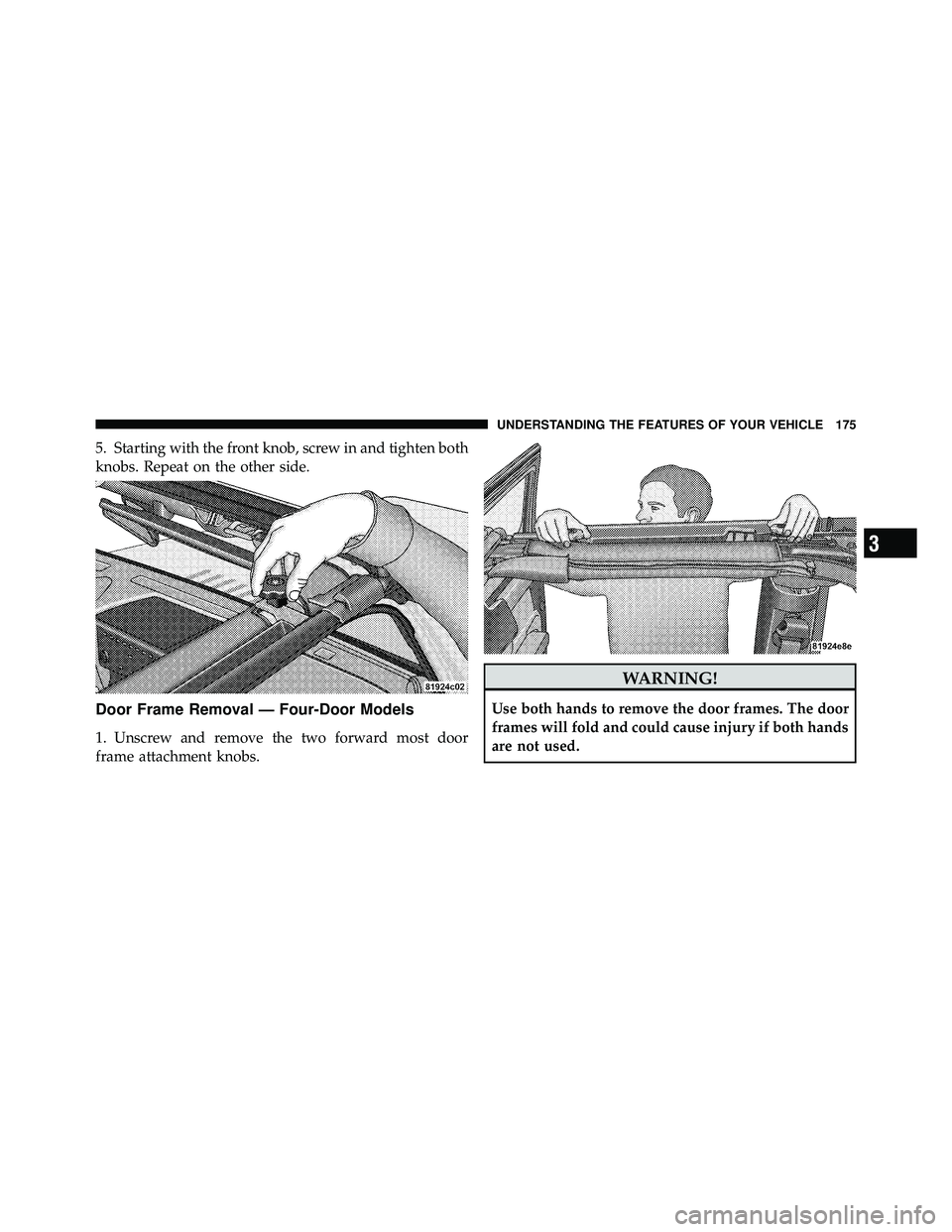

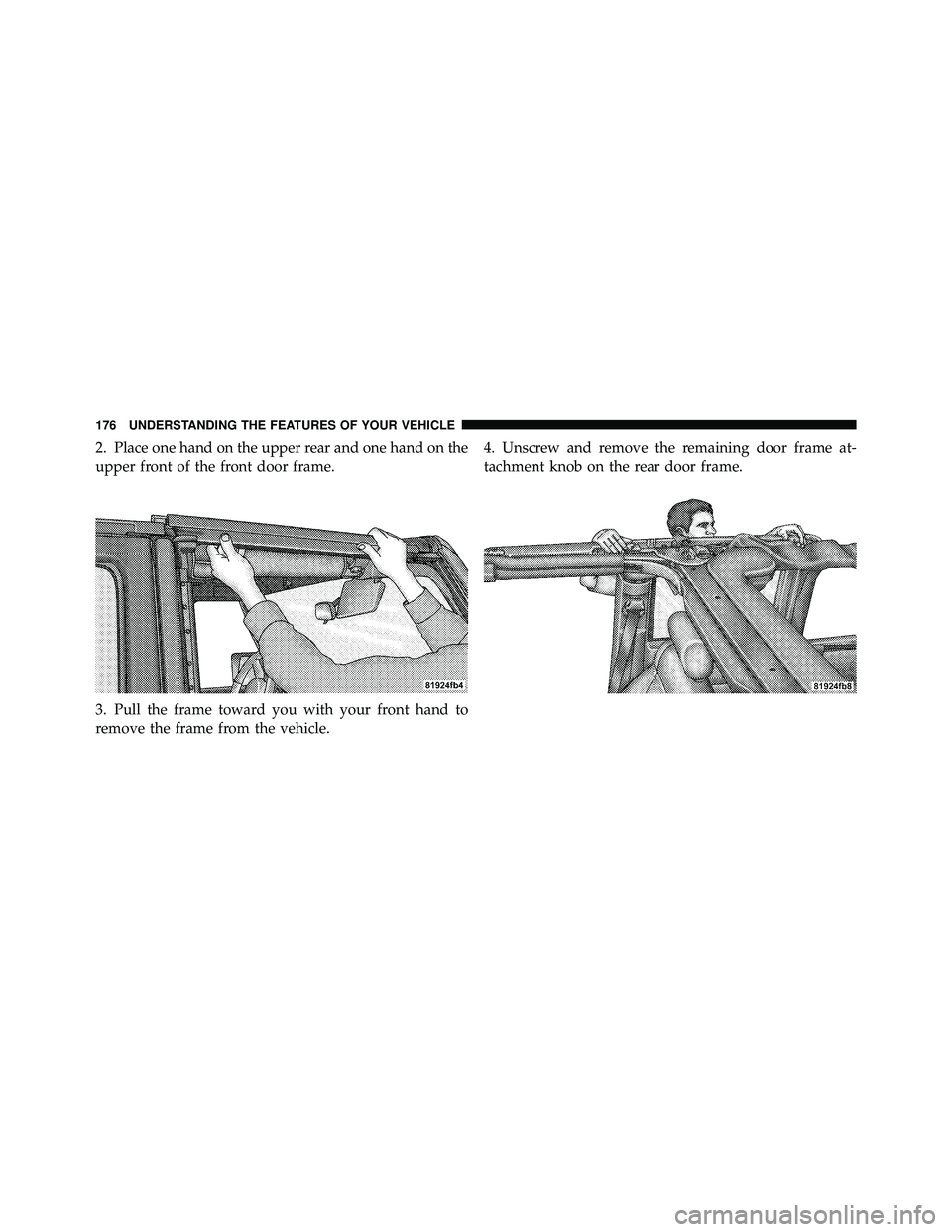

2. Place one hand on the upper rear and one hand on the
upper front of the front door frame.
3. Pull the frame toward you with your front hand to
remove the frame from the vehicle.4. Unscrew and remove the remaining door frame at-
tachment knob on the rear door frame.

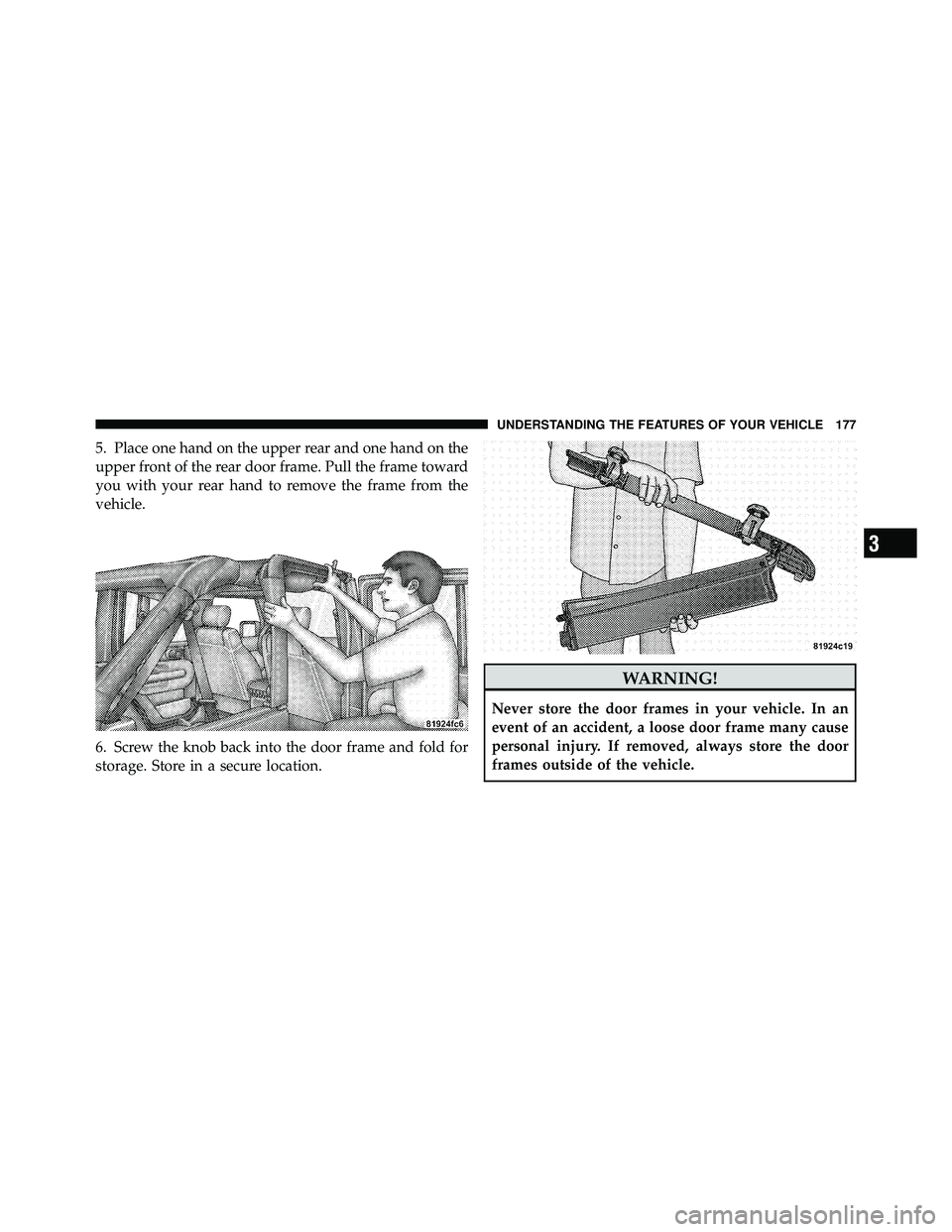

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

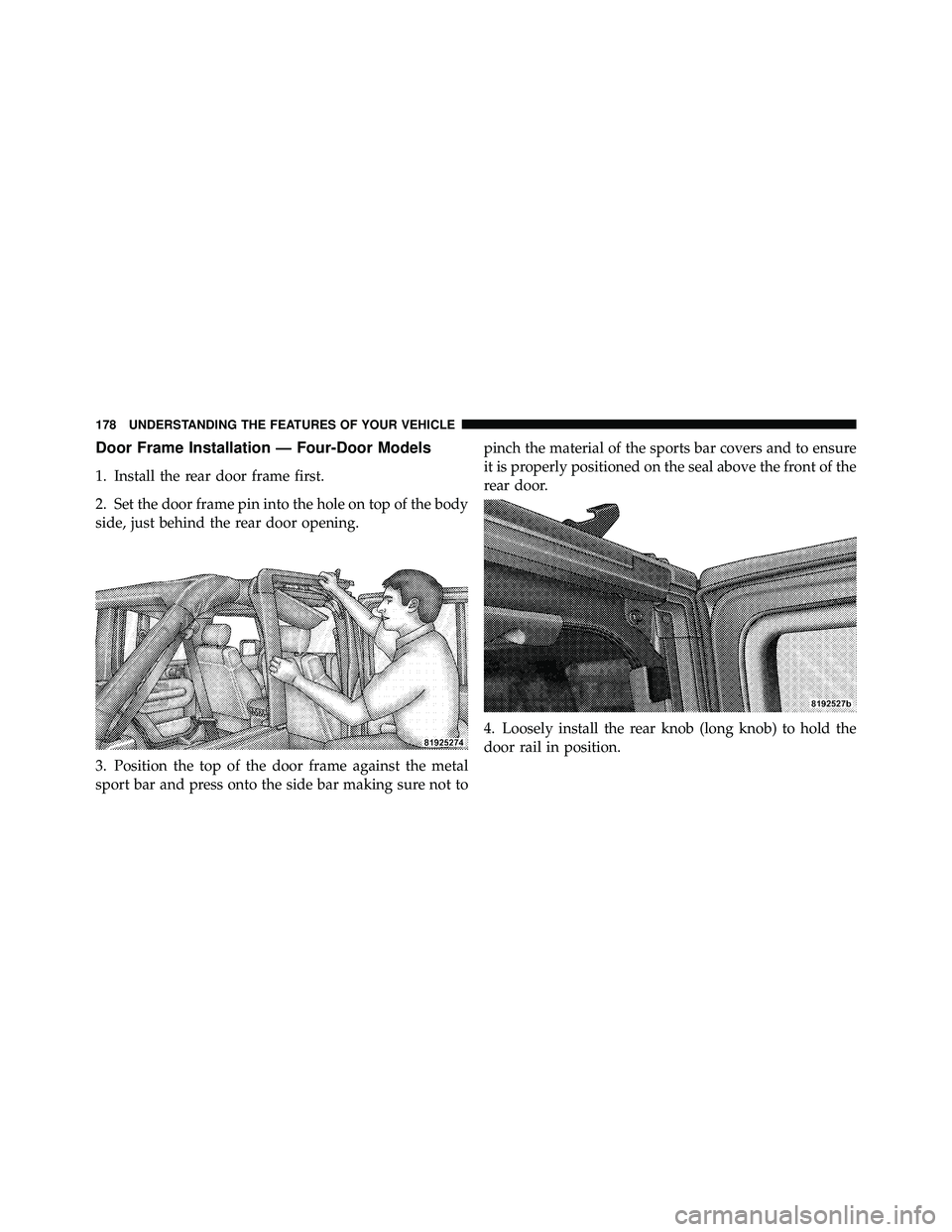

Door Frame Installation — Four-Door Models
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the body
side, just behind the rear door opening.
3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not topinch the material of the sports bar covers and to ensure
it is properly positioned on the seal above the front of the
rear door.
4. Loosely install the rear knob (long knob) to hold the
door rail in position.

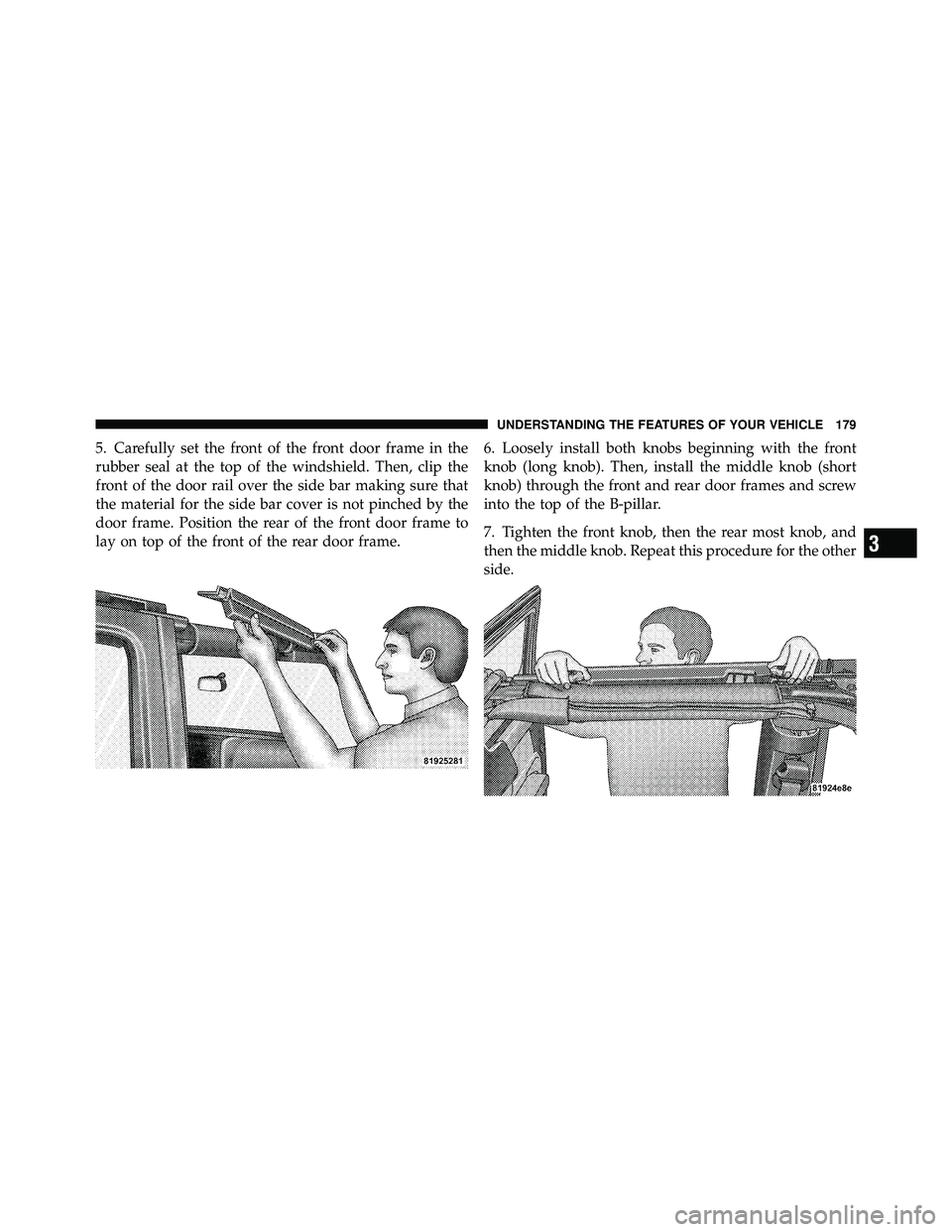

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
