JEEP WRANGLER 2010 Owners Manual

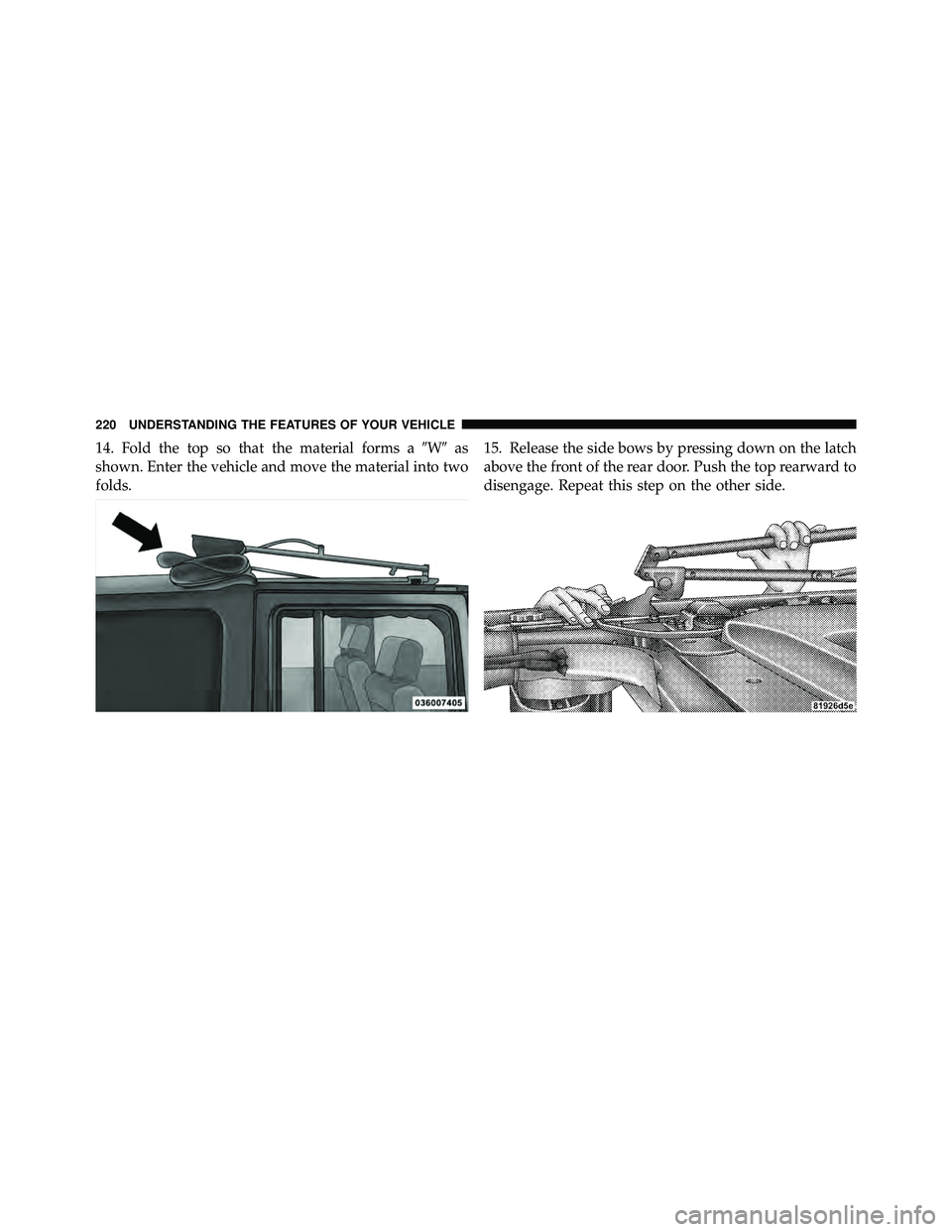

14. Fold the top so that the material forms aWas
shown. Enter the vehicle and move the material into two
folds. 15. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

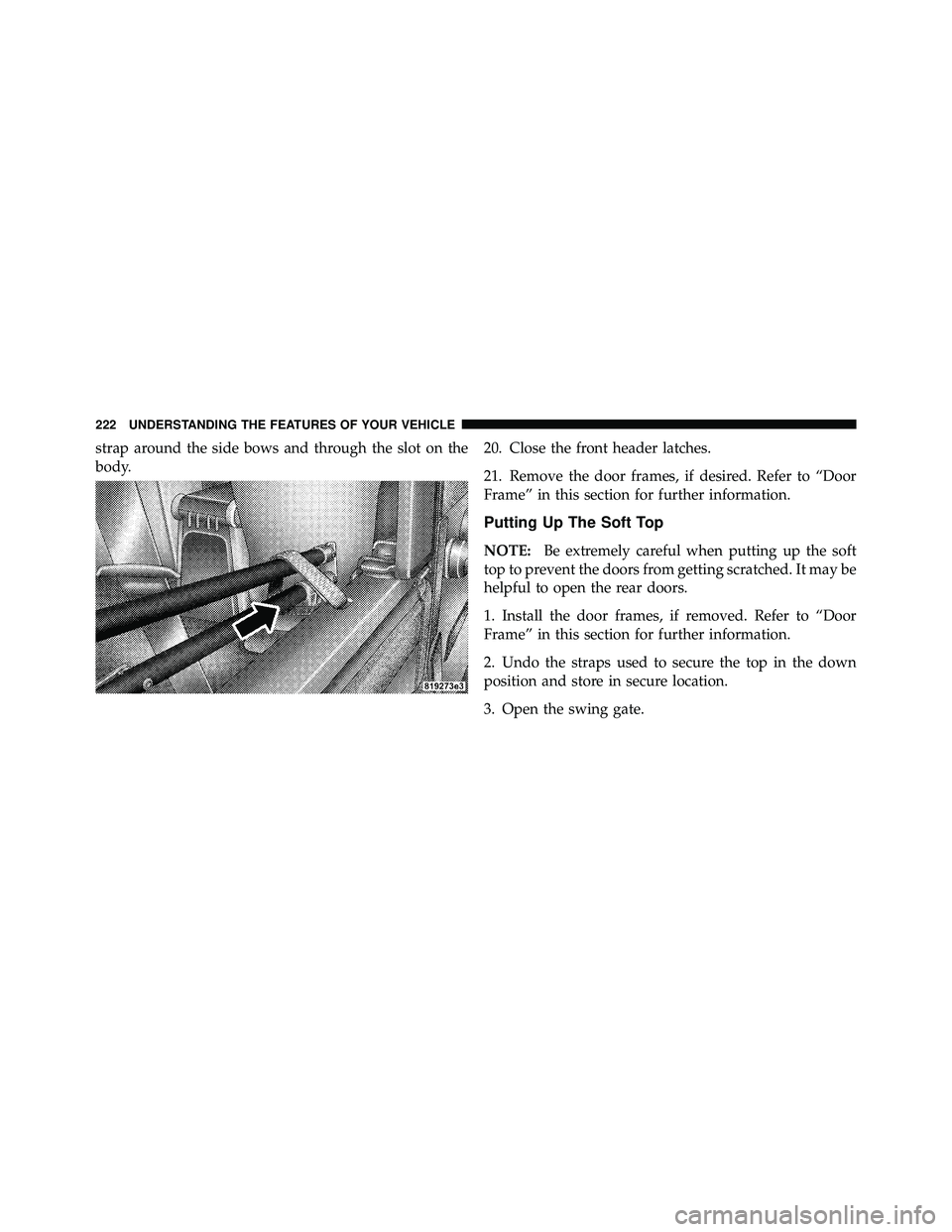

strap around the side bows and through the slot on the
body.20. Close the front header latches.
21. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
Putting Up The Soft Top
NOTE:
Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if removed. Refer to “Door
Frame” in this section for further information.
2. Undo the straps used to secure the top in the down
position and store in secure location.
3. Open the swing gate.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223

6. Ensure that the top locks into the Sunriderlocking
mechanisms that are located above the front of the rear
doors.
7. Unclip and move the sun visors to the side. 8. Standing on the side of the vehicle, lift the top by the
side bow until it rests on the windshield frame.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225

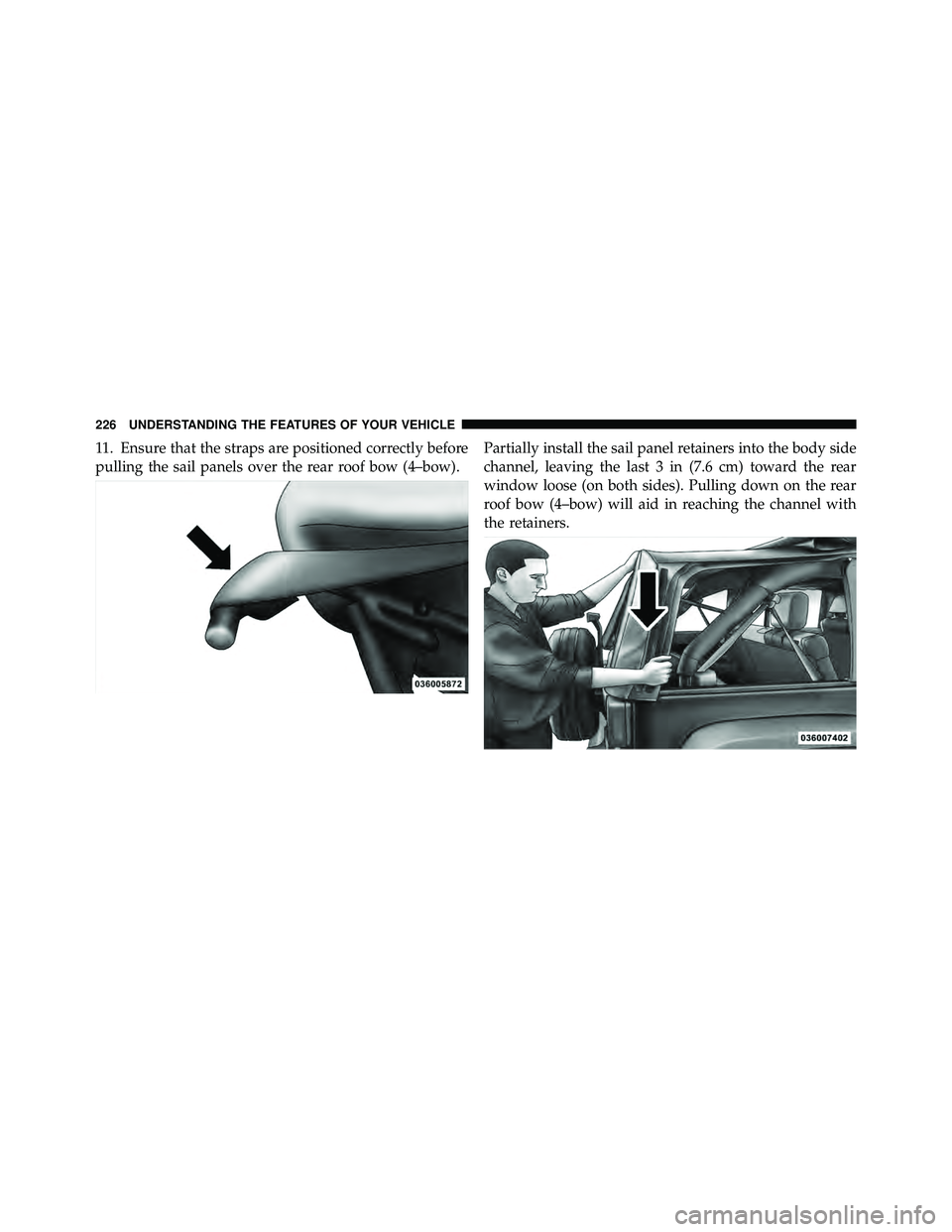

11. Ensure that the straps are positioned correctly before
pulling the sail panels over the rear roof bow (4–bow).Partially install the sail panel retainers into the body side
channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (4–bow) will aid in reaching the channel with
the retainers.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227

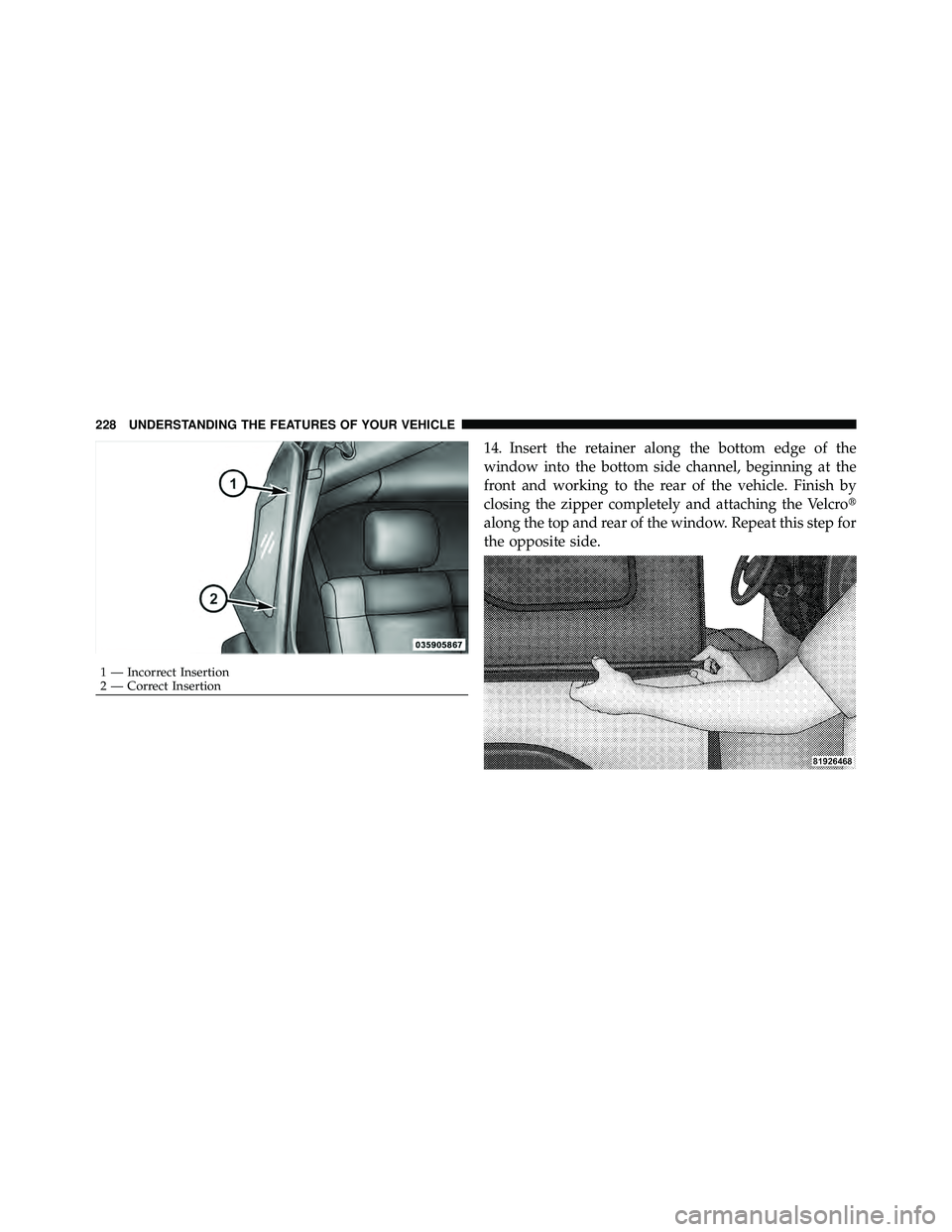

14. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 229
