JEEP WRANGLER 2010 Owners Manual

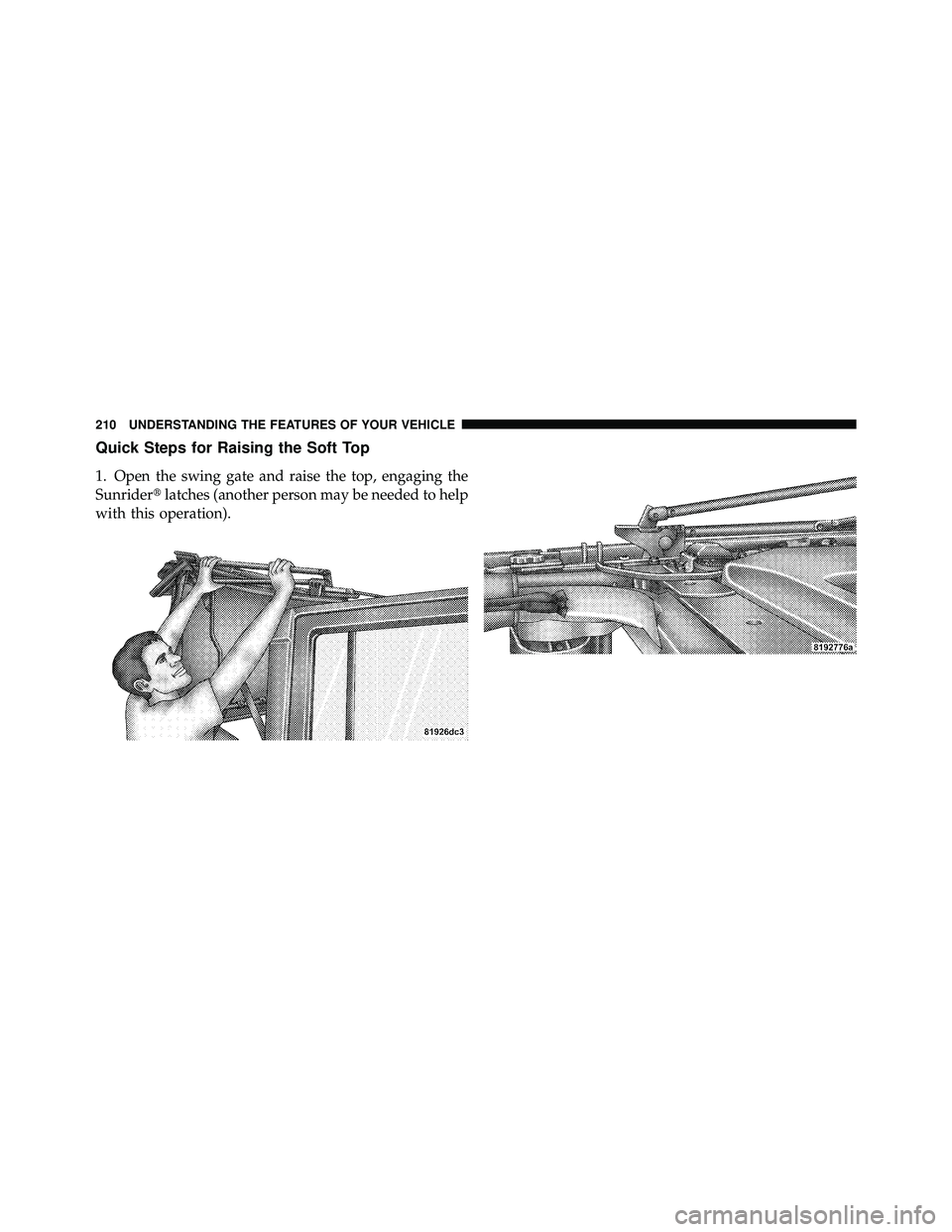

Quick Steps for Raising the Soft Top
1. Open the swing gate and raise the top, engaging the
Sunriderlatches (another person may be needed to help
with this operation).

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

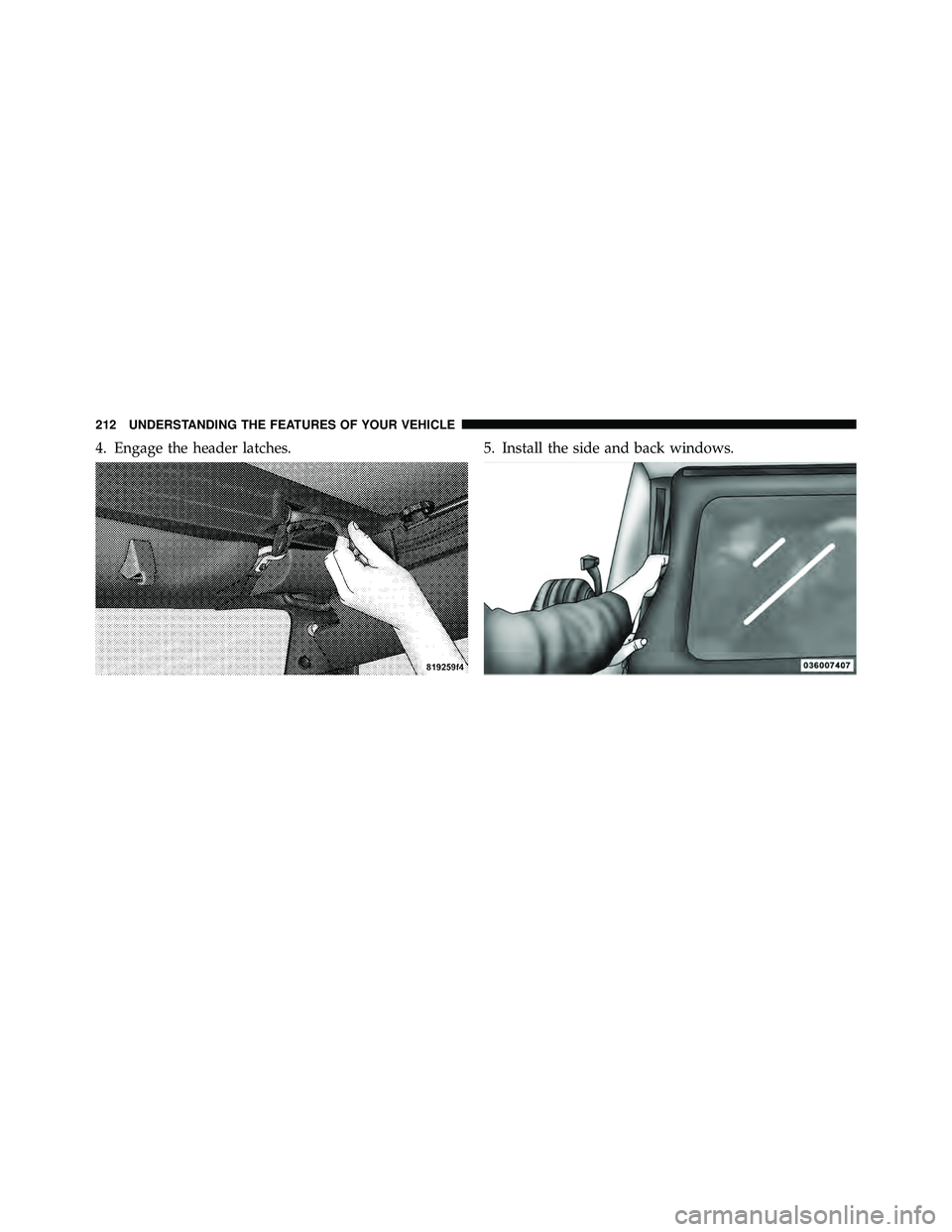

4. Engage the header latches.5. Install the side and back windows.

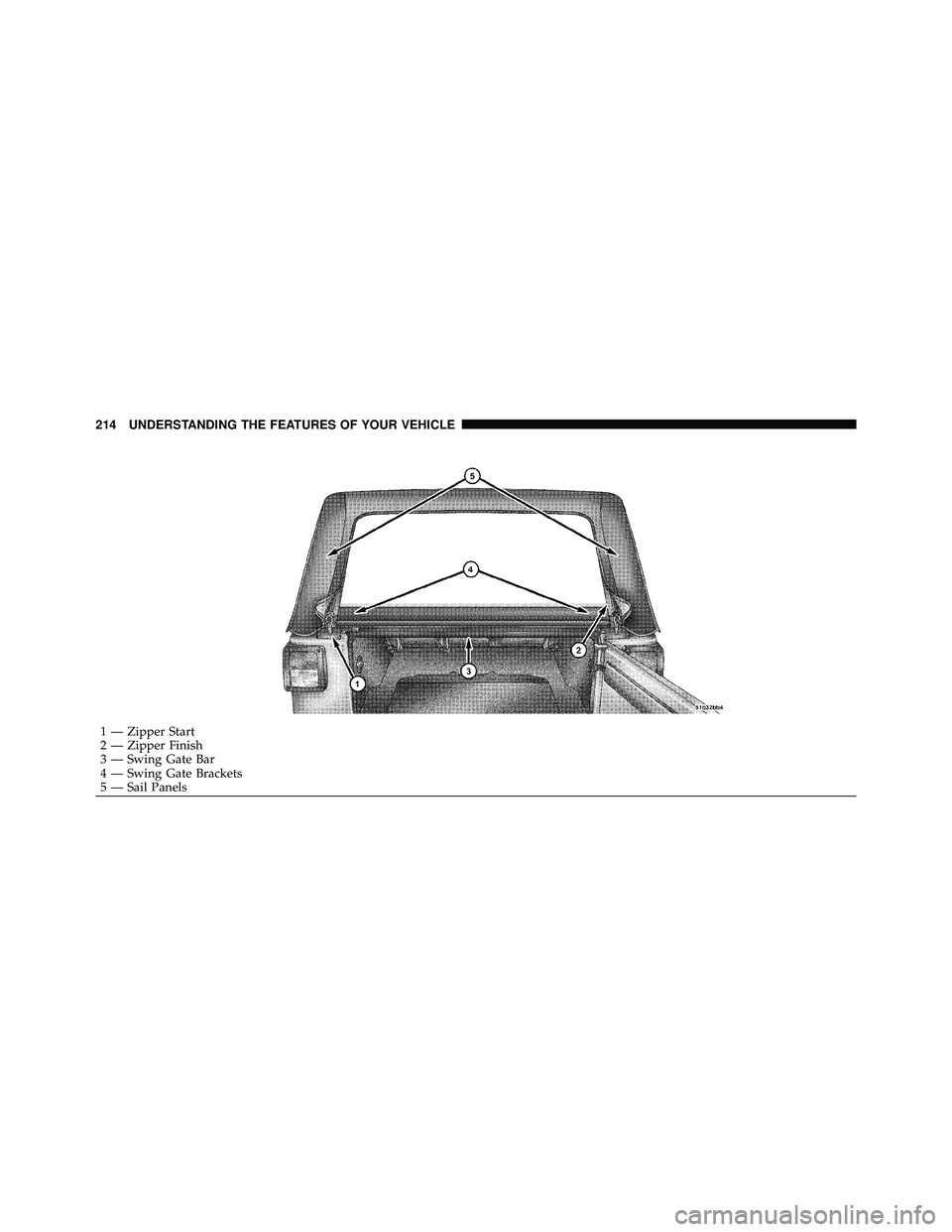

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3

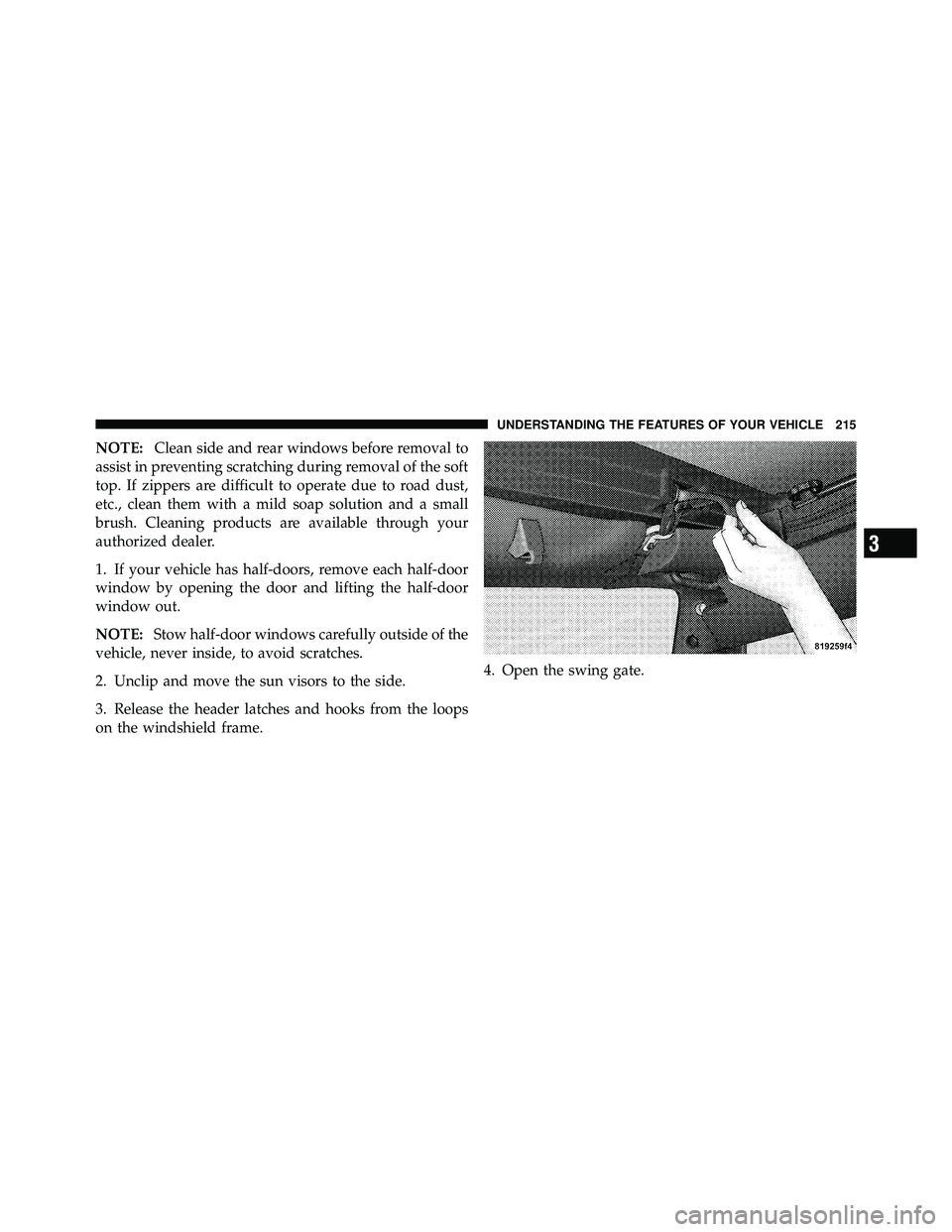

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

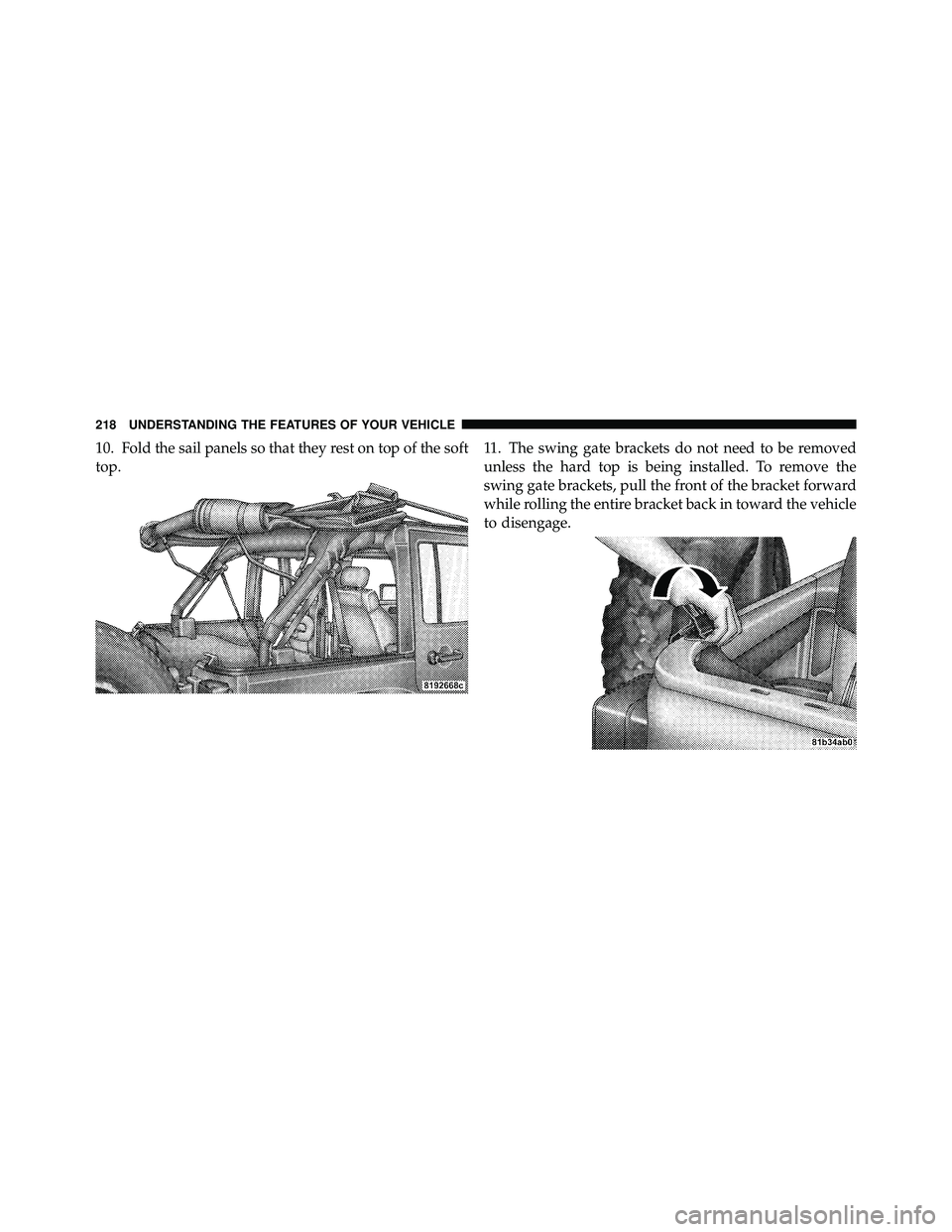

10. Fold the sail panels so that they rest on top of the soft
top.11. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.

3

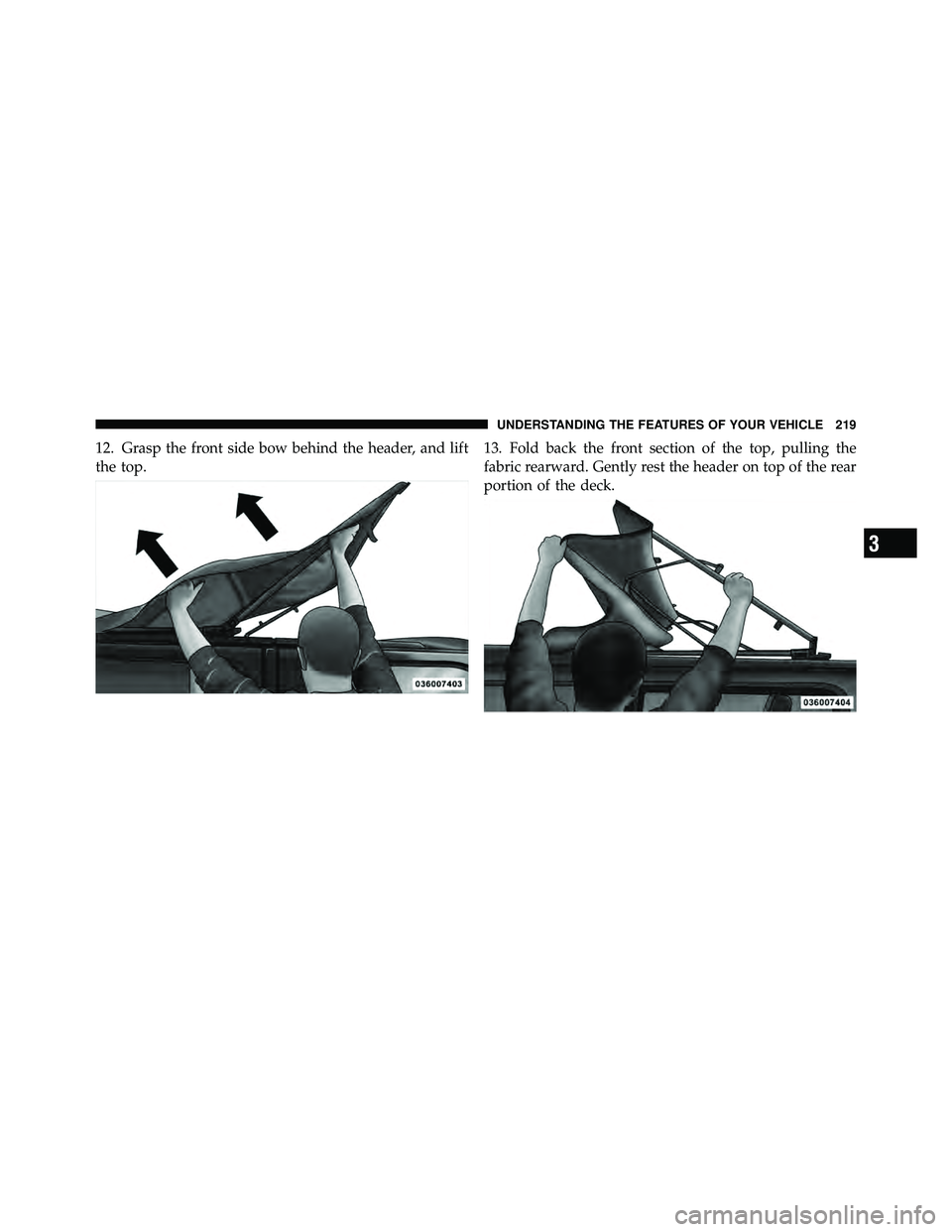

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219
