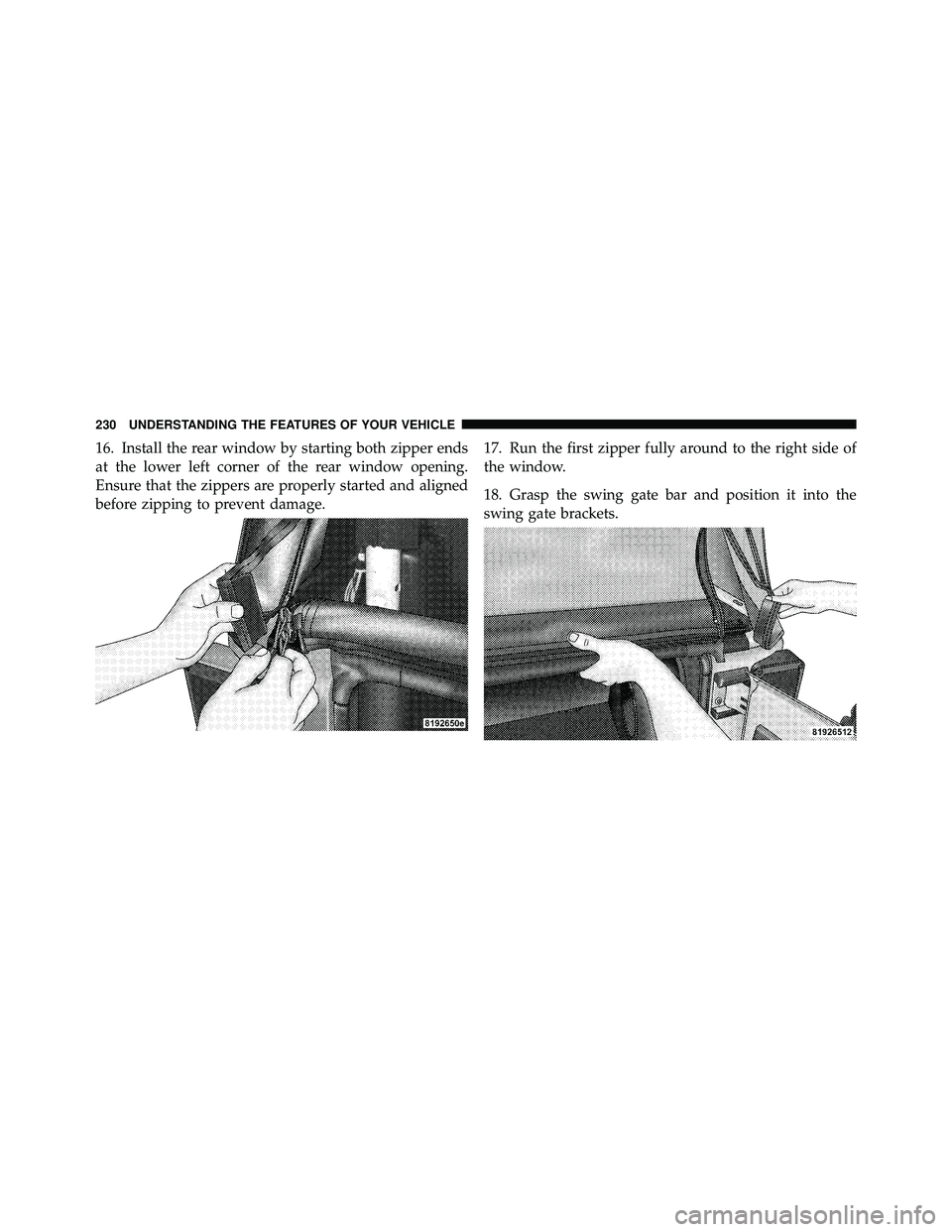

16. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.17. Run the first zipper fully around to the right side of
the window.
18. Grasp the swing gate bar and position it into the
swing gate brackets.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

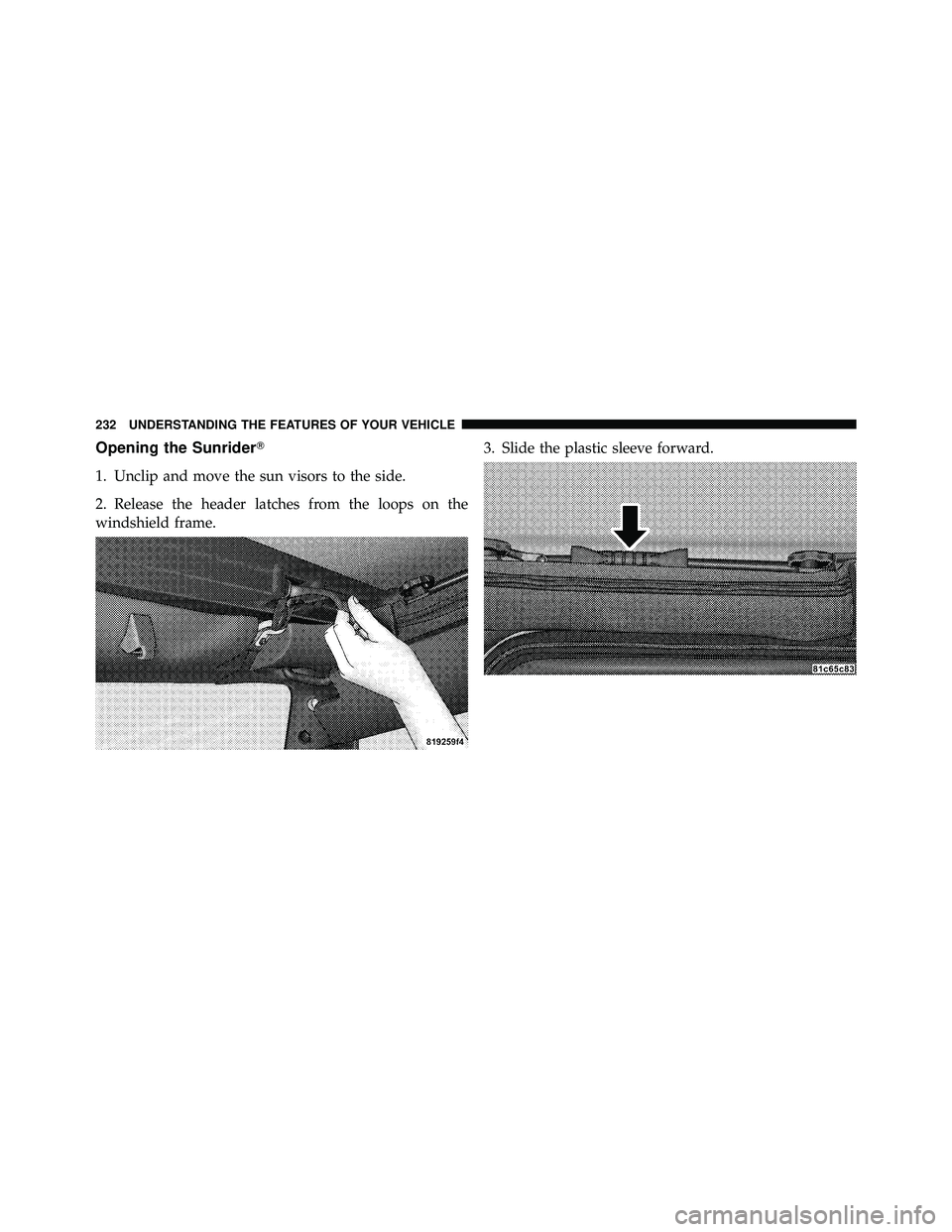

Opening the Sunrider
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame.3. Slide the plastic sleeve forward.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233

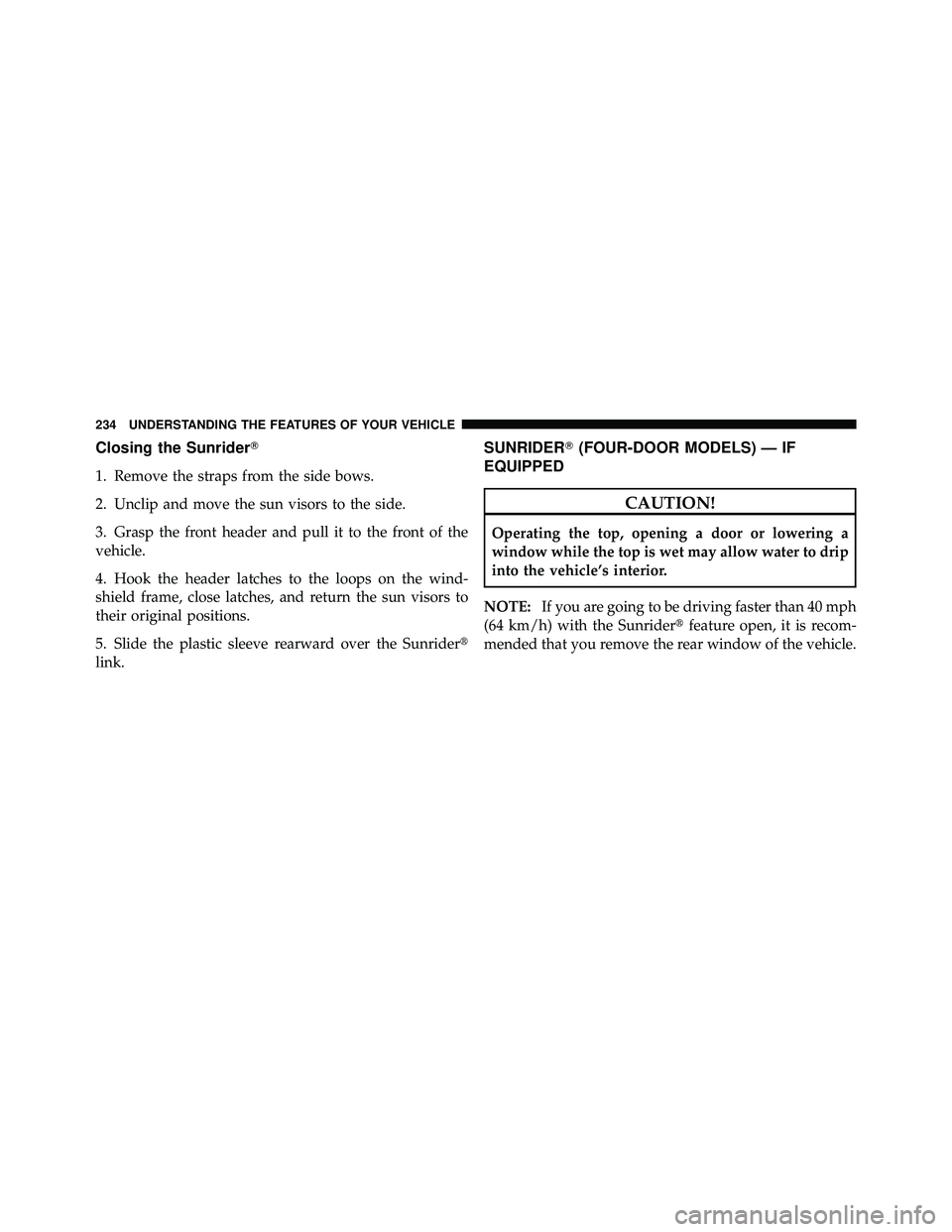

Closing the Sunrider
1. Remove the straps from the side bows.
2. Unclip and move the sun visors to the side.
3. Grasp the front header and pull it to the front of the
vehicle.
4. Hook the header latches to the loops on the wind-
shield frame, close latches, and return the sun visors to
their original positions.
5. Slide the plastic sleeve rearward over the Sunrider
link.
SUNRIDER(FOUR-DOOR MODELS) — IF
EQUIPPED

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

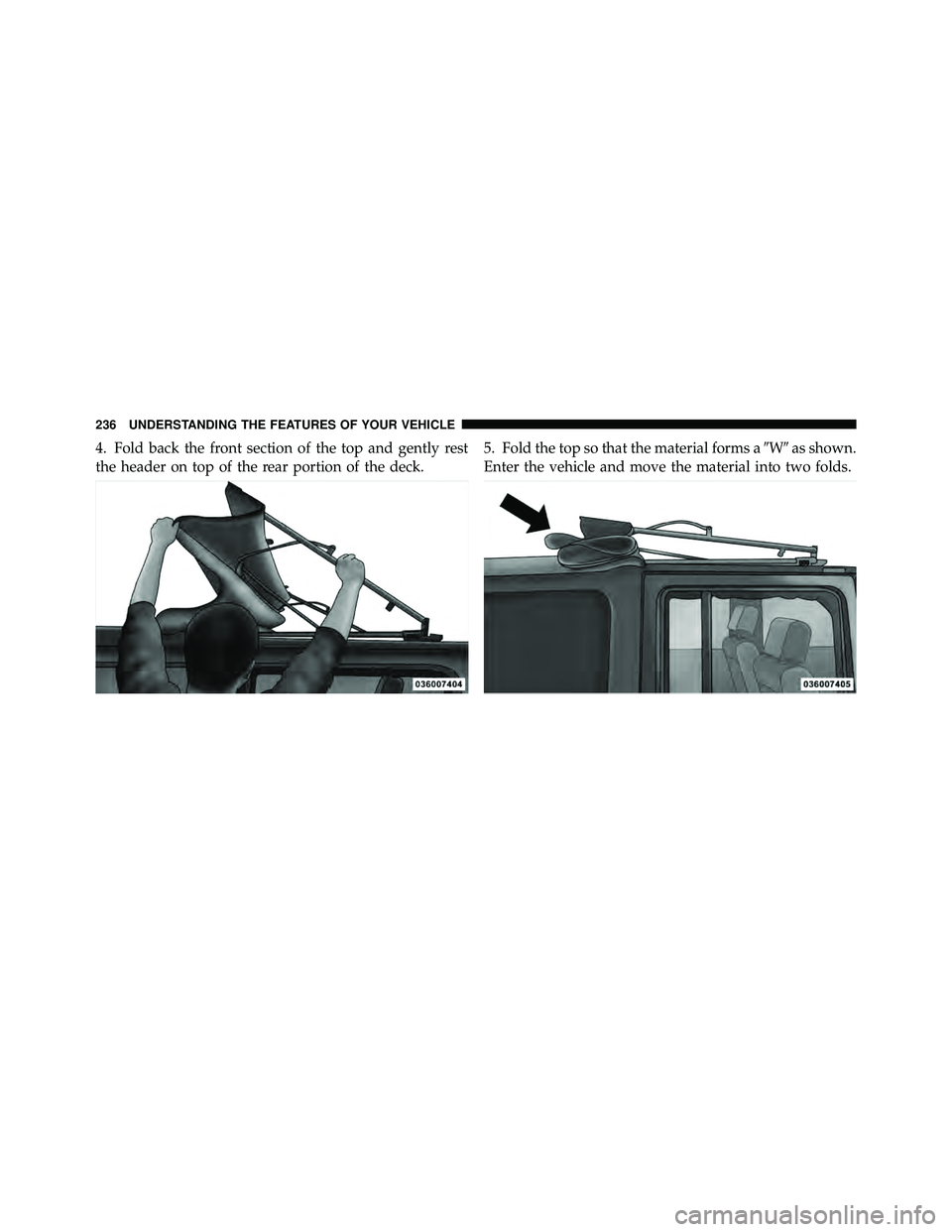

4. Fold back the front section of the top and gently rest
the header on top of the rear portion of the deck.5. Fold the top so that the material forms a
Was shown.
Enter the vehicle and move the material into two folds.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

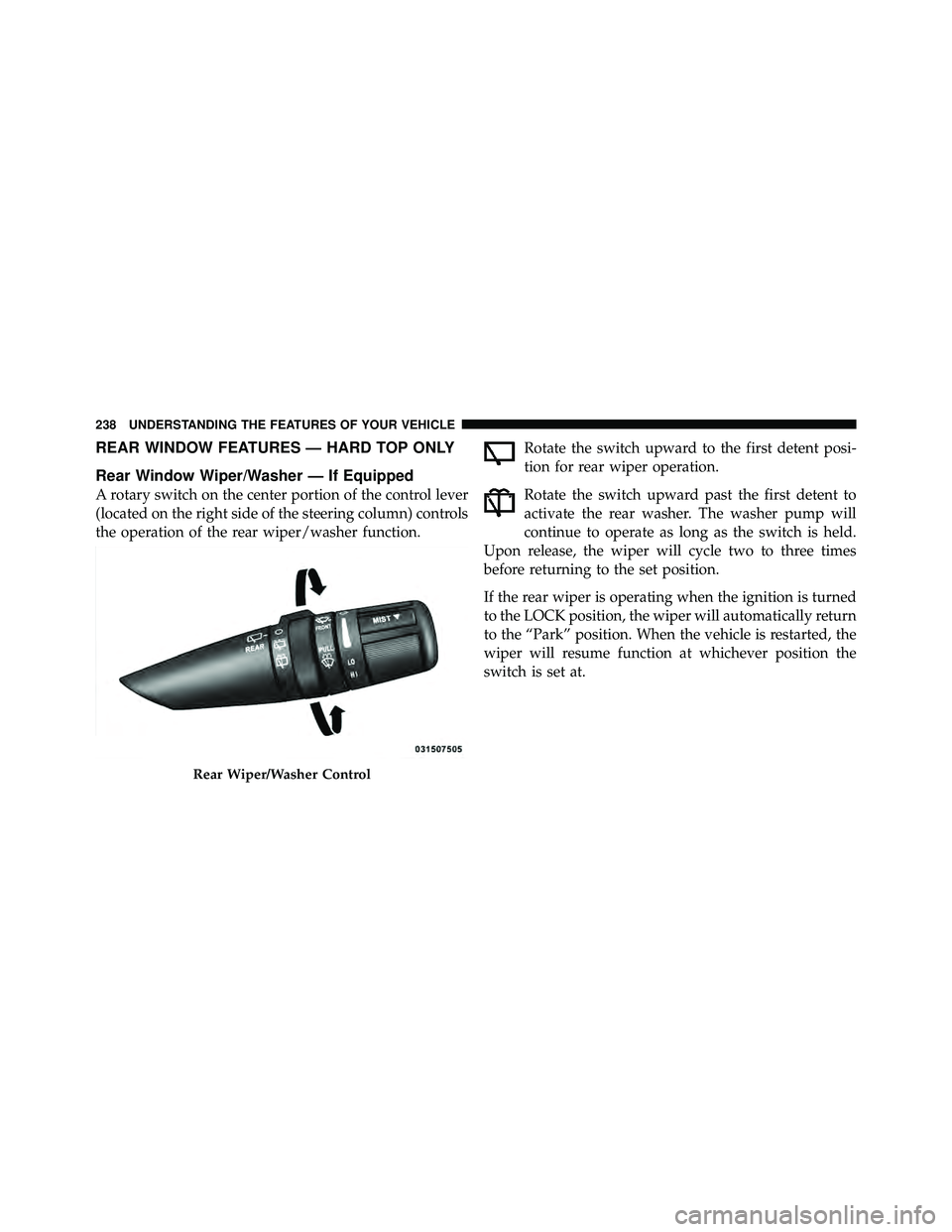

REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function.Rotate the switch upward to the first detent posi-
tion for rear wiper operation.
Rotate the switch upward past the first detent to
activate the rear washer. The washer pump will
continue to operate as long as the switch is held.
Upon release, the wiper will cycle two to three times
before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.

3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 239
