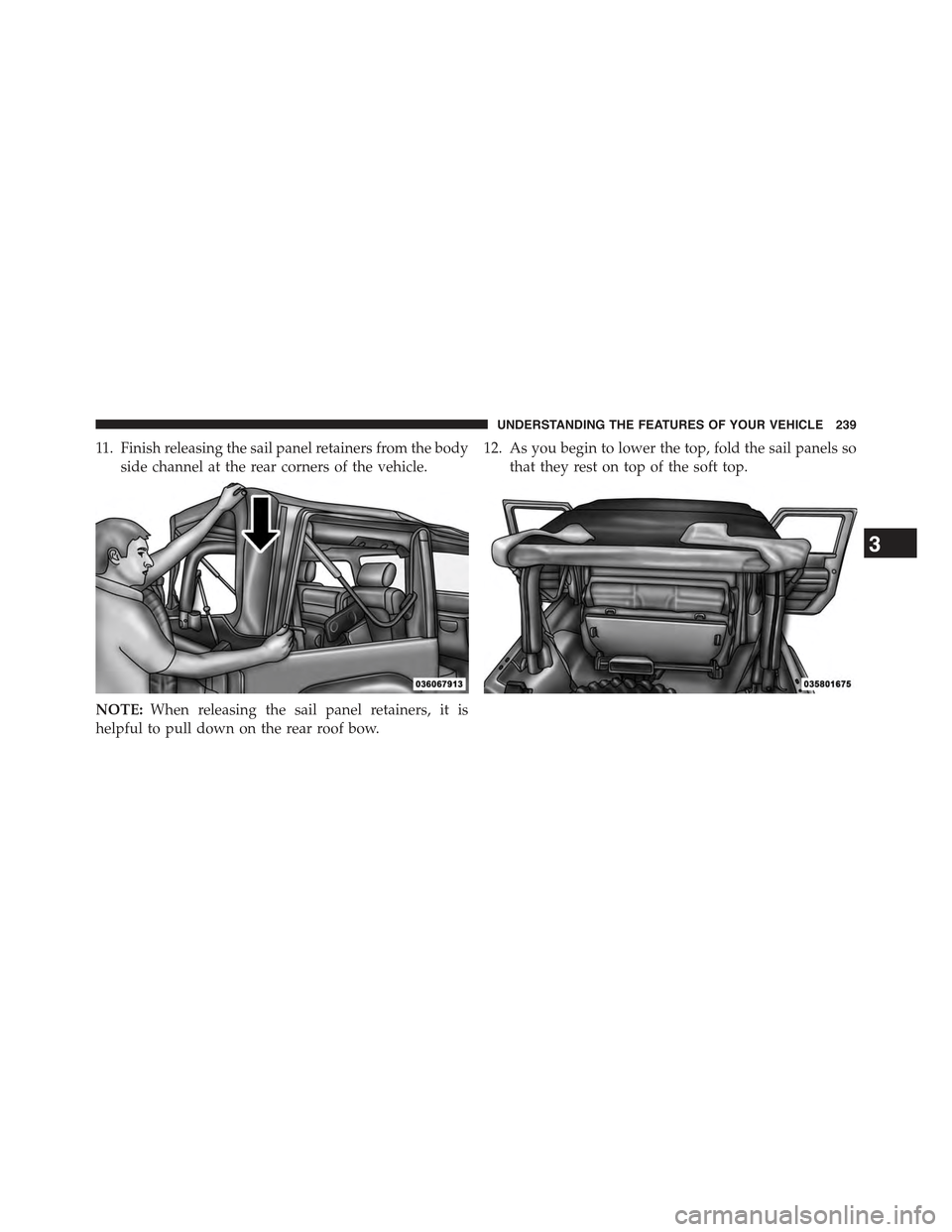

11. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
12. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 239

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket
forward while rolling the entire bracket back in
toward the vehicle to disengage.
14. Completely release the latches from the loops on the
windshield frame.If your vehicle is not equipped
with the Sunrider® package, proceed to Step 15.
240 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

15. Make sure the plastic sleeves are slid rearward over
the Sunrider® link to lock in the link (Sunrider®
Models only).
16. Unlatch the side bows from both door rails (Sun-
rider® Models only).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 241

17. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-
mounted brake light. Move to the front of the vehicle.
Grasp the side bow behind the header and lift the
top, folding it toward the rear of the vehicle.
NOTE:Help from another person will ease this opera-
tion.
242 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

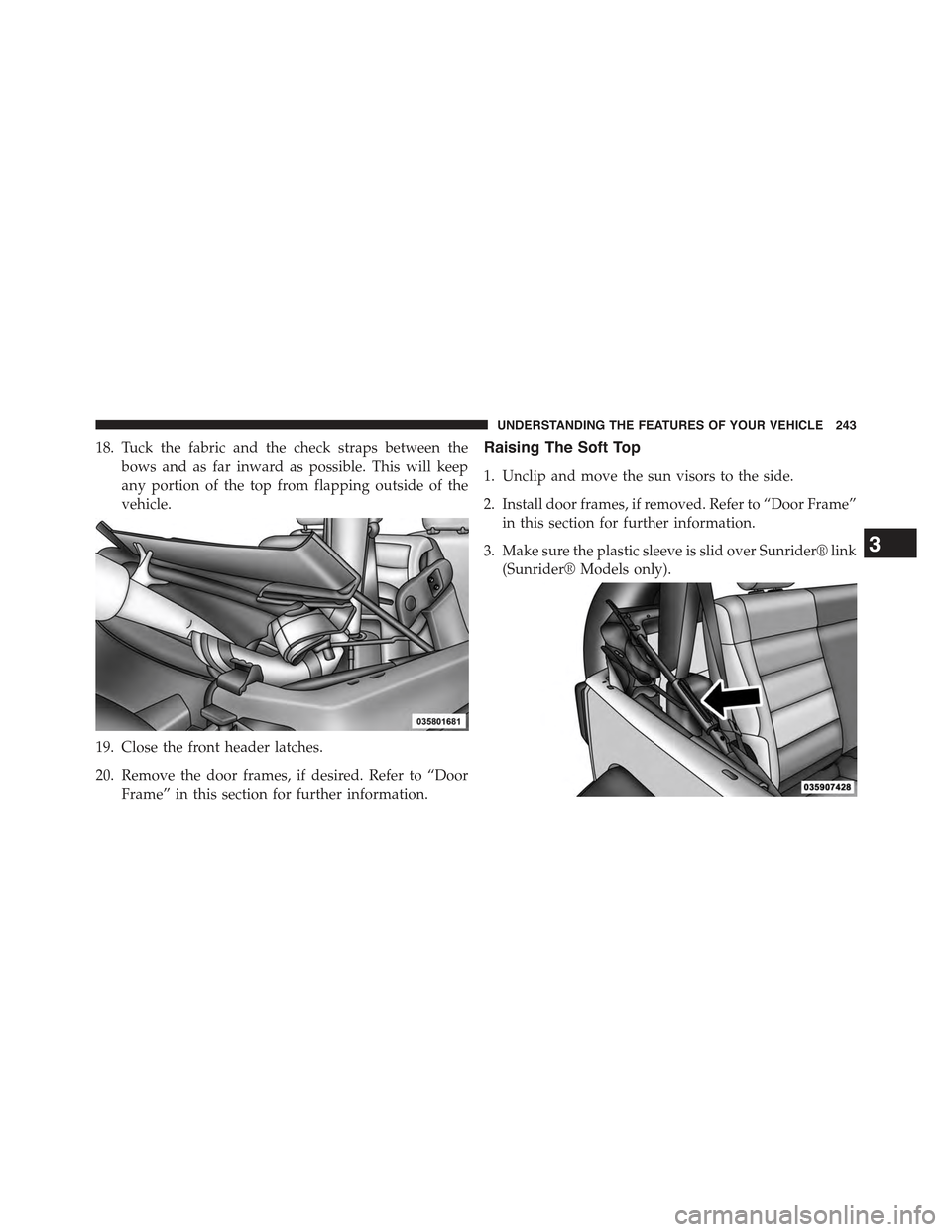

18. Tuck the fabric and the check straps between the
bows and as far inward as possible. This will keep
any portion of the top from flapping outside of the
vehicle.
19. Close the front header latches.
20. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
Raising The Soft Top
1. Unclip and move the sun visors to the side.
2. Install door frames, if removed. Refer to “Door Frame”
in this section for further information.
3. Make sure the plastic sleeve is slid over Sunrider® link
(Sunrider® Models only).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 243

4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.
5. Make sure the Sunrider® bracket on the side bows
latches to the door rails (Sunrider® Models only).
244 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

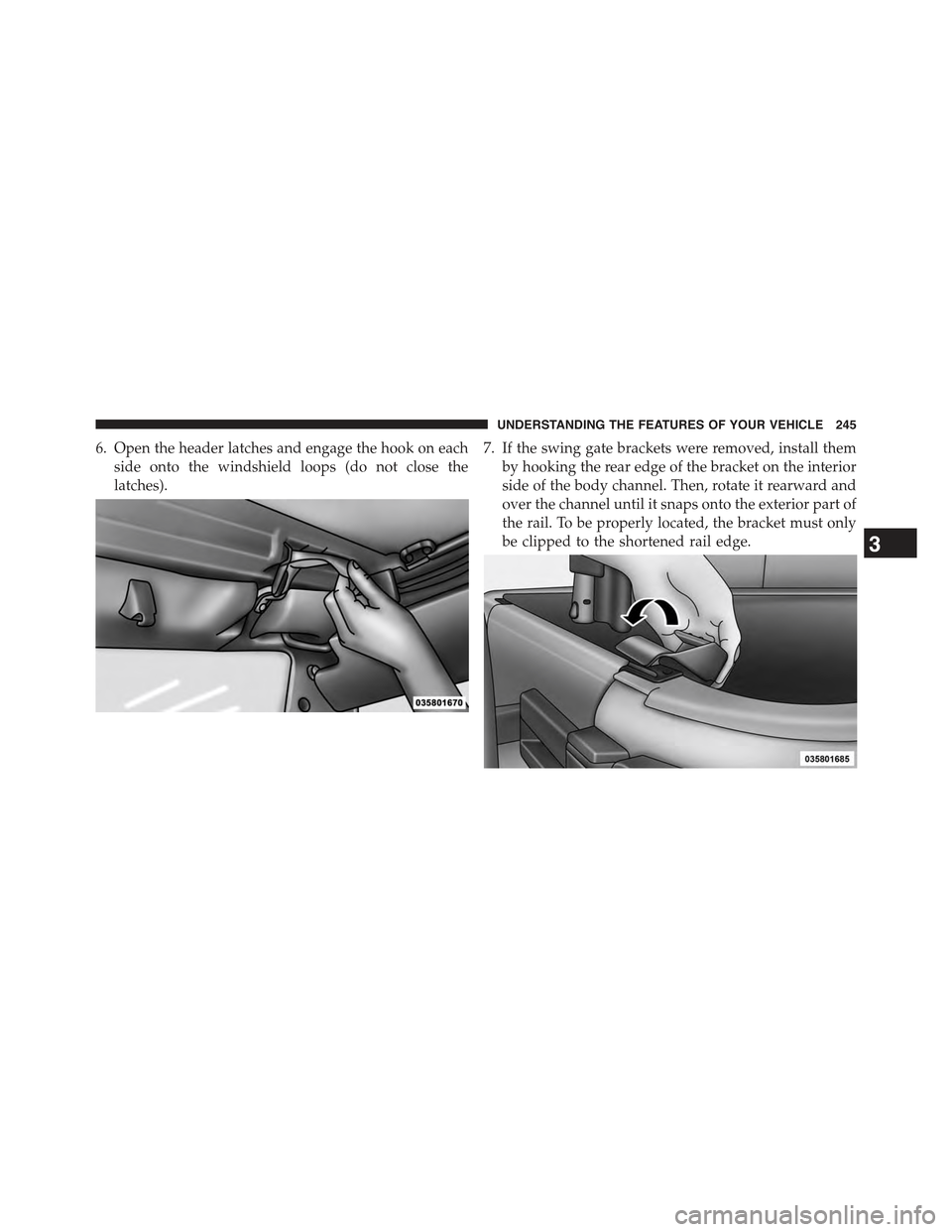

6. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the
latches).
7. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the interior
side of the body channel. Then, rotate it rearward and
over the channel until it snaps onto the exterior part of
the rail. To be properly located, the bracket must only
be clipped to the shortened rail edge.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 245

8. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.
9. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) toward the
rear window loose (on both sides). Pulling down on
the rear roof bow (3–bow) will aid to reach the channel
with the retainers.
246 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

10.To install the side windows, affix the window tempo-
rarily by attaching to the Velcro® in the rear corner.
Start the zipper but close only about 1 in (2.5 cm).
11. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do
so can result in wind and water leaks or damage to
the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 247

12. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at
the front and working to the rear of the vehicle.
Finish by closing the zipper completely and attaching
the Velcro® along the top and rear of the window.
Repeat this step for the opposite side.
1 — Incorrect Insertion2 — Correct Insertion
