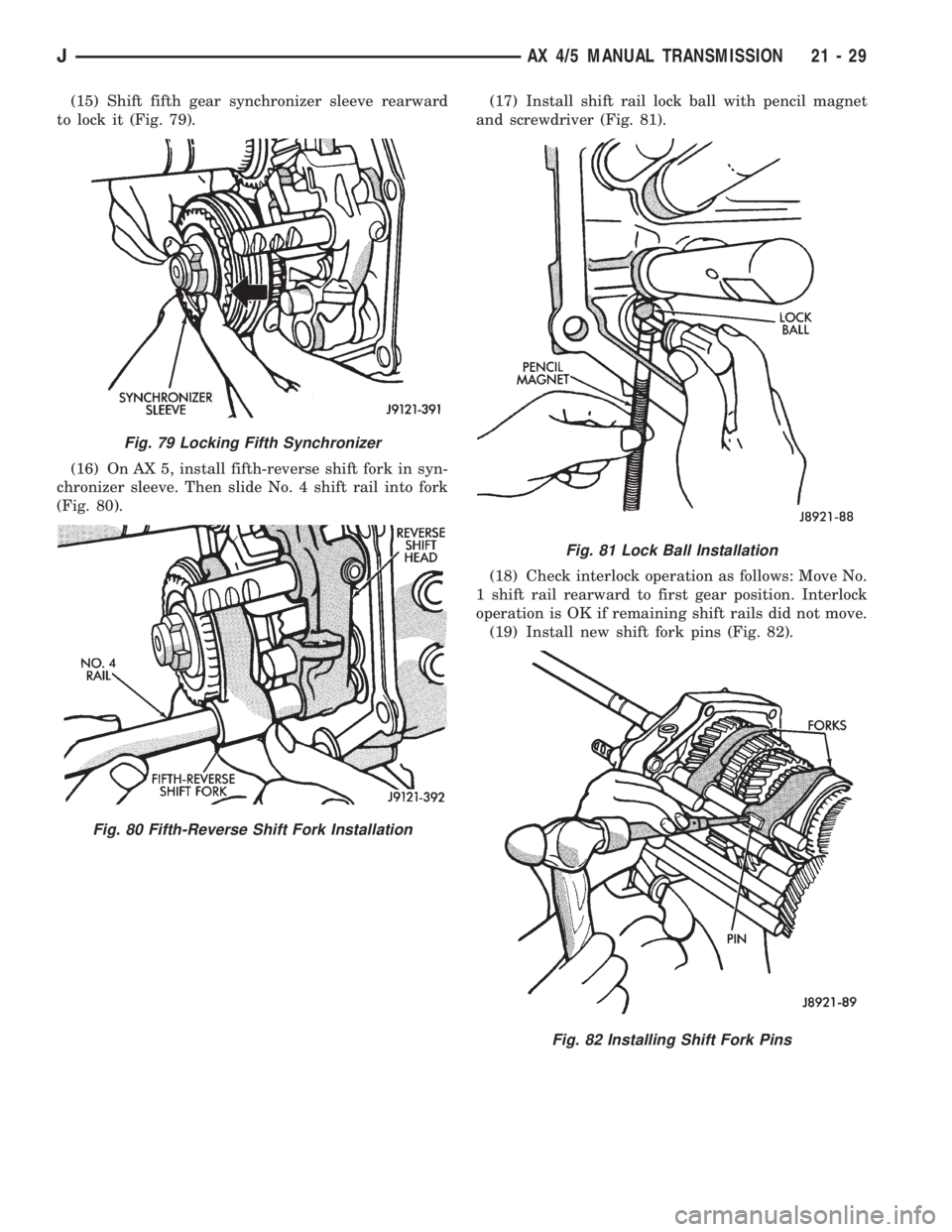

JEEP XJ 1995  Service And Repair Manual (15) Shift fifth gear synchronizer sleeve rearward
to lock it (Fig. 79).
(16) On AX 5, install fifth-reverse shift fork in syn-
chronizer sleeve. Then slide No. 4 shift rail into fork
(Fig. 80).(17) I

Page 1592 of 2158

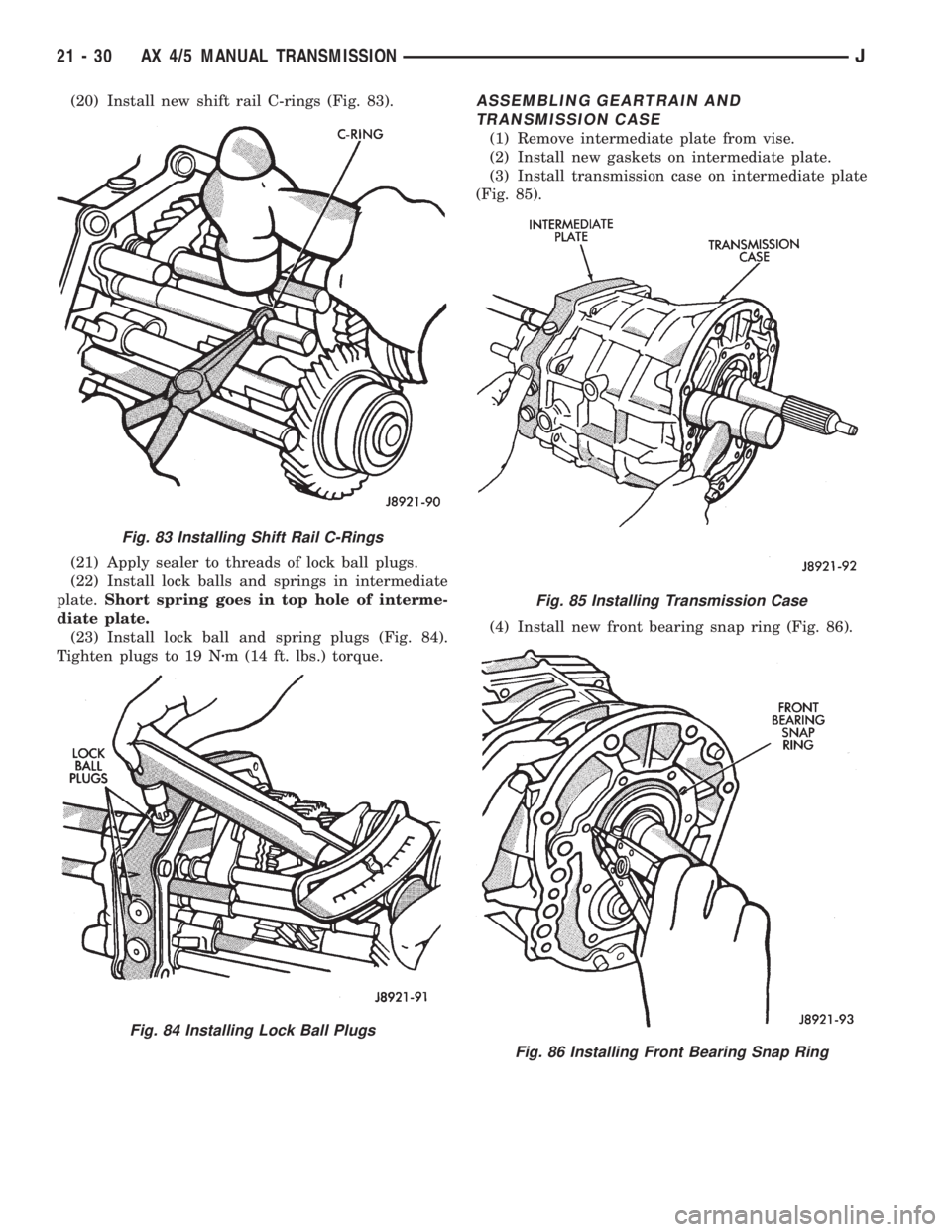

JEEP XJ 1995  Service And Repair Manual (20) Install new shift rail C-rings (Fig. 83).
(21) Apply sealer to threads of lock ball plugs.
(22) Install lock balls and springs in intermediate
plate.Short spring goes in top hole of interme-
diat

Page 1593 of 2158

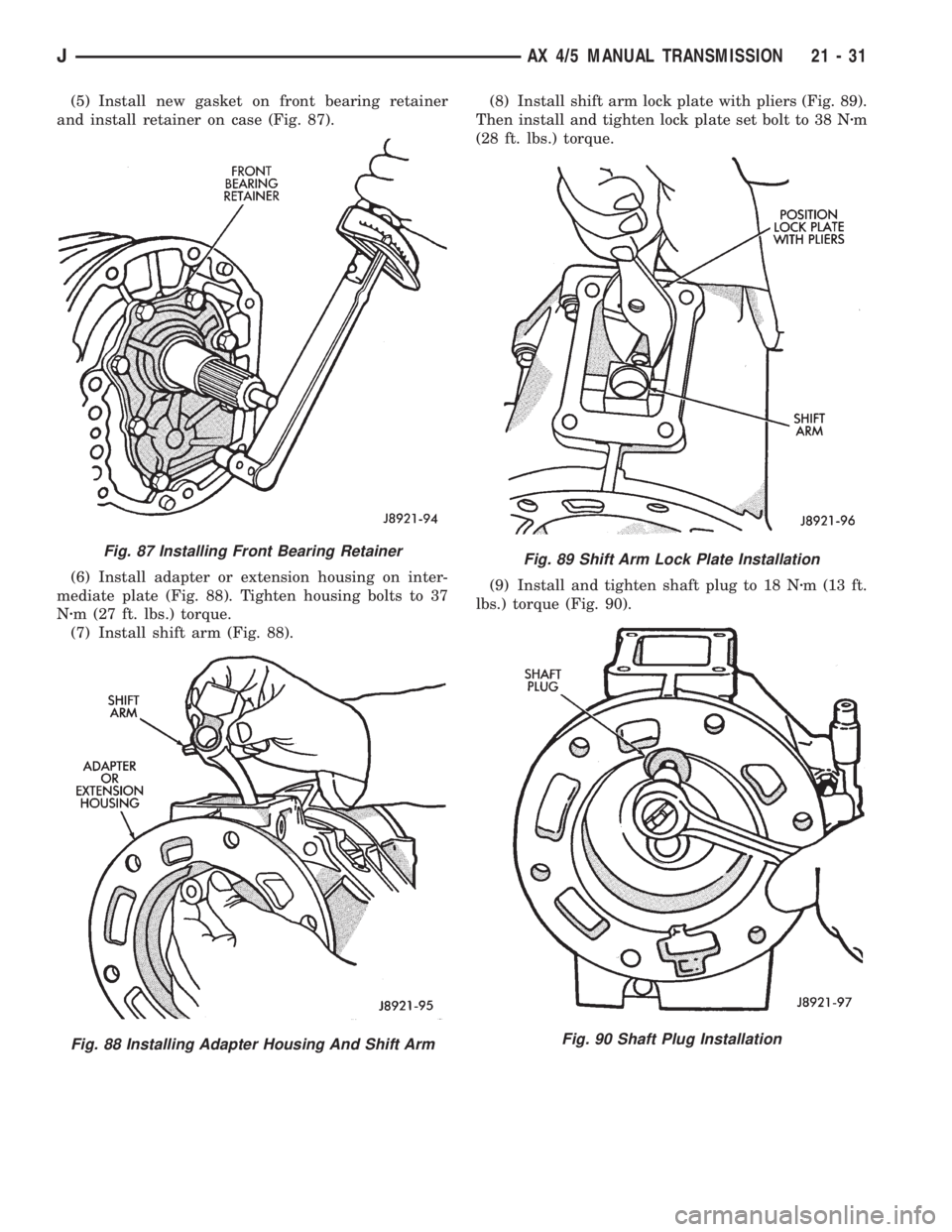

JEEP XJ 1995  Service And Repair Manual (5) Install new gasket on front bearing retainer
and install retainer on case (Fig. 87).
(6) Install adapter or extension housing on inter-
mediate plate (Fig. 88). Tighten housing bolts to 37
Nzm (27

Page 1594 of 2158

JEEP XJ 1995  Service And Repair Manual (10) Install lock ball and spring in housing. Then
apply sealer to ball plug and install plug (Fig. 91).
Tighten plug to 19 Nzm (14 ft. lbs.) torque.
(11) Install reverse pins in housing (Fig. 92).
Ti

Page 1595 of 2158

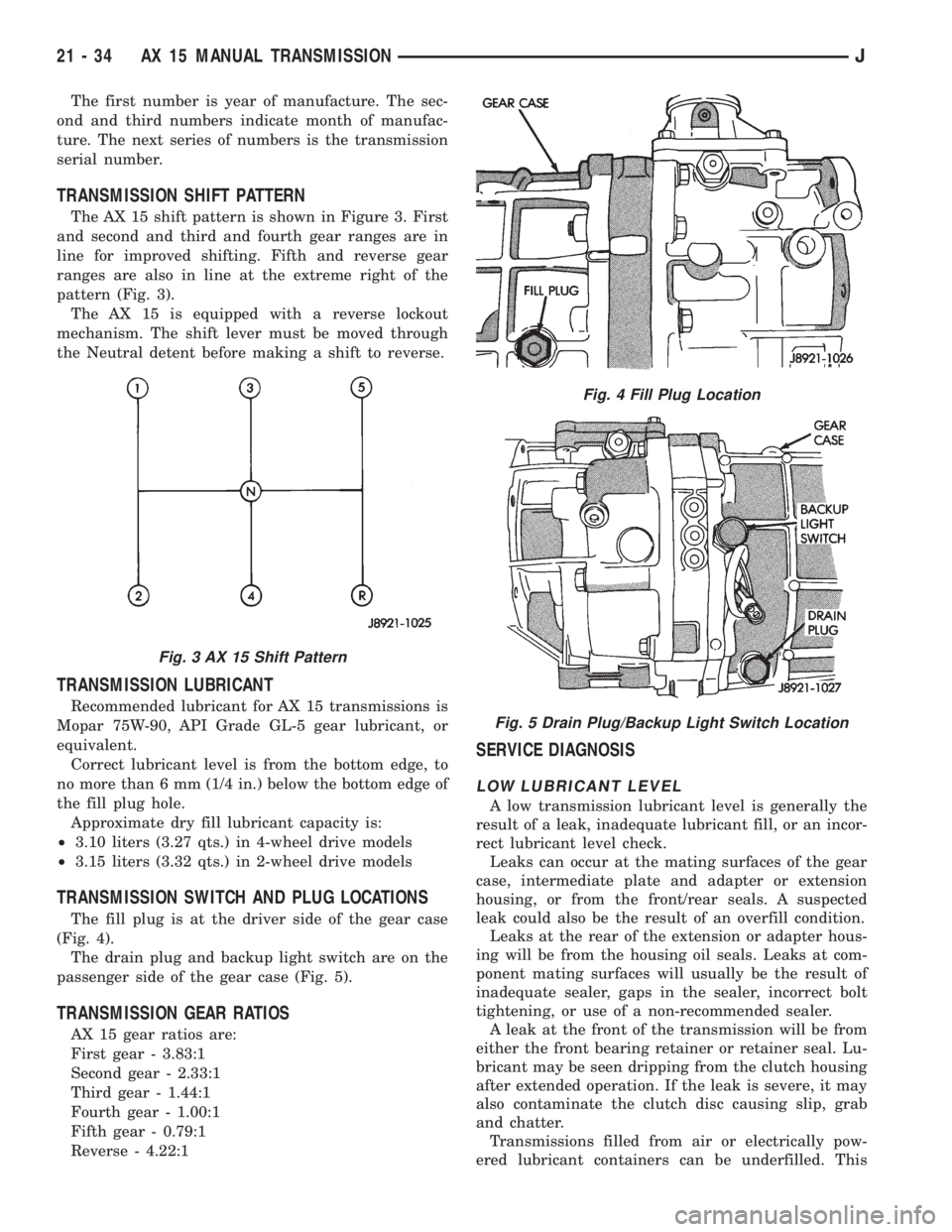

JEEP XJ 1995  Service And Repair Manual AX 15 MANUAL TRANSMISSION
INDEX
page page
General Information....................... 33
Service Diagnosis......................... 34
Transmission Assembly and Adjustment......... 52
Transmission Disa

Page 1596 of 2158

JEEP XJ 1995  Service And Repair Manual The first number is year of manufacture. The sec-
ond and third numbers indicate month of manufac-
ture. The next series of numbers is the transmission
serial number.
TRANSMISSION SHIFT PATTERN
The AX

Page 1597 of 2158

JEEP XJ 1995  Service And Repair Manual generally happens when the container delivery mech-
anism is improperly calibrated. Always check the lu-
bricant level after filling to avoid an under fill
condition.
A correct lubricant level check c

Page 1598 of 2158

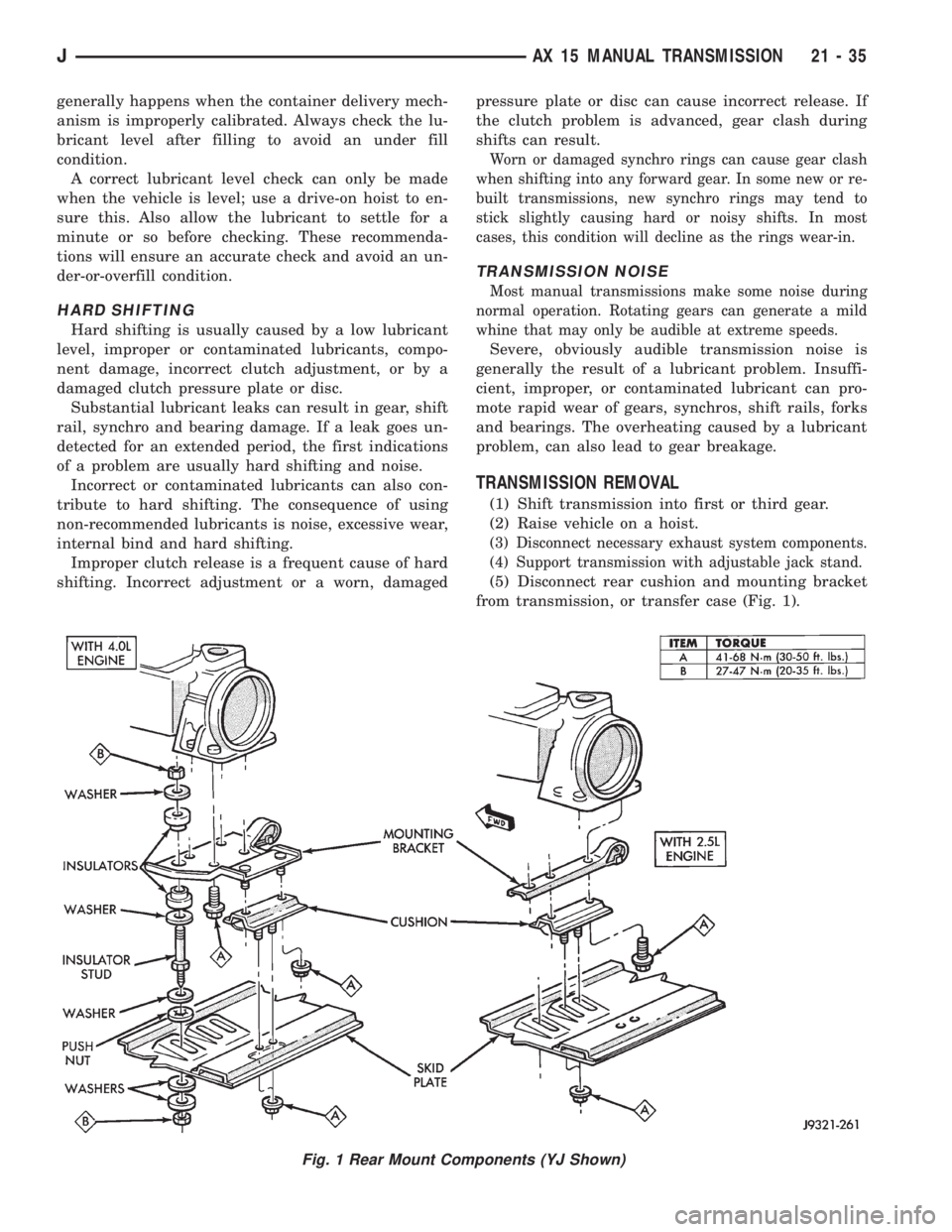

JEEP XJ 1995  Service And Repair Manual (6) On XJ, remove rear crossmember. On YJ, re-
move skid plate (Fig. 1).
(7) Disconnect transmission shift linkage, speed-
ometer cable, transfer case vacuum lines and clutch
hydraulic lines.
(8) Lowe

Page 1599 of 2158

JEEP XJ 1995  Service And Repair Manual (6) Install and tighten clutch housing-to-engine
bolts to 38 Nzm (28 ft. lbs.) torque.Be sure housing
is properly seated on engine before tightening
bolts.
(7) Lower transmission no more than 7.6 cm (

Page 1600 of 2158

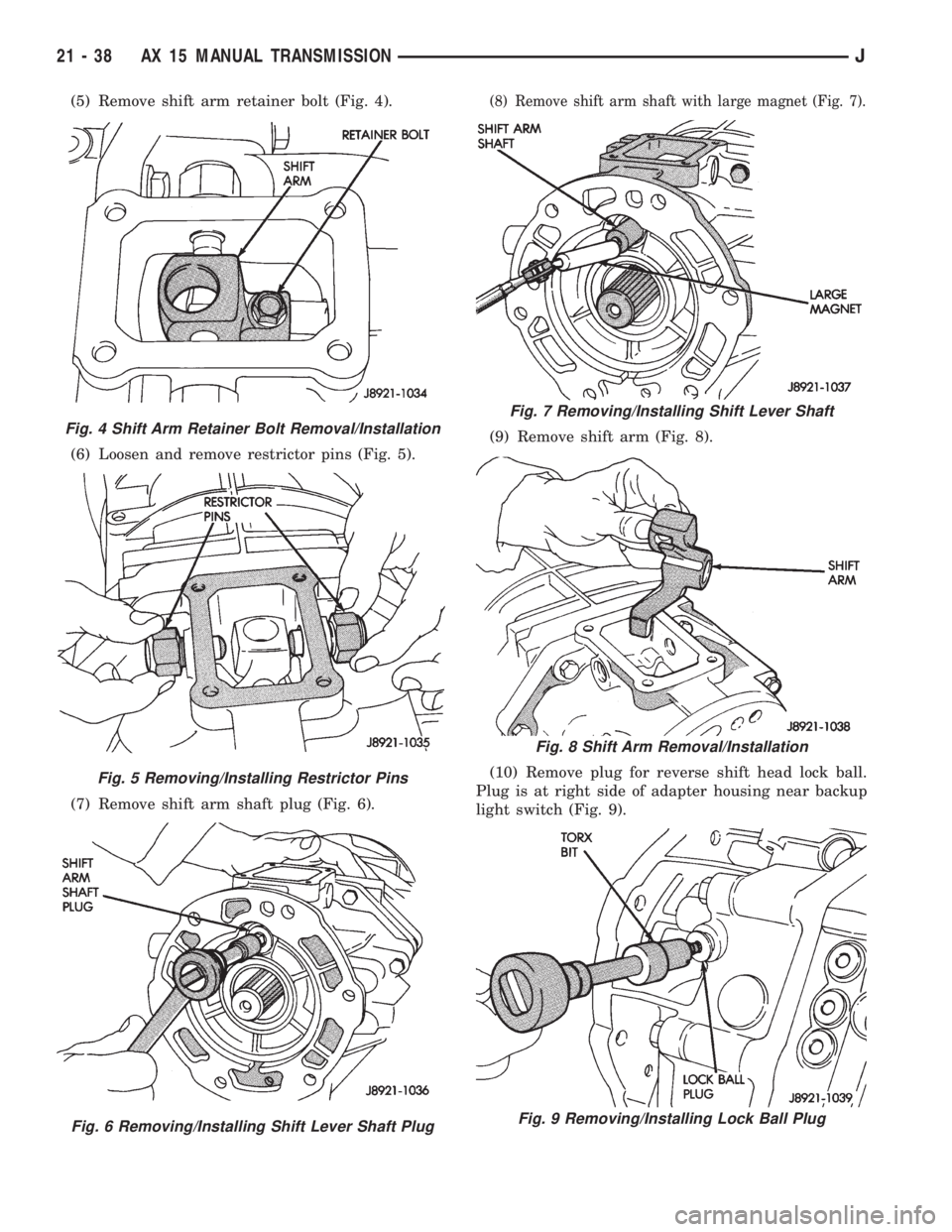

JEEP XJ 1995  Service And Repair Manual (5) Remove shift arm retainer bolt (Fig. 4).
(6) Loosen and remove restrictor pins (Fig. 5).
(7) Remove shift arm shaft plug (Fig. 6).(8) Remove shift arm shaft with large magnet (Fig. 7).
(9) Remove
