AUX KIA CADENZA 2016 Features and Functions Guide

VIDEOS & QR CODES 02
INSTRUMENT CLUSTER Instrument Cluster Overview 03
Indicators & Warning Lights 04
Tire Pressure Monitoring System (TPMS) 05
Fuel Economy 05
LCD Instrument Cluster Modes 06
Trip Computer / Tripmeter 06
User Settings 07
Service Mode 07
DRIVER’S PANEL Electronic Stability Control (ESC) 08
Hill-Start Assist Control (HAC) 08
Blind Spot Detection (BSD) System* 09
Lane Departure Warning System (LDWS)* 10
Instrument Panel Dimmer 10
Power Windows, Window Lock & Central Door Lock 11
Power Folding Outside Mirrors* 11
Heated Outside Mirrors 11
Automatic Door Lock /Unlock 11
Reverse Parking Aid Function* 12
Fuel Door and Trunk Release Buttons 12
Engine Start/Stop Button 13
STEERING WHEEL CONTROLS Manual Tilt/ Telescoping Steering Wheel* 14
Power Tilt/ Telescoping Steering Wheel* 14
Headlights & High Beams 15
Turn Signals & Fog Lights 16
Windshield Wipers & Washers 17
Bluetooth
® Wireless Technology 18
Advanced Smart Cruise Control (ASCC)* 20
Audio Controls 21
Cruise Control* 21CENTER PANEL
UVO eServices with Navigation* 22
Surround View Monitor (SVM)* 23
Clock 24
Aux/USB/iPod
® Port & Power Outlets 24
Automatic Climate Control 25
Automatic Gear Shift / Sportmatic
® Shifting 26
Paddle Shifters* 26
Electric Parking Brake* 27
Auto Hold* 27
Heated Steering Wheel* 28
Power Rear Sunshade* 28
Seat Warmers / Ventilated Seats* 29
S E AT I N G Power Adjustable Driver’s Seat 30
Front Seat Headrest Adjustment 31
Driver Position Memory System* 31
OTHER KEY FEATURES Smart Key 32
HomeLink
® with Auto-Dimming Rearview Mirror 33
Map/Room Lamps 34
Panoramic Sunroof Operation* 35
Sunvisor 35
Rear-Camera Display 36
Back-Up Warning System (Rear Parking Assist System)* 36
Trunk Release Button 37
Fuel Cap / Malfunction Indicator (Check Engine Light) 37
Child Safety Locks 37
Hood Release Lever and Latch 38
SAFETY FEATURES Occupant Detection System (ODS) /
Passenger Airbag Off Indicator 39
Seat Belts 40
Seat Belt Retractor Locks 40
NORMAL MAINTENANCE SCHEDULE 41
LEGAL DISCLAIMERS
(See Back Inside Cover Page)
ESSENTIAL FEATURES
CADENZA FE ATURES & FUNCTIONS GUIDE
Air Conditioning / Automatic Climate Control 25
Audio System – UVO eServices with Navigation* 22
Aux/USB/iPod
®* Port* & Power Outlets* 24
Bluetooth
® Wireless Technology 18
Cruise Control* 21
Clock 24
Passenger Airbag Off Indicator 39
Service Mode 07
Smart Key 32
Tire Pressure Monitoring System (TPMS) 05
Trip Computer / Tripmeter 06
User Settings 07
Windshield Wipers & Washers 17
*IF EQUIPPED
Driving while distracted can result in a loss of vehicle control
that may lead to an accident, severe personal injury and death.
The driver’s primary responsibility is in the safe and legal
operation of a vehicle, and use of any handheld devices, other
equipment or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle
or that are not permissible by law should never be used during
operation of the vehicle.

21
Your vehicle’s steering wheel buttons may differ from those in the illustrations. See your Owner’s
Manual for more details.
Audio Controls* Cruise Control*
E CRUISE Control ON/OFF button: Press to turn the Cruise Control
ON/OFF
F Resume Cruising Speed button: Press to resume or increase
cruising speed
G Set Cruising Speed button: Press to set or decrease Cruising Speed
H Cruise Control CANCEL button: To cancel Cruise Control setting, do
one of the following:

• Press the brake pedal

• Press the CANCEL button
A Audio Mode button: Press to cycle through FM 1-2/AM/Sirius® 1-3 /
USB/iPod®/Aux / Bluetooth® Audio Streaming/My Music modes
B Seek/Preset button:
FM/AM/Sirius® Modes: Press to advance through Preset Stations
Press and hold to auto seek

Media Modes: Press to move Track Up/Down Press and hold to Fast
Forward / Rewind
C Volume button: Press up/down to raise/lower volume
D MUTE button: Press to mute all audio
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to
driving and always exercise caution when using the steering-wheel-mounted controls while driving.
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISE
RES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SET
VOL
VOL
MUTEMODE
CANCELCRUISERES
SETVOLVOL
MUTEMODE


Pressing the Audio Mode button for more than 1 second will turn Audio Mode ON/OFF QUICK TIP

•Cruise Control is designed to function above 25 mph
•The Cruise Control system will not activate until the brake pedal has been
depressed at least once after ignition ON or engine start
QUICK TIPS
AD
CB
E
H
F
G
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
STEERING WHEEL CONTROLS

22


UVO eServices with
Navigation System

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.KuTechVideos.com/audio/
nav_eServices
UVO eServices with Navigation*
– FM/AM/Sirius®/Media (CD, MP3, USB, iPod®, Aux, Bluetooth® Audio Streaming, My Music)
CD-INDISP
PWRPUSH
VOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTEMAP
Press to turn display ON/OFF Press to reset the system
Press to display MAP of the current position
Press to display destination mode
Press to display Info/UVO eServices/
Setup mode
Press to display ROUTE mode
Press to display PHONE mode
Press to turn audio system ON/OFF
Press and hold to turn Power OFF Rotate to adjust Volume
Press to select previous/next Radio/SiriusXM
® stations/Media tracks/files.
Press and hold to move quickly through stations/tracks/files Press to select FM/AM modes
Press to select SiriusXM
® mode
Press to select MEDIA mode
Press to eject CD
Rotate to change Radio/SiriusXM
®
Stations/Media tracks/ files


•Prolonged use of the UVO eServices with Navigation system in ACC mode may
drain the vehicle’s battery A warning screen may appear periodically to remind
users that the system should be operated with the engine running to prevent
battery discharge

•When using the voice command feature, wait for the system BEEP before
speaking the command
QUICK TIPSUVO eServices Registration/Activation – To use UVO eServices:
1 Register through your UVO eServices App or at MyUVO com
2 On your Smartphone, go to an app store or marketplace to download
the UVO eServices App and log in to the app using your MyUVO com
account credentials
3 Follow the App’s phone pairing and activation steps
For further operational information,
refer to the Car Multimedia System
User's Manual. Your vehicle’s audio
system may differ from that in
the illustration.
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CENTER PANEL

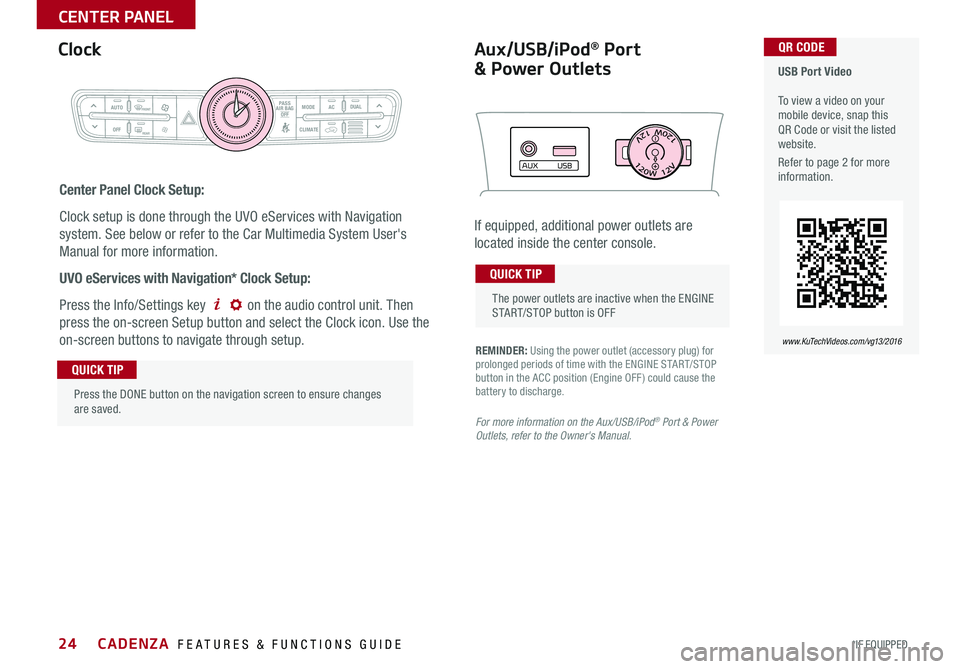

24
REMINDER: Using the power outlet (accessory plug) for
prolonged periods of time with the ENGINE START/STOP
button in the ACC position (Engine OFF ) could cause the
battery to discharge
For more information on the Aux/USB/iPod
® Port & Power
Outlets, refer to the Owner's Manual.
Aux/USB/iPod® Port
& Power Outlets
Clock

USB Port Video


To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www. KuTechVideo s.c om/vg13/2016
Center Panel Clock Setup:
Clock setup is done through the UVO eServices with Navigation
system See below or refer to the Car Multimedia System User's
Manual for more information
UVO eServices with Navigation* Clock Setup:
Press the Info/Settings key
on the audio control unit Then
press the on-screen Setup button and select the Clock icon Use the
on-screen buttons to navigate through setup
CLIM AT E
MODEACPASS
AIR BAG
OFF
AUTOFRONT
REAR
OFF
DUAL
AUX USB
If equipped, additional power outlets are
located inside the center console



Press the DONE button on the navigation screen to ensure changes
are saved QUICK TIP


The power outlets are inactive when the ENGINE
START/STOP button is OFF QUICK TIP
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
CENTER PANEL

CADENZA CUSTOMER DELIVERY CHECKLIST
(continued)
KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Blind Spot Detection (BSD)* – page 9 Lane Departure Warning System (LDWS)* – page 10 Engine Start /Stop Button – page 13 Surround View Monitoring (SVM) System* – page 23 Clock Setup – page 24 Electric Parking Brake (EPB) / Auto-Hold* – page 27
Seat Warmers / Ventilated Seats* – page 29 Smart Key – page 32 HomeLink
® with Auto-Dimming Rearview Mirror – page 33
Panoramic Sunroof Operation* – page 35 Sunvisor – page 35 Rear-Camera Display* – page 36 Passenger Airbag Off Indicator – page 39Demonstrate the following with the customer
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours and Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up ASCC / Cruise Control – pages 20-21 Demonstrate operation UVO eServices with Navigation System*– page 22 For further operational information, refer to the Car
Multimedia System User’s Manual
Aux/USB/iPod
® Port and Power Outlets – page 24
CANCELCRUISERES
SET
VOLVOLMUTE
MODE
Bluetooth
® Wireless Technology – pages 18-19
Demonstrate operation
Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________
CD-IN
DISP
PWRPUSHVOL TUNE
FILE
DEST
SEEK TRACK
MEDIA
FM/AM
PHONE S AT
MAP
VOICE
ROUTE
MAP
AUX USB
CANCELCRUISE
RES
SET
VOLVOLMUTE
MODE
CANCELCRUISE
RES
SET
VOLVOLMUTE
MODE
CANCELCRUISE
RES
SET
VOLVOLMUTE
MODE
CANCELCRUISE
RES
SET
VOLVOLMUTE
MODE
