5.Remove the inhibiter switch connector (A).
6.Remove the solenoid valve connector (A).
7.Remove the input speed sensor connector (A).
8.Remove the output speed sensor connector (A).
Page 382 of 1575
9.Remove the vehicle speed sensor connector (A).
10. Remove the control cable assembly(C) by removing the nut (A) and clip (B).
11.Disconnect the transaxle oil cooler hoses (B) from the tubes by loosening the clamps (A).
12.Remove the transaxle mounting bolts (A).
Page 383 of 1575
13.Remove the starter motor by disconnecting the connector. (see EE group)
14. Using the SST(09200- 38001), hold the engine and transaxle assembly safely.
15.Remove the transaxle insulator mounting (B) bolts (A).
16.Remove the front wheels. (see SS group)
17. Lift up the vehicle.
18. Remove the power steering column joint bolt and the VRS connector (A). (see ST group)
Page 384 of 1575
19.Remove the under cover (A).
20.Drain the transaxle fluid.
21. Drain power steering fluid through the return tube(A). (see ST group)
22.Disconnect the power steering pressure tube (A) from the power steering oil pump.
23.Disconnect the lower arm, the tie rod end ball joint, the stabilizer bar link from the front knuckle. (see SS group)
24. Remove the roll stopper mounting bolts.
25. Remove the mounting bolts from the sub frame by supporting the sub frame with a jack. (see SS group)
26. Remove drive shaft from transaxle. (see DS group).
27. Install a jack for supporting the transaxle assembly.
28. Remove the drive plate bolts (A) and the transaxle lower mounting bolts (B- 4EA).
Page 385 of 1575

29.Lifting the vehicle up and lowering the jack slowly, remove the transaxle assembly.
INSTALLATION
Installation is in the reverse order of removal.
Perform the following :
a. Adjust the shift cable.
b. Refill the transaxle with fluid.
c. Refill the radiator with engine coolant.
d. Bleed air from the cooling system with the heater valve open.
e. Clean the battery posts and cable terminals with sandpaper, assemble them, and apply grease to prevent
corrosion.
1. Lowering the vehicle or lifting up a jack, install the transaxle assembly.
2. Tighten the transaxle lower mounting bolts (B- 4EA).
TORQUE:
65~85 Nm(6.5~8.5 kgf.m, 47.0~61.5 lb - ft)
3. Install the drive plate bolts (A) by turning the timing gear.
TORQUE:
46~53 Nm(4.6~5.3 kgf.m, 33.3~38.3 lb - ft)
4.After removing a jack, insert the drive shafts. (see DS group)
5. Install the sub frame. (see SS group).
6. Tighten the roll stopper mounting bolts.
TORQUE:
90~110 Nm(9~11 kgf.m, 65.1~79.5 lb - ft)
7. Connect the lower arm, the tie rod end ball joint, the stabilizer bar link to the front knuckle. (see SS group)
Page 386 of 1575
8.Install the under cover (A).
9.Install the steering column joint bolt and the VRS connector (A). (see ST group)
10. Connect the return tube(A) with a clamp. (see ST group)
11.Install the front wheels and tires.
12. Tighten the transaxle insulator mounting (B) bolt (A).
TORQUE:
90~110 Nm(9~11 kgf.m, 65.1~79.5 lb - ft)
Page 387 of 1575
13.Tighten the transaxle mounting bolts (A).
TORQUE:
65~85 Nm(6.5~8.5 kgf.m, 47.0~61.5 lb - ft)
14.Remove the SST (09200- 38001) holding the engine and transaxle assembly.
15.Install the starter motor. (see EE group).
TORQUE:
65~85 Nm(6.5~8.5 kgf.m, 47.0~61.5 lb - ft)
16. Connect the power steering pressure tube (A) to the power steering oil pump.
Page 388 of 1575

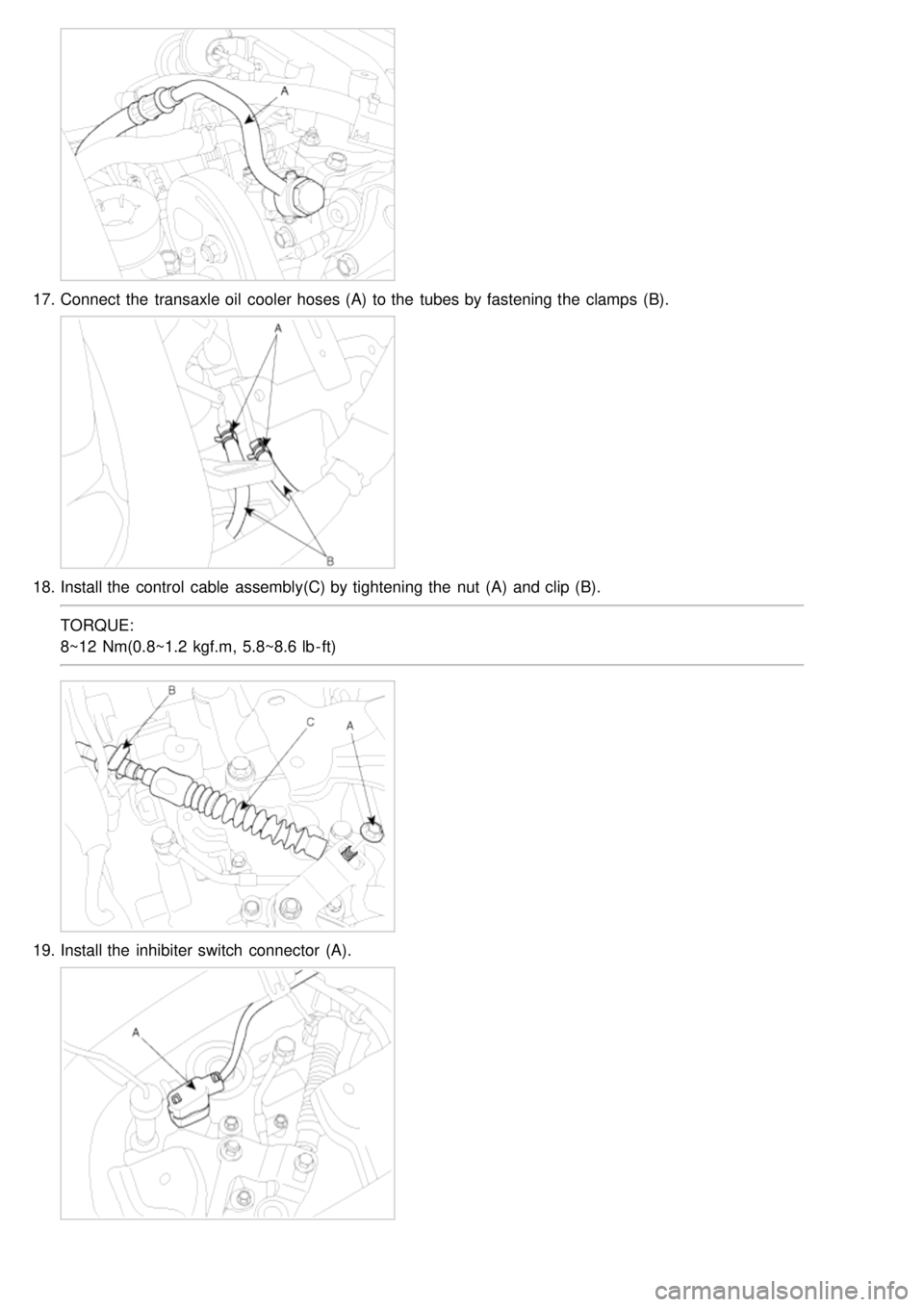

17.Connect the transaxle oil cooler hoses (A) to the tubes by fastening the clamps (B).
18.Install the control cable assembly(C) by tightening the nut (A) and clip (B).
TORQUE:
8~12 Nm(0.8~1.2 kgf.m, 5.8~8.6 lb - ft)
19.Install the inhibiter switch connector (A).
Page 389 of 1575
20.Install the solenoid valve connector (A).
21.Install the input speed sensor connector (A).
22.Install the output speed sensor connector (A).
23.Install the vehicle speed sensor connector (A).
24.Install the battery tray (B) by removing the four mounting bolts (A).
Page 390 of 1575
25.Install the air cleaner assembly (B) by tightening the two mounting bolts (A).
26.Reassemble the air cleaner filter, install the air cleaner upper body (B) and connect the air flow sensor connector
(A).
27.Install the battery (A).
28.Refill the transaxle fluid. (see 'Service adjustment procedure')
29. Refill the power steering fluid. (see 'ST' group)
