KIA K900 2016 Features and Functions Guide

CENTER PANEL
29*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
The Electric Parking Brake (EPB) system utilizes an electric
motor to engage the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch
C.
Ensure that the indicator light
is illuminated on the
instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed
in Reverse or Drive. To release EPB manually, depress the
brake pedal, then press the EPB switch
C, with the ignition
switch in the ON position. Ensure that the indicator light

i s O F F.
Ele\ftri\f Parking Brake (EPB)
Aut\b H\bld
Qui\fk Tip
Pull up and hold EPB switch again to increase brake
pressure if parked on a decline or incline.
www.KuTechVideos.com/kh13/2016
ELECTRIC PARKING
BRAKE (EPB) / AUTO
HOLD VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
REMINDERS: - As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
- If the warning light does not illuminate temporarily or remains continuously lit, take your vehicle to an authorized Kia dealer and have the system checked
- The EPB should not be operated while the vehicle is moving
- A click or electric brake motor sound may be heard while operating or releasing the EPB. These conditions are normal and indicate that the EPB is functioning properly
Auto Hold temporarily maintains the vehicle at a standstill even if the brake pedal is released. Auto
Hold can be turned On/Off using the AUTO HOLD switch D on the center panel. Before Auto Hold
will operate, the driver’s door, engine hood and trunk must be closed and the driver’s seat belt must
be fastened.
The Auto Hold indicator, which is in the instrument cluster, has four states:
White : Standby – With vehicle at a standstill, and AUTO HOLD switch
D turned ON, the indicator
will illuminate white. While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator
will remain white.
Green : Engaged – When coming to a complete stop by depressing the brake pedal, the Auto Hold
indicator changes from white to green.
OFF (not illuminated) – The indicator will turn OFF when the AUTO HOLD switch
D is manually
turned OFF or when the EPB is manually turned ON.
Yellow : Malfunction – When the indicator is illuminated yellow, there may be a system malfunction.
Take your vehicle to a local Kia dealer.
29319_Text.indd 2911/6/15 10:23 AM

CENTER PA NEL
*IF EQUIPPED 30
Drive Mode Integrated Control Syste\f
NORMAL, ECO, SPORT, SMART and SNOW drive modes
may be changed according the driver’s preference or road
conditions. The system’s default mode is NORMAL and is not
displayed on the instrument cluster nor the navigation screen.
To change the drive mode from the NORMAL (default) mode,
press the DRIVE MODE button
A.
ECO Mode – A green ECO indicator will illuminate on the
instrument clu s t er. To deactivate, press the DRIVE MODE
button
A again to change the selection to another setting.
SPORT Mode – A yellow SPORT indicator will illuminate on
the instrument clu s t er. To deactivate, press the DRIVE MODE
button
A again to change the selection to another setting.
SNOW Mode – To activate, press the SNOW MODE button
B
located below the gear shift. It will operate regardless of the
mode you selected with the Drive Mode button. To deactivate
SNOW mode, press SNOW mode button
B again.
S\fart Mode
When SMART mode is activated, the system automatically
selects the drive mode (ECO, NORMAL, SPORT) best suited
to the current driving style (economic, average, aggressive). A
SMART indicator will illuminate on the instrument clu s t er. The
color of the SMART indicator (green, white, red) depends on
the current driving style. To deactivate, press the DRIVE MODE
button
A again to change the selection to another setting.
Quic\b Tip

When the ENGINE START/STOP button is turned
of f, the system will default to Normal mode and
each mode will need to be selected again when the
vehicle restarts.
REMINDERS:

When ECO mode is selected, the following may
occur to improve fuel economy:
- Acceleration may be slightly reduced even when
the accelerator is fully depressed
- Air conditioner performance may be limited
- Shift pattern of the automatic transmission
may change
- Engine noise may increase
- System’s power will be limited when
driving uphill
- When SPORT mode is selected, fuel economy
may decrease
- When SNOW MODE is selected, the SNOW mode
will operate regardless of which drive mode
(NORMAL/SPORT/ECO/SMART) is selected
B
(Button located on center panel below the gear shift)
A
29319_Text.indd 3011/6/15 10:23 AM

CENTER PA NEL
31*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
(Button located on center panel below the gear shift)
www.KuTechVideos.com/kh13/2016
SURROUND VIEW
MONITORING (SVM)
SYSTEM VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
REMINDER: The SVM camera is equipped with
an optical lens to provide a wider range of vision
and may appear different from the actual distance.
Also, the Surround View Monitoring system is only a
supplemental device. Drivers should not rely solely
on the SVM information when parking and backing
up. Drivers should always pay attention and directly
check the left/right and r ea r.
Surround View Monitoring (SVM) System\f
The Surround View Monitoring (SVM) System is a parking
support system that shows the areas around the front, rear, left
and right sides of the vehicle via four cameras displayed onto
the navigation screen.
Press
A to turn the SVM system ON/OFF.
§ When OFF: The camera view will automatically display
on the navigation screen when the vehicle is shifted into
Reverse. The camera view will turn off when the vehicle is
shifted out of Reverse
§ When ON: The camera view will display on the navigation
screen in both Drive and Reverse. In Drive, the camera
view will continue to display until the vehicle is traveling
at speeds above approximately 13 mph. If you keep the
SVM system on, the camera view will reappear on the
navigation screen whenever the vehicle speed drops below
approximately 13 mph
When in Drive & Neutral: When in Reverse:
A
Displays the front side and SVM images
simultaneously on the screen
Displays the front side image on the screen
Displays the front side and left side images
simultaneously on the screen
Displays the front side and right side images
simultaneously on the screen
Displays the rear view and AVM images
simultaneously on the screen
Displays the rear side image on the screen
Displays the rear and left side images
simultaneously on the screen
Displays the rear and right side images
simultaneously on the screen
Camera View Modes – To change camera view modes, use the touch screen or rotate the controller and
push to select the mode.
29319_Text.indd 3111/6/15 10:23 AM

CENTER PA NEL
*IF EQUIPPED 32

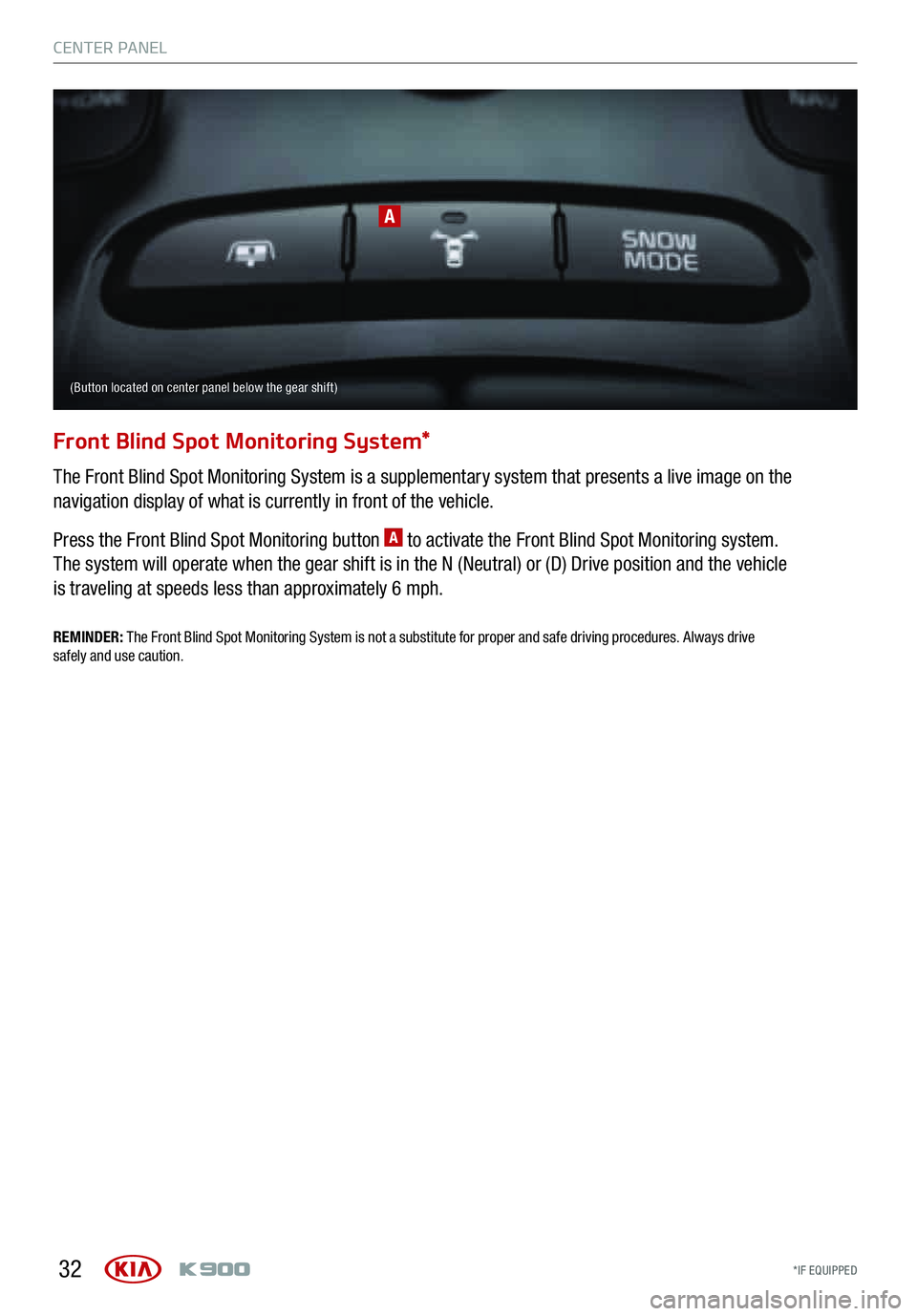

Front Blind Spot Monitoring System*
The Front Blind Spot Monitoring System is a supplementary system that presents a live image on the
navigation display of what is currently in front of the vehicle.
Press the Front Blind Spot Monitoring button
A to activate the Front Blind Spot Monitoring system.
The system will operate when the gear shift is in the N (Neutral) or (D) Drive position and the vehicle
is traveling at speeds less than approximately 6 mph.
A
REMINDER: The Front Blind Spot Monitoring System is not a substitute for proper and safe driving procedures. Always drive
safely and use caution.
(Button located on center panel below the gear shift)
29319_Text.indd 3211/6/15 10:23 AM

CENTER PA NEL
33*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
(Button located on center panel below the gear shift)
While the ENGINE START/STOP button is in the ACC/ON position,
press the power rear curtain button A to raise/lower curtain.
REMINDER: Raising or lowering the rear curtain by hand may cause motor failure.
Power Rear Curtain
www.KuTechVideos.com/kh13/2016
POWER REAR
CURTA IN & REAR
SIDE-WINDOW
CURTA INS VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
Quick Tips
- The power rear curtain will lower automatically
when the gear shift is moved into the R (Reverse)
position and raise automatically when the gear
shift is moved from R (Reverse) into P (Park)
- When the gear shift is moved into D (Drive)
and the vehicle is traveling at speeds greater
than 12 mph, the power rear curtain will unfold
automatically
A
(Button located on rear passenger’s control system)
A
29319_Text.indd 3311/6/15 10:24 AM

S E AT I N G
*IF EQUIPPED 34
Seat Warmers / Ventilated Seats
Quick \fip
With the seat warmer switch in the ON position,
the heating system in the seat turns OFF or ON
automatically depending on the seat temperature.
www.KuTechVideos.com/kh13/2016
SE AT WARMERS AND
VENTILATED SE AT S
VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.Front Seats
Seat Warmers – Press button
A once for high setting (3
LEDs lit). Press button twice for medium setting (2 LEDs lit).
Press a third time for low setting (1 LED lit) and again to
turn O F F.
Ventilated Seats – Press button
B once for high setting (3
LEDs lit). Press twice for medium setting (2 LEDs lit). Press a
third time for low setting (1 LED lit) and again to turn O F F.
\bear Seats
Seat Warmers – Press top of button
C once for high setting
(3 LEDs lit). Press button twice for medium setting (2 LEDs
lit). Press a third time for low setting (1 LED lit) and again to
turn O F F.
Ventilated Seats* – Press bottom of button
D once for high
setting (3 LEDs lit). Press twice for medium setting (2 LEDs
lit). Press a third time for low setting (1 LED lit) and again to
turn O F F.
D
D
C
C
A
B
REMINDER: Use extreme caution when using the
seat warmers to avoid burns. Refer to the Owner’s
Manual for more information.
(Rear Passenger Controls are located in the middle of the rear seat) (Buttons are located on the door panel)
29319_Text.indd 3411/6/15 10:24 AM

S E AT I N G
35*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Move/press controls to adjust headrest, seat forward/backward position, seat cushion length, seatback
angle or lumbar support.
Headrest Height Adjustment*: Move button
A up/down to adjust headrest height
Seatback Angle Adjustment: Move button
B forward/backward to adjust seatback angle
Seat Sliding, Seat Height and Cushion Length* Adjustments:
§ Move button
C forward/backward to slide seat
§ Move front part of button
D up/down to raise/lower front part of seat
§ Move back part of button
E up/down to raise/lower back part of seat
§ Move button
F forward/backward to increase/decrease cushion length*
Lumbar Support Adjustment:
§ Press
G to increase support
§ Press
H to decrease support
§ Press
I to move lumbar support up/down
Power Adjustable Driver’s \feat
A
B
ED
F
C
GH
I
I
(Buttons located on left side of seat cushion)
(Controls located on door panel)
Power Height Adjustment* – To adjust the height, move
the seat control button A up/down.
Manual Tilt Adjustment – To adjust the headrest forward/
backward, tilt the lower part of the headrest at a slight angle.
Power Front \feat Headrest Adjust\bent*
29319_Text.indd 3511/6/15 10:24 AM

S E AT I N G
*IF EQUIPPED 36
Power Reclining Rear Seats*
The rear seats can be adjusted by using the control switches
located on the door.
Seatback & Seat Slide Adjustment:
§ Move the button
C forward/backward to adjust the
seatback position
§ Move the button
D forward/backward to adjust the
seat position
Easy Access (AUTO) Button – When opening the rear door, the
rear seats will automatically move rearward to provide
easier access for passengers. Press the AUTO button
E on
the door panel to turn the system ON (LED is lit) and OFF (LED
not lit).
REMINDERS:
- Keep hands and other objects away from seat
mechanisms while the seat is in motion
- Do not adjust the seat while wearing seat belts
- Do not operate the rear power seat while the child
seat is installed
- Do not operate two or more power seat control
switches at the same time. Doing so may result
in power seat motor or electrical component
malfunction
C
D
E
(Controls located on door panel)
The integrated system stores into memory the position of
the driver’s seat, outside rearview mirrors, Head-Up Display
( H UD)*, and steering wheel positions. To store positions into
memor y, rst place the gear shift into P (Park) while the
ENGINE START/STOP button is in the ON position. Then:
1. Adjust the driver’s seat, outside rearview mirrors, Head-
Up Display (HUD)* settings and steering wheel positions
2. Press the SET button
A on the control panel. System will
beep once
3. Press one of the memory buttons 1 or 2
B within 5
seconds. The system will beep twice when memory has
been stored
Driver Position \femory System
(Buttons located on driver door panel)
B
A
29319_Text.indd 3611/6/15 10:25 AM

S E AT I N G
37*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
Rear Passenger’s Control System
The rear passenger’s control system lets users adjust the rear
and front seat controls, rear audio control and climate control.
Rear Seat Ad\fustment
To activate or deactivate the system, press the REAR LOCK
button
A on the rear armrest console.
To control the rear seat lumbar suppor t *, press the L (left
seat)
B or R (right seat) C button.
To adjust the lumbar support, move the lever
D:
§ To the LEFT to increase
§ To the RIGHT to decrease
§ UP to move the support position higher
§ DOWN to move lower
Qui\bk Tip

Users can also activate/deactivate the rear
passenger control system through the navigation
system. Press the CLIMATE button on the center
panel and deselect the Rear Climate option. If
the rear climate controls have been deactivated
through navigation system, they must be activated
the same way.
DF
E
G
C
B
A
Front Passenger Seat Ad\fustment
To adjust the angle of the front passenger’s seat from the
rear seat control system or the buttons on front seatback,
press the top/bottom of button
F to angle the front
seatback forward/backward.
To adjust the position of front passenger’s seat from
the rear seat control system or the buttons on the front
seatback, press the top/bottom of button
G to move the
seat forward/backward.
REMINDER: The front passenger seat adjustments F G only operate when seat is not occupied.
Easy Access (AUTO) – When opening the rear door, the rear seats will automatically move rearward to
provide easier access for passengers.
Press the AUTO button
E on the door panel to turn the system ON (LED is lit) or OFF (LED not lit).
(Buttons located on left side of
front passenger seatback)
F
G
29319_Text.indd 3711/6/15 10:25 AM

OTHER KEY FEATURES
*IF EQUIPPED 38
Smart Power Trunk
The Smart Trunk automatically unlocks and opens the trunk
hands-free when the Smart Key fob is detected near the rear
of the vehicle.
When the Smart Key fob is on your person and you are within
close proximity to the rear of the vehicle, the hazard lights
will blink and a chime will sound for approximately three
seconds to alert you that the Smart Trunk is about to open.
The alert system will blink and chime two additional times
before the Smart Trunk opens.
The Smart Trunk feature is OFF by default. To enable the
Smart Trunk, go to User Settings in the LCD instrument
cluster modes and select Smart Trunk.Quick Tip
The Smart Trunk can be deactivated with the Smart
Key by pressing any button on the key fob.
REMINDERS: - The Smart Trunk feature will not operate within
15 seconds after the doors are closed and locked
or if the Smart Key is within 60 inches from the
front door handles
- Doors must be closed and locked for the Smart
Trunk to operate
- The Smart Key must be outside of the vehicle for
the Smart Trunk to operate
For more information on Smart Trunk operation, please
refer to the Owner’s Manual.
29319_Text.indd 3811/6/15 10:25 AM
