KIA K900 2016 Owners Manual

5-28
Driving your vehicle

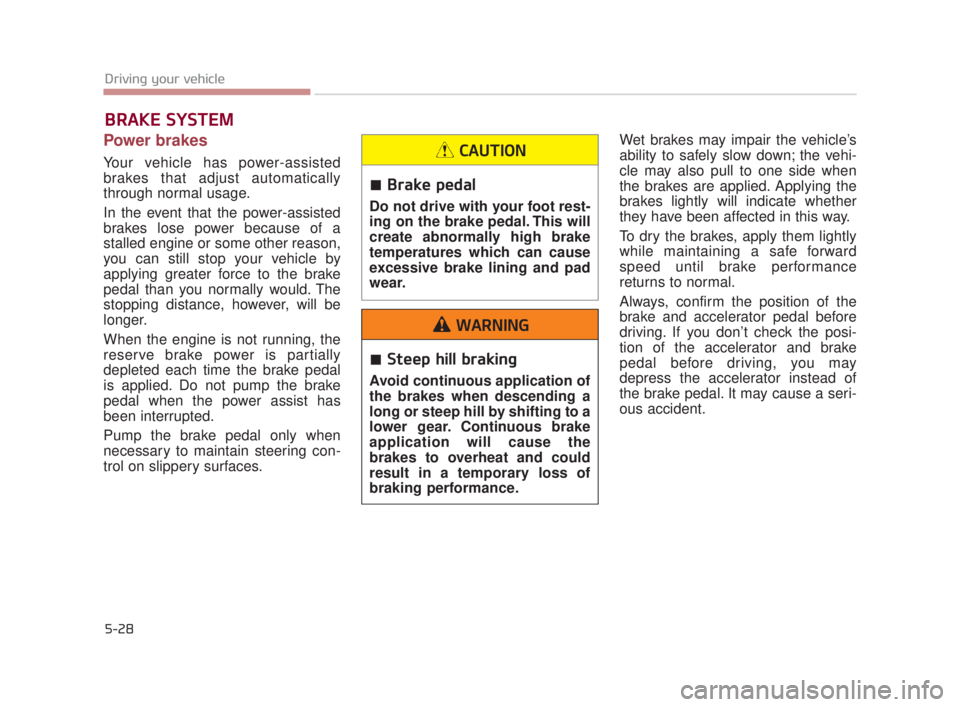

Power brakes
Your vehicle has power-assisted
brakes that adjust automatically
through normal usage.
In the event that the power-assisted
brakes lose power because of a
stalled engine or some other reason,
you can still stop your vehicle by
applying greater force to the brake
pedal than you normally would. The
stopping distance, however, will be
longer.
When the engine is not running, the
reserve brake power is partially
depleted each time the brake pedal
is applied. Do not pump the brake
pedal when the power assist has
been interrupted.
Pump the brake pedal only when
necessary to maintain steering con-
trol on slippery surfaces.Wet brakes may impair the vehicle’s
ability to safely slow down; the vehi-
cle may also pull to one side when
the brakes are applied. Applying the
brakes lightly will indicate whether
they have been affected in this way.
To dry the brakes, apply them lightly
while maintaining a safe forward
speed until brake performance
returns to normal.
Always, confirm the position of the
brake and accelerator pedal before
driving. If you don’t check the posi-
tion of the accelerator and brake
pedal before driving, you may
depress the accelerator instead of
the brake pedal. It may cause a seri-
ous accident.
BRAKE SYSTEM
Brake pedal
Do not drive with your foot rest-
ing on the brake pedal. This will
create abnormally high brake
temperatures which can cause
excessive brake lining and pad
wear.
CAUTION
Steep hill braking
Avoid continuous application of
the brakes when descending a
long or steep hill by shifting to a
lower gear. Continuous brake
application will cause the
brakes to overheat and could
result in a temporary loss of
braking performance.
WARNING
KH USA 5:2015 3/25/2015 9:14 AM Page 28

Driving your vehicle
5
5-29

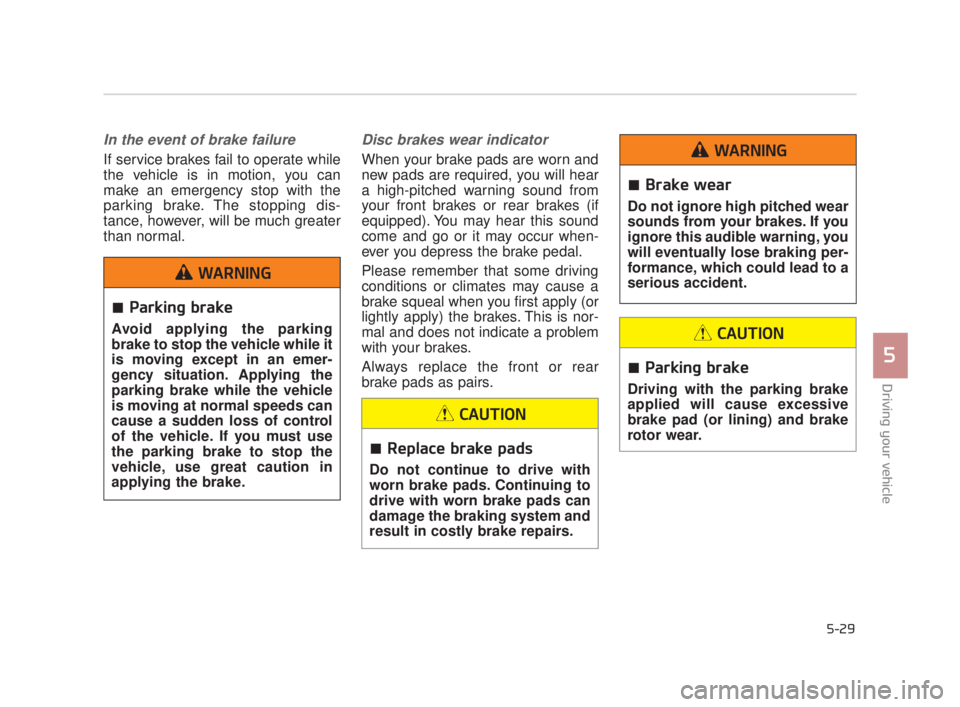

In the event of brake failure
If service brakes fail to operate while
the vehicle is in motion, you can
make an emergency stop with the
parking brake. The stopping dis-
tance, however, will be much greater
than normal.
Disc brakes wear indicator
When your brake pads are worn and
new pads are required, you will hear
a high-pitched warning sound from
your front brakes or rear brakes (if
equipped). You may hear this sound
come and go or it may occur when-
ever you depress the brake pedal.
Please remember that some driving
conditions or climates may cause a
brake squeal when you first apply (or
lightly apply) the brakes. This is nor-
mal and does not indicate a problem
with your brakes.
Always replace the front or rear
brake pads as pairs.
Parking brake
Avoid applying the parking
brake to stop the vehicle while it
is moving except in an emer-
gency situation. Applying the
parking brake while the vehicle
is moving at normal speeds can
cause a sudden loss of control
of the vehicle. If you must use
the parking brake to stop the
vehicle, use great caution in
applying the brake.
WARNING
Replace brake pads
Do not continue to drive with
worn brake pads. Continuing to
drive with worn brake pads can
damage the braking system and
result in costly brake repairs.
CAUTION
Brake wear
Do not ignore high pitched wear
sounds from your brakes. If you
ignore this audible warning, you
will eventually lose braking per-
formance, which could lead to a
serious accident.
WARNING
Parking brake
Driving with the parking brake
applied will cause excessive
brake pad (or lining) and brake
rotor wear.
CAUTION
KH USA 5:2015 3/25/2015 9:14 AM Page 29

5-30
Driving your vehicle

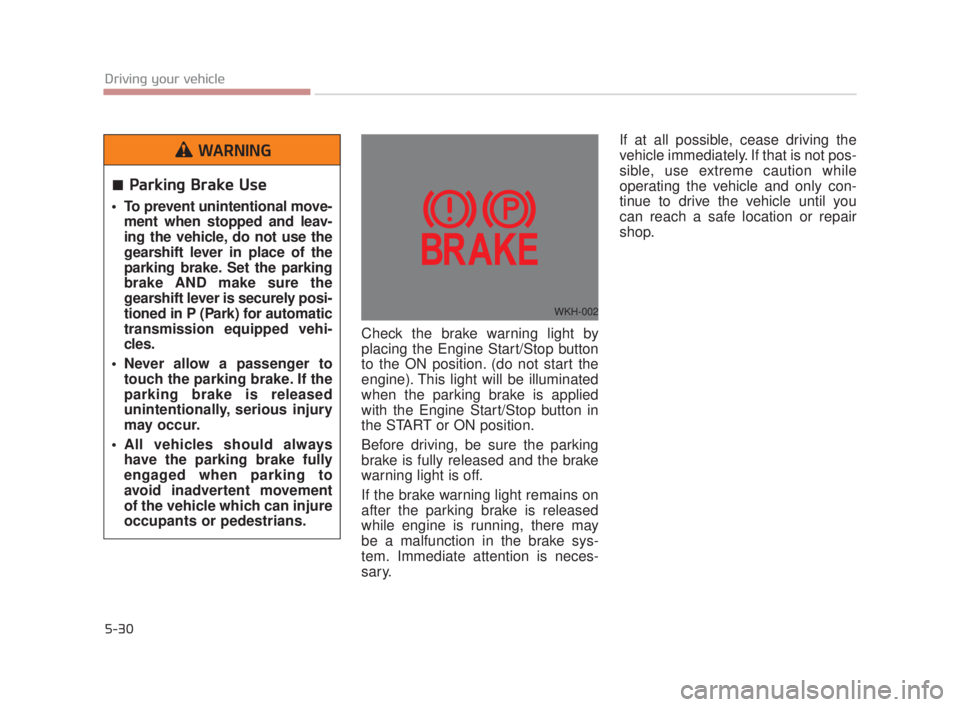

Check the brake warning light by
placing the Engine Start/Stop button
to the ON position. (do not start the
engine). This light will be illuminated
when the parking brake is applied
with the Engine Start/Stop button in
the START or ON position.
Before driving, be sure the parking
brake is fully released and the brake
warning light is off.
If the brake warning light remains on
after the parking brake is released
while engine is running, there may
be a malfunction in the brake sys-
tem. Immediate attention is neces-
sary.If at all possible, cease driving the
vehicle immediately. If that is not pos-
sible, use extreme caution while
operating the vehicle and only con-
tinue to drive the vehicle until you
can reach a safe location or repair
shop.
WKH-002
Parking Brake Use
To prevent unintentional move-
ment when stopped and leav-
ing the vehicle, do not use the
gearshift lever in place of the
parking brake. Set the parking
brake AND make sure the
gearshift lever is securely posi-
tioned in P (Park) for automatic
transmission equipped vehi-
cles.
Never allow a passenger to touch the parking brake. If the
parking brake is released
unintentionally, serious injury
may occur.
All vehicles should always have the parking brake fully
engaged when parking to
avoid inadvertent movement
of the vehicle which can injure
occupants or pedestrians.
WARNING
KH USA 5:2015 3/25/2015 9:14 AM Page 30

Driving your vehicle
5
5-31
Electric parking brake (EPB)
Applying the parking brake
To apply the EPB (electric parking
brake):
1.Depress the brake pedal.
2.Pull up the EPB switch. Make sure the warning light comes
on.
Also, the EPB is applied automatical-
ly if the Auto Hold button is on when
the Engine Start/Stop Button is OFF
position. (for shift by cable)
Also, the EPB is applied automatical-
ly when the Engine Start/Stop Button
is OFF position.(for shift by wire)
However, if you press the EPB switch
after the engine is turned off, the
EPB will not be applied.
Releasing the parking brake
To release the EPB (electric parking
brake), press the EPB switch in the
following condition:
Set the Engine Start/Stop Button in
the ON position.
OKH053031N
OKH053032N
OKH053029N
OKH053030N
Do not operate the parking
brake / EPB while the vehicle is
moving except in an emergency
situation. Driving with the EPB
activated can cause excessive
brake wear.
CAUTION
KH USA 5:2015 3/25/2015 9:15 AM Page 31

5-32
Driving your vehicle

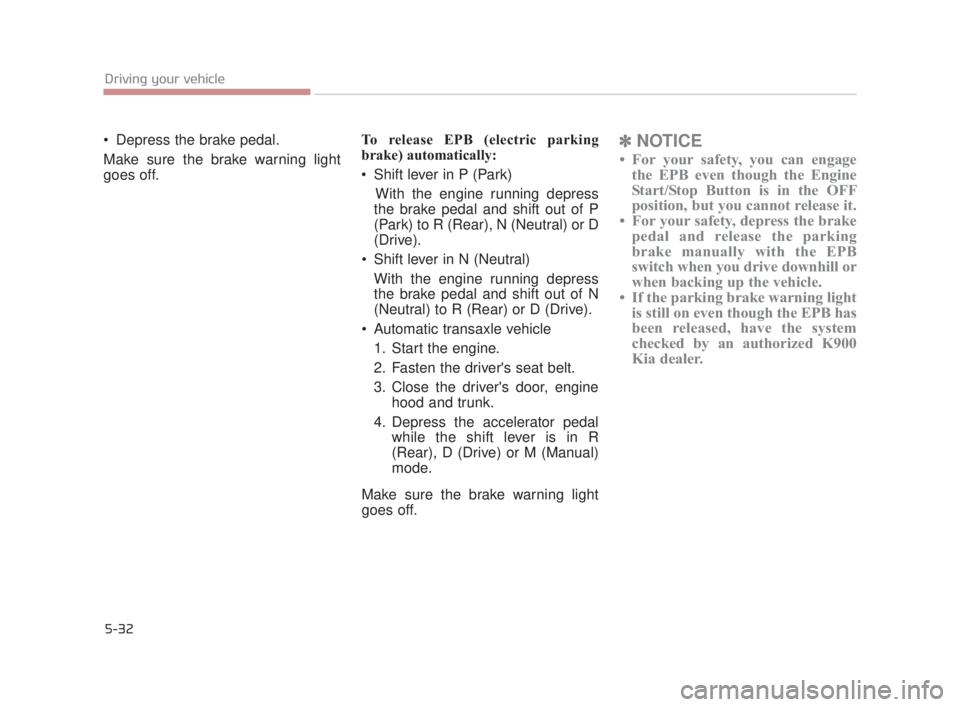

Depress the brake pedal.
Make sure the brake warning light
goes off. To release EPB (electric parking
brake) automatically:
Shift lever in P (Park)
With the engine running depress
the brake pedal and shift out of P
(Park) to R (Rear), N (Neutral) or D
(Drive).
Shift lever in N (Neutral) With the engine running depress
the brake pedal and shift out of N
(Neutral) to R (Rear) or D (Drive).
Automatic transaxle vehicle 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and trunk.
4. Depress the accelerator pedal while the shift lever is in R
(Rear), D (Drive) or M (Manual)
mode.
Make sure the brake warning light
goes off.✽ NOTICE
• For your safety, you can engage
the EPB even though the Engine
Start/Stop Button is in the OFF
position, but you cannot release it.
• For your safety, depress the brake pedal and release the parking
brake manually with the EPB
switch when you drive downhill or
when backing up the vehicle.
• If the parking brake warning light is still on even though the EPB has
been released, have the system
checked by an authorized K900
Kia dealer.
KH USA 5:2015 3/25/2015 9:15 AM Page 32

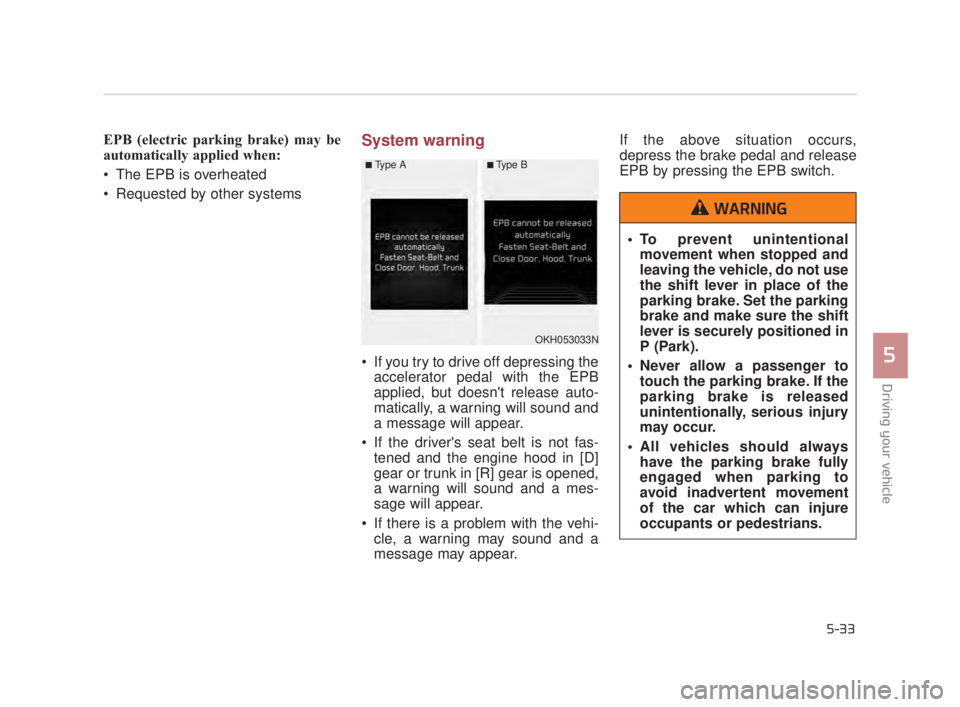

Driving your vehicle
5
5-33
EPB (electric parking brake) may be
automatically applied when:
The EPB is overheated
Requested by other systemsSystem warning
If you try to drive off depressing theaccelerator pedal with the EPB
applied, but doesn't release auto-
matically, a warning will sound and
a message will appear.
If the driver's seat belt is not fas- tened and the engine hood in [D]
gear or trunk in [R] gear is opened,
a warning will sound and a mes-
sage will appear.
If there is a problem with the vehi- cle, a warning may sound and a
message may appear. If the above situation occurs,
depress the brake pedal and release
EPB by pressing the EPB switch.
OKH053033N
■Type A■Type B
To prevent unintentional
movement when stopped and
leaving the vehicle, do not use
the shift lever in place of the
parking brake. Set the parking
brake and make sure the shift
lever is securely positioned in
P (Park).
Never allow a passenger to touch the parking brake. If the
parking brake is released
unintentionally, serious injury
may occur.
All vehicles should always have the parking brake fully
engaged when parking to
avoid inadvertent movement
of the car which can injure
occupants or pedestrians.
WARNING
KH USA 5:2015 3/25/2015 9:15 AM Page 33

5-34
Driving your vehicle

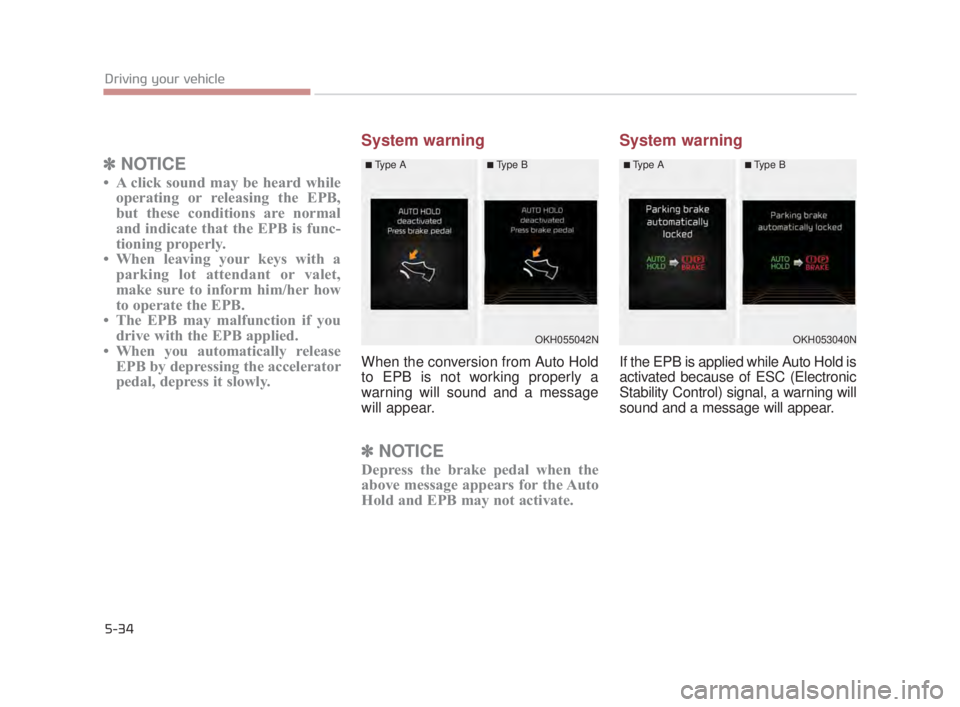

✽NOTICE
• A click sound may be heard while
operating or releasing the EPB,
but these conditions are normal
and indicate that the EPB is func-
tioning properly.
• When leaving your keys with a parking lot attendant or valet,
make sure to inform him/her how
to operate the EPB.
• The EPB may malfunction if you drive with the EPB applied.
• When you automatically release EPB by depressing the accelerator
pedal, depress it slowly.
System warning
When the conversion from Auto Hold
to EPB is not working properly a
warning will sound and a message
will appear.
✽ NOTICE
Depress the brake pedal when the
above message appears for the Auto
Hold and EPB may not activate.
System warning
If the EPB is applied while Auto Hold is
activated because of ESC (Electronic
Stability Control) signal, a warning will
sound and a message will appear.
OKH055042NOKH053040N
■Type A■Type A■Type B■Type B
KH USA 5:2015 3/25/2015 9:15 AM Page 34

Driving your vehicle
5
5-35

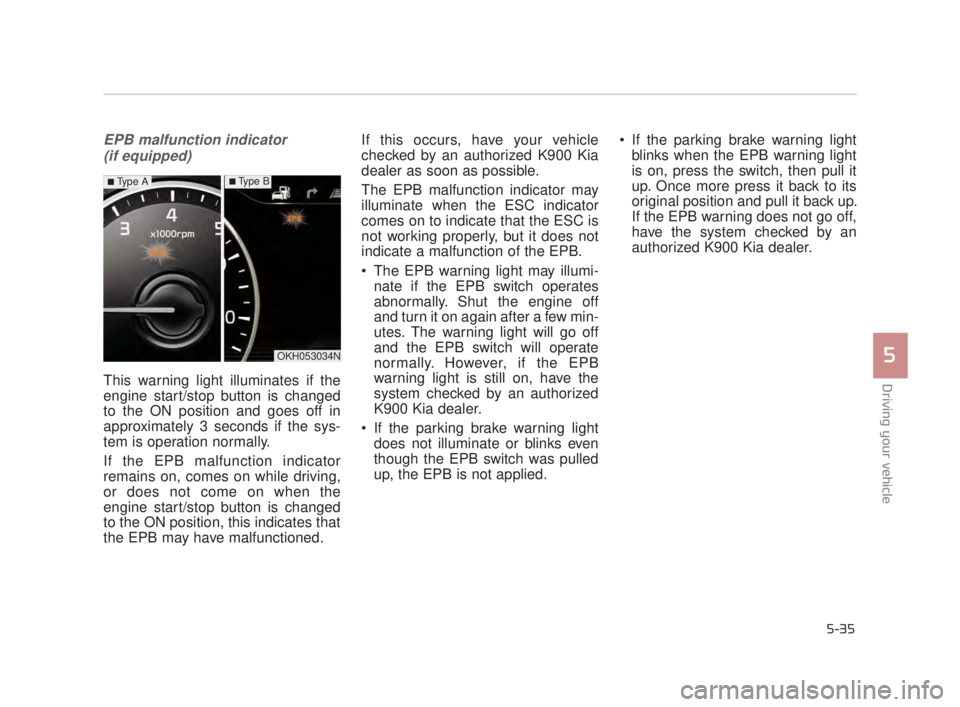

EPB malfunction indicator (if equipped)
This warning light illuminates if the
engine start/stop button is changed
to the ON position and goes off in
approximately 3 seconds if the sys-
tem is operation normally.
If the EPB malfunction indicator
remains on, comes on while driving,
or does not come on when the
engine start/stop button is changed
to the ON position, this indicates that
the EPB may have malfunctioned. If this occurs, have your vehicle
checked by an authorized K900 Kia
dealer as soon as possible.
The EPB malfunction indicator may
illuminate when the ESC indicator
comes on to indicate that the ESC is
not working properly, but it does not
indicate a malfunction of the EPB.
The EPB warning light may illumi-
nate if the EPB switch operates
abnormally. Shut the engine off
and turn it on again after a few min-
utes. The warning light will go off
and the EPB switch will operate
normally. However, if the EPB
warning light is still on, have the
system checked by an authorized
K900 Kia dealer.
If the parking brake warning light does not illuminate or blinks even
though the EPB switch was pulled
up, the EPB is not applied. If the parking brake warning light
blinks when the EPB warning light
is on, press the switch, then pull it
up. Once more press it back to its
original position and pull it back up.
If the EPB warning does not go off,
have the system checked by an
authorized K900 Kia dealer.
OKH053034N
■Type A■Type B
KH USA 5:2015 3/25/2015 9:15 AM Page 35

5-36
Driving your vehicle

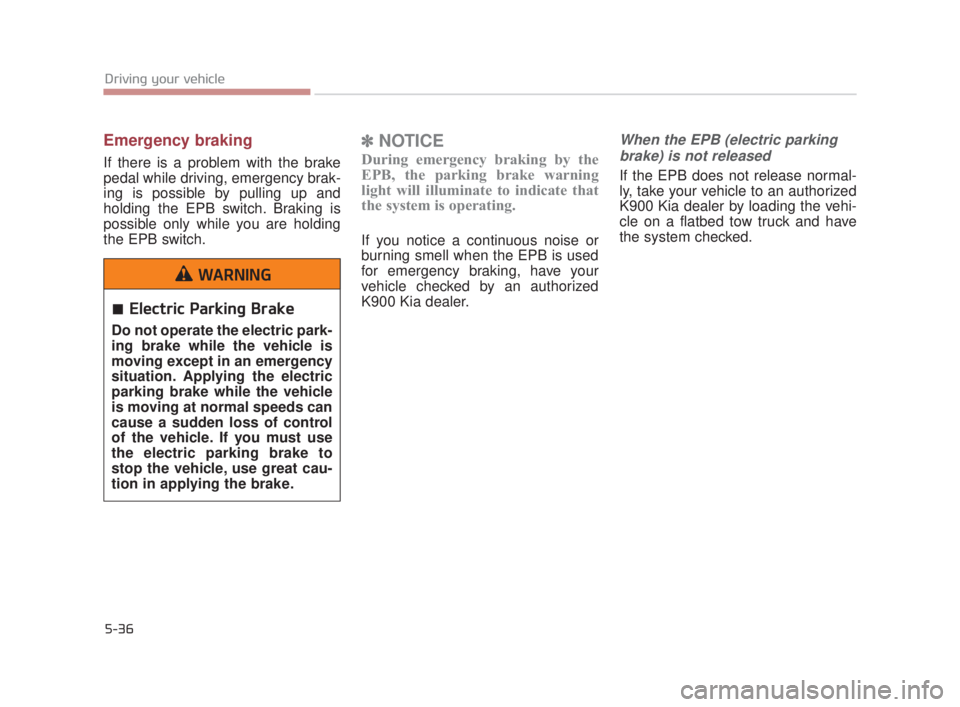

Emergency braking
If there is a problem with the brake
pedal while driving, emergency brak-
ing is possible by pulling up and
holding the EPB switch. Braking is
possible only while you are holding
the EPB switch.
✽NOTICE
During emergency braking by the
EPB, the parking brake warning
light will illuminate to indicate that
the system is operating.
If you notice a continuous noise or
burning smell when the EPB is used
for emergency braking, have your
vehicle checked by an authorized
K900 Kia dealer.
When the EPB (electric parking
brake) is not released
If the EPB does not release normal-
ly, take your vehicle to an authorized
K900 Kia dealer by loading the vehi-
cle on a flatbed tow truck and have
the system checked.
Electric Parking Brake
Do not operate the electric park-
ing brake while the vehicle is
moving except in an emergency
situation. Applying the electric
parking brake while the vehicle
is moving at normal speeds can
cause a sudden loss of control
of the vehicle. If you must use
the electric parking brake to
stop the vehicle, use great cau-
tion in applying the brake.
WARNING
KH USA 5:2015 3/25/2015 9:15 AM Page 36

Driving your vehicle
5
5-37

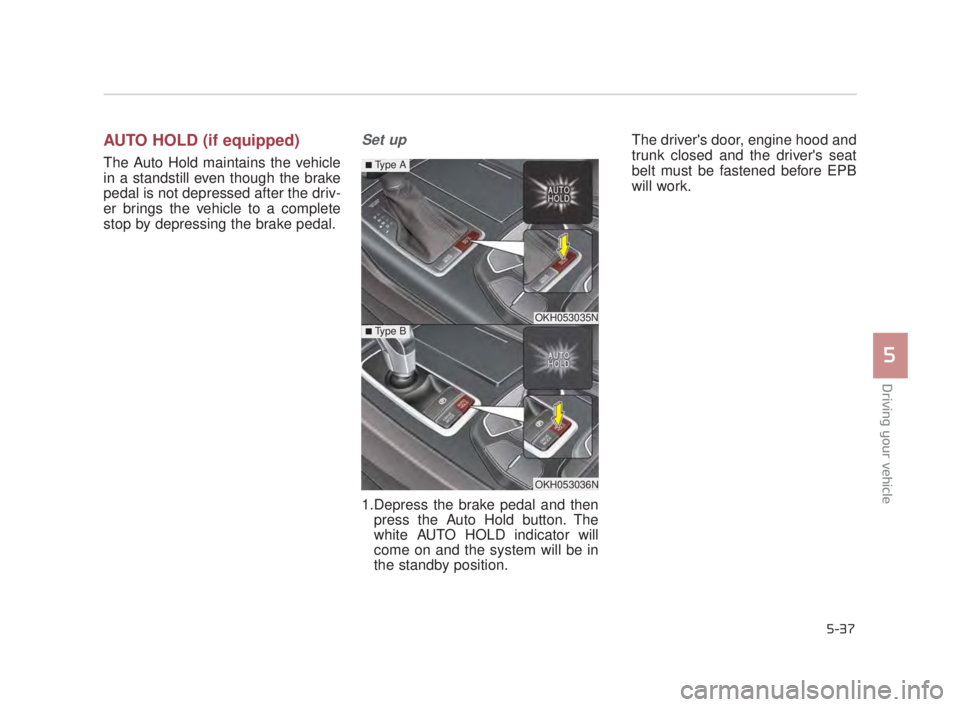

AUTO HOLD (if equipped)
The Auto Hold maintains the vehicle
in a standstill even though the brake
pedal is not depressed after the driv-
er brings the vehicle to a complete
stop by depressing the brake pedal.
Set up
1.Depress the brake pedal and thenpress the Auto Hold button. The
white AUTO HOLD indicator will
come on and the system will be in
the standby position. The driver's door, engine hood and
trunk closed and the driver's seat
belt must be fastened before EPB
will work.
OKH053035N
OKH053036N
■Type A
■Type B
KH USA 5:2015 3/25/2015 9:15 AM Page 37
