KIA OPTIMA 2020 Features and Functions Guide

83
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
60WHB3
Headlamps (Low) - LED type 28WLED
Headlamps (High) Bulb type 65W HB3 (9005+)
LED type 16W LED
Front turn signal lamps 28W2357NALL
Front position lamps 0.9WLED
Daytime running light LED type 14W LED
Front fog lamp Bulb type 51W
HB4
LED type 7.5W LED
Side Repeater lamps Bulb type 5W
W5W LL
LED type0.5WLED
Side marker5WLED
Rear Rear Stop/Tail lamps (outside)
Bulb type5W P21
Rear tail lamps (Inside) 5W W5W
Rear Stop/Tail lamps (outside) LED type12W LED
Rear tail lamps (Inside) 6W LED
Rear turn signal lamps 21W PY21W
Back-up lamps 16W W16W
High mounted stop lamp 3W LED
License plate lamps 5W W5W
Side marker LED type 0.8W LED
Bulb type 5W W5W
(Continued)
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 3

Specifications, Consumer information, Reporting safety defects
48
Light BulbWattage (W) Bulb type

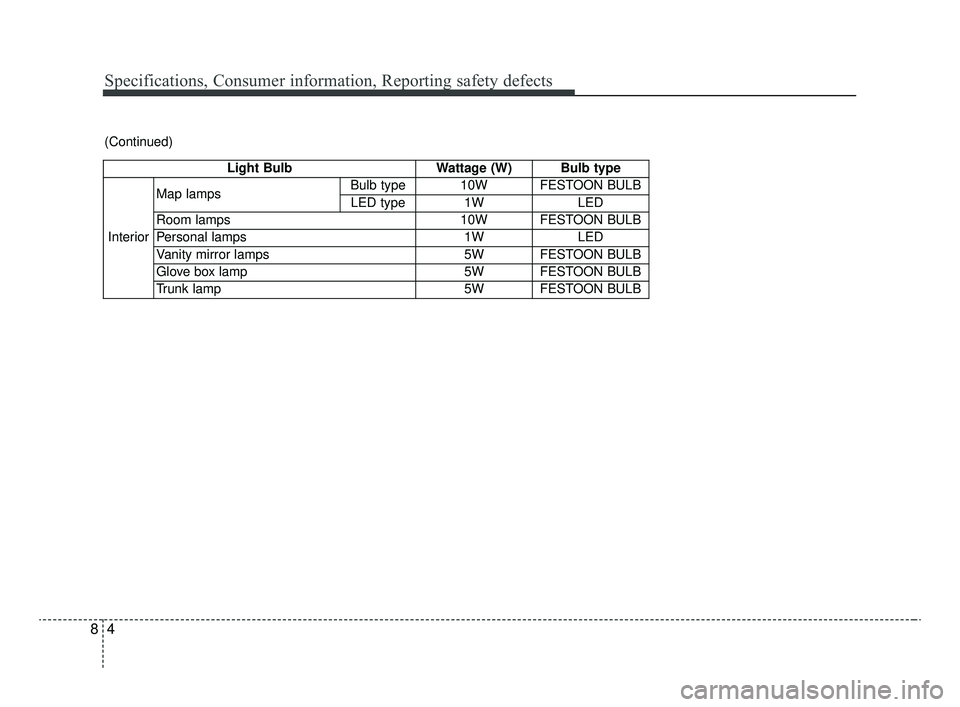

Interior Map lamps
Bulb type 10W FESTOON BULB
LED type 1W LED
Room lamps 10W FESTOON BULB
Personal lamps 1WLED
Vanity mirror lamps 5W FESTOON BULB
Glove box lamp 5W FESTOON BULB
Trunk lamp 5W FESTOON BULB
(Continued)
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 4

85
Specifications, Consumer information, Reporting safety defects

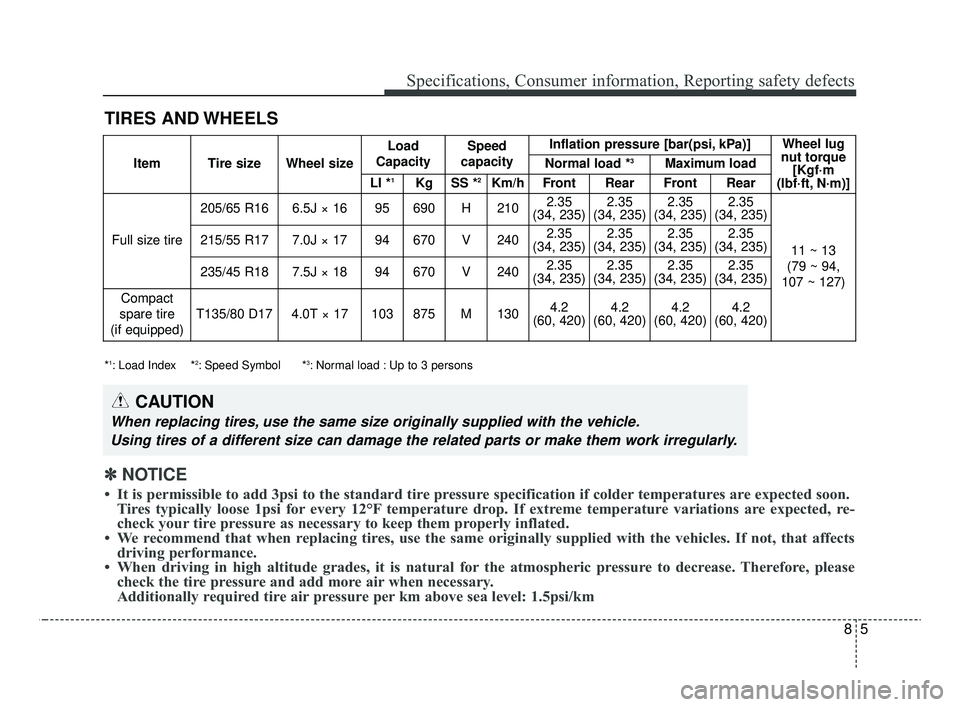

TIRES AND WHEELS
*1: Load Index *2: Speed Symbol *3: Normal load : Up to 3 persons
ItemTire sizeWheel size
Load
CapacitySpeed
capacityInflation pressure [bar(psi, kPa)]Wheel lug
nut torque [Kgf·m
(lbf·ft, N·m)]
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
205/65 R166.5J × 1695690H2102.35
(34, 235)2.35
(34, 235)2.35
(34, 235)2.35
(34, 235)
11 ~ 13
(79 ~ 94,
107 ~ 127)215/55 R177.0J × 1794670V2402.35
(34, 235)2.35
(34, 235)2.35
(34, 235)2.35
(34, 235)
235/45 R187.5J × 1894670V2402.35
(34, 235)2.35
(34, 235)2.35
(34, 235)2.35
(34, 235)
Compact
spare tire
(if equipped)
T135/80 D174.0T × 17103875M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make them work irregularly.
✽ ✽ NOTICE
• It is permissible to add 3psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi for every 12°F temperature drop. If extreme temperature variations are expected, re-
check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 5

Specifications, Consumer information, Reporting safety defects
68

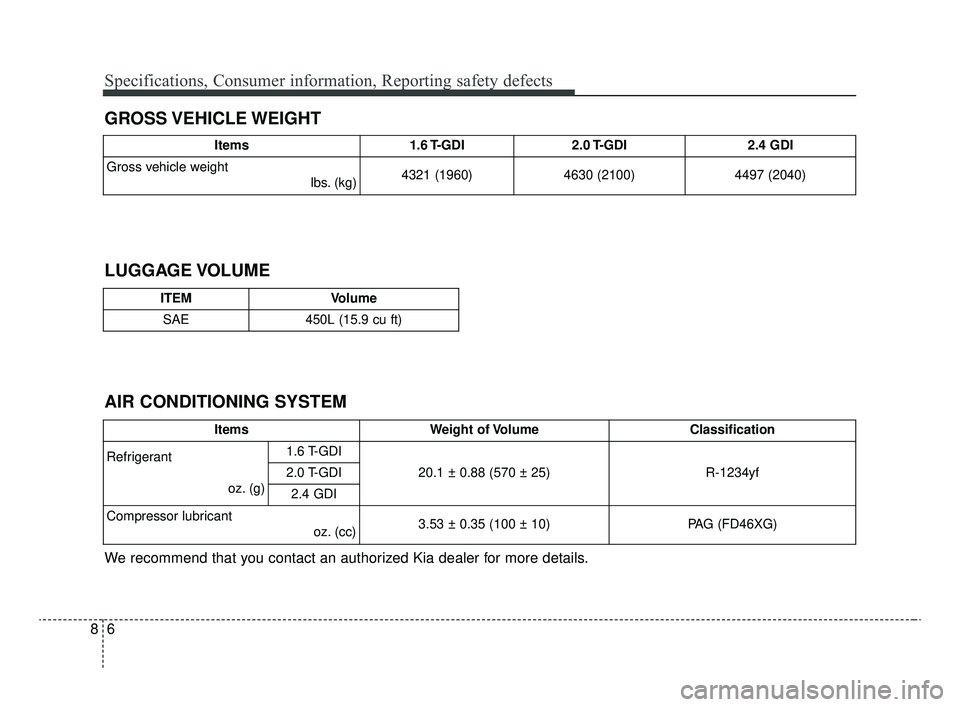

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
Items1.6 T-GDI2.0 T-GDI2.4 GDI
Gross vehicle weightlbs. (kg)4321 (1960)4630 (2100)4497 (2040)
ITEMVolume
SAE450L (15.9 cu ft)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 1.6 T-GDI
20.1 ± 0.88 (570 ± 25)R-1234yf2.0 T-GDI
2.4 GDI
Compressor lubricant oz. (cc) 3.53 ± 0.35 (100 ± 10)PAG (FD46XG)
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 6

87
Specifications, Consumer information, Reporting safety defects
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API SM engine oil is not available, you can use API SN or above.
*4If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill)
Recommends 1.6 T-GDI4.75 US qt. (4.5
l)SAE 5W-30 / API Latest (ILSAC Latest) or ACEA
A5/B5
2.0 T-GDI
5.07 US qt. (4.8 l)SAE 5W-30 / API*3Latest (ILSAC*4Latest) or ACEA
A5/B5
2.4 GDI5.07 US qt. (4.8 l)SAE 5W-20 / API Latest (ILSAC Latest)
Automatic transmission
fluid 2.0 T-GDI
8.24 US qt. (7.8
l)
SK ATF SP-IV, MICHANG ATF SP-IV, NOCA
ATF SP-IV, Kia GENUINE ATF SP-IV
2.4 GDI
7.50 US qt. (7.1 l)
Dual clutch transmission fluid
2.01~2.11 US qt.(1.9~2.0 l)- SAE 70W, API GL-4
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 7

Specifications, Consumer information, Reporting safety defects
88
LubricantVolumeClassification
Coolant 1.6 T-GDI
7.50 US qt. (7.1
l)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for
cooling device)
2.0 T-GDI
7.92 US qt. (7.5
l)
2.4 GDI
7.60 US qt. (7.2 l)
Brake fluid
0.47 US qt.(0.45 l) FMVSS116 DOT-3 or DOT-4
Fuel18.5 US gal. (70l)Unleaded gasoline
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 8

89
Specifications, Consumer information, Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil
(Theta II 2.0 T-GDI,Gamma 1.6 T-GDI)20W-50
10W-30
15W-40
0W-30 C2, 5W-30 A5, 5W-40
Gasoline Engine Oil (
Theta II 2.4 GDI)
10W-30
5W-20, 0W-30 C2, 5W-30 A5
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 9

Specifications, Consumer information, Reporting safety defects
10
8

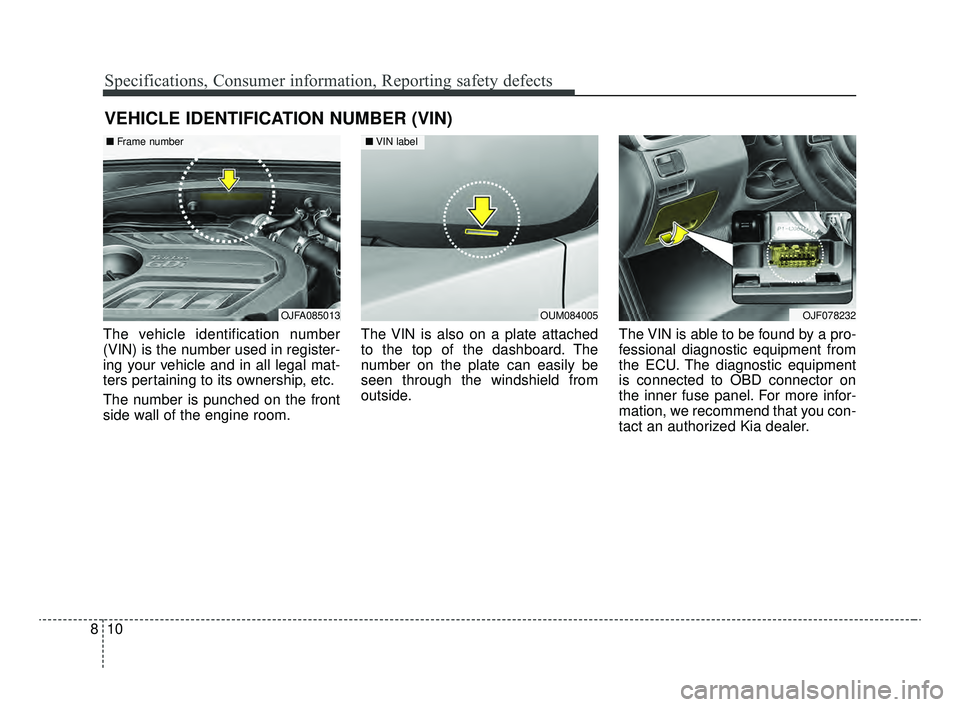

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the front
side wall of the engine room. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The VIN is able to be found by a pro-
fessional diagnostic equipment from
the ECU. The diagnostic equipment
is connected to OBD connector on
the inner fuse panel. For more infor-
mation, we recommend that you con-
tact an authorized Kia dealer.
OJFA085013
■
Frame number
OUM084005
■VIN label
OJF078232
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 10

811
Specifications, Consumer information, Reporting safety defects

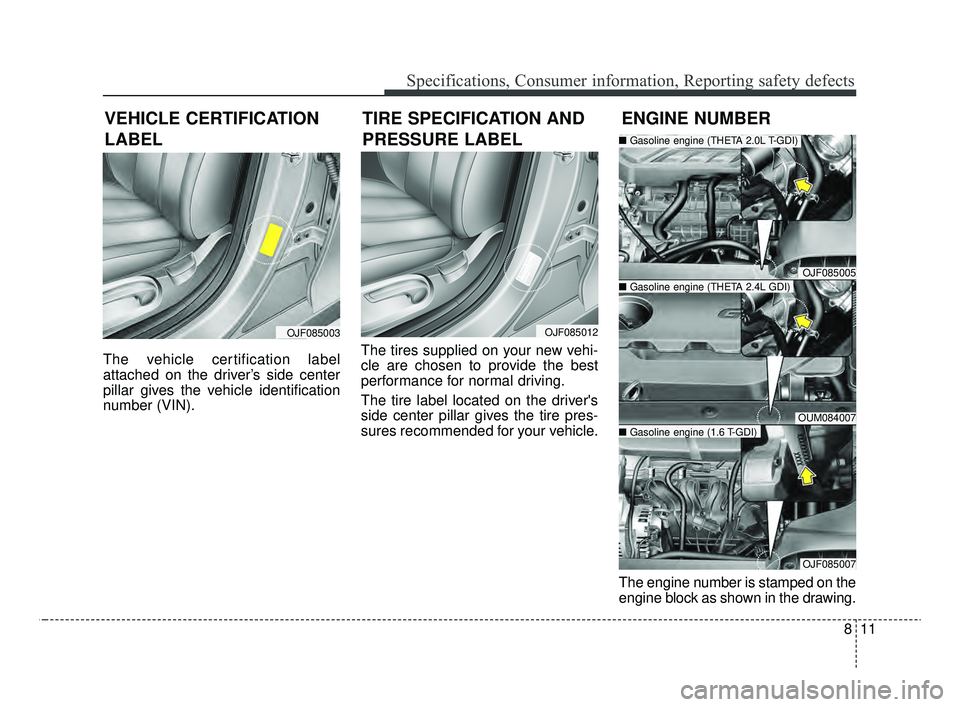

The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
The engine number is stamped on the
engine block as shown in the drawing.
VEHICLE CERTIFICATION
LABEL
OJF085003
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL
OJF085012
OJF085005
OUM084007
OJF085007
■ Gasoline engine (THETA 2.4L GDI)
■Gasoline engine (THETA 2.0L T-GDI)
■Gasoline engine (1.6 T-GDI)
JFa PE USA 8.qxp 5/15/2019 3:11 PM Page 11

Specifications, Consumer information, Reporting safety defects
12
8

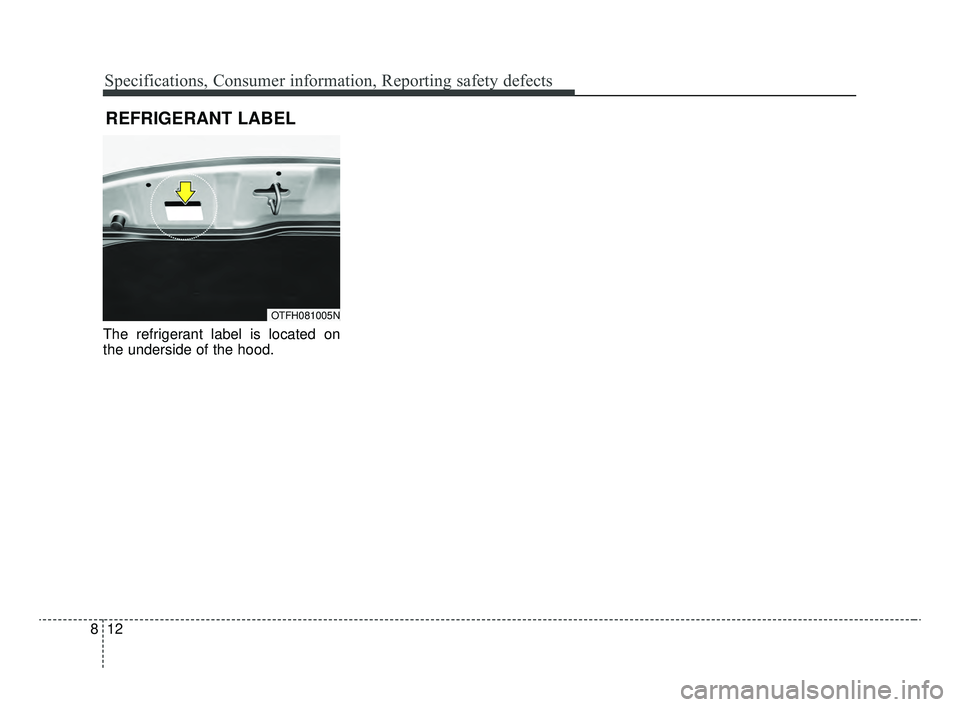

The refrigerant label is located on
the underside of the hood.
REFRIGERANT LABEL
OTFH081005N
