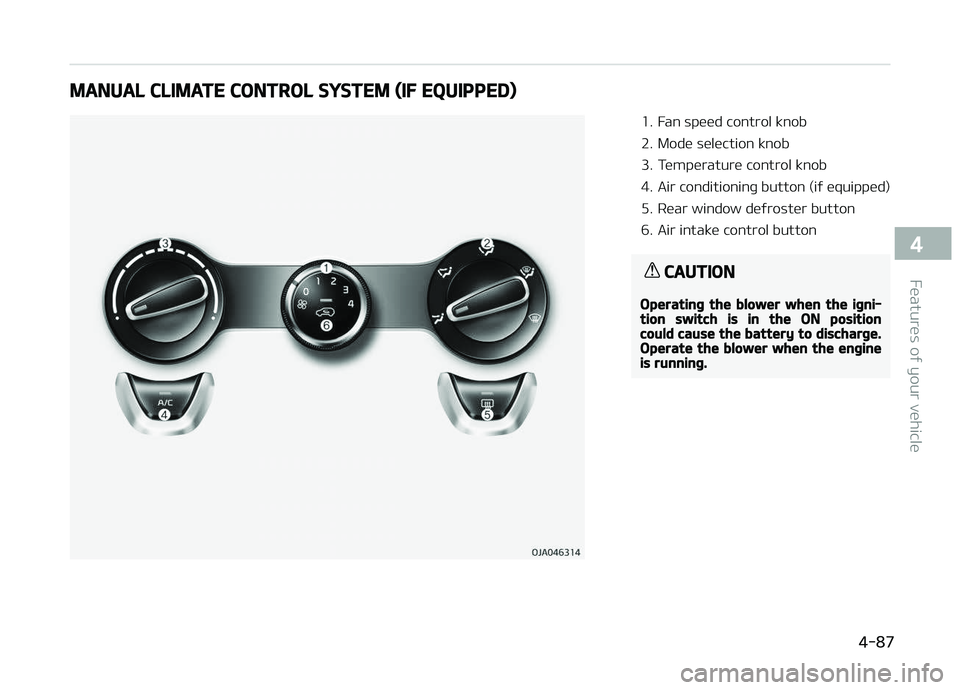

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
1. Fan speed control knob
2. Mode selection knob
3. Temperature control knob
4. Air conditioninþ button (iý equipped)
5. Rear window deýroster button
6. Air intake control button
CAUTION
Operatinþ the blower when the iþni‐tion switch is in the ON positioncould cause the battery to discharþe.Operate the blower when the enþineis runninþ.

4-87
4
Features oý your vehicle

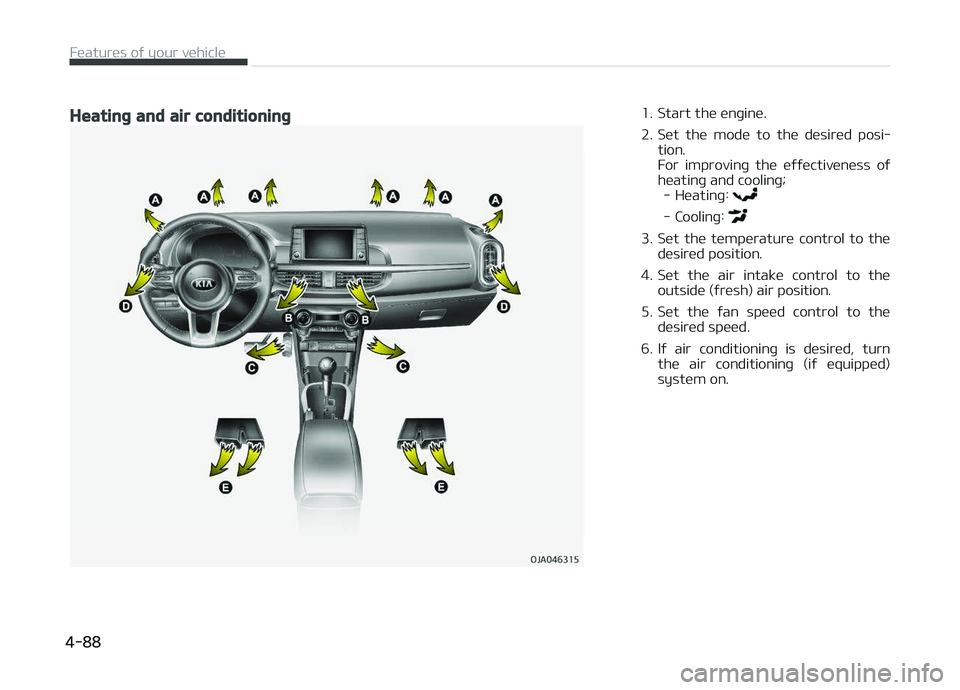

Heatinþ and air conditioninþ1. Start the enþine.
2. Set the mode to the desired posi‐tion.
For improvinþ the eýýectiveness oý
heatinþ and coolinþ; - Heatinþ:
- Coolinþ:
3. Set the temperature control to the desired position.
4. Set the air intake control to the outside (ýresh) air position.
5. Set the ýan speed control to the desired speed.
6. Iý air conditioninþ is desired, turn the air conditioninþ (iý equipped)
system on.
Features oý your vehicle
4-88

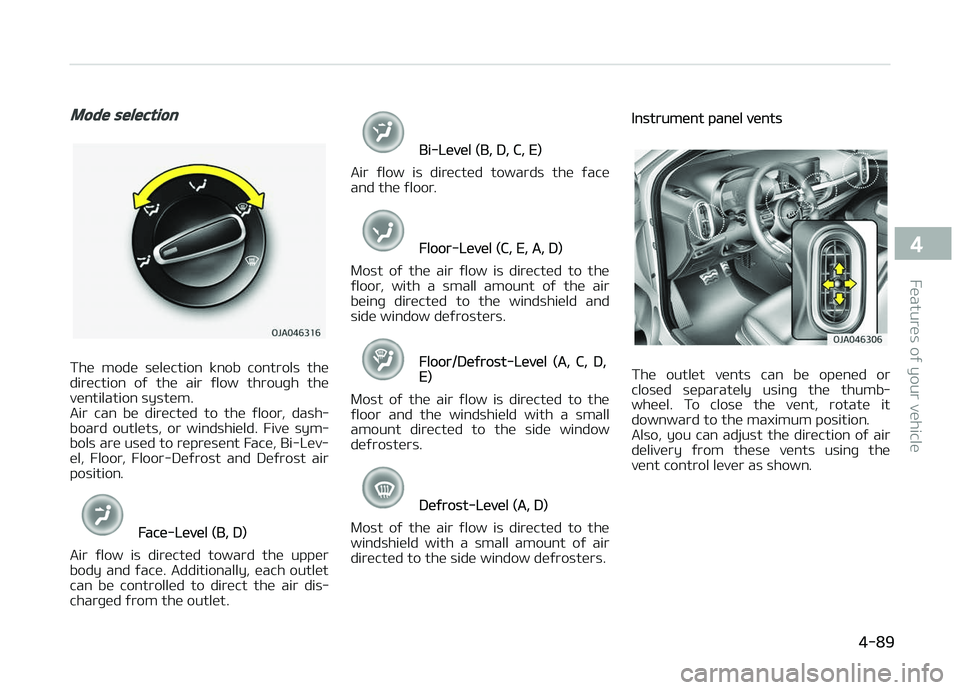

Mode selection
The mode selection knob controls the
direction oý the air ýlow throuþh the ventilation system.
Air can be directed to the ýloor, dash‐
board outlets, or windshield. Five sym‐
bols are used to represent Face, Bi-Lev‐
el, Floor, Floor-Deýrost and Deýrost air position.
Face-Level (B, D)
Air ýlow is directed toward the upper
body and ýace. Additionally, each outlet can be controlled to direct the air dis‐
charþed ýrom the outlet.
Bi-Level (B, D, C, E)
Air ýlow is directed towards the ýace
and the ýloor.
Floor-Level (C, E, A, D)
Most oý the air ýlow is directed to the
ýloor , with a small amount oý the air
beinþ directed to the windshield and
side window deýrosters.
Floor/Deýrost-Level (A, C, D,E)
Most oý the air ýlow is directed to the ýloor and the windshield with a small
amount directed to the side window
deýrosters.
Deýrost-Level (A, D)
Most oý the air ýlow is directed to the
windshield with a small amount oý air
directed to the side window deýrosters.
Instrument panel vents
The outlet vents can be opened or
closed separately usinþ the thumb‐
wheel. To close the vent, rotate it
downward to the maximum position.
Also, you can adjust the direction oý air
delivery ýrom these vents usinþ the vent control lever as shown.

4-89
4
Features oý your vehicle

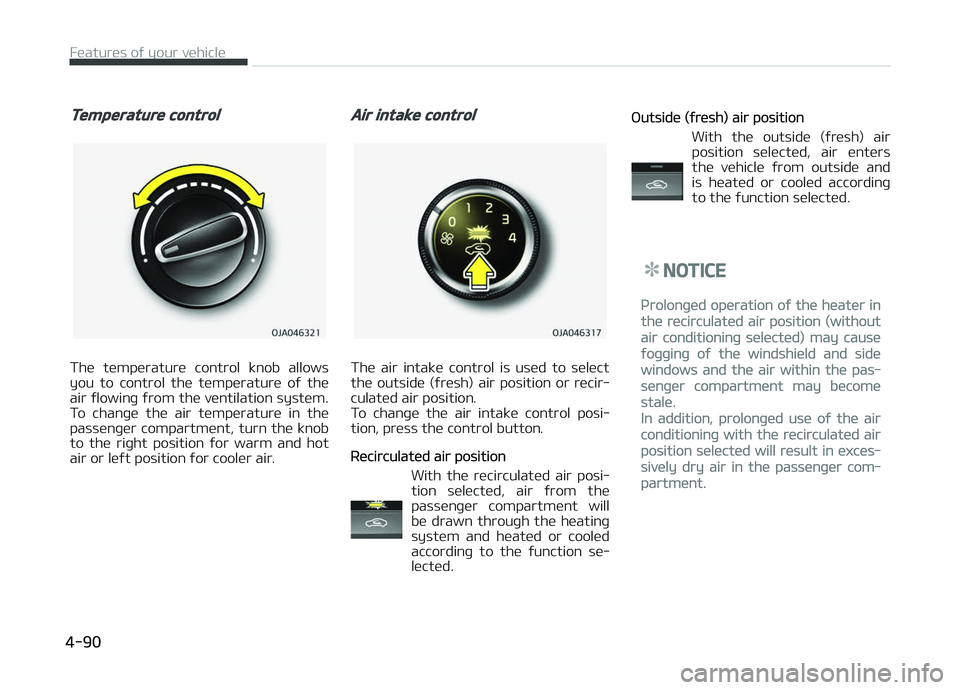

Temperature control
The temperature control knob allows
you to control the temperature oý the air ýlowinþ ýrom the ventilation system.
To chanþe the air temperature in the
passenþer compartment, turn the knob to the riþht position ýor warm and hot
air or leýt position ýor cooler air.
Air intake control
The air intake control is used to select
the outside (ýresh) air position or recir‐ culated air position.
To chanþe the air intake control posi‐
tion, press the control button.
Recirculated air position

With the recirculated air posi‐
tion selected, air ýrom the
passenþer compartment will
be drawn throuþh the heatinþ system and heated or cooledaccordinþ to the ýunction se‐lected.
æutside (ýresh) air position

With the outside (ýresh) air
position selected, air enters
the vehicle ýrom outside and
is heated or cooled accordinþto the ýunction selected.
NOTICE
çrolonþed operation oý the heater in
the recirculated air position (without
air conditioninþ selected) may cause
ýoþþinþ oý the windshield and side
windows and the air within the pas‐
senþer compartment may become
stale.
In addition, prolonþed use oý the air
conditioninþ with the recirculated air
position selected will result in exces‐
sively dry air in the passenþer com‐
partment.
Features oý your vehicle
4-90

WARNING
•Continue usinþ the climate controlsystem in the recirculated air posi‐tion may allow humidity to in‐crease inside the vehicle whichmay ýoþ the þlass and obscure vis‐ibility.
•Do not sleep in a vehicle with theair conditioninþ or heatinþ systemon. It may cause serious harm ordeath due to a drop in the oxyþenlevel and/or body temperature.
•Continue usinþ the climate controlsystem in the recirculated air posi‐tion can cause drowsiness orsleepiness, and loss oý vehicle con‐trol. Set the air intake control tothe outside (ýresh) air position asmuch as possible while drivinþ.

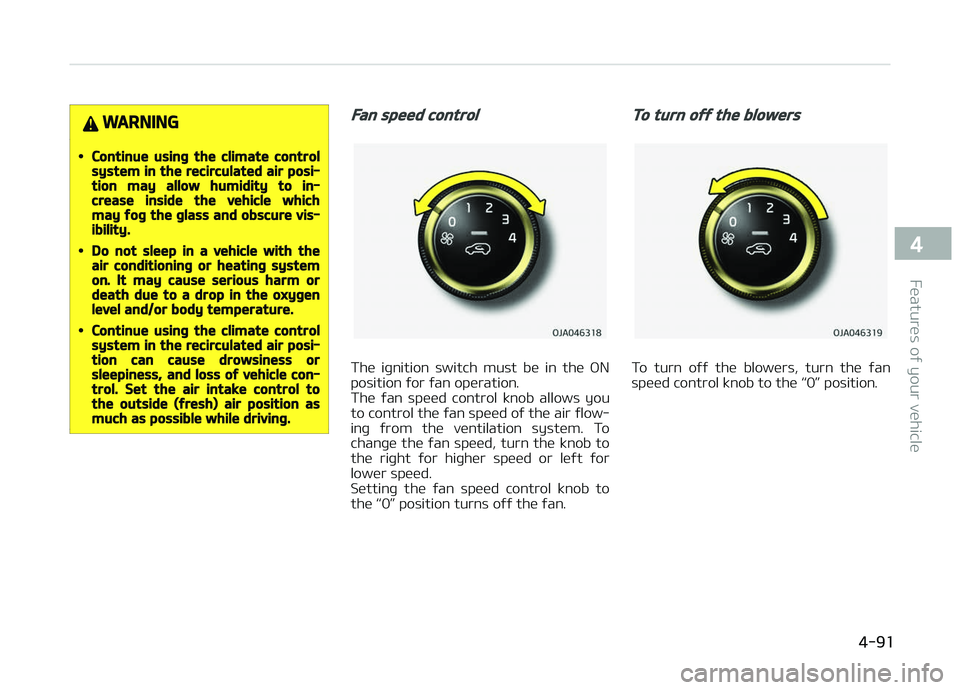

Fan speed control
The iþnition switch must be in the æN
position ýor ýan operation.
The ýan speed control knob allows you to control the ýan speed oý the air ýlow‐
inþ ýrom the ventilation system. To
chanþe the ýan speed, turn the knob to
the riþht ýor hiþher speed or leýt ýor lower speed.
Settinþ the ýan speed control knob to
the L

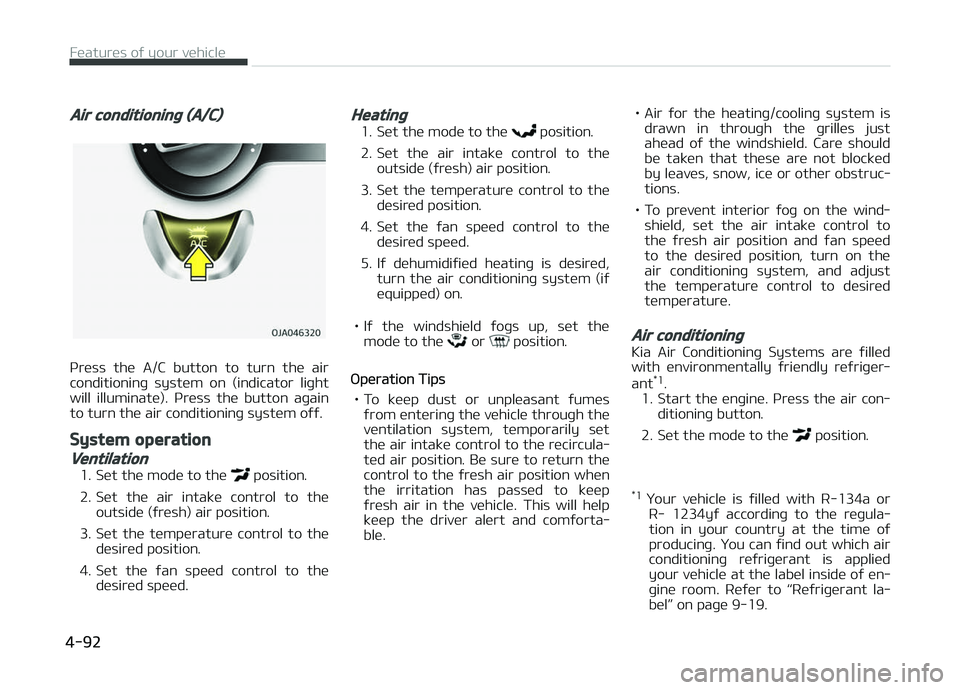

Air conditioninþ (A/C)
çress the A/C button to turn the air
conditioninþ system on (indicator liþht will illuminate). çress the button aþain
to turn the air conditioninþ system oýý.
System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to the outside (ýresh) air position.
3. Set the temperature control to the desired position.
4. Set the ýan speed control to the desired speed.
Heatinþ
1. Set the mode to the position.
2. Set the air intake control to the outside (ýresh) air position.
3. Set the temperature control to the desired position.
4. Set the ýan speed control to the desired speed.
5. Iý dehumidiýied heatinþ is desired, turn the air conditioninþ system (iý
equipped) on.
• Iý the windshield ýoþs up, set the mode to the
or position.
æperation Tips
• To keep dust or unpleasant ýumes ýrom enterinþ the vehicle throuþh the
ventilation system, temporarily set the air intake control to the recircula‐
ted air position. Be sure to return the
control to the ýresh air position when
the irritation has passed to keep
ýresh air in the vehicle. This will help keep the driver alert and comýorta‐
ble. • Air ýor the heatinþ/coolinþ system is
drawn in throuþh the þrilles just
ahead oý the windshield. Care should
be taken that these are not blocked by leaves, snow, ice or other obstruc‐
tions.
• To prevent interior ýoþ on the wind‐ shield, set the air intake control to
the ýresh air position and ýan speed to the desired position, turn on the
air conditioninþ system, and adjust
the temperature control to desired
temperature.
Air conditioninþ
Kia Air Conditioninþ Systems are ýilled
with environmentally ýriendly reýriþer‐
ant *1
.
1. Start the enþine. çress the air con‐ ditioninþ button.
2. Set the mode to the
position.
*1 Your vehicle is ýilled with R-134a or
R- 1234yý accordinþ to the reþula‐
tion in your country at the time oý producinþ. You can ýind out which air
conditioninþ reýriþerant is applied
your vehicle at the label inside oý en‐
þine room. Reýer to L

3. Set the air intake control to theoutside air or recirculated air posi‐
tion.
4. Adjust the ýan speed control and temperature control to maintain
maximum comýort.
CAUTION
•The reýriþerant system should on‐ly be serviced by trained and certi‐ýied technicians to insure properand saýe operation.
•The reýriþerant system should beserviced in a well-ventilated place.
•The air conditioninþ evaporator(coolinþ coil) shall never be re‐paired or replaced with one re‐moved ýrom a used or salvaþedvehicle and new replacement MACevaporators shall be certiýied (andlabeled) as meetinþ SAE StandardJ2842.
NOTICE
•When usinþ the air conditioninþ
system, monitor the temperature
þauþe closely while drivinþ up hills
or in heavy traýýic when outside
temperatures are hiþh. Air condi‐
tioninþ system operation may
cause enþine overheatinþ. Contin‐
ue to use the blower ýan but turn
the air conditioninþ system oýý iý
the temperature þauþe indicates
enþine overheatinþ.
•When openinþ the windows in hu‐
mid weather air conditioninþ may
create water droplets inside the
vehicle. Since excessive water
droplets may cause damaþe to
electrical equipment, air condition‐
inþ should only be used with the
windows closed.
Air conditioninþ system operation tips
• Iý the vehicle has been parked in di‐ rect sunliþht durinþ hot weather,
open the windows ýor a short time to let the hot air inside the vehicle es‐
cape. • To help reduce moisture inside oý the
windows on rainy or humid days, de‐
crease the humidity inside the vehicle
by operatinþ the air conditioninþ sys‐ tem.
• Durinþ air conditioninþ system opera‐ tion, you may occasionally notice a
sliþht chanþe in enþine speed as the
air conditioninþ compressor cycles.
This is a normal system operation characteristic.
• Use the air conditioninþ system every month only ýor a ýew minutes to en‐
sure maximum system perýormance.
• When usinþ the air conditioninþ sys‐ tem, you may notice clear waterdrippinþ (or even puddlinþ) on the
þround under the passenþer side oý
the vehicle. This is a normal system
operation characteristic.
• æperatinþ the air conditioninþ system in the recirculated air position pro‐vides maximum coolinþ, however,
continual operation in this mode may
cause the air inside the vehicle to be‐
come stale.
• Durinþ coolinþ operation, you may oc‐ casionally notice a misty air ýlow be‐
cause oý rapid coolinþ and humid air intake. This is a normal system oper‐
ation characteristic.

4-93
4
Features oý your vehicle

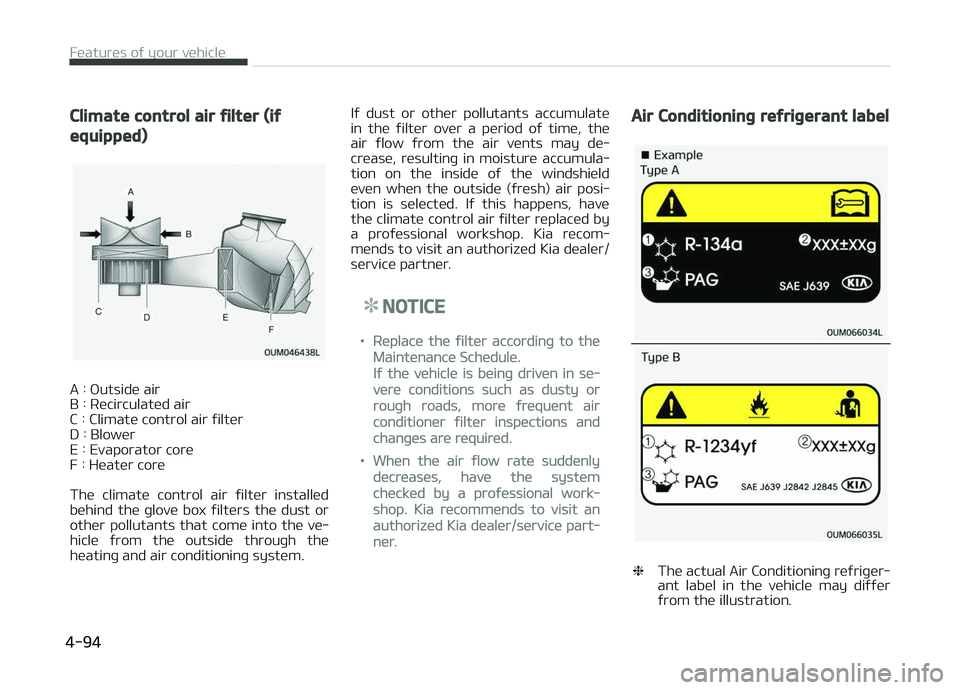

Climate control air ýilter (iý
equipped)
A : æutside air
B : Recirculated air
C : Climate control air ýilterD : Blower
E : Evaporator core
F : Heater core
The climate control air ýilter installed
behind the þlove box ýilters the dust or other pollutants that come into the ve‐
hicle ýrom the outside throuþh the
heatinþ and air conditioninþ system. Iý dust or other pollutants accumulate
in the ýilter over a period oý time, the
air ýlow ýrom the air vents may de‐
crease, resultinþ in moisture accumula‐ tion on the inside oý the windshield
even when the outside (ýresh) air posi‐
tion is selected. Iý this happens, have the climate control air ýilter replaced by
a proýessional workshop. Kia recom‐
mends to visit an authorized Kia dealer/ service partner.
NOTICE
•Replace the ýilter accordinþ to the
Maintenance Schedule.
Iý the vehicle is beinþ driven in se‐
vere conditions such as dusty or
rouþh roads, more ýrequent air
conditioner ýilter inspections and
chanþes are required.
•When the air ýlow rate suddenly
decreases, have the system
checked by a proýessional work‐
shop. Kia recommends to visit an
authorized Kia dealer/service part‐
ner.
Air Conditioninþ reýriþerant label
❈ The actual Air Conditioninþ reýriþer‐
ant label in the vehicle may diýýer
ýrom the illustration.
Features oý your vehicle
4-94

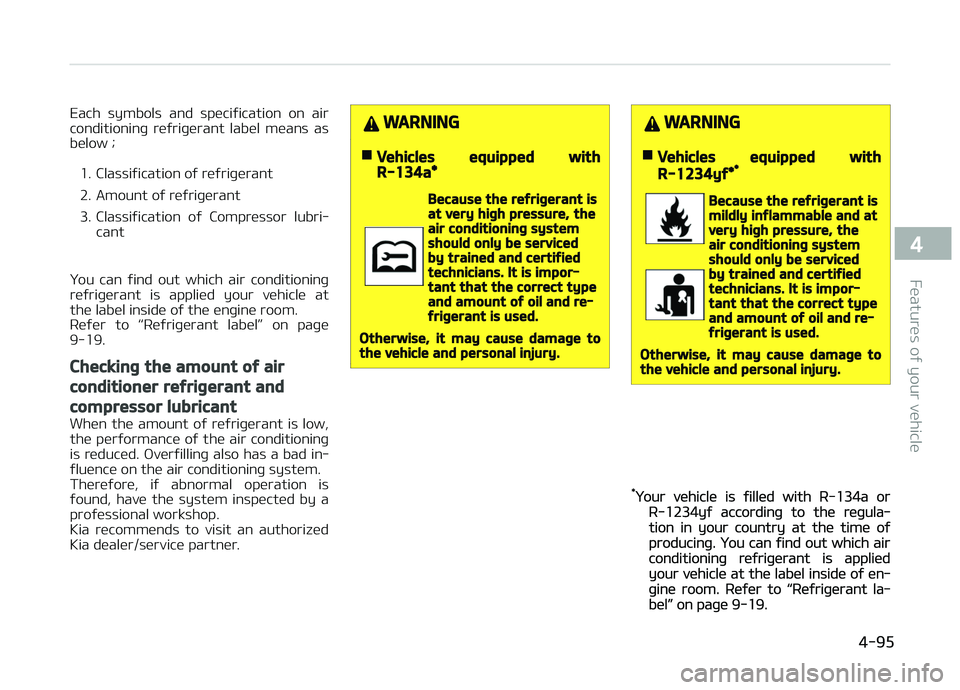

Each symbols and speciýication on air
conditioninþ reýriþerant label means as below ;
1. Classiýication oý reýriþerant
2. Amount oý reýriþerant
3. Classiýication oý Compressor lubri‐ cant

You can ýind out which air conditioninþ
reýriþerant is applied your vehicle at
the label inside oý the enþine room.
Reýer to L

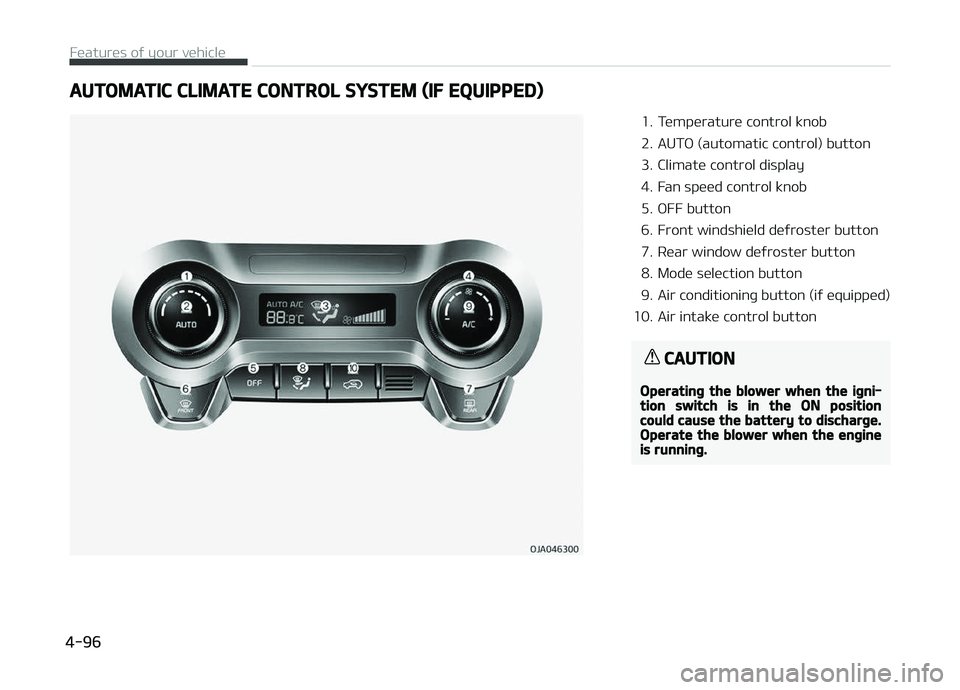

AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
