KIA TELLURIDE 2021 Features and Functions Guide
Manufacturer: KIA, Model Year: 2021, Model line: TELLURIDE, Model: KIA TELLURIDE 2021Pages: 70, PDF Size: 8.41 MB
Page 31 of 70
29
CENTER PANEL
CENTER PANEL
Idle, Stop & Go (ISG) System
The ISG system is designed to reduce fuel consumption by automatically
shutting down the engine when the vehicle is at a standstill.
When the ISG system is ON and the vehicle is at a standstill, the engine will
stop, and the green AUTO STOP indicator
A on the instrument cluster will
illuminate.
The engine will restart when the brake pedal is released or the shift lever is
moved from D (Drive) to the R (Reverse) position or to Manual Shift mode.
When the engine restarts, the green AUTO STOP indicator on the instrument
cluster will turn off.
To deactivate the ISG system, press the ISG OFF button
B. If you press it
again, the system will be activated.
REMINDERS:
§ ISG is active by default at vehicle startup. When the ignition is
cycled, ISG will turn ON again
§ Under certain conditions, the engine will restart automatically
even if the brake pedal is still depressed
§ If the AUTO STOP indicator
is continuously blinking yellow and
the ISG button LED is on , please contact an authorized Kia dealer
See section 5 in the Owner’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual
feature or operation.
EPB
AUTO
0 8
CH
12
3
4
5
6
7
x1000rpm
AUTO
HOLD
160
00
20
40
60
200
220
240
260
80
180
100
160
1
20 140
E F
2040
60
80
100
12 0
1 4 0
MPH
km/h
(Type A instrument cluster shown)
OFF
§ The ISG system is disabled when:
§ A seat belt is unfastened
§ The hood or a door is opened
§ Battery condition is poor
§ The front or rear defroster is turned on
§ Engine coolant temperature is low
§ The outside ambient temperature is too low/high
§ Emission control devices activate
§ The vehicle is on a steep slope
QUICK TIPS
IDLE, STOP & GO
VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE
OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Page 32 of 70
30
CENTER PANEL
CENTER PANEL
AUTO
OFFA/C
SYNC888ADS OFFAUTO888AUTO888
Face-Level F lo o r- L evel
Bi-Level Floor/Defrost-Level
Tri-Zone Climate Control
Pressing the SYNC button
J synchronizes all climate
control zones (driver, passenger, and rear) to the driver’s
temperature control. Auto Defogging System (ADS)
Auto defogging is designed to reduce
the fogging up of the inside of the
windshield by automatically sensing the
moisture of the inside of the windshield.
The system will automatically change to
defrost mode when needed.
The ADS is set ON by default. To cancel
ADS, press the Front Defrost button
C for three seconds, when the ignition
is in on (ADS OFF icon will illuminate).
To turn ADS on again, press the Front
Defrost button
for three seconds.
REMINDERS:
§ Continuous use of the climate control system in
the recirculated air position may allow humidity to
increase inside the vehicle which may fog the glass
and obscure visibility
§ When in AUTO m ode, Air Flow Mode and Fan Speed
do not display on the Climate Control Display
§ Cold or warm ambient air may flow in through vents
if Recirculated Air button is not pressed ON (LED lit)
Defrost Outside Windshield
1. Set fan speed to the highest position
D
2. Set temperature to hot A
3. Press the front defrost button C
Defog Inside Windshield
1. Set fan speed to highest position
D
2. Set temperature to highest position A
3. Press the front defrost button C
Climate Control Auto Function
Press AUTO
A to select full auto operation. In AUTO mode
the driver and front passenger have full control of their own
temperature zones. The mode, fan speed, air intake and air
conditioning will activate and adjust accordingly to achieve
the temperature settings for each zone.
To set temperatures:
§ Tu r n
A to set the driver’s zone temperature
§ Tu r n
J to set the front passenger’s zone temperature
A AUTO (Automatic) Climate
Control button
B System OFF button
C Front Windshield Defrost button
D Fan Speed Control buttons
E Rear Control Mode button
F Mode Select button
G Air Conditioning button
H Rear Window Defrost button
I Recirculated Air button
J SYNC (Synchronize All Zones)
Temperature Control button
Front Climate Control
Air Flow Modes
To select air flow modes, press the Mode Select
button
F:
See section 4 in the Owner’s Manual for more information.
Automatic Climate Control System *
AUTO DEFOGGING
SYSTEM (ADS) VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
When the Climate Control System’s temperature
is turned up to high heat or low cool, the Seat
Warmers / Ventilated Seats turn on automatically.
QUICK TIPS
A
BCDEFGHI
J
*IF EQUIPPED
Page 33 of 70
31
CENTER PANEL
CENTER PANEL
REMINDERS:
§ Continuous use of the climate control system in the recirculated air position may allow humidity to increase inside the vehicle which may
fog the glass and obscure visibility
§ Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
Face-Level
F lo o r- L evel Bi-Level
Floor/Defrost-Level
A Fan speed control knob
B Rear Window Defrost button
C Air Conditioning button
D Mode Select knob
E Fresh Air button
F Recirculated Air button
G Rear Climate Control Mode button
H Temperature Control Knob
Air Flow Modes
To select air flow modes, turn the Mode Select
knob
D:
A/C TEMP
MAXA/C
Defrost Outside Windshield
1. Set fan speed to the highest position
A
2. Set temperature to hot H
3. Set to front defrost D
Defog Inside Windshield
1. Set fan speed
A to the desired position
2. Set desired temperature
H
3. Set to front defrost D
See section 4 in the Owner’s Manual for more information. Your Manual Climate Control system may differ from those in the illustrations.
Manual Climate Control System*
§ Defrost mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster performance
§ Keep inside glass as clean as possible to reduce window fogging
§ MA X A /C mode automatically engages Recirculated Air
QUICK TIPS
ABCDEFGH
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE
OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Page 34 of 70
32
CENTER PANEL
CENTER PANELREMINDERS:
§ When in P (Park), if the Release button is not pressed while
shifting, the transmission does not shift
§ If going through a car wash, remind the attendant to keep the
vehicle in Neutral (N) and keep the engine running. Also, disable
the power liftgate lid control, turn off the auto rain sensing
wipers and fold in the mirrors
To shift into any gear from Park, depress the brake pedal, then press the Release button A, located on the
side of the gear shift lever, and shift.
P: Park – To shift into Park from any gear, press the Release button
B on the gear shift while the vehicle
is stationary and the brake pedal is depressed, and shift.
R: Reverse – To shift into Reverse, depress the brake pedal, press the Release button
A, and move the
shift lever forward twice to skip over Neutral and into Reverse.
N: Neutral
D: Drive
[+]: Manual Mode Upshift
[–]: Manual Mode Downshift
Manual Mode: To enter the Manual
mode, move the shift lever from D to
the left gate
B.
To shift while in Manual mode, move
the shift lever up [+] to upshift or down
[–] to downshift
B.
SHIFT
LOCK
RELEASE
P•R•N•D•
+
•-
SHIFT
LOCK
RELEASE
P•
R•
N•
D•
+
•
-
Automatic Transmission and Manual Mode
§ The instrument cluster and the light beside the shift lever
identifies the gear the vehicle is currently in
QUICK TIPS
A
B
See section 5 in the Owner’s Manual for more information .
*IF EQUIPPED
Page 35 of 70
33
CENTER PANEL
CENTER PANEL
The Parking Distance Warning-Reverse /Forward
System* D is a supplemental system that is
designed to assist the driver by chiming if an object
is detected within the sensing areas in the front or
rear of the vehicle when parking or backing up.
When the Engine Start /Stop button is ON and the
shift lever is in R (Reverse), the system is activated
and the Parking Distance Warning-Reverse/
Forward System* button indicator is illuminated.
REMINDERS:
§ If the vehicle is moving at speeds over 6 mph, the system may not activate
§ When more than two objects are sensed at the same time, the closest one will be recognized first
§ The Parking Distance Warning-Reverse/Forward System* is not a substitute for proper and safe
backing-up procedures. Always drive safely and use caution when backing up. The Parking
Assist System may not detect every object behind or in front of the vehicle
(Rear sensors indicated)
Parking Distance Warning - Reverse/Forward System *†6
(Button below gear shift on
center console)
D
Wireless Smartphone Charging System *
1. Enable Wireless Charging in the User Settings
2. Lift open the tray cover (center console, in front of gear shift)
A
3. Place a compatible smartphone on the center of the charging pad B
4. The indicator light C may change to amber once wireless charging begins
5. Once charging is complete, the amber light
C may change to green
REMINDERS:
§ If any door is opened, charging will be disabled
§ The smartphone must be a compatible phone with QI function available
§ Avoid placing other metal items in the bin while charging as to not impede the charging
area
§ This vehicle is equipped with wireless charging technology which allows for a device
to be charged using inductive charging ; however , device compatibility varies. See the
O wner’s Manual for more detailed information and the back page for legal disclaimers
§ Inductive charging systems are less ef ficient than conventional charging through cable.
As a result, higher device operating temperatures may be experienced during use
§ Charging Performance – Your d evice’s position on the wireless charging system can
affect charging performance. Other factors that may affect the charging rate includes
foreign objects, such as coins or pens, and phone case thickness
WIRELESS CHARGING
VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
§ For wireless charging to occur, all doors (excluding rear hatch) must be closed and the Smart
Key Fob must be detected inside the vehicle
§ For best results, place the smartphone on the center of the charging pad
§ If wireless charging does not work, move the smartphone around the pad until the charging
indicator turns amber
§ Avoid placing other metal items in the bin while charging as to not impede the charging area
QUICK TIPS
A
BC
See section 4 in the Owner’s Manual for more
information.
See section 4 in the Owner’s Manual
for more information.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE
OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
†LEG AL DISCL AIMERS ON BACK INSIDE COVER
Page 36 of 70
34
CENTER PANEL
Auto Hold
Auto Hold temporarily maintains the vehicle at a standstill even if the brake
pedal is not depressed after the driver brings the vehicle to a complete stop
by depressing the brake pedal. Auto Hold can be turned On/Off using the
AUTO HOLD button
A on the center panel. Before Auto Hold will operate, the
driver’s door, engine hood and liftgate must be closed and the driver’s seat
belt must be fastened.
Depress the brake pedal, start the engine and then press the AUTO HOLD
button
A. The white Auto Hold indicator will come on indicating the system is
in s t andby.
The Auto Hold indicator, which is in the instrument cluster, has four states:
White : Standby – When the vehicle is in Park and at a standstill, and the AUTO
HOLD button
A is turned ON, the indicator will illuminate white. While driving
the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain
white.
Green : Engaged – When coming to a complete stop and depressing the brake
pedal, the Auto Hold indicator changes from white to green.
OFF (not illuminated) – The indicator
will turn OFF when the AUTO HOLD
button
A is manually turned OFF or
when the EPB is manually turned ON.
Yellow : Malfunction – When the
indicator is illuminated yellow, there
may be a system malfunction. Take
your vehicle to a local Kia dealer.
REMINDERS:
§ To reduce the risk of an accident, do not
activate Auto Hold while driving downhill,
backing up or parking your vehicle
§ Do not solely rely on the Auto Hold system
to keep the vehicle stopped. Always pay
attention to traf fic and road conditions, and
be prepared to depress the brakes
§ Auto Hold only operates when the vehicle is
in Drive or Neutral
§ Auto Hold turns off when the ignition is cycled
ELECTRONIC PARKING /
AUTO HOLD VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
A
CENTER PANEL
See section 5 in the Owner’s Manual for more information.
*IF EQUIPPED
Page 37 of 70
35
CENTER PANEL
CENTER PANEL
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage
the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch
A. Ensure that the
indicator light
is illuminated on the instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse or
Drive. To release EPB manually, depress the brake pedal, then press the EPB
switch
A, with the ignition switch in the ON position. Ensure that the indicator
light
i s O F F.
Electronic Parking Brake (EPB)
REMINDERS:
§ As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
§ If the warning light does not illuminate temporarily or remains continuously lit, take your vehicle to an authorized Kia dealer and have
the system checked
§ The EPB should not be operated while the vehicle is moving
§ A click or electric brake motor sound may be heard while operating or releasing the EPB. These conditions are normal and indicate
that the EPB is functioning properly
ELECTRONIC PARKING /
AUTO HOLD VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
§ Pull up and hold the EPB switch again
to increase brake pressu re if parked on
a decline or incline
§ When leaving your keys with parking
lot attendants or valet, make sure to
inform them how to operate the EPB
§ If parked on a steep incline, pull up the
EPB switch for mo re than 3 seconds
for a firmer EPB application
QUICK TIPS
A
See section 5 in the Owner’s Manual for more information.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE
OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Page 38 of 70
36
CENTER PANEL

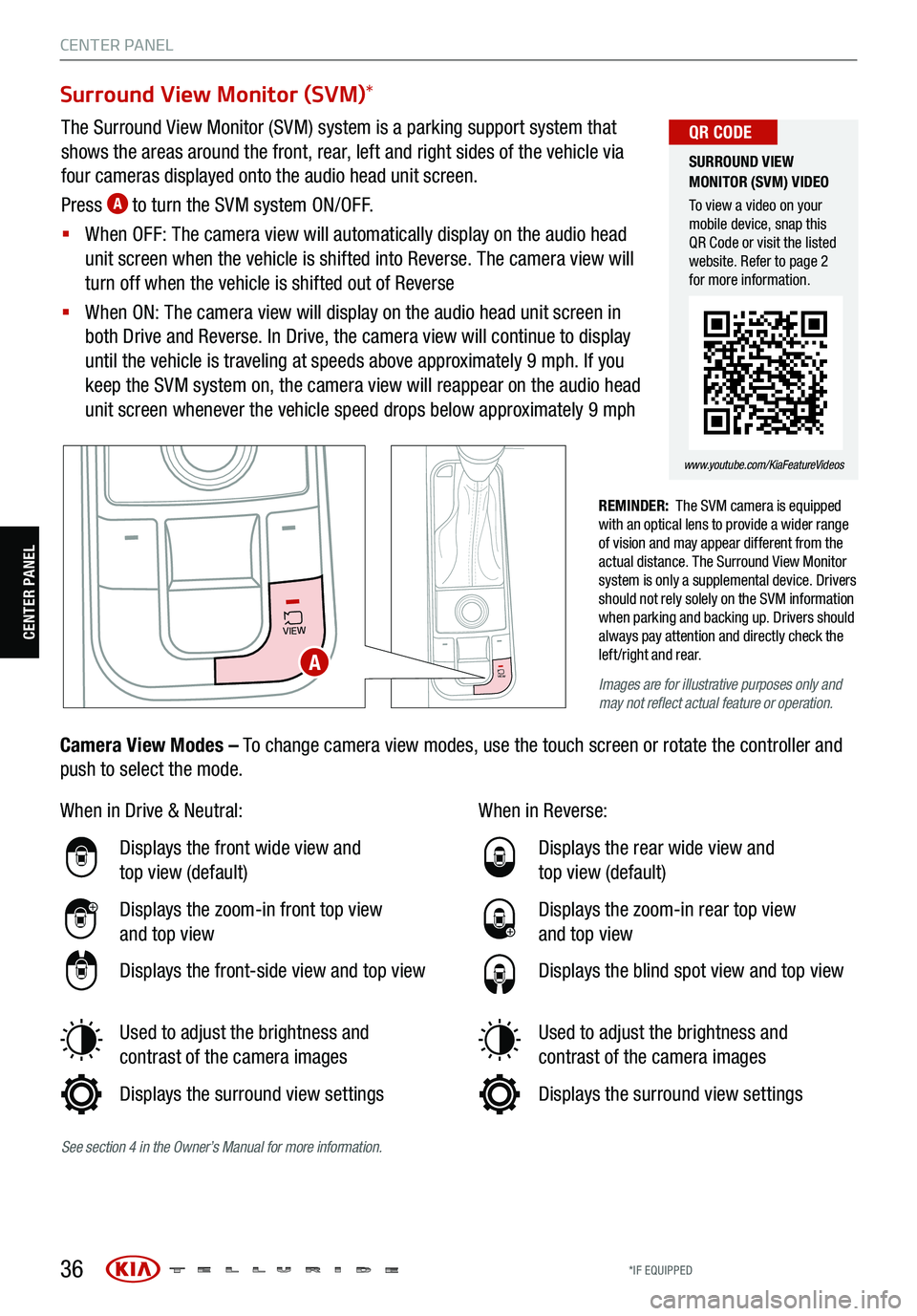

Surround View Monitor (SVM)*
The Surround View Monitor (SVM) system is a parking support system that
shows the areas around the front, rear, left and right sides of the vehicle via
four cameras displayed onto the audio head unit screen.
Press
A to turn the SVM system ON/OFF.
§ When OFF: The camera view will automatically display on the audio head
unit screen when the vehicle is shifted into Reverse. The camera view will
turn off when the vehicle is shifted out of Reverse
§ When ON: The camera view will display on the audio head unit screen in
both Drive and Reverse. In Drive, the camera view will continue to display
until the vehicle is traveling at speeds above approximately 9 mph. If you
keep the SVM system on, the camera view will reappear on the audio head
unit screen whenever the vehicle speed drops below approximately 9 mph
REMINDER: The SVM camera is equipped
with an optical lens to provide a wider range
of vision and may appear different from the
actual distance. The Surround View Monitor
system is only a supplemental device. Drivers
should not rely solely on the SVM information
when parking and backing up. Drivers should
always pay attention and directly check the
left/right and rear.
VIEW
VIEW
When in Drive & Neutral:
Displays the front wide view and
top view (default)
Displays the zoom-in front top view
and top view
Displays the front-side view and top view
Used to adjust the brightness and
contrast of the camera images
Displays the surround view settings When in Reverse:
Displays the rear wide view and
top view (default)
Displays the zoom-in rear top view
and top view
Displays the blind spot view and top view
Used to adjust the brightness and
contrast of the camera images
Displays the surround view settings
Camera View Modes – To change camera view modes, use the touch screen or rotate the controller and
push to select the mode.
SURROUND VIEW
MONITOR (SVM) VIDEO
To view a video on your
mobile device, snap this
QR Code or visit the listed
website. Refer to page 2
for more information.
www.youtube.com/KiaFeatureVideos
QR CODE
Images are for illustrative purposes only and
may not reflect actual feature or operation.A
CENTER PANEL
See section 4 in the Owner’s Manual for more information.
*IF EQUIPPED
Page 39 of 70
37
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
Cruise Control *
A Cruise Control ON/OFF button: Press to turn the cruise control ON/OFF
B Resume Cruising Speed button: Press up to resume or increase cruising speed
Set Cruising Speed button: Press down to set or decrease cruising speed
C Cruise Control Cancel button: To cancel cruise control setting, do one of the following:
§ Press the brake pedal
§ Press the CANCEL button
CRUISE
CANCEL
RES
OK SET
§ The standard cruise control system is designed to function a t above
approximately 20 mph only
§ The Cruise Control system will not activate until the brake pedal has been
depressed at least once after ignition ON or engine start
QUICK TIPS
A
B
C
See section 5 in the Owner’s Manual for more information.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE
OPERATING INFORMATION AND SAFETY WARNINGS. *IF EQUIPPED
Page 40 of 70
38
STEERING WHEEL CONTROLS
Headlights & High Beams
AUTO Light – When the light switch is in the AUTO Light position, the tail lights and headlights will turn
ON/OFF automatically depending on the amount of light outside the vehicle.
Daytime Running Lights (DRL) – DRL may help others to see the front of your vehicle during the day. The
lights will turn on automatically when the ignition or Engine Start /Stop button is ON and the headlight switch
is in the AUTO position, unless one of the following occurs:
§ Headlights are on
§ Parking brake is
applied
§ Engine is turned off
§ Switch is in the DRL
OFF position
Headlight / High Beam
Lever Operation
§ Rotate lever switch to change the headlight function:
§ Press lever away from you to turn high beam headlights ON
§ Pull lever to flash headlights/high beams or to turn off the high beams
High Beam Assist (HBA)* – High Beam Assist is designed to automatically adjust the headlight range by
switching between high and low beams based on light detected from other vehicles and road conditions.
To enable HBA, toggle the light switch to the AUTO Light position and turn on the high beams by pushing
the lever away from you. The High Beam Assist indicator
will illuminate.
REMINDERS:
§ High Beam Assist does not operate below certain speeds, or in some lighting and driving conditions. Please be aware of your
surroundings and exercise proper road etiquette when operating a vehicle using the high beams
§
HBA will operate when vehicle speed exceeds 25 mph
§
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously. If the lever is
pulled toward you while HBA is operational, HBA will turn off
§
If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
§ When the HBA indicator illuminates on the instrument cluster, the HBA is not working properly. See an authorized Kia dealer for service
OFF
OFF
Headlight position
Parking Light position
AUTOAuto Light /DRL /
High Beam Assist*
OFFOFF position
To operate Turn Signals: Move lever up/down for right /left turn signal.
One-touch lane change signal is activated by briefly pressing the turn signal lever slightly for less than
1 second and then releasing. The lane change signal will blink 3 times.
To change how many times the lane change signal blinks (3/5/7), go to User Settings in the LCD
instrument cluster modes.
To operate Fog Lights: Rotate switch to turn Fog Lights ON/OFF.
REMINDER: Headlights must be ON for fog light operation.
See section 4 in the Owner’s Manual for more information . For illustrative purposes only. Your actual display, buttons and/or features may vary.
Turn Signals & Fog Lights*
STEERING WHEEL
CONTROLS
See section 4 in the Owner’s Manual for more information.
*IF EQUIPPED
