42GETTING TO KNOW YOUR CAR
IMPORTANT The engine inhibitor function is guaranteed
by the Lancia CODE, which is automatically activated
when the ignition key is extracted from the starter de-
vice.
SWITCHING ON THE ALARM
With the doors and bonnet closed and the ignition key
either turned to STOP or removed, point the key with the
remote control towards the vehicle and press and release
button
Á.
Excluding some versions for specific markets, the system
produces an acoustic warning (beep) and enables door
locking.
Before the alarm is enabled, a self-diagnosis test is run:
if a fault is detected, the system emits another sound warn-
ing and a message is shown on the display, (see “Instru-
ment panel warning lights”).
In this case switch off the alarm by pressing
Ë, check that
all the doors, bonnet and tailgate are closed correctly; then
switch the alarm back on by pressing
Á.
If a door or the bonnet is not correctly closed, it will be ex-
cluded from the testing by the alarm system.
If the alarm produces an acoustic signal even when the
doors, bonnet and tailgate are correctly closed, a failure
has occurred in system operation. Contact a Lancia Deal-
ership.IMPORTANT Centrally locking the doors using the met-
al insert on the key does not activate the alarm.
IMPORTANT Originally, the alarm is configured in com-
pliance with the regulations existing in the different coun-
tries.
SWITCHING OFF THE ALARM
Press button
Ëon the key with the remote control.
The following operations are performed (excluding some
versions for specific markets):
❍the direction indicators flash twice;
❍two brief acoustic signals are emitted (“BEEP”);
❍the doors are unlocked.
IMPORTANT If the central door locking system is re-
leased using the metal insert of the key, the alarm is not
disabled.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 42

GETTING TO KNOW YOUR CAR73
1
FUEL CUT-OFF SYSTEM
This system intervenes in the event of a collision, acti-
vating:
❍cut off of fuel supply with resultant engine shut down;
❍automatic door lock release;
❍activation of all lights inside the car.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed.
Carefully check the car for fuel leaks, for instance in the
engine compartment, under the car or near the tank area.
Following a collision, turn the ignition key to STOP to
avoid draining the battery.To reset car operation, follow this procedure:
❍turn the ignition key to MAR;
❍activate the right-hand indicator;
❍deactivate the right-hand indicator;
❍activate the left-hand indicator;
❍deactivate the left-hand indicator;
❍activate the right-hand indicator;
❍deactivate the right-hand indicator;
❍activate the left-hand indicator;
❍deactivate the left-hand indicator;
❍turn the ignition key to STOP.
If, after a crash, you smell fuel or notice leaks
from the fuel system, do not reset the system
to avoid fire risk.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 73

GETTING TO KNOW YOUR CAR115
1
EOBD SYSTEM
The EOBD system (European On Board Diagnosis) pro-
vides a continuous diagnosis of the emission-related com-
ponents. It also alerts the driver, by turning on the
U
warning light on the instrument panel together with a mes-
sage on the reconfigurable multifunctional display, when
these components are no longer in peak condition (see “In-
strument panel warning lights”).
The objective is:
❍to keep system efficiency under control;
❍to signal a fault which causes emission levels to in-
crease;
❍to signal the need to replace deteriorated components.
The system also has a diagnostic connector that can be in-
terfaced with appropriate tools, which makes it possible
to read the error codes stored in the control unit together
with a series of specific parameters for engine operation
and diagnosis.
This check can also be carried out by the traffic police.
IMPORTANT After eliminating the problem, to check the
system completely, Lancia Dealerships are obliged to run
a bench test and, if necessary, road tests which may also
call for a long journey.
Go to a Lancia Dealership as soon as pos-
sible if warning light
Ueither does not light
up when the key is turned to MAR or if,
while travelling, the warning light comes on either
steadily or blinking (along with a message on the
reconfigurable multifunctional display). The op-
eration of warning light
Umay be checked by the
traffic police using specific devices. Respect the
laws in force in the country where you are driving.
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM
This is an electrically controlled power steering system
called “Dualdrive”. It is only operational with the ignition
key turned to MAR and the engine running; it can be cus-
tomised by the driver according to the driving conditions.
IMPORTANT If the ignition key is turned very quickly,
it may take 1-2 seconds before full power steering func-
tionality can be achieved.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 115

GETTING TO KNOW YOUR CAR137
1
ACCESSORIES PURCHASED
BY THE OWNER
If, after buying the car, you decide to install electrical ac-
cessories that require a permanent electrical supply (alarm,
satellite antitheft system, etc.) or accessories that in any
case burden the electric supply, contact a Lancia Dealer-
ship. Their qualified personnel, besides being able to sug-
gest the most suitable devices from the Lineaccessori Lan-
cia, will also evaluate the overall electric uptake, check-
ing whether the car’s electrical system is able to withstand
the required load, or whether a more powerful battery
needs to be installed.
Fiat Auto S.p.A. authorises the installation of transceiv-
ing devices provided that they are installed according to
rules of good engineering practice in accordance with the
manufacturer’s instructions and at a specialised centre.
IMPORTANT Traffic police may not allow the car on the
road if devices have been fitted which modify the features
of the car. This may also invalidate the warranty if faults
occur that are either directly or indirectly related to the
installation of these devices. Fiat Group Automobiles S.p.A.
shall not be liable for damage caused by the installation
of accessories either not supplied or not recommended
by Fiat Group Automobiles S.p.A. and/or not installed in
compliance with the provided instructions. INSTALLING ELECTRICAL/ELECTRONIC
DEVICES
Electrical and electronic devices installed after buying the
car, and also in the event of after-market service, must car-
ry the following label:
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 137

174STARTING UP AND DRIVING
Keep your speed down when snow chains are
fitted. Do not exceed 50 km/h. Avoid potholes,
steps and pavements and avoid also driving
for long distances on roads not covered with snow
to avoid damaging the car and the roadbed.
SNOW CHAINS
The use of snow chains should be in compliance with lo-
cal regulations.
Snow chains may be applied only to the front wheel tyres
(drive wheels).
Check the tension of the chains after the first few metres
have been driven.
IMPORTANT The spare wheel cannot be fitted with snow
chains. If the front tyre has a puncture, replace a rear wheel
with the spare wheel and move the rear wheel to the front
axle. This way, having two standard size wheels on the
front axle, is it possible to fit the chains.
EXTENDED CAR INACTIVITY
If the car is to be left inactive for longer than a month, the
following precautions should be observed:
❍park the car in covered, dry and if possible well-ven-
tilated place;
❍engage a gear;
❍check that the handbrake is not engaged;
❍disconnect battery negative terminal and check the bat-
tery charge (see paragraph “Battery - Charge and elec-
trolyte level check” in chapter “5”);
❍clean and protect the painted parts of the vehicle with
protective wax;
❍clean and protect the shiny metal parts using special
compounds readily available;
❍sprinkle talcum powder on the rubber windscreen and
rear window wiper blades and lift them off the glass;
❍slightly open the windows;
❍cover the car with a fabric or perforated plastic sheet.
Do not use compact plastic sheets which do not allow
humidity to evaporate from the surface of the car;
❍inflate the tyres to a pressure of +0.5 bar above the
normal specified pressure and check the pressure at
regular intervals;
❍do not drain the engine cooling system.
165-174 Delta 3ed gb 11-11-2009 12:10 Pagina 174

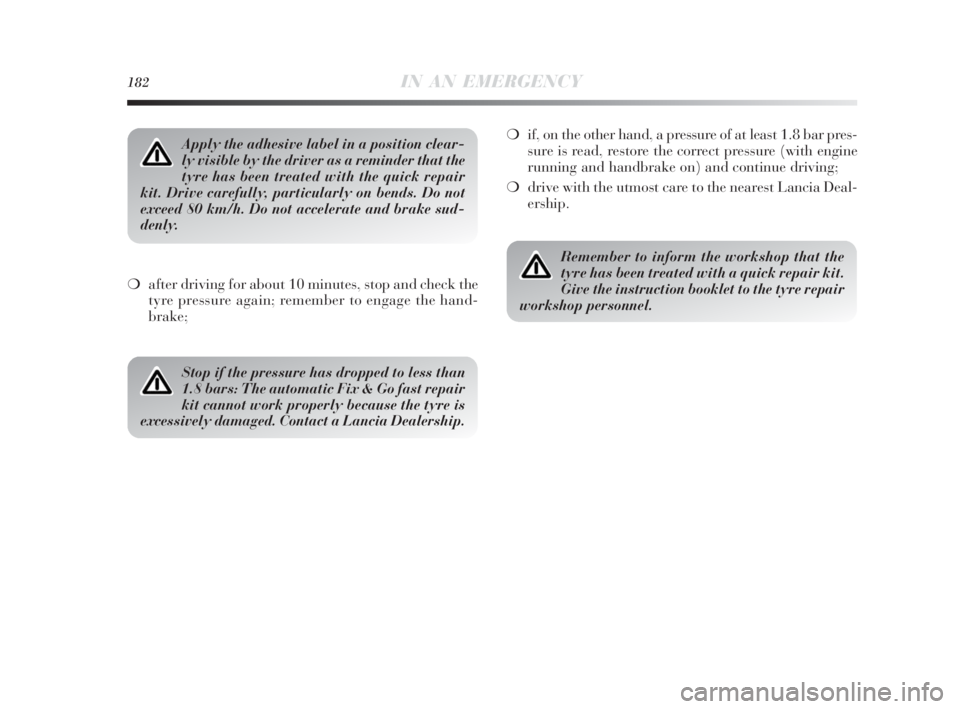

182IN AN EMERGENCY
❍after driving for about 10 minutes, stop and check the
tyre pressure again; remember to engage the hand-
brake;❍if, on the other hand, a pressure of at least 1.8 bar pres-
sure is read, restore the correct pressure (with engine
running and handbrake on) and continue driving;
❍drive with the utmost care to the nearest Lancia Deal-
ership.
Apply the adhesive label in a position clear-
ly visible by the driver as a reminder that the
tyre has been treated with the quick repair
kit. Drive carefully, particularly on bends. Do not
exceed 80 km/h. Do not accelerate and brake sud-
denly.
Stop if the pressure has dropped to less than
1.8 bars: The automatic Fix & Go fast repair
kit cannot work properly because the tyre is
excessively damaged. Contact a Lancia Dealership.
Remember to inform the workshop that the
tyre has been treated with a quick repair kit.
Give the instruction booklet to the tyre repair
workshop personnel.
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 182

CARE AND MAINTENANCE217
5
SCHEDULED SERVICING PLAN
Petrol versions
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights,
passenger compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of bonnet and boot locks and
linkage cleanness and lubrication;
Check and top up, if required, fluid levels (engine coolant, brake/hydraulic
clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever stroke and adjust it, if necessary
visually inspect the condition of the accessory drive belt
Visually inspect the condition of the toothed timing drive belt30 60 90 120 150 180
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●● ●●●
●●
●●
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 217

218CARE AND MAINTENANCE
30 60 90 120 150 180
●●● ●●●
●●
●●● ●●●
●
●
●●● ●●●
●●●
●●● ●●●
●●●
●●● ●●●Thousands of kilometres
Check exhaust fumes/emissions
Check evaporation control system
Check engine management system operation (via diagnostic socket)
Replace auxiliary drive belt/s
Replace toothed timing drive belt (*)
Replace spark plugs
Replace air filter cartridge
Change engine oil and oil filter (or every 24 months) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every 15 months)
(*) Regardless of the km covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
(**) If the car is mainly used in cities or less than 10,000 km a year, change the engine oil and filter every 12 months.
For 1.4 Turbo Jet versions, in order to guarantee correct operation and prevent serious damage to the engine, it is essential to ob-
serve the following:
- only use spark plugs specifically certified for Turbo Jet engines; all spark plugs should be of the same type and brand (see the “En-
gine” paragraph);
- carefully observe the spark plug replacement intervals detailed in the Scheduled Service Plan;
- it is advisable to have this performed at a Lancia Dealership.
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 218

CARE AND MAINTENANCE219
5
Diesel versions
Thousands of kilometres
Check tyre condition/wear and adjust pressure if required
Check lighting system operation (headlights, direction indicators, hazard lights,
passenger compartment lights, boot lights, instrument panel warning lights, etc.)
Check windscreen wiper/washer operation
Check the position/wear of the windscreen/rearscreen wiper blades
Check condition and wear of front disc brake pads and
brake pad wear indication
Check rear disc brake pad seal condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check cleanness of bonnet and boot locks and
linkage cleanness and lubrication
Check and top up, if required, fluid levels
(engine coolant, brake/hydraulic clutch fluid, windscreen washer fluid, battery fluid, etc)
Check the handbrake lever stroke and adjust it, if necessary
Check and if necessary adjust the auxiliary
drive belts (excluding engines equipped with automatic tensioners)
Check exhaust fumes/emissions
Visually inspect the condition of the auxiliary drive belt35 70 105 140 175
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●● ● ● ●
●●
●● ● ● ●
●●
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 219

35 70 105 140 175
●● ● ● ●
●
●
●●
●●
●● ● ● ●
●●
●● ● ● ●
220CARE AND MAINTENANCE
Thousands of kilometres
Check engine management system operation (via diagnostic socket)
Replace auxiliary drive belt
Replace toothed timing drive belt (*)
Replace fuel filter
Replace air filter cartridge
Change engine oil and oil filter (versions without DPF) (or every 24 months)
Change engine oil and oil filter (versions with DPF) (**)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the km covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates,
driving in the city, idling for a long time) or in any case every 5 years.
(**) The engine oil and the filter must be changed when the instrument panel warning light comes on (see “Warning lights and
Messages” chapter) and in all cases every 2 years.
If the car is used mainly in towns the engine oil and filter need to be changed every 12 months.
215-242 Delta 3ed gb 11-11-2009 12:14 Pagina 220
