Glow plug preheating
This warning light comes on when the key is
turned to MAR. It will go out as soon as the glow
plugs have reached a predetermined temperature.
Start the engine as soon as the warning light goes out.
IMPORTANT At high outdoor temperatures the warning
light stays on for an extremely short time.
Glow plug heating failure
The warning light will blink in the event of a failure in the
glow plug preheating system. Go to a Lancia Dealership
as soon as possible.
The display will show a dedicated message.
m
Water in diesel fuel filter (Multijet
versions) (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after
a few seconds. The warning light turns on when there is
water in the diesel fuel filter. The display will show a ded-
icated message.
c
The presence of water in the fuel system circuit
may cause severe damage to the injection sys-
tem and irregular engine operation. If the
c
warning light comes on (together with a message on the
display on some versions), go to a Lancia Dealership
as soon as possible to have the system bled. Water may
have been introduced in the tank if this appears im-
mediately after refuelling: in this case, stop the engine
immediately and contact a Lancia Dealership.
ABS system failure (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a
few seconds. The warning light lights up when the
system is either not working or not available. Under these cir-
cumstances the braking system will work as normal with-
out the extra performance offered by the ABS system.
Drive carefully to the nearest Lancia Dealership to have the
system checked.
The display will show a dedicated message.
>
Lancia Code system failure (amber)
This warning light (or symbol on the display),
when on constantly with the ignition key turned
to MAR, indicates a possible failure (see “Lancia
Code system” in chapter 1).
Y
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 17

18GETTING TO KNOW YOUR CAR
If the Ywarning light (or symbol in the display) is blinking,
this means that the vehicle is not protected by the engine in-
hibitor device (see “Lancia Code system” in chapter 1).
Contact a Lancia Dealership to have all the keys stored.
Alarm failure
(for versions/markets, where provided)
A fault with the alarm system is signalled by this warn-
ing light (or symbol in the display) coming on. Contact a
Lancia Dealership as soon as possible.
The display will show a dedicated message.
Break-in attempt
(for versions/markets, where provided)
This warning light (or symbol on the display) comes on
when a break-in attempt is detected. Contact a Lancia
Dealership as soon as possible.
The display will show a dedicated message.The warning light (amber), or symbol on the display (red),
lights up when the inflation pressure of one or more tyres
falls below a preset level. In this way the T.P.M.S. system warns
the driver that one or more tyres may be dangerously flat and
liable to puncture (see “ T.P.M.S. system” in this chapter).
IMPORTANT Do not continue driving with one or more
tyres flat as vehicle driveability may be compromised. Stop
the car, avoiding harsh braking or steering manoeuvres. Re-
place the wheel immediately with the small spare wheel (for
versions/markets, where provided) or carry out a repair us-
ing the dedicated kit (see the paragraph on “Replacing a
wheel” in chapter 4) and contact a Lancia Dealership as
soon as possible.
Check tyre pressure
This warning light (for versions/markets, where provid-
ed) comes on when the ignition key is turned to MAR, but
it should go off after a few seconds.
The warning light (or symbol in the display) lights up to
indicate that a tyre is flat (see “T.P.M.S. system ” in this
chapter).
Should two or more tyres be flat, the display will show the
indications corresponding to each tyre in sequence. Restore
the correct inflation pressure values as soon as possible (see
paragraph “Cold inflation pressures” in chapter “6”). Insufficient tyre inflation pressure
(for versions/markets, where provided)
This warning light (or symbol on the display)
comes on when the ignition key is turned to MAR,
but it should go off after a few seconds.
n
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 18

GETTING TO KNOW YOUR CAR19
1
Particularly strong radio frequency interfer-
ence may cause the T.P.M.S. system to func-
tion incorrectly. This condition is indicated
to the driver by a message (for versions/markets,
where provided).
The warning message will go off automatically as
soon as the radio-frequency noise ceases to disturb
the system.
External lighting failure (amber)
This warning light (or symbol on the display)
comes on when a failure is detected in any of
the following lights:
❍sidelights;
❍brake lights (for versions/markets, where provided);
❍rear fog lights;
❍direction indicators;
❍number plate lights;
❍daylight lights.
W
Rear fog lights (amber)
The warning light comes on when the rear fog
lights are turned on.
4
Front fog lights (green)
The warning light comes on when the front fog
lights are turned on.
5
Direction indicators
(green - intermittent)
The warning lights turn on when the direction
indicator control lever is moved downwards,
upwards or when the hazard warning light
button is pressed.
F
D
Tyre pressure unsuitable for speed
This warning light (for versions/markets, where provid-
ed) comes on when the ignition key is turned to MAR, but
it should go off after a few seconds.
Should it be necessary to travel at a speed higher than 160
km/h, inflate the tyres to the pressure value specified in
paragraph “Inflation pressures” in chapter “6”.
If the T.P.M.S. system (for versions/markets, where pro-
vided) detects that the inflation pressure of one or more
tyres is unsuitable for the speed being maintained, it lights
up the warning light or symbol (together with a message
shown on the display) (see paragraph “Insufficient tyre
inflation pressure” in this chapter). The warning light
remains on until the vehicle speed is reduced to below a
certain threshold (see paragraph “T.P.M.S. system” in this
chapter).
IMPORTANT reduce speed immediately if this occurs.
Tyre overheating could irreparably compromise tyre per-
formance and life, and in extreme cases may even cause
the tyre to explode.The fault relating to these lights may be caused by: one or
more burnt lamps, a blown protection fuse or interruption
of the electrical connection.
The display will show a dedicated message.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 19

20GETTING TO KNOW YOUR CAR
Daylight lights/dipped beam headlights
(green)
This warning light comes on when the daytime
lights or dipped beam headlights are turned on.
Follow me home
This warning light comes on when this device is activat-
ed (see “Follow me home” in chapter “1”).
The display will show a dedicated message.
3
Main beam headlights (blue)
This warning light comes on when the main
beam headlights are turned on.
1
Cruise control system
(green)
(for versions/markets, where provided)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a few sec-
onds. The warning light is lit up on the display by rotat-
ing the Cruise Control selector wheel to ON.
The display will show a dedicated message.
Ü
DISPLAY
The car can be equipped with a multifunctional/ recon-
figurable multifunctional display which, according to the
settings carried out, will show useful information when
driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 4
The standard screen shows the following information:
A. Date
B. Possible activation of Dualdrive electric power steering
C. Sport driving mode indication (for versions/markets,
where provided)
D. Time
E. Odometer (distance travelled in kilometres/miles)
F. Possible presence of ice on road
G. Outside temperature
H. Scheduled servicing deadline
I. Headlight alignment position (with dipped beam head-
lights on only).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 20

GETTING TO KNOW YOUR CAR35
1
Average fuel consumption
This value shows the approximate average fuel con-
sumption from the start of the new mission.
Instantaneous fuel consumption
This indicates any change in fuel consumption. The value is
constantly updated. The message “- - - -” will appear on the
display if the car is parked with the engine running.
Average speed
This value shows the average speed of the car based on
the overall time elapsed since the start of the new mission.
Travel time
This value shows the time elapsed since the start of the
new mission.
Trip Reset
This resets the Trip computer settingsTRIP button fig. 8
The TRIP button is located on the right-hand lever. With
the ignition key turned to MAR, this button allows you
to view the previously described parameters and also ze-
ro them to begin a new mission:
– short press to display the different values;
– long press to reset and then start a new mission.
fig. 8L0E0007m
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 35

36GETTING TO KNOW YOUR CAR
New mission
The new mission begins after:
– “manual” resetting by the user, by pressing the rele-
vant button;
– automatic resetting, when the Trip distance reaches
9999.9 km or when the Travel time reaches 99.59 (99
hours and 59 minutes);
– disconnection/reconnection of the battery.
IMPORTANT If the reset operation is carried out when
“Trip A” is being displayed, only the information associ-
ated with this function is reset.
IMPORTANT If the reset operation is carried out when
“Trip B” is being displayed, only the information associ-
ated with this function is reset.
Start trip procedure
With ignition key turned to MAR, carry out the reset op-
eration by pressing and holding down the TRIP button for
longer than 2 seconds.
Exit Trip
You can automatically exit from the TRIP function once
all the values have been displayed or by holding the SET
button down for more than 1 second.SYMBOLS
Special coloured labels have been attached near to or on
some of the components of your car. These labels bear
symbols that remind you of the precautions to be taken
with regards to that particular component.
A plate summarising these symbols can be found under
the bonnet.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 36

GETTING TO KNOW YOUR CAR37
1
THE LANCIA CODE SYSTEM
This is an electrical engine locking system which increases
protection against an attempted theft of the car. It is auto-
matically activated when the ignition key is extracted.
Each key contains an electronic device which modulates
the signal emitted during ignition by an antenna built in-
to the ignition device. This signal is the ‘password’ which
changes at each ignition and which the control unit uses
to recognise the key and allow ignition.
OPERATION
Each time the car is started by turning the ignition key
to MAR, the Lancia CODE system control unit sends an
acknowledgement code to the engine control unit to de-
activate the inhibitor.
The code is sent only if the control unit of the Lancia
CODE system has acknowledged the code received from
the key.
Each time the ignition key is turned to STOP, the Lancia
CODE system deactivates the functions of the electronic
engine control unit.
If the code is not recognised correctly during ignition, the
Ywarning light (or symbol in the display) comes on.In this case turn the key to STOP and then to MAR; if
the lock persists try again with the spare set of keys. Con-
tact a Lancia Dealership if you still cannot start the en-
gine.
IMPORTANT Each key has its own code which must be
stored by the system control unit. To have new keys mem-
orised (up to a maximum number of eight keys), contact
a Lancia Dealership and be ready to present all the keys
you have at present, the CODE card, a personal identity
document and the car ownership documents. The codes
of any keys not presented during the memorising proce-
dure will be deleted. This is to prevent lost or stolen keys
from starting the engine.
Ywarning light (or symbol in the display) lit up
during driving
❍If the Ywarning light (or symbol in the display)
comes on, this means that the system is running a self-
diagnosis test (caused, for example, by a voltage drop).
❍If the Ywarning light (or symbol in the display) remains
on, contact a Lancia dealership.
The electronic components inside the key may
be damaged if the key is submitted to sharp
knocks.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 37

38GETTING TO KNOW YOUR CAR
THE KEYS
CODE CARD (available on request
for versions/markets, where provided)

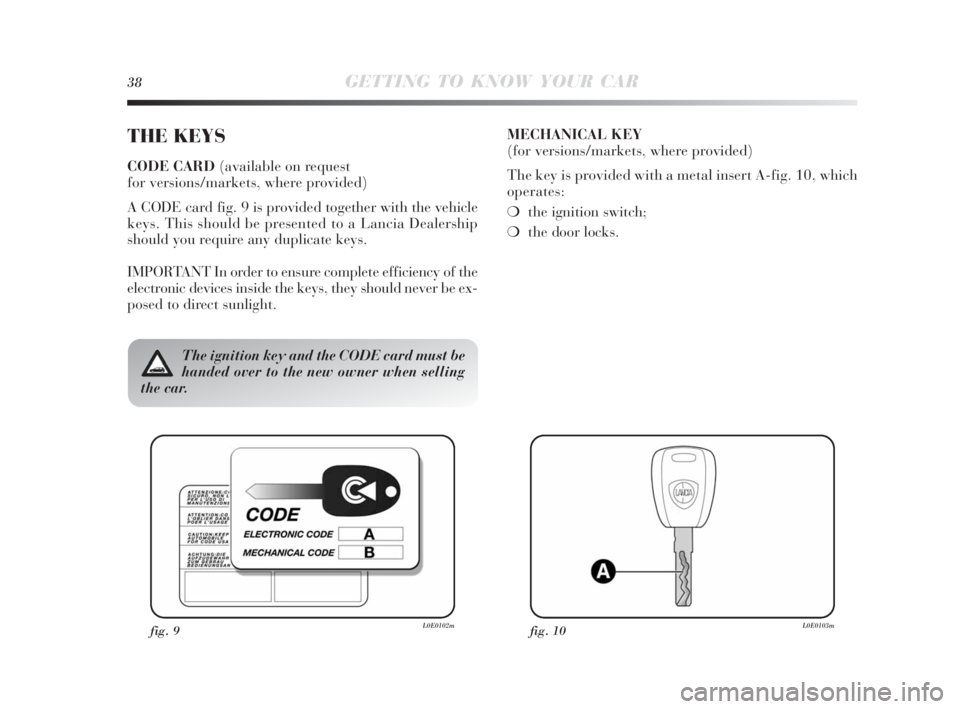

A CODE card fig. 9 is provided together with the vehicle
keys. This should be presented to a Lancia Dealership
should you require any duplicate keys.
IMPORTANT In order to ensure complete efficiency of the
electronic devices inside the keys, they should never be ex-
posed to direct sunlight.MECHANICAL KEY
(for versions/markets, where provided)
The key is provided with a metal insert A-fig. 10, which
operates:
❍the ignition switch;
❍the door locks.
fig. 9L0E0102mfig. 10L0E0103m
The ignition key and the CODE card must be
handed over to the new owner when selling
the car.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 38

GETTING TO KNOW YOUR CAR39
1
fig. 11L0E0104m
KEY WITH REMOTE CONTROL fig. 11
The key is provided with a metal insert A, which operates:
❍the ignition switch
❍the door locks
To open/close the metal insert, press button B.
Button
Ëremotely releases the doors locks.
In this case the timed lighting of interior courtesy lights
and double flashing of direction indicators (for ver-
sions/markets where provided) takes place.
Press button
Ëfor longer than 2 seconds: to open the win-
dows.
Button
Áremotely locks the doors.In this case the interior courtesy lights go out and the di-
rection indicators flash once.
Press button
Áfor longer than 2 seconds: to close the win-
dows.
If one or more door are open, the doors will not be locked.
Button
Rcan be used to open the tailgate remotely.
Tailgate opening is indicated by the double flashing of the
direction indicators; tailgate closing by single flashing (on-
ly with the alarm switched on, for versions/markets, where
provided).
Button B opens power-assisted opening of metal insert
A.
To reinsert the metal insert into the grip, hold down but-
ton B and turn the insert in the direction shown by the ar-
row until you hear it click into place. Then release but-
ton B.
If the button for locking doors Áis acciden-
tally pressed from the inside, only the doors
opened for getting out of the car are released; the
tailgate remains locked. To realign the system the
locking/unlocking buttons
Á/Ëmust be pressed once
again.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 39

GETTING TO KNOW YOUR CAR41
1
fig. 13L0E0106m
Replacing the remote control cover fig. 13
To replace the remote control cover, follow the procedure
shown in the diagram.ALARM
(for versions/markets, where provided)
The alarm, which is provided in addition to the remote
control functions described previously, is controlled by a
receiver located under the dashboard, near the fuse box.
ALARM TRIPPING
The alarm trips in the following cases:
❍when a door, the bonnet or the tailgate is opened ille-
gally (perimeter protection);
❍when the ignition system is operated (ignition key ro-
tated to MAR);
❍when the battery cables are cut;
❍when someone is moving inside the passenger com-
partment (volume-sensing protection);
❍when the vehicle is lifted or tilted.
According to the market, when the alarm is tripped this
operates the alarm siren and direction indicators (for ap-
proximately 26 seconds). Alarm tripping and the number
of cycles depend on the sales market.
There are a maximum number of acoustic/visual cycles.
When this is reached the system returns to normal oper-
ation.
The volume sensing and anti-tilt protection can be ex-
cluded by adjusting the dedicated control on the front
courtesy light (see “volume sensing/anti-tilt protection”).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 41
