KNOWING YOUR CAR19
1
Parking sensor fault
( for vers ions/markets , where provided)
This warning light (or symbol on the display ) switches on
when a fault is detected in the parking sens ors. The dis -
play shows the dedicated message.
T yre pressure monitorin g s ystem failure
(for vers ions/markets , where provided)
This warning light (or symbol on the display) switches on
when a failure i s detected in the TPMS (for versions/ mar-
kets , where provided).
S hould one or more wheel s without a s ensor be fitted, the
ins trument panel warning light will come on and stay on
until the initial condition s are res tor
ed. The dis play s hows
the dedicated message.
NOTE If one of the failures listed above occurs , contact
a Lancia Dealer ship as soon as possible.
AFS failure
This warning light (or symbol on the display ) switches on
when a fault i s detected in the AFS (see “Headlight s” para-
graph in this chapter). The di splay s hows the dedicated
message.
S teering corrector not available
This warning light (or symbol on the display ) switches on
when the s teering corrector i s not available. The di splay
will show the dedicated me ssage. DPF (diesel particulate filter) cleanin
g in
prog ress (only versions with DPF) (amber)
When the key i s turned to MAR, the warning
light switches on but it s hould switch off after a
few seconds . The warning light turn s on cons tantly when
the DPF system needs to eliminate the trapped pollutant s
(particulate) thr

ough the regeneration proce ss.
The warning light doe s not come on ever y time the DPF
i s being regenerated, rather onl y when the driving condi-
tions are s uch that the driver need s to know it. To switch
the warning light off, the car mu st be kept moving until
the regeneration proce ss is completed.
On average, the process las ts 15 minutes . The best con-
ditions to complete the regeneration proce ss are reached
driving the car at about 60 km/h with engine speed over
2000 rpm. When this warning light switches on, it does
not indicate a car failure and thu s it s hould not be taken
to a works hop. A dedicated message will appear on the
dis play when the warning light s witches on (for ver-
s ions /markets , wher

e provided).
h
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 19

20KNOWING YOUR CAR
Fuel reserve (amber)When the key is turned to MAR, the warning
light switches on but it s hould switch off after
a few s econds. The warning light s witches on
when about 5 to 7 litre s of fuel are left in the tank.
The dis play shows the dedicated message.
IMPORTANT The warning light will blink to indicate a sys-
tem failure. G o to a Lancia Dealers hip to have the system
checked.
K
The driving speed must always be suitable
for traffic and weather conditions and the
driver must always comply with the High-
way Code. The engine can also be switched off if the
DPF warning light is on; nevertheless, repeated in-
terruptions of the regeneration process could cause
an early deterioration of engine oil. For this reason,
always wait until the warning light switches off be-
fore stopping the engine as described above. It is not
advisable to complete DPF regeneration with the
car stationary.If the warning light remains on or comes on whilst driving,
it means that the injection system is not working proper-
l y ; in particular, if the warning light come s on cons tant-
l y , this indicates a malfunction in the s upply/ignition sys-
tem that could caus e excessive exhaust emissions , a pos-
s ible loss of performance, poor driveabilit y and high fuel
cons umption. On some vers ions the dis play s hows the ded-
icated message. Under the se conditions , you may contin-
ue travelling at a moderate speed without demanding ex-
cessive effort from the engine. Prolonged u se of the car
with the warning light on con stantly may cau se damage.
G o to a Lancia Dealer ship as soon as possible.
The warning light s witches off if the malfunction di sap-
pears , but it is still stor

ed by the system.
EOBD/injection sy stem failure (amber)
Under normal condition s, when the ignition ke y
i s turned to MAR, the warning light switches on,
but should switch off as s oon as the engine i s s tart-
ed.
U
Go to a Lancia Dealership as soon as possi-
ble if U warning light either does not light
up when the key is turned to MAR or if while
travelling the warning light comes on either con-
stantly or flashing (on some versions along with a
message in the display). The operation of the U
warning light may be checked by the traffic con-
trol authorities using specific devices. Comply with
the laws and regulations of the country where you
are driving.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 20

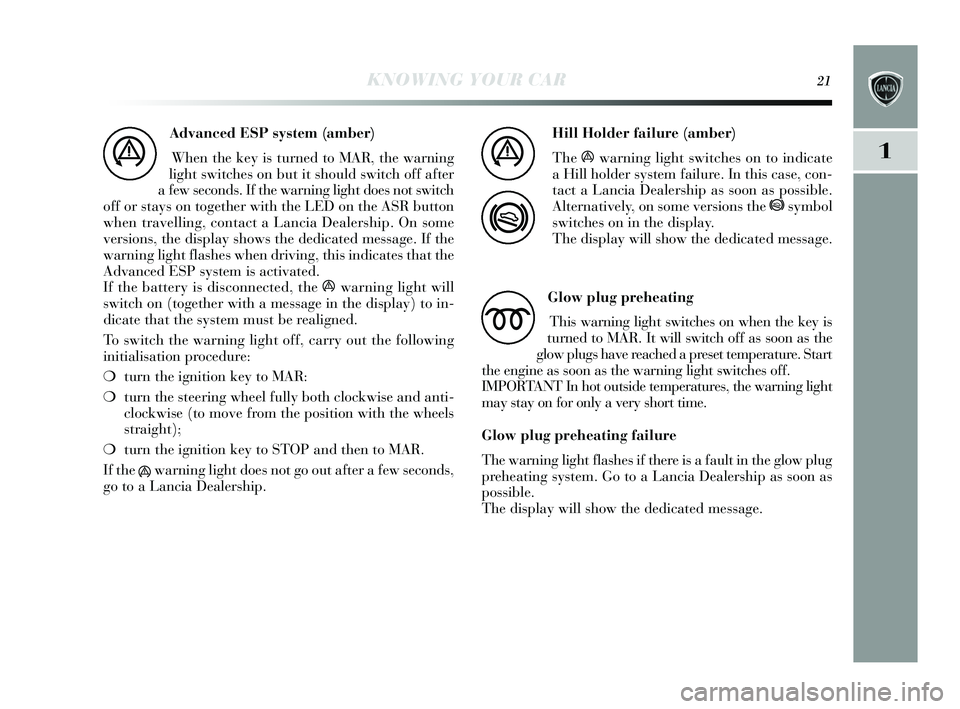

KNOWING YOUR CAR21
1
Advanced ESP sy stem (amber)
When the key is turned to MAR, the warning
light switches on but it s hould switch off after
a few s econds . If the warning light doe s not s witch
off or s tays on together with the LED on the A SR button
when travelling, contact a Lancia Dealer ship. On s ome
vers ions, the dis play shows the dedicated message. If the
warning light fla shes when driving, this indicates that the
Advanced ES P system is activated.
If the battery is dis connected, the á warning light will
s witch on (together with a me ssage in the display) to in-
dicate that the system mus t be realigned.
To switch the warning light off, carr y out the following
initialis ation procedure:
❍ turn the ignition ke y to MAR:
❍ turn the s teering wheel fully both clockwise and anti-
clockwis e (to move fr

om the position with the wheels
s traight);
❍ turn the ignition ke y to S TOP and then to MAR.
If the áwarning light does
not go out after a few s econds,
go to a Lancia Dealers hip.
á
Hill Holder failure (amber)
The áwarning light s witches on to indicate
a Hill holder system failure. In this case, con-
tact a Lancia Dealer ship as s oon as possible.
Alternatively , on some vers ions the * symbol
s witches on in the dis play.
The dis play will s how the dedicated me ssage.
á
*
Glow plug preheating
This warning light s witches on when the key is
turned to MAR. It will s witch off as s oon as the
glow plugs have reached a pres et temperature. Start
the engine as s oon as the warning light switches off.
IMPORTANT In hot out side temperatures , the warning light
may s tay on for only a very s hort time.
Glow plu g preheating failure
The warning light flas hes if there is a fault in the glow plug
preheating system. Go to a Lancia Dealer ship as s oon as
possible.
The dis play will s how the dedicated me ssage.
m
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 21

22KNOWING YOUR CAR
Water in diesel filter (amber)When the key is turned to MAR, the warning
light switches on but it s hould switch off after
a few s econds. The warning light turn s on when
there is water in the dies el filter. The display will s how the
dedicated message.
c
The presence of water in the supply circuit may
cause severe damage to the injection system and
irregular engine operation. If
cwarning light
lights up (on some versions with the message on the dis-
play), go to a Lancia Dealership as soon as possible
to have the system bled. Water may have entered the
tank if this appears immediately after refuelling: if this
happens, switch the engine off immediately and con-
tact a Lancia Dealership.
ABS failure (amber)
When the key is turned to MAR, the warning
light switches on but it s hould switch off after
a few s econds. The warning light will light up
when the system i s either not working or not available.
In this case the braking system will work as normal, but
without the extra performance offered b y the ABS .
Drive carefully and go to a Lancia Dealer ship as s oon as
possible.
The dis play will s how the dedicated me ssage.
>
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 22

KNOWING YOUR CAR23
1
Lancia Code sy stem failure (amber)
This warning light (or symbol on the display ),
when on cons tantly with the ignition key turned
to MAR, indicates a possible failure ( see “Lancia
Code system”).
If the
Ywarning light (or symbol in the display) is flas h-
ing with engine running, this means that the car is not pro-
tected by the engine immobilis er device (see “Lancia
Code system”).
Contact a Lancia Dealer ship to have all the keys pro-
grammed.
Alarm failure
(for vers ions/markets , where provided)
A failure in the alarm system is s ignalled by this warning
light (or symbol in the display) switching on. Contact a
Lancia Dealer ship as soon as possible.
The dis play shows the dedicated message.
Break in attempt
(for vers ions/markets , where provided)
This warning light (or symbol on the dis play) switches on
when a br

eak-in attempt is detected. Contact a Lancia
Dealers hip as soon as possible.
The dis play will s how the dedicated me ssage.
Y
Insufficient tyre pressure
(for vers ions/markets ,where provided)
When the key i s turned to MAR, the warning
light switches on, but it s hould switch off after a
few seconds . The warning light (amber), or symbol in the
dis play (red), switch on when the inflation pre ssure of one
or more ty res falls below a pres et level. In this way the TPMS
warns the driver and s ignals the possibility of the tyre be-
ing dangerous ly deflated and a probable puncture (s ee para-
graph “TPMS ” in this chapter).
IMPORTANT Do not continue driving with one or more
flat tyre s as handling may be compromised. Stop the car,
avoiding har sh braking or steering manoeuvres. Replace
the wheel immediately with the space-saver wheel (for
vers ions /markets wher

e provided) or carr y out a repair
u sing the dedicated kit ( see “Changing a wheel” in the
chapter “4”) and contact a Lancia Dealer ship as s oon
as possible.
C heck ty re pressures
When the key is turned to MAR, the warning light (for ver-
s ions /markets , where provided) s witches on, but it s hould
s witch off after a few s econds.
The warning light (or symbol in the dis play) switches on
to show the flat ty re (see “TPMS ” paragraph in thi s
chapter).
n
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 23

24KNOWING YOUR CAR
Should two or more ty res be flat, the dis play will s how the
indications corresponding to each ty re in sequence. Re-
s tore the correct inflation pre ssure values as s oon as pos-
s ible (s ee paragraph “Cold inflation pre ssures” in chap-
ter “6”).
T yre pressure unsuitable for speed
When the key is turned to MAR, the warning light (for
vers ions /markets , where provided) s witches on, but it
s hould switch off after a few s econds.
S hould it be necessary to travel at a speed higher than 160
km/h, inflate the t yre s more than the pressure value s pec-
ified in paragraph “Inflation pressures” in chapter “6”.
If the TPMS (for versions/markets where provided) de-
tects that the pr

essure of one or more t yre s i s uns uitable
for the current s peed, the warning light or symbol will
s witch on (together with the message on the di splay ) (see
“T yre pre ssure low” paragraph in this chapter) and it will
s tay on until the car s lows down to a s peed below the pre-
s et thres hold (see “TPMS ” paragraph in thi s chapter).
IMPORTANT In this case, slow down immediately because
t y re overheating could damage t yre performance and
durability beyond repair, and may even make the tyre ex-
plode.
Particularly strong radio-frequency inter-
ference may cause the TPMS to function in-
correctly. The driver is notified of this con-
dition through a message (for versions/markets,
where provided).
The message will disappear automatically as soon
as the interference ceases to disturb the system.
Exterior lig hts failure (amber)
This warning light (or symbol on the display)
s witches on when a fault i s detected in any of
the following lights :
❍ side lights ;
❍ brake lights (for versions/markets where provided);
❍ rear fog light s;
❍ direction indicators ;
❍ number plate light s;
❍ day time running light s.
The failure relating to the se lights could be: one or more
blown bulbs , a blown protection fus e or a break in the elec-
trical connection.
The dis play shows the dedicated message.
W
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 24

KNOWING YOUR CAR25
1
Rear fog lights (amber)
The warning light come s on when the rear fog
lights are turned on.
4
Front fog lights (g reen)
The warning light comes on when the fog lights
are turned on.
5
Direction indicators
( g reen - intermittent)
The warning light s s witch on when the direc-
tion indicator control s talk is moved down-
wards , upwards or when the hazard warning
light button is pressed.
F
D
Daytime running lights/dipped beam
headlig hts (green)
This warning light s witches on when the day time
running light s or dipped beam headlight s are ac-
tivated.
Follow me home
This warning light switches on when this device is acti-
vated (s ee “Follow Me Home” in thi s chapter).
The dis play will s how the dedicated me ssage.
Main beam headli ghts (blue)
The warning light switches on when the main
beam headlight s are turned on.
1
C ruise Control (g reen)
(for vers ions/markets , where provided)
When the key i s turned to MAR, the warning
light switches on but it s hould switch off after a
few seconds . The warning light i s lit up on the dis play by
rotating the Cruis e Control ring nut to ON.
The dis play will s how the dedicated me ssage.
Ü
3
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 25

26KNOWING YOUR CAR
DISPLAY
The car may be provided with a multifunction/reconfig-
urable multifunction di splay that s hows useful informa-
tion, according to the previou s s ettings , when driving. MULTIFUNC
TION DISPLAY “STANDARD”
SCREEN fig . 6
The standard screen shows the following information:
A. Date
B. Po ssible Dualdrive electric power steering engagement
C. Sport driving mode indication
(for vers ions/markets where provided)
D. Time
E. Milometer (display of distance travelled in kilome- tres /miles )
F. P o ssible ice on the road indication
G . Outs ide temperature
H. Scheduled servicing interval
I. Headlight alignment po sition (only with dipped beam
headlights on).
fig. 6L0E1000g
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 26

KNOWING YOUR CAR27
1
E. Car status indications (e.g. doors open, possible ice on
road, etc.)/G ear Shift Indicator (for ver sions /markets ,
where provided)
F. Headlight alignment po sition (onl y with dipped head-
lights on)
G . Outs ide temperature
On some vers ions, when the “Engine info” menu item i s
s elected, the dis play s hows the turbine pressure when the
ignition is turned to the MAR po sition, fig. 8.
fig. 8L0E0004mfig. 7L0E1033g
REC ONFIGURABLE MULTIFUNC TION
“ S TANDARD” DIS PLAY fig. 7
The standard screen shows the following information:
A. Time
B. Date
C. Sport driving mode indication (for ver sions /markets
where provided)
D. Milometer (dis play of dis tance travelled in kilome-
tres /miles )
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 27

28KNOWING YOUR CAR
GEAR SHIFT INDIC ATOR
The GSI system (G ear Shift Indicator) sugges ts to s hift
gear by s howing an indication on the control panel ( see
fig. 9).
Through the GSI, the driver is notified that the gear change
will allow a reduction in fuel con sumption.
When the S HIFT UP icon ( NSHIFT) is s hown on the di s-
play , the GSI is advising the driver to select a higher gear,
while the SHIFT DOWN (O SHIFT) icon suggests that
a lower gear s hould be engaged.
NB The indication on the in strument panel remain s on un-
til the driver change s gear or until the driving condition s
return to a s ituation where a gear change i s not required,
to reduce cons umption.
fig. 9L0E1025gfig. 10L0E0005m
CONTROL BUTTONS fig. 10
Õ: To scroll upwards through the di splay ed menu and the
related options or to increase the dis played value.
S ET: press to access the menu and/or go to the next s creen
or confirm y our choice. Hold down to go back to the s tan-
dard screen.
Ô: to scroll downward s through the di splay ed menu and
the related option s or to decrea se the dis played value.
001-154 Delta GB 1ed 03/03/14 10.00 Pagina 28
