STARTING THE ENGINE
The engine can be started either with a gear engaged or in neutral N,
always press the brake pedal first.
After starting:
❒the gearbox sets to neutral N automatically
❒lever A keeps the same position it had before starting
❒the display shows N and a buzzer will indicate if the lever position
and the gear engaged are not matching
❒gears that can be engaged are: 1st, 2nd or reverse R gear.
IMPORTANT When trying to start the engine with gearbox not in
neutral (any gearshift lever position other than N and without
pressing the brake pedal, the multifunction display will show a
dedicated message (see paragraph “Warning lights and messages”).
In this event, to start the engine just repeat operation keeping the
brake pedal pressed.
197
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
L0D0332m
WARNING
If the engine fails to start with the gear engaged, the driver is informed of the
potentially dangerous situation due to the fact that the gearbox is in neutral by
the buzzer.

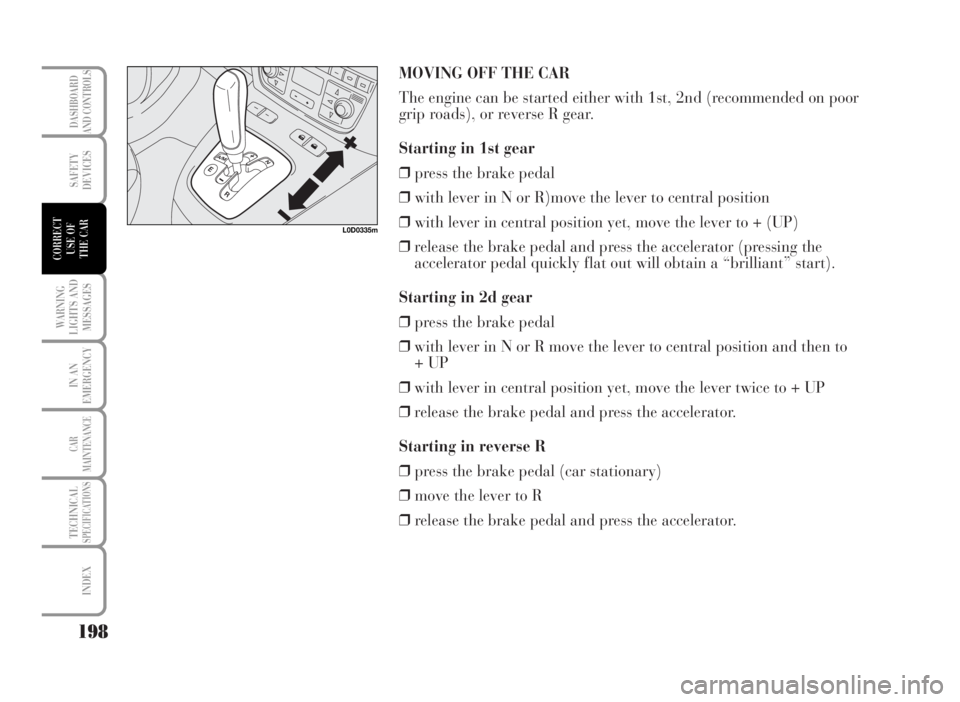

MOVING OFF THE CAR
The engine can be started either with 1st, 2nd (recommended on poor
grip roads), or reverse R gear.
Starting in 1st gear
❒press the brake pedal
❒with lever in N or R)move the lever to central position
❒with lever in central position yet, move the lever to + (UP)
❒release the brake pedal and press the accelerator (pressing the
accelerator pedal quickly flat out will obtain a “brilliant” start).
Starting in 2d gear
❒press the brake pedal
❒with lever in N or R move the lever to central position and then to
+ UP
❒with lever in central position yet, move the lever twice to + UP
❒release the brake pedal and press the accelerator.
Starting in reverse R
❒press the brake pedal (car stationary)
❒move the lever to R
❒release the brake pedal and press the accelerator.
198
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
L0D0335m

PARKING THE CAR
To park the car safely it is absolutely necessary to
press the brake pedal and to engage first gear or
reverse R and also the hand brake if the car is on a
slope; it is also absolutely necessary to wait for the
multifunction display showing the gear engaged to
go off before releasing the brake pedal.
IMPORTANT NEVER leave the car with gearbox in
neutral N.
IMPORTANT NOTES
❒With the car stopped and a gear engaged always
keep the brake pedal pressed until deciding to
move off, then release the brake pedal and
accelerate gradually;
❒during prolonged halts with the engine running it
is advisable to keep the gearbox in neutral N;
❒when the car is parked facing uphill, to safeguard
clutch efficiency do not use the accelerator to
keep the car still since clutch overheating could
damage it. Use the brake pedal and press the
accelerator pedal only when deciding to move off;❒use second gear only when more control is needed
for moving off manoeuvres with poor grip;
❒if, in reverse gear R, first gear is to be engaged or
vice versa, shift gear only when the car is stopped
completely and with the brake pedal pressed;
❒though highly inadvisable, if when travelling
downhill for some unexpected reason the car is
set to neutral N, when the engagement of a gear
is requested, the system automatically engages
the best gear in relation to the speed of the car to
allow the correct transmission of torque to the
wheels;
❒when travelling downhill with a gear engaged and
the accelerator released (if the car is moving),
beyond a pre-established speed, the system
engages the clutch automatically to give the car
adequate engine braking.
199
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR

CONTAINING RUNNING COSTS
Here are some suggestions which may help you to
keep the running costs of your car down and lower
the amount of toxic emissions released into the
atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out in
accordance with the “Service schedule”.Tyres
Check the pressure of the tyres routinely at an
interval of no more than 4 weeks: if the pressure is
too low, consumption levels increase as resistance to
rolling is higher.
Unnecessary loads
Do not travel with too much luggage stowed in the
boot. The weight of the car (especially when driving
in town) and its trim greatly affects consumption
and stability.
200
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR

Roof rack/ski rack
Remove the roof rack or the ski rack from the roof
as soon as they are no longer used. These
accessories lower air penetration and adversely
affect consumption levels. When needing to carry
particularly voluminous objects, preferably use a
trailer.
Electric devices
Use electric devices only for the amount of time
needed. Rear heated window, additional headlights,
windscreen wipers and heater fan need a
considerable amount of energy, therefore increasing
the requirement of current increases fuel
consumption (up to +25% in the urban cycle).Climate control
The air conditioner is an additional load which
greatly affects the engine leading to higher
consumption (on average up to +20%). When the
temperature outside the vehicle permits it, use the
air vents where possible.
Spoilers
The use of non-certified aerodynamic items may
adversely affect air drag and consumption levels.
201
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR

DRIVING STYLE
Starting
Do not warm the engine with the car at a standstill
or at idle or high speed: under these conditions the
engine warms up much more slowly, increasing
electrical consumption and emissions. It is therefore
advisable to move off immediately, slowly, avoiding
high speeds. This way the engine will warm faster.
Unnecessary actions
Avoid accelerating when waiting at traffic lights or
before switching off the engine. This and also
double declutching is absolutely pointless on
modern cars and also increase consumption and
pollution.
Gear selection
As soon as the conditions of the traffic and road
allow, use a higher gear. Using a low gear to obtain
brilliant performance increases consumption.
In the same way improper use of a high gear
increases consumption, emissions an engine wear.
Top speed
Fuel consumption considerably increases with
speed. Keep speed as constant as possible, avoid
superfluous braking and accelerating, which cost in
terms of both fuel and emissions. Acceleration
Accelerating violently increasing the revs will
greatly affect consumption and emissions:
acceleration should be gradual and should not
exceed the maximum torque.
CONDITIONS OF USE
Cold starting
Short journeys and frequent cold starts do not allow
the engine to reach optimum operating temperature.
This results in a significant increase in consumption
levels (from +15 to +30% on the urban cycle) and
emission of harmful substances.
Traffic situations and road conditions
Rather high consumption levels are tied to
situations with heavy traffic, for example in queues
with frequent use of the lower gears or in cities with
many traffic lights. Also winding mountain roads
and rough road surfaces adversely affect
consumption.
Traffic hold-ups
During prolonged hold-ups (e.g.: level crossings) the
engine should be switched off.
202
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR

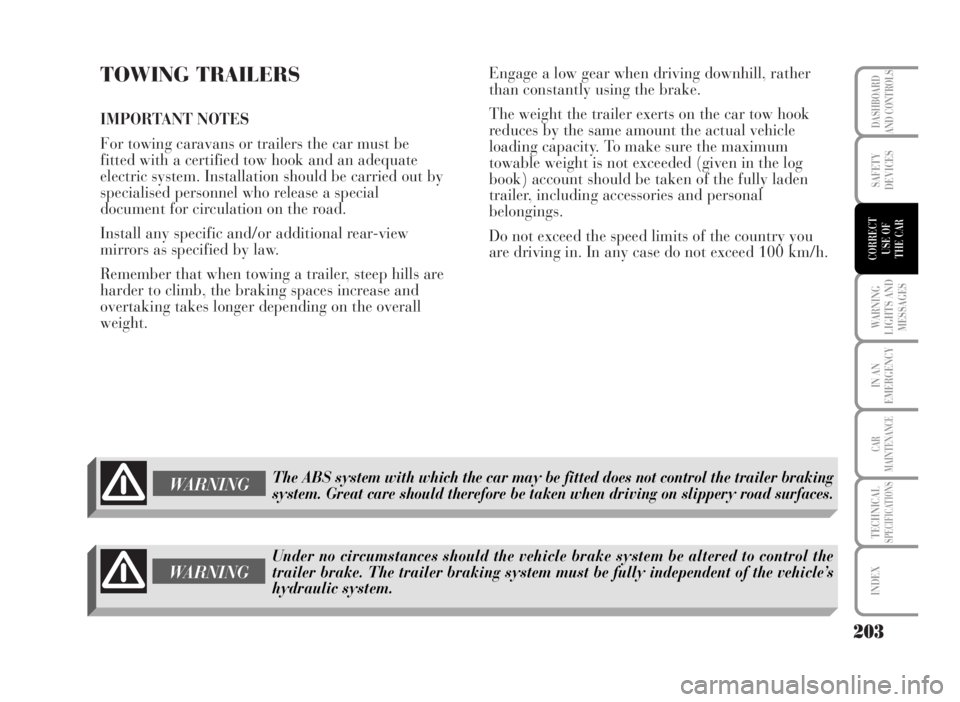

TOWING TRAILERS
IMPORTANT NOTES
For towing caravans or trailers the car must be
fitted with a certified tow hook and an adequate
electric system. Installation should be carried out by
specialised personnel who release a special
document for circulation on the road.
Install any specific and/or additional rear-view
mirrors as specified by law.
Remember that when towing a trailer, steep hills are
harder to climb, the braking spaces increase and
overtaking takes longer depending on the overall
weight.Engage a low gear when driving downhill, rather
than constantly using the brake.
The weight the trailer exerts on the car tow hook
reduces by the same amount the actual vehicle
loading capacity. To make sure the maximum
towable weight is not exceeded (given in the log
book) account should be taken of the fully laden
trailer, including accessories and personal
belongings.
Do not exceed the speed limits of the country you
are driving in. In any case do not exceed 100 km/h.
203
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
Under no circumstances should the vehicle brake system be altered to control the
trailer brake. The trailer braking system must be fully independent of the vehicle’s
hydraulic system.
WARNING
The ABS system with which the car may be fitted does not control the trailer braking
system. Great care should therefore be taken when driving on slippery road surfaces.

INSTALLING THE TOW HOOK
The towing device should be fastened to the body
by specialised personnel according to any additional
and/or integrative information supplied by the
Manufacturer of the device.
The towing device must meet current regulations
with reference to 94/20/EC Directive and
subsequent amendments.
For any version the towing device used must match
the towable weight of the vehicle on which it is to
be installed.
For the electric connection a unified connector
should be used which is generally placed on a
special bracket normally fastened to the towing
device, and a special ECU for external trailer light
control shall be installed on the car. For the electrical connection 7 or 13 pins 12VDC
connection is to be used (CUNA/UNI and ISO/DIN
Standards). Follow the instructions provided by the
car manufacturer and/or the tow hitch
manufacturer.
An electric brake should be supplied directly by the
battery through a cable with a cross section of no
less than 2.5 mm
2.
IMPORTANT Electric brake or other device shall be
used with running engine.
In addition to the electrical branches, the car’s
electric system can only be connected to the supply
cable for an electric brake and to the cable for an
internal light, though not above 15W.
For connections use a preset control unit with
battery cable no less than 2.5 mm
2.
204
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR

ASSEMBLY DIAGRAM
The tow hook structure must be fastened in the
points shown by the symbolØusing a total of 4
M8 screws, 2 M10 screws and 2 M12 screws.
The hook should be fastened to the body avoiding
any type of drilling and trimming of the rear
bumpers that remains visible when the hook is
removed.
IMPORTANT It is compulsory to fasten a label
(plainly visible) of suitable size and material with
the following wording:
MAX LOAD ON BALL 60 kg
205
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
After fitting, screw holes shall be sealed to prevent exhaust gas inlet.WARNING
L0D0256m
Existing holes
Existing holes
Existing holesStandard ball
Full load

SNOW TYRES
Use snow tyres of the same size as the normal tyres
provided with the car.
Lancia Dealership will be happy to provide advice
concerning the most suitable type of tyre for the
customer’s requirements.
For the type of tyre to be used, inflation pressures
and the specifications of snow tyres, follow the
instructions given in paragraph “Wheels” in section
“Technical specifications”.
The winter features of these tyres are reduced
considerably when the tread depth is below 4 mm.
In this case, they should be replaced.Due to the snow tyre features, under normal
conditions of use or on long motorway journeys, the
performance of these tyres is lower than that of
normal tyres. It is therefore necessary to limit their
use to the purposes for which they are certified.
IMPORTANT When snow tyres are used with a max
speed index below the one that can be reached by
the car (increased by 5%), place a notice in the
passenger compartment, plainly in the driver’s view
which states the max permissible speed of the snow
tyres (as per EC Directive).
All four tyres should be the same (brand and track)
to ensure greater safety when driving and braking
and better driveability.
Remember that it is inappropriate to change the
direction of rotation of tyres.
206
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNINGThe max speed for snow tyres with “T” marking is 190 km/h.
The Road Traffic Code speed limits must however be always strictly observed.
