technical specifications Lancia Musa 2007 Owner handbook (in English)

217
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
INCOMPLETE DOOR LOCKING
The warning light on the dial turns on (together with the message on
the display) when one or more doors, the boot or the bonnet are not
properly shut.
Symbols
¯/˙shown on the display indicate incomplete left/right door
closing.
´
(*) Or rear
red(*)
“DUALDRIVE” ELECTRIC POWER STEERING SYSTEM
The wording CITY is only displayed when the “dualdrive” electric
power steering is engaged.
Warning
light on
dial Message on
multifunction
display

218
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
SPEED LIMIT EXCEEDED
The warning light on the dial turns on (together with the message on
the display) when the car exceeds the speed limit set previously (see
“Multifunction Display” in section “Dashboard and controls”).
è
FUEL RESERVE
The warning light on the dial turns on (together with the message on
the display) when about 5/7 litres fuel are left in the tank.
The warning light flashes to indicate a failure, contact Lancia
Dealership as soon as possible.ç
amber
amber

219
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
WATER IN DIESEL FUEL FILTER (Multijet versions)
The warning light on the dial turns on (together with the message on
the display) when there is water in the diesel fuel filter.
c
amber
The presence of water in the fuel circuit may cause serious damage to the entire injection system
and cause irregular engine operation. If the warning light con the dial turns on, (or, on certain
versions, a dedicated message is shown on the reconfigurable multifunction display), contact
Lancia Dealership as soon as possible to have the system relieved. If the above indications come
on immediately after refuelling, water has probably been poured into the tank: turn the engine off
immediately and contact Lancia Dealership.
Warning
light on
dial Message on
multifunction
display

220
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
m
d
GLOW PLUGS (Multijet versions)
Turning the ignition key to MAR, the warning light on the dial comes
on and goes off when glow plugs reach the preset temperature. Start
the engine immediately after warning light switching off.
IMPORTANT With high ambient temperature, warning light stays on
for very short time. amber
amber
ASR - Wheel Antiskid System (amber)
Messages are displayed when the ASR function is
activated/deactivated manually.
ASR system switching off is indicated by the switching on of the ASR
button led.
BRAKE PAD WEAR (where provided)
The warning light on the dial turns on if the front brake pads are
worn; in this case have them changed as soon as possible.
On certain versions the dedicated message is displayed.

221
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
l
(*)Or rear LOW TYRE PRESSURE (where provided)
The instrument panel warning light will come on (on certain versions
together with a message on the display and the buzzer), when tyre
pressure is lower than preset values.

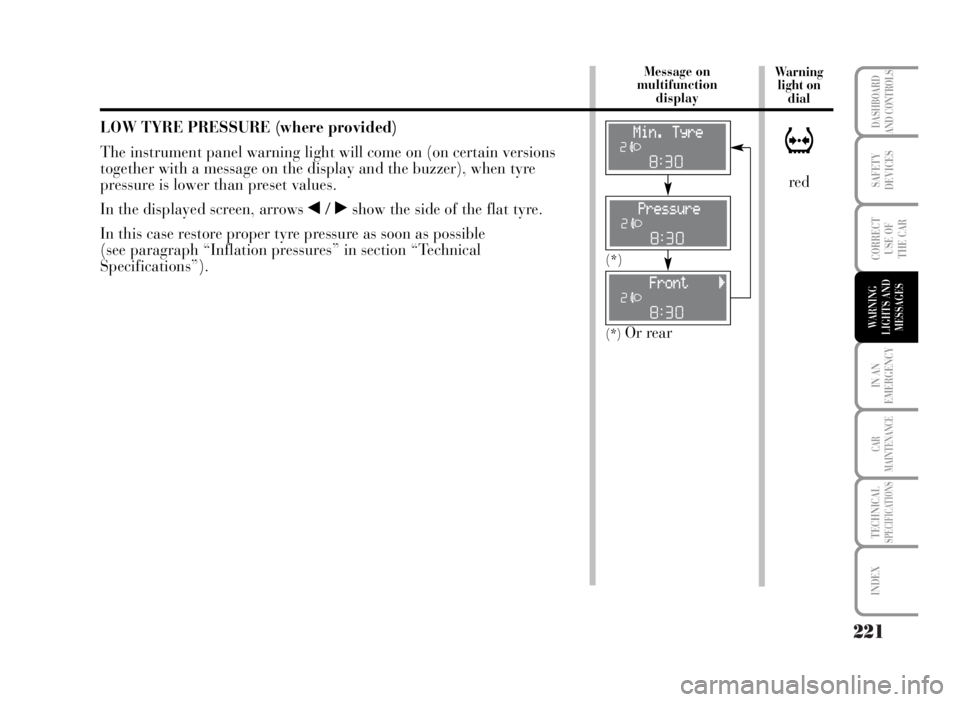

In the displayed screen, arrows ¯/˙show the side of the flat tyre.
In this case restore proper tyre pressure as soon as possible
(see paragraph “Inflation pressures” in section “Technical
Specifications”).red
Warning
light on
dial Message on
multifunction
display
(*)

222
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
GLOW FLAT TYRE WARNING LIGHT (where provided)
The instrument panel warning light comes on (together with the
dedicated message on the display and the buzzer), when the pressure
of one of more tyres falls below the preset threshold. In this way the
T.P.M.S. system will warn the driver that there is/are tyre/s
dangerously flat (risk of punctured tyre/s).
IMPORTANT If a tyre is punctured, stop immediately to safeguard car
driveability. Avoid sharp braking and steering. Replace immediately
the punctured tyre with the space-saver spare wheel (where provided)
or repair the punctured tyre using the kit provided for the purpose
(see section “In an emergency”) and contact Lancia Dealership as
soon as possible.
l
red
continued

223
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Flat tyre and/or system failure will be indicated when the punctured
tyre is replaced with the space-saver spare wheel.
It is therefore recommended to contact Lancia Dealership as soon as
possible.l
continued
red
Warning
light on
dial Message on
multifunction
display

224
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
è
amberMANUAL MODE NOT AVAILABLE (amber) (where provided)
The instrument panel warning light will come on (together with the
message on multifunction display) when, with engine on and Dual
FuNction System gearbox engaged, the MANUAL mode cannot be
selected.
è
REDUCE GEARS (where provided)
Warning light è comes on (together with the message on the
multifunction display) to warn the driver of the excessive use of the
Dual FuNction System gearbox.
In this event, the system could automatically activate system
protection procedure. amber
If the warning light continues to stay on (together with the message on the multi-
function display), contact Lancia Dealership.
WARNING

225
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dial Message on
multifunction
display
AUTOMATIC MODE NOT AVAILABLE (amber) (where provided)
The instrument panel warning light will come on (together with the
message on multifunction display) when, with engine on and Dual
FuNction System gearbox engaged, the AUTO mode cannot be
selected.
è
amber
If the warning light continues to stay on (together with the message on the multi-
function display), contact Lancia Dealership.
WARNING

226
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning
light on
dialMessage on
multifunction
display
è
amberCLUTCH OVERHEATING (amber) (where provided)
The instrument panel warning light will come on (together with the
message on multifunction display and the buzzer) to indicate clutch
overheating when using the Dual FuNction System gearbox.
When the car is parked facing uphill, to safeguard clutch efficiency do not use the accelerator to
keep the car still since clutch overheating could damage it. Use the brake pedal and press the
accelerator pedal only when deciding to move off.
If the warning light continues to stay on (together with the message on the
multifunction display), contact Lancia Dealership.
WARNING
