INSTRUMENT PANEL, DISPLAY AND BUTTON LIGHTING ADJUSTMENT
(LIGHT RHEOSTAT)
With this function it is possible to adjust the lighting (dimming/brightening) of the instrument cluster and two-
zone climate control display (where provided).
To adjust proceed as follows:
See “Initial check”
and “Access to
menu screen”
– +– +
Automatic return to standard screen
after few seconds or by
pressing button
Q
Previously
displayed
screen, e.g.:Use buttons +/– to carry out required
light adjustment.
L0D0040m
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

68
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

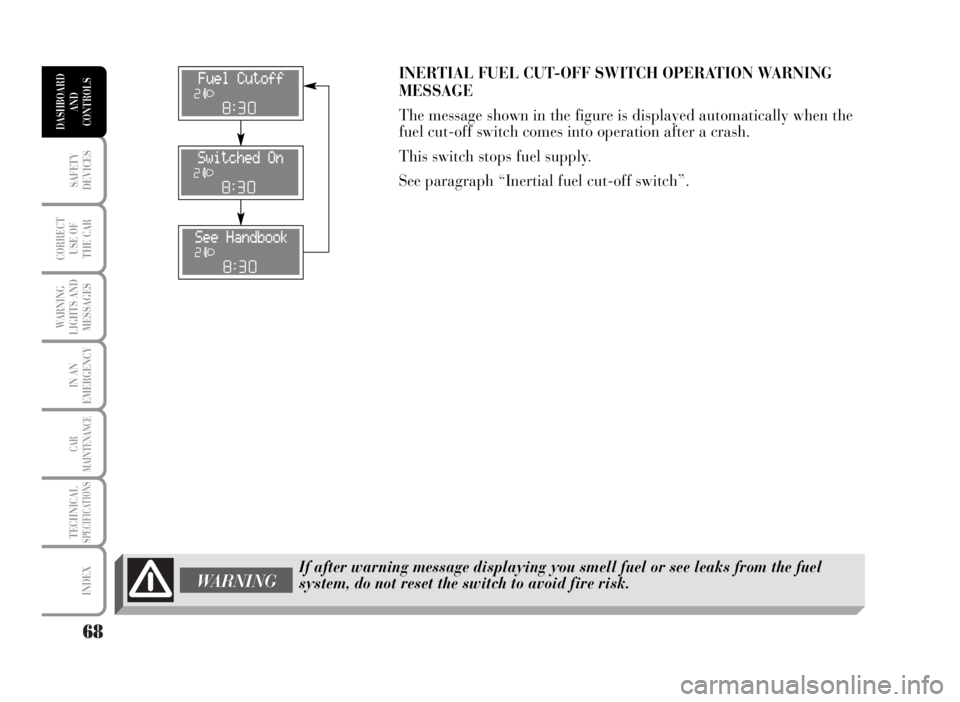

INERTIAL FUEL CUT-OFF SWITCH OPERATION WARNING
MESSAGE
The message shown in the figure is displayed automatically when the
fuel cut-off switch comes into operation after a crash.
This switch stops fuel supply.
See paragraph “Inertial fuel cut-off switch”.
WARNING
If after warning message displaying you smell fuel or see leaks from the fuel
system, do not reset the switch to avoid fire risk.

69
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
WARNING
Any adjustment of the steering wheel position must be carried out only with the
car stationary and the engine turned off.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted both in height A and axially B.
Proceed as follows:
❒release the lever pulling it towards the steering wheel (position 2);
❒adjust the steering wheel as required;
❒lock the lever pushing it forwards (position 1).
L0D0055m
WARNING
It is absolutely forbidden to carry out whatever after-market operation involving
steering system or steering column modifications (e.g.: installation of anti-theft
device) that could badly affect performance and safety, cause the lapse of
warranty and result in car non-compliance with the regulations in force.

70
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
SEAT ADJUSTMENT
FRONT SEATS
Moving the seat backwards or forwards
Lift the lever A and push the seat forwards or backwards: in the
driving position the arms should rest on the rim of the steering wheel.
Always check that the seat is firmly locked in the runners by trying to
move it back and forth.
Seat height adjustment (driver’s side) (where provided)
Move repeatedly lever B upwards or downwards to achieve the
required height.
IMPORTANT Adjustment must be carried out only seated in the
driver’s seat with the car at a standstill.
Back rest angle adjustment
Move lever D as shown by the arrow, set the back rest in the required
position, then release the lever.
Lumbar adjustment (where provided)
Turn knob C clockwise or counterclockwise to increase or decrease
lumbar adjustment.
After adjustments, always check that the seat is firmly locked in the runners.
WARNING
L0D0041m
L0D0042m

71
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Armrest adjustment (where provided)
To use the armrest, move it from position 1 to position 2.
Setting the passenger’s seat to “table” configuration
Set the armrest (where provided) in vertical position.
From driver’s seat or rear seats, move the lever A as shown by the
arrow, tilt the back rest on the cushion, then release the lever. In this
position the back rest can be used like a table.
Setting the driver’s seat to “table” configuration
Remove the head restraint completely (see “Head restraint removal”
in section “Head restraints”) then follow the previously described
procedure.
Seat warming (where provided)
To switch on/off seat warming on driver’s side press button B, press
button C for the passenger’s side.
The led on the button will light up when the function is on.
L0D0043m
L0D0044m
L0D0045mL0D0046m

72
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
REAR SEATS
Adjustments from inside the car
Moving the seat backwards or forwards
Lift lever A or lever B respectively to adjust the required seat section,
then push the seat backwards or forwards.
Back rest angle adjustment
Push lever C, set back rest to required position, then release the lever.
To prevent malfunctions: always press lever C down.
L0D0047m
L0D0252m

73
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Adjustments from the boot
Moving the seat backwards or forwards
Use handles F and G to adjust the required seat section, then push the
seat backwards or forwards.
WARNINGAfter adjustments, always check that the seat is firmly locked in the runners. Back rest angle adjustment
Use lever A or lever B to adjust the required back rest section, then
release the lever.
L0D0049m
L0D0253m

74
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
WARNING
Central console adjustment from passenger compartment
To set the central console in horizontal position:
❒operate lever D (one per side)
❒lower the central console completely
❒release the lever.
With central console fully lowered and head restraint extracted (as
shown in the figure), it is possible to use the glass/can holder A.
To bring the central console back to vertical position: operate again
lever D (one per side) and re-align the console to rear side back rests
until retainer E clicks into place.
Using the central console compartment
The central console is provided with an internal compartment B.
To use compartment B, press button C and raise the cushion.
For maximum safety, keep the back of
your seat upright, lean back into it and
make sure the seat belt fits closely
across your hips.
WARNING
Once you have released the lever, check
that the seat is firmly locked in the
runners by trying to move it back and
forth. Failure to lock the seat in place
could result in the seat moving suddenly.
L0D0050m
L0D0051m
L0D0342m

75
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Relax position, passenger side
To obtain the relax position, open the rear door and:
❒tilt the passenger seat to “table” position (see “Setting the
passenger’s seat to table configuration” in this section);
❒push the rear seat completely forward;
❒push the passenger’s seat (tilted) completely backward;
❒remove the rear parcel shelf (see “Rear parcel shelf removal” in
this section);
❒move the rear seat back rest to the required position.
Relax position, driver side
Same procedure but remove completely the driver’s head restraint
(see “Head restraints” in this section).
IMPORTANT See section “Boot Extension” for operations concerning
seat positioning to extend the boot. Central console adjustment from the boot
Pull band F and push forward the top of the back rest at the same
time until releasing the locking clip. Bring the back rest to horizontal
position then, release band F. Reverse this procedure to reset the back
rest in vertical position. Check for clip locking into place.
L0D0255m
L0D0242m
L0D0243m

76
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Central console adjustment and use of the ski tunnel.
The central console when completely lowered may be used as rear
armrest and it makes available ski tunnel B.
Space B may be used to carry long objects (e.g. ski), loading them
from the boot.
To make the most of it, remove cushion C to prevent damages.
IMPORTANT After removing cushion C, if you place it temporarily in
the boot, put it far from heavy loads to prevent damages and
distortion.
Removing the cushion
Cushion C can be removed.
To remove it : press button D and take it out from the central console.
To lock it again: press button D to lock it on the rear seat back mask,
then check for proper locking into place.
WARNINGOnly make adjustments when the car is stationary.
WARNINGAlways check that loads are anchored properly to prevent them being thrown
against the passengers in case of accident or sharp braking.
L0D0249m
L0D0344m
