technical specifications Lancia Musa 2009 Owner handbook (in English)

7
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ........................................................ 8
INSTRUMENT PANEL.......................................... 10
SYMBOLS ............................................................. 11
THE LANCIA CODE SYSTEM .............................. 11
THE KEY AND DOOR LOCKING KIT ................. 13
IGNITION DEVICE .............................................. 20
INSTRUMENTS ................................................... 21
MULTIFUNCTIONAL DISPLAY
(on two-line modal panel) ...................................... 22
MULTIFUNCTIONAL DISPLAY
(on three-line modal panel).................................... 25
ADJUSTING THE SEATS ..................................... 38
HEAD RESTRAINTS ............................................ 44
ADJUSTING THE STEERING WHEEL ............... 45
REARVIEW MIRRORS .......................................... 46
HEATING/CLIMATE CONTROL SYSTEM .......... 47
MANUAL CLIMATE CONTROL SYSTEM ........... 48
AUTOMATIC CLIMATE CONTROL
SYSTEM (TWO-ZONE) ....................................... 52
EXTERNAL LIGHTS ........................................... 62
WINDOW WASHING ............................................ 64
CRUISE CONTROL ............................................. 67CEILING LIGHTS ................................................. 69
LIGHT CONTROL BUTTONS .............................. 71
FUEL CUT-OFF INERTIAL SWITCH ................... 72
INTERNAL EQUIPMENT .................................... 73
SMOKERS KIT ...................................................... 75
SUN VISORS ......................................................... 76
SUNROOF ............................................................ 76
POWER WINDOWS ............................................. 78
BOOT .................................................................... 80
BONNET ............................................................... 82
ROOF BARS .......................................................... 83
HEADLIGHTS ...................................................... 84
ABS SYSTEM ....................................................... 85
EOBD SYSTEM .................................................... 86
SOUND SYSTEM .................................................. 87
ACCESSORIES PURCHASED BY THE OWNER .. 88
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................ 89
PARKING SENSORS ............................................ 90
REFUELLING ...................................................... 92
ENVIRONMENTAL PROTECTION ..................... 94
DASHBOARD AND CONTROLS
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 7

8
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
L0D0374m
1.Side air vents - 2.Left stalk - 3.Upper left-hand glove box - 4.Right stalk - 5.Central air vents - 6.Instrument panel -
7.Upper right-hand glove box - 8.Glove box compartment - 9.Passenger’s airbag - 10.Controls for heating/ventilation/
climate control - 11.Control buttons - 12.Sound system (where provided) - 13.Ignition converter - 14.Driver’s airbag -
15.Cruise control (where provided).
DASHBOARD
The presence and position of the controls, instruments and indicators may vary according to the different versions.
The upper and lower central panel offers several solutions according to the Customer’s requirements (see the illustrations
below).
fig. 1
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 8

9
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Upper central panel:
❒with fixed glove box compartment,
A-fig. 2, and extractable compart-
ment (DIN), B-fig. 2, for audio
system installation;
❒with required auto system, fig. 3;
❒with Connet Nav+, fig. 4;
Lower central panel:
❒with manual climate control system,
B-fig. 5;
❒with automatic two-zone climate
control system, C-fig. 6.
fig. 2L0D0231m
fig. 3L0D0232m
fig. 4L0D0359m
fig. 5L0D0234m
fig. 6L0D0235m
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 9

10
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
L0D0372m
L0D0010m
fig. 7
fig. 8

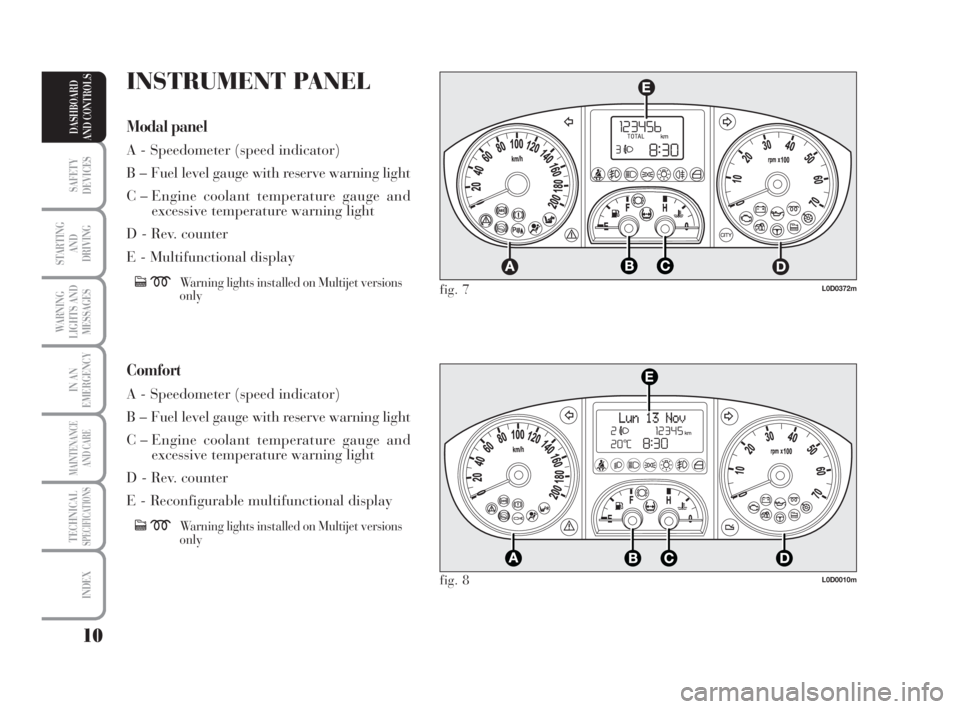

INSTRUMENT PANEL
Modal panel
A - Speedometer (speed indicator)
B – Fuel level gauge with reserve warning light
C – Engine coolant temperature gauge and
excessive temperature warning light
D - Rev. counter
E - Multifunctional display
cmWarning lights installed on Multijet versions
only
Comfort
A - Speedometer (speed indicator)
B – Fuel level gauge with reserve warning light
C – Engine coolant temperature gauge and
excessive temperature warning light
D - Rev. counter
E - Reconfigurable multifunctional display
cmWarning lights installed on Multijet versions
only
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 10

11
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been at-
tached near or actually on some of the
components of your car. These labels
bear symbols that draw your warning
to the precautions required when han-
dling the component in question.
The plate summarising the symbols
used can be found under the bonnet,
fig. 9.
THE LANCIA CODE
SYSTEM
This is an electrical engine locking
system which increases protection
against attempted theft of the car. It
is automatically activated when the
ignition key is extracted.
Each key contains an electronic de-
vice which modulates the signal emit-
ted during ignition by an antenna
built in the ignition device. This sig-
nal is the ‘password’, which changes
at each ignition and is used by the
control unit to acknowledge the key
and allow ignition.
fig. 9L0D0375m
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 11

12
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
In this case, turn the key to STOPand
then back to MAR. Try with the other
keys provided if the problem persists.
If the engine will not start up after
this operation contact the Lancia
Dealership.
IMPORTANT Each key has its own
code which must be stored by the sys-
tem ECU. Contact the Lancia Dealer-
ship to have new keys (up to max.
eight) with the code stored in them.OPERATION
Each time the car is started by turn-
ing the ignition key to MAR, the Lan-
cia CODE system control unit sends
an acknowledgement code to the en-
gine control unit to deactivate the in-
hibitor. The code is sent only if the
control unit of the Lancia CODE sys-
tem has acknowledged the code re-
ceived from the key. Each time the ig-
nition key is turned to STOP, the
Lancia CODE system deactivates the
functions of the electronic engine con-
trol unit.
If, during ignition, the code is not cor-
rectly recognized, a warning light
Yis lit on the instrument panel.The electronic components
inside the key may be dam-
aged if the key is submitted
to sharp knocks.
Warning light Ycoming on when
driving
❒If the warning lightYturns on,
the system is running a self-test
(such as following a voltage fail-
ure). If the problem persists, con-
tact the Lancia Dealership.
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 12

13
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
THE KEY AND
DOOR LOCKING
KIT
CODE CARD Fig. 10
(Optional for versions/markets
where applicable)
The car is delivered with the ignition
key and the CODE card which bears
the following data:
❒the mechanical key code Bto be
given to the Lancia Dealership
when ordering duplicate keys.
IMPORTANT In order to ensure per-
fect efficiency of the electronic devices
inside the keys, they should never be
exposed to direct sunlight.MAIN KEY WITH REMOTE
CONTROL fig. 11
The metal insert of the key Ais re-
cessed in the grip.
The key operates:
❒the ignition switch;
❒the lock of the door on the driver’s
side;
❒the lock/release device of the fuel
flap (on versions equipped with a
lockable fuel plug)
fig. 10L0D0376m
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 11L0D0377m
❒engagement of the device, D-fig.
12, for locking external opening of
the front and rear doors when the
electric system does not work (e.g.
the battery is down);
❒engagement of the child safety
lock device, E-fig. 12, installed on
the rear doors.
ButtonB-fig. 11enables opening of
the metal insert A.
fig. 12L0D0246m
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 13

14
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT The remote control fre-
quency may be disturbed by radio
transmissions outside the car (e.g. cel-
lular phones, radio amateurs, etc.). If
this is the case, the remote control
may operate incorrectly.
Door and tailgate locking
Short pressure on button Á: remote
lock of doors, tailgate and fuel flap,
switching off of the internal ceiling
lights and single flashing of direction
indicators. Door and tailgate lock release
Short pressure on button Ë: lock re-
lease of doors, tailgate and fuel flap,
timed switching on of the internal
ceiling lights and double flashing of
direction indicators.
Door locks are automatically released
in case of intervention of the inertial
fuel cut-off switch.
Use the “Setup Menu” of the multi-
functional reconfigurable display (see
the dedicated paragraph in section
“Dashboard and Controls”) to set the
system in such a way that only the
door on the driver’s side is released
when pressing button Ë. To refit metal insert A, proceed as
follows:
❒Press button Band hold it pressed.
❒move the metal insert A.
❒Release button Band turn the
metal insert Auntil hearing the
click that indicates correct locking.
The button
Ëactivates the release de-
vice for doors, tailgate and fuel flap
(where provided).
The button
Áactivates the release de-
vice for doors, tailgate and fuel flap
(where provided).
The button Ractivates opening of
the tailgate.
Press button B-fig. 11 only
after moving the key away
from your body, especially your
eyes, and from objects which could
get damaged (e.g. your clothes). Do
not leave the key unattended, be-
cause someone, a child especially,
may accidentally press the button
while handling the key.
WARNING
fig. 13L0D0378m
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 14

15
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Deterrence led indications
When locking the doors, the deter-
rence LED A-fig. 14on the button
switches on for about 3 seconds.
Then, it starts flashing (deterrence
function). If one or more than one
door or the tailgate does not close cor-
rectly when locking it, the LED and
direction indicators start flashing
quickly.
IMPORTANT The remote control fre-
quency may be disturbed by radio
transmissions outside the car (e.g. cel-
lular phones, radio amateurs, etc.). If
this is the case, the remote control
may operate incorrectly.Door locking from the inside
Keep the doors locked and press the
buttonA-fig. 14positioned at the cen-
tre of the dashboard to either lock or
release the doors.
IMPORTANT If one door is not cor-
rectly locked, or a system fault occurs,
doors cannot be locked from the in-
side.
After eliminating the cause of the
problem, the device resumes regular
operation.Remote tailgate opening fig. 15
Press the button R, and hold it
pressed, to release (open) the tailgate
remotely. Tailgate opening is indicated
by double flashing of the direction in-
dicators; tailgate closing by single
flashing.
IMPORTANT The remote control fre-
quency may be disturbed by radio
transmissions outside the car (e.g. cel-
lular phones, radio amateurs, etc.). If
this is the case, the remote control
may operate incorrectly.
fig. 14L0D0417mfig. 15L0D0378m
If the button for locking
doors from the inside is acci-
dentally pressed, only the
doors opened for getting out
of the car are released; the tailgate re-
mains locked. For system reset press
the lock/release buttons again.
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 15

16
SAFETY
DEVICES
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Request for additional remote
controls
The system acknowledges up to 8 re-
mote controls. Should a new remote
control be necessary, contact a Lancia
Dealership and be ready to present
the CODE card, a personal identity
document and the car’s ownership
documents.
Replacing the battery of the key
with remote control fig. 16
Battery replacement:
❒press button Aand bring the metal
insertBto the “open” position;
❒turn the screw Cusing a fine bit
screwdriver;
❒take out the battery case Dand re-
place the battery Erespecting its
polarity;
❒fit the battery case Dback inside
the key and lock it turning screw
C.
fig. 16L0D0379m
Used batteries are harmful to
the environment. They
should be disposed of as
specified by law in special
containers or taken to a Lancia Deal-
ership, which will take care of their
disposal.
007-037 MUSA 1ed GB 10-07-2008 9:36 Pagina 16
