Lancia Musa 2010 Owner handbook (in English)

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
Light when getting out of the car
After removing the key from the igni-
tion switch, the lights will turn on as
follows:
❒within 2 minutes from turning the
engine off for about 10 seconds;
❒when a door is opened for about 3
minutes;
❒for about 10 seconds when the
doors are closed (within the three
minutes).
Timing will stop automatically when
locking the doors. Ceiling light timer
(for versions/markets, where provided)
On certain versions to facilitate get-
ting in/out of the car at night or with
poor lighting, 2 different timed
switching on modes have been pro-
vided.
Lights when getting into the car
Lights will be turned on as follows:
❒for about 10 seconds when the door
is unlocked;
❒for about 3 minutes when a door is
opened;
❒for about 10 seconds when the
doors are closed (within the three
minutes).
Timing will stop when turning the ig-
nition key to MAR. REAR COURTESY LIGHT
The light will turn on/off by pressing
the lens rightwards or leftwards
as shown in fig. 75.
The light may be integrated in the
ceiling unit, where provided.
Two 5W ceiling lights fig. 76are pre-
sent if a sunroof is fitted.
fig. 75L0D0078mfig. 76L0D0254m

71
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
HAZARD LIGHTS
EMERGENCY LIGHTS fig. 77-78
Press the toggle switch Ain any posi-
tion of the ignition switch to turn the
lights on.
When the device is on, the switch is
flashing and warning lights Îand¥
on the cluster come on.
Press the switch again to turn the
lights off.
FRONT FOG LIGHTS fig. 79
(for versions/markets, where provided)
To turn front fog lights on, press but-
ton5, to activate these lights it is
necessary to have the side/tail lights
switched on.
Press the button again or turn off the
side/tail lights to turn the lights off.
fig. 77L0D0080m
fig. 78L0D0081m
fig. 79L0D0385m
The use of hazard lights is
governed by the Highway
Code of the country you are in.
Keep to the rules.
WARNINGREAR FOG LIGHTS fig. 80
Press button
4to turn on with the
dipped beam or fog lights on.
Press the button again or turn off the
dipped beam headlights or the fog
lights to turn the lights off.
fig. 80L0D0386m

72
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
FUEL CUT OFF
SWITCH
The switch is located on the bottom of
the car, near the pillar on passenger
side. Move the carpet aside to reach
the switch. It is tipped by a crash and
cuts off the fuel feed, thus stopping
the engine.
When the device is activated the
warning light
èturns on together
with the relevant message on the re-
configurable multifunctional display
(for versions/markets, where pro-
vided).
Inspect the car carefully for fuel leak-
ages (e.g. in the engine compart-
ment), under the car or near the fuel
tank.
If, after a crash, you smell
fuel or see leaks from the
fuel system, do not reset the switch
to avoid fine risk.
WARNING
fig. 81L0D0388m
Press button A-fig. 81to reactivate
the fuel feed system if no leakage is
found and the car is worthy of re-
suming travel.
After the accident, remember to turn
the ignition key to STOPto prevent
draining the battery.

73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS

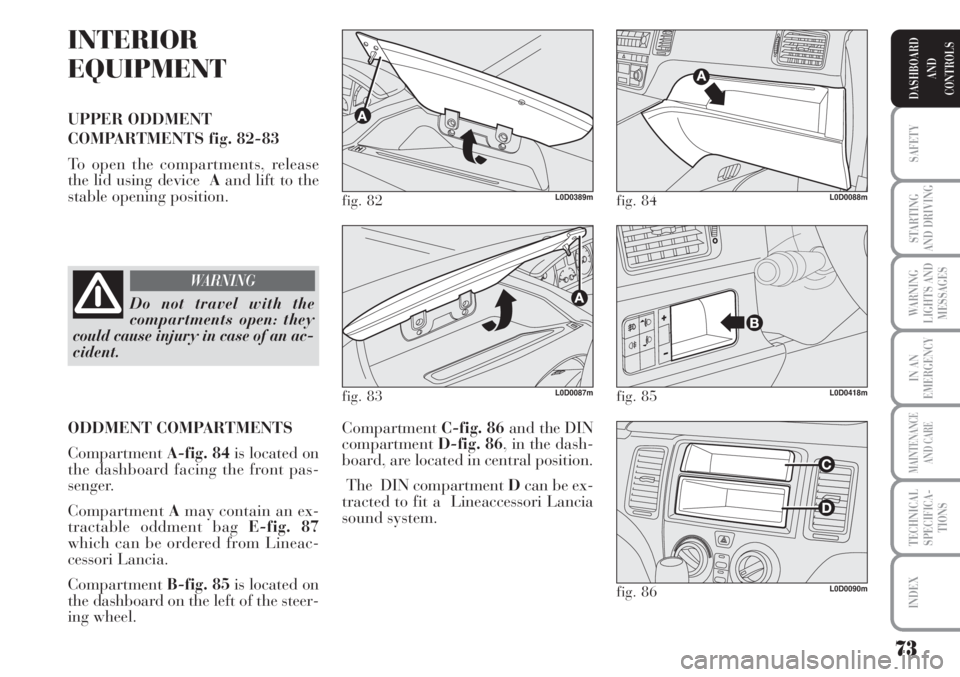

INTERIOR
EQUIPMENT
UPPER ODDMENT
COMPARTMENTS fig. 82-83
To open the compartments, release
the lid using device Aand lift to the
stable opening position.
CompartmentC-fig. 86and the DIN
compartmentD-fig. 86, in the dash-
board, are located in central position.
The DIN compartment Dcan be ex-
tracted to fit a Lineaccessori Lancia
sound system.
fig. 82L0D0389m
fig. 83L0D0087m
Do not travel with the
compartments open: they
could cause injury in case of an ac-
cident.
WARNING
fig. 84L0D0088m
fig. 85L0D0418m
fig. 86L0D0090m
ODDMENT COMPARTMENTS
CompartmentA-fig. 84is located on
the dashboard facing the front pas-
senger.
CompartmentAmay contain an ex-
tractable oddment bag E-fig. 87
which can be ordered from Lineac-
cessori Lancia.
CompartmentB-fig. 85is located on
the dashboard on the left of the steer-
ing wheel.

74
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
ODDMENT SHELF
ON ROOF fig. 91
The shelf is designed to contain eas-
ily retrievable light items (e.g. papers,
maps, etc.).
IMPORTANT Do not place heavy ob-
jects on the shelf. Do not use it as a
grip.
The shelf is alternative to the sunroof.
CUP HOLDER –
CAN HOLDER fig. 89
The cup/can holders – are located on
the central tunnel near the hand-
brake.
CARD HOLDER fig. 90
The central tunnel has recesses to
keep telephone cards, magnetic cards
and tickets. DOOR POCKETS fig. 88
Paper/map pockets are located in
door panels.
fig. 87L0D0343m
fig. 88L0D0153m
fig. 89L0D0091m
fig. 90L0D0092m
fig. 91L0D0093m

75
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
REAR COMPARTMENT
CD HOLDER WITH
CAN HOLDER fig. 92
There is a CD holder and cup holder
on the central tunnel behind the
handbrake.
POWER SOCKETS (12V)
They only work with the ignition key
atMAR.
SocketA-fig. 93is located in front
position. Socket Ais replaced by a
cigar lighter in cars with smoker’s kit.
For versions/markets, where pro-
vided, the car may be equipped with
power socket C-fig. 94also on the
left of the boot.
fig. 92L0D0236m
fig. 93L0D0236m
fig. 94L0D0095m
SMOKER’S KIT
(for versions/markets, where provided)
Cigar lighter fig. 95
It is located on the central console
by the side of the handbrake.
Press the button with the ignition
switch at MAR. The button will auto-
matically return to the initial position
after approximately 15 seconds and
the cigar lighter is ready for use.
IMPORTANT Always check that the
cigar lighter has turned itself off.
Ashtray fig. 96
The ashtray is a removable plastic box
that can be fitted into the glass/can
recesses on the central tunnel.
IMPORTANT Do not use the box as
an ashtray and a waste paper basket
at the same time: it might set on fire
in contact with cigarette stubs.

SUN VISORS
These are arranged at the sides of the
internal rearview mirror. They may be
oriented frontally and to the side.
A courtesy mirror can be applied to
the back of sun visors, according to
the version.
To use the mirror, open the sliding
flapA-fig. 96(for versions/markets,
where provided).
SUNROOF
(for versions/markets, where provided)
The sun roof has an anti-pinch safety
system capable of detecting the pres-
ence of an object whilst the roof is
closing; when this happens the system
stops and the glass travel is immedi-
ately reversed. The large “Skydome”
sunroof consists of two glass panels,
one fixed and one mobile, with sun
curtains which can be opened and
closed manually. The sun roof can
only be operated with the ignition key
in the MARposition. The button near
the front ceiling lights is used to open
and close the roof.
To o p e n
Hold button B-fig. 97pressed: the
front glass panel will go to spoiler po-
sition. Hold Bpressed again for longer
than half a second to move the roof
automatically to end of travel posi-
tion. Press the button again to stop
the roof in an intermediate position.
76
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
fig. 95L0D0096m
fig. 96L0D0097m
The cigar lighter becomes
very hot. Handle with
care. The device must not be used
by children: risk of fire and/or
burns.
WARNING

EMERGENCY OPERATION
If the switch fails, the sunroof can be
moved manually proceeding as de-
scribed below:
❒remove the protective cap on the
internal upholstery between the
two sun curtains.
❒take the socket wrench provided
❒introduce the socket in A-fig. 98
and turn it:
– clockwise, to open the roof
– anticlockwise, to close the roof. To close
From the all open position, hold A-
fig. 101pressed for longer than half
a second to take the roof automati-
cally to spoiler position. Press the but-
ton again to stop the roof in an inter-
mediate position. Hold Apressed un-
til the panel closes completely.
77
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
fig. 97L0D0098mfig. 98L0D0099m
It is advisable to use the
sunroof in the spoiler posi-
tion only if a crosswise roof
rack is used.
Do not open the sun roof in
the presence of snow or ice:
it may be damaged.
When leaving the car, al-
ways remove the key from
the ignition device to avoid the risk
of injury due to accidental opera-
tion of the sun roof; it presents a
risk to those left on board: im-
proper use of the roof can be dan-
gerous. Before operation, always
check that no-one is at risk of be-
ing injured by the moving sun roof
or by objects getting caught and
dragged by it.
WARNING

78
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
DRIVER’S DOOR fig. 99
There are two or five switches (the
latter for versions/markets, where
provided) on the arm rest for operat-
ing the following with the key at
MAR:
Aopening/closing the left front win-
dow
Bopening/closing the right front
window
POWER
WINDOWS
The two-button version (front win-
dows only) is not automatic. The
four-button version (front and rear
windows) has an automatic opening
and closing feature: the passenger
window will open automatically (and
close automatically, for versions/
markets, where provided); the rear
windows may open automatically.
IMPORTANT With ignition key at
STOPor removed, the power win-
dows remain activated for about 2
minutes and are deactivated immedi-
ately the moment a door is opened.
fig. 99L0D0103m
Copening/closing the left rear win-
dow (for versions/markets, where
provided)
Dopening/closing the right rear win-
dow (for versions/markets, where
provided)
Eturn off the rear door switches (for
versions/markets, where pro-
vided). The button in the LED
will light up when the device is on.

79
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICA-
TIONS
INDEX
DASHBOARD
AND
CONTROLS
Automatic continuous operation
(for versions/markets, where provided)
For some versions with four power
windows, the front window (driver’s
side) can be opened and closed auto-
matically while the other windows can
be opened automatically.
AButton for automatically
opening and closing
B-C-DButtons for automatic open-
ing only.
Hold one of the buttons pressed for a
short time to open the window in
steps. The window will stop when the
button is released.
PASSENGER AND REAR DOORS
fig. 100
(for versions/markets, where provided)
The switch operating the correspond-
ing window is located on the internal
armrest of each door.
fig. 100L0D0103m
Incorrect use of the power
windows may be danger-
ous. Before operation, always
check that no-one is exposed to the
risk of being injured by directly by
the moving window or objects get-
ting caught and dragged. When
leaving the car, always remove the
key from the ignition device to
avoid the risk of injury due to ac-
cidental operation of the power
windows.
WARNING
fig. 101L0D0156m
MANUAL
(for versions/markets, where provided)
Operate the corresponding handle
fig. 101to open/close the window.
