Thirteen - Pin Connector DetailsPin Function Wire
Color
6 Stop Lights Red
7 Left Rear Posi-
tion, Side
Marker Lights,
and Rear Regis-
tration Plate
Illumination
Device
1
Black
8 Reverse Lights Red/ Black
9 Permanent
Power Supply
(+12V) Brown/
White
10 Power Supply Controlled by
Ignition Switch
(+12V) Red
11
a
Return for Con-
tact (Pin) 10
2
White
12 Reserve for Fu- ture Allocation
3
Red/
Blue
13 Return for Con-
tact (Pin) 9
2
White
Thirteen - Pin Connector DetailsPin Function Wire
Color1The rear position registration
plate illumination device shall be
connected such that no light of the
device has a common connection
with both pins 5 and 7.2The three return circuits shall not
be connected electrically in the
trailer.3The allocation pin 12 has been
changed from “Coding for coupled
Trailer” to “Reserve for Future Al-
location.”
TOWING TIPS
Before setting out on a trip, practice
turning, stopping and backing the
trailer in an area away from heavy
traffic.
Automatic Transmission
The DRIVE gear can be selected when
towing. However, if frequent shifting
occurs while in DRIVE, select a lower
gear range using the Electronic Range
Select (ERS) shift control. NOTE:
Using a lower gear range while op-
erating the vehicle under heavy
operating conditions will improve
performance and extend transmis-
sion life by reducing excessive
shifting and heat build up. This
action will also provide better en-
gine braking.
The automatic transmission fluid and
filter should be changed if you REGU-
LARLY tow a trailer for more than
45 minutes of continuous operation.
Refer to the “Maintenance Schedule”
for the proper maintenance intervals.
Electronic Speed Control (for
versions/markets, where
provided)
 Do not use in hilly terrain or with
heavy loads.
 When using the speed control, if you experience speed drops greater
than 16 km/h, disengage until you
can get back to cruising speed.
 Use speed control in flat terrain and with light loads to maximize fuel
efficiency.
265

Cooling System
To reduce potential for engine and
transmission overheating, take the
following actions:
 City Driving
When stopped for short periods of
time, shift the transmission into NEU-
TRAL but do not increase engine idle
speed.
 Highway Driving
Reduce speed.
 Air Conditioning
Turn off temporarily.
Trailer Hitch Attaching Points
Your vehicle will require extra equip-
ment to tow a trailer safely and effi-
ciently. The trailer tow hitch must be
attached to your vehicle using the
provided attaching points on the ve-
hicle's frame. Refer to the following
chart to determine the accurate at-
taching points. Other equipment,
such as trailer sway controls and
braking equipment, trailer equalizing
(leveling) equipment and low profile
mirrors, may also be required or
strongly recommended.

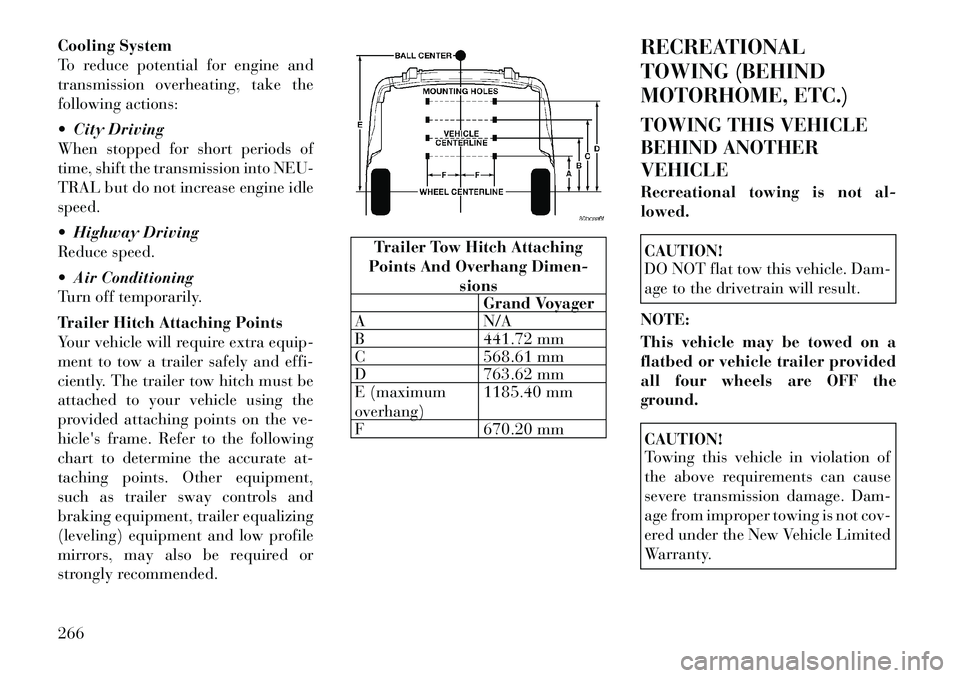

Trailer Tow Hitch Attaching
Points And Overhang Dimen-
sionsGrand Voyager
A N/A
B 441.72 mm
C 568.61 mm
D 763.62 mm
E (maximum
overhang) 1185.40 mm
F 670.20 mm RECREATIONAL
TOWING (BEHIND
MOTORHOME, ETC.)
TOWING THIS VEHICLE
BEHIND ANOTHER
VEHICLE
Recreational towing is not al-
lowed.
CAUTION!
DO NOT flat tow this vehicle. Dam-
age to the drivetrain will result.
NOTE:
This vehicle may be towed on a
flatbed or vehicle trailer provided
all four wheels are OFF the
ground.CAUTION!
Towing this vehicle in violation of
the above requirements can cause
severe transmission damage. Dam-
age from improper towing is not cov-
ered under the New Vehicle Limited
Warranty.
266

6
WHAT TO DO IN EMERGENCIES
 HAZARD WARNING FLASHERS . . . . . . . . . . . . 268
 IF YOUR ENGINE OVERHEATS . . . . . . . . . . . . . 268
 JACKING AND TIRE CHANGING . . . . . . . . . . . . 269  JACK LOCATION . . . . . . . . . . . . . . . . . . . . . . 269
 SPARE TIRE REMOVAL . . . . . . . . . . . . . . . . . 269
 TO ACCESS SPARE TIRE WINCH DRIVENUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
 SPARE TIRE TOOLS . . . . . . . . . . . . . . . . . . . 271
 SPARE TIRE REMOVAL INSTRUCTIONS . . . 271
 PREPARATIONS FOR JACKING . . . . . . . . . . . 272
 JACKING INSTRUCTIONS . . . . . . . . . . . . . . . 272
 SECURING THE SPARE TIRE . . . . . . . . . . . . 275
 ROAD TIRE INSTALLATION . . . . . . . . . . . . . 276
 JUMP-STARTING PROCEDURE . . . . . . . . . . . . . 277  PREPARATIONS FOR JUMP-START . . . . . . . 278
 JUMP-STARTING PROCEDURE . . . . . . . . . . . 278
 FREEING A STUCK VEHICLE . . . . . . . . . . . . . . 279
 SHIFT LEVER OVERRIDE . . . . . . . . . . . . . . . . . 280
 TOWING A DISABLED VEHICLE . . . . . . . . . . . 281  WITHOUT THE IGNITION KEY . . . . . . . . . . . 282
267

HAZARD WARNING
FLASHERS
The Hazard Warning flasher switch is
located in the lower center area of the
instrument panel.Press the switch to turn on the
Hazard Warning flasher. When
the switch is activated, all di-
rectional turn signals will flash on and
off to warn oncoming traffic of an
emergency. Press the switch a second
time to turn off the Hazard Warning
flashers.
This is an emergency warning system
and it should not be used when the
vehicle is in motion. Use it when your
vehicle is disabled and it is creating a
safety hazard for other motorists.
When you must leave the vehicle to
seek assistance, the Hazard Warning
flashers will continue to operate even
though the ignition is placed in the
OFF position.
NOTE:
With extended use the Hazard
Warning flashers may wear down
your battery. IF YOUR ENGINE
OVERHEATS
In any of the following situations, you
can reduce the potential for overheat-
ing by taking the appropriate action.
 On the highways — slow down.
 In city traffic — while stopped,
place the transmission in NEU-
TRAL, but do not increase engine
idle speed.
NOTE:
There are steps that you can take to
slow down an impending overheat
condition:
 If your air conditioner (A/C) is on, turn it off. The A/C system
adds heat to the engine cooling
system and turning the A/C off
can help remove this heat.
 You can also turn the tempera- ture control to maximum heat,
the mode control to floor and the
blower control to high. This al-
lows the heater core to act as a
supplement to the radiator and
aids in removing heat from the
engine cooling system.
CAUTION!
Driving with a hot cooling system
could damage your vehicle. If tem-
perature gauge reads “H”, pull over
and stop the vehicle. Idle the vehicle
with the air conditioner turned off
until the pointer drops back into the
normal range. If the pointer remains
on the “H”, turn the engine off im-
mediately, and call for service.WARNING!
You or others can be badly burned
by hot engine coolant (antifreeze) or
steam from your radiator. If you see
or hear steam coming from under
the hood, do not open the hood until
the radiator has had time to cool.
Never try to open a cooling system
pressure cap when the radiator or
coolant bottle is hot.
268

JACKING AND TIRE
CHANGINGWARNING!
 Do not attempt to change a tire onthe side of the vehicle close to
moving traffic. Pull far enough off
the road to avoid the danger of
being hit when operating the jack
or changing the wheel.
 Being under a jacked-up vehicle is
dangerous. The vehicle could slip
off the jack and fall on you. You
could be crushed. Never put any
part of your body under a vehicle
that is on a jack. If you need to get
under a raised vehicle, take it to a
service center where it can be
raised on a lift.
(Continued)
WARNING!(Continued)
 Never start or run the engine
while the vehicle is on a jack.
 The jack is designed to be used as
a tool for changing tires only. The
jack should not be used to lift the
vehicle for service purposes. The
vehicle should be jacked on a firm
level surface only. Avoid ice or
slippery areas.
JACK LOCATION
The jack, jack handle and winch
handle tools are stowed behind the
rear left side trim panel in the rear
cargo area. Turn the two cover latches
to release the cover. Remove the pouch containing the
scissors jack, jack handle, and tools.
SPARE TIRE REMOVAL
The spare tire is stowed inside a pro-
tective cover located under the center
of the vehicle between the front doors
by means of a cable winch mecha-
nism. The “spare tire drive” nut is
located on the floor, under a plastic
cap at the front of the floor console or
under front super console forward bin
liner.
Jack And Tool Location
Spare Tire Location
269

TO ACCESS SPARE TIRE
WINCH DRIVE NUT
To access the spare tire winch drive
nut and lower the spare tire, you will
need to refer to one of the following
center console configurations.
Super Console
For vehicles equipped with the Super
Console, the spare tire winch assem-
bly drive nut is located beneath the
console.1. Pull the lower drawer out from the
rear of the floor console.
2. Open the front drawer to expose
the storage compartment.
3. Remove the liner from the con-
sole's storage compartment to access
the spare tire winch drive nut.Premium/Base/Cargo Center
Console
Pull the Winch Cover assembly plug
(for versions/markets, where pro-
vided) to access the winch drive nut.
Super Console
1 — Lower Drawer
2 — Front Drawer
3 — Front Drawer Liner
Lower DrawerDrive Nut Access
Winch Cover Assembly Plug (for
versions/markets, where provided )
270

SPARE TIRE TOOLS
The tool pouch contains three pieces
and can be assembled into a spare tire
hook; to remove the compact spare
tire/cover assembly from under the
vehicle, or a Winch T-handle; to raise/
lower the compact spare tire/cover as-
sembly.SPARE TIRE REMOVAL
INSTRUCTIONS
The spare tire is located under the
vehicle beneath the center console
area.1. Assemble the spare tire tools into a
T-handle and place the square end
over the spare tire winch drive nut.
2. Rotate the nut to the left until the
winch mechanism stops turning
freely. This will allow enough slack in
the cable to allow you to pull the spare
tire out from underneath the vehicle.
CAUTION!
The winch mechanism is designed
for use with the winch T-handle
only. Use of an air wrench or other
power tools is not recommended and
can damage the winch.
3. To remove the compact spare tire/
cover assembly, assemble the winch
T-handle extensions to form a spare
tire hook, and pull the spare tire out
from under the vehicle.
Assembled T-handle
A — Spare Tire Hook/T-handle
B — Extension 1
C — Extension 2
Assembling The Spare Tire HookA — Spare Tire Hook/T-handle
B — Extension 1
C — Extension 2
Spare Tire And Cover
Pulling Spare Tire
271

NOTE:
If either front tire is flat it may be
necessary to jack up the vehicle to
remove the compact spare tire/
cover assembly from under the ve-
hicle.
4. Stand the tire/cover assembly up-
right and remove the wheel spacer by
squeezing the winch retaining tabs to-
gether. Push the retainer through the
spare tire to release it from the wheel.
PREPARATIONS FOR
JACKING
1. Park the vehicle on a firm, level
surface. Avoid ice or slippery areas.
WARNING!
Do not attempt to change a tire on
the side of the vehicle close to mov-
ing traffic, pull far enough off the
road to avoid being hit when operat-
ing the jack or changing the wheel.
2. Turn on the Hazard Warning
flasher.
3. Set the parking brake.
4. Place the shift lever into PARK.
5. Turn OFF the ignition. 6. Block both the
front and rear of
the wheel diago-
nally opposite the
jacking position.
For example, if
changing the right
front tire, block the left rear wheel.
NOTE:
Passengers should not remain in
the vehicle when the vehicle is be-
ing jacked. JACKING INSTRUCTIONS
WARNING!
Carefully follow these tire changing
warnings to help prevent personal
injury or damage to your vehicle:
 Always park on a firm, level sur-
face as far from the edge of the
roadway as possible before raising
the vehicle.
 Turn on the Hazard Warning
flasher.
 Block the wheel diagonally oppo-
site the wheel to be raised.
 Set the parking brake firmly and
set an automatic transmission in
PARK; a manual transmission in
REVERSE.
 Never start or run the engine with
the vehicle on a jack.
 Do not let anyone sit in the vehicle
when it is on a jack.
 Do not get under the vehicle when
it is on a jack.
 Only use the jack in the positions
indicated and for lifting this ve-
hicle during a tire change.
(Continued)
Removing Wheel Spacer
272

WARNING!(Continued)
 If working on or near a roadway,
be extremely careful of motor
traffic.
 To assure that spare tires, flat or
inflated, are securely stowed,
spares must be stowed with the
valve stem facing the ground.CAUTION!
Do not attempt to raise the vehicle
by jacking on locations other than
those indicated in the Jacking In-
structions for this vehicle.
NOTE:
Refer to the “Compact Spare Tire”
section of “Tires – General Infor-
mation” for information about the
spare tire, its use, and operation.
1. Loosen (but do not remove) the
wheel lug nuts by turning them to the
left one turn while the wheel is still on
the ground. 2. There are two jack engagement lo-
cations on each side of the vehicle
body. These locations are on the sill
flange of the vehicle body.
CAUTION!
Do not attempt to raise the vehicle
by jacking on locations other than
those indicated.
Rear jack locations are between a pair
of down-facing tabs on the sill flange
of the vehicle side body. Front jack location is on the sill flange
of the vehicle body and is located
150 mm from door edge.
NOTE:
In some situations the jack may
need to be placed on its side in
order to be pushed under the ve-
hicle. Return the jack to its correct
orientation once it is under the ve-
hicle.

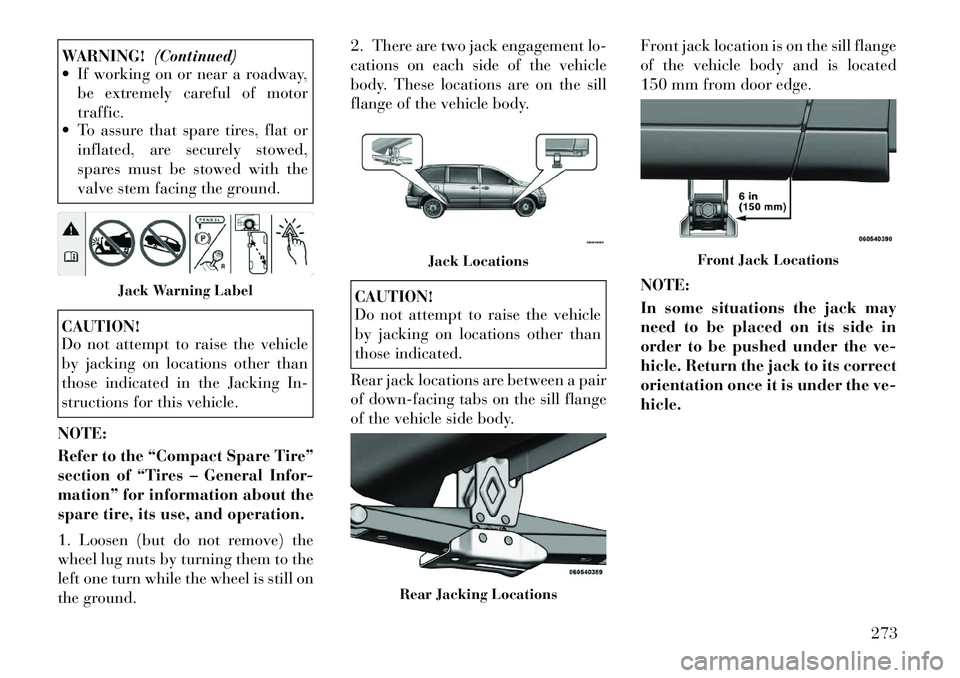

Jack Warning Label
Jack Locations
Rear Jacking Locations
Front Jack Locations
273

WARNING!
Being under a jacked-up vehicle is
dangerous. The vehicle could slip off
the jack and fall on you. You could
be crushed. Never get any part of
your body under a vehicle that is on
a jack. If you need to get under a
raised vehicle, take it to a service
center where it can be raised on a
lift.
3. Place the wrench on the jack screw
and turn to the right until the jack
head is properly engaged in the de-
scribed location. Do not raise the
vehicle until you are sure the jack
is securely engaged.
4. Raise the vehicle by turning the
jack screw to the right, using the
swivel wrench. Raise the vehicle only
until the tire just clears the surface
and enough clearance is obtained to
install the spare tire. Minimum tire lift
provides maximum stability.
WARNING!
Raising the vehicle higher than nec-
essary can make the vehicle less
stable. It could slip off the jack and
hurt someone near it. Raise the ve-
hicle only enough to remove the tire.
5. Remove the wheel lug nuts, for
vehicles with wheel covers, remove
the cover from the wheel by hand. Do
not pry the wheel cover off. Then pull
the wheel off the hub.
6. Install the compact spare tire.
Lightly tighten the lug nuts.CAUTION!
Be sure to mount the spare tire with
the valve stem facing outward. The
vehicle could be damaged if the
spare tire is mounted incorrectly.
WARNING!
To avoid the risk of forcing the ve-
hicle off the jack, do not tighten the
wheel nuts fully until the vehicle has
been lowered. Failure to follow this
warning may result in personal in-
jury.
NOTE:
Do not install the wheel cover on
the compact spare.
7. Lower the vehicle by turning the
jack screw to the left.
Mounting Spare Tire
274
