fault no longer exists, the “Tire Pres-
sure Monitoring Telltale Light” will
no longer flash, the “SERVICE TPM
SYSTEM” message will not be pres-
ent, and a pressure value will be dis-
played instead of dashes. A system
fault can occur by any of the following
scenarios:
1. Jamming due to electronic devices
or driving next to facilities emitting
the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermar-
ket window tinting that affects radio
wave signals.
3. Accumulation of excessive snow
and/or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped
with TPMS sensors.
The EVIC will also display a “SER-
VICE TPM SYSTEM” message for a
minimum of five seconds when a sys-
tem fault possibly related to an incor-
rect sensor location fault is present. In
this case, the “SERVICE TPM SYS-TEM” message is then followed by a
graphic display with pressure values
still shown. This indicates that the
pressure values are still being received
from the TPM sensors but they may
not be in the correct vehicle position.
The system still needs to be serviced
as long as the “SERVICE TPM SYS-
TEM” message exists.
Vehicles With Compact Spare
1. The compact spare tire (for
versions/markets, where provided)
does not have a TPMS. Therefore, the
TPMS will not monitor the pressure in
the compact spare tire.
2. If you install the compact spare
tire in place of a road tire that has a
pressure below the low-pressure
warning limit, upon the next ignition
switch cycle, the “Tire Pressure Moni-
toring Telltale Light” will remain on,
the "TIRE LOW PRESSURE" mes-
sage will be displayed, a chime will
sound, and the EVIC will still display
a flashing pressure value in the
graphic display.
3. After driving the vehicle for up to
20 minutes above 24 km/h, the “TirePressure Monitoring Telltale Light”
will flash on and off for 75 seconds
and then remain on solid. In addition,
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
4. For each subsequent ignition
switch cycle, a chime will sound, the
“Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds and then remain on solid, and
the EVIC will display a “SERVICE
TPM SYSTEM” message for a mini-
mum of five seconds and then display
dashes (- -) in place of the pressure
value.
5. Once you repair or replace the
original road tire, and reinstall it on
the vehicle in place of the compact
spare, the TPMS will update auto-
matically. In addition, the “Tire Pres-
sure Monitoring Telltale Light” will
turn off and the graphic in the EVIC
will display a new pressure value in-
stead of dashes (- -), as long no tire
pressure is below the low pressure
warning limit in any of the four active
road tires.
255

NOTE:
The vehicle may need to be driven
for up to 20 minutes above 24 km/h
in order for the TPMS to receive
this information.
TPMS DEACTIVATION AND
REACTIVATION
The TPMS can be deactivated if re-
placing all four wheel and tire assem-
blies (road tires) with wheel and tire
assemblies that do not have TPMS
Sensors, such as when installing win-
ter wheel and tire assemblies on your
vehicle.
To deactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those not equipped
with TPM Sensors. Then, drive the
vehicle for at least 20 minutes above
24 km/h. The TPMS will chime and
the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 sec-
onds and then remain on solid. In
addition, the Electronic Vehicle Infor-
mation Center (EVIC) will display a
“SERVICE TPM SYSTEM” message,
and the graphic will display “- -“ in
place of four tire pressure values.Upon the next ignition switch cycle,
the TPMS will no longer chime or turn
on the “Tire Pressure Monitoring Tell-
tale Light” or display the text message
in the EVIC. However, the graphic
will still display “- -.“
To reactivate the TPMS, first, replace
all four wheel and tire assemblies
(road tires) with those equipped with
TPM Sensors. Then, drive the vehicle
for up to 20 minutes above 24 km/h.
The TPMS will chime and the “Tire
Pressure Monitoring Telltale Light”
will flash on and off for 75 seconds,
the EVIC will display a “SERVICE
TPM SYSTEM” message, and the
graphic will display tire pressure val-
ues to show that the TPMS is receiving
sensor data.
FUEL REQUIREMENTS
— GASOLINE ENGINE
All engines are designed to meet all
emissions regulations and provide ex-
cellent fuel economy and performance
when using high quality unleaded
gasoline with a minimum research oc-
tane rating of 91. The use of premium
gasoline is not recommended, as itwill not provide any benefit over regu-
lar gasoline in these engines.
Light spark knock at low engine
speeds is not harmful to your engine.
However, continued heavy spark
knock at high speeds can cause dam-
age and immediate service is required.
Poor quality gasoline can cause prob-
lems such as hard starting, stalling,
and hesitations. If you experience
these symptoms, try another brand of
gasoline before considering service for
the vehicle.
Over 40 automobile manufacturer's
world wide have issued and endorsed
consistent gasoline specifications (the
World Wide Fuel Charter, WWFC)
which define fuel properties necessary
to deliver enhanced emissions, perfor-
mance, and durability for your ve-
hicle. The manufacturer recommends
the use of gasoline that meets the
WWFC specifications if they are
available.
256

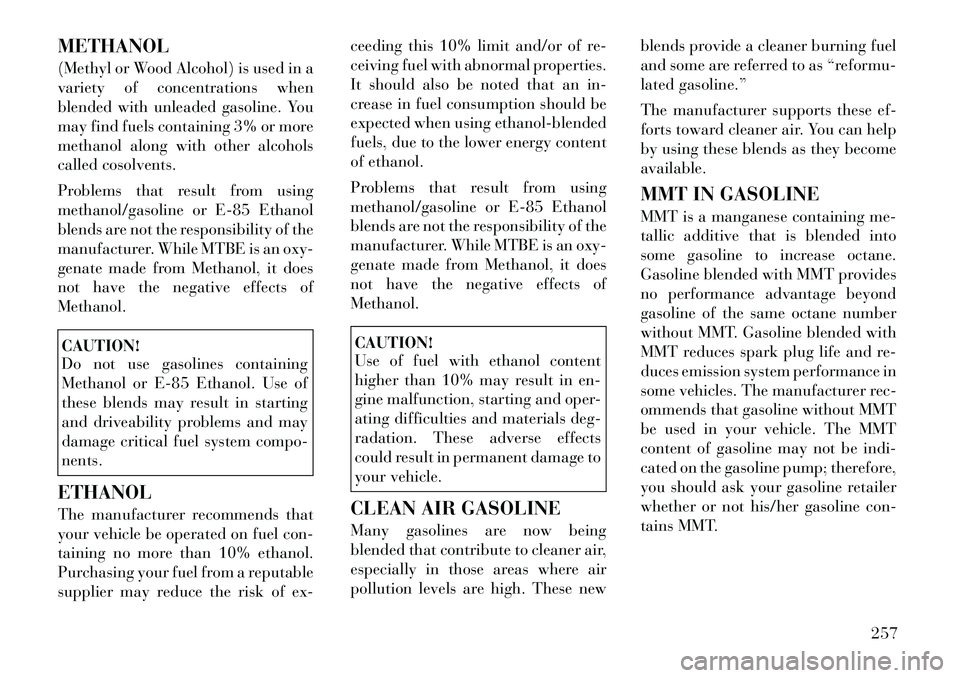

METHANOL
(Methyl or Wood Alcohol) is used in a
variety of concentrations when
blended with unleaded gasoline. You
may find fuels containing 3% or more
methanol along with other alcohols
called cosolvents.
Problems that result from using
methanol/gasoline or E-85 Ethanol
blends are not the responsibility of the
manufacturer. While MTBE is an oxy-
genate made from Methanol, it does
not have the negative effects of
Methanol.CAUTION!
Do not use gasolines containing
Methanol or E-85 Ethanol. Use of
these blends may result in starting
and driveability problems and may
damage critical fuel system compo-
nents.
ETHANOL
The manufacturer recommends that
your vehicle be operated on fuel con-
taining no more than 10% ethanol.
Purchasing your fuel from a reputable
supplier may reduce the risk of ex- ceeding this 10% limit and/or of re-
ceiving fuel with abnormal properties.
It should also be noted that an in-
crease in fuel consumption should be
expected when using ethanol-blended
fuels, due to the lower energy content
of ethanol.
Problems that result from using
methanol/gasoline or E-85 Ethanol
blends are not the responsibility of the
manufacturer. While MTBE is an oxy-
genate made from Methanol, it does
not have the negative effects of
Methanol.
CAUTION!
Use of fuel with ethanol content
higher than 10% may result in en-
gine malfunction, starting and oper-
ating difficulties and materials deg-
radation. These adverse effects
could result in permanent damage to
your vehicle.
CLEAN AIR GASOLINE
Many gasolines are now being
blended that contribute to cleaner air,
especially in those areas where air
pollution levels are high. These new blends provide a cleaner burning fuel
and some are referred to as “reformu-
lated gasoline.”
The manufacturer supports these ef-
forts toward cleaner air. You can help
by using these blends as they become
available.
MMT IN GASOLINE
MMT is a manganese containing me-
tallic additive that is blended into
some gasoline to increase octane.
Gasoline blended with MMT provides
no performance advantage beyond
gasoline of the same octane number
without MMT. Gasoline blended with
MMT reduces spark plug life and re-
duces emission system performance in
some vehicles. The manufacturer rec-
ommends that gasoline without MMT
be used in your vehicle. The MMT
content of gasoline may not be indi-
cated on the gasoline pump; therefore,
you should ask your gasoline retailer
whether or not his/her gasoline con-
tains MMT.
257

MATERIALS ADDED TO
FUEL
Besides using unleaded gasoline with
the proper octane rating, gasolines
that contain detergents, corrosion and
stability additives are recommended.
Using gasolines that have these addi-
tives will help improve fuel economy,
reduce emissions, and maintain ve-
hicle performance.
Indiscriminate use of fuel system
cleaning agents should be avoided.
Many of these materials intended for
gum and varnish removal may con-
tain active solvents or similar ingredi-
ents. These can harm fuel system gas-
ket and diaphragm materials.WARNING!
Carbon monoxide (CO) in exhaust
gases is deadly. Follow the precau-
tions below to prevent carbon mon-
oxide poisoning:(Continued)
WARNING!(Continued)
 Do not inhale exhaust gases. They
contain carbon monoxide, a color-
less and odorless gas which can
kill. Never run the engine in a
closed area, such as a garage, and
never sit in a parked vehicle with
the engine running for an ex-
tended period. If the vehicle is
stopped in an open area with the
engine running for more than a
short period, adjust the ventila-
tion system to force fresh, outside
air into the vehicle.
 Guard against carbon monoxide
with proper maintenance. Have
the exhaust system inspected ev-
ery time the vehicle is raised.
Have any abnormal conditions re-
paired promptly. Until repaired,
drive with all side windows fully
open.
 Keep the liftgate closed when
driving your vehicle to prevent
carbon monoxide and other poi-
sonous exhaust gases from enter-
ing the vehicle. FUEL REQUIREMENTS
— DIESEL ENGINE
Use Premium Quality Diesel fuels
with a Cetane rating of 50 or higher,
and meeting the EN590 standard are
highly recommended. See your autho-
rized dealer for further information
regarding fuels available in your area.
ADDING FUEL
LOCKING FUEL FILLER
CAP (GAS CAP) (for
versions/markets, where
provided)
The locking fuel filler cap is located
behind the fuel filler door, on the left
side of the vehicle. If the cap is lost or
damaged, be sure the replacement cap
has been designed for use with this
vehicle.
NOTE:
The driver's side sliding door can-
not be opened while the fuel door
is open. This feature operates only
when the sliding door is fully
closed prior to opening the fuel
door.
258

1. Insert the fuel cap key into the key
cylinder and turn the key to the right
to unlock.
2. Turn the gas cap knob to the left to
remove the cap.
3. When tightening the filler cap,
tighten until two or three clicks are
heard to ensure that the cap is prop-
erly seated.CAUTION!
 Damage to the fuel system oremission control system could re-
sult from using an improper fuel
tank filler tube cap (gas cap). A
poorly fitting cap could let impu-
rities into the fuel system and may
cause the “Malfunction Indicator
Light (MIL)” to turn on due to
fuel vapors escaping from the sys-
tem.
 To avoid fuel spillage and overfill-
ing, do not “top off” the fuel tank
after filling.
WARNING!
 Never have any smoking materi-als lit in or near the vehicle when
the gas cap is removed or the tank
is being filled.
 Never add fuel when the engine is
running. This is in violation of
most local laws and may cause the
MIL to turn on.
 A fire may result if gasoline is
pumped into a portable container
that is inside of a vehicle. You
could be burned. Always place gas
containers on the ground while
filling.
NOTE:
 When the fuel nozzle “clicks” or shuts off, the fuel tank is full.
 Tighten the fuel filler cap until you hear a “clicking” sound.
This is an indication that the
fuel filler cap is properly tight-
ened.
 If the gas cap is not tightened properly, the MIL may come on.
Be sure the gas cap is tightened
every time the vehicle is refu-
eled. TRAILER TOWING
In this section you will find safety tips
and information on limits to the type
of towing you can reasonably do with
your vehicle. Before towing a trailer
carefully review this information to
tow your load as efficiently and safely
as possible.
To maintain warranty coverage, fol-
low the requirements and recommen-
dations in this manual concerning ve-
hicles used for trailer towing.
COMMON TOWING
DEFINITIONS
The following trailer towing related
definitions will assist you in under-
standing the following information:
Gross Vehicle Weight Rating
(GVWR)
The GVWR is the total allowable
weight of your vehicle. This includes
driver, passengers, cargo and trailer
tongue weight. The total load must be
limited so that you do not exceed the
GVWR.
259

Gross Trailer Weight (GTW)
The GTW is the weight of the trailer
plus the weight of all cargo, consum-
ables and equipment (permanent or
temporary) loaded in or on the trailer
in its "loaded and ready for opera-
tion" condition. The recommended
way to measure GTW is to put your
fully loaded trailer on a vehicle scale.
The entire weight of the trailer must
be supported by the scale.
Gross Combination Weight Rating
(GCWR)
The GCWR is the total permissible
weight of your vehicle and trailer
when weighed in combination.
NOTE:
The GCWR rating includes a 68 kg
allowance for the presence of a
driver.
Gross Axle Weight Rating (GAWR)
The GAWR is the maximum capacity
of the front and rear axles. Distribute
the load over the front and rear axles
evenly. Make sure that you do not
exceed either front or rear GAWR.
WARNING!
It is important that you do not ex-
ceed the maximum front or rear
GAWR. A dangerous driving condi-
tion can result if either rating is ex-
ceeded. You could lose control of the
vehicle and have an accident.
Trailer Tongue Weight (TW)
The tongue weight is the downward
force exerted on the hitch ball by the
trailer. In most cases, it should not be
less than 7% or more than 10% of the
trailer load. Trailer tongue weight
must not exceed the lesser of either the
hitch certification rating, or the trailer
tongue chassis rating. It should never
be less than 4% of the trailer load, and
not less than 25 kg. You must consider
tongue load as part of the load on your
vehicle and its GAWR.
WARNING!
An improperly adjusted hitch sys-
tem may reduce handling, stability
and braking performance and could
result in an accident. Consult with
your hitch and trailer manufacturer
or a reputable trailer/caravan dealer
for additional information.
Frontal Area
The frontal area is the maximum
height multiplied by the maximum
width of the front of a trailer.
BREAKAWAY CABLE
ATTACHMENT
European braking regulations for
braked trailers up to 3 500 kg, require
trailers to be fitted with either a sec-
ondary coupling or breakaway cable.
The recommended location for at-
taching the normal trailer's break-
away cable is in the stamped slot lo-
cated on the sidewall of the hitch
receiver.
260

With Attachment Point
1. For detachable tow bar pass the
cable through the attachment point
and clip it back onto itself.
2. For fixed ball tow bar attach the
clip directly to the designated point.
This alternative must be specifically
permitted by the trailer manufacturer
since the clip may not be sufficiently
strong for use in the way.Without Attachment Points
1. For detachable ball tow bar you
must follow the recommended manu-
facturer or supplier procedure.
2. For fixed ball tow bar loop the
cable around the neck of the tow ball.
If you fit the cable like this, use a
single loop only.
Trailer Towing Weights
(Maximum Trailer Weight
Ratings)
The following chart provides the
maximum trailer weight ratings tow-
able for your given drivetrain.
Engine/
Trans-
mission Max. GTW
(Gross
Trailer
Weight) Trailer
Tongue
Weight
(See Note)
All 1 600 kg 65 kg
Maximum trailer towing speed is
limited to 100 km/h unless local laws require a lower speed.
NOTE:
The trailer tongue weight must be
considered as part of the com-
bined weight of occupants and
cargo, and should never exceed the
weight referenced on the Tire and
Loading Information placard. The
Tire and Loading Information
placard is located on the drivers
door pillar.
Trailer And Tongue Weight
Loads balanced over the wheels or
heavier in the rear can cause the
trailer to sway severelyside to side
which will cause loss of control of the
Detachable Ball Clip Loop Method
Fixed Ball Clip Loop Method
Detachable Ball Neck Loop Method
Fixed Ball Neck Loop Method
261

vehicle and trailer. Failure to load
trailers heavier in front is the cause of
many trailer accidents.
Never exceed the maximum trailer
tongue weight stamped on your trailer
hitch.
Consider the following items when
computing the weight on the rear axle
of the vehicle:
 The tongue weight of the trailer.
 The weight of any other type ofcargo or equipment put in or on
your vehicle.
 The weight of the driver and all passengers.
NOTE:
Remember that everything put into
or on the trailer adds to the load on
your vehicle. Also, additional
factory-installed options, or
dealer-installed options, must be
considered as part of the total load
on your vehicle. Refer to the Tire
and Loading Information placard,
located on the drivers door pillar, for the maximum combined weight
of occupants and cargo for your
vehicle.
Towing Requirements
To promote proper break-in of your
new vehicle drivetrain components
the following guidelines are recom-
mended:
CAUTION!
 Do not tow a trailer at all during
the first 805 km the new vehicle is
driven. The engine, axle or other
parts could be damaged.
 Then, during the first 805 km that
a trailer is towed, do not drive
over 80 km/h and do not make
starts at full throttle. This helps
the engine and other parts of the
vehicle wear in at the heavier
loads.WARNING!
Improper towing can lead to an in-
jury accident. Follow these guide-
lines to make your trailer towing as
safe as possible:
(Continued)
WARNING!(Continued)
 Make certain that the load is se-
cured in the trailer and will not
shift during travel. When traile-
ring cargo that is not fully se-
cured, dynamic load shifts can oc-
cur that may be difficult for the
driver to control. You could lose
control of your vehicle and have
an accident.
 All trailer hitches should be pro-
fessionally installed on your ve-
hicle.
 When hauling cargo or towing a
trailer, do not overload your ve-
hicle or trailer. Overloading can
cause a loss of control, poor per-
formance or damage to brakes,
axle, engine, transmission, steer-
ing, suspension, chassis structure
or tires.
 Safety chains must always be used
between your vehicle and trailer.
Always connect the chains to the
frame or hook retainers of the ve-
hicle hitch. Cross the chains under
the trailer tongue and allow
enough slack for turning corners.
(Continued)
262

WARNING!(Continued)
 Vehicles with trailers should not
be parked on a grade. When park-
ing, apply the parking brake on
the tow vehicle. Put the tow ve-
hicle automatic transmission in
PARK. Always block or "chock"
the trailer wheels.
 GCWR must not be exceeded.
 Total weight must be distrib-
uted between the tow vehicle
and the trailer such that the
following four ratings are not
exceeded:
1. GVWR
2. GTW
3. GAWR
4. Trailer tongue weight rating for
the trailer hitch utilized.
Towing Requirements – Tires
 Do not attempt to tow a trailer while using a compact spare tire.
 Proper tire inflation pressures are essential for the safe and satisfac-
tory operation of your vehicle. Re-
fer to “Tires – General Informa-
tion” in “Starting and Operating”
for proper tire inflation procedures.  Check the trailer tires for proper
tire inflation pressures before
trailer usage.
 Check for signs of tire wear or vis- ible tire damage before towing a
trailer. Refer to “Tires – General
Information” in “Starting and Op-
erating” for the proper inspection
procedure.
 When replacing tires, refer to “Tires – General Information” in “Start-
ing and Operating” for proper tire
replacement procedures. Replacing
tires with a higher load carrying
capacity will not increase the vehi-
cle's GVWR and GAWR limits.
Towing Requirements – Trailer
Brakes
 Do notinterconnect the hydraulic
brake system or vacuum system of
your vehicle with that of the trailer.
This could cause inadequate brak-
ing and possible personal injury.
 When towing a trailer equipped with a hydraulic surge actuated
brake system, an electronic brake
controller is not required.  Trailer brakes are recommended
for trailers over 450 kg and re-
quired for trailers in excess of
750 kg.
CAUTION!
If the trailer weighs more than
450 kg loaded, it should have its
own brakes and they should be of
adequate capacity. Failure to do this
could lead to accelerated brake lin-
ing wear, higher brake pedal effort,
and longer stopping distances.WARNING!
 Do not connect trailer brakes to
your vehicle's hydraulic brake
lines. It can overload your brake
system and cause it to fail. You
might not have brakes when you
need them and could have an ac-
cident.
 Towing any trailer will increase
your stopping distance. When
towing you should allow for addi-
tional space between your vehicle
and the vehicle in front of you.
Failure to do so could result in an
accident.
263

Towing Requirements – Trailer
Lights And Wiring
Whenever you pull a trailer, regard-
less of the trailer size, stop lights and
turn signals on the trailer are required
for motoring safety.
The Trailer Tow Package may include
a seven-pin or a thirteen-pin wiring
harness. Use a factory approved
trailer harness and connector.
NOTE:
Do not cut or splice wiring into the
vehicles wiring harness.
The electrical connections are all
complete to the vehicle but you must
mate the harness to a trailer connec-
tor.
Seven - Pin Connector DetailsPin Function Wire
Color
1 Left Turn Signal Yellow
2 Rear Fog Light Blue
3 Ground/
Common Re-
turn White
4 Right Turn Sig- nal Green
5 Right Rear Posi- tion, Side
Marker Lights,
and Rear Regis-
tration Plate
Illumination
Device
1
Brown
6 Stop Lights Red
7 Left Rear Posi- tion, Side
Marker Lights,
and Rear Regis-
tration Plate
Illumination
Device
1
Black
1The rear position registration
plate illumination device shall be
connected such that no light of the
device has a common connection
with both pins 5 and 7.
Thirteen - Pin Connector Details Pin Function Wire
Color
1 Left Turn Signal Yellow
2 Rear Fog Light Blue
3 Ground/
Common Re-
turn for Con-
tacts (Pins) 1
and 2 and 4 to
8
2
White
4 Right Turn Sig- nal Green
5 Right Rear Posi- tion, Side
Marker Lights,
and Rear Regis-
tration Plate
Illumination
Device.
b
Brown
Seven - Pin Connector
Thirteen - Pin Connector
264
