When the CITY function is on, the steering wheel
effort is lighter, parking operations are easier:
therefore this function is particularly useful for
driving in city centres.
WARNING
It is absolutely forbidden to carry out
any after-market
operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device) that could badly affect performance
and safety, invalidate warranty and also
result in non-compliance of the car with
type approval requirements.
IMPORTANT During parking manoeuvres
requiring a lot of steering, the steering may
become harder; this is normal and is due to the
intervention of the system to protect the electric
steering motor from overheating, so no
intervention is required. When the car is used
again later on, the power steering will work
normally.
WARNING
Before starting any servicing
operation, stop the
engine and
remove the key from the ignition switch to
operate the steering lock, particularly when
the wheels do not touch the ground. If this
is not possible (for example if the key needs
to be turned to MAR-ON or the engine must
be running), remove the main fuse that
protects the electric power steering.
89GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REFUELLING THE CARVersions equipped with "Smart Fuel" system are
provided with an inhibiter preventing refuelling
with incorrect fuel.
Accidental refuelling with non compliant fuels (for
example petrol in Diesel engines) can only occur
in the case of versions equipped with fuel tank
cap. Before refuelling, make sure that the fuel type
is correct.
Switch off the engine before refuelling.
PETROL ENGINES
Use unleaded petrol only, with an octane number
(R.O.N.) no lower than 95. In order to prevent
damage to the catalytic converter never introduce
even the smallest amount of leaded petrol, even
in the event of an emergency.
IMPORTANT An inefficient catalytic converter
leads to harmful exhaust emissions, thus
contributing to air pollution.
IMPORTANT Never use leaded petrol, even in
small amounts or in an emergency, as this would
damage the catalytic converter beyond repair.DIESEL ENGINES
Operation at low temperatures
If the outside temperature is very low, the diesel
thickens due to the formation of paraffin clots
with consequent defective operation of the fuel
supply system.
In order to avoid these problems, different types of
diesel fuel are distributed according to the season:
summer type, winter type and arctic type
(cold/mountain areas). If refuelling with diesel
fuel whose specifications are not suitable for the
current temperature, it is advisable to mix
TUTELA DIESEL ART additive in the
proportions shown on the container with the fuel.
Pour the additive into the tank before the diesel
fuel.
When using or parking the car for a long time in
the mountains or cold areas, it is advisable to
refuel using locally available diesel. In this case, it
is also advisable to keep the tank over 50% full.
104GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

For diesel engines, use only diesel fuel
for motor vehicles in accordance with
EN590 European specifications. The
use of other products or mixtures may damage
the engine beyond repair and consequently
invalidate the warranty, depending on the
damage caused. If you accidentally refuel with
another type of fuel, do not start the engine,
and drain the fuel tank. If the engine has been
run, even for only a very short time, you will
need to have the entire fuel system emptied in
addition to the tank.
REFUELLING CAPACITY
To fill the tank completely, top up twice after the
pump switches off. Further top-ups could cause
faults in the fuel feeding system.
REFUELLING PROCEDURE FOR VERSIONS
EQUIPPED WITH FUEL TANK PLUG
(for versions/markets, where provided)
Refuel as follows:
❒open the flap A fig. 84 pulling it outwards;
❒keep the plug B still, insert the ignition key in
the lock and turn it anticlockwise;
❒Turn the plug anticlockwise and remove it.The plug has a device C fig. 84 that attaches it to
the flap so that it cannot be lost. When refilling,
attach the plug to the flap, as shown.
After refuelling, fit the plug B fig. 84 (complete
with key) and turn it clockwise until it clicks once
or more. Turn the key clockwise and remove it.
Close the flap A.
The sealing may cause a slight pressure increase in
the tank. A little breathing off, while unscrewing
the plug or introducing the gun in the versions
equipped with "Smart Fuel", is therefore
absolutely normal.
fig. 84
L0F0240
105GETTING TO
KNOW YOUR CARSAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNINGS FOR VERSIONS EQUIPPED
WITH "Smart Fuel"
WARNING
At the end of the filler do not apply
any object/plug which
is not provided
for for the car. The use of non compliant
objects/plugs could cause a pressure
increase inside the tank, generating
dangerous situations.
WARNING
Do not bring naked flames or lit
cigarettes near to
the fuel filler: fire
risk. Keep your face away from the fuel filler
to prevent breathing in harmful vapours.
IMPORTANT If the filler compartment is washed
with a high pressure jet, keep it at a distance of
at least 20 cm.
PROTECTING THE ENVIRONMENTThe following devices are used for reducing petrol
fuel engine emissions: catalytic converter, oxygen
sensors and evaporation control system
Do not let the engine run, even for a test, with one
or more spark plugs disconnected.
The following devices are used for reducing diesel
fuel engine emissions: oxidising catalytic
converter, exhaust gas recirculation system (EGR)
and particulate filter (DPF).
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets, where provided)
This is a mechanical filter, fitted in the exhaust
system, which almost completely eliminates
carbon particle emissions.
WARNING
During normal service, the catalytic
converter and the
diesel particulate
filter (DPF) reach high temperatures. Do not
therefore park the car over inflammable
materials (grass, dry leaves, pine needles,
etc.): fire hazard.
108GETTING TO
KNOW YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Front seats (warning light no. 1 = driver and
no. 4 = passenger)
Driver
If the driver is the only occupant and the seat belt
is not fastened, when 20 km/h is exceeded or
when travelling at a speed from 10 to 20 km/h for
longer than 5 seconds, an acoustic signal sequence
will be started (front seats) consisting of a tone
for 6 seconds followed by a 90 second beep. The
warning light will flash. The warning lights will
stay on fixed at the end of the cycle until the
engine is stopped. The acoustic signal will
be interrupted immediately when the driver's seat
belt is fastened and the warning light will turn
green.
The reminder cycle (acoustic and visual) will be
repeated as described above and the red warning
light will flash if the seat belt is unfastened again
while travelling.
Passenger
A similar situation applies to the front passenger,
with the difference that the warning light turns
green and the indication is also interrupted when
the passenger leaves the car.
It both front seat belts are unfastened while the
car is travelling a few seconds apart, the acoustic
indication will refer to the most recent event
and the two warning lights will proceed with the
visual indication independently.Rear seats (warning light no. 2 and no. 3)
For rear seats, the reminder cycle occurs only
when any seat belt is unfastened (red flashing
warning light). In this condition, the warning light
referred to the seat belt which has been
unfastened will become red and blink for
approximately 30 seconds. An acoustic signal is
also issued.
The visual indication (red flashing) will start and
stop independently for each warning light if
several seat belts are unfastened. The warning
light will become green when the relevant seat belt
is fastened again.
The rear seat warning lights will switch off,
regardless of the state of the belt (red or green)
approximately 30 seconds after the last signal.
IMPORTANT When the ignition key is turned to
MAR, if all the front and rear belts are already
fastened the warning lights will remain lit with a
constant green light for about 30 seconds.
112
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
ANDMESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

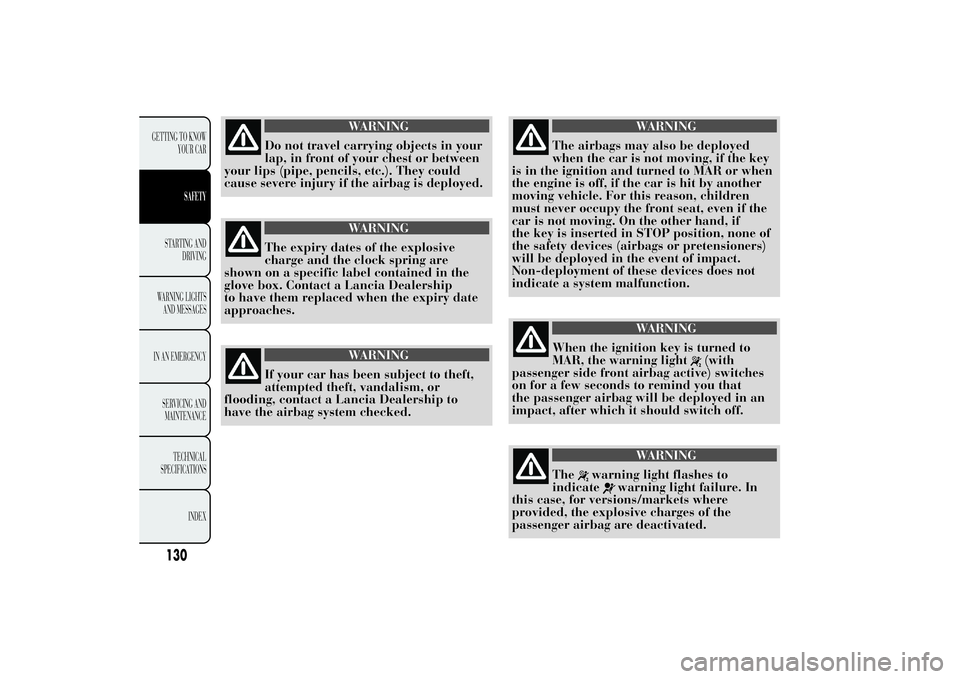

WARNING
Do not travel carrying objects in your
lap, in front
of your chest or between
your lips (pipe, pencils, etc.). They could
cause severe injury if the airbag is deployed.
WARNING
The expiry dates of the explosive
charge and the
clock spring are
shown on a specific label contained in the
glove box. Contact a Lancia Dealership
to have them replaced when the expiry date
approaches.
WARNING
If your car has been subject to theft,
attempted theft, vandalism,
or
flooding, contact a Lancia Dealership to
have the airbag system checked.
WARNING
The airbags may also be deployed
when the car
is not moving, if the key
is in the ignition and turned to MAR or when
the engine is off, if the car is hit by another
moving vehicle. For this reason, children
must never occupy the front seat, even if the
car is not moving. On the other hand, if
the key is inserted in STOP position, none of
the safety devices (airbags or pretensioners)
will be deployed in the event of impact.
Non-deployment of these devices does not
indicate a system malfunction.
WARNING
When the ignition key is turned to
MAR, the warning
light
(with
passenger side front airbag active) switches
on for a few seconds to remind you that
the passenger airbag will be deployed in an
impact, after which it should switch off.
WARNING
The
warning light flashes to
indicate
warning light failure. In
this case, for versions/markets where
provided, the explosive charges of the
passenger airbag are deactivated.
130
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
W
ARNING LIGHTS
ANDMESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

STARTING AND DRIVING
STARTING THE ENGINESTARTING PROCEDURE FOR PETROL
VERSIONS
Proceed as follows:
❒engage the handbrake and place the gearbox in
neutral;
❒press the clutch pedal down to the floor without
touching the accelerator;
❒turn the ignition key to AVV and release it as
soon as the engine starts.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
the procedure.
If, when the ignition key is at MAR, the
instrument panel warning light
remains on
together with warning light
, turn the key to
STOP and then back to MAR; if the warning light
remains on, try the other keys provided with the
vehicle.
Contact a Lancia Dealership if you still cannot
start the engine.
Never leave the ignition key in MAR position when
the engine is stopped.STARTING PROCEDURE FOR DIESEL
VERSIONS
Proceed as follows:
❒engage the handbrake and place the gearbox in
neutral;
❒turn the ignition key to MAR: the warning lights
and
on the instrument panel will turn
on;
❒wait for the warning lights
and
to
switch off;
❒press the clutch pedal down to the floor without
touching the accelerator;
❒turn the ignition key to AVV as soon as warning
light
switches off. Waiting too long will
waste the work done by the glow plugs. Release
the key as soon as the engine starts.
IMPORTANT With cold engine, the accelerator
must be entirely released when turning the
ignition key to position AVV.
If the engine does not start at the first attempt,
return the ignition key to STOP before repeating
the procedure.
132
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

If, when the ignition key is at MAR the
warning light remains lit, turn the key to
STOP and then back to MAR; if the warning light
remains lit, try with the other keys provided
with the car.
Contact a Lancia Dealership if you still cannot
start the engine.
Warning light
will flash for 60
seconds after starting or during
prolonged cranking to indicate a fault
with the glow plug heating system. You can
use the car as usual if the engine starts but
you should contact a Lancia Dealership as
soon as possible.
WARNING
It is dangerous to run the engine in
enclosed areas. The
engine takes
in oxygen and releases carbon dioxide,
carbon monoxide and other toxic gases.
WARNING
Remember that the brake servo and
power steering are
not operational
until the engine has been started, therefore
much effort than usual is required on the
brake pedal and steering wheel.
We recommend that during the initial
period you do not demand to full
performance from the car (e.g.
excessive acceleration, long journeys at top
speed, sharp braking etc.).When the engine is switched off never
leave the key turned to MAR to prevent
useless current absorption from
draining the battery.Never jump start the engine by
pushing, towing or coasting downhill.
This could cause fuel to flow into the
catalytic converter and damage it beyond
repair.
HOW TO WARM UP THE ENGINE AFTER IT
HAS JUST STARTED
Proceed as follows:
❒Drive off slowly, letting the engine turn at
medium revs. Do not accelerate abruptly;
❒Do not demand full performance at first. Wait
until the engine coolant temperature gauge
starts moving.
133GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

STOPPING THE ENGINE
Turn the ignition key to STOP while the engine is
idling.
IMPORTANT After a taxing drive, before turning
the engine off you should allow it to idle to allow
the temperature in the engine compartment to fall.
A quick burst on the accelerator before
turning off the engine serves absolutely
no practical purpose, it wastes fuel
and is damaging especially to turbocharged
engines.
PARKINGSwitch off the engine and engage the handbrake.
Engage a gear (first gear if parked uphill or
reverse if facing downhill) and leave the wheels
turned. If the car is parked on a steep slope block
the wheels with a wedge or stone. Always remove
the ignition key when leaving the car.
HANDBRAKE
To engage the handbrake pull lever A fig. 108
upwards until the car is secured. To release the
handbrake, raise the lever A slightly, press and
hold the button B and lower the lever.
If the car is parked on a steep slope, it is also
advisable to block the wheels with a wedge or
stone.
fig. 108
L0F0074
134
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Never leave children in the unattended car. Always
remove the ignition key when leaving the car and
take it out with you.
WARNING
The car should be braked after a few
clicks of the
lever, if it is not, contact
a Lancia Dealership to have it adjusted.
USING THE GEARBOXTo engage the gears, fully depress the clutch pedal
and put the gear lever into the required position
(the diagram is shown on the knob fig. 109).
For 0.9 TwinAir 85 HP and 1.2 8V 69 HP
versions, to engage reverse R from neutral, lift the
ring A fig. 109 and shift the lever to the right
and back.
For 1.3 16V MultiJet version: to engage reverse R
from neutral position, shift the lever to the right
and then back.
IMPORTANT Reverse can only be engaged when
the car is completely stationary. With the engine
running, wait for at least 2 seconds with the clutch
pedal fully pressed before engaging reverse to
prevent damage to the gears and grating.
fig. 109
L0F0058
135GETTING TO KNOW
YOUR CAR
SAFETYSTARTING AND
DRIVINGWARNING LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
