LAND ROVER DISCOVERY 2002 Workshop Manual

CHASSIS AND BODY DIMENSIONS
77-1-8 BODY DIMENSIONS
Front end/side information
I.D Description X Y Z
A Bonnet hinge fixing, top hole -1906.3 706 742.9
(-75.051) (27.795) (29.248)
B Windscreen finisher, top slot -1508.9 715 1229
(-59.405) (28.147) (48.385)
C 'A' post top, top hinge fixing -1859 809.6 584.7
hole (-120.700) (24.055) (23.019)
D 'A' post bottom, top hinge -1859 809.6 289.1
fixing hole (-120.700) (24.055) (11.381)
E 'B/C' post top, top hinge -860.5 809.8 680.5
fixing (-33.877) (31.881) (26.791)
F 'B/C' post top, jig location -841.5 809.8 644.5
hole (-33.129) (31.881) (25.374)
G 'B/C' post bottom, top hinge -860.5 809.8 290.3
fixing hole (-33.877) (31.881) (11.429)
H 'B/C' post bottom, jig location -841.5 809.8 254.2
hole (-33.129) (31.881) (10.007)
J 'D' post, door striker fixing, -75.4 782.3 619.1
top hole (-2.968) (30.799) (24.374)
M77 1755A
B
C
H
F
D
J
A
E
G

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-9
Point to point dimensional information
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
All dimensions are to hole/slot centres.
Front end information
I.D Description Length
A Distance between headlamp mounting panel slots 1373.2 (54.062)
B Distance between grille locating slots 827.8 (32.590)
C Distance between bonnet locking platform jig location
holes1222 (48.110)
D Distance between valance upper assembly jig location
holes1541 (60.669)
E Distance between wing, front fixing holes 1536 (60.472)
F Distance between bonnet locking platform jig location
hole and wing, front fixing hole170.2 (6.700)
G Distance between wing, front fixing hole and wing, rear
fixing hole1894.7 (74.594)
H Distance between wing, rear fixing holes 1586 (62.440)
M77 1752
A
B
C
D
E
F
G
H

CHASSIS AND BODY DIMENSIONS
77-1-10 BODY DIMENSIONS
Front end/side information
I.D Description Length
A Distance between bonnet hinge fixing top hole and
windscreen side finisher top fixing slot1553.5 (61.161)
B Distance between windscreen side finisher top fixing
slots1430 (56.299)
C Distance between front door top hinge fixing hole and
rear door top hinge fixing hole998.5 (39.311)
D Distance between front door top hinge fixing hole and
rear door bottom hinge fixing hole1067.7 (42.035)
E Distance between front door bottom hinge fixing hole
and rear door top hinge fixing hole1072.5 (42.224)
F Distance between front door bottom hinge fixing hole
and rear door bottom hinge fixing hole998.5 (39.311)
G Distance between 'B/C' post top jig location hole and 'D'
post top door striker fixing hole767 (30.196)
H Distance between 'B/C' post bottom jig location hole and
'D' post top door striker fixing hole849.1 (33.429)
M77 1754
A
B
C
D
G
E
F
H

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-11
Internal information
I.D Description Length
A Distance between seat belt anchorage top fixing and
seat belt reel lower fixing1814.5 (71.437)
B Distance between seat belt anchorage lower fixings on
wheel arch inner1430.2 (56.307)
M77 1760
A
B

CHASSIS AND BODY DIMENSIONS
77-1-12 BODY DIMENSIONS
Rear end information
I.D Description Length
A Distance between taildoor setting block, jig location hole
and taildoor bottom hinge, middle fixing hole1364.4 (53.716)
B Distance between taildoor setting block, jig location hole
and taildoor top hinge, middle fixing hole1319.8 (51.960)
C Distance between crossmember outer rear panel, jig
location hole and rear headrest fixing hole 1413 (55.629)
M77 1758A
A
B
C

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-13
Gaps and profiles
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
Front end information
Gaps
The tolerance for the above figures is
± 1.0 (0.039).
Section Gap Description Dimension
A-A a Headlamp to grille 9.5 (0.374)
B-B b Headlamp to bonnet 14.0 (0.551)
C-C c Headlamp to indicator lamp 6.0 (0.236)
D-D d Headlamp to headlamp surround panel 9.5 (0.374)

CHASSIS AND BODY DIMENSIONS
77-1-14 BODY DIMENSIONS

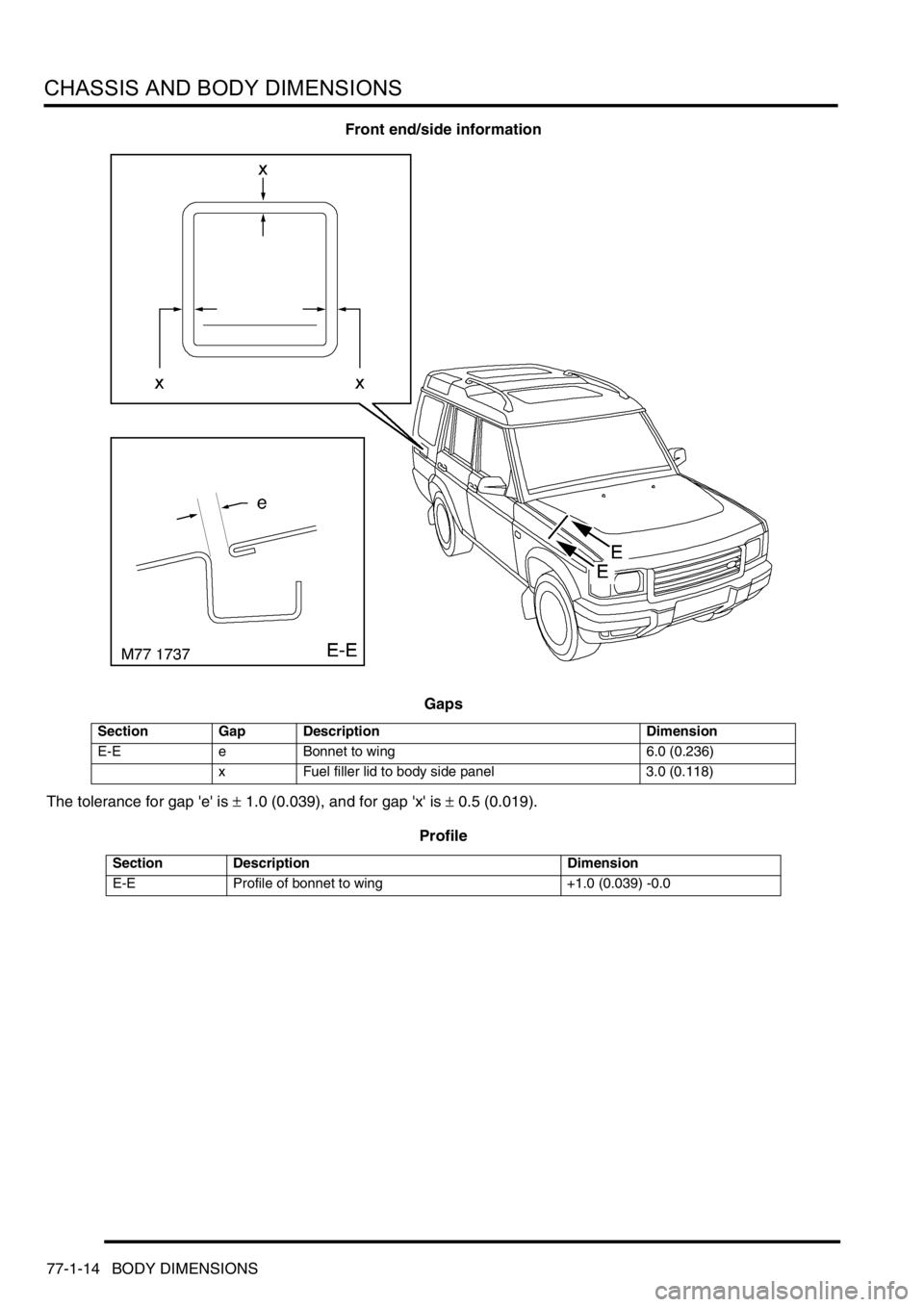

Front end/side information
Gaps
The tolerance for gap 'e' is
± 1.0 (0.039), and for gap 'x' is ± 0.5 (0.019).
Profile
Section Gap Description Dimension
E-E e Bonnet to wing 6.0 (0.236)
x Fuel filler lid to body side panel 3.0 (0.118)
Section Description Dimension
E-E Profile of bonnet to wing +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-15

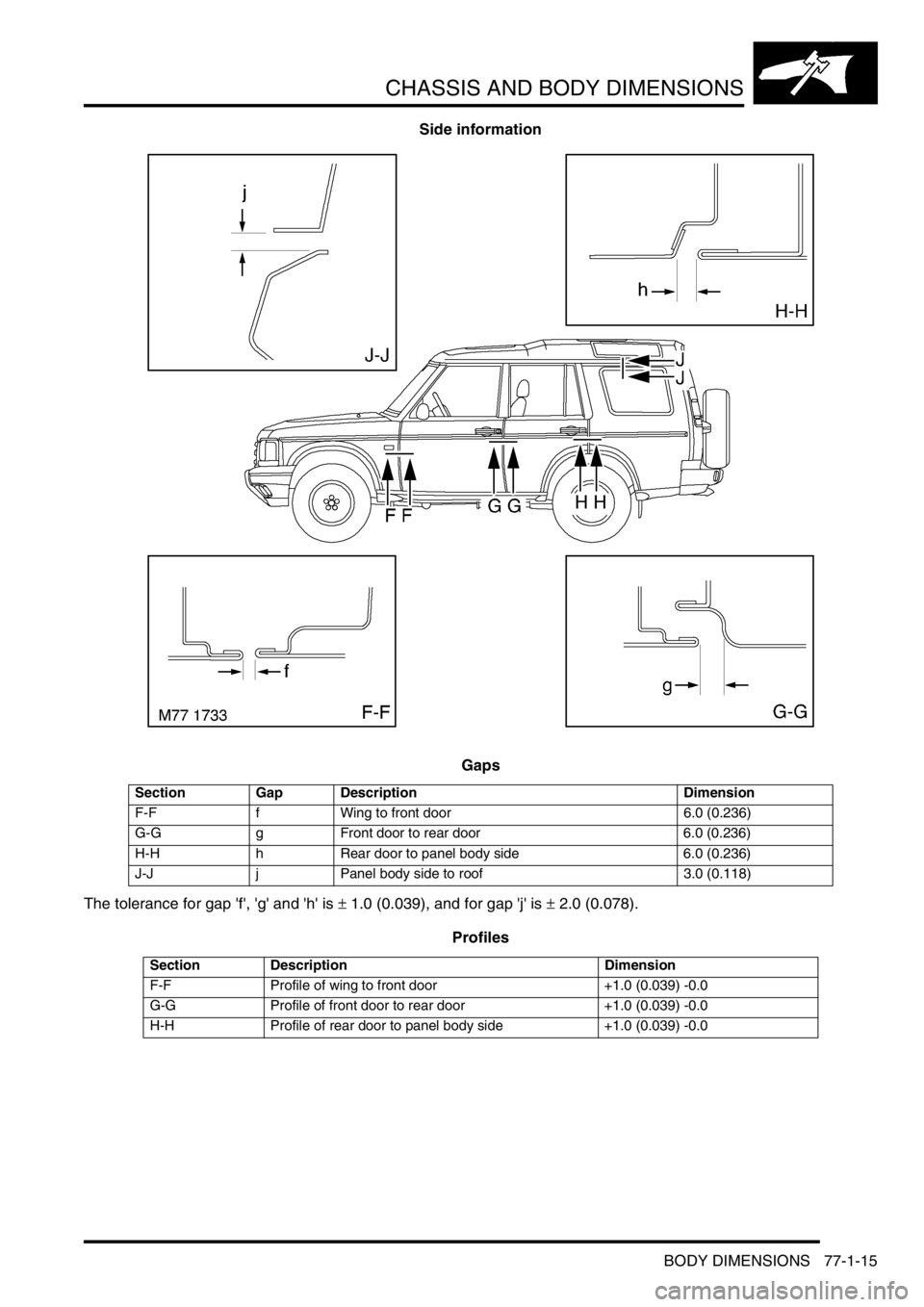

Side information
Gaps
The tolerance for gap 'f', 'g' and 'h' is
± 1.0 (0.039), and for gap 'j' is ± 2.0 (0.078).
Profiles
Section Gap Description Dimension
F-F f Wing to front door 6.0 (0.236)
G-G g Front door to rear door 6.0 (0.236)
H-H h Rear door to panel body side 6.0 (0.236)
J-J j Panel body side to roof 3.0 (0.118)
Section Description Dimension
F-F Profile of wing to front door +1.0 (0.039) -0.0
G-G Profile of front door to rear door +1.0 (0.039) -0.0
H-H Profile of rear door to panel body side +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
77-1-16 BODY DIMENSIONS

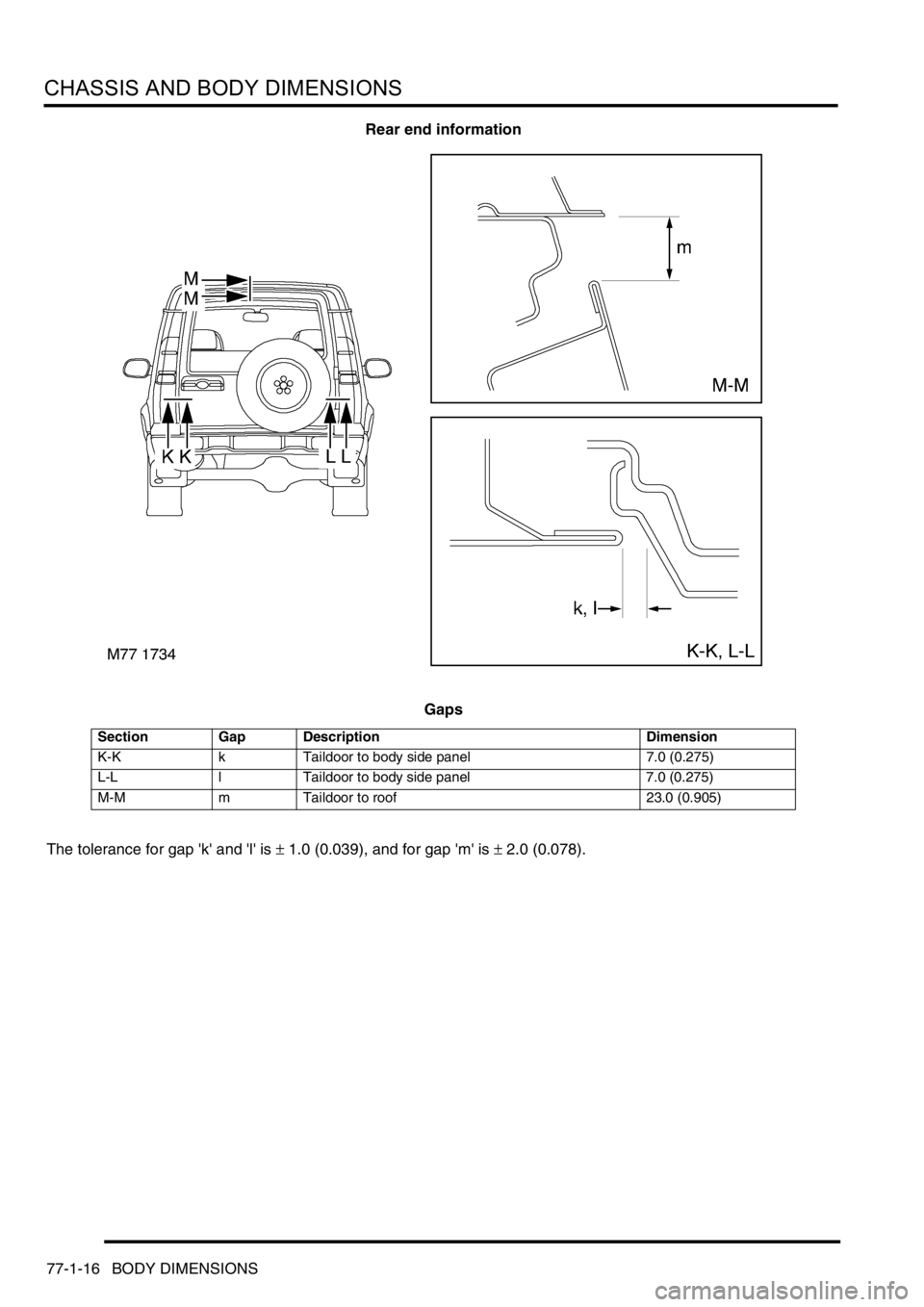

Rear end information
Gaps
The tolerance for gap 'k' and 'l' is
± 1.0 (0.039), and for gap 'm' is ± 2.0 (0.078).
Section Gap Description Dimension
K-K k Taildoor to body side panel 7.0 (0.275)
L-L l Taildoor to body side panel 7.0 (0.275)
M-M m Taildoor to roof 23.0 (0.905)

PANEL REPAIRS
REPLACEMENT PANELS 77-2-1
PANEL REPAIRS REPLACE ME NT PA NELS

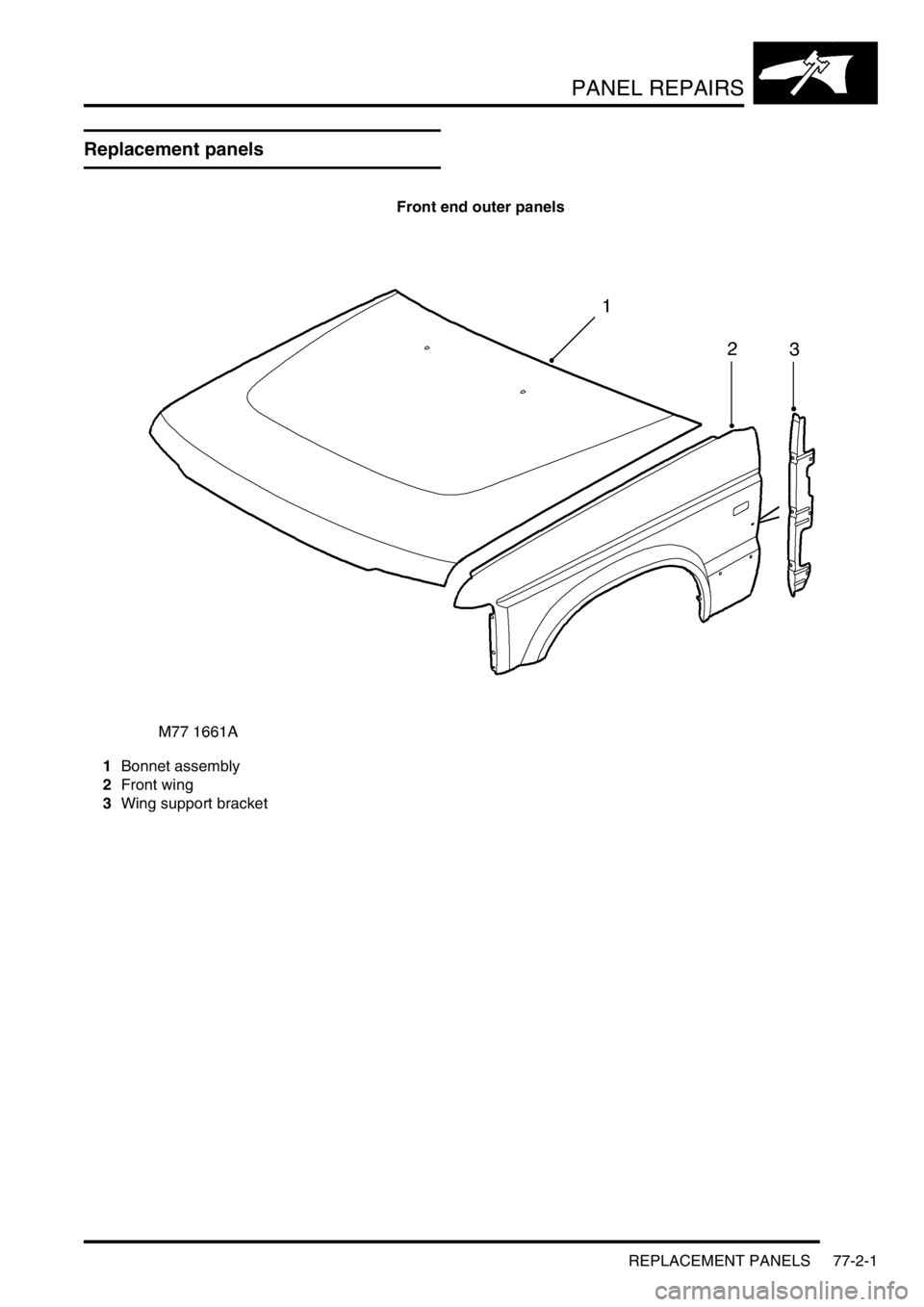

Replacement panels
Front end outer panels
1Bonnet assembly
2Front wing
3Wing support bracket
