Page 1251 of 1672

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS 77-2-2 REPLACEMENT PANELS Front end inner panels 1Bonnet locking platform 2Headlamp mounting panels 3Front crossmember 4Front bulkhead assembly

Page 1252 of 1672

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS REPLACEMENT PANELS 77-2-3 Valance panels 1Reinforcement valance outer 2Valance upper assembly 3Headlamp closing panel 4Front valance assembly

Page 1253 of 1672

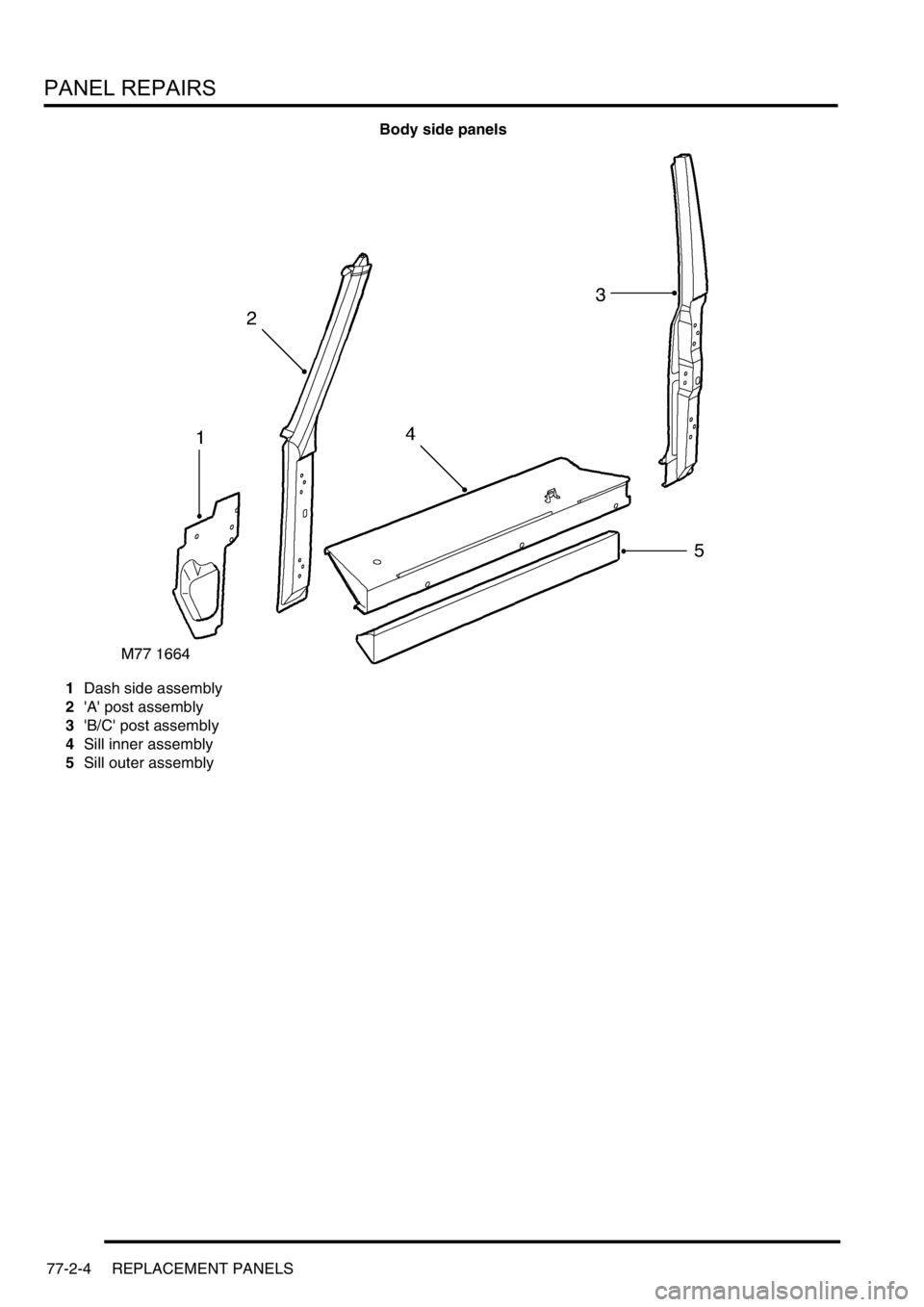

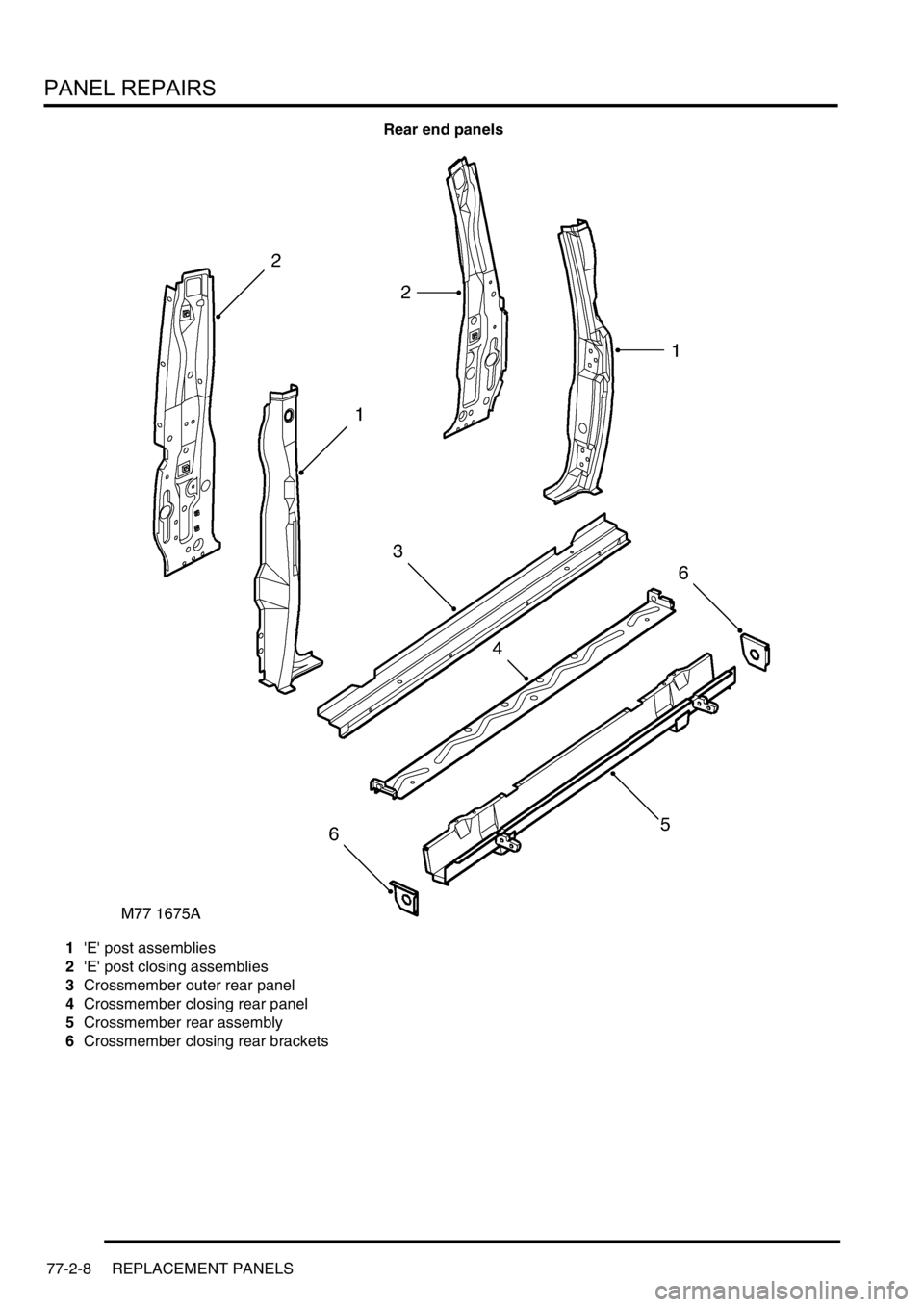

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS 77-2-4 REPLACEMENT PANELS Body side panels 1Dash side assembly 2A post assembly 3B/C post assembly 4Sill inner assembly 5Sill outer assembly

Page 1254 of 1672

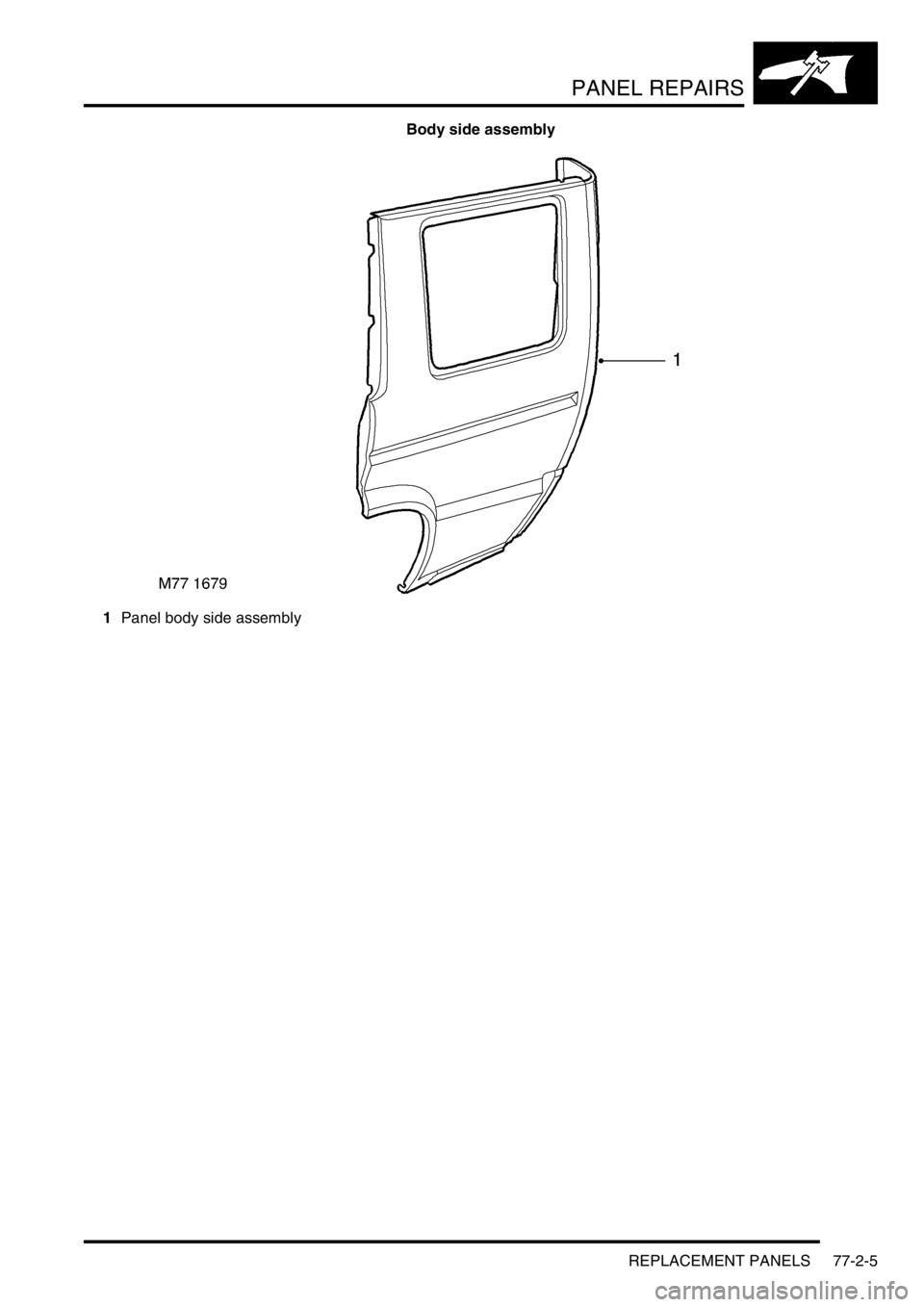

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS REPLACEMENT PANELS 77-2-5 Body side assembly 1Panel body side assembly

Page 1255 of 1672

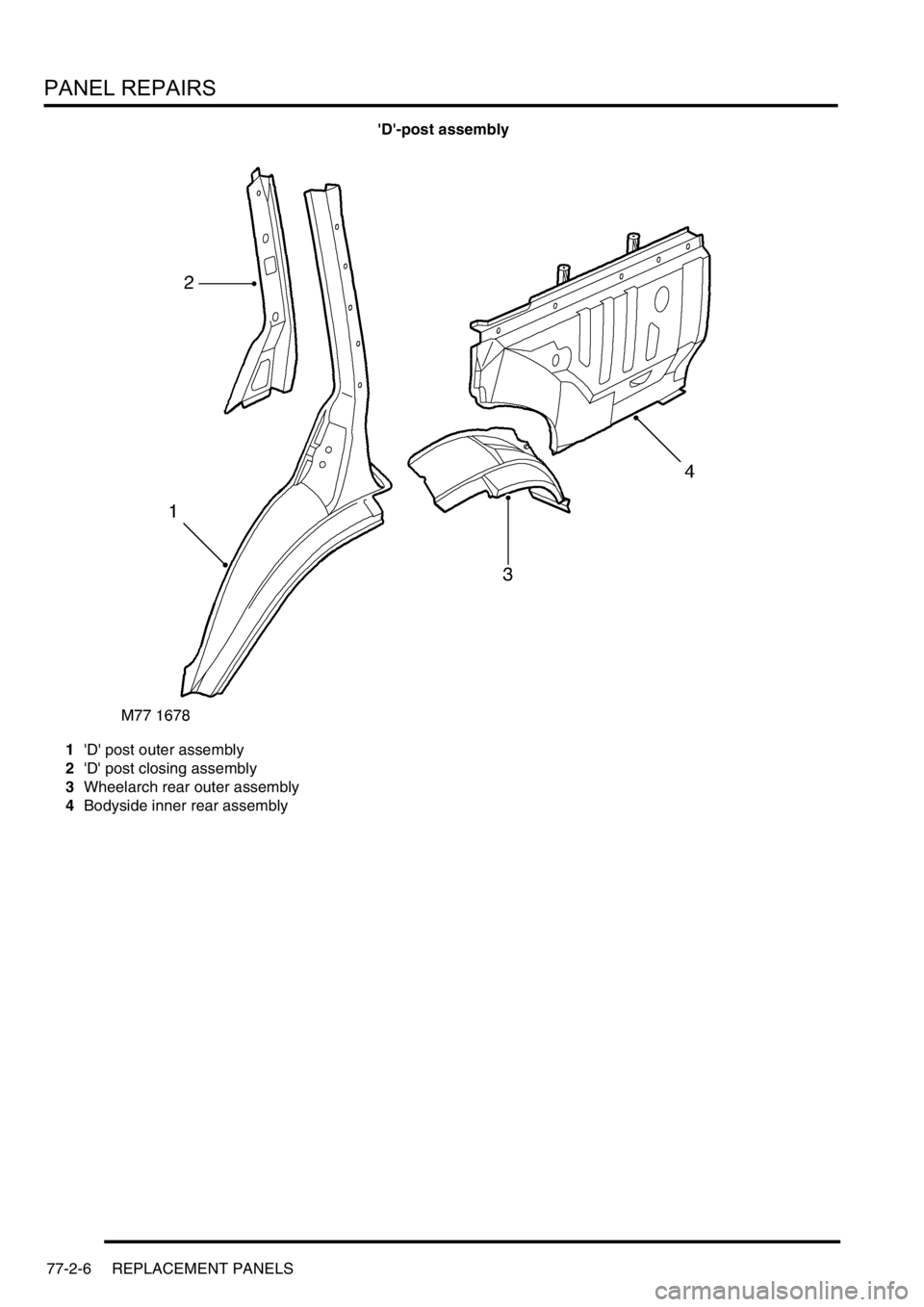

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS 77-2-6 REPLACEMENT PANELS D-post assembly 1D post outer assembly 2D post closing assembly 3Wheelarch rear outer assembly 4Bodyside inner rear assembly

Page 1256 of 1672

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS REPLACEMENT PANELS 77-2-7 Rear floor assembly. 1Rear floor assembly M77 1673C 1

Page 1257 of 1672

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS 77-2-8 REPLACEMENT PANELS Rear end panels 1E post assemblies 2E post closing assemblies 3Crossmember outer rear panel 4Crossmember closing rear panel 5Crossmember rear assembly 6Cro

Page 1258 of 1672

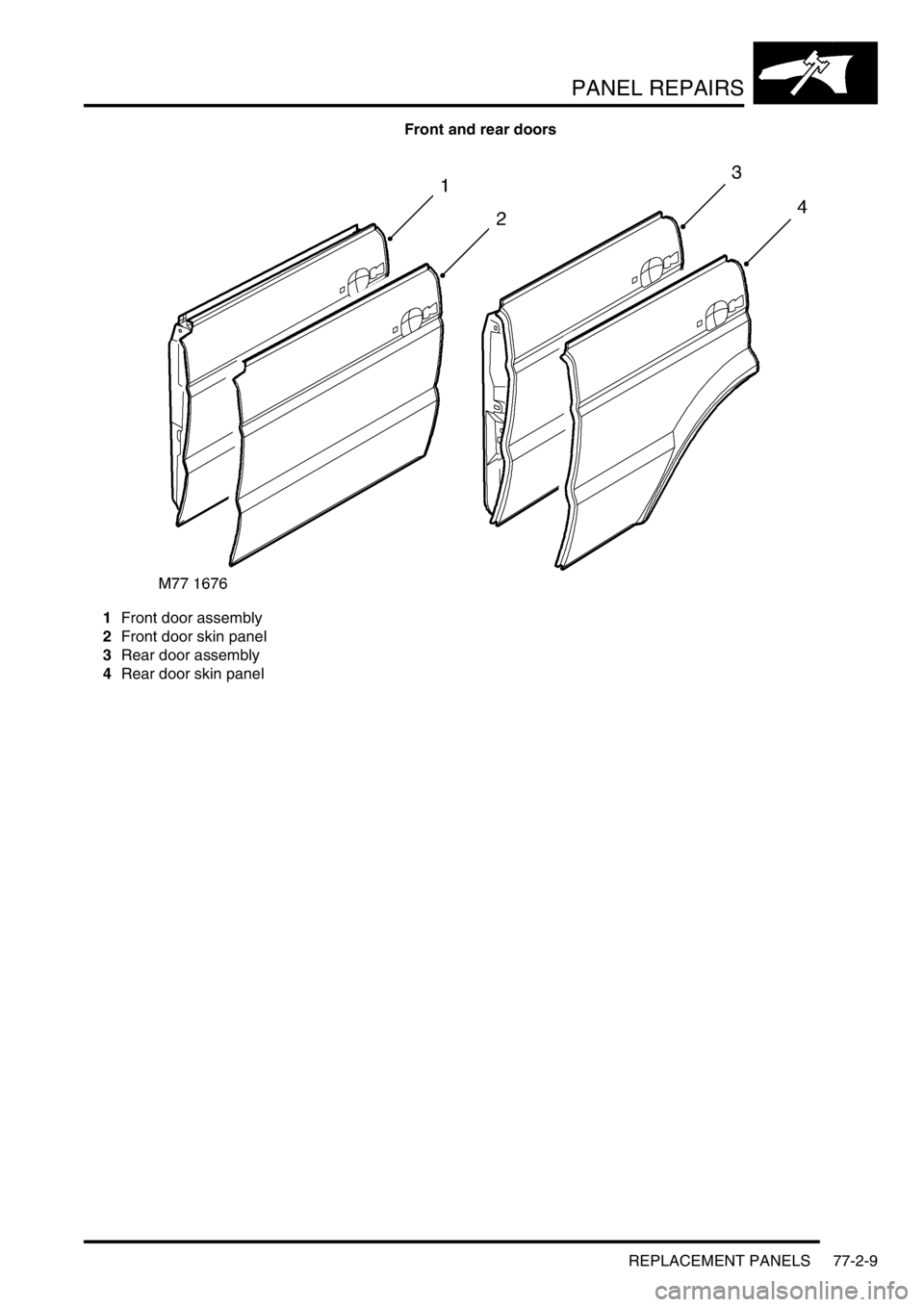

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS REPLACEMENT PANELS 77-2-9 Front and rear doors 1Front door assembly 2Front door skin panel 3Rear door assembly 4Rear door skin panel

Page 1259 of 1672

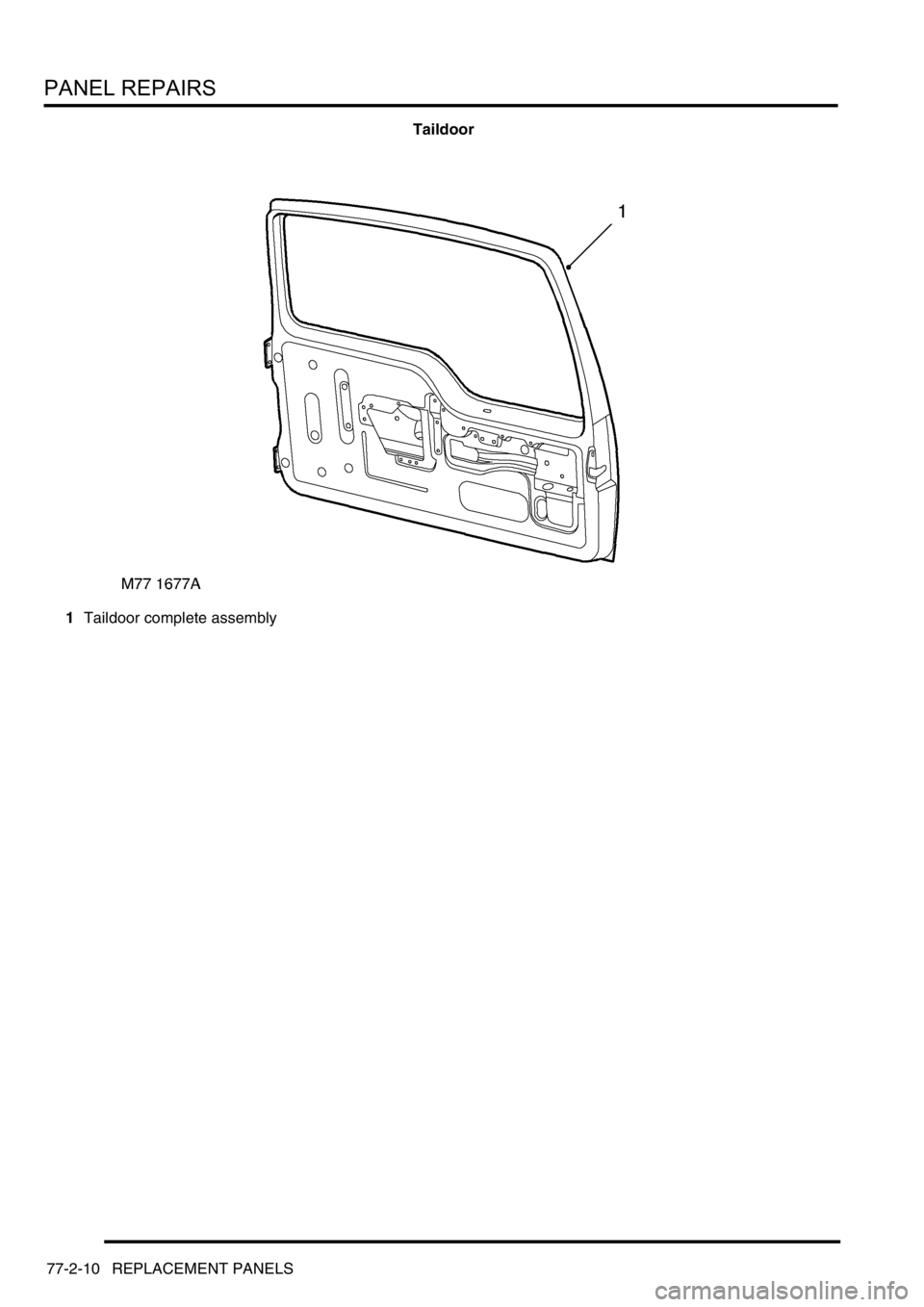

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS 77-2-10 REPLACEMENT PANELS Taildoor 1Taildoor complete assembly

Page 1260 of 1672

LAND ROVER DISCOVERY 2002 Workshop Manual PANEL REPAIRS REPLACEMENT PANELS 77-2-11 Roof panels 1Roof panel with sunroofs and roof bar holes 2Roof panel with roof bar holes only 3Roof panel with sunroofs only 4Roof panel M77 1674A 1 2 3 4
