Lexus CT200h 2013 Owner's Manual (in English)

5878-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises

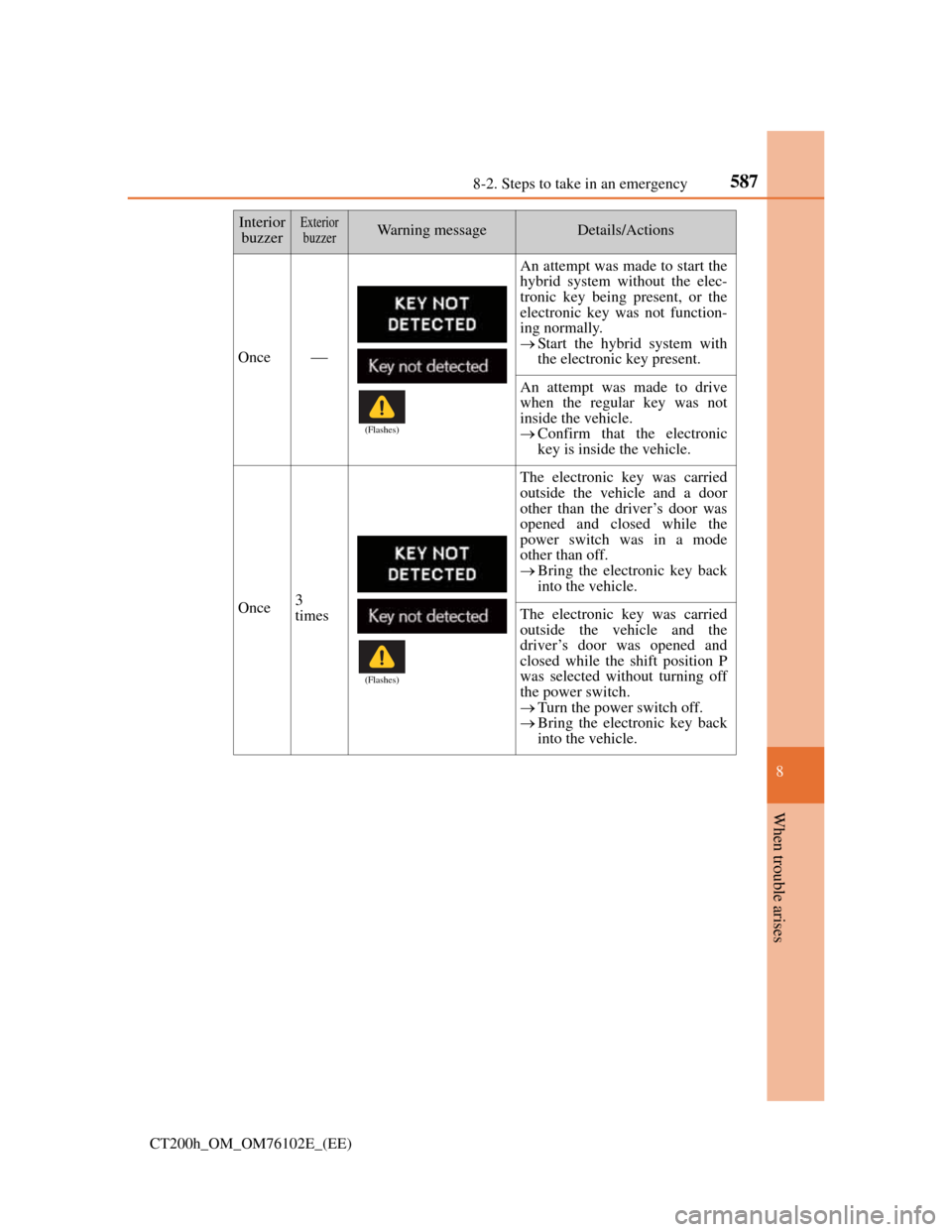

Once
An attempt was made to start the
hybrid system without the elec-
tronic key being present, or the
electronic key was not function-
ing normally.
Start the hybrid system with
the electronic key present.
An attempt was made to drive
when the regular key was not
inside the vehicle.
Confirm that the electronic
key is inside the vehicle.
Once3
times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
Bring the electronic key back
into the vehicle.
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift position P
was selected without turning off
the power switch.
Turn the power switch off.
Bring the electronic key back
into the vehicle.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

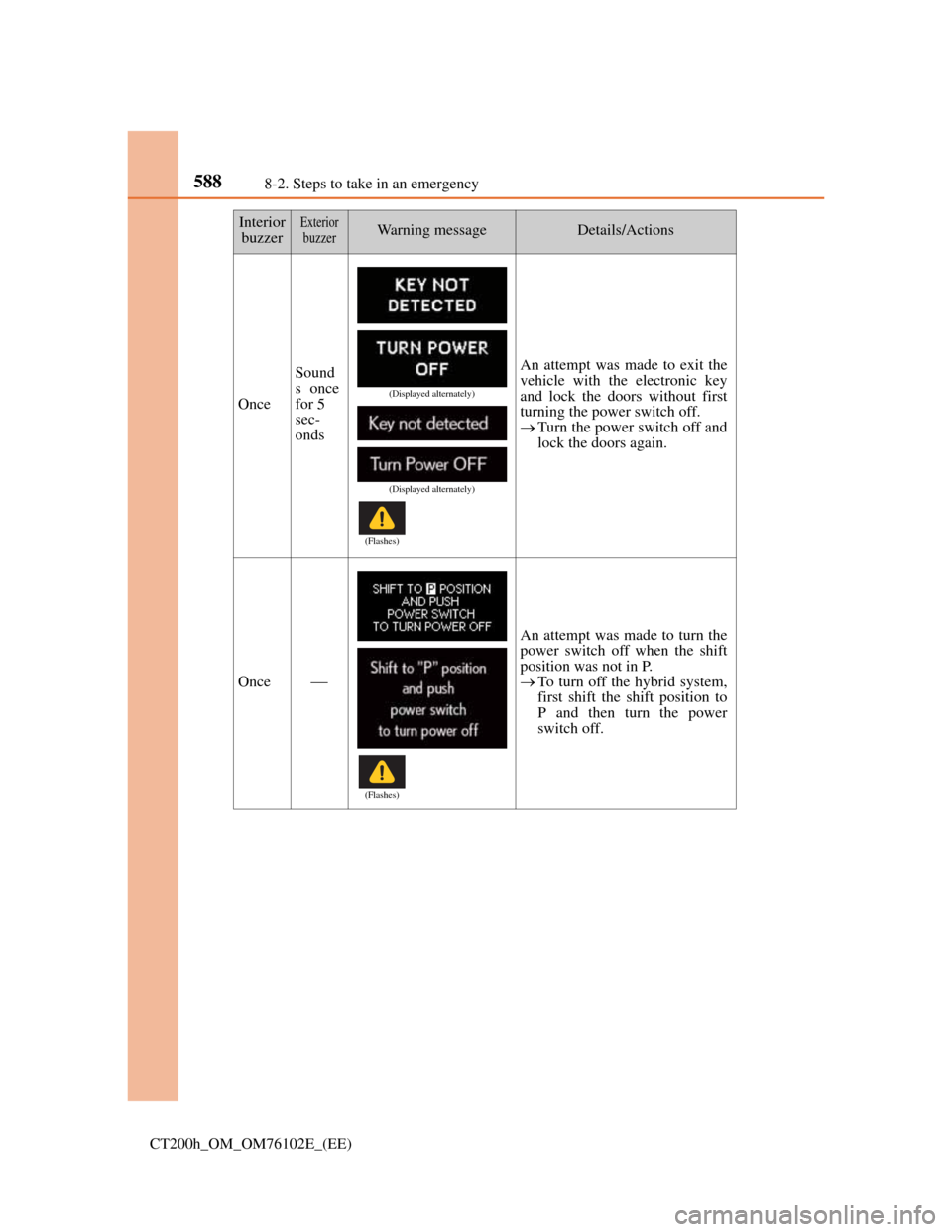

5888-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Once
Sound
s once
for 5
sec-
ondsAn attempt was made to exit the
vehicle with the electronic key
and lock the doors without first
turning the power switch off.
Turn the power switch off and
lock the doors again.
Once
An attempt was made to turn the
power switch off when the shift
position was not in P.
To turn off the hybrid system,
first shift the shift position to
P and then turn the power
switch off.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Displayed alternately)
(Displayed alternately)
(Flashes)
(Flashes)

5898-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises

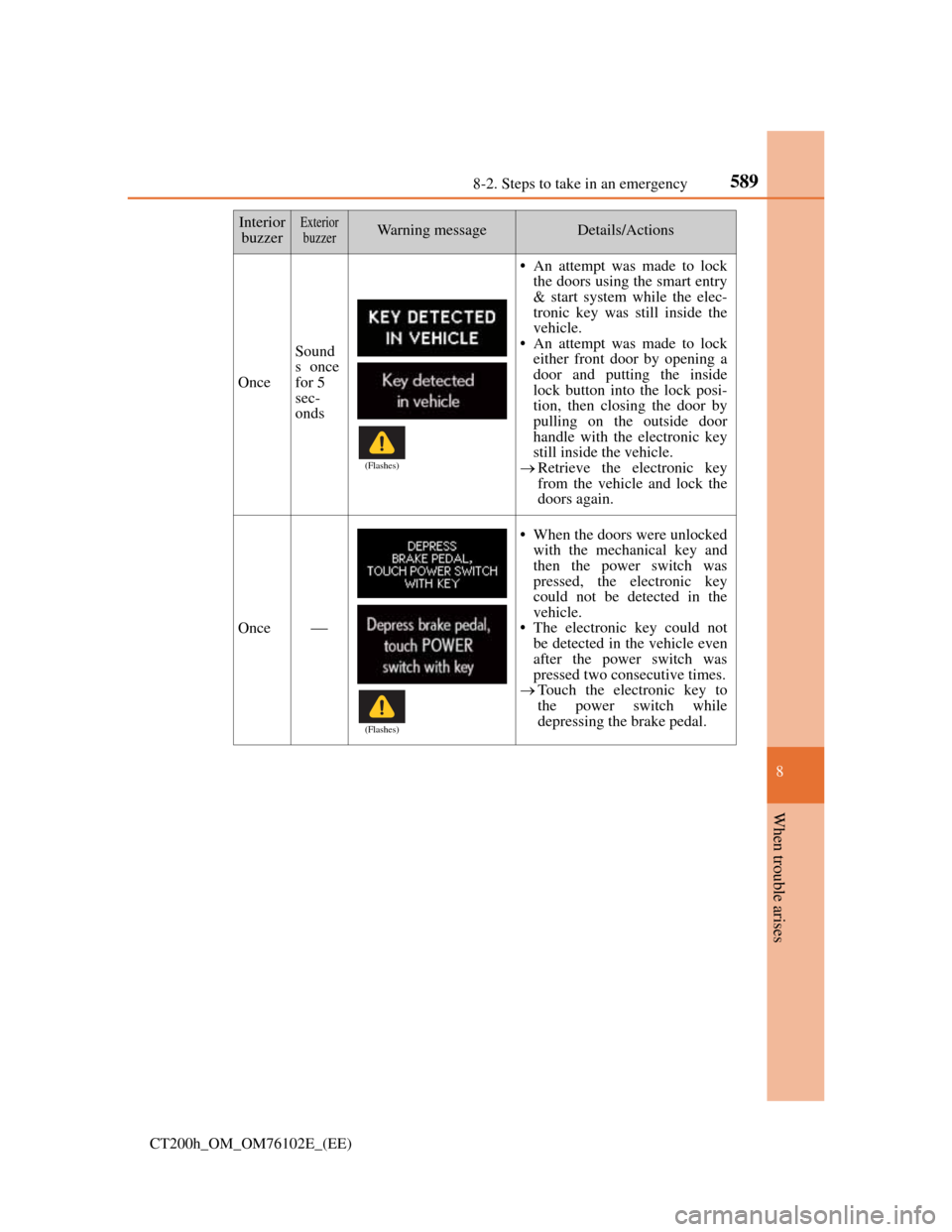

Once
Sound
s once
for 5
sec-
onds
• An attempt was made to lock
the doors using the smart entry
& start system while the elec-
tronic key was still inside the
vehicle.
• An attempt was made to lock
either front door by opening a
door and putting the inside
lock button into the lock posi-
tion, then closing the door by
pulling on the outside door
handle with the electronic key
still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock the
doors again.
Once
• When the doors were unlocked
with the mechanical key and
then the power switch was
pressed, the electronic key
could not be detected in the
vehicle.
• The electronic key could not
be detected in the vehicle even
after the power switch was
pressed two consecutive times.
Touch the electronic key to
the power switch while
depressing the brake pedal.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

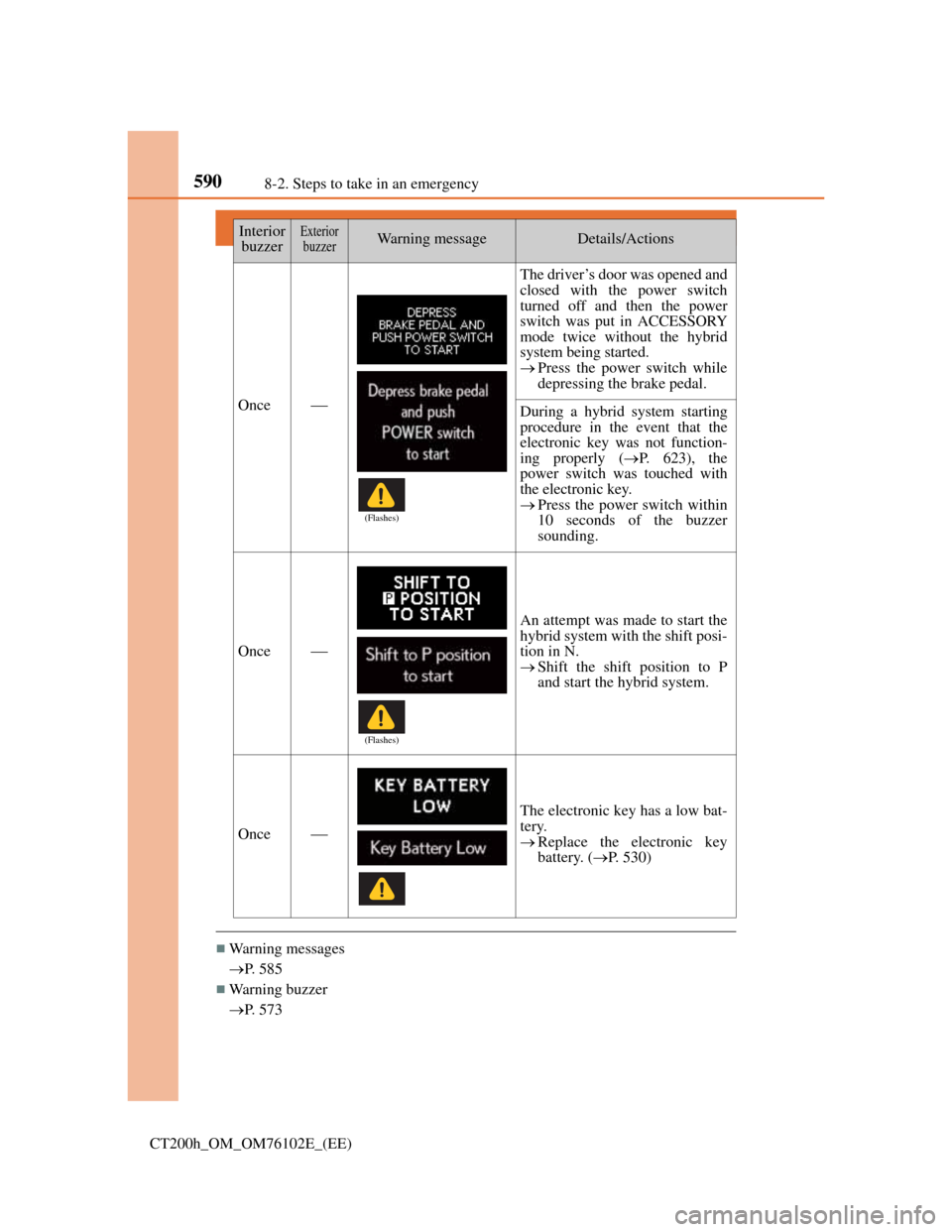

5908-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Warning messages
P. 585
Warning buzzer
P. 573
Once
The driver’s door was opened and
closed with the power switch
turned off and then the power
switch was put in ACCESSORY
mode twice without the hybrid
system being started.
Press the power switch while
depressing the brake pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly (P. 623), the
power switch was touched with
the electronic key.
Press the power switch within
10 seconds of the buzzer
sounding.
Once
An attempt was made to start the
hybrid system with the shift posi-
tion in N.
Shift the shift position to P
and start the hybrid system.
Once
The electronic key has a low bat-
tery.
Replace the electronic key
battery. (P. 530)
Interior
buzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5918-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If you have a flat tire (vehicles with a spare tire)
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift position to P.
Stop the hybrid system.
Turn on the emergency flashers. (P. 5 6 0 )
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: P. 5 1 0
WA R N I N G
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

5928-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Location of the spare tire, jack and tools
Towing eyelet
Jack
Spare tireJack handle
Wheel nut wrench1
2
3
4
5

5938-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
WA R N I N G
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or installing
and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing
tires on this vehicle.
Put the jack properly in its jack point.
Do not put any part of your body under the vehicle while it is supported by the
jack.
Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace the
tire.
Use a jack stand if it is necessary to get under the vehicle.
When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.

5948-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Remove the center deck board.
Remove the center auxiliary box.
Take out the jack.
For loosening
For tightening
Taking out the jack
1
2
3
1
2

5958-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
Remove the center deck board and center auxiliary box. (P. 594)
Loosen the center fastener that
secures the spare tire.
Taking out the spare tire
1
2
WA R N I N G
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and
the body of the vehicle.

5968-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Chock the tires.
For vehicles with 15 inch wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament, place
a rag between the wrench and the
wheel ornament.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
