Lexus CT200h 2013 Owner's Manual (in English)

6278-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the 12-volt battery
may discharge, and the hybrid system may be unable to start. (The 12-volt bat-
tery recharges automatically while the hybrid system is operating.)
WA R N I N G
Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flamma-
ble gas that may be emitted from the 12-volt battery:
Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
Do not allow the other end of the jumper cable connected to the “+” terminal
to come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
Do not smoke, use matches, cigarette lighters or allow open flame near the
12-volt battery.
12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following precau-
tions when handling the 12-volt battery:
When working with the 12-volt battery, always wear safety glasses and take
care not to allow any battery fluids (acid) to come into contact with skin,
clothing or the vehicle body.
Do not lean over the 12-volt battery.
In the event that battery fluid comes into contact with the skin or eyes, imme-
diately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can
be received.
Always wash your hands after handling the 12-volt battery support, terminals,
and other battery-related parts.
Do not allow children near the 12-volt battery.
After recharging the 12-volt battery
Have the 12-volt battery inspected at any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt bat-
tery to emit a malodorous gas, which may be detrimental to the health of pas-
sengers.
When replacing the 12-volt battery
P. 5 0 8

6288-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
NOTICE
When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled
in the cooling fans or belt.
To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt
battery from another vehicle in an emergency. It cannot be used to jump start
another vehicle.

6298-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If your vehicle overheats
If the high coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
hoses and radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Lexus dealer or
repairer, or another duly quali-
fied and equipped professional.
The following may indicate that your vehicle is overheating.
The high coolant temperature warning light (P. 570) comes on or
flashes, or a loss of hybrid system power is experienced. (For exam-
ple, the vehicle speed does not increase.)
The warning message indicating overheats is shown on the multi-
information display. (P. 583)
Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

6308-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fans are operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condi-
tioning system on and off repeatedly. (The fans may not operate in freezing
temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
4
1
2
3
5
6
7

6318-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If the warning message indicating overheats is shown on the multi-
information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radi-
ator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Lexus dealer or
repairer, or another duly quali-
fied and equipped professional.
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

6328-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
WA R N I N G
To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine
stops. Do not touch or approach rotating parts such as the fan, which may lead
to fingers or clothing (especially a tie, a scarf or a muffler) getting caught,
resulting in serious injury.
Do not loosen the coolant reservoir cap while the hybrid system and radiator
are hot.
High temperature steam or coolant could spray out.
NOTICE
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Add-
ing cool coolant to a hot hybrid system too quickly can cause damage to the
hybrid system.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additive.
6

6338-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises

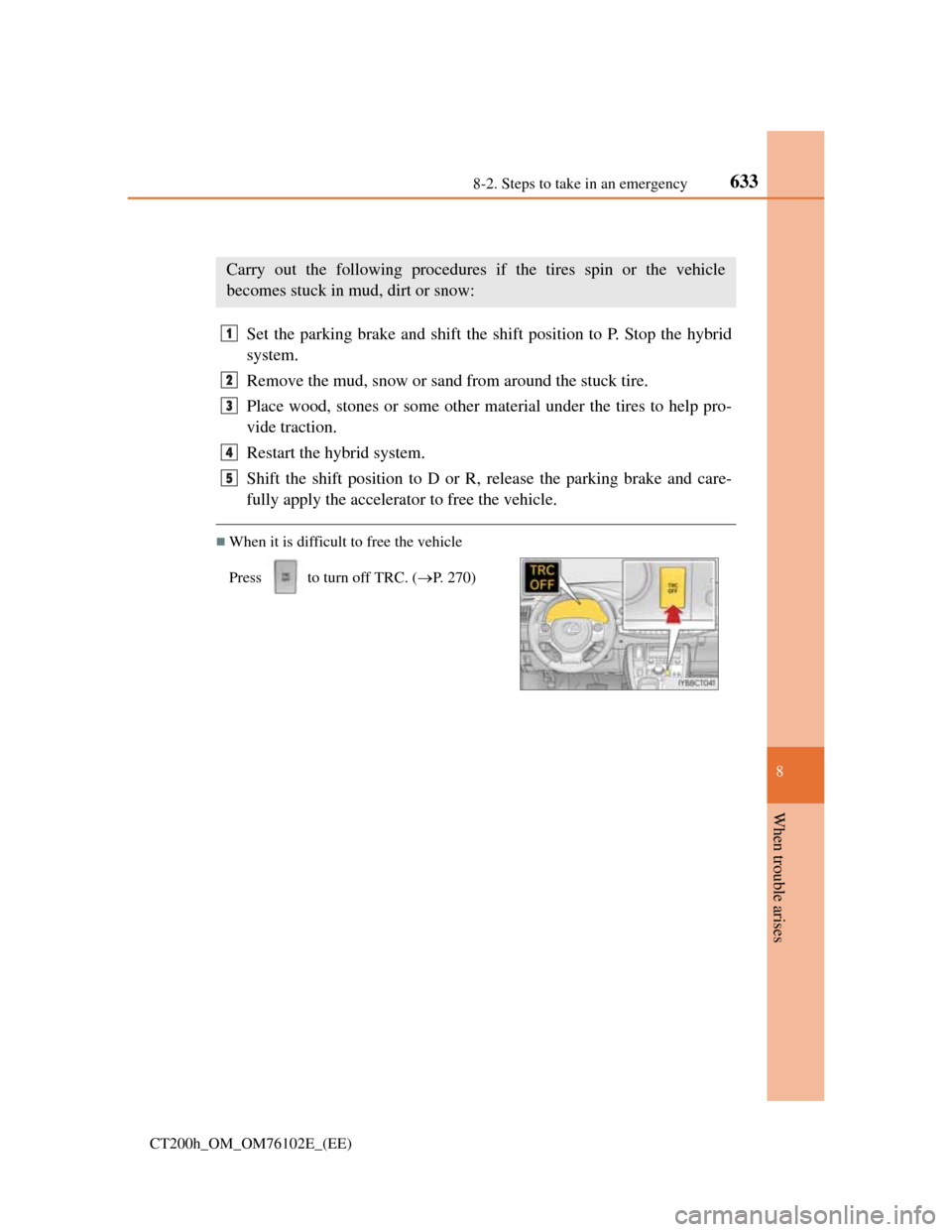

If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the hybrid
system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help pro-
vide traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake and care-
fully apply the accelerator to free the vehicle.
When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC. (P. 270)
1
2
3
4
5

6348-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
WA R N I N G
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free. Use
extreme caution.
When changing the shift position
Be careful not to change the shift position with the accelerator pedal depressed.
Changing the shift position to any positions other than P or N may cause the
vehicle to accelerate abruptly, causing an accident and resulting in death or
serious injury.
NOTICE
To avoid damage to the hybrid transmission and other components
Avoid spinning the wheels and depressing the accelerator pedal more than
necessary.
If the vehicle remains stuck even after these procedures are performed, the
vehicle may require towing to be freed.

635
9Vehicle specifications
CT200h_OM_OM76102E_(EE)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)......... 636
Fuel information ............... 648
9-2. Customization
Customizable features....... 650
9-3. Initialization
Items to initialize .............. 661

6369-1. Specifications
CT200h_OM_OM76102E_(EE)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 16-inch and 17-inch tires
*3: Vehicles with 15-inch tires
Dimensions
Overall length4350 mm (171.3 in.)
Overall width1765 mm (69.5 in.)
Overall height*11455 mm (57.3 in.)*2
1445 mm (56.9 in)*3
Wheelbase2600 mm (102.4 in.)
Tread
Front1525 mm (60.0 in.)*2
1535 mm (60.4 in.)*3
Rear1520 mm (59.8 in.)*2
1530 mm (60.2 in.)*3
Gross vehicle mass1845 kg (4068 lb.)*2
1790 kg (3946 lb.)*3
Maximum permissible
axle capacityFront1020 kg (2249 lb.)*2
1060 kg (2337 lb.)*3
Rear980 kg (2161 lb.)
