Lexus CT200h 2013 Owner's Manual (in English)
Manufacturer: LEXUS, Model Year: 2013, Model line: CT200h, Model: Lexus CT200h 2013Pages: 688
Page 651 of 688
647
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)

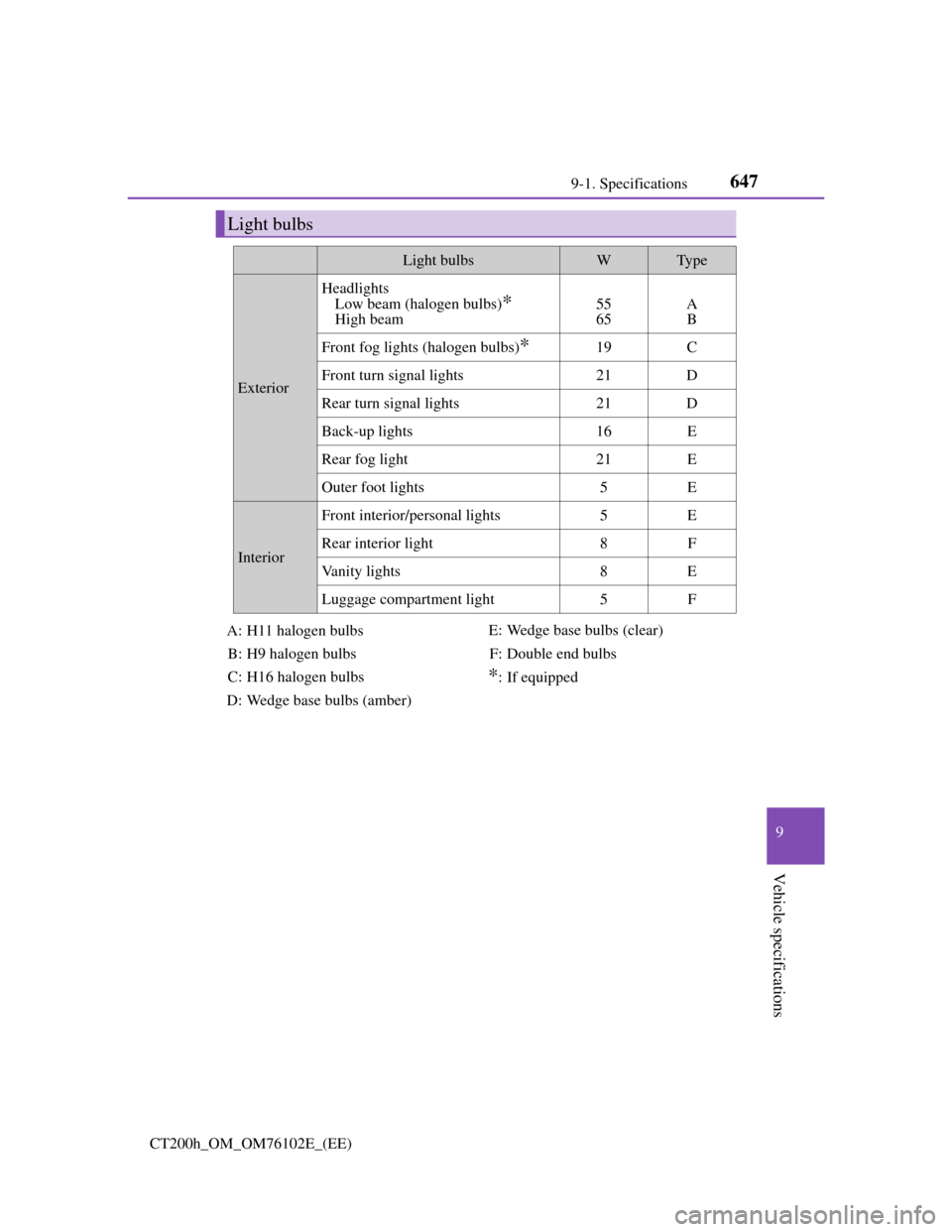

Light bulbs
Light bulbsWType
Exterior
Headlights
Low beam (halogen bulbs)*
High beam
55
65A
B
Front fog lights (halogen bulbs)*19C
Front turn signal lights21D
Rear turn signal lights21D
Back-up lights16E
Rear fog light21E
Outer foot lights5E
Interior
Front interior/personal lights5E
Rear interior light8F
Vanity lights8E
Luggage compartment light5F
A: H11 halogen bulbs
B: H9 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber)E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped
Page 652 of 688
6489-1. Specifications
CT200h_OM_OM76102E_(EE)
Fuel information
EU area
Your vehicle must use only unleaded gasoline conforming to European
standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
If your engine knocks
Consult any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
You must only use unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Page 653 of 688
649
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used the engine will be dam-
aged.
Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effec-
tiveness and emission control system to function improperly.
Gasoline engine (EU area): Bioethanol fuel sold under names such as “E50”
or “E85” and fuel containing a large amount of ethanol should not be used.
The use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. Your vehicle can use gasoline mixed with 10% max ethanol. The use of
fuel with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any doubt,
ask any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Page 654 of 688
6509-2. Customization
CT200h_OM_OM76102E_(EE)
Customizable features
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional for further details.
When customizing vehicle features, ensure that the vehicle is parked in a
safe place with the shift position in P and the parking brake set.
Changing using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Changing using the Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Your vehicle includes a variety of electronic features that can be person-
alized to suit your preferences. The settings of these features can be
changed using the multi-information display, the Remote Touch or Lexus
Display Audio controller, or at any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2
Page 655 of 688
6519-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the “SETTINGS” screen while
the vehicle is stopped, and then press and hold the “DISP” switch
to display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To go back to the previous screen or exit the customize mode, press
the “DISP” switch to select the “EXIT”, and then press and hold the
“DISP” switch.
Vehicles with color display
Press or of the meter control switches, select , and then
press .
Press or of the meter control switches, select the item, and
then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode, press
.
1
2
3
1
2
3
Page 656 of 688
6529-2. Customization
CT200h_OM_OM76102E_(EE)
Vehicles with a navigation system or Lexus Display Audio: Settings
that can be changed using the Remote Touch or Lexus Display Audio
controller
Vehicles with a navigation system or Lexus Display Audio: Settings
that can be changed using the multi-information display
Vehicles without a navigation system or Lexus Display Audio: Settings
that can be changed using the multi-information display
Settings that can be changed by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, – =Not available
Door lock (P. 132, 622)

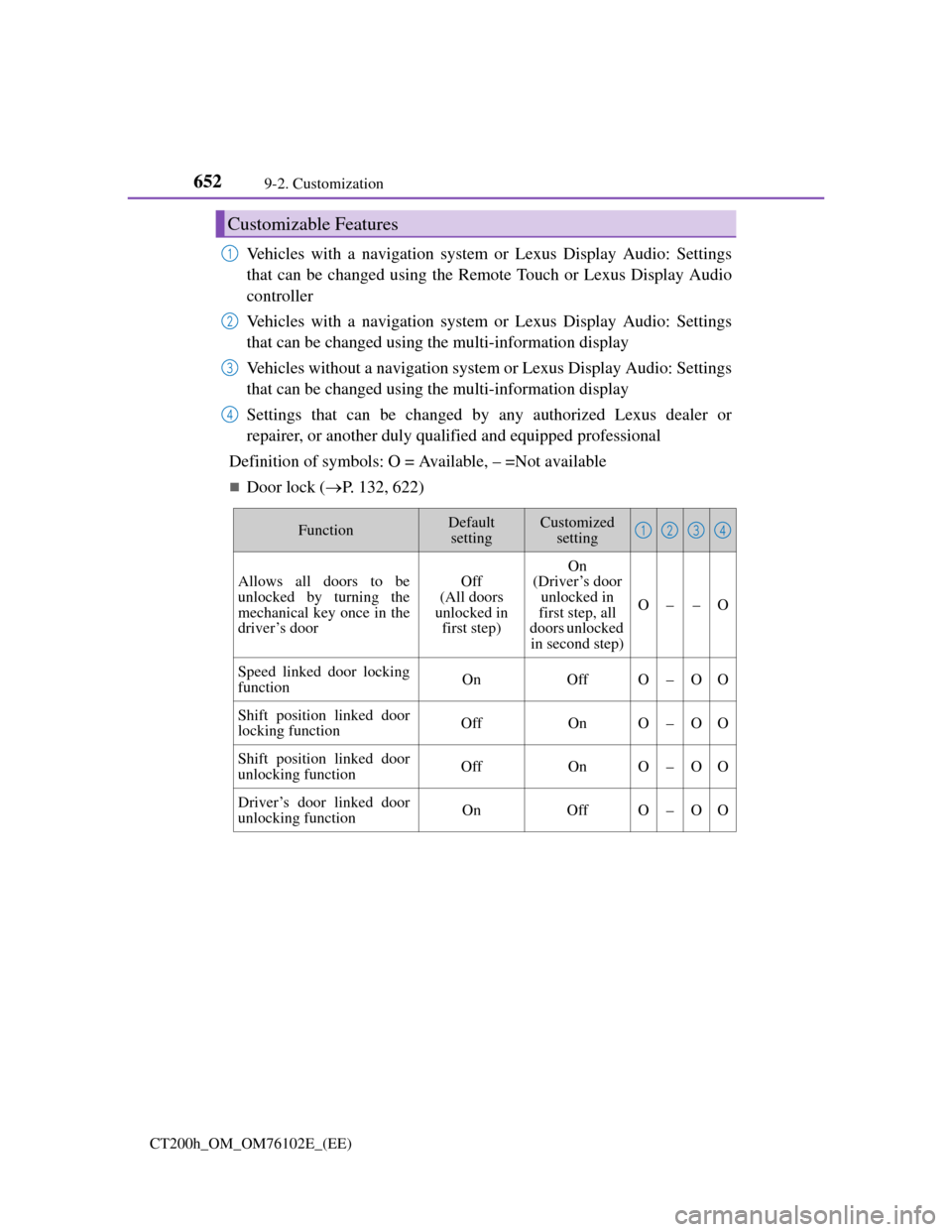

Customizable Features
1
2
3
4
FunctionDefault
settingCustomized
setting
Allows all doors to be
unlocked by turning the
mechanical key once in the
driver’s doorOff
(All doors
unlocked in
first step)On
(Driver’s door
unlocked in
first step, all
doors unlocked
in second step)
O––O
Speed linked door locking
functionOnOffO–OO
Shift position linked door
locking functionOffOnO–OO
Shift position linked door
unlocking functionOffOnO–OO
Driver’s door linked door
unlocking functionOnOffO–OO
1234
Page 657 of 688
6539-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Smart entry & start system* and wireless remote control (P. 143,
126)
*: If equipped
Smart entry & start system* (P. 143)
*: If equipped
FunctionDefault
settingCustomized
setting
Operation signal (emer-
gency flashers)OnOffO–OO
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
30 seconds
60 seconds
–––O
120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff–––O
1234
FunctionDefault
settingCustomized
setting
Smart door unlocking All the doors Driver’s door O – O O
Smart entry & start system On Off O – O O
1234
Page 658 of 688
6549-2. Customization
CT200h_OM_OM76102E_(EE)
Wireless remote control (P. 126)
Automatic light control system (P. 2 1 1 )
FunctionDefault
settingCustomized
setting
Wireless remote control On Off – – – O
Unlocking operationAll doors
unlocked in
first stepDriver’s door
unlocked in
first step, all
doors
unlocked in
second stepO–OO
1234
FunctionDefault
settingCustomized
setting
Light sensor sensitivityStandard-2 to 2O–OO
Welcome light
illumination controlOn Off – – – O
1234
Page 659 of 688
6559-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Illumination (P. 461)
*: Interior or exterior illumination can be set separately
FunctionDefault
settingCustomized
setting
Time elapsed before the
interior lights turn off15 secondsOff
O–OO 7.5 seconds
30 seconds
Time elapsed before the
exterior lights turn off15 seconds
Off
O–OO7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff–––O
Operation when the doors
are unlocked with the
Smart entry & start system
or the wireless remote con-
trol function or the
mechanical key
*
OnOff–––O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff–––O
Footwell lighting On Off – – – O
Cup holder light On Off – – – O
Enable/disable operation of
the outer foot lights when
the doors are unlocked with
the power door lock switchOn Off – – – O
1234
Page 660 of 688
6569-2. Customization
CT200h_OM_OM76102E_(EE)
Instrument cluster (P. 104)
FunctionDefault
settingCustomized
setting
Display of the tachometer
and Hybrid System Indica-
tor
*1AutoHybrid system
indicator
(always)
–OOO
Tachometer
(always)
Eco lamp
*1Eco drive sup-
portOn (always)
–OOO
Off
Sport lamp
*1On Off – O O O
Brightness of Eco lamp and
sport lamp
*1Standard Bright – O O O
EV indicatorAutoOff–OOO
Language*2English
French
–OOO
Spanish
German
Italian
Russian
Chinese
Unitskm
(L/100km)km (km/L)
–OOOmiles
(MPG)
*3
switch settings*3Drive
information 1Desired status
screen
*4–OOO
1234
