Lexus CT200h 2013 Owner's Manual (in English)

637
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)

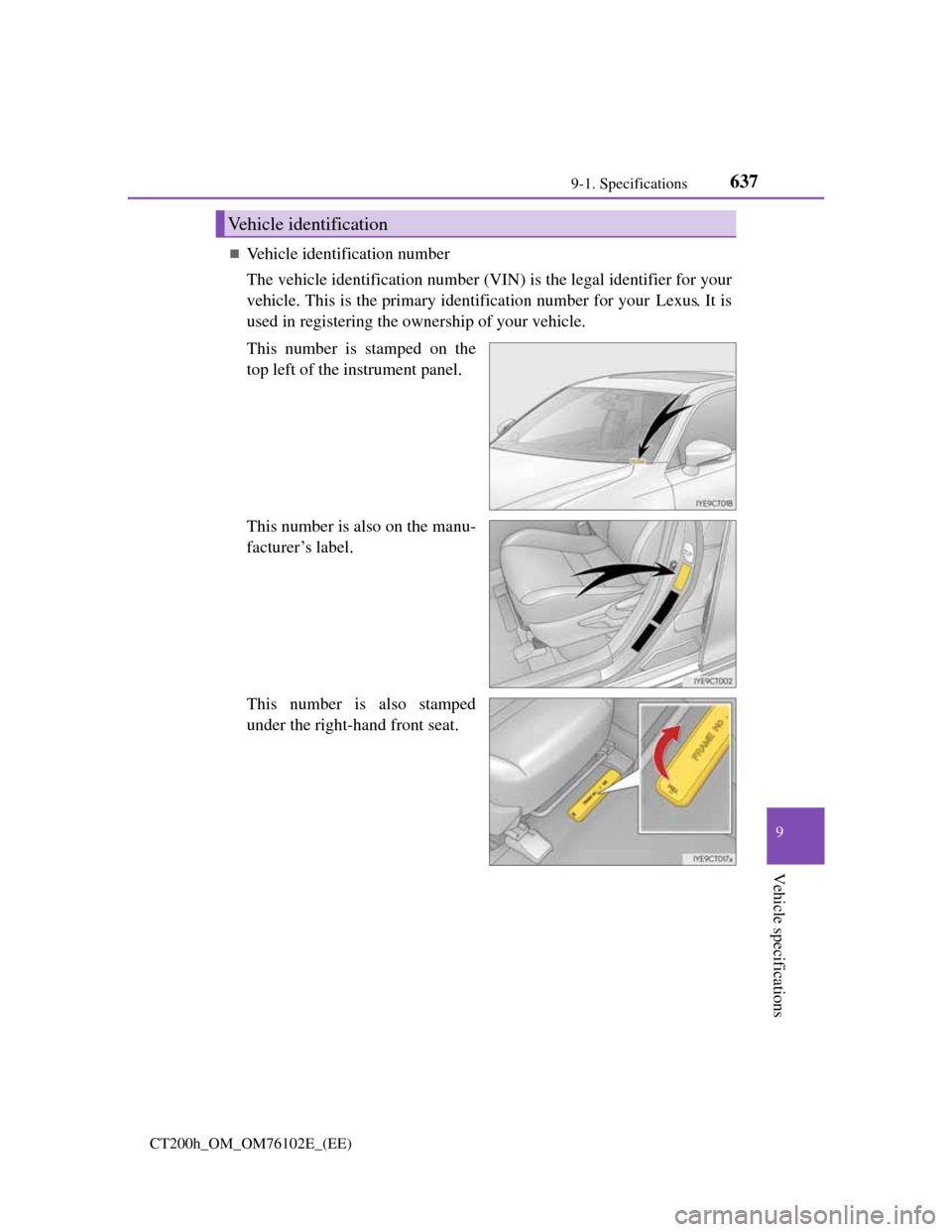

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the manu-
facturer’s label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

6389-1. Specifications
CT200h_OM_OM76102E_(EE)

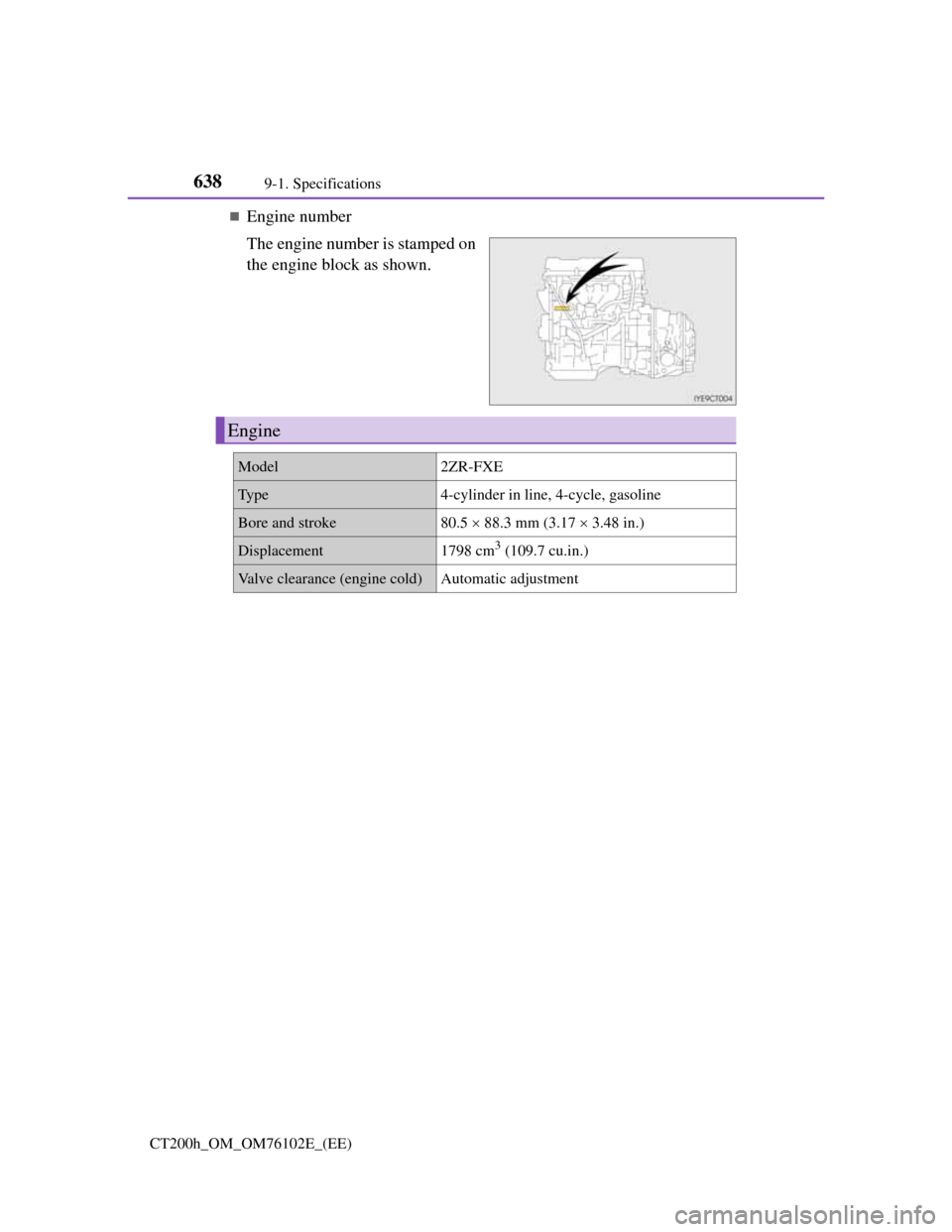

Engine number
The engine number is stamped on
the engine block as shown.
Engine
Model2ZR-FXE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  88.3 mm (3.17  3.48 in.)
Displacement1798 cm3 (109.7 cu.in.)
Valve clearance (engine cold)Automatic adjustment

639
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than
5 minutes, and check the oil level on the dipstick.
Fuel
Fuel type
EU area
Unleaded gasoline conforming to European
standard EN228 only
Except EU area
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Refer-
ence)45 L (11.9 gal., 9.9 lmp.gal.)
Electric motor (traction motor)
TypePermanent magnet motor
Maximum output60 kW
Maximum torque207 N•m (21.1 kgf•m, 153 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill refer-
ence
*)
With filter
Without filter4.2 L (4.4 qt., 3.7 Imp.qt.)
3.9 L (4.1 qt., 3.4 Imp.qt.)

6409-1. Specifications
CT200h_OM_OM76102E_(EE)
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Lexus vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 0W-20, 5W-20 or
5W-30 engine oil is recom-
mended.
Temperature range anticipated
before next oil changePreferred

641
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for eas-
ier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Spec-
ification Advisory Committee
(ILSAC) Certification Mark is
displayed on the front of the con-
tainer.
1
2

6429-1. Specifications
CT200h_OM_OM76102E_(EE)
Cooling system
Capacity
Gasoline
engine
Without exhaust heat recirculator system
6.5 L (6.9 qt., 5.7 Imp.qt.)
With an exhaust heat recirculator system
6.9 L (7.3 qt., 6.1 Imp.qt.)
Power
control unit2.1 L (2.2 qt., 1.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

643
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Electrical system
12-volt battery
Open voltage at 20C (68F):12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 20 minutes after the
hybrid system and all lights are turned off.)
Charging rates
With a S46B24R battery
4.2 A max.
With a S34B20R battery
3.5 A max.
Transmission
Fluid capacity*3.4 L (3.6 qt., 3.0 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

6449-1. Specifications
CT200h_OM_OM76102E_(EE)
*1: Minimum pedal clearance when depressed with a force of 196 N (20.0 kgf,
44.1 lbf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 300 N (30.6 kgf,
67.5 lbf).

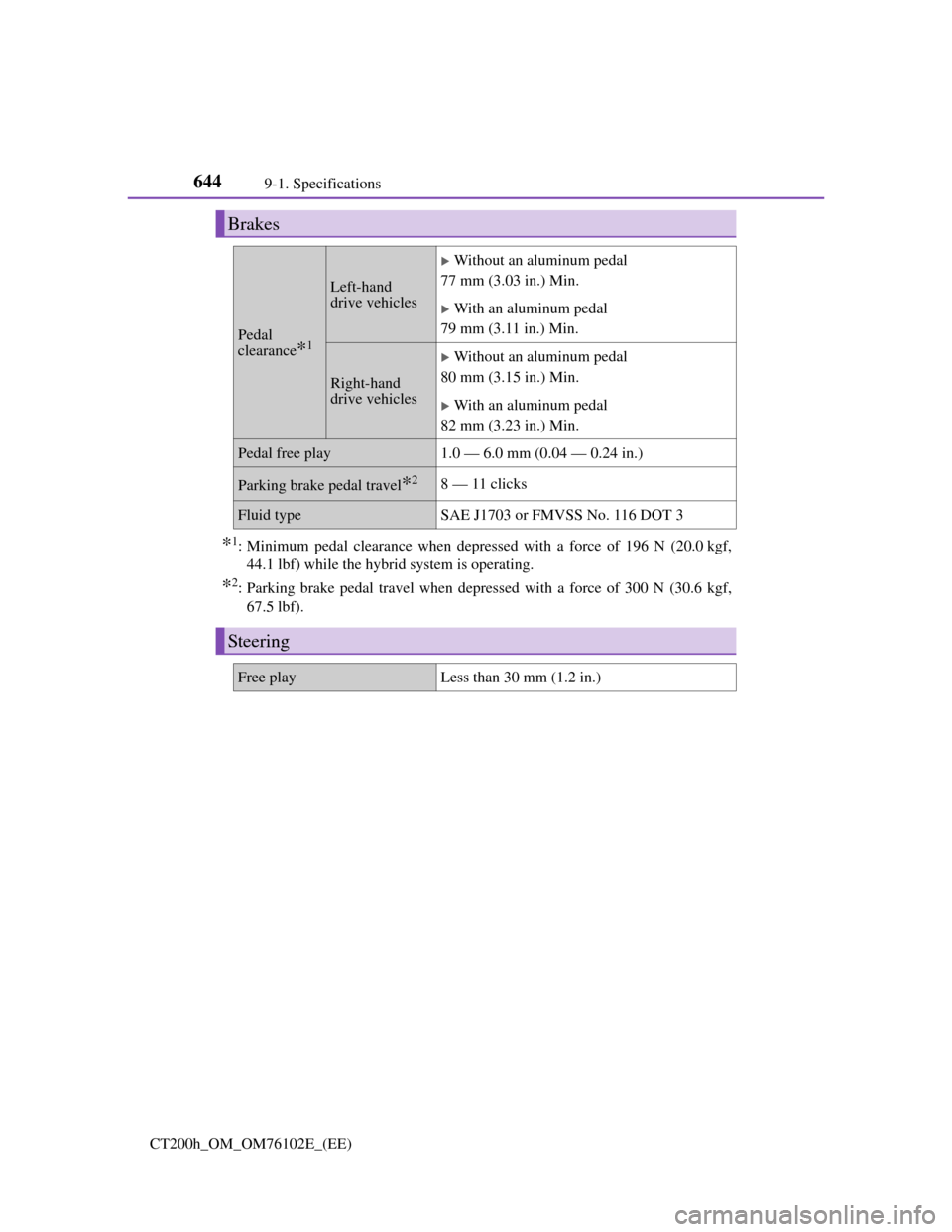

Brakes
Pedal
clearance*1
Left-hand
drive vehicles
Without an aluminum pedal
77 mm (3.03 in.) Min.
With an aluminum pedal
79 mm (3.11 in.) Min.
Right-hand
drive vehicles
Without an aluminum pedal
80 mm (3.15 in.) Min.
With an aluminum pedal
82 mm (3.23 in.) Min.
Pedal free play1.0 — 6.0 mm (0.04 — 0.24 in.)
Parking brake pedal travel*28 —11 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
Steering
Free playLess than 30 mm (1.2 in.)

645
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
Ty p e A
*: For optimizing fuel economy, ECO tire pressure is recommended. Tire pres-
sure affects traveling comfort, road noise and steering characteristics.
Ty p e B

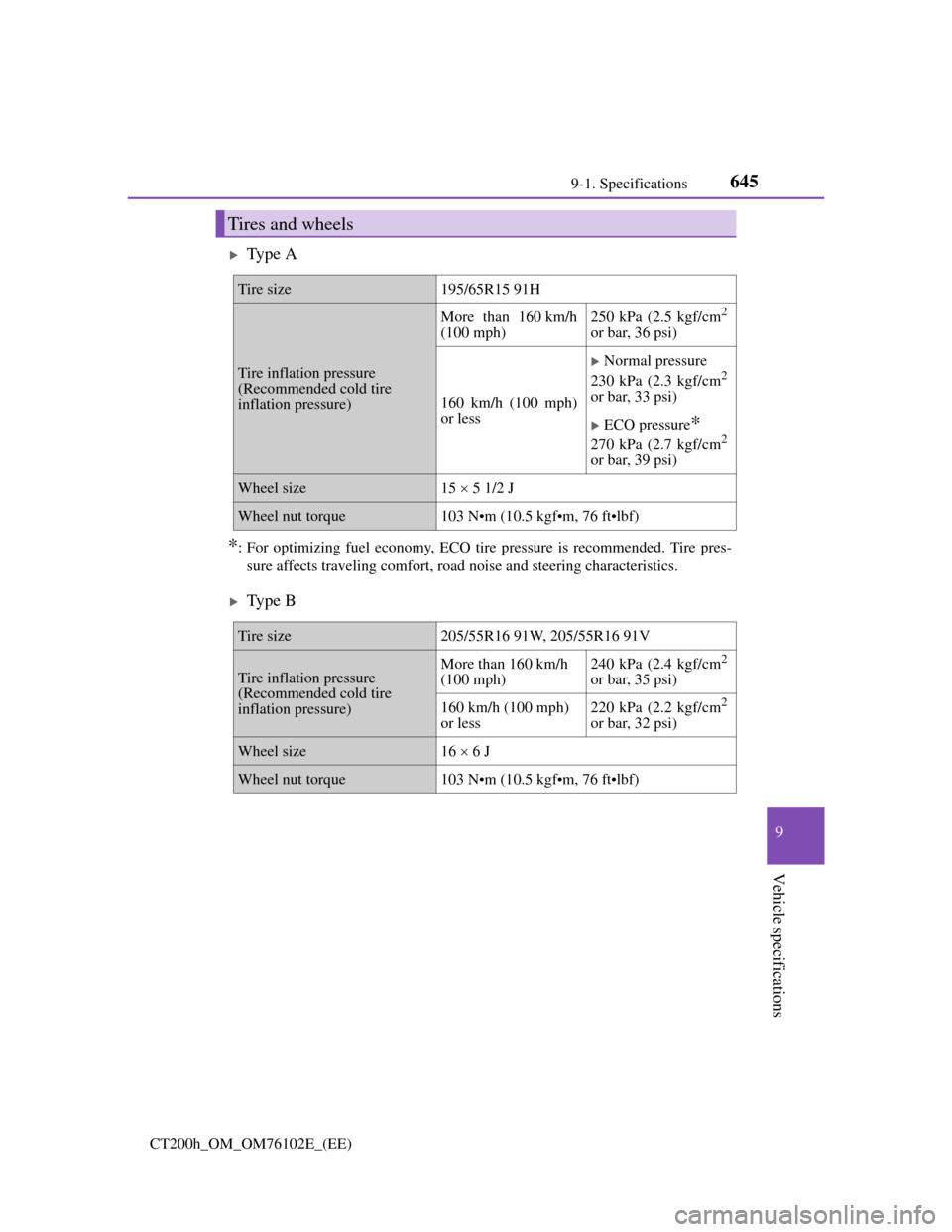

Tires and wheels
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
More than 160 km/h
(100 mph)250 kPa (2.5 kgf/cm2
or bar, 36 psi)
160 km/h (100 mph)
or less
Normal pressure
230 kPa (2.3 kgf/cm2
or bar, 33 psi)
ECO pressure*
270 kPa (2.7 kgf/cm2
or bar, 39 psi)
Wheel size15  5 1/2 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91W, 205/55R16 91V
Tire inflation pressure
(Recommended cold tire
inflation pressure)More than 160 km/h
(100 mph)240 kPa (2.4 kgf/cm2
or bar, 35 psi)
160 km/h (100 mph)
or less220 kPa (2.2 kgf/cm2
or bar, 32 psi)
Wheel size16  6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

6469-1. Specifications
CT200h_OM_OM76102E_(EE)

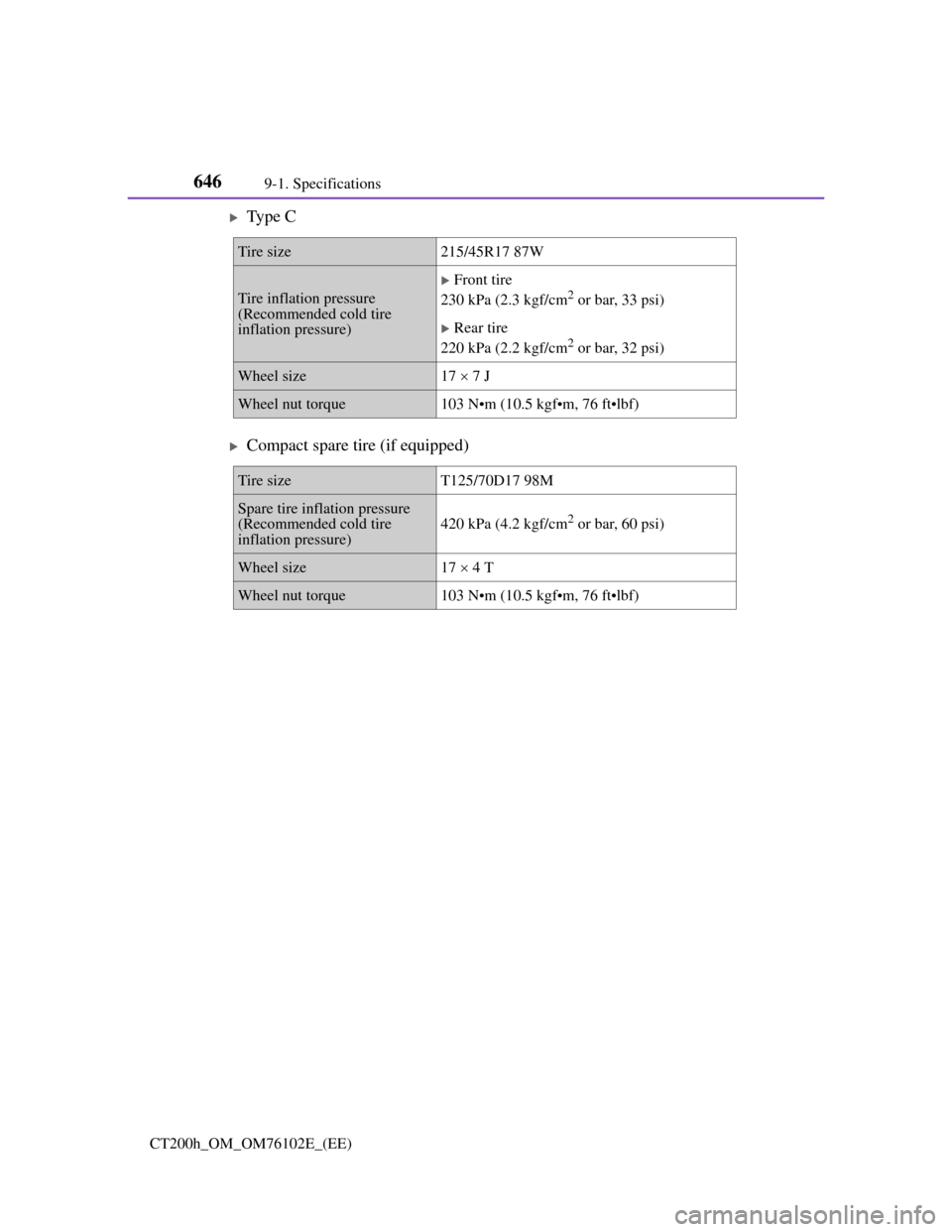

Ty p e C
Compact spare tire (if equipped)
Tire size215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear tire
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Spare tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4 T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
