Lexus CT200h 2013 Owner's Manual (in English)
Manufacturer: LEXUS, Model Year: 2013, Model line: CT200h, Model: Lexus CT200h 2013Pages: 688
Page 661 of 688
6579-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
*1: Settings that can be changed on vehicles with the tachometer
*2: The default setting varies according to countries.
*3: If equipped
*4: Some status screens cannot be registered (indicated on the multi-information
display)
*5: 2 of the following items: current fuel consumption, average fuel economy
(after reset), average fuel economy (after refuel), average fuel economy (after
start), average vehicle speed (after reset), average vehicle speed (after start),
distance (driving range), distance (after start), elapsed time (after reset),
elapsed time (after start), blank
Drive information 1*3
Current fuel
consumption
*5–OOOAverage fuel
consumption
(after reset)
Drive information 2*3
Cruising range/
Distance
*5–OOOAverage speed
(after reset)
Pop-up display*3OnOff–OOO
Accent color*3BlueBrownOOOO
Sensitivity of the ambient
light sensor used for dim-
ming the meter light etc.
*3Standard-2 to 2–––O
Sensitivity of the ambient
light sensor used for bright-
ening the meter light etc.
*3Standard-2 to 2–––O
FunctionDefault
settingCustomized
setting1234

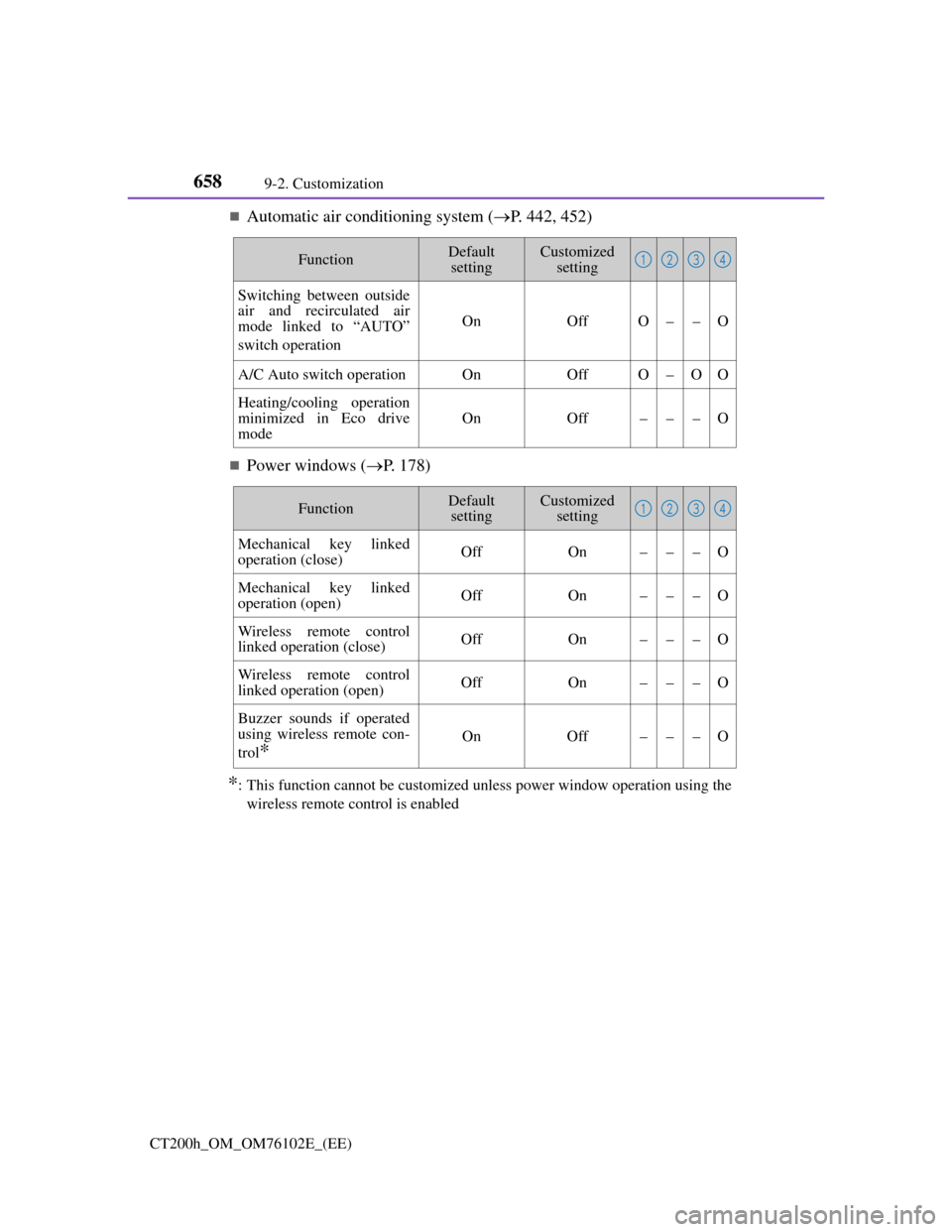

Page 662 of 688
6589-2. Customization
CT200h_OM_OM76102E_(EE)
Automatic air conditioning system (P. 442, 452)
Power windows (P. 178)
*: This function cannot be customized unless power window operation using the
wireless remote control is enabled
FunctionDefault
settingCustomized
setting
Switching between outside
air and recirculated air
mode linked to “AUTO”
switch operation
OnOffO––O
A/C Auto switch operationOnOffO–OO
Heating/cooling operation
minimized in Eco drive
modeOnOff–––O
1234
FunctionDefault
settingCustomized
setting
Mechanical key linked
operation (close)OffOn–––O
Mechanical key linked
operation (open)OffOn–––O
Wireless remote control
linked operation (close)OffOn–––O
Wireless remote control
linked operation (open)OffOn–––O
Buzzer sounds if operated
using wireless remote con-
trol
*
OnOff–––O
1234
Page 663 of 688
6599-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Lexus parking assist-sensor* (P. 245)
*: If equipped
Reverse buzzer (P. 206)
Outside rear view mirrors (P. 174)
Alarm* (P. 9 3 )
*: If equipped
FunctionDefault
settingCustomized
setting
Alert Volume
(Alert volume can be
adjusted)31 to 5O––O
Display
(Automatic display off the
LEXUS Park Assist
graphic can be enabled/dis-
abled)
OnOffO––O
Distance
(Distance mode can be
selected)LongShortO––O
1234
FunctionDefault
settingCustomized
setting
Signal (buzzer) when the
shift position is in RIntermittentSingle–––O
1234
FunctionDefault
settingCustomized
setting
Automatic folding/extend-
ing operationLinked to lock-
ing/unlocking
of the doorsOff
–––OLinked to
power switch
operation
1234
FunctionDefault
settingCustomized
setting
Deactivates the alarm when
the doors are unlocked
using the mechanical key
OffOn–––O
1234
Page 664 of 688
6609-2. Customization
CT200h_OM_OM76102E_(EE)
Vehicle customization
When the speed linked door locking function and the shift position linked door
locking function are both on, the door lock operates as follows.
• When shifting the shift position to any position other than P, all the doors
will be locked.
• If the vehicle is started with all the doors locked, the speed linked door lock-
ing function would not operate.
• If the vehicle is started with any door unlocked, the speed linked door lock-
ing function will operate.
When the smart entry & start system is off, smart door unlocking cannot be cus-
tomized.
When the doors remain closed after unlocking the doors and the automatic door
lock function is activated, the signals will be generated in accordance with the
Operation signal (buzzer) and the Operation signal (emergency flashers) set-
tings.
In the following situations, customize mode in which the settings can be changed
through the multi-information display will automatically be turned off.
A warning message appears after the customize mode screen is displayed.
The power switch is turned off.
The vehicle begins to move while the customize mode screen is displayed.
WA R N I N G
Cautions during customization
As the hybrid system needs to be operating during customization, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may col-
lect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating
while customizing features.

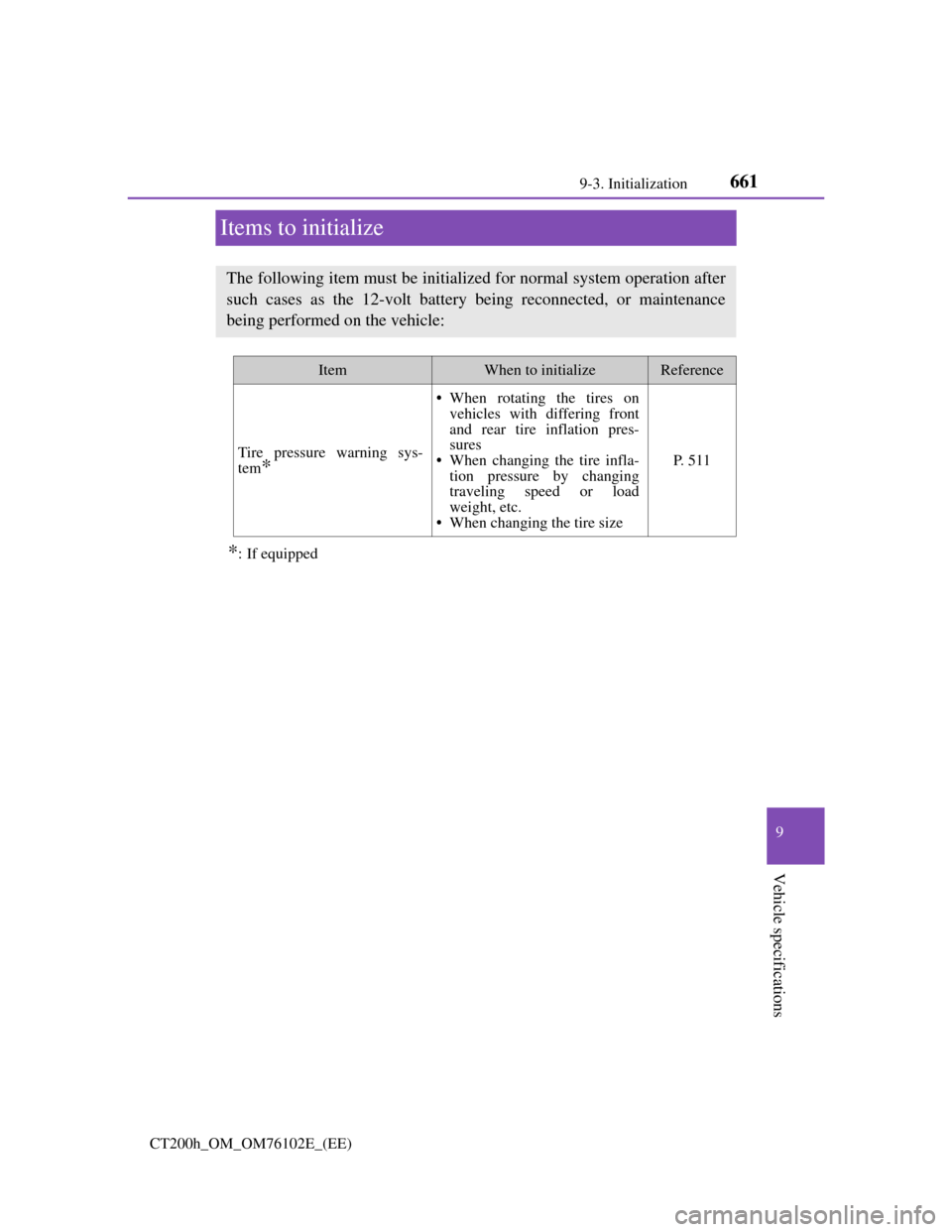

Page 665 of 688
6619-3. Initialization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Items to initialize
*: If equipped
The following item must be initialized for normal system operation after
such cases as the 12-volt battery being reconnected, or maintenance
being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem*
• When rotating the tires on
vehicles with differing front
and rear tire inflation pres-
sures
• When changing the tire infla-
tion pressure by changing
traveling speed or load
weight, etc.
• When changing the tire size
P. 511
Page 666 of 688
6629-3. Initialization
CT200h_OM_OM76102E_(EE)
Page 667 of 688
663
Index
CT200h_OM_OM76102E_(EE)
What to do if...
(Troubleshooting) .................... 664
Alphabetical index..................... 668
For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL” for
information regarding the equipment listed below.
• Navigation system
• Lexus parking assist monitor
• Audio/visual system
Page 668 of 688
664What to do if... (Troubleshooting)
CT200h_OM_OM76102E_(EE)
What to do if... (Troubleshooting)
If you lose your mechanical keys, new genuine mechanical keys can be
made by any authorized Lexus dealer or repairer, or another duly qual-
ified and equipped professional. (P. 128)
Vehicles with a smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases sig-
nificantly. Contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately. (P. 130)
Is the electronic key battery weak or depleted? (P. 530)
Vehicles with entry function
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 198)
Vehicles with entry function
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
The function may not operate properly due to the condition of the radio
wave. (P. 145)
If you have a problem, check the following before contacting any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
Page 669 of 688
665What to do if... (Troubleshooting)
CT200h_OM_OM76102E_(EE)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock
is set. Open the rear door from outside and then unlock the child-pro-
tector lock. (P. 1 3 6 )
Did you press the power switch while firmly depressing the brake
pedal?
(P. 196)
Is the shift position in P? (P. 196)
Is the electronic key anywhere detectable inside the vehicle? (P. 143)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way. (P.
623)
Is the 12-volt battery discharged? (P. 624)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be
operated if the window lock switch is pressed. (P. 178)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. (P. 198) The rear door cannot be opened
If you think something is wrong
The hybrid system does not start
The windows do not open or close by operating the power window
switches
The power switch is turned off automatically
(vehicles with a smart entry & start system)
Page 670 of 688
666What to do if... (Troubleshooting)
CT200h_OM_OM76102E_(EE)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P.
570)
The parking brake indicator is on
Is the parking brake released? (P. 210)
Depending on the situation, other types of warning buzzer may also
sound.
(P. 568, 575)
Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 9 3 )
To stop the alarm, turn the power switch to ON mode or start the hybrid
system.
Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. (P. 575)
When a warning light turns on or a warning message is displayed, refer
to
P. 568, 575.A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
