451-1. For safe use
1
CT200h_OM_OM76135E_(EE)
For safety and security
WA R N I N G
■SRS airbag precautions
●Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on the
knees of a front passenger.
●Do not allow the front seat occupants to hold
items on their knees.
●Do not lean against the door, the roof side rail
or the front, side and rear pillars.
●Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or
hands outside the vehicle.
●Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower portion of the instru-
ment panel.
These items can become projectiles when the
SRS driver, front passenger and knee airbags
deploy.
●Do not attach anything to areas such as a
door, windshield glass, side door glass, front
or rear pillar, roof side rail, and assist grip.
(Except for the speed limit sticker →P. 559)
CT200h_OM_OM76135E_(EE).book Page 45 Friday, May 30, 2014 11 :14 AM

461-1. For safe use
CT200h_OM_OM76135E_(EE)
WA R N I N G
■SRS airbag precautions
●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause death or serious injury, should the SRS cur-
tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags inflate
as they may interfere with inflation of the airbags. Such accessories may prevent the
side airbags from activating correctly, disable the system or cause the side airbags to
inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag compo-
nents.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any resi-
due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes, are damage d or cracked, have them replaced by any
authorized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. The SRS airbags may malfunction or deploy (inflate) acciden-
tally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replace ment of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, fr ont, side and rear pillars or roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players
●Modifications to your vehicle for a person with a physical disability
CT200h_OM_OM76135E_(EE).book Page 46 Friday, May 30, 2014 11 :14 AM

471-1. For safe use
1
CT200h_OM_OM76135E_(EE)
For safety and security
■If the SRS airbags deploy (inflate)
●Bruising and slight abrasions may result from contact with a deploying (inflating) SRS
airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
front seats, parts of the front and rear pillars, and roof side rails, may be hot for several
minutes. The airbag itself may also be hot.
●The windshield may crack.
■SRS airbag deployment conditions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set thresh-
old level (the level of force correspond ing to an approximately 20-30 km/h [12-18
mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possi ble that only the seat belt pretensioners will
activate.
■SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 1500 kg [ 3300 lb.] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 20 -30 km/h [12 -18 mph]).
●The SRS curtain shield airbags may also deploy in the event of a severe frontal collision.
■Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags and SRS curtain shield airbags may also deploy if a serious impact
occurs to the underside of your vehicle. Some examples are shown in the illustration.
●Hitting a curb, edge of pavement or hard sur-
face
●Falling into or jumping over a deep hole
●Landing hard or falling
CT200h_OM_OM76135E_(EE).book Page 47 Friday, May 30, 2014 11 :14 AM

491-1. For safe use
1
CT200h_OM_OM76135E_(EE)
For safety and security
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a rear
collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal collision.
■When to contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional
In the following cases, the vehicle will require inspection and/or repair. Contact any
authorized Lexus dealer or repairer, or anot her duly qualified and equipped professional
as soon as possible.
●Any of the SRS airbags have been inflated.
●Collision from the rear
●Vehicle rollover
●The front of the vehicle is damaged or
deformed, or was involv ed in an accident that
was not severe enough to cause the SRS front
airbags to inflate.
●A portion of a door or its surrounding area is
damaged or deformed, or the vehicle was
involved in an accident that was not severe
enough to cause the SRS side and curtain
shield airbags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
CT200h_OM_OM76135E_(EE).book Page 49 Friday, May 30, 2014 11 :14 AM

932. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Wa r n i n g l i g h t s
*1Brake system warning light
(→ P. 5 1 5 )*1Slip indicator light
(→ P. 5 1 7 )
*1Brake system warning light
(→ P. 5 1 5 )*1
(if equipped)
Automatic headlight
leveling system warning
light ( →P. 5 1 7 )
*1Charging system warning
light ( →P. 5 1 5 )*1High coolant temperature
warning light ( →P. 5 1 7 )
*1Low engine oil pressure
warning light ( →P. 5 1 5 ) Open door warning light
(
→ P. 5 1 7 )
*1Malfunction indicator lamp
(→ P. 5 1 6 ) Low fuel level warning light
(
→ P. 5 1 7 )
*1SRS warning light
(→ P. 5 1 6 ) Driver’s and front
passenger’s seat belt
reminder light (
→P. 5 1 7 )
*1ABS warning light
(→ P. 5 1 6 )*3Rear passengers’ seat
belt reminder lights
(→ P. 5 1 7 )
*1Electric power steering
system warning
light ( →P. 5 1 6 )*1Master warning light
(→ P. 5 1 7 )
*1, 2
(if equipped)
“PCS” warning light
(→ P. 5 1 6 )*1
(if equipped)
Tire pressure warning light
(→ P. 5 1 8 )
CT200h_OM_OM76135E_(EE).book Page 93 Friday, May 30, 2014 11 :14 AM

1072. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
XNavigation system screen
Press the “MENU” button on the
Remote Touch, and then select “Car”
on the “Menu” screen.
If the “Trip information” or “Past record”
screen is displayed, select “Energy”.
XLexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Energy monitor” screen does not
appear, move the controller to the right
and select “Energy”.
XMulti-information display
Vehicles with monochrome display:
Press the “DISP” switch on the steering wheel several times to select the energy
monitor display.
Vehicles with color display:
Press or of the meter control switches and select , and then press or to select the energy monitor display.
Energy monitor
CT200h_OM_OM76135E_(EE).book Page 107 Friday, May 30, 2014 1 1:14 AM

113
3
Operation of
each component
CT200h_OM_OM76135E_(EE)
3-1. Key information
Keys .................................................... 114
3-2. Opening, closing and locking the doors
Side doors ........................................ 119
Back door........................................ 124
Smart entry & start system.......129
3-3. Adjusting the seats Front seats...................................... 143
Rear seats........................................145
Driving position memory .......... 147
Head restraints .............................. 151
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 153
Inside rear view mirror.............. 155
Outside rear view mirrors ........ 157
3-5. Opening, closing the windows and moon roof
Power windows .............................. 161
Moon roof .......................................164
CT200h_OM_OM76135E_(EE).book Page 113 Friday, May 30, 2014 1 1:14 AM

1503-3. Adjusting the seats
CT200h_OM_OM76135E_(EE)
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled
properly.Turn the power switch to ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recalling the driving position us ing the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be di fferent depending on the key being carried.
●If a door other than the driver’s door is unlocked with the smart entry & start system, the
driving position cannot be recalled. In this case, press the driving position button which
has been set.
WA R N I N G
■Seat adjustment caution
Take care during seat adjustment so that th e seat does not strike the rear passenger or
squeeze your body against the steering wheel.
1
2
CT200h_OM_OM76135E_(EE).book Page 150 Friday, May 30, 2014 1 1:14 AM

153
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)

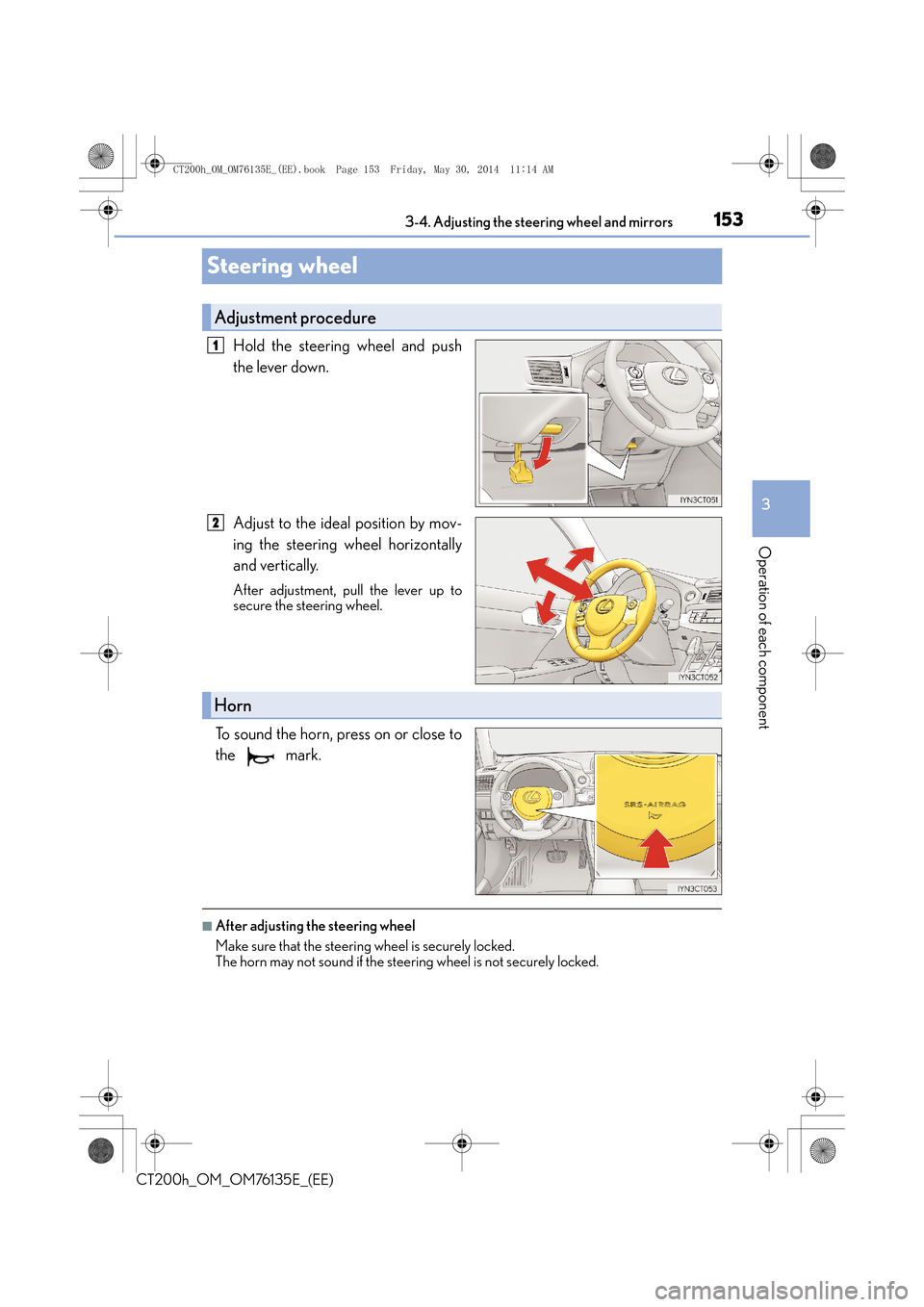

Steering wheel
Hold the steering wheel and push
the lever down.
Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or close to
the mark.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
1
2
Horn
CT200h_OM_OM76135E_(EE).book Page 153 Friday, May 30, 2014 1
1:14 AM

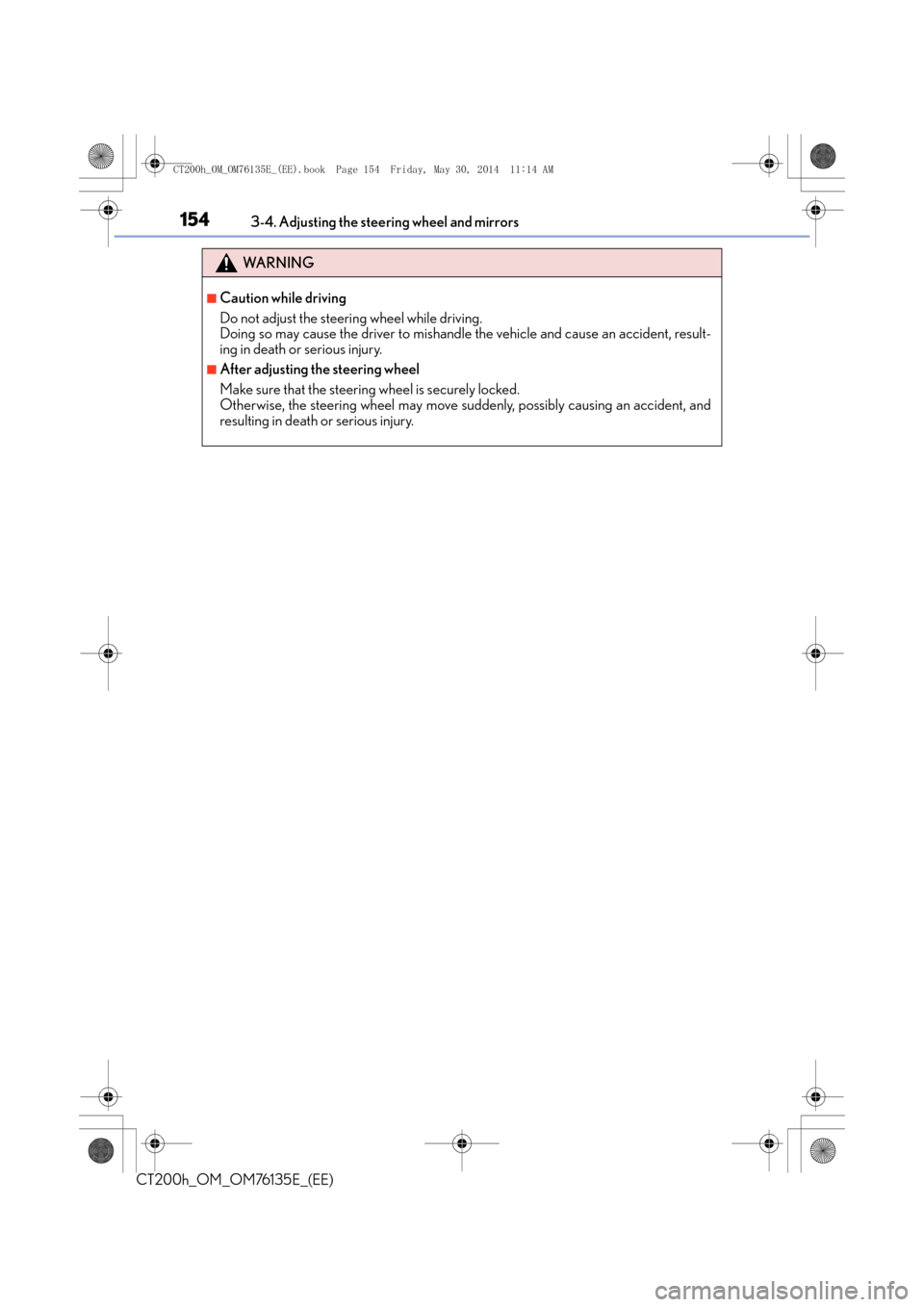

1543-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
WA R N I N G
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident, result-
ing in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident, and
resulting in death or serious injury.
CT200h_OM_OM76135E_(EE).book Page 154 Friday, May 30, 2014 11:14 AM
