steering Lexus CT200h 2014 (in English) Owner's Guide

155
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving posture.
Adjust the height of the rear view mir-
ror by moving it up and down.
XManual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced by operat-
ing the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable sufficient confirma-
tion of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
1
2
CT200h_OM_OM76135E_(EE).book Page 155 Friday, May 30, 2014 1 1:14 AM

1563-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)
XAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles behind, the
reflected light is automatically reduced.
Changing automatic anti-glare func-
tion mode
On/off
When the automatic anti-glare function
is in ON mode, the indicator illuminates.
The function will set to ON mode each
time the power switch is turned to ON
mode.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
■To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
Indicator
To ensure that the sensors operate properly, do
not touch or cover them.
WA R N I N G
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
CT200h_OM_OM76135E_(EE).book Page 156 Friday, May 30, 2014 1 1:14 AM

157
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
CT200h_OM_OM76135E_(EE)

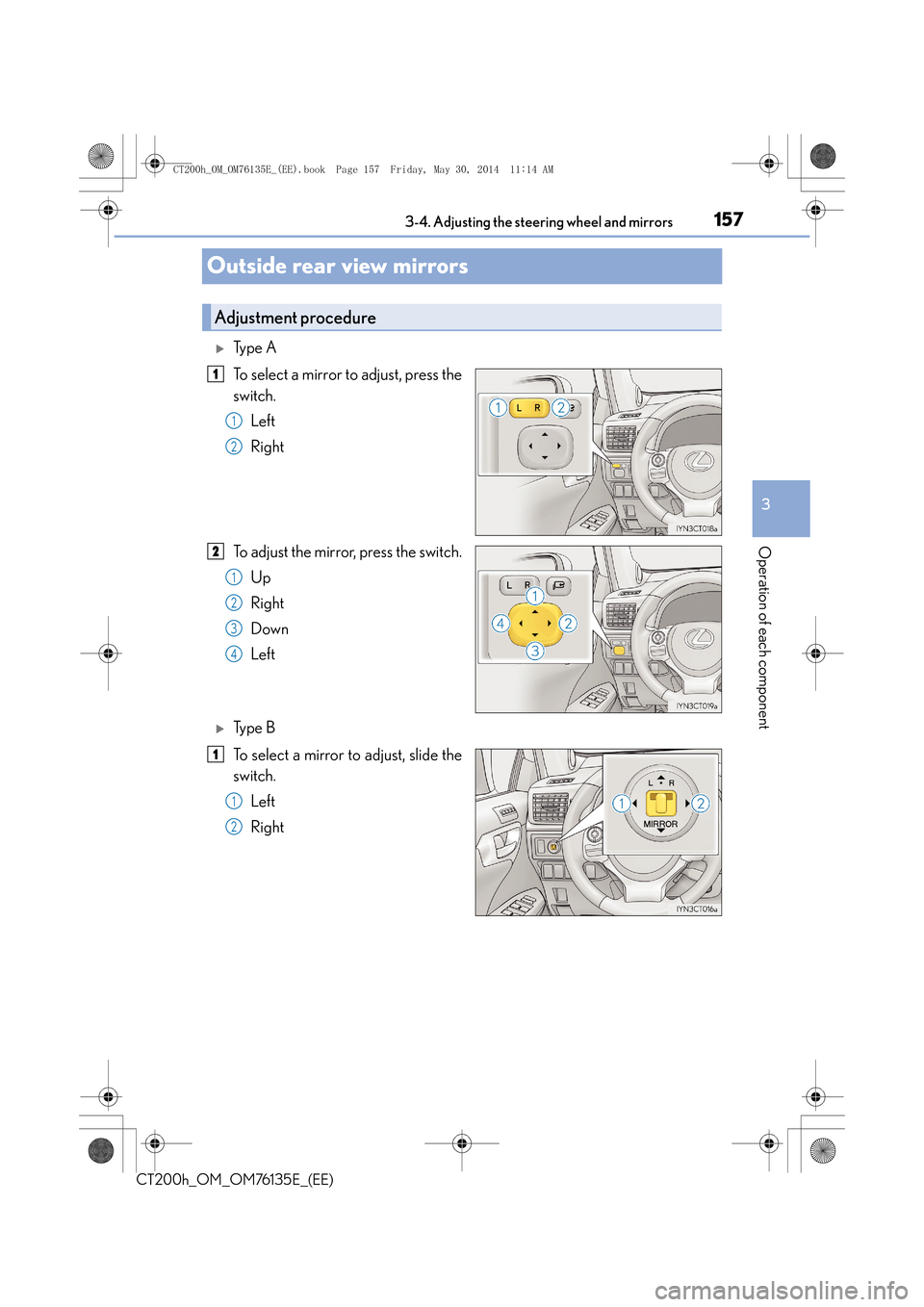

Outside rear view mirrors
XTy p e A
To select a mirror to adjust, press the
switch.
Left
Right
To adjust the mirror, press the switch. Up
Right
Down
Left
XTy p e B
To select a mirror to adjust, slide the
switch.Left
Right
Adjustment procedure
1
1
2
2
1
2
3
4
1
1
2
CT200h_OM_OM76135E_(EE).book Page 157 Friday, May 30, 2014 1 1:14 AM

1583-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)

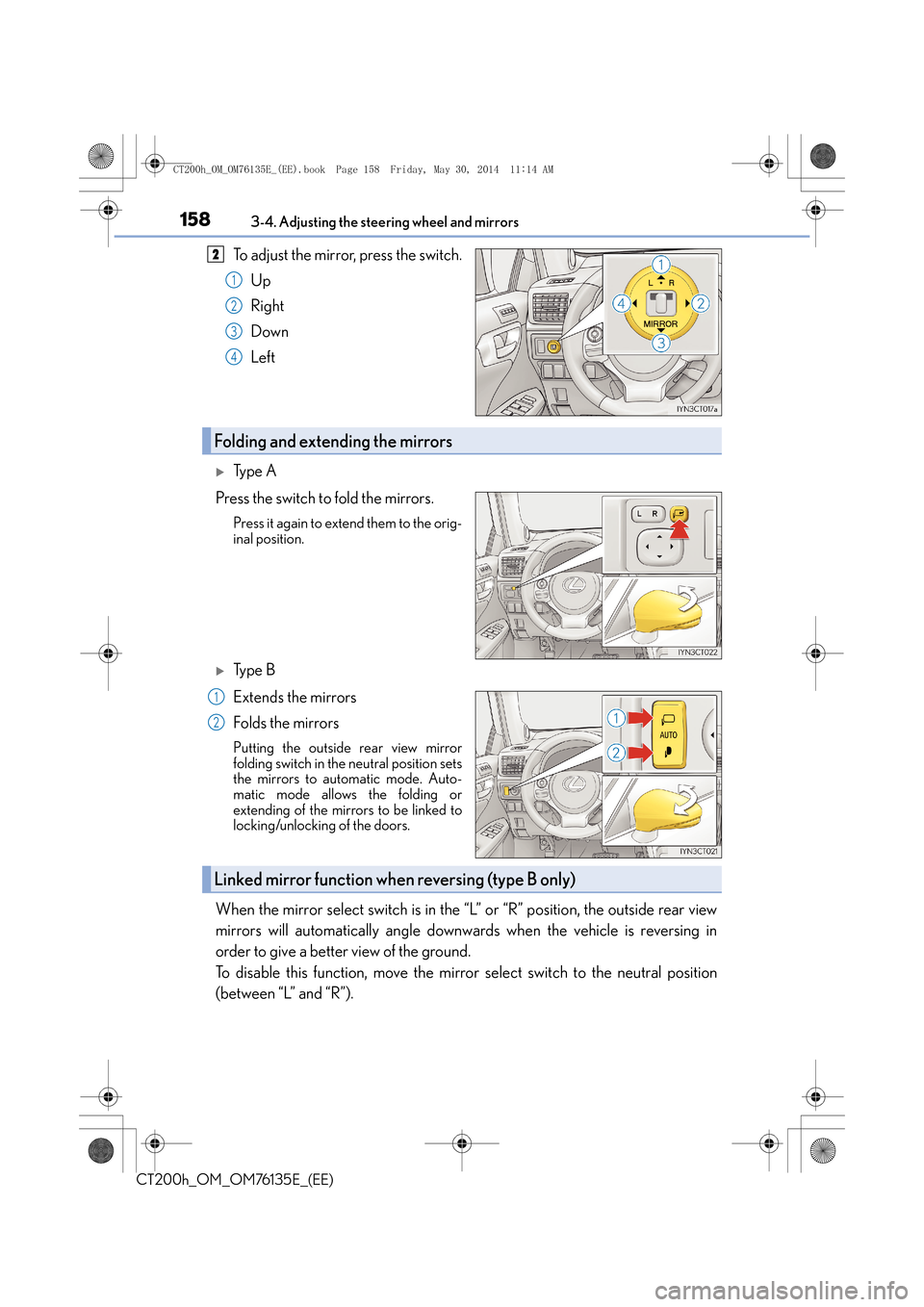

To adjust the mirror, press the switch.Up
Right
Down
Left
XTy p e A
Press the switch to fold the mirrors.
Press it again to extend them to the orig-
inal position.
XTy p e B
Extends the mirrors
Folds the mirrors
Putting the outside rear view mirror
folding switch in the neutral position sets
the mirrors to automatic mode. Auto-
matic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
When the mirror select switch is in the “L” or “R” position, the outside rear view
mirrors will automatically angle downwards when the vehicle is reversing in
order to give a better view of the ground.
To disable this function, move the mirror select switch to the neutral position
(between “L” and “R”).
2
1
2
3
4
Folding and extending the mirrors
1
2
Linked mirror function when reversing (type B only)
CT200h_OM_OM76135E_(EE).book Page 158 Friday, May 30, 2014 1 1:14 AM

1593-4. Adjusting the steering wheel and mirrors
3
Operation of each component
CT200h_OM_OM76135E_(EE)
■Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
■Rain clearing mirrors (type B only)
The coating on the mirror has the rain clearing (hydrophilic) effect to make the rear view
clearer in raining. When water droplets collects on the mirror surface, this effect causes
the droplets to be spread out into a film.
●The rain clearing effect will be reduced temp orarily, when the dirt is adhered to the mir-
ror or after your vehicle is parked for a long time in underground or indoor parking lots,
etc., where there is no direct sunlight. Howe ver, the effect will gradually recover after 1-
or 2-day exposure to direct sunlight.
●If you want to restore the rain clearing effect immediately, conduct the restoration work
( → P. 443).
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers.
(→ P. 4 1 2 , 4 1 9 )
■Automatic adjustment of the mirror angle (vehicles with driving position memory)
A desired mirror face angle can be entered to memory and recalled automatically by the
driving position memory. ( →P. 1 4 7 )
■Auto anti-glare function (type B only)
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( →P. 1 5 5 )
■Using automatic mode in cold weather (type B only)
When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this event, remove any ice and snow
from the door mirror, then either operate the mirror using manual mode or move the mir-
ror by hand.
■Customization
The automatic mirror folding and extending operation can be changed.
(Customizable features: →P. 5 8 9 )
CT200h_OM_OM76135E_(EE).book Page 159 Friday, May 30, 2014 1 1:14 AM

1603-4. Adjusting the steering wheel and mirrors
CT200h_OM_OM76135E_(EE)

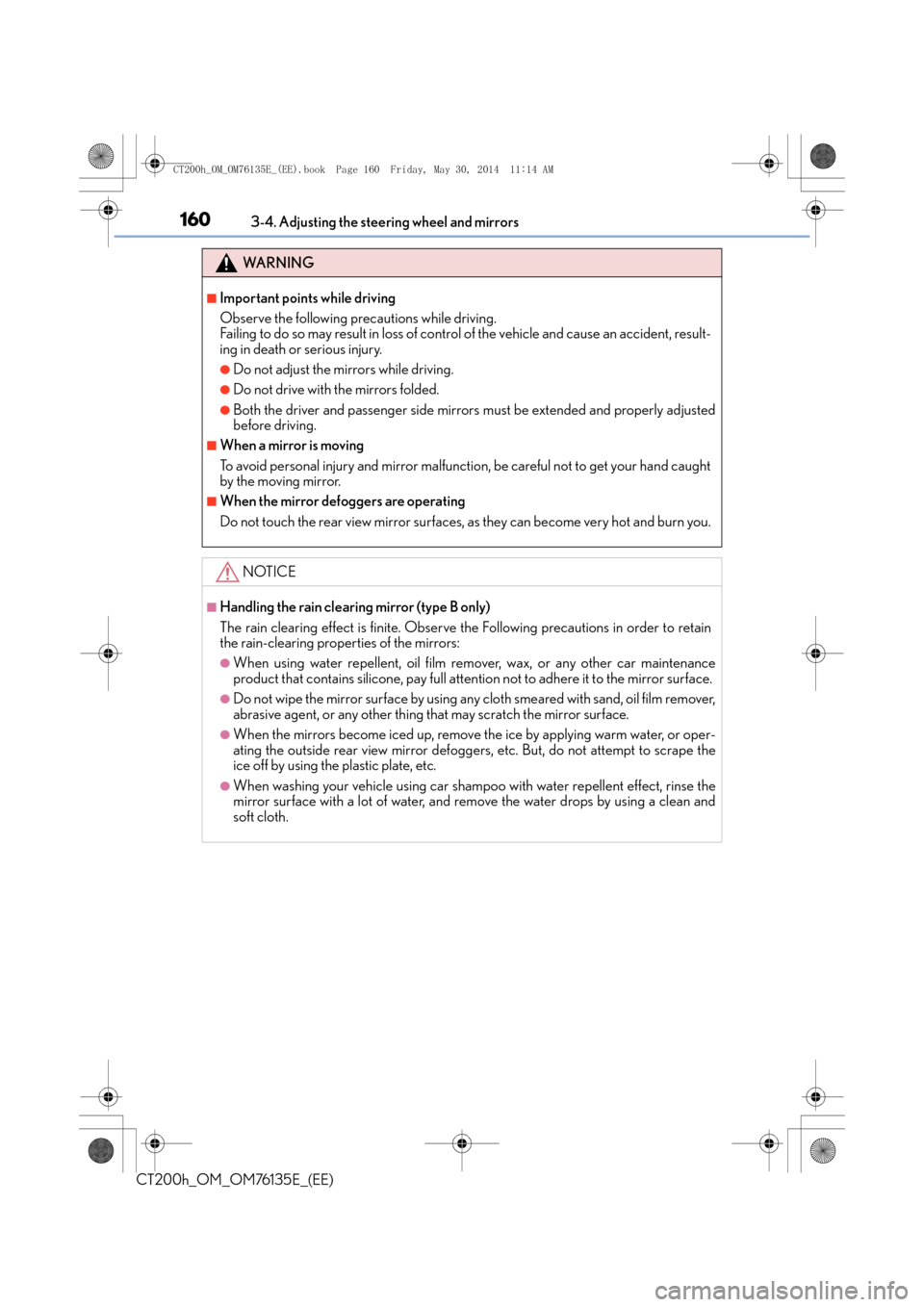

WA R N I N G
■Important points while driving
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident, result-
ing in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly adjusted
before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand caught
by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn you.
NOTICE
■Handling the rain clearing mirror (type B only)
The rain clearing effect is finite. Observe the Following precautions in order to retain
the rain-clearing properties of the mirrors:
●When using water repellent, oil film remover, wax, or any other car maintenance
product that contains silicone, pay full attention not to adhere it to the mirror surface.
●Do not wipe the mirror surface by using any cloth smeared with sand, oil film remover,
abrasive agent, or any other thing that may scratch the mirror surface.
●When the mirrors become iced up, remove the ice by applying warm water, or oper-
ating the outside rear view mirror defoggers, etc. But, do not attempt to scrape the
ice off by using the plastic plate, etc.
●When washing your vehicle using car shampoo with water repellent effect, rinse the
mirror surface with a lot of water, and remove the water drops by using a clean and
soft cloth.
CT200h_OM_OM76135E_(EE).book Page 160 Friday, May 30, 2014 1 1:14 AM

1694-1. Before driving
4
Driving
CT200h_OM_OM76135E_(EE)
Firmly set the parking brake with the brake pedal depressed, and then shift the
shift position to D.
Release the brake pedal and gently depress the accelerator pedal.
Release the parking brake.
■When starting off on a uphill
The hill-start assist control is available. (→P. 2 4 2 )
■For fuel-efficient driving
Keep in mind that hybrid vehicles are similar to conventional vehicles, and it is necessary
to refrain from activities such as sudden acceleration, etc. Refer to “Hybrid vehicle
driving tips”. ( →P. 2 5 1 )
■Driving in the rain
●Drive carefully when it is raining, becaus e visibility will be reduced, the windows may
become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, beca use the road surface will be especially slip-
pery.
●Refrain from high speeds when driving on an expressway in the rain, because there may
be a layer of water between the tires and the road surface, preventing the steering and
brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recommended:
●For the first 300 km (200 miles):
Avoid sudden stops.
●For the first 2000 km (1200 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the cor-
rect fuel. ( →P. 5 8 0 )
Starting off on a uphill
1
2
3
CT200h_OM_OM76135E_(EE).book Page 169 Friday, May 30, 2014 1 1:14 AM

1704-1. Before driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the “READY” indicator is
illuminated. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator ped-
als to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a difficulty in oper-
ating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using
your left foot may delay response in an emergency, resulting in an accident.
●The driver should pay extra attention to pedestrians when the vehicle is powered only
by the electric motor (traction motor). As there is no engine noise, the pedestrians
may misjudge the vehicle’s movement.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby.
●During normal driving, do not turn off the hybrid system. Turning the hybrid system off
while driving will not cause loss of steering or braking control, however, power assist
to the steering will be lost. This will make it more difficult to steer smoothly, so you
should pull over and stop the vehicle as soon as it is safe to do so. In the event of an
emergency, such as if it becomes impossib le to stop the vehicle in the normal way:
→ P. 5 0 9
●Use engine braking (shift position B instea d of shift position D) to maintain a safe
speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effective-
ness. ( →P. 1 8 4 )
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear
view mirrors while driving.
Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle.
CT200h_OM_OM76135E_(EE).book Page 170 Friday, May 30, 2014 1 1:14 AM

1714-1. Before driving
4
Driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce your
ability to control the vehicle.
●Sudden acceleration, engine braking due to shifting, or changes in engine speed
could cause the vehicle to skid.
●After driving through a puddle, lightly depres s the brake pedal to make sure that the
brakes are functioning properly. Wet brake pads may prevent the brakes from func-
tioning properly. If th e brakes on only one side are wet and not functioning properly,
steering control may be affected.
■When shifting the shift position
●Do not let the vehicle roll backward while a fo rward driving position is selected, or roll
forward while the shift position is in R.
Doing so may result in an accident or damage to the vehicle.
●Do not shift the shift position to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift position to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift position to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Moving the shift position to N while the vehicle is moving will disengage the hybrid
system. Engine braking is not available with the hybrid system disengaged.
●Be careful not to change the shift position with the accelerator pedal depressed.
Changing the shift position to any positions other than P or N may lead to unex-
pected rapid acceleration of the vehicle that may cause an accident and result in
death or serious injury.
After changing the shift position, make sure to confirm the current shift position dis-
played on the shift position indicator inside the meter.
■If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Lexus dealer or
repairer, or another duly qualified and equi pped professional as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
Front brakes only: Moderate levels of brak e pad and disc wear allow enhanced front
braking power. As a result, the discs may wear more quickly than conventional brake
discs. Therefore, when replacing the brake pads, Lexus recommends that you also
have the thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or those
of the brake discs are exceeded.
CT200h_OM_OM76135E_(EE).book Page 171 Friday, May 30, 2014 1 1:14 AM

1734-1. Before driving
4
Driving
CT200h_OM_OM76135E_(EE)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When taking a nap in the vehicle
Always turn the hybrid system off. Otherwise, if you accidentally move the shift lever or
depress the accelerator pedal, this could cause an accident or fire due to hybrid system
overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust
gases may collect and enter the vehicle, leading to death or a serious health hazard.
■When braking
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause one side of
the vehicle to brake differently than the other side. Also, the parking brake may not
securely hold the vehicle.
●If the electronically controlled assist function does not operate, do not follow other
vehicles closely and avoid downhill or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be depressed more
firmly than usual. Also, th e braking distance will increase. Have your brakes fixed
immediately.
●The brake system consists of 2 or more individual hydraulic systems; if one of the sys-
tems fails, the other(s) will still operate. In this case, the brake pedal should be
depressed more firmly than usual and the braking distance will increase. Have your
brakes fixed immediately.
NOTICE
■When driving the vehicle
●Do not depress the accelerator and brake pedals at the same time during driving, as
this may restrain driving torque.
●Do not use the accelerator pedal or depress the accelerator and brake pedals at the
same time to hold the vehicle on a hill.
■When parking the vehicle
Always shift the shift position to P. Failure to do so may cause the vehicle to move or the
vehicle may accelerate suddenly if the accelerator pedal is accidentally depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in ei ther direction and hold it there for an
extended period of time.
Doing so may damage the power steering motor.
●When driving over bumps in the road, drive as slowly as possible to avoid damaging
the wheels, underside of the vehicle, etc.
CT200h_OM_OM76135E_(EE).book Page 173 Friday, May 30, 2014 1 1:14 AM
