Lexus CT200h 2017 Owner's Manual (in English)

CT200h_OM_OM76215U_(U)
3015-7. Setup menu
5
Audio system
Select “Set Passkey” using a voice command or the “TUNE•SEL” knob.
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a
voice command or the knob.
The number should be input 1 digit at a time.
Pattern B
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Audio Player (Delete Audio)” using a voice command or the
“TUNE•SEL” knob.
Pattern A
Select the portable player to be deleted by either of the following methods
and select “Confirm” using a voice command or the knob:
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the talk switch.
Pattern B
Select the desired portable player to be deleted using the knob.
If the portable player to be deleted is paired as a Bluetooth
® phone, the registra-
tion of the cellular phone can be dele ted at the same time. A voice guidance
instruction to delete a cellular phone is heard.
Select “Yes” or “No” using a voice command or the knob.
(Bluetooth
® phone P. 3 2 1 )
■The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
Changing the passkey
Deleting a registered portable player
1
2
2
3
1
2
2
3

302
CT200h_OM_OM76215U_(U)5-7. Setup menu
Bluetooth® audio system setup
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
(
P. 306)
●Setting voice guidance volume
“Guidance Vol” (
P. 3 0 7 )
●Displaying the Bluetooth® device address and name
“Device Name” (
P. 3 0 7 )
●Initializing the system
“Initialize” (
P. 3 0 7 )
System setup items and operation procedures

303
CT200h_OM_OM76215U_(U)5-7. Setup menu
5
Audio system
Setting a cellular phone
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Registering a cellular phone
1. “Setup”
 2. “Phone Setup”  3. “Pair Phone”
●Selecting a cellular phone to be used
1. “Setup”  2. “Phone Setup”  3. “Connect Phone (Connect)”
●Changing the registered name of a cellular phone
1. “Setup”  2. “Phone Setup”  3. “Change Name”
●Listing the registered cellular phones
1. “Setup”  2. “Phone Setup”  3. “List Phones”
●Changing the passkey
1. “Setup”  2. “Phone Setup”  3. “Set Passkey”
●Deleting a registered cellular phone
1. “Setup”  2. “Phone Setup”  3. “Delete Phone”
Select “Pair Phone” using a voice command or the “TUNE•SEL” knob, and per-
form the procedure for registering a cellular phone. ( P. 2 9 7 )
Registering a cellular phone in the hands-free phone system allows the system
to function. The following functions can be used for registered cellular
phones:
Functions and operation procedures
Registering a cellular phone

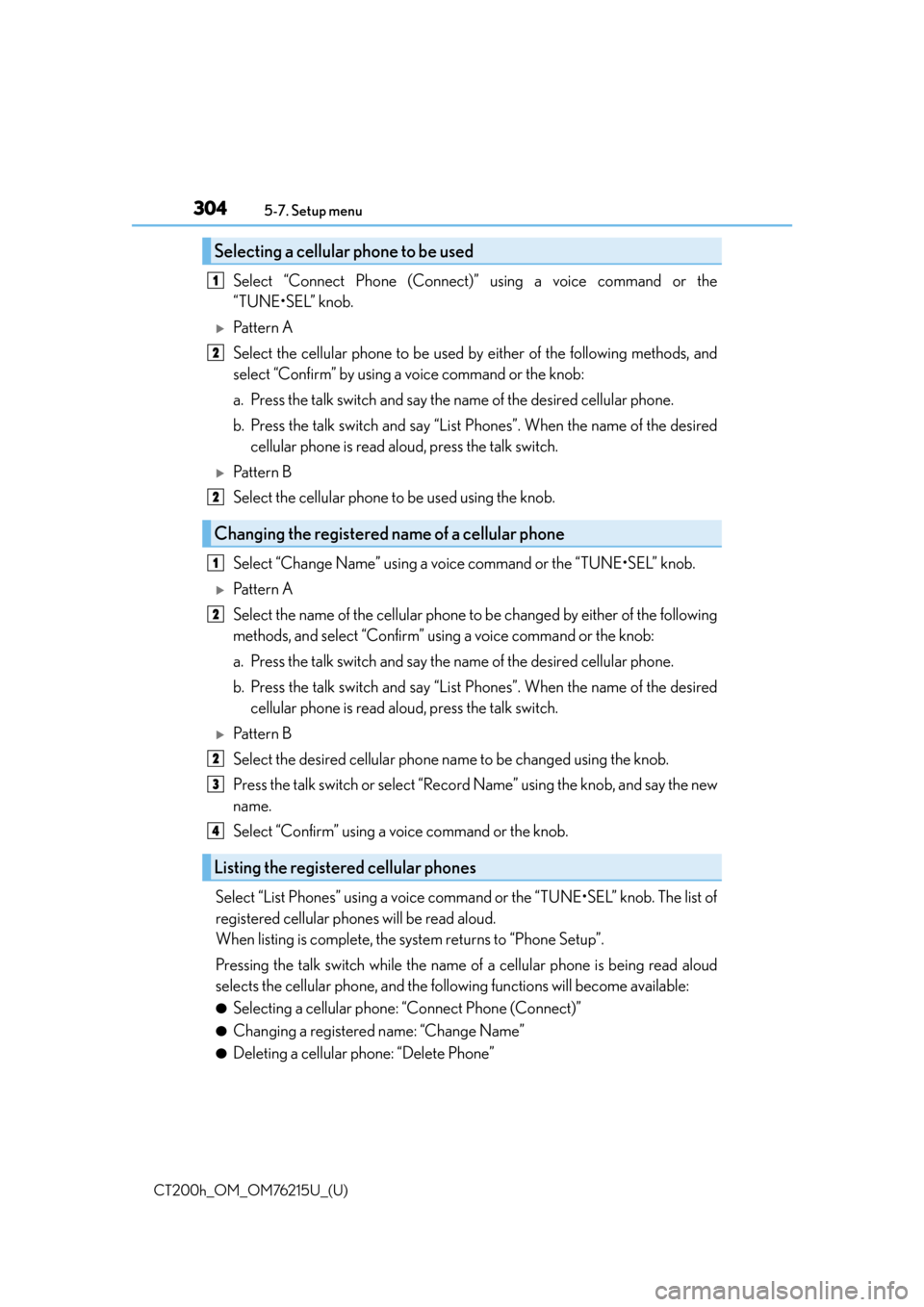

3045-7. Setup menu
CT200h_OM_OM76215U_(U)
Select “Connect Phone (Connect)” using a voice command or the
“TUNE•SEL” knob.
Pattern A
Select the cellular phone to be used by either of the following methods, and
select “Confirm” by using a voice command or the knob:
a. Press the talk switch and say the name of the desired cellular phone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the talk switch.
Pattern B
Select the cellular phone to be used using the knob.
Select “Change Name” using a voice command or the “TUNE•SEL” knob.
Pattern A
Select the name of the cellular phone to be changed by either of the following
methods, and select “Confirm” using a voice command or the knob:
a. Press the talk switch and say the name of the desired cellular phone.
b. Press the talk switch and say “List Phones”. When the name of the desiredcellular phone is read aloud, press the talk switch.
Pattern B
Select the desired cellular phone name to be changed using the knob.
Press the talk switch or select “Record Name” using the knob, and say the new
name.
Select “Confirm” using a voice command or the knob.
Select “List Phones” using a voice command or the “TUNE•SEL” knob. The list of
registered cellular phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while the name of a cellular phone is being read aloud
selects the cellular phone, and the follo wing functions will become available:
●Selecting a cellular phone: “Connect Phone (Connect)”
●Changing a registered name: “Change Name”
●Deleting a cellular phone: “Delete Phone”
Selecting a cellular phone to be used
Changing the registered name of a cellular phone
Listing the registered cellular phones
1
2
2
1
2
2
3
4

CT200h_OM_OM76215U_(U)
3055-7. Setup menu
5
Audio system
Select “Set Passkey” using a voice command or the “TUNE•SEL” knob.
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select “Confirm” using a
voice command or the knob.
Pattern B
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Phone” using a voice command or the “TUNE•SEL” knob.
Pattern A
Select the cellular phone to be deleted by either of the following methods and
select “Confirm” using a voice command or the knob:
a. Press the talk switch and say the name of the desired cellular phone.
b. Press the talk switch and say “List Phones”. When the name of the desired cellular phone is read aloud, press the talk switch.
Pattern B
Select the desired cellular phone to be deleted using the knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player, the
registration of the audio player can be deleted at the same time. A voice guid-
ance instruction to delete a Bluetooth
® audio player is heard.
Select “Yes” or “No” using a voice command or the knob.
(Bluetooth
® audio player P. 3 2 1 )
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
Changing the passkey
Deleting a registered cellular phone
1
2
2
3
1
2
2
3

306
CT200h_OM_OM76215U_(U)5-7. Setup menu
Security and system setup
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Setting or changing the PIN (Personal Identification Number)
1. “Setup”
 2. “Security”  3. “Set PIN”
●Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock (Phbk Lock)”
●Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock (Phbk Unlock)”
To enter the menu for each function, follow the steps below using the
“TUNE•SEL” knob:
●Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Vol”
●Displaying the Bluetooth® device address and name
1. “Setup”  2. “System Setup”  3. “Device Name”
●Initializing the system
1. “Setup”  2. “System Setup”  3. “Initialize”
■Setting a PIN
Select “Set PIN” using a voice command or the “TUNE•SEL” knob.
Enter a PIN using a voice command or the knob.
When using the “TUNE•SEL” knob, input the code 1 digit at a time.
■Changing the PINSelect “Set PIN” using a voice command or the “TUNE•SEL” knob.
Enter the registered PIN using a voice command or the knob.
Enter a new PIN using a voice command or the knob.
When using the knob, input the code 1 digit at a time.
Security setting items and operation procedures
System setup items and operation procedures
Setting or changing the PIN
1
2
1
2
3

CT200h_OM_OM76215U_(U)
3075-7. Setup menu
5
Audio system
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk
Unlock)” using a voice command or the “TUNE•SEL” knob.
Input the PIN by either of the following methods and select “Confirm” using a
voice command or the knob:
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using the knob.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
1
2
3
1
2

3085-7. Setup menu
CT200h_OM_OM76215U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its original
state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book

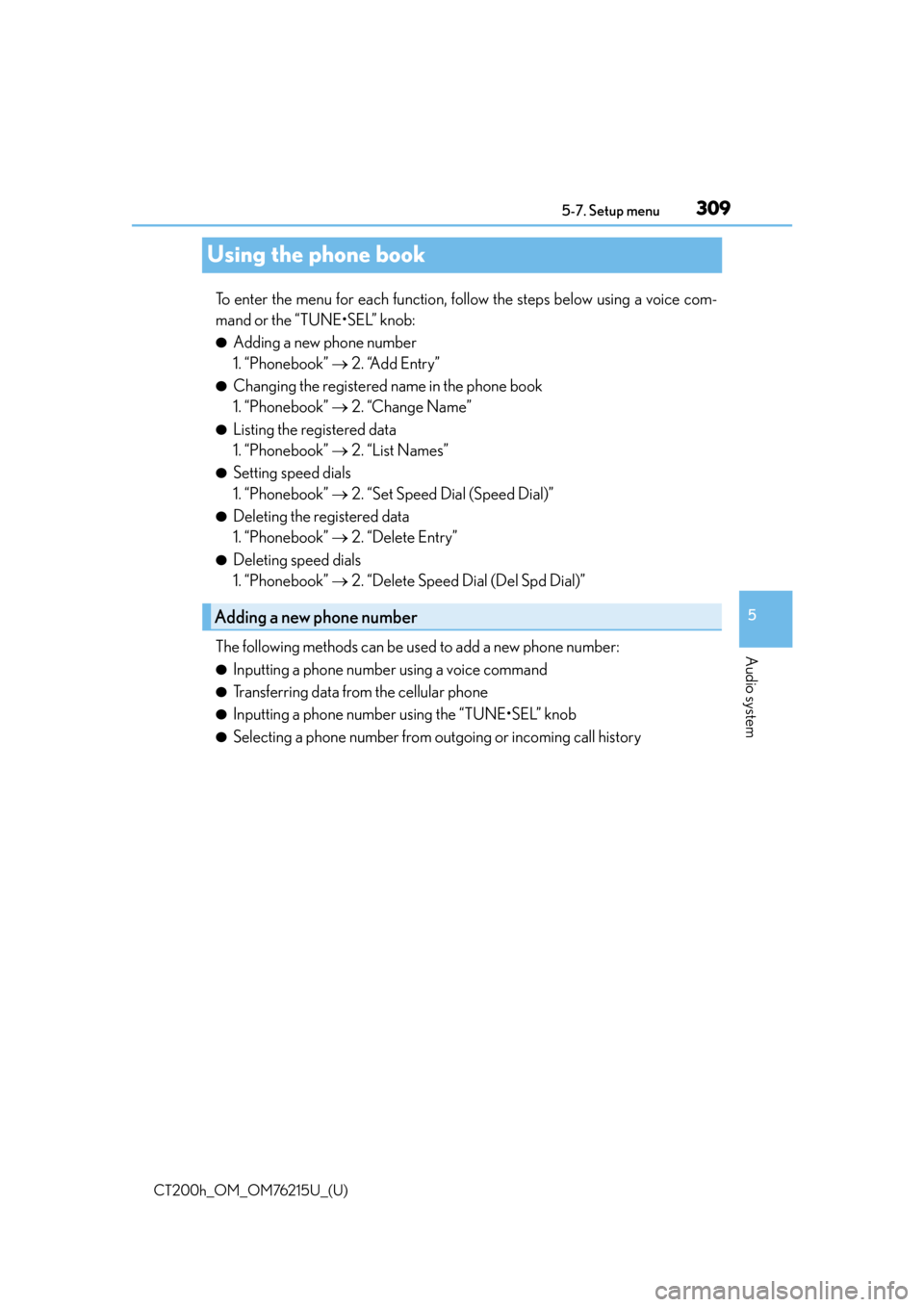

309
CT200h_OM_OM76215U_(U)5-7. Setup menu
5
Audio system
Using the phone book
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Adding a new phone number
1. “Phonebook”
 2. “Add Entry”
●Changing the registered name in the phone book
1. “Phonebook”  2. “Change Name”
●Listing the registered data
1. “Phonebook”  2. “List Names”
●Setting speed dials
1. “Phonebook”  2. “Set Speed Dial (Speed Dial)”
●Deleting the registered data
1. “Phonebook”  2. “Delete Entry”
●Deleting speed dials
1. “Phonebook”  2. “Delete Speed Dial (Del Spd Dial)”
The following methods can be used to add a new phone number:
●Inputting a phone number using a voice command
●Transferring data from the cellular phone
●Inputting a phone number using the “TUNE•SEL” knob
●Selecting a phone number from ou tgoing or incoming call history
Adding a new phone number

3105-7. Setup menu
CT200h_OM_OM76215U_(U)
■Adding procedure Select “Add Entry” using a voice command or the “TUNE•SEL” knob.
Use one of the following methods to input a telephone number:
Inputting a telephone number using a voice command: STEP2-1 Select “By Voice” using a voice command or the knob.
STEP2-2 Press the talk switch, say the desired number, and select “Con- firm” using a voice command.
Transferring data from the cellular phone: STEP2-1 Select “By Phone” and then “Confirm” using a voice command or the knob.
STEP2-2 Transfer the data from the cellular phone. Refer to the manual that comes with the cellular phone for the
details of transferring data.
STEP2-3 Select the data to be registered by either of the following meth- ods:
a. Say “Previous” or “Next” until the desired data is displayed, and select “Confirm” using a voice command.
b. Select the desired data using the knob.
Inputting a phone number using the knob: STEP2-1 Select “Manual Input” using the knob.
STEP2-2 Input a phone number using the knob, and press the knob again.
Input the phone number 1 digit at a time.
Selecting a phone number from outgoing or incoming call history: STEP2-1 Select “Call History” using a voice command or the knob.
STEP2-2 Select “Outgoing” or “Incoming” using a voice command or the knob.
STEP2-3 Select the data to be registered by either of the following meth- ods:
a. Say “Previous” or “Go back” until the desired data is displayed, and select “Confirm” using a voice command.
b. Select the desired data using the knob.
1
2
