Lexus CT200h 2017 Owner's Manual (in English)

5718-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
WA R N I N G
■12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte, while related
parts contain lead and lead compounds. Observe the following precautions when han-
dling the 12-volt battery:
●When working with the 12-volt battery, alwa ys wear safety glasses and take care not
to allow any battery fluids (acid) to come in to contact with skin, clothing or the vehicle
body.
●Do not lean over the 12-volt battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at your Lexus dealer as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to
emit a malodorous gas, which may be de trimental to the health of passengers.
■When replacing the 12-volt battery
P. 4 9 4
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure th at they do not become entangled in the
cooling fans or belt.
■To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt battery
from another vehicle in an emergency. It ca nnot be used to jump start another vehicle.

572
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If your vehicle overheats
●The high coolant temperature warning light (
P. 536) comes on or flashes,
or a loss of hybrid system power is experienced. (For example, the vehicle
speed does not increase.)
●The warning message indicating overheat s is shown on the multi-information
display. ( P. 5 4 8 )
●Steam comes out from under the hood.
■If the high coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5738-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir. Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are op erating by checking the fan sound and air
flow. If it is difficult to check these, tu rn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
4
1
2
3
5
6
7

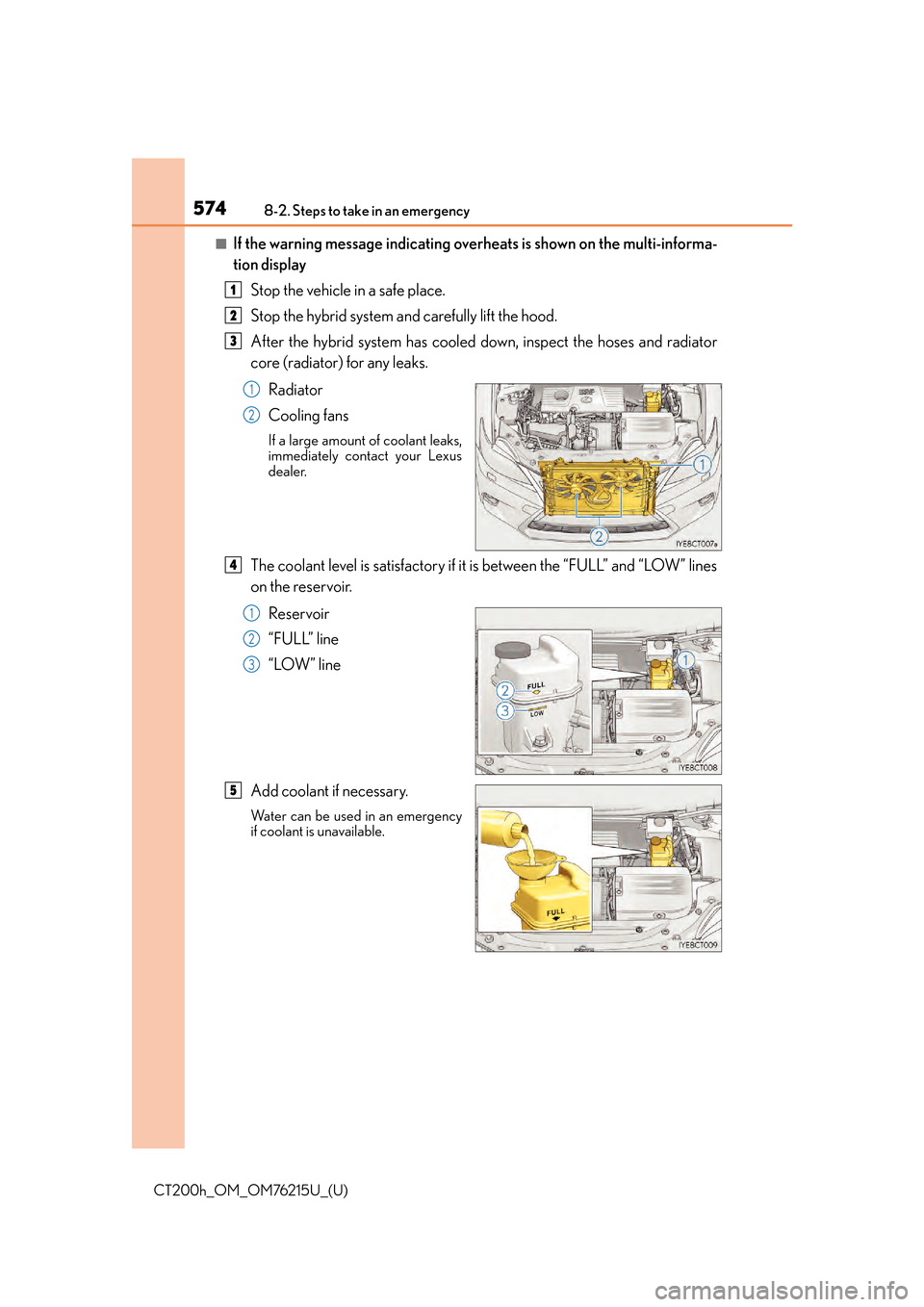

5748-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
■If the warning message indicating overheats is shown on the multi-informa-
tion display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if it is between the “FULL” and “LOW” lines
on the reservoir.Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

5758-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
WA R N I N G
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned of f, check that the indicator on the power
switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically start, or
the cooling fan may suddenly operate even if the gasoline engine stops. Do not touch
or approach rotating parts such as the fa n, which may lead to fingers or clothing
(especially a tie, a scarf or a muffler) ge tting caught, resulting in serious injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
6

576
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If the vehicle becomes stuck
Set the parking brake and shift the shift po
sition to P. Stop the hybrid system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help provide
traction.
Restart the hybrid system.
Shift the shift position to D or R, release the parking brake and carefully apply
the accelerator to free the vehicle.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 2 3 9 )
WA R N I N G
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When changing the shift position
Be careful not to change the shift positi on with the accelerator pedal depressed.
Changing the shift position to any positions other than P or N may cause the vehicle to
accelerate abruptly, causing an accident and resulting in death or serious injury.
NOTICE
■To avoid damage to the hybrid transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more than neces-
sary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.
1
2
3
4
5

577
CT200h_OM_OM76215U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.)................... 578
Fuel information..........................586
Tire information .......................... 588
9-2. Customization Customizable features ............598
9-3. Initialization Items to initialize .........................606

578
CT200h_OM_OM76215U_(U)9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
■Vehicle identification number
The vehicle identification number (VIN) is
the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion label.
Dimensions and weight
Overall length171.3 in. (4350 mm)
Overall width69.5 in. (1765 mm)
Overall height*57.3 in. (1455 mm)
Wheelbase102.4 in. (2600 mm)
Tr e a dFront60.0 in. (1525 mm)
Rear59.8 in. (1520 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Vehicle identification

CT200h_OM_OM76215U_(U)
5799-1. Specifications
9
Vehicle specifications
This number is also stamped under
the right-hand front seat.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearance (engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference)11.9 gal. (45 L, 9.9 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet motor
Maximum output60 kW
Maximum torque153 ft•lbf (207 N•m, 21.1 kgf•m)

580
CT200h_OM_OM76215U_(U)9-1. Specifications
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity28 modules
Overall voltage201.6 V
Lubrication system
Oil capacity
(Drain and refill — reference
*)
With filter
Without filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature
