Lexus CT200h 2017 Owner's Manual (in English)

5418-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
WA R N I N G
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure la bel (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a significantly under-inflated tire causes the
tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and ma y affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,
even if under-inflation has no t reached the level to trigger illumination of the TPMS low
tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one minu te and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning syst em) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressure warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

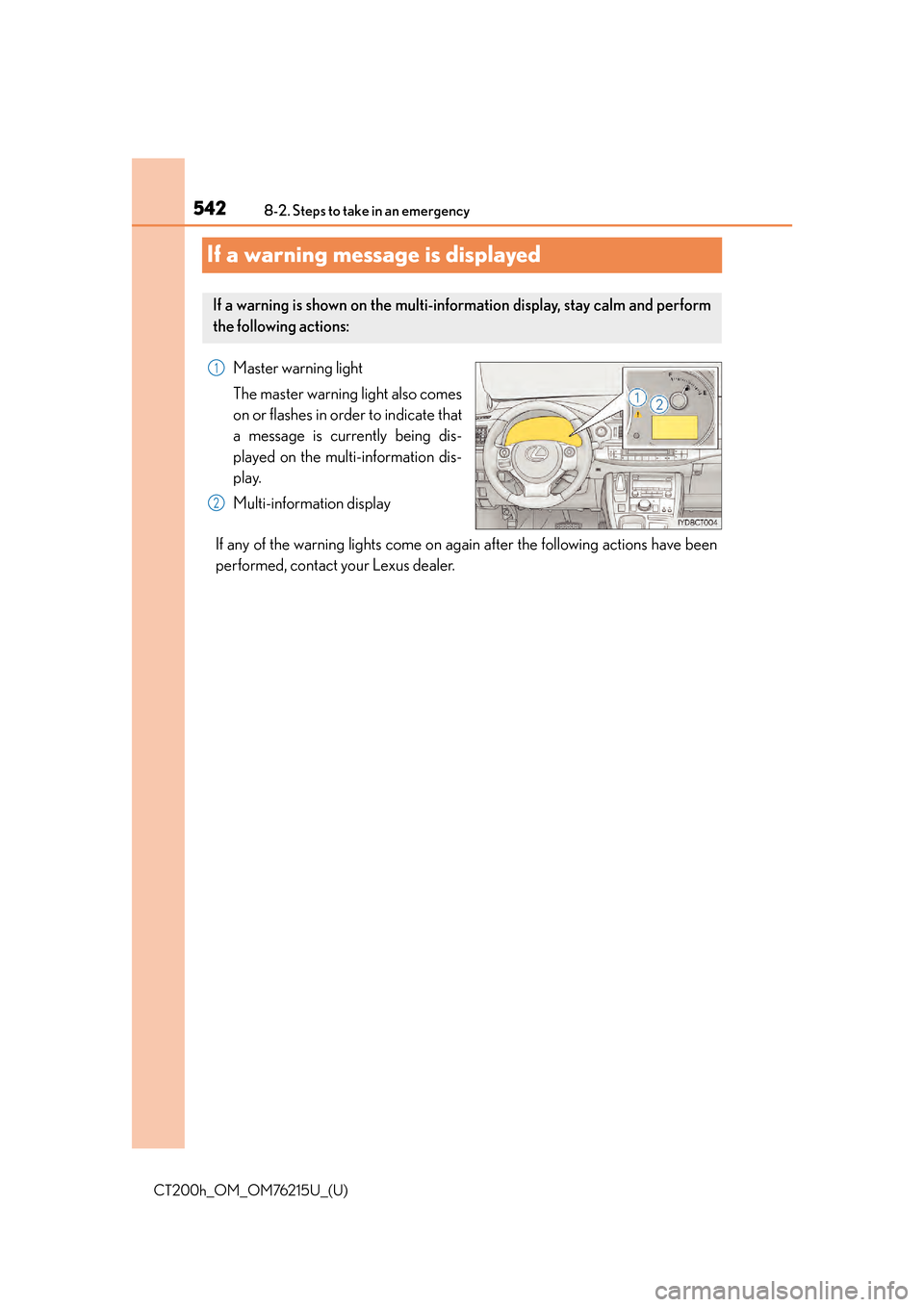

542
CT200h_OM_OM76215U_(U)8-2. Steps to take in an emergency
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that
a message is currently being dis-
played on the multi-information dis-
play.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact your Lexus dealer.
If a warning is shown on the multi-information display, stay calm and perform
the following actions:
1
2

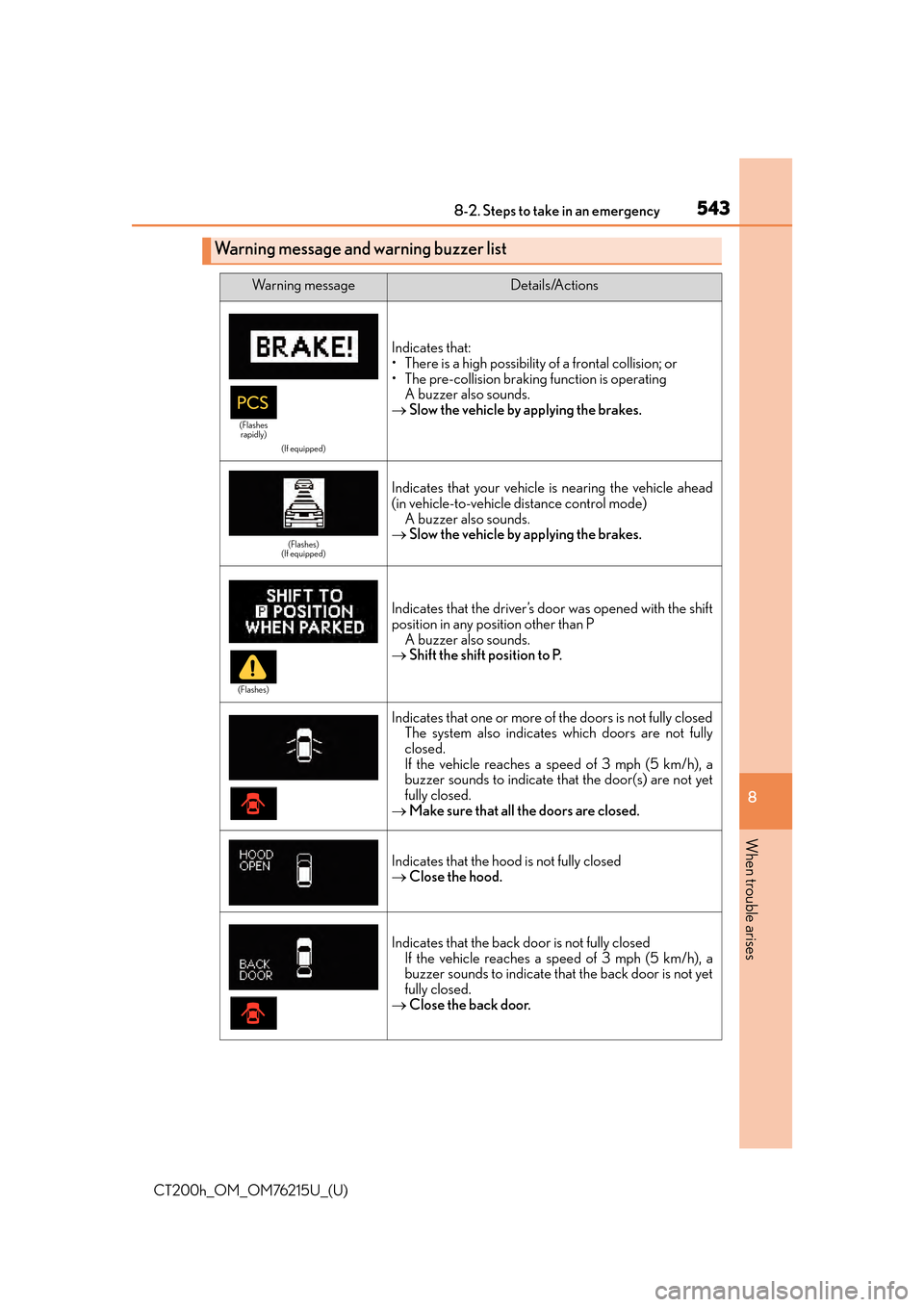

5438-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
Warning message and warning buzzer list
Wa r n i n g m e s s a g eDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operating A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(Flashes)
(If equipped)
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
Indicates that the driver’s door was opened with the shift
position in any position other than P
A buzzer also sounds.
 Shift the shift position to P.
Indicates that one or more of the doors is not fully closed
The system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h), a
buzzer sounds to indicate that the door(s) are not yet
fully closed.
 Make sure that all the doors are closed.
Indicates that the hood is not fully closed
Close the hood.
Indicates that the back door is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h), a
buzzer sounds to indicate that the back door is not yet
fully closed.
 Close the back door.
(Flashes
rapidly)
(Flashes)

5448-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
(If equipped)
Indicates a malfunction in the intuitive parking assistAll the sensor lights flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that an intuitive par king assist sensor is dirty or
covered with ice
All the sensor lights flash.
A buzzer also sounds.
 Clean the sensor.
Indicates that the accelerator pedal is depressed while
the shift position is in N
A buzzer also sounds.
 Release the accelerator pedal and shift the shift
position to D or R.
Indicates that the accelerator pedal is depressed to stop
the vehicle on an upward slope etc.
A buzzer also sounds.
If this continues, the hy brid system may overheat.
 Release the accelerator pedal and depress the
brake pedal.
Indicates that the traction battery power has dropped
because a long period of time has elapsed after shifting
the shift position to N
A buzzer also sounds.
 Restart the hybrid system when starting the vehicle.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5458-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
Indicates a malfunction in the hybrid system A buzzer also sounds.
 Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Indicates that the traction battery is low
A buzzer also sounds.
 When stopping the vehicle for a long period of time,
shift the shift position to P. The battery cannot be
charged with the shift position in N.
Indicates that the vehicle is being driven at 3 mph (5 km/h)
or more with the parking brake still engaged.
A buzzer also sounds.
 Release the parking brake.
Indicates a malfunction in the shift control system
A buzzer also sounds.
 Have the vehicle inspected at your Lexus dealer
immediately.
• The hybrid system may not be able to start.
• The parking lock mechanism may not operate. Also,
shifting the shift position to P may not be possible.
When parking, choose a le vel place and apply the
parking brake securely.
• The automatically P position selection function ( P. 1 6 8 )
may not operate. Before turning the power switch off,
securely press the P position switch, and be sure to check
that the shift position is in P by verifying the shift position
indicator or P positi on switch indicator.
• The power switch may not be able to be turned off. In this case, the power switch can be turned off by apply-
ing the parking brake.
• The 12-volt battery may not be charged sufficiently. In this case, charge or replace the 12-volt battery.
After charging the 12-volt battery, the message may
continue to be displayed until the shift position is
shifted from P.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(U.S.A.) (Canada) (Flashes)

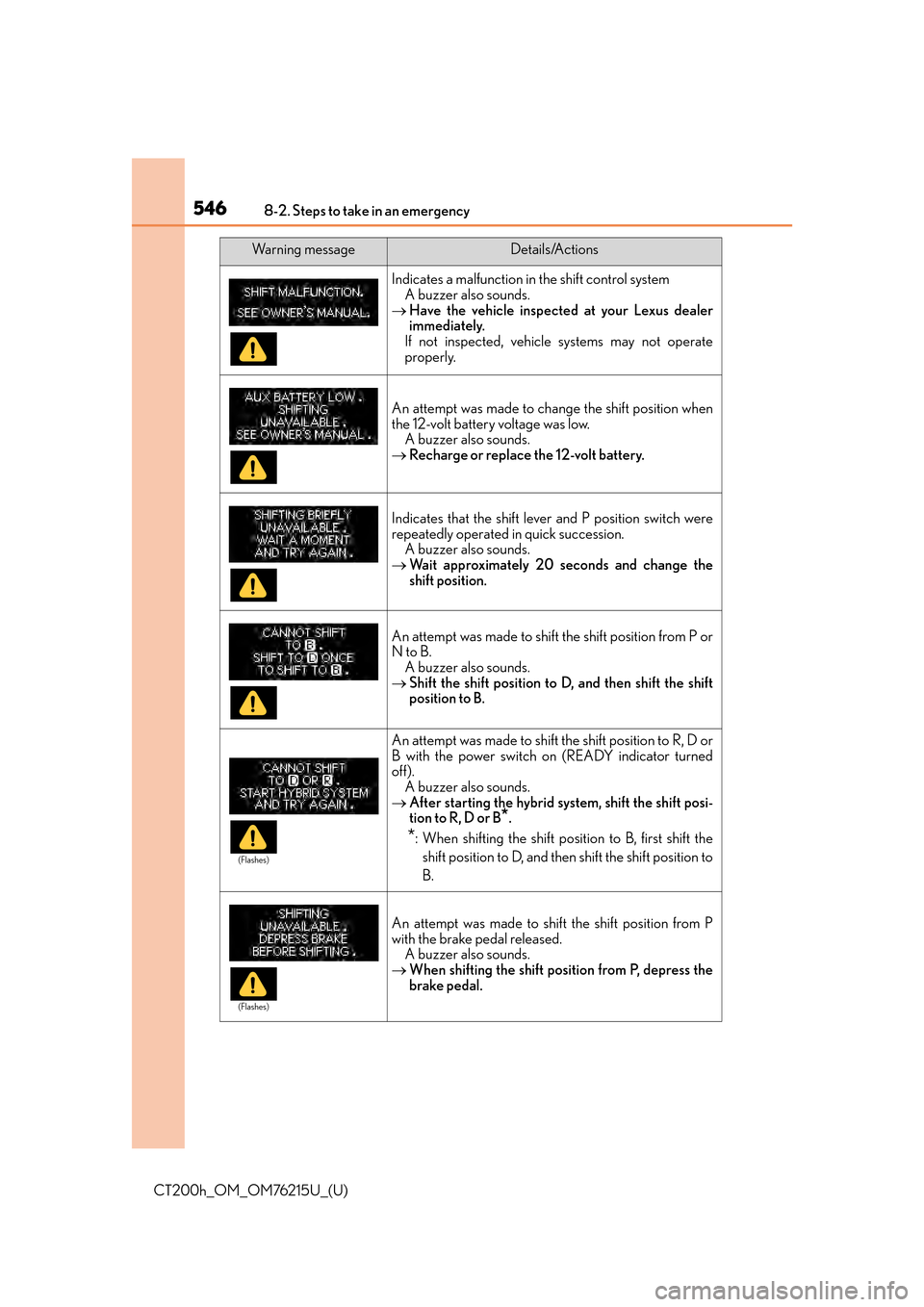

5468-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
Indicates a malfunction in the shift control system
A buzzer also sounds.
 Have the vehicle inspected at your Lexus dealer
immediately.
If not inspected, vehicl e systems may not operate
properly.
An attempt was made to change the shift position when
the 12-volt battery voltage was low. A buzzer also sounds.
 Recharge or replace the 12-volt battery.
Indicates that the shift lever and P position switch were
repeatedly operated in quick succession.
A buzzer also sounds.
 Wait approximately 20 seconds and change the
shift position.
An attempt was made to shift the shift position from P or
N to B.
A buzzer also sounds.
 Shift the shift position to D, and then shift the shift
position to B.
An attempt was made to shift the shift position to R, D or
B with the power switch on (READY indicator turned
off).
A buzzer also sounds.
 After starting the hybrid system, shift the shift posi-
tion to R, D or B
*.
*: When shifting the shift position to B, first shift the
shift position to D, and then shift the shift position to
B.
An attempt was made to shift the shift position from P
with the brake pedal released. A buzzer also sounds.
 When shifting the shift position from P, depress the
brake pedal.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

5478-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
An attempt was made to shift the shift position from R to
B. A buzzer also sounds.
The shift position automatically changed to N.
 Shift the shift position to D, and then shift the shift
position to B.
An attempt was made to shift the shift position to D while
the vehicle was moving in reverse.
A buzzer also sounds.
The shift position automatically changed to N.
 Stop the vehicle, and then change the shift position.
An attempt was made to shift the shift position to R while
the vehicle was moving forward.
A buzzer also sounds.
The shift position automatically changed to N.
 Stop the vehicle, and then change the shift position.
Indicates that the P position switch is pressed while the
vehicle is running. A buzzer also sounds.
The shift position automatically changed to N.
 To shift the shift position to P, stop the vehicle com-
pletely and press the P position switch.
 To continue driving, shift th e shift position to D or R.
(If equipped)
Indicates that the radar cruise control sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
 If the windshield wipers are on, turn them off or set
them to either intermittent or slow mode.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

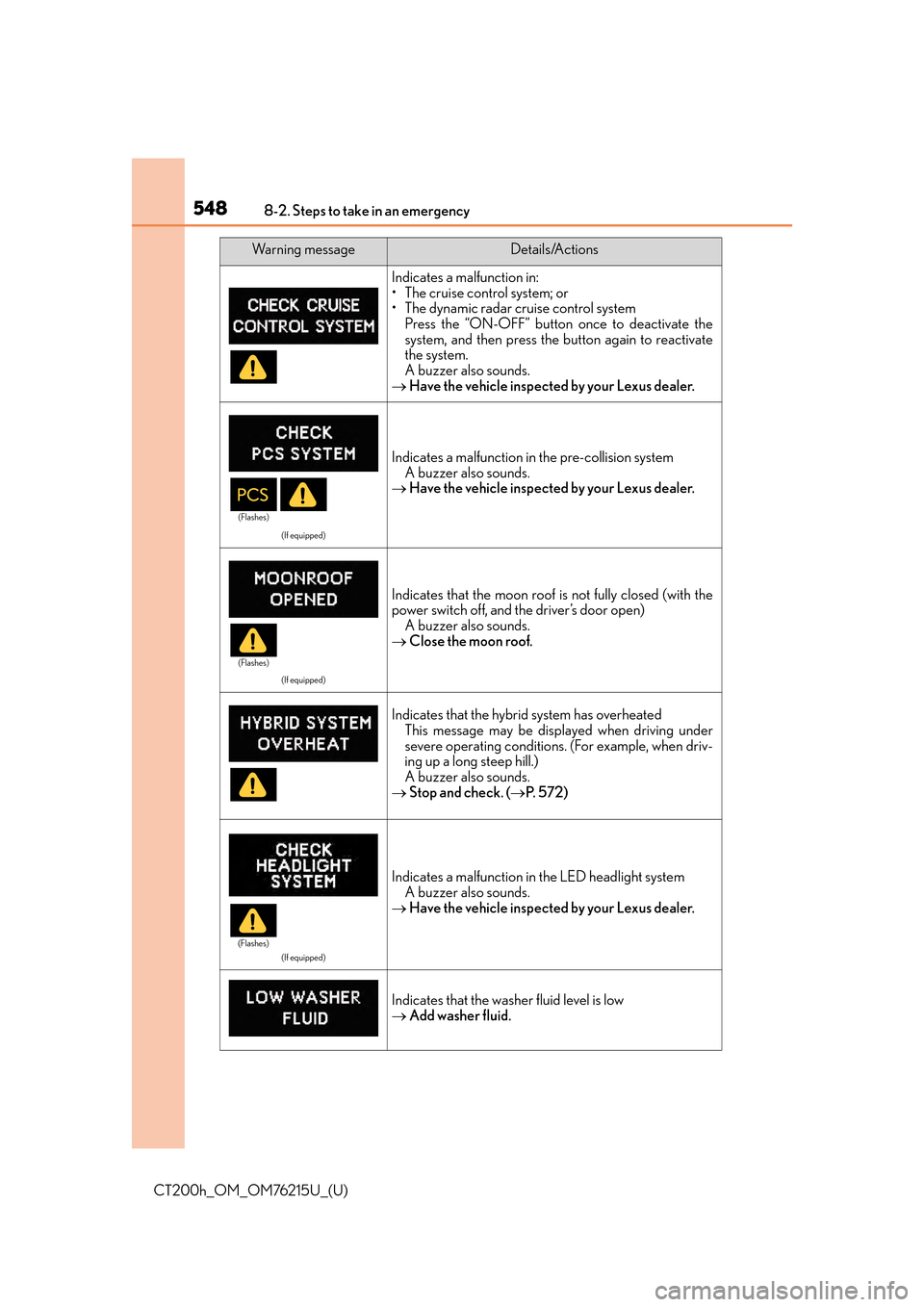

5488-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control systemPress the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the pre-collision system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that the moon roof is not fully closed (with the
power switch off, and the driver’s door open)
A buzzer also sounds.
 Close the moon roof.
Indicates that the hybrid system has overheated
This message may be disp layed when driving under
severe operating conditions. (For example, when driv-
ing up a long steep hill.)
A buzzer also sounds.
 Stop and check. ( P. 5 7 2 )
(If equipped)
Indicates a malfunction in the LED headlight system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Indicates that the wash er fluid level is low
 Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5498-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
8
When trouble arises
*1: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement” for the maintenance interval applicable to your vehicle.
*2: For the EV drive mode operating conditions ( P. 1 6 3 ) .
(U.S.A. only)
Indicates that all maintenance according to the driven
distance on the maintenance schedule
*1 should be per-
formed soon. Comes on approximately 4500 miles (7200 km)
after the message has been reset.
 If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to correspond
to the driven distance on the maintenance schedule
*1.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the mes-
sage has been reset.)
 Perform the necessary maintenance. Please reset
the message after the maintenance is performed
( P. 4 7 3 )
(If equipped)
Indicates that the pre-collisio n system is not currently
functional because the grille cover or the sensor is dirty
This message also appears when the pre-collision sys-
tem is not functional due to overheating.
 Check the grille cover and the sensor and clean
them if they are dirty.
In case of overheating, the system will become func-
tional once the system cools down.
Indicates that the EV drive mode is not available*2
The reason the EV drive mode is not available (the
vehicle is idling, battery char ge is low, speed is higher
than the EV drive mode operating speed range, accel-
erator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
 Use the EV drive mode when it becomes available.
Indicates that the EV drive mode has been automatically
canceled*2
The reason the EV drive mode is not available (the
battery charge is low, sp eed is higher than the EV
drive mode operating speed range, accelerator pedal
is depressed too much) may be displayed.
A buzzer also sounds.
 Drive the vehicle for a while.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes
3 times)

5508-2. Steps to take in an emergency
CT200h_OM_OM76215U_(U)
■Wa r n i n g m e s s a g e s
The warning message illustrations used are intended as examples, and may differ from
the image that is actua lly displayed on the multi-information display.
■Warning message in radar cruise mode (if equipped)
In the following situations, the warning messag e may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■Warning buzzer
 P. 5 3 9
Carrying out the corresponding action turns the message off.
Other displayed message
Displayed messageDetails/Actions
Maintenance of the hybrid battery (traction battery)
cooling component is required
The filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
 Have maintenance performed on the hybrid battery
(traction battery) cooling component at your Lexus
dealer.
