Lexus GS350 2015 Navigation Manual

81
3. OTHER SETTINGS
BASIC FUNCTION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
2
3Select the desired item to be edited.■EDITING DEALER OR CONTACT
NAME
1Select “Dealer” or “Contact” .
2Enter the name and select “OK”.
■EDITING THE LOCATION
1Select “Location” .
2Scroll the map to the desired point
(→ P.95) and select “OK”.
■EDITING TELEPHONE NUMBER
1Select “Tel. no.” .
2Enter the telephone number and select
“OK”.
No.FunctionPage
Select to enter the name of
a dealer.81
Select to enter the name of
a dealer member.81
Select to set the location.81
Select to set the telephone
number.81
Select to set the displayed
dealer as a destination.115
Select to delete the dealer
information displayed on
the screen.


82
3. OTHER SETTINGS
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54

3
83
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:52
1
2
3
4
5 6
7
8 9
1. QUICK REFERENCE ............................... 86
MAP SCREEN............................................................. 86
NAVIGATION MENU SCREEN ..................... 88
2. MAP SCREEN OPERATION ................ 90
CURRENT POSITION DISPLAY..................... 90
MAP SCALE ................................................................. 91
ORIENTATION OF THE MAP........................... 92
SWITCHING MAP CONFIGURATIONS .......................................... 92
SCREEN SCROLL OPERATION..................... 94
ADJUSTING LOCATION IN SMALL INCREMENTS......................................................... 95
3. MAP SCREEN INFORMATION .......... 96
DISPLAYING POI*2 ICONS .............................. 96
ROUTE TRACE .......................................................... 97
DISPLAYING INFORMATION ABOUT THE ICON WHERE THE
CURSOR IS SET .................................................... 98
STANDARD MAP ICONS ................................... 99
4. TRAFFIC AND PARKING INFORMATION .................................... 100
DISPLAYING TRA FFIC AND TRAFFIC
PREDICTION INFORMATION................... 100
PARKING INFORMATION .............................. 102
1BASIC OPERATION
NAVIGATION SYSTEM *1

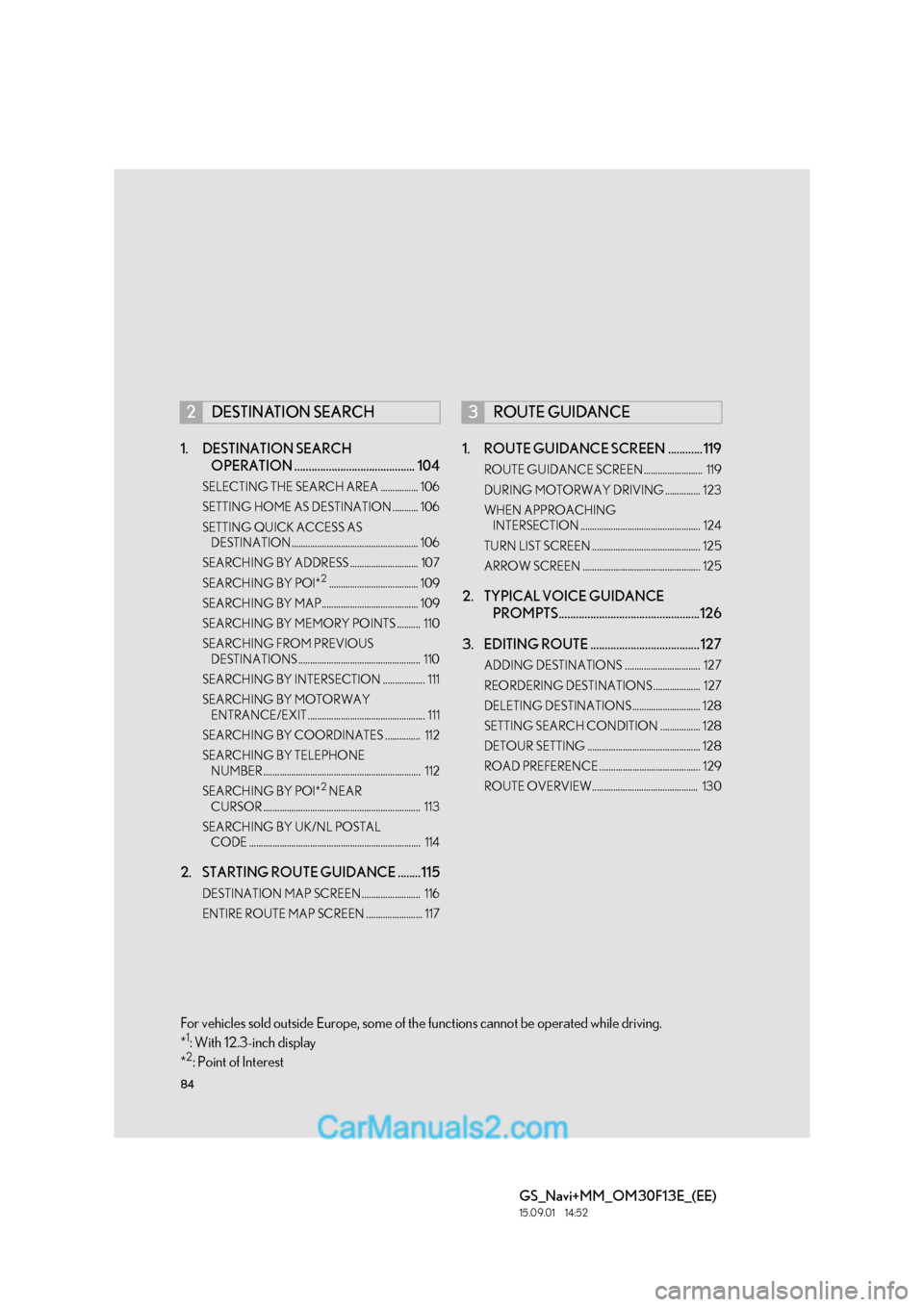

84
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:52
1. DESTINATION SEARCH OPERATION .......................................... 104
SELECTING THE SEARCH AREA ................ 106
SETTING HOME AS DESTINATION........... 106
SETTING QUICK ACCESS AS
DESTINATION...................................................... 106
SEARCHING BY ADDRESS ............................. 107
SEARCHING BY POI*
2...................................... 109
SEARCHING BY MAP......................................... 109
SEARCHING BY MEMORY POINTS .......... 110
SEARCHING FROM PREVIOUS DESTINATIONS .................................................... 110
SEARCHING BY INTERSECTION .................. 111
SEARCHING BY MOTORWAY ENTRANCE/EXIT .................................................. 111
SEARCHING BY COORDINATES ............... 112
SEARCHING BY TELEPHONE NUMBER................................................................... 112
SEARCHING BY POI*
2 NEAR
CURSOR ................................................................... 113
SEARCHING BY UK/NL POSTAL CODE ......................................................................... 114
2. STARTING ROUTE GUIDANCE ........115
DESTINATION MAP SCREEN ......................... 116
ENTIRE ROUTE MAP SCREEN ........................ 117
1. ROUTE GUIDANCE SCREEN ............119
ROUTE GUIDANCE SCREEN......................... 119
DURING MOTORWAY DRIVING ............... 123
WHEN APPROACHING INTERSECTION ................................................... 124
TURN LIST SCREEN .............................................. 125
ARROW SCREEN .................................................. 125
2. TYPICAL VOICE GUIDANCE PROMPTS.................................................126
3. EDITING ROUTE ...................................... 127
ADDING DESTINATIONS ................................ 127
REORDERING DESTINATIONS.................... 127
DELETING DESTINATIONS............................. 128
SETTING SEARCH CONDITION ................. 128
DETOUR SETTING ................................................ 128
ROAD PREFERENCE ........................................... 129
ROUTE OVERVIEW............................................. 130
2DESTINATION SEARCH3ROUTE GUIDANCE
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
*1: With 12.3-inch display
*2: Point of Interest

85
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:52
1
2
3
4
5 6
7
8 9
1. MY MEMORY SETTINGS ..................... 131
SETTING UP HOME ............................................. 132
SETTING UP QUICK ACCESS ...................... 134
SETTING UP MEMORY POINTS .................. 136
SETTING UP AREA TO AVOID ..................... 140
SETTING UP ROUTE TRACE .......................... 142
BACKUP TO A USB MEMORY ..................... 144
COPYING FROM A USB MEMORY.......... 146
1. NAVIGATION SETTINGS .................... 147
NAVIGATION SETTINGS SCREEN ........... 147
2. TRAFFIC AND PARKING SETTINGS.................................................. 151
TRAFFIC AND PARKING SETTINGS
SCREEN ..................................................................... 151
1. GPS (GLOBAL POSITIONING SYSTEM) ................................................... 160
LIMITATIONS OF THE NAVIGATION
SYSTEM .................................................................... 160
2. MAP DATABASE VERSION AND COVERED AREA ................................. 163
MAP DATA ................................................................. 163
ABOUT THE MAP DATA ................................... 164
4MY MEMORY
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM

86
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
The map screen can be reached by the following methods:
XPress the “MAP” button on the Remote Touch.
X Press the “MENU” button on the Remote Touch, then select “Nav” on the “Menu”
screen. ( →P.14)
Select if the navigation menu screen is displayed.
No.NameFunctionPage
2D north up, 2D
heading up or 3D
heading up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. In 3D map, only a head-
ing-up view is available.92
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS160
Status barDisplays the condition of Wi-Fi® and Bluetooth®
connections, the level of reception and the
amount of battery charge left for a cellular phone.16

87
1. BASIC OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
NAVIGATION SYSTEM
3
Border guidanceWhen a vehicle crosses a borderline, the national
flag of that country is displayed.
*Speed limit iconDisplays speed limits147
Route informa-
tion change but-
tonSelect to display the current street name, expect-
ed travel time/arrival time to the destination, or
the traffic information bar.
119
Route informa-
tion barDisplays the current street name, expected travel
time/arrival time to the destination or the traffic in-
formation bar as selected.
“Menu”Select to utilize functions such as setting a destina-
tion and registering a memory point.88
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
91
Scale indicatorThis figure indicates the map scale.
Manual update
buttonSelect to update the traffic or parking lot informa-
tion manually. 155
Traffic indicatorShows that traffic information is received. Select
to display traffic information.100
*: Without RSA (Road Sign Assist)
No.NameFunctionPage

88
1. BASIC OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
INFORMATION
●
Certain screen buttons on the map screen will disappear several seconds after the Remote
Touch has been operated. This setting can be changed so that all the screen buttons will
always be displayed.( →P.1 4 7 )
●Press the “MAP” button on the Remote Touch to display the address of the current position
on the map screen or repeat voice guidance.
NAVIGATION MENU SCREEN
To display this screen, select “Menu” on the map screen. ( →P.86)

89
1. BASIC OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
NAVIGATION SYSTEM
3
No.FunctionPage
Select to search for a destination.104
Select to suspend or resume guidance.
Select to change routes and/or destinations and to view route over-
view.127
Select to enable changes to “Home”, “Memory points”, “Quick access”,
“Area to avoid”, etc.131
Select to set the desired map configuration.92
Select to set the Points of Interest to be displayed on the screen.96
Select to start/stop recording the route trace.97
Select to register the current position or the cursor position as a mem-
ory point. Can be changed to a desired name, icon, etc.131

90
1. BASIC OPERATION
GS_Navi+MM_OM30F13E_(EE)
15.09.01 14:54
2. MAP SCREEN OPERATION
1Press the “MAP” button on the Remote
Touch.
2Check that the current position map is
displayed.
z Select if the navigation menu
screen is displayed.
z Selecting on the side display will
change the map screen to full screen dis-
play.
CURRENT POSITION DISPLAY
zTo correct the current position manually:
→ P.1 5 0
INFORMATION
●
While driving, the current position mark
is fixed on the screen and the map moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
●After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
