windshield wipers Lexus IS200t 2015 User Guide

2234-3. Operating the lights and wipers
4
Driving
IS200t_EE(OM53D19E)

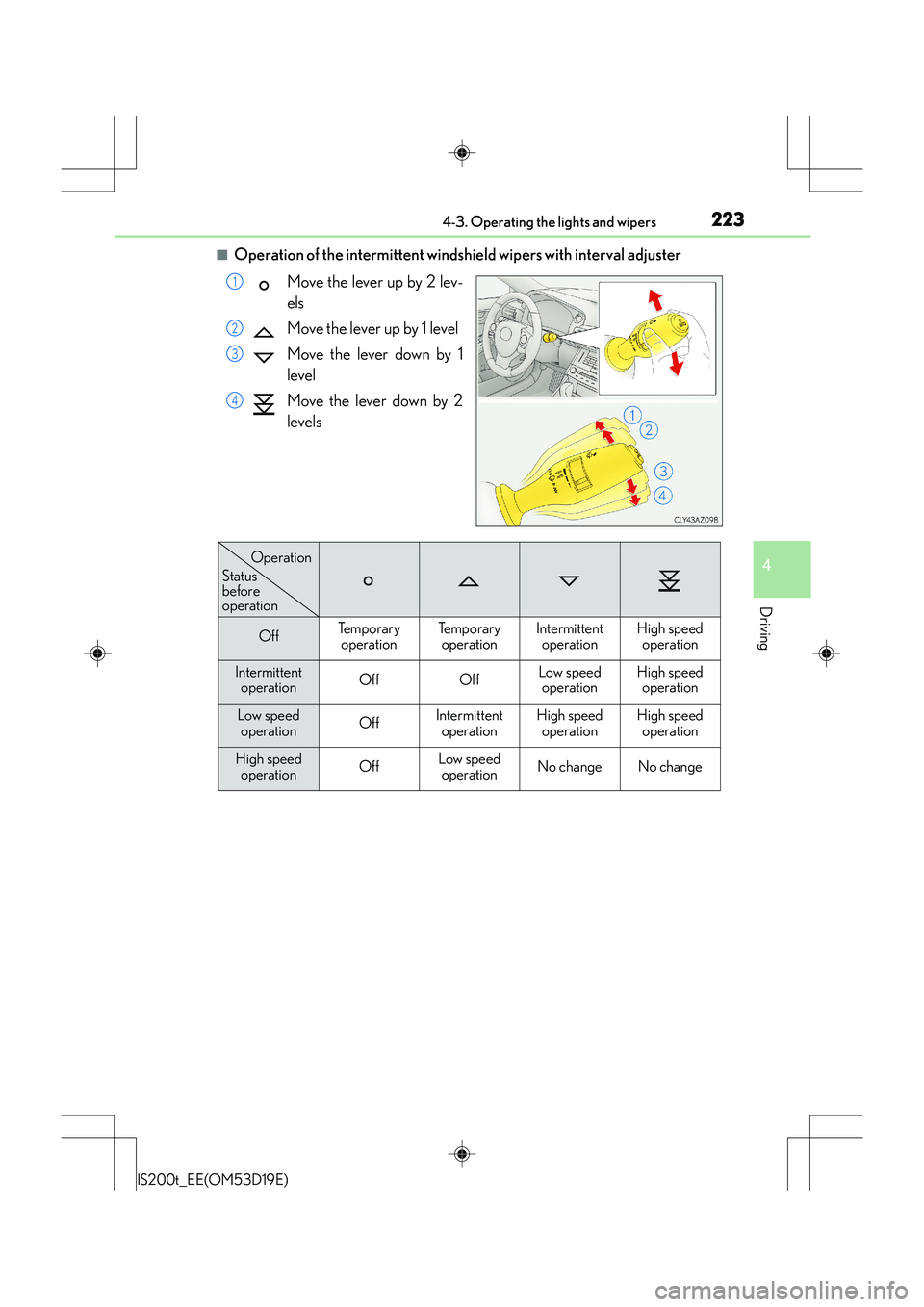

■Operation of the intermittent windshield wipers with interval adjusterMove the lever up by 2 lev-
els
Move the lever up by 1 level
Move the lever down by 1
level
Move the lever down by 2
levels
1
2
3
4
OffTe m p o r a r y operationTe m p o r a r y operationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed
operationOffIntermittent operationHigh speedoperationHigh speed operation
High speed operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation

2244-3. Operating the lights and wipers
IS200t_EE(OM53D19E)
Wiper intervals can be adjusted when intermittent operation is selected.Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
The intermittent windshield wiper
operates more frequently as vehicle
speed becomes higher.
Washer/wiper dual operation
The wipers will automatically operate
a couple of times after the washer
squirts.
When the engine switch is in IGNI-
TION ON mode and the headlights
are on, if the lever is pulled, the head-
light cleaners will operate once.
After this, the headlight cleaners will
operate every 5th time the lever is
pulled.
5
6
7

2254-3. Operating the lights and wipers
4
Driving
IS200t_EE(OM53D19E)
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After performing a washing and wiping operation several times, the wipers operate one
more time after a short delay to prevent dripping.
However, this final wiper operation will not be performed while driving.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing windshield wip-
ers)
Vehicle speed affects the following even when the wipers are not in AUTO mode.
●Intermittent wiper interval
●Wiper operation when the washer is being used (delay until drip prevention wiper
sweep occurs)
With low speed windshield wiper operation selected, wiper operation will be switched
from low speed to intermittent wiper operat ion only when the vehicle is stationary.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper is turned to AUTO mode while the engine switch is in IGNITION ON
mode, the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-22°F)
or lower, automatic operation may not occur. In this case, operate the wipers in any
mode other than AUTO mode.
■When the windshield wipers are in tempor ary operation (vehicles with rain-sensing
windshield wipers)
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield
washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not oper-
ate properly when sunlight from the rising or
setting of the sun intermittently strikes the
windshield, or if bugs etc. are present on the
windshield.

2264-3. Operating the lights and wipers
IS200t_EE(OM53D19E)
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the wind-
shield is subject to vibration in AUTO mode. Take care that your fingers or anything
else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an accident,
resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you and
held continually.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

2514-5. Using the driving support systems
4
Driving
IS200t_EE(OM53D19E)
■Dynamic radar cruise control can be set when
●The shift lever is in D.
●Range 4 or higher of D has been selected by using the paddle shift switch.
●Vehicle speed is above approximately 50 km/h (30 mph).
■Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After accelerating, the
set speed resumes. However, during vehicle-to-vehicle distance control mode, the vehi-
cle speed may decrease below the set speed in order to maintain the distance to the pre-
ceding vehicle.
■Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control driving is automatically canceled in the following situ-
ations:
●Actual vehicle speed falls below approximately 40 km/h (25 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off by pressing the VSC OFF switch.
●The sensor cannot detect correctly because it is covered in some way.
●The windshield wipers are operating at high speed (when the wipers are in AUTO
mode or the high speed wiper operation).
●When snow mode is set.
●Pre-crash braking is activated.
If vehicle-to-vehicle distance control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Automatic cancelation of constant speed control mode
The cruise control will stop maintaining th e vehicle speed in the following situations:
●Actual vehicle speed is more than approximately 16 km/h (10 mph) below the set vehi-
cle speed.
●Actual vehicle speed falls below approximately 40 km/h (25 mph).
●VSC is activated.
●TRC is activated for a period of time.
●When the VSC or TRC system is turned off by pressing the VSC OFF switch.
●Pre-crash braking is activated.

4307-1. Maintenance and care
IS200t_EE(OM53D19E)
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor bo dy or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled suf-
ficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Set the wipers to the intermittent windshield
wipers. ( →P. 222)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades.

4317-1. Maintenance and care
7
Maintenance and care
IS200t_EE(OM53D19E)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (aluminum
wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface
• After driving in an area contaminated with soot, oi ly smoke, mine dust, iron pow-
der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gaso line are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with low
humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicles with rain-sensing windshield wipers)
Set the wipers to the intermittent windshield wipers. ( →P. 222)
If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.
■When using a high pressure car wash
Do not bring the nozzle tip close to boots (rubber or resin manufactured cover), con-
nectors or the following parts. The parts may be damaged if they come into contact
with high-pressure water
• Traction related parts
• Steering parts •Suspension parts
•Brake parts

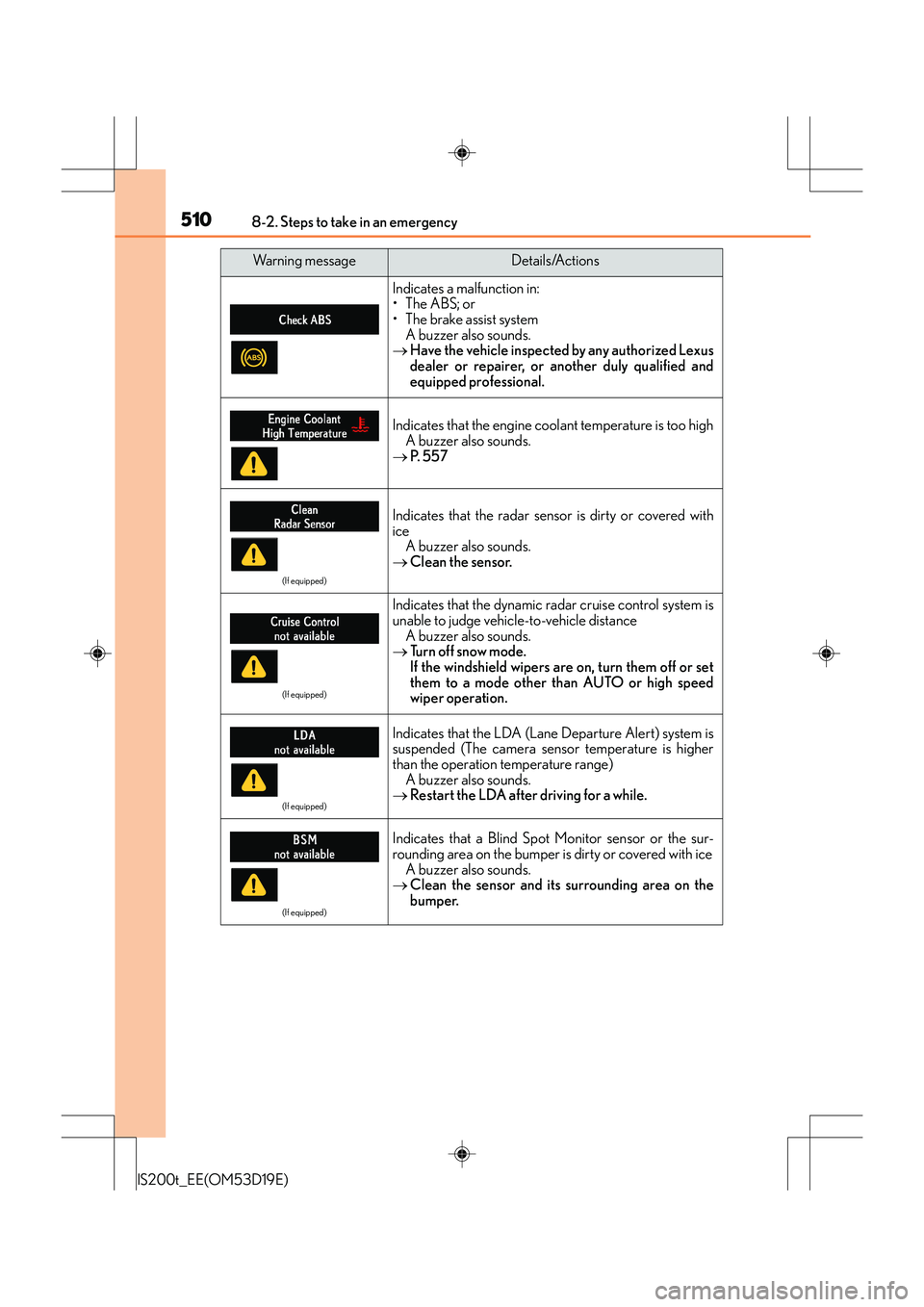

5108-2. Steps to take in an emergency
IS200t_EE(OM53D19E)
Indicates a malfunction in:
•The ABS; or
• The brake assist systemA buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
→ P. 5 5 7
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
→ Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control system is
unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
→ Tu r n o f f s n o w m o d e .
If the windshield wipers are on, turn them off or set
them to a mode other than AUTO or high speed
wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) system is
suspended (The camera sensor temperature is higher
than the operation temperature range)
A buzzer also sounds.
→ Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
→ Clean the sensor and its surrounding area on the
bumper.
Wa r n i n g m e s s a g eDetails/Actions

605Alphabetical index
IS200t_EE(OM53D19E)
SensorAutomatic headlight system.............211
Automatic High Beam system......216
Inside rear view mirror......................164
Intrusion sensor and tilt sensor ...... 86
LDA (Lane Departure Alert).......260
Lexus parking assist-sensor ......... 266
Radar sensor ................252, 292, 303
Rain-sensing windshield wipers................................................... 225
Service reminder indicators................90
S-FLOW mode .................................... 400
Shift lever................................................... 201 Automatic transmission ................... 201
If the shift lever cannot be shifted from P ...................................549
Shift lock system .................................... 549
Shift position and gear position.......... 95
Side airbags..................................................41 Side mirrors ..............................................165
Adjusting and folding ........................165
BSM (Blind Spot Monitor) ........... 299
Linked mirror function when
reversing .............................................. 167
Mirror position memory .................. 153
Side turn signal lights .......................... 207 Replacing light bulbs ....................... 485
Turn signal lever................................. 207
Side windows ...........................................169
Slip indicator............................................ 501
Smart entry & start system .................134
Antenna location ................................. 134
Entry functions ............................ 122, 129
Starting the engine.............................. 196
SMS (Short message service)......... 374
Snow mode ............................................. 202
Snow tires ................................................... 311
Spare tire ................................................. 522 Inflation pressure ................................572
Storage location................................. 523
Spark plug ............................................... 569
Specifications ......................................... 564
Speech command system ................ 394

611Alphabetical index
IS200t_EE(OM53D19E)
Warning messages ..............................506
Warning reflector storage belt .......420
Washer....................................................... 219Checking .............................................. 450
Preparing and checking before winter ................................... 309
Switch ........................................................219
Washing and waxing ...........................428
Weight.......................................................564
Wheels ...................................................... 462
Replacing ............................................... 462
Size............................................................ 572
Window lock switch ............................. 169
Windows ................................................... 169 Power windows................................... 169
Rear window defogger...................404
Windshield wiper de-icer..................405
Windshield wipers................................. 219 Intermittent windshield wipers with interval adjuster.......................219
Rain-sensing windshield wipers..................................................... 221
Winter driving tips ................................309
Wireless remote control.......................116 Battery-Saving Function ................. 135
Locking/Unlocking ..................122, 129
Replacing the battery.......................466
WMA disc ...............................................340
