Lexus IS200t 2017 Navigation Manual

61
2. NETWORK SETTINGS
IS_NAVI_EE
BASIC FUNCTION
2
1Display the “Wi-Fi* settings” screen.
(→ P.60)
2Select “Wi-Fi* power” .
zWhen set to on, the indicator will illuminate.
1Display the “Wi-Fi* settings” screen.
(→ P.60)
2Select “Available networks” .
3Select the desired network.
zWhen a network with is selected and
the password enter screen is displayed,
enter the password then select “OK”.
z The network connected to in the past is
marked with .
“Details” : Select to display details about the
network.
“Add Wi-Fi* network” : Select to add a Wi-Fi
®
network that is not currently displayed.
■ADDING A Wi-Fi® NETWORK
1Select “Add Wi-Fi* network” .
2Enter the network name and select
“OK”.
3Select the security type.
4Enter the password and select “OK”.
*: Wi-Fi is a registered mark of the Wi-Fi Alliance
®.
TURNING Wi-Fi® FUNCTION
ON/OFF
When turned on, “Available networks”
and “Easy setup” can be selected.
CONNECTING TO A
NETWORK
Available networks can be searched for
and connected to.
Available networks which are not dis-
played by searching can be added.

62
2. NETWORK SETTINGS
IS_NAVI_EE
1Display the “Wi-Fi* settings” screen.
(→ P.60)
2Select “Easy setup” .
3Select “PIN code” or “Push button” as
determined by the device.
4Operate the Wi-Fi® device to connect.
1Display the “Wi-Fi* settings” screen.
( → P.60)
2Select “Detailed Wi-Fi* settings” .
3Select the items to be set.
*: Wi-Fi is a registered mark of the Wi-Fi Alliance
®.
CONNECTING QUICKLY
If a Wi-Fi
® device is Wi-Fi Protected
Setup  compatible, it can be connect-
ed to more quickly.
DETAILED Wi-Fi® SETTINGS
No.Function
Select to change the listing order of
your preferred networks and to de-
lete networks from the list. ( →P.63)
Select to set automatic connection
to network on/off. When set to on,
the system will automatically con-
nect to the preferred networks that
have been registered.
Select to set the automatic connec-
tion message notification display on/
off.
Select to reset all setup items.

63
2. NETWORK SETTINGS
IS_NAVI_EE
BASIC FUNCTION
2

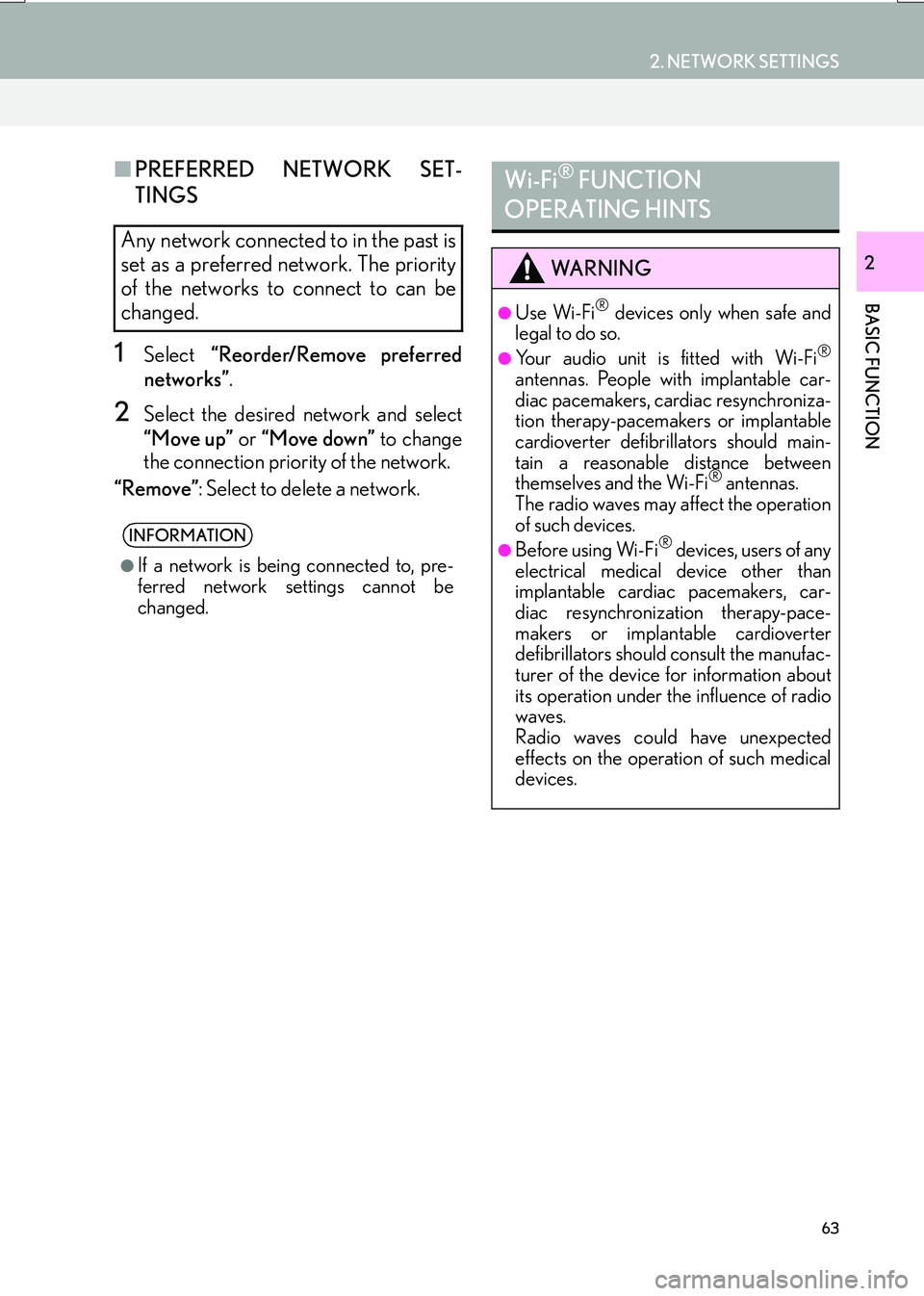

■PREFERRED NETWORK SET-
TINGS
1Select “Reorder/Remove preferred
networks” .
2Select the desired network and select
“Move up” or “Move down” to change
the connection priority of the network.
“Remove” : Select to delete a network.
Any network connected to in the past is
set as a preferred network. The priority
of the networks to connect to can be
changed.
INFORMATION
●
If a network is being connected to, pre-
ferred network settings cannot be
changed.
Wi-Fi® FUNCTION
OPERATING HINTS
WA R N I N G
●Use Wi-Fi® devices only when safe and
legal to do so.
●Your audio unit is fitted with Wi-Fi®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Wi-Fi
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Wi-Fi® devices, users of any
electrical medical device other than
implantable cardiac pacemakers, car-
diac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves.
Radio waves could have unexpected
effects on the operation of such medical
devices.

64
2. NETWORK SETTINGS
IS_NAVI_EE
CONDITIONS DISPLAYED
WITH Wi-Fi® ICON
Reception level appears on the right up-
per side of the screen. ( →P.16)
SPECIFICATIONS
INFORMATION
●
Communication standards
802.11b
802.11g
802.11n
●Security
WEP
WPA 
WPA2 
Wi-Fi Protected Setup 
•WPA, WPA2 and Wi-Fi Protected Setup are registered mark of the Wi-Fi
Alliance
®.

65
IS_NAVI_EE
BASIC FUNCTION
2

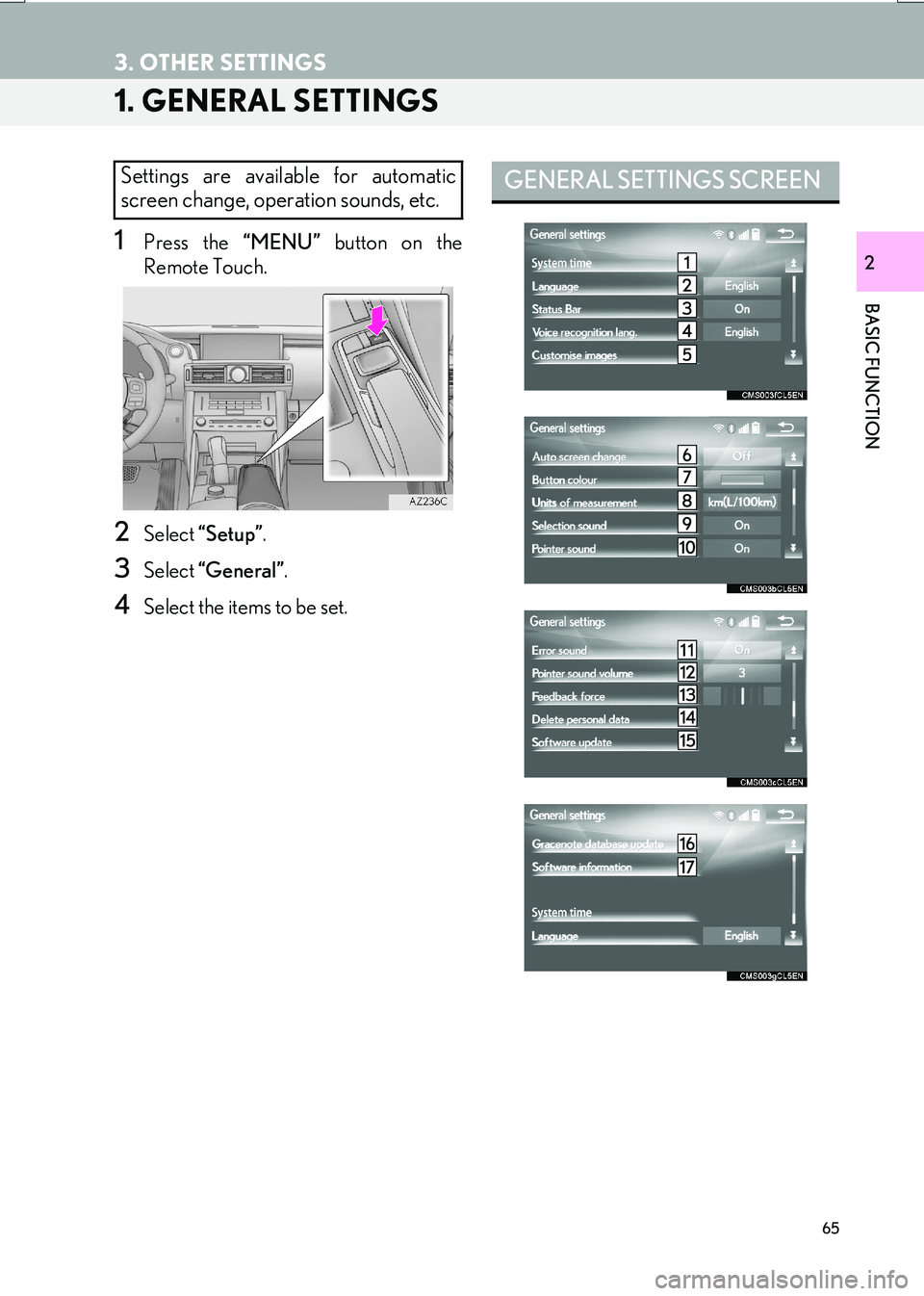

3. OTHER SETTINGS
1. GENERAL SETTINGS
1Press the “MENU” button on the
Remote Touch.
2Select “Setup” .
3Select “General” .
4Select the items to be set.
Settings are available for automatic
screen change, operation sounds, etc.GENERAL SETTINGS SCREEN

66
3. OTHER SETTINGS
IS_NAVI_EE
No.Function
Select to change the time zone and
set the daylight saving time on/off.
(→ P.67)
Select to change the language.
Select to turn the status bar display
on/off.
Select to change the voice recogni-
tion language.
Select to customize the startup/
screen off images. ( →P.68)
*
Select to set automatic screen
changes from the audio/air condi-
tioning control screen to the previ-
ous screen on/off. When set to on,
the screen will automatically return
to the previous screen from the au-
dio/air conditioning control screen
after 20 seconds.
Select to change the screen button
colour.
Select to change the unit of measure
for distance*/fuel consumption.
Select to set the selection sounds
on/off.
Select to set the pointer sounds on/
off.
Select to set the error sounds on/off.
*: With navigation function
Select to adjust the pointer sound
volume.
Select to adjust the strength of the
pull from the buttons to the pointer.
Select to delete personal data.
(→ P.71)
Select to update software versions.
For details, contact your Lexus deal-
er.
Select to update “Gracenote” data-
base versions. For details, contact
your Lexus dealer.
Select to display the software infor-
mation. Notices related to third party
software used in this product are en-
listed. (This includes instructions for
obtaining such software, where ap-
plicable.)
No.Function

67
3. OTHER SETTINGS
IS_NAVI_EE
BASIC FUNCTION
2
1Display the “General settings” screen.
(→ P.65)
2Select “System time” .
3Select the items to be set.
■SETTING THE TIME ZONE
1Select “Time zone” .
2Select the desired time zone.
zIf “Other ” is selected, the zone can be
adjusted manually. Select “+” or “-” to
adjust the time zone.
SYSTEM TIME SETTINGS
Used for changing time zones and the
on/off settings of daylight saving time.
No.Function
Select to change the time zone.
( → P.67)
Select to set daylight saving time on/
off.

68
3. OTHER SETTINGS
IS_NAVI_EE
1Display the “General settings” screen.
(→ P.65)
2Select “Customise images” .
3Select the items to be set.CUSTOMIZING THE STARTUP
AND SCREEN OFF IMAGES
An image can be copied from a USB
memory and used as the startup and
screen off Images.
The built-in movie can also be set as the
startup image.
When the engine switch is
turned to ACCESSORY or IGNITION
ON mode, the initial screen (star-
tup image) will be displayed. ( →P.30)
When “Screen off” on the “Display”
screen is selected, the screen is turned
off and the desired screen off image that
is set is displayed. (To turn the screen off:
→ P.38)
No.FunctionPage
Select to copy images from
a USB memory.69
Select to delete images.70
Select to set an image as the
startup or screen off image.70

69
3. OTHER SETTINGS
IS_NAVI_EE
BASIC FUNCTION
2
■TRANSFERRING IMAGES
1Press the button to release the lock and
lift the armrest.
2Open the cover and connect a USB
memory.
zTurn on the power of the USB memory if it
is not turned on.
3Close the console box.
4Select “Copy from USB” .
5Select the desired images from the list
and select “Copy”.
zThe selected image is displayed on the
right side of the screen. If the selected
image file is broken or incompatible,
will be displayed.
z The remaining number of image files that
can be transferred is displayed at the bot-
tom of the screen.
6Select “Yes” when the confirmation
screen appears.
NOTICE
●Depending on the size and shape of the
device that is connected to the system,
the console box may not close fully. In this
case, do not forcibly close the console
box as this may damage the device or the
terminal, etc.
INFORMATION
●
When saving image files to a USB mem-
ory to be transferred to the system, save
the images in a folder named “Image” (I-
m-a-g-e, case sensitive). If a different
folder name is used, the system will not
recognize the image files.
●The compatible file extensions are JPG
and JPEG.
●An image’s file name, including file exten-
sion, can be up to 32 characters.
●Image files of 10 MB or less can be trans-
ferred.
●Up to 10 images can be transferred to the
system.
●Files with non-ASCII filenames can not
be transferred.

70
3. OTHER SETTINGS
IS_NAVI_EE

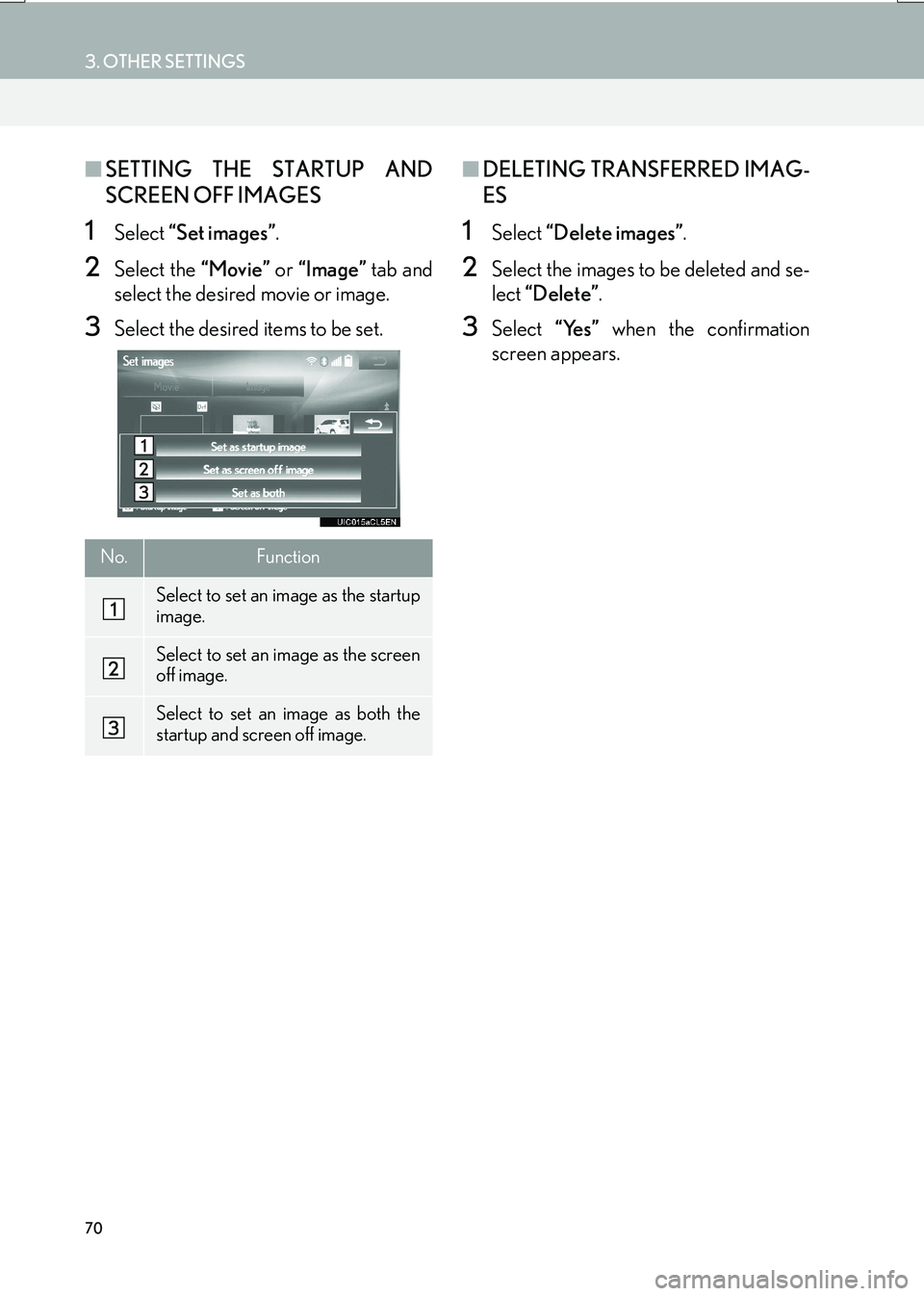

■SETTING THE STARTUP AND
SCREEN OFF IMAGES
1Select “Set images” .
2Select the “Movie” or “Image” tab and
select the desired movie or image.
3Select the desired items to be set.
■ DELETING TRANSFERRED IMAG-
ES
1Select “Delete images” .
2Select the images to be deleted and se-
lect “Delete” .
3Select “Yes” when the confirmation
screen appears.
No.Function
Select to set an image as the startup
image.
Select to set an image as the screen
off image.
Select to set an image as both the
startup and screen off image.
