Lexus IS300h 2013 Owner's Manual

1493-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53B95E)
Locks and unlocks the doors (vehicles with entry function) (P. 136)
Opens the trunk (vehicles with entry function) (P. 143)
Starts the hybrid system (P. 209)
Antenna location
Effective range (areas within which the electronic key is detected)
Smart entry & start system
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket. The driver should always carry the electronic key.
Antennas outside the cabin (vehicles with
entry function)
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk (vehicles with
entry function)
When locking or unlocking the doors
(vehicles with entry function)
The system can be operated when the
electronic key is within about 0.7 m
(2.3 ft.) of an outside door handle.
(Only the doors detecting the key can
be operated.)
When opening the trunk (vehicles with
entry function)
The system can be operated when the electronic key is within about 0.7 m
(2.3 ft.) of the trunk release button.
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside the vehicle.1
2
3
4

1503-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53B95E)
Battery-saving function (vehicles with entry function)
The battery-saving function will be activated in order to prevent the electronic
key battery and the 12-volt battery from being discharged while the vehicle is not
in operation for a long time.
In the following situations, the smart entry & start system may take some time
to unlock the doors.
• The electronic key has been left within approximately 2 m (6 ft.) of the out-
side of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
If the smart entry & start system has not been used for 14 days or longer, the
doors cannot be unlocked at any door except the driver’s door. In this case, hold
the driver’s door handle, or use the wireless remote control or mechanical key,
to unlock the doors.
Electronic Key battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and hold-
ing . Confirm that the electronic key
indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be used.
To cancel the function, press any of the
electronic key buttons.

1513-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53B95E)
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control and
immobilizer system from operating properly. (Ways of coping: P. 548)
When the electronic key battery is depleted
Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
When other wireless keys (that emit radio waves) are being used nearby
When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
If window tint with a metallic content or metallic objects are attached to the rear
window

1523-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53B95E)
Note for the entry function (if equipped)
Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the
rear bumper center when the trunk is opened.
Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception con-
ditions, it may be detected by the antenna outside the cabin and the doors will
become lockable from the outside, possibly trapping the electronic key inside
the vehicle.
As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the electronic
key can be used to unlock the vehicle.
The doors may unlock or lock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash, when the electronic key is within the
effective range. (The doors will automatically be locked after approximately 30
seconds if the doors are not opened and closed.)
If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by
the entry function. (Use the wireless remote control to unlock the doors.)
Touching the door lock or unlock sensor while wearing gloves may prevent
lock or unlock operation.
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In this case, follow the follow-
ing correction procedures to wash the vehicle:
• Place the electronic key in a location 2 m (6 ft.) or more away from the vehi-
cle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart entry &
start system. (P. 150)
If the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
The lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
A sudden handle operation or a handle operation immediately after entering the
effective range may prevent the doors from being unlocked. Touch the door
unlock sensor and check that the doors are unlocked before pulling the door
handle again.
Unlocking the vehicle may take more time if another electronic key is within
the effective range.

1533-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53B95E)
Note for the push-start function
Even when the electronic key is within the effective range (detection areas), the
system may not operate properly when the electronic key is on the instrument
panel, rear package tray or floor, or in the door pockets or glove box when the
hybrid system is started or power switch modes are changed.
Even if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.
When the vehicle is not driven for extended periods
Vehicles with entry function: To prevent theft of the vehicle, do not leave the
electronic key within 2 m (6 ft.) of the vehicle.
The smart entry & start system can be deactivated in advance. (P. 575)
To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the out-
side of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
Do not leave the electronic key inside the luggage compartment.
The key confinement prevention function may not operate, depending on the
location of the key (close to a spare tire [if equipped], the inside edge of the lug-
gage compartment), conditions (inside a metal bag, close to metallic objects)
and the radio waves in the surrounding area. (P. 146)
If the smart entry & start system does not operate properly
Locking and unlocking the doors and opening the trunk: Use the mechanical
key.
(P. 548)
Starting the hybrid system: P. 5 4 9
Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: P. 575)
If the smart entry & start system has been deactivated in a customized setting
Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. (P. 136, 144, 548)
Starting the hybrid system and changing power switch modes:P. 549
Stopping the hybrid system: P. 210

1543-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53B95E)

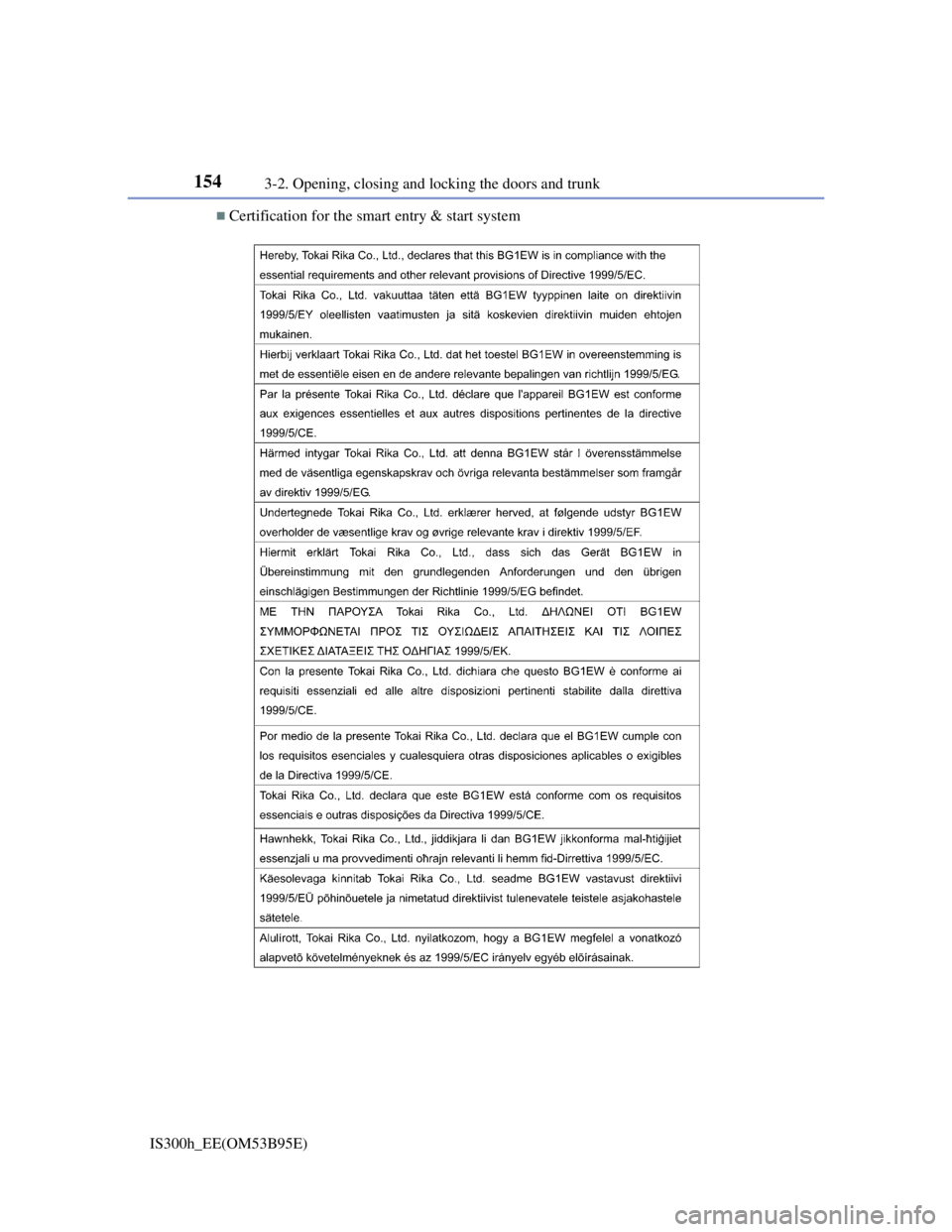

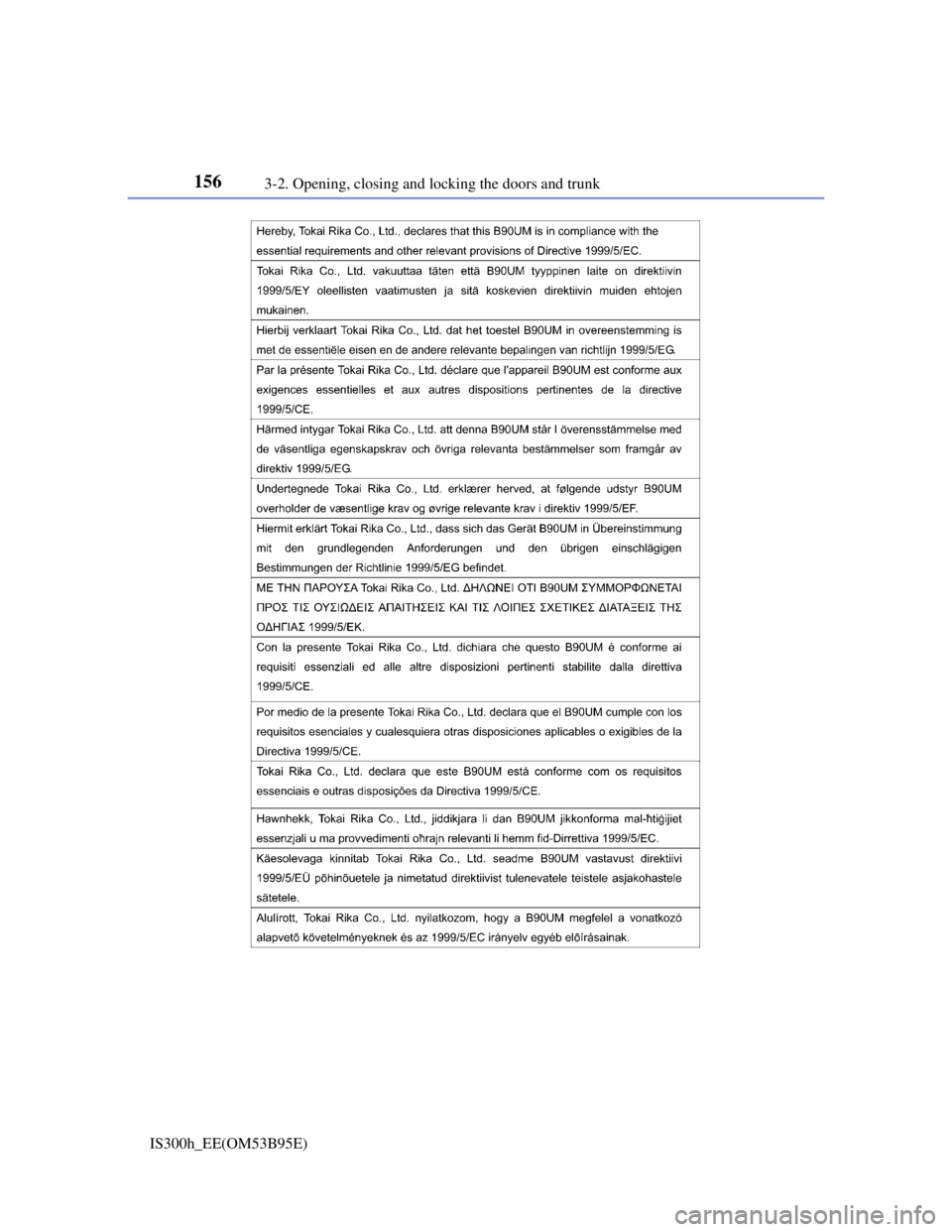

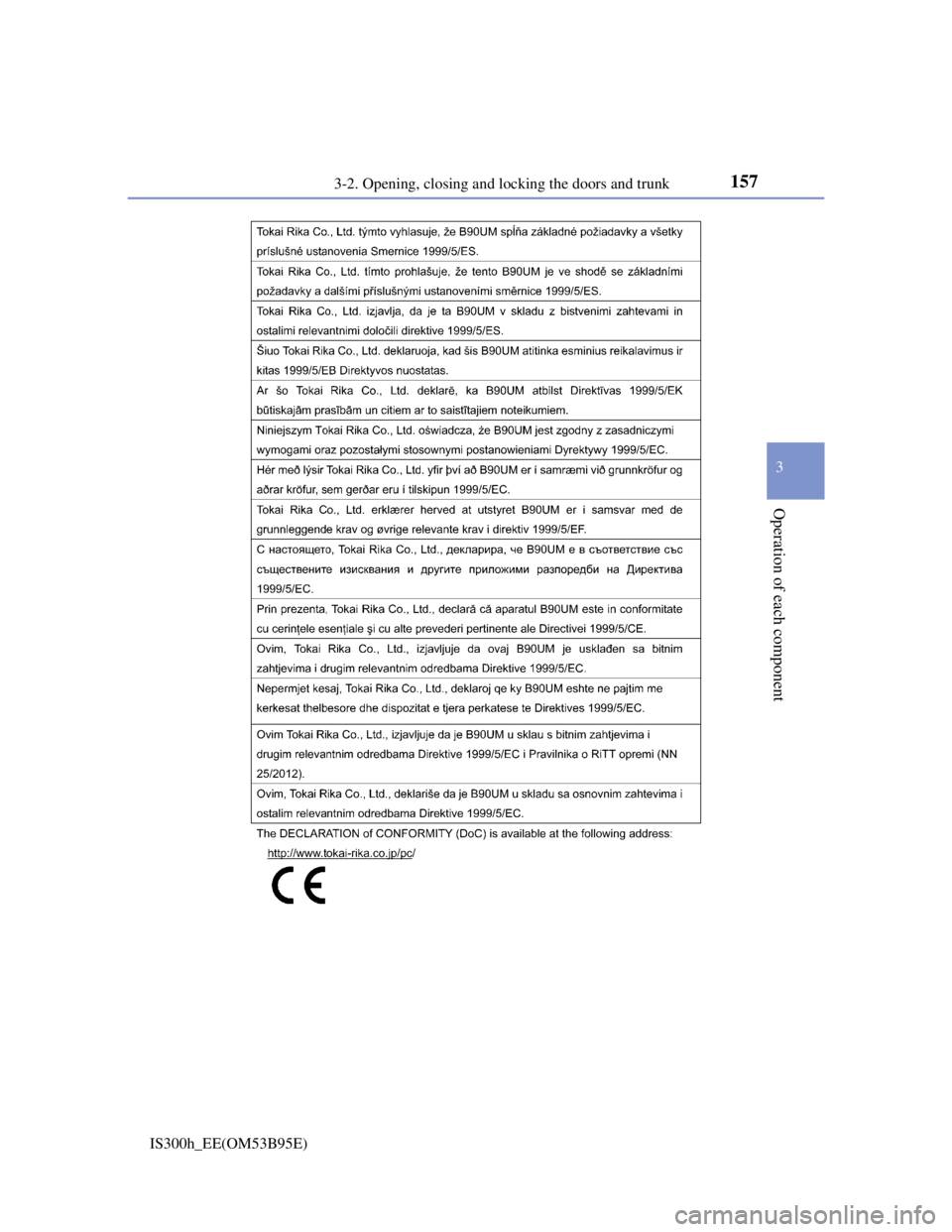

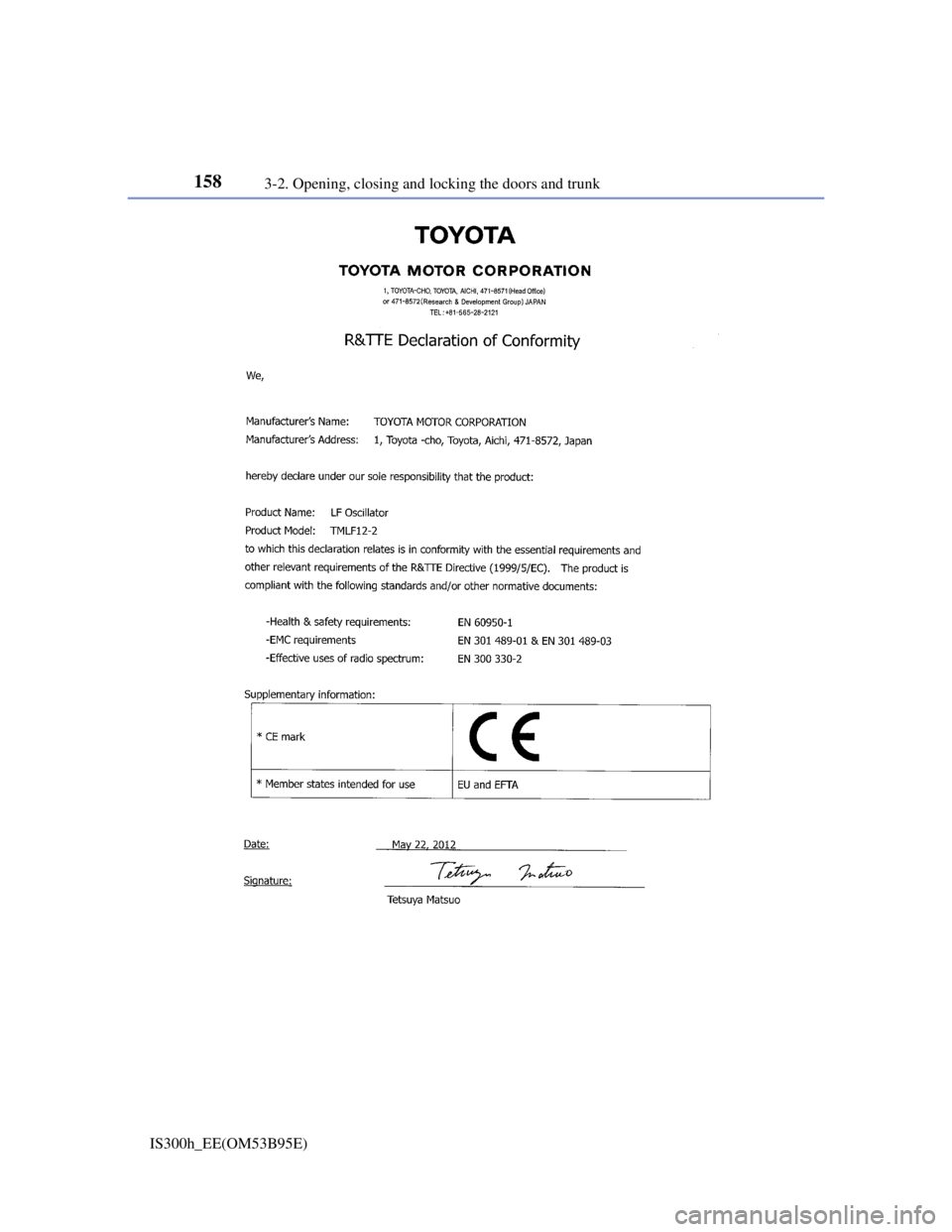

Certification for the smart entry & start system

1553-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53B95E)

1563-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53B95E)

1573-2. Opening, closing and locking the doors and trunk
3
Operation of each component
IS300h_EE(OM53B95E)

1583-2. Opening, closing and locking the doors and trunk
IS300h_EE(OM53B95E)
