Lexus IS300h 2013 Owner's Manual

4277-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53B95E)
Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after driving
a long distance in hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
Front side windows water-repellent coating
The following precautions can extend the effectiveness of the water-repellent
coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the
windows.
• Do not use any metallic objects to remove condensation build up.
When the water-repellent performance has become insufficient, the coating can
be repaired. Contact any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.

4287-1. Maintenance and care
IS300h_EE(OM53B95E)
CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
When cleaning the windshield (vehicles with rain-sensing windshield wipers)
When the upper part of the windshield where the raindrop sensor is located is
touched by hand
When a wet rag or similar is held close to the raindrop sensor
If something bumps against the windshield
If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have
cooled sufficiently, as touching hot exhaust pipes can cause burns.
Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may mal-
function. If this occurs, consult any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Set the wipers to the intermittent wind-
shield wipers. (P. 238)
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situ-
ations, and may result in hands being
caught or other serious injuries and cause
damage to the wiper blades.

4297-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53B95E)
NOTICE
To prevent paint deterioration and corrosion on the body and components (alu-
minum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint
surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
When using an automatic car wash (vehicles with rain-sensing windshield wip-
ers)
Set the wipers to the intermittent windshield wipers. (P. 238)
If AUTO mode is selected, the wipers may operate and the wiper blades may
be damaged.

4307-1. Maintenance and care
IS300h_EE(OM53B95E)
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a
cloth dampened with lukewarm water.
Remove dirt and dust using a vacuum cleaner.
Wipe off any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
Wring out any excess water from the cloth and thoroughly wipe off all
remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remaining mois-
ture. Allow the leather to dry in a shaded and ventilated area.
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a sponge or
soft cloth.
Allow the solution to soak in for a few minutes. Remove the dirt and
wipe off the solution with a clean, damp cloth.
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas

4317-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53B95E)
Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty
surfaces and let them dry. Excellent results are obtained by keeping the carpet as
dry as possible.
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check
the belts periodically for excessive wear, fraying or cuts.
When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the car-
pet could be damaged.
CAUTION
Water in the vehicle
Do not splash or spill liquid in the vehicle, such as on the floor, in the hybrid
battery (traction battery) air vents, and in the trunk.
Doing so may cause the hybrid battery, electrical components, etc. to mal-
function or catch fire.
Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 4 4 )
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident, result-
ing in death or serious injury.

4327-1. Maintenance and care
IS300h_EE(OM53B95E)
NOTICE
Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle
interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alka-
line or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
Do not use polish wax or polish cleaner. The instrument panel’s or other inte-
rior part’s painted surface may be damaged.
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
Remove any dust or dirt from leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats up
significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
When cleaning the inside of the windshield (vehicles with LDA [Lane Depar-
ture Alert])
Be careful not to touch the camera sensor (P. 264).
If the camera is accidentally scratched or hit, LDA may not operate properly or
may cause a malfunction.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage
to the rear window defogger heater wires or antenna. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires or antenna.
Be careful not to scratch or damage the heater wires or antenna.

433
7
Maintenance and care
IS300h_EE(OM53B95E)7-2. Maintenance
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “Lexus Ser-
vice Booklet” or “Lexus Warranty Booklet”.
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself if you have a little
mechanical ability and a few basic automotive tools.
Note, however, that some maintenance tasks require special tools and skills.
These are best performed by qualified technicians. Even if you’re an experi-
enced do-it-yourself mechanic, we recommend that repairs and maintenance
be conducted by any authorized Lexus dealer or repairer, or another duly qual-
ified and equipped professional. Any authorized Lexus dealer or repairer will
keep a record of maintenance, which could be useful should you ever require
Warranty Service. Should you choose to select a qualified and equipped pro-
fessional other than an authorized Lexus repairer to service or maintain your
vehicle, we recommend that you request that a record of maintenance be kept.
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular
maintenance are essential. Lexus recommends the following mainte-
nance:
Scheduled maintenance
Do-it-yourself maintenance

4347-2. Maintenance
IS300h_EE(OM53B95E)
Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Lexus dealers or repairers or other duly qual-
ified and equipped professionals. For repairs and services covered by your war-
ranty, please visit an authorized Lexus dealer or repairer, who will use genuine
Lexus parts in repairing any difficulties you may encounter. There can also be
advantages in utilizing authorized Lexus dealers or repairers for non-warranty
repairs and services, as members of the Lexus network will be able to expertly
assist you with any difficulties you may encounter.
Your Lexus dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably and
economically due to their experience with Lexus vehicles.
Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that
indicate service is needed. Some important clues are:
Engine missing, stumbling or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condition-
ing system after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked imme-
diately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driven straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches
the floor, vehicle pulls to one side when braking
Engine coolant temperature continually higher than normal (P. 110)
If you notice any of these clues, take your vehicle to any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional as soon as possi-
ble. Your vehicle may need adjustment or repair.
CAUTION
If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and possi-
ble death or serious injury.
Handling of the 12-volt battery
12-volt battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands after
handling.
(P. 447)

435
7
Maintenance and care
IS300h_EE(OM53B95E)7-3. Do-it-yourself maintenance

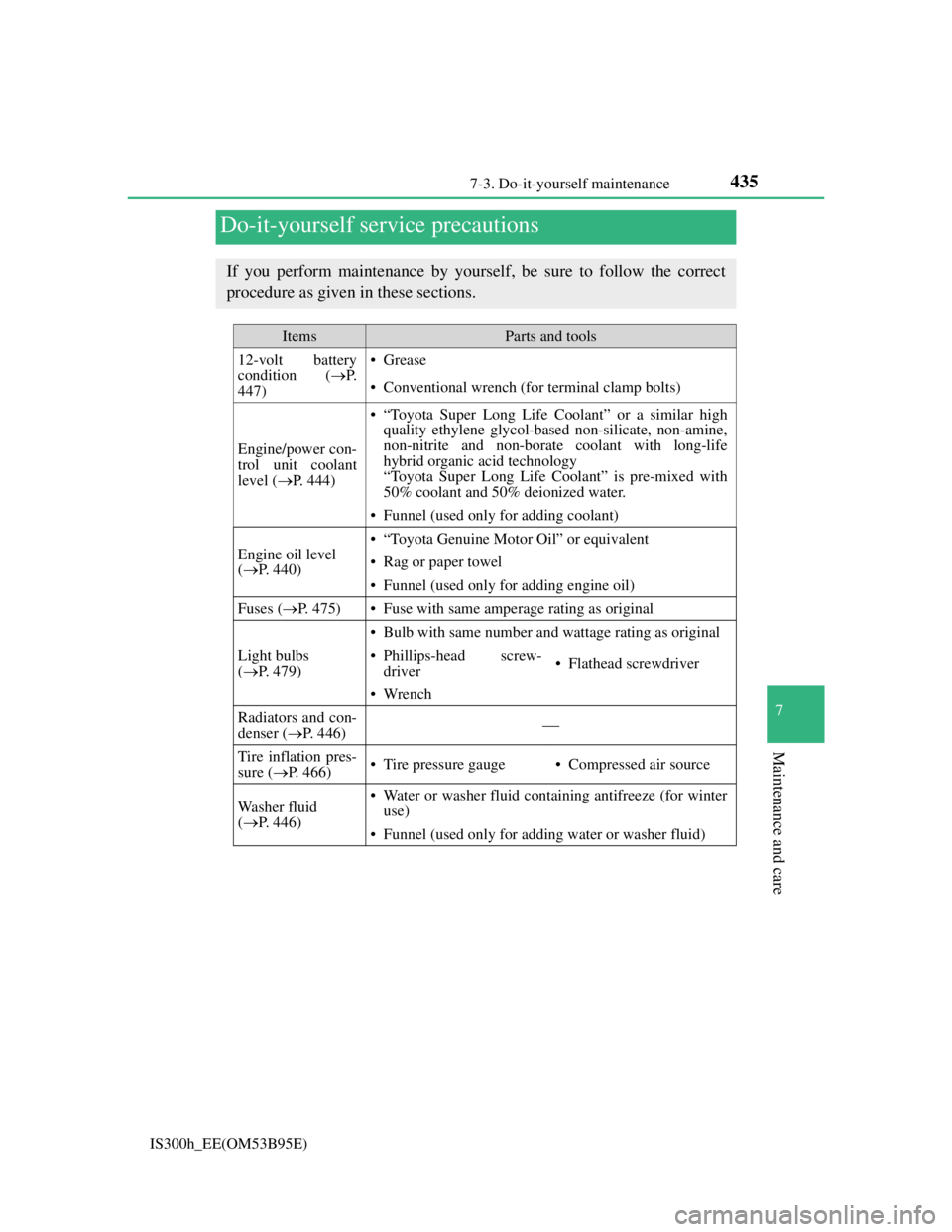

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct
procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition (P.
447)•Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power con-
trol unit coolant
level (P. 444)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-amine,
non-nitrite and non-borate coolant with long-life
hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 440)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 475)• Fuse with same amperage rating as original
Light bulbs
(P. 479)
• Bulb with same number and wattage rating as original
• Phillips-head screw-
driver• Flathead screwdriver
• Wrench
Radiators and con-
denser (P. 446)
Tire inflation pres-
sure (P. 466)• Tire pressure gauge• Compressed air source
Washer fluid
(P. 446)• Water or washer fluid containing antifreeze (for winter
use)
• Funnel (used only for adding water or washer fluid)

4367-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
CAUTION
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
When working on the engine compartment
Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-infor-
mation display and the “READY” indicator are both off.
Keep hands, clothing and tools away from the moving fan and engine drive
belt.
Be careful not to touch the engine, power control unit, radiator, exhaust mani-
fold, etc. right after driving as they may be hot. Oil and other fluids may also
be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are
flammable.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the affected
area with clean water immediately.
If you still experience discomfort, consult a doctor.
When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is
high. (P. 446)
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
