Lexus IS300h 2013 Owner's Manual

4477-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
The 12-volt battery is located on the
left-hand side of luggage compart-
ment.
Remove the 12-volt battery cover.
Make sure that the 12-volt battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold-down clamp
12-volt battery
Location
Removing the 12-volt battery cover
Exterior
1
2

4487-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
The meanings of each caution symbol on the top of the 12-volt battery are
as follows:
Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flammable
and explosive. Therefore, observe the following precautions before recharging:
If recharging with the 12-volt battery installed on the vehicle, be sure to discon-
nect the ground cable.
Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the 12-volt battery.
After recharging/reconnecting the 12-volt battery
The hybrid system may not start. Follow the procedure below to initialize the
system.
Shift the shift lever to P.
Open and close any of the doors.
Restart the hybrid system.
Unlocking the doors using the smart entry & start system may not be possible
immediately after reconnecting the 12-volt battery. If this happens, use the
wireless remote control or the mechanical key to lock/unlock the doors.
Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.
The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it was
in before the 12-volt battery was disconnected. Make sure to turn off the power
switch before disconnecting the 12-volt battery. Take extra care when connect-
ing the 12-volt battery if the power switch mode prior to the 12-volt battery
being disconnected is unknown.
If the system will not start even after multiple attempts at all the methods above,
contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Caution symbols
No smoking, no naked
flames, no sparks12-volt battery acid
Shield eyesNote operating instruc-
tions
Keep away from childrenExplosive gas
1
2
3

4497-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
CAUTION
Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk of
death or serious injury, take the following precautions while working on or near
the 12-volt battery:
Do not cause sparks by touching the 12-volt battery terminals with tools.
Do not smoke or light a match near the 12-volt battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the 12-volt battery.
Keep children away from the 12-volt battery.
Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-volt
battery in a garage or closed room where there is insufficient ventilation.
How to recharge the 12-volt battery
Only perform a slow charge (4 A — 5 A). The 12-volt battery may explode if
charged at a quicker rate.
Emergency measures regarding electrolyte
If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply water with a sponge or cloth
while traveling to the nearest medical facility.
If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing
and follow the procedure above if necessary.
If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause gas
(hydrogen) to enter the passenger compartment, causing a fire or explosion.
For replacement of the 12-volt battery, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is operating. Also,
be sure all accessories are turned off.

4507-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
New tread
Treadwear indicator
Wo r n t r e a d
The location of treadwear indicators
is shown by the “TWI” or “”
marks, etc., molded on the sidewall
of each tire.
Check spare tire condition and pres-
sure if not rotated.
Rotate the tires in the order shown.
To equalize tire wear and help extend tire life, Lexus recommends that
tire rotation is carried out approximately every 10000 km (6000 miles).
Do not fail to initialize the tire pressure warning system after tire rotation.
Tires
Replace or rotate tires in accordance with maintenance schedules and
treadwear.
Checking tires
1
2
3
Tire rotation
Vehicles with front and rear tires
of the same sizeVehicles with front and rear
tires of differing sizes
FrontFront

4517-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
Your vehicle is equipped with a tire pressure warning system that uses tire
pressure warning valves and transmitters to detect low tire inflation pres-
sure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (P. 509)
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire
pressure warning valve and transmitter ID codes registered by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. (P. 452)
Initializing the tire pressure warning system
The tire pressure warning system must be initialized in the following
circumstances:
When rotating the tires.
When the tire inflation pressure is changed such as when changing
traveling speed or load weight.
When changing the tire size.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
Tire pressure warning system

4527-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the power switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (P. 570)
Make sure to adjust the tire pressure to the specified cold tire inflation pres-
sure level. The tire pressure warning system will operate based on this pres-
sure level.
Turn the power switch to ON mode.
Press and hold the tire pressure
warning reset switch until the
tire pressure warning light
blinks slowly 3 times.
Wait for a few minutes with the power switch in ON mode and then
turn the power switch off.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional.
1
2
3
4
5

4537-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
When to replace your vehicle’s tires
Tires should be replaced if:
You have tire damage such as cuts, splits, cracks deep enough to expose the fab-
ric, and bulges indicating internal damage
A tire goes flat repeatedly or cannot be properly repaired due to the size or loca-
tion of a cut or other damage
If you are not sure, consult any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered,
the tire pressure warning system will not work properly. After driving for about
10 minutes, the tire pressure warning light blinks for 1 minute and stays on to
indicate a system malfunction.
Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has
seldom or never been used or damage is not obvious.
Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
Low profile tires (except 16-inch tires)
Generally, low profile tires will wear more rapidly and tire grip performance will
be reduced on snowy and/or icy roads when compared to standard tires. Be sure
to use snow tires or tire chains
* on snowy and/or icy roads and drive carefully at
a speed appropriate for road and weather conditions.
*: Tire chains cannot be mounted on the 18-inch tires. Snow tires should be used
instead.
If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.

4547-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
Situations in which the tire pressure warning system may not operate properly
In the following cases, the tire pressure warning system may not operate prop-
erly.
• If non-genuine Lexus wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equipment)
tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains etc. are equipped.
• Lock nuts are equipped.
• An auxiliary-supported run-flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels
or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If tires not equipped with tire pressure warning valves and transmitters are
used.
• If the ID code on the tire pressure warning valves and transmitters is not reg-
istered in the tire pressure warning computer.
Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
• When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
When the vehicle is parked, the time taken for the warning to start or go off
could be extended.
When tire inflation pressure declines rapidly for example when a tire has burst,
the warning may not function.
The initialization operation
Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire infla-
tion pressure adjustment.
If you have accidentally turned the power switch off during initialization, it is
not necessary to press the reset switch again as initialization will restart auto-
matically when the power switch has been turned to ON mode for the next time.
If you accidentally press the reset switch when initialization is not necessary,
adjust the tire inflation pressure to the specified level when the tires are cold,
and conduct initialization again.
Warning performance of the tire pressure warning system
The warning of the tire pressure warning system will change in accordance with
the conditions under which it was initialized. For this reason, the system may
give a warning even if the tire pressure does not reach a low enough level, or if
the pressure is higher than the pressure that was adjusted to when the system was
initialized.

4557-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not operate prop-
erly. If repeated attempts to record tire inflation pressure settings are unsuccess-
ful, have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
After carrying out the initialization procedure, the tire pressure warning light
blinks for 1 minute then stays on after driving for 20 minutes.

4567-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

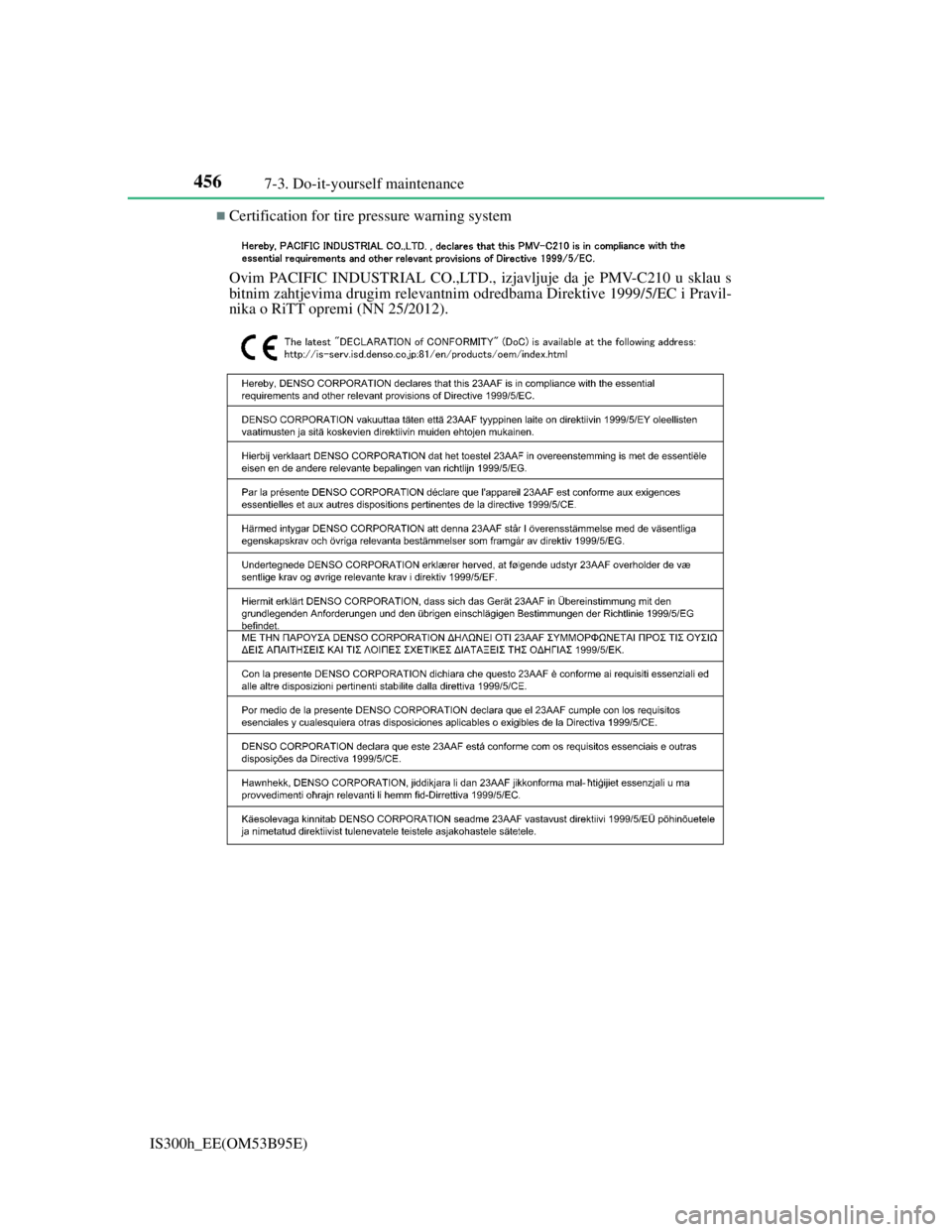

Certification for tire pressure warning system
Ovim PACIFIC INDUSTRIAL CO.,LTD., izjavljuje da je PMV-C210 u sklau s
bitnim zahtjevima drugim relevantnim odredbama Direktive 1999/5/EC i Pravil-
nika o RiTT opremi (NN 25/2012).
