Lexus IS300h 2013 Owner's Manual

4777-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating.
The amperage rating can be found on the fuse box lid.
Ty p e C a n d D :
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
4
1
2
Ty p e ATy p e B
Ty p e CTy p e D

4787-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 479)
If the replaced fuse blows again, have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehi-
cle. Because certain bulbs are connected to circuits designed to prevent overload,
non-genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.

4797-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

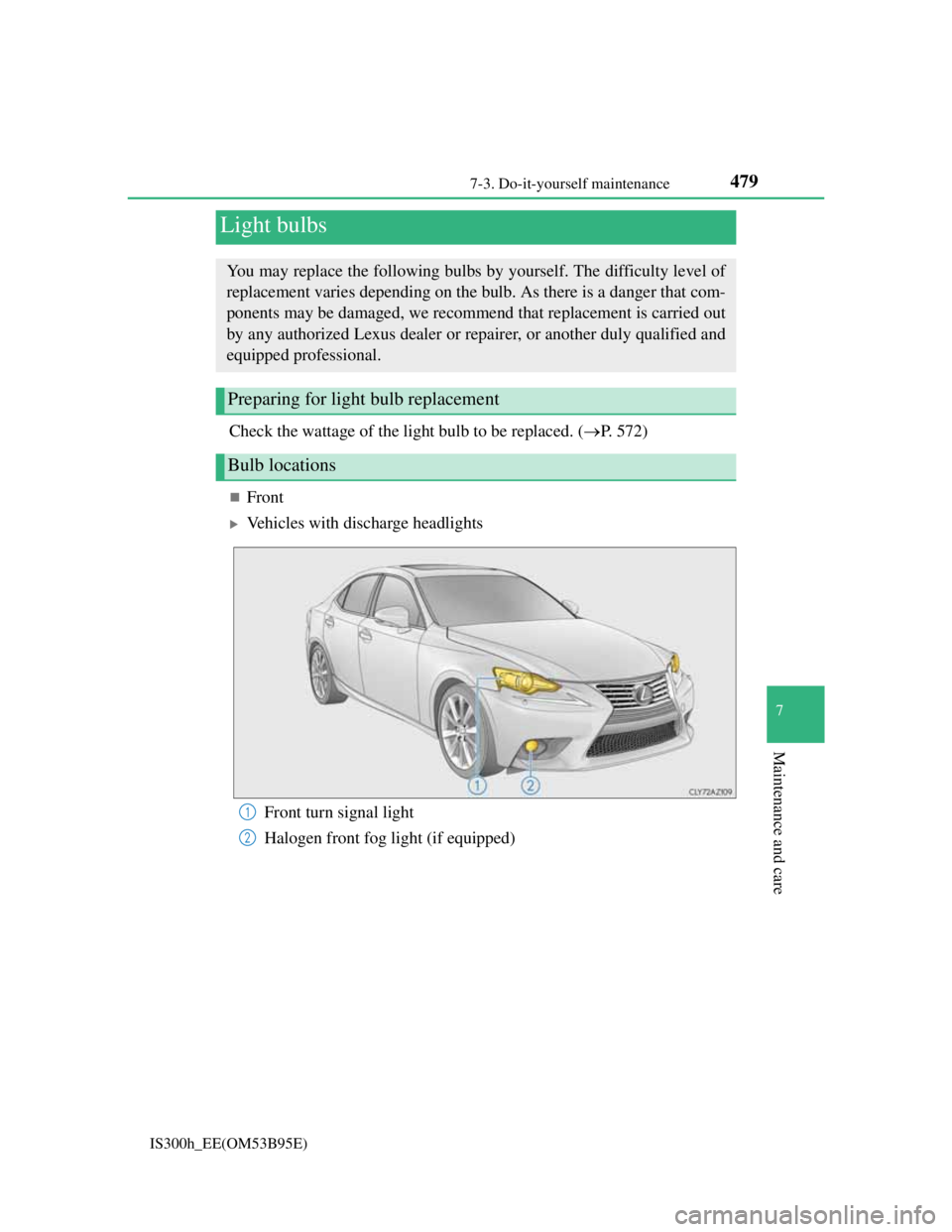

Check the wattage of the light bulb to be replaced. (P. 572)
Front
Vehicles with discharge headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that com-
ponents may be damaged, we recommend that replacement is carried out
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Preparing for light bulb replacement
Bulb locations
Front turn signal light
Halogen front fog light (if equipped)1
2

4807-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

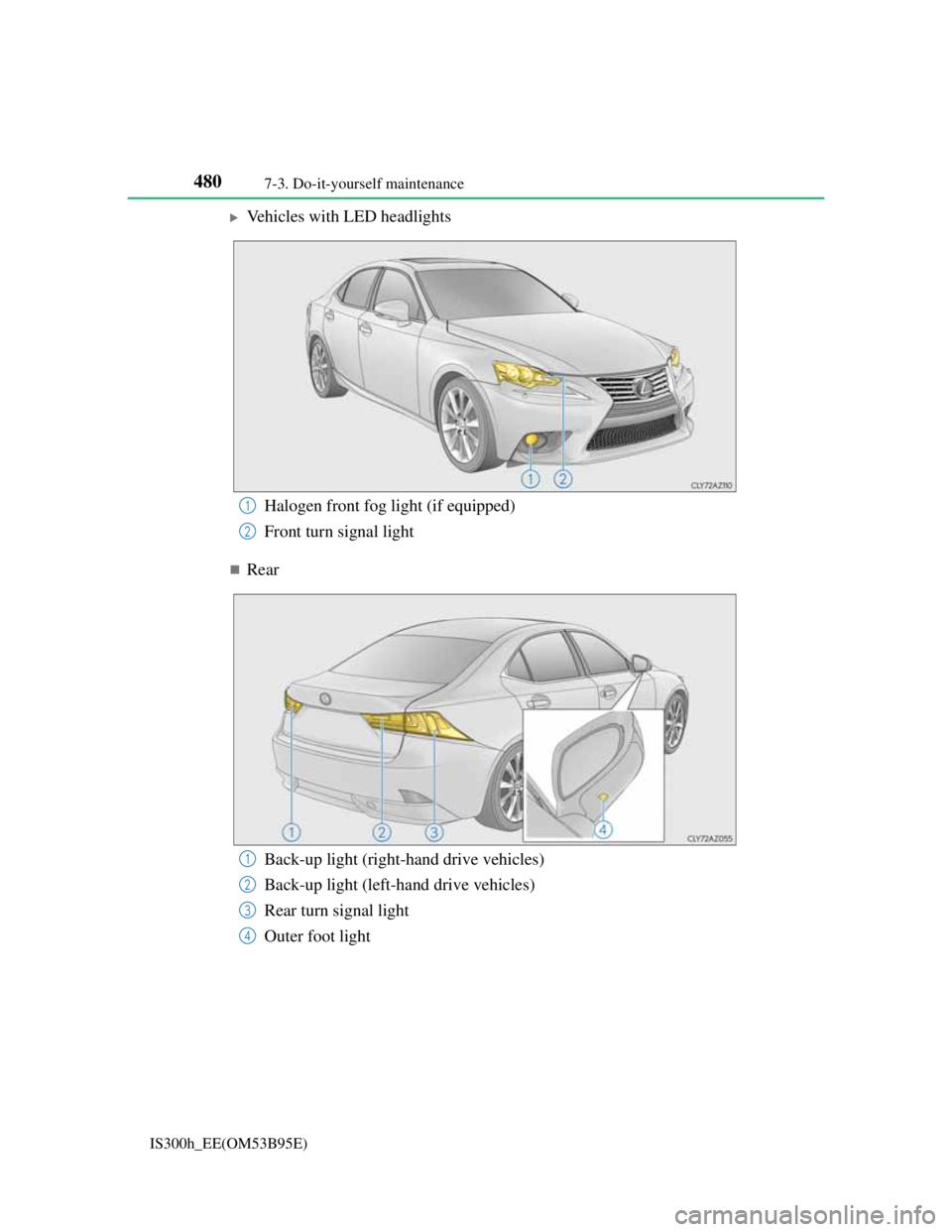

Vehicles with LED headlights
Rear
Halogen front fog light (if equipped)
Front turn signal light1
2
Back-up light (right-hand drive vehicles)
Back-up light (left-hand drive vehicles)
Rear turn signal light
Outer foot light1
2
3
4

4817-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)
Halogen front fog lights (if equipped)
Remove the 2 fender liner
screws under the front fog
light and pull back the fender
liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Hold the bulb base at an
angle of about 45 degrees as
shown in the illustration and
insert it so that the 3 tabs on
the light bulb are aligned
with the mounting.
Turn the light bulb clock-
wise to install it.
Replacing light bulbs
1
2
3
4
1
2

4827-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

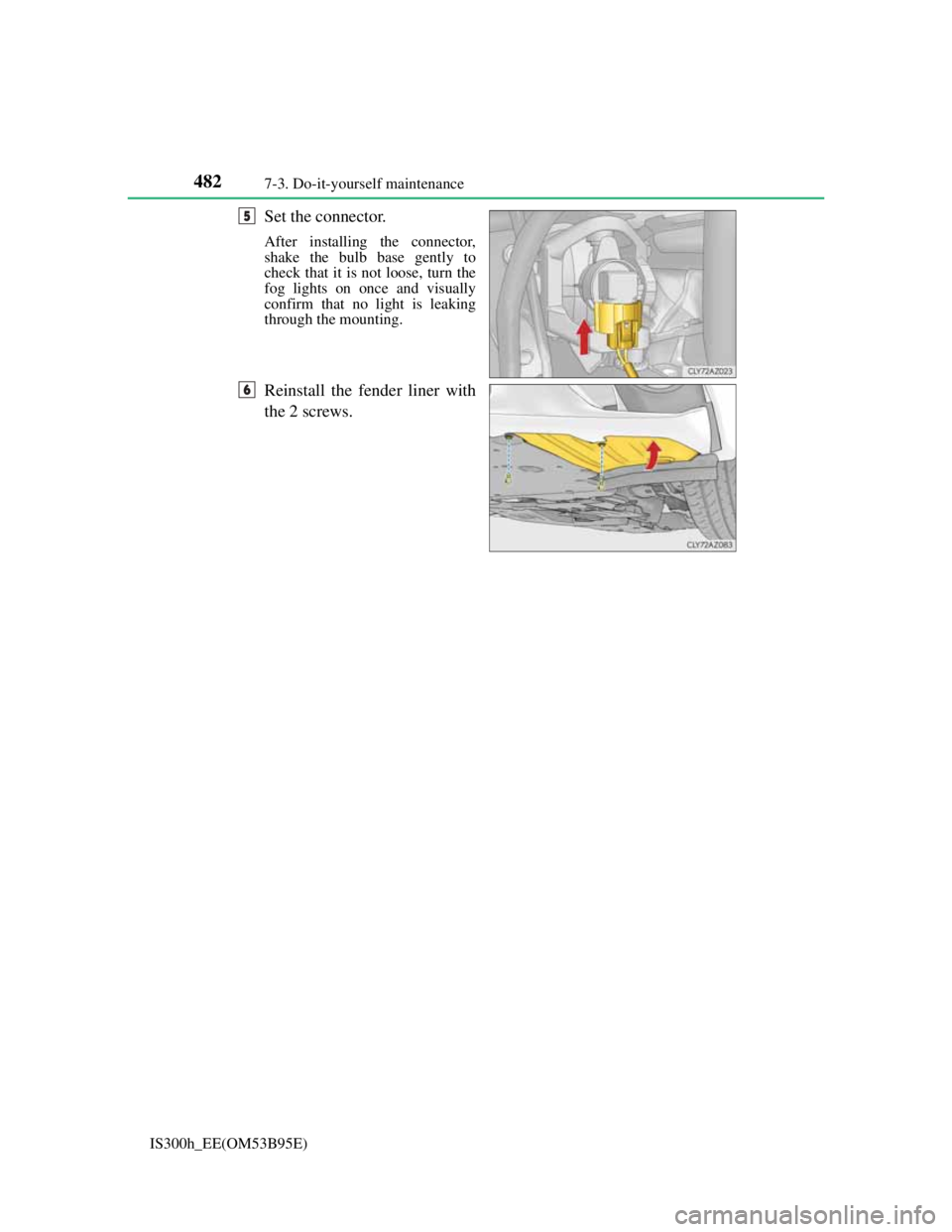

Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
Reinstall the fender liner with
the 2 screws.
5
6

4837-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

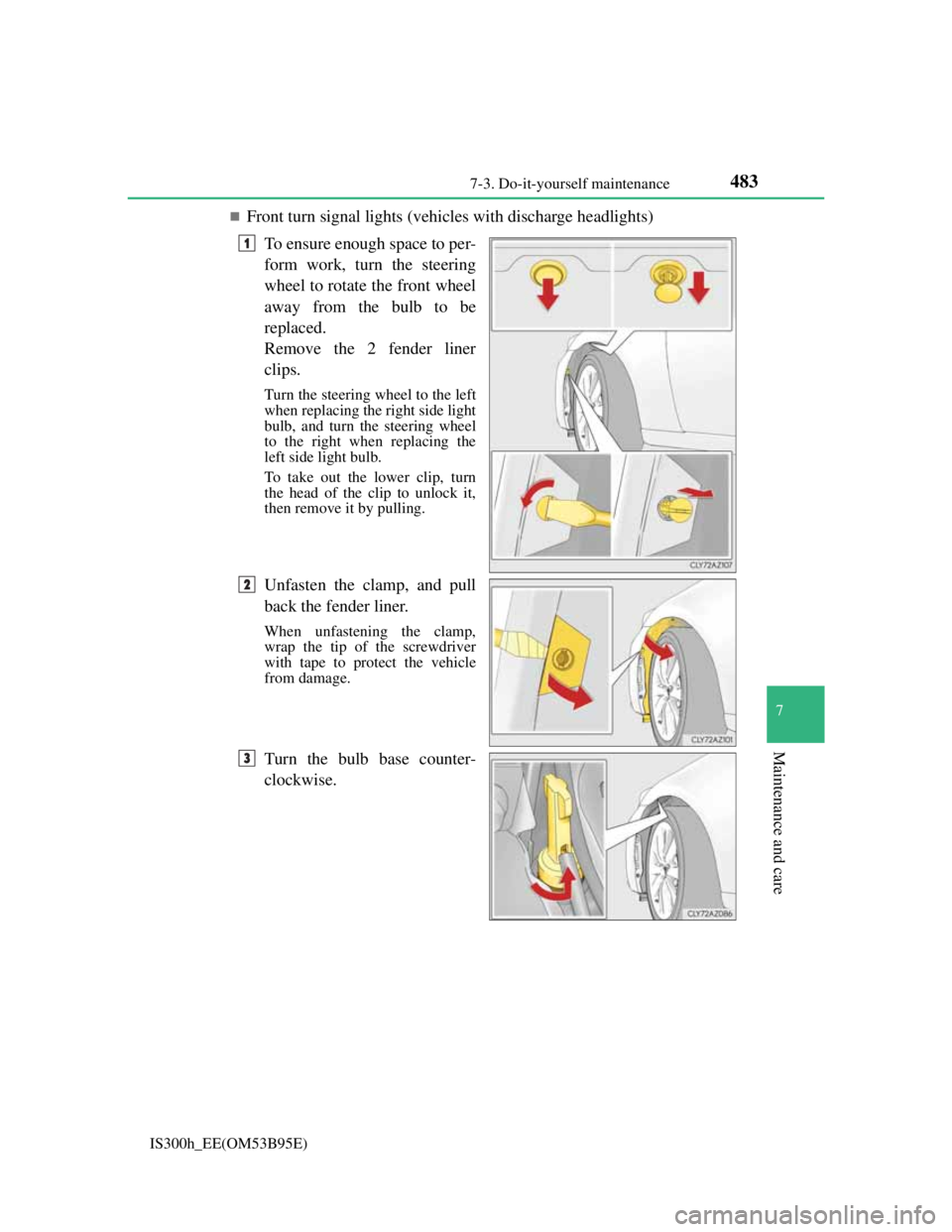

Front turn signal lights (vehicles with discharge headlights)
To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel
to the right when replacing the
left side light bulb.
To take out the lower clip, turn
the head of the clip to unlock it,
then remove it by pulling.
Unfasten the clamp, and pull
back the fender liner.
When unfastening the clamp,
wrap the tip of the screwdriver
with tape to protect the vehicle
from damage.
Turn the bulb base counter-
clockwise.
1
2
3

4847-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

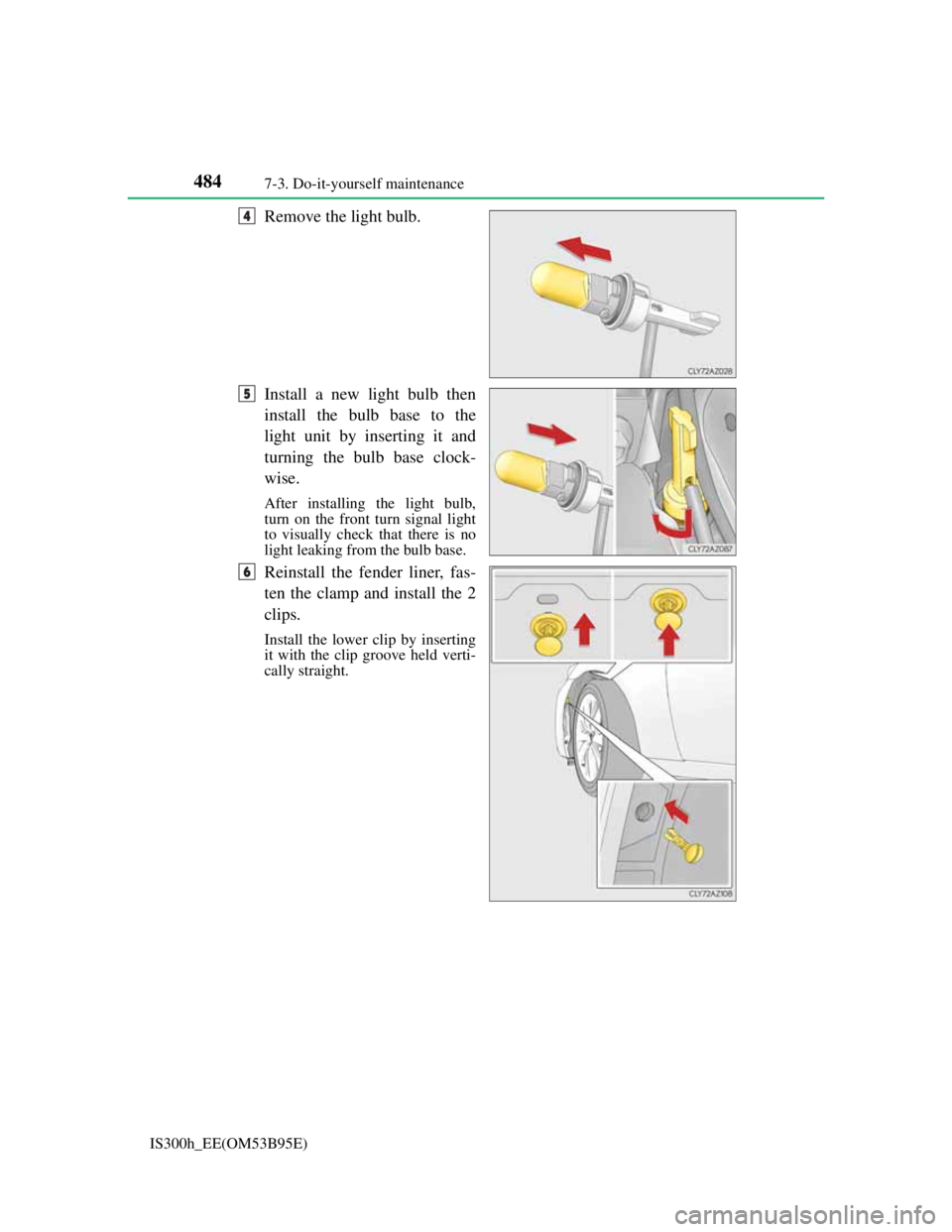

Remove the light bulb.
Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
After installing the light bulb,
turn on the front turn signal light
to visually check that there is no
light leaking from the bulb base.
Reinstall the fender liner, fas-
ten the clamp and install the 2
clips.
Install the lower clip by inserting
it with the clip groove held verti-
cally straight.
4
5
6

4857-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53B95E)

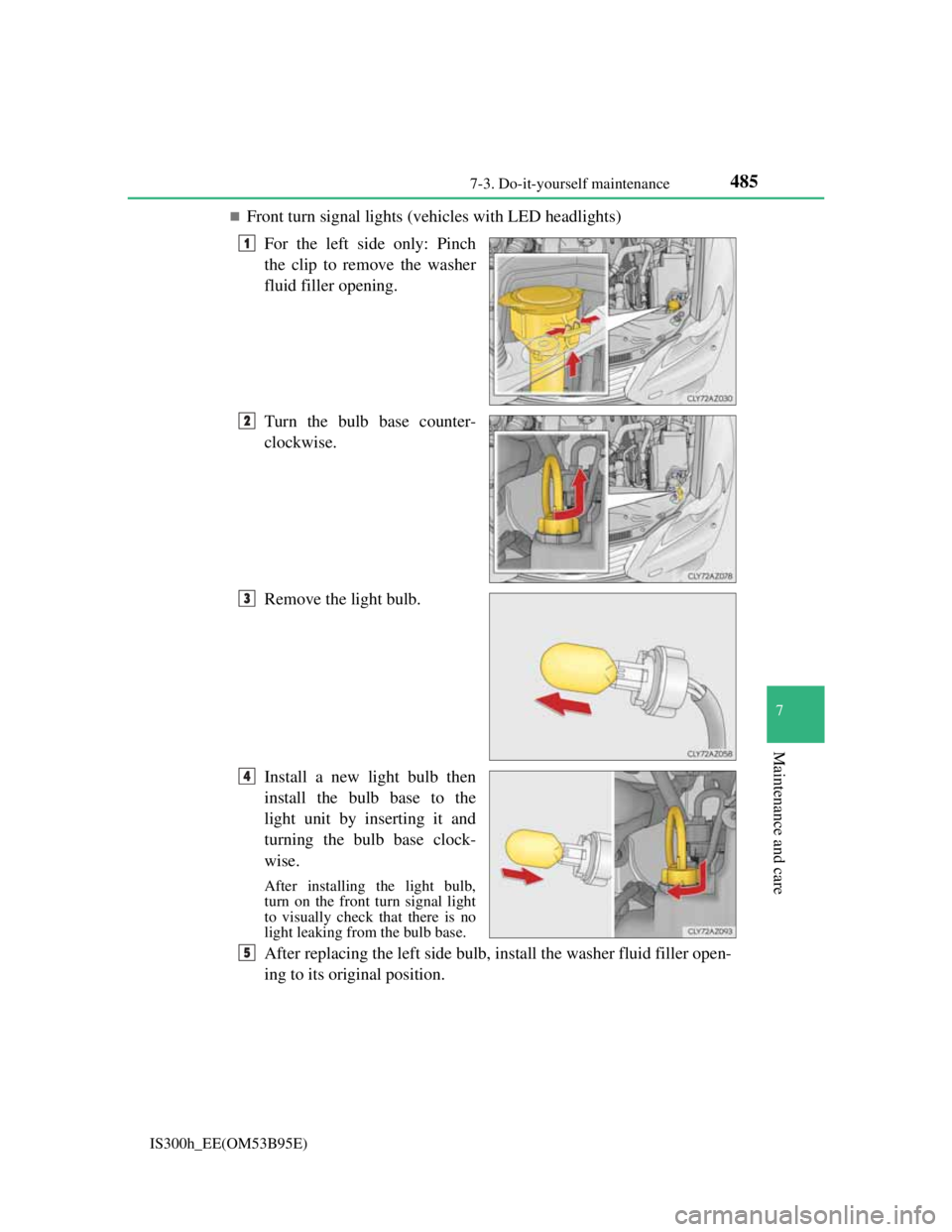

Front turn signal lights (vehicles with LED headlights)
For the left side only: Pinch
the clip to remove the washer
fluid filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.
After installing the light bulb,
turn on the front turn signal light
to visually check that there is no
light leaking from the bulb base.
After replacing the left side bulb, install the washer fluid filler open-
ing to its original position.
1
2
3
4
5

4867-3. Do-it-yourself maintenance
IS300h_EE(OM53B95E)

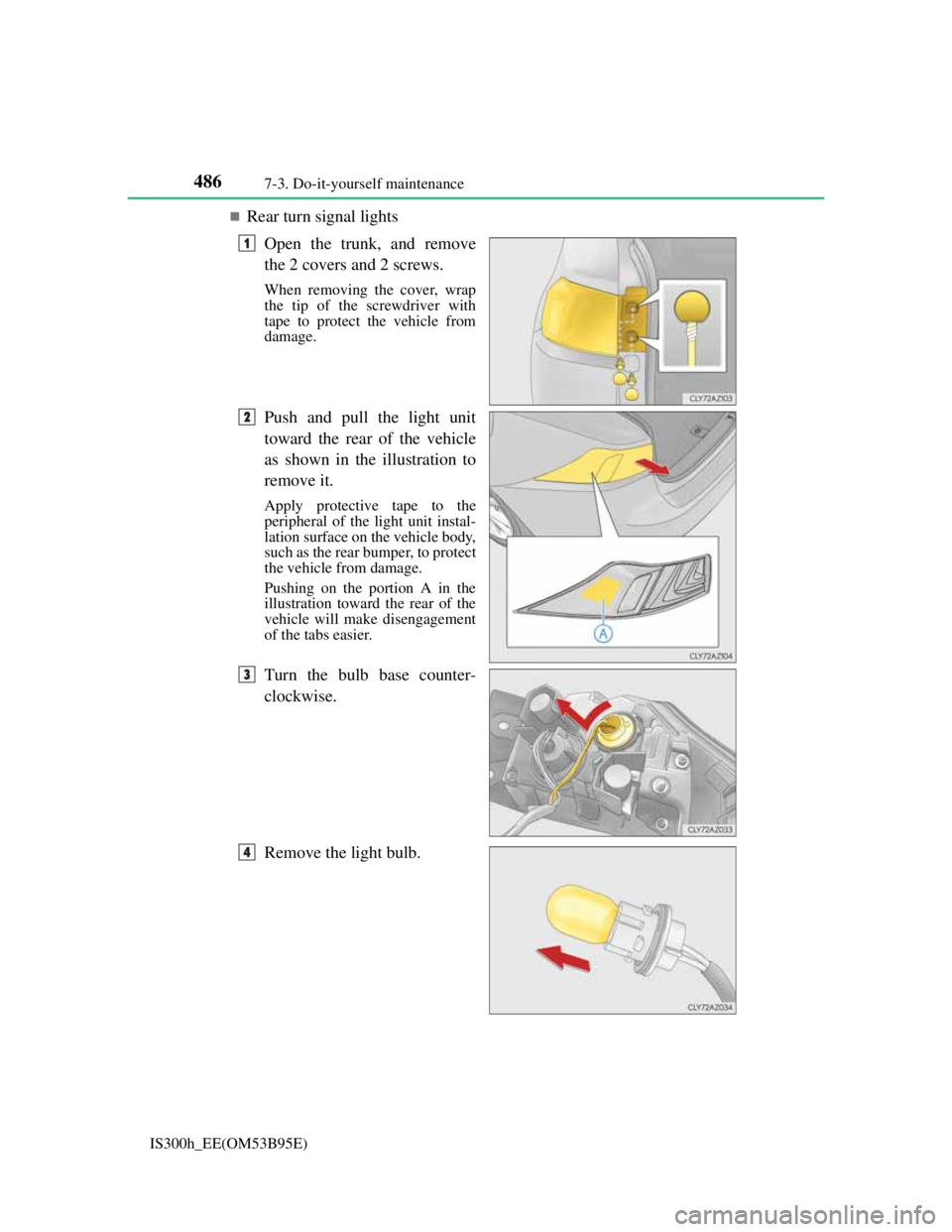

Rear turn signal lights
Open the trunk, and remove
the 2 covers and 2 screws.
When removing the cover, wrap
the tip of the screwdriver with
tape to protect the vehicle from
damage.
Push and pull the light unit
toward the rear of the vehicle
as shown in the illustration to
remove it.
Apply protective tape to the
peripheral of the light unit instal-
lation surface on the vehicle body,
such as the rear bumper, to protect
the vehicle from damage.
Pushing on the portion A in the
illustration toward the rear of the
vehicle will make disengagement
of the tabs easier.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3
4
